Big Bird.
(scaling twitter)

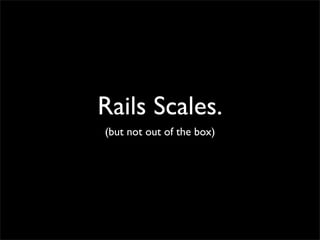

Rails Scales.
(but not out of the box)
First, Some Facts
• 600 requests per second. Growing fast.
• 180 Rails Instances (Mongrel). Growing fast.
• 1 Database Server (MySQL) + 1 Slave.
• 30-odd Processes for Misc. Jobs
• 8 Sun X4100s
• Many users, many updates.
Scaling Twitter
Scaling Twitter
Scaling Twitter
Joy          Pain




Oct   Nov   Dec    Jan   Feb     March   Apr
IM IN UR RAILZ




     MAKIN EM GO FAST
It’s Easy, Really.
1. Realize Your Site is Slow
2. Optimize the Database
3. Cache the Hell out of Everything
4. Scale Messaging
5. Deal With Abuse
It’s Easy, Really.
1. Realize Your Site is Slow
2. Optimize the Database
3. Cache the Hell out of Everything
4. Scale Messaging
5. Deal With Abuse
6. Profit
the
     more
      you
        know

{ Part the First }
We Failed at This.
Don’t Be Like Us

• Munin
• Nagios
• AWStats & Google Analytics
• Exception Notifier / Exception Logger
• Immediately add reporting to track problems.
Test Everything

•   Start Before You Start

•   No Need To Be Fancy

•   Tests Will Save Your Life

•   Agile Becomes
    Important When Your
    Site Is Down
<!-- served to you through a copper wire by sampaati at 22 Apr
    15:02 in 343 ms (d 102 / r 217). thank you, come again. -->
 <!-- served to you through a copper wire by kolea.twitter.com at
22 Apr 15:02 in 235 ms (d 87 / r 130). thank you, come again. -->
 <!-- served to you through a copper wire by raven.twitter.com at
22 Apr 15:01 in 450 ms (d 96 / r 337). thank you, come again. -->



                  Benchmarks?
                       let your users do it.
 <!-- served to you through a copper wire by kolea.twitter.com at
22 Apr 15:00 in 409 ms (d 88 / r 307). thank you, come again. -->
  <!-- served to you through a copper wire by firebird at 22 Apr
   15:03 in 2094 ms (d 643 / r 1445). thank you, come again. -->
   <!-- served to you through a copper wire by quetzal at 22 Apr
     15:01 in 384 ms (d 70 / r 297). thank you, come again. -->
The Database
  { Part the Second }
“The Next Application I Build is Going
to Be Easily Partitionable” - S. Butterfield
“The Next Application I Build is Going
to Be Easily Partitionable” - S. Butterfield
“The Next Application I Build is Going
to Be Easily Partitionable” - S. Butterfield
Too Late.
Index Everything
class AddIndex < ActiveRecord::Migration
     def self.up
       add_index :users, :email
     end

     def self.down
       remove_index :users, :email
     end
   end


Repeat for any column that appears in a WHERE clause

             Rails won’t do this for you.
Denormalize A Lot
class DenormalizeFriendsIds < ActiveRecord::Migration
  def self.up
    add_column "users", "friends_ids", :text
  end

  def self.down
    remove_column "users", "friends_ids"
  end
end
class Friendship < ActiveRecord::Base
  belongs_to :user
  belongs_to :friend

 after_create :add_to_denormalized_friends
 after_destroy :remove_from_denormalized_friends

  def add_to_denormalized_friends
    user.friends_ids << friend.id
    user.friends_ids.uniq!
    user.save_without_validation
  end

  def remove_from_denormalized_friends
    user.friends_ids.delete(friend.id)
    user.save_without_validation
  end
end
Don’t be Stupid
bob.friends.map(&:email)
     Status.count()
“email like ‘%#{search}%’”
That’s where we are.
                  Seriously.
  If your Rails application is doing anything more
complex than that, you’re doing something wrong*.



        * or you observed the First Rule of Butterfield.
Partitioning Comes Later.
   (we’ll let you know how it goes)
The Cache
 { Part the Third }
MemCache
MemCache
MemCache
!
class Status < ActiveRecord::Base
  class << self
    def count_with_memcache(*args)
      return count_without_memcache unless args.empty?
      count = CACHE.get(“status_count”)
      if count.nil?
        count = count_without_memcache
        CACHE.set(“status_count”, count)
      end
      count
    end
    alias_method_chain :count, :memcache
  end
  after_create :increment_memcache_count
  after_destroy :decrement_memcache_count
  ...
end
class User < ActiveRecord::Base
  def friends_statuses
    ids = CACHE.get(“friends_statuses:#{id}”)
    Status.find(:all, :conditions => [“id IN (?)”, ids])
  end
end

class Status < ActiveRecord::Base
  after_create :update_caches
  def update_caches
    user.friends_ids.each do |friend_id|
      ids = CACHE.get(“friends_statuses:#{friend_id}”)
      ids.pop
      ids.unshift(id)
      CACHE.set(“friends_statuses:#{friend_id}”, ids)
    end
  end
end
The Future


            ve d
          ti r
         co
         Ac
           e
         R
90% API Requests
     Cache Them!
“There are only two hard things in CS:
 cache invalidation and naming things.”

             – Phil Karlton, via Tim Bray
Messaging
{ Part the Fourth }
You Already Knew All
That Other Stuff, Right?

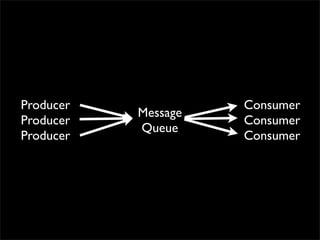

Producer             Consumer
           Message
Producer             Consumer
           Queue
Producer             Consumer

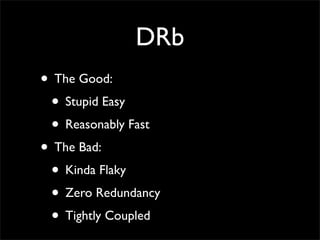

DRb
• The Good:
 • Stupid Easy
 • Reasonably Fast
• The Bad:
 • Kinda Flaky
 • Zero Redundancy
 • Tightly Coupled
ejabberd


            Jabber Client
                (drb)




           Incoming         Outgoing
Presence
           Messages         Messages


              MySQL
Server
     DRb.start_service ‘druby://localhost:10000’, myobject




                         Client
myobject = DRbObject.new_with_uri(‘druby://localhost:10000’)
Rinda

• Shared Queue (TupleSpace)
• Built with DRb
• RingyDingy makes it stupid easy
• See Eric Hodel’s documentation
• O(N) for take(). Sigh.
Timestamp: 12/22/06 01:53:14 (4 months ago)
      Author: lattice
      Message: Fugly. Seriously. Fugly.




        SELECT * FROM messages WHERE
substring(truncate(id,0),-2,1) = #{@fugly_dist_idx}
It Scales.
(except it stopped on Tuesday)
Options

• ActiveMQ (Java)
• RabbitMQ (erlang)
• MySQL + Lightweight Locking
• Something Else?
erlang?


What are you doing?
 Stabbing my eyes out with a fork.
Starling

• Ruby, will be ported to something faster
• 4000 transactional msgs/s
• First pass written in 4 hours
• Speaks MemCache (set, get)
Use Messages to
Invalidate Cache
   (it’s really not that hard)
Abuse
{ Part the Fifth }
The Italians
9000 friends in 24 hours
        (doesn’t scale)
http://flickr.com/photos/heather/464504545/
http://flickr.com/photos/curiouskiwi/165229284/
http://flickr.com/photo_zoom.gne?id=42914103&size=l
http://flickr.com/photos/madstillz/354596905/
http://flickr.com/photos/laughingsquid/382242677/
http://flickr.com/photos/bng/46678227/
