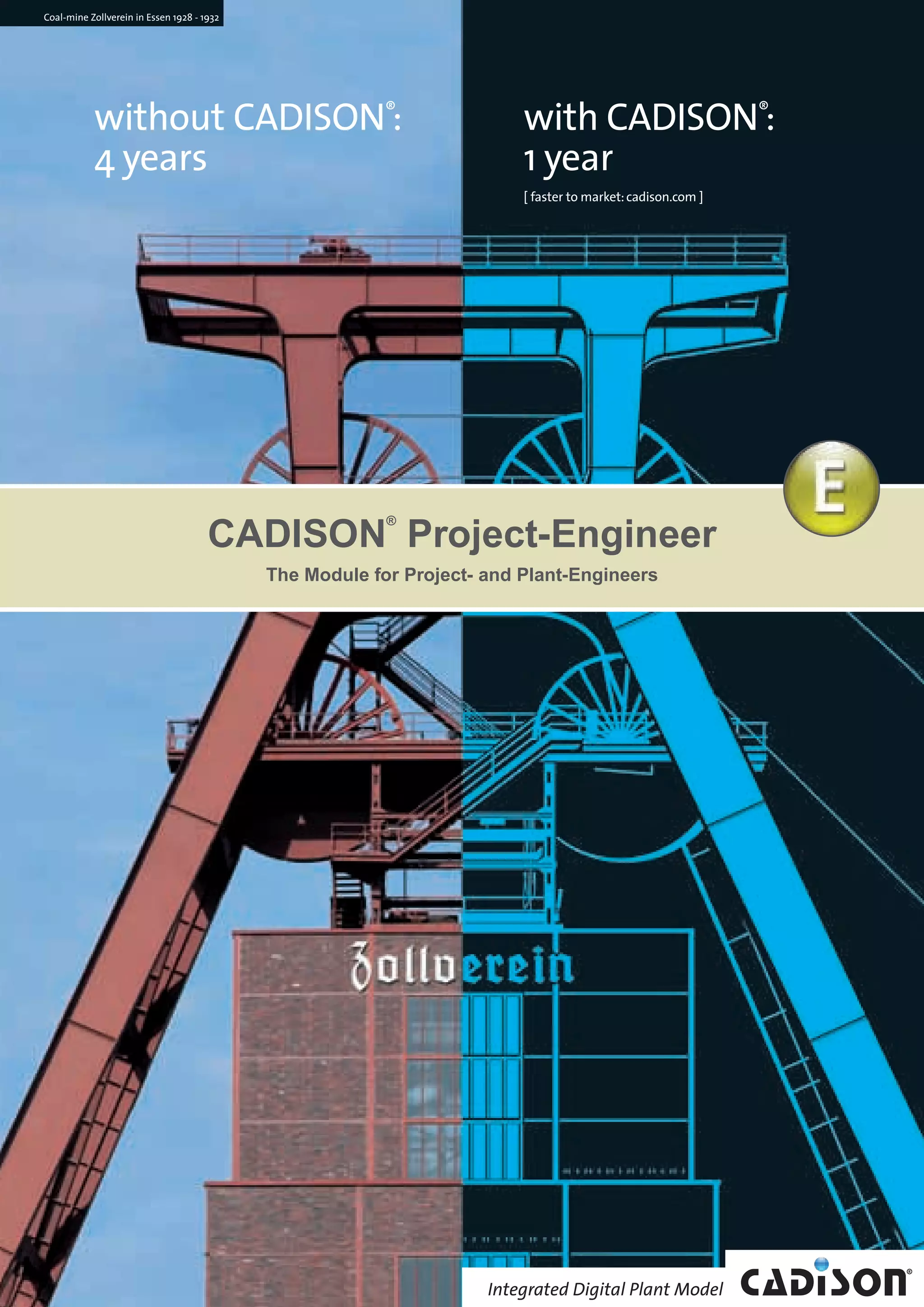

1. without CADISON®
:
4 years
with CADISON®
:
1 year
[ faster to market:cadison.com ]
Coal-mine Zollverein in Essen 1928 - 1932
The Module for Project- and Plant-Engineers
CADISON
®
Project-Engineer
CADISON_Module_R10_12_10_EN:Project-Engineer 18.12.2010 14:22 Uhr Seite 1

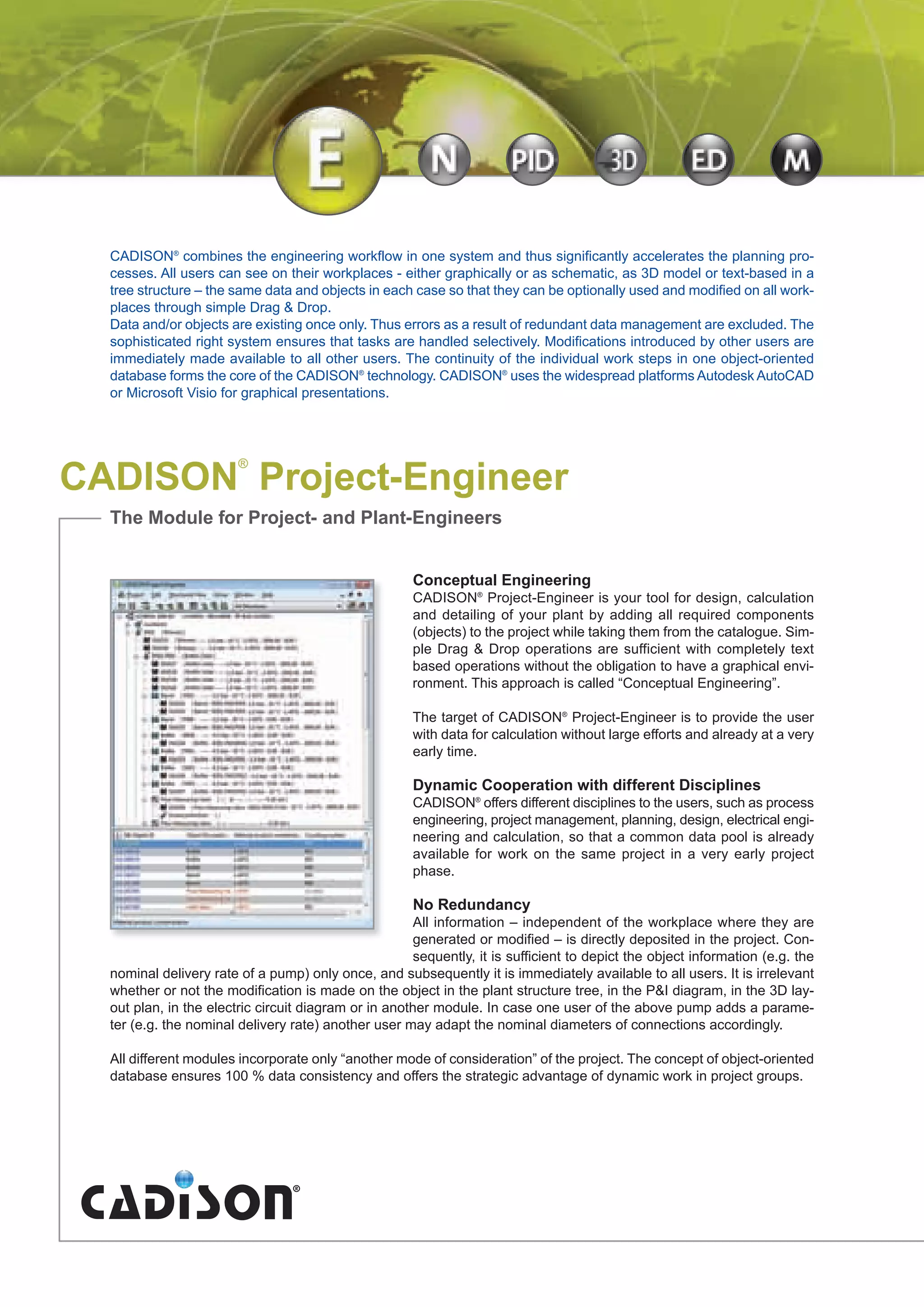

2. Conceptual Engineering
CADISON®
Project-Engineer is your tool for design, calculation
and detailing of your plant by adding all required components
(objects) to the project while taking them from the catalogue. Sim-
ple Drag & Drop operations are sufficient with completely text
based operations without the obligation to have a graphical envi-
ronment. This approach is called “Conceptual Engineering”.
The target of CADISON®
Project-Engineer is to provide the user
with data for calculation without large efforts and already at a very
early time.
Dynamic Cooperation with different Disciplines
CADISON®
offers different disciplines to the users, such as process
engineering, project management, planning, design, electrical engi-
neering and calculation, so that a common data pool is already
available for work on the same project in a very early project
phase.
No Redundancy
All information – independent of the workplace where they are
generated or modified – is directly deposited in the project. Con-
sequently, it is sufficient to depict the object information (e.g. the
nominal delivery rate of a pump) only once, and subsequently it is immediately available to all users. It is irrelevant
whether or not the modification is made on the object in the plant structure tree, in the P&I diagram, in the 3D lay-
out plan, in the electric circuit diagram or in another module. In case one user of the above pump adds a parame-
ter (e.g. the nominal delivery rate) another user may adapt the nominal diameters of connections accordingly.
All different modules incorporate only “another mode of consideration” of the project. The concept of object-oriented
database ensures 100 % data consistency and offers the strategic advantage of dynamic work in project groups.
CADISON
®
Project-Engineer
The Module for Project- and Plant-Engineers
CADISON®
combines the engineering workflow in one system and thus significantly accelerates the planning pro-
cesses. All users can see on their workplaces - either graphically or as schematic, as 3D model or text-based in a
tree structure – the same data and objects in each case so that they can be optionally used and modified on all work-
places through simple Drag & Drop.
Data and/or objects are existing once only. Thus errors as a result of redundant data management are excluded. The
sophisticated right system ensures that tasks are handled selectively. Modifications introduced by other users are
immediately made available to all other users. The continuity of the individual work steps in one object-oriented
database forms the core of the CADISON®
technology. CADISON®
uses the widespread platforms Autodesk AutoCAD
or Microsoft Visio for graphical presentations.
CADISON_Module_R10_12_10_EN:Project-Engineer 18.12.2010 14:22 Uhr Seite 2

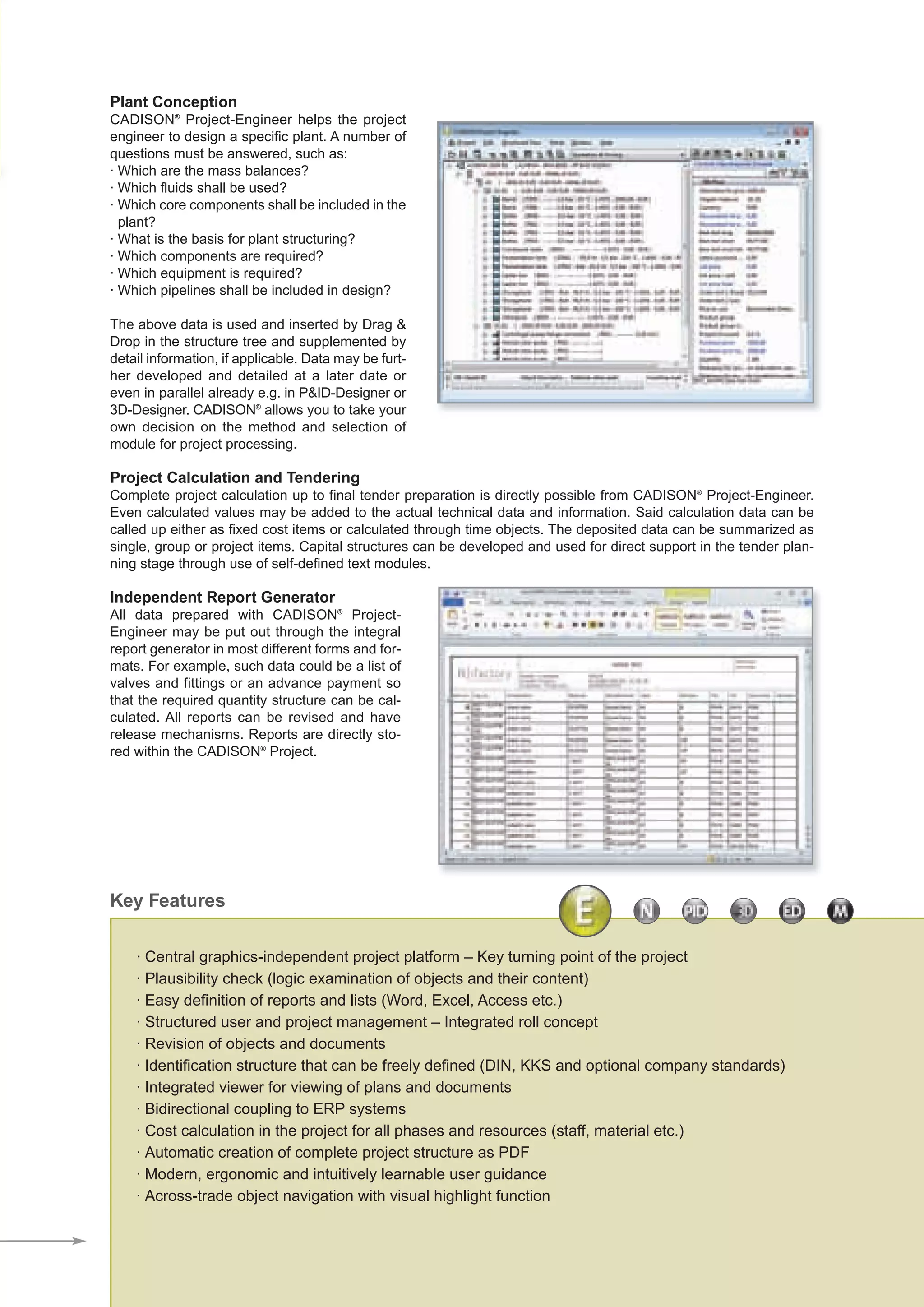

3. Plant Conception
CADISON®
Project-Engineer helps the project
engineer to design a specific plant. A number of
questions must be answered, such as:
· Which are the mass balances?
· Which fluids shall be used?
· Which core components shall be included in the
plant?
· What is the basis for plant structuring?
· Which components are required?
· Which equipment is required?
· Which pipelines shall be included in design?
The above data is used and inserted by Drag &
Drop in the structure tree and supplemented by
detail information, if applicable. Data may be furt-
her developed and detailed at a later date or
even in parallel already e.g. in P&ID-Designer or
3D-Designer. CADISON®
allows you to take your
own decision on the method and selection of
module for project processing.
Project Calculation and Tendering
Complete project calculation up to final tender preparation is directly possible from CADISON®
Project-Engineer.
Even calculated values may be added to the actual technical data and information. Said calculation data can be
called up either as fixed cost items or calculated through time objects. The deposited data can be summarized as
single, group or project items. Capital structures can be developed and used for direct support in the tender plan-
ning stage through use of self-defined text modules.
Independent Report Generator
All data prepared with CADISON®
Project-
Engineer may be put out through the integral
report generator in most different forms and for-
mats. For example, such data could be a list of
valves and fittings or an advance payment so
that the required quantity structure can be cal-
culated. All reports can be revised and have
release mechanisms. Reports are directly sto-
red within the CADISON®
Project.
· Central graphics-independent project platform – Key turning point of the project
· Plausibility check (logic examination of objects and their content)
· Easy definition of reports and lists (Word, Excel, Access etc.)
· Structured user and project management – Integrated roll concept
· Revision of objects and documents
· Identification structure that can be freely defined (DIN, KKS and optional company standards)
· Integrated viewer for viewing of plans and documents
· Bidirectional coupling to ERP systems
· Cost calculation in the project for all phases and resources (staff, material etc.)
· Automatic creation of complete project structure as PDF
· Modern, ergonomic and intuitively learnable user guidance
· Across-trade object navigation with visual highlight function
Key Features
CADISON_Module_R10_12_10_EN:Project-Engineer 18.12.2010 14:22 Uhr Seite 3

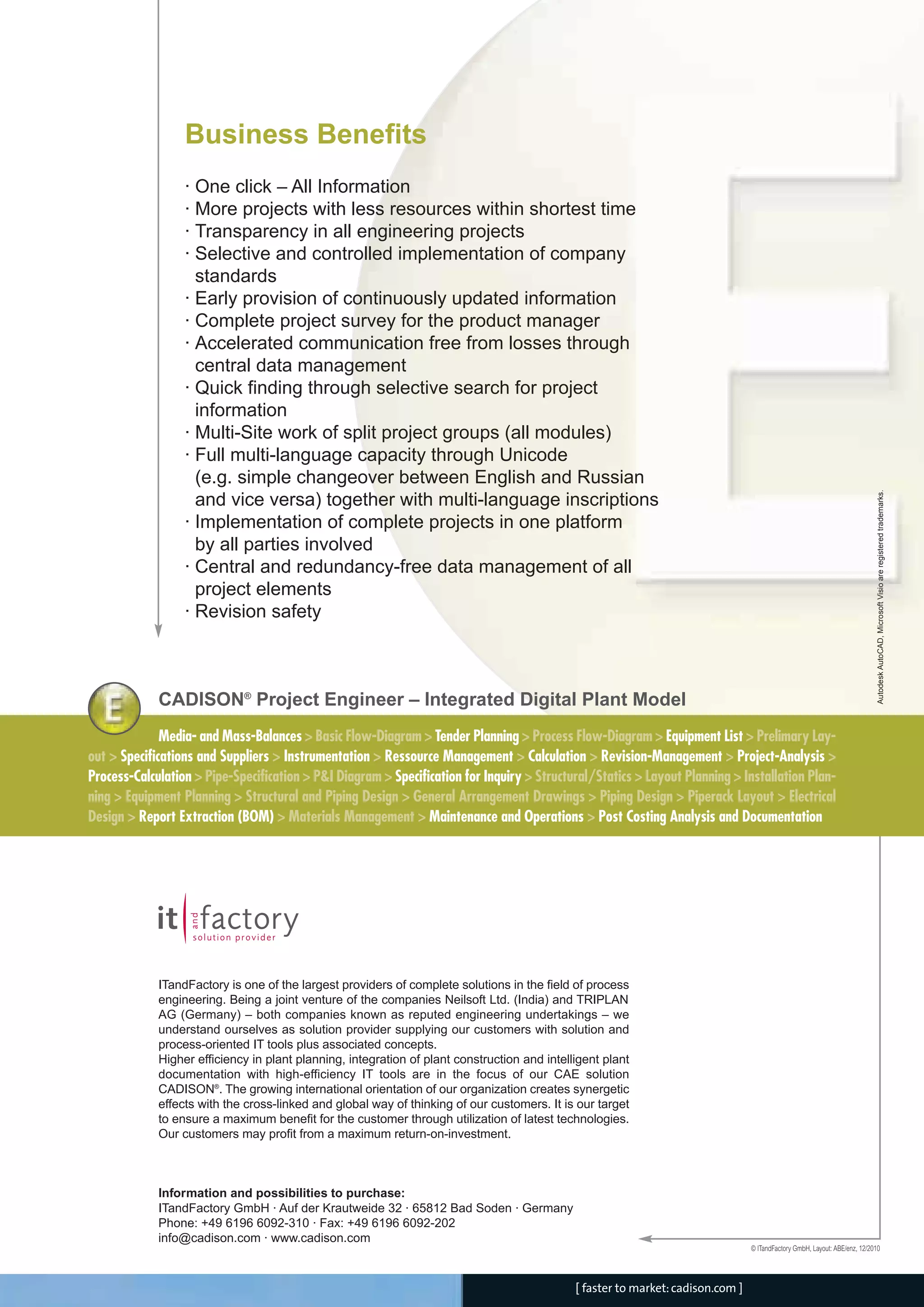

4. Business Benefits
· One click – All Information
· More projects with less resources within shortest time
· Transparency in all engineering projects
· Selective and controlled implementation of company
standards
· Early provision of continuously updated information
· Complete project survey for the product manager
· Accelerated communication free from losses through
central data management
· Quick finding through selective search for project
information
· Multi-Site work of split project groups (all modules)
· Full multi-language capacity through Unicode
(e.g. simple changeover between English and Russian
and vice versa) together with multi-language inscriptions
· Implementation of complete projects in one platform
by all parties involved
· Central and redundancy-free data management of all
project elements
· Revision safety
© ITandFactory GmbH, Layout: ABE/enz, 12/2010
AutodeskAutoCAD,MicrosoftVisioareregisteredtrademarks.
ITandFactory is one of the largest providers of complete solutions in the field of process
engineering. Being a joint venture of the companies Neilsoft Ltd. (India) and TRIPLAN
AG (Germany) – both companies known as reputed engineering undertakings – we
understand ourselves as solution provider supplying our customers with solution and
process-oriented IT tools plus associated concepts.
Higher efficiency in plant planning, integration of plant construction and intelligent plant
documentation with high-efficiency IT tools are in the focus of our CAE solution
CADISON®
. The growing international orientation of our organization creates synergetic
effects with the cross-linked and global way of thinking of our customers. It is our target
to ensure a maximum benefit for the customer through utilization of latest technologies.
Our customers may profit from a maximum return-on-investment.
Information and possibilities to purchase:
ITandFactory GmbH · Auf der Krautweide 32 · 65812 Bad Soden · Germany
Phone: +49 6196 6092-310 · Fax: +49 6196 6092-202
info@cadison.com · www.cadison.com
[ faster to market:cadison.com ]
Media- and Mass-Balances > Basic Flow-Diagram > Tender Planning > Process Flow-Diagram > Equipment List > Prelimary Lay-
out > Specifications and Suppliers > Instrumentation > Ressource Management > Calculation > Revision-Management > Project-Analysis >
Process-Calculation > Pipe-Specification > P&I Diagram > Specification for Inquiry > Structural/Statics > Layout Planning > Installation Plan-
ning > Equipment Planning > Structural and Piping Design > General Arrangement Drawings > Piping Design > Piperack Layout > Electrical
Design > Report Extraction (BOM) > Materials Management > Maintenance and Operations > Post Costing Analysis and Documentation
CADISON®
Project Engineer – Integrated Digital Plant Model
