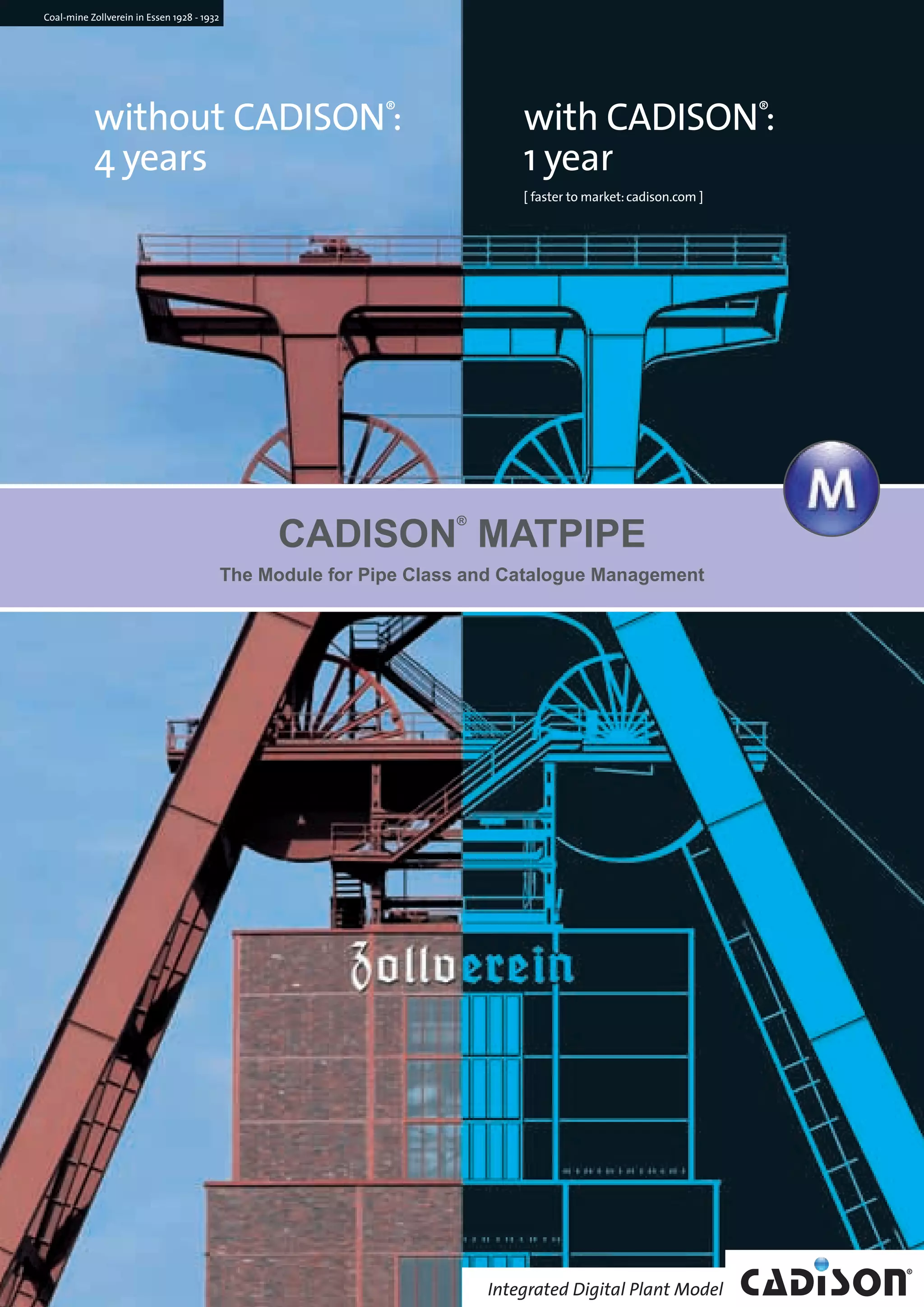

CADISON MATPIPE
1. without CADISON®
:
4 years
with CADISON®
:
1 year
[ faster to market:cadison.com ]
Coal-mine Zollverein in Essen 1928 - 1932
The Module for Pipe Class and Catalogue Management
CADISON
®
MATPIPE
CADISON_Module_R10_12_10_EN:MATPIPE 18.12.2010 15:08 Uhr Seite 1

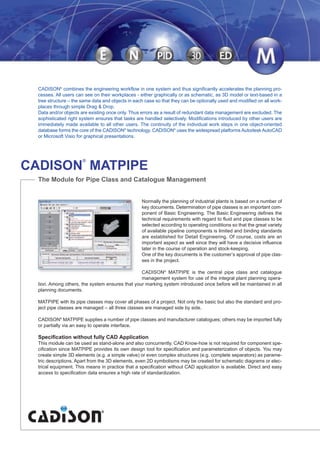

2. Normally the planning of industrial plants is based on a number of
key documents. Determination of pipe classes is an important com-
ponent of Basic Engineering. The Basic Engineering defines the
technical requirements with regard to fluid and pipe classes to be
selected according to operating conditions so that the great variety
of available pipeline components is limited and binding standards
are established for Detail Engineering. Of course, costs are an
important aspect as well since they will have a decisive influence
later in the course of operation and stock-keeping.
One of the key documents is the customer’s approval of pipe clas-
ses in the project.
CADISON®
MATPIPE is the central pipe class and catalogue
management system for use of the integral plant planning opera-
tion. Among others, the system ensures that your marking system introduced once before will be maintained in all
planning documents.
MATPIPE with its pipe classes may cover all phases of a project. Not only the basic but also the standard and pro-
ject pipe classes are managed – all three classes are managed side by side.
CADISON®
MATPIPE supplies a number of pipe classes and manufacturer catalogues; others may be imported fully
or partially via an easy to operate interface.
Specification without fully CAD Application
This module can be used as stand-alone and also concurrently. CAD Know-how is not required for component spe-
cification since MATPIPE provides its own design tool for specification and parameterization of objects. You may
create simple 3D elements (e.g. a simple valve) or even complex structures (e.g. complete separators) as parame-
tric descriptions. Apart from the 3D elements, even 2D symbolisms may be created for schematic diagrams or elec-
trical equipment. This means in practice that a specification without CAD application is available. Direct and easy
access to specification data ensures a high rate of standardization.
CADISON
®
MATPIPE
The Module for Pipe Class and Catalogue Management
CADISON®
combines the engineering workflow in one system and thus significantly accelerates the planning pro-
cesses. All users can see on their workplaces - either graphically or as schematic, as 3D model or text-based in a
tree structure – the same data and objects in each case so that they can be optionally used and modified on all work-
places through simple Drag & Drop.
Data and/or objects are existing once only. Thus errors as a result of redundant data management are excluded. The
sophisticated right system ensures that tasks are handled selectively. Modifications introduced by other users are
immediately made available to all other users. The continuity of the individual work steps in one object-oriented
database forms the core of the CADISON®
technology. CADISON®
uses the widespread platforms Autodesk AutoCAD
or Microsoft Visio for graphical presentations.
CADISON_Module_R10_12_10_EN:MATPIPE 18.12.2010 15:08 Uhr Seite 2
3. Simple Intuitive Surface
CADISON®
MATPIPE can be operated intuitively
through a user surface that is easy and rapid to ope-
rate. For instance, the manufacturer catalogue data
are listed in own columns and the 3D graphic is visible
through a 3D variant modeller. All properties or depen-
dencies can be optionally modified in the catalogue.
The component data can be imported and exported
via different formats (CSV, XLS etc.).
Advantages of Catalogue Data
All parties involved in the project may immediately use
and implement the pipe classes, catalogue data etc. in
their respective project. Of course, the access to
embedded manufacturer catalogues according to defi-
ned pipe classes is possible from all modules.
For instance: In the design phase the CADISON®
3D planner has access either to the catalogue and pipe class data
allocated to the project or – provided the user is authorized to do so – directly to the overall catalogue. In case spe-
cific special components not included in the catalogue are needed, the existing components may be adapted to the
specific requirements. The necessary certificates and documents will be directly allocated to the special component
through the PDM system integrated in CADISON®
.
Tracing of Modifications
While projects are under work, objects from catalogues are incorporated into the respective planning. A sophistica-
ted role-based right system controls who is allowed to process and introduce the respective objects.
In the practical application it might occur that the content of catalogues is changed during the duration of the pro-
ject. To identify such modifications, CADISON®
MATPIPE provides integral functions for identification of such modi-
fications. Thus catalogue and/or planning modifications can be recognized and eliminated, for instance prior to order
placement.
Independent Report Generator
All pipe classes and catalogue descriptions prepared by means of CADISON®
MATPIPE can be issued by the inte-
grated report generator in most different forms and formats. All reports can be revised and have release mechanisms.
They are stored directly within the CADISON®
project. All documents can be presented even automatically as PDF.
· Knowledge-based modular creation of components
· Preparation of basic, standard and project pipe classes, e.g. to PAS 1057-1
· Simple import of manufacturer catalogue data
· Parametric variant modelling for preparation of 3D variants
· Automated creation of components through neutral import
· Efficient search function
· Integration of manufacturer documents (certificates, test reports, ATEX certificates etc.)
· Rule-based component configuration (e.g. basic valve body with different actuators)
· Work with replicas in linked pipe classes
· Rapid check of drawings for topical catalogue entries
· Automatic rule-based adjustment between MATPIPE and the project through the catalogue control system
· Structured catalogue composition through creation of chapters
· Simple and comfortable extension of catalogues and data structures
· User and role-based access mechanisms
Key Features
CADISON_Module_R10_12_10_EN:MATPIPE 18.12.2010 15:08 Uhr Seite 3
