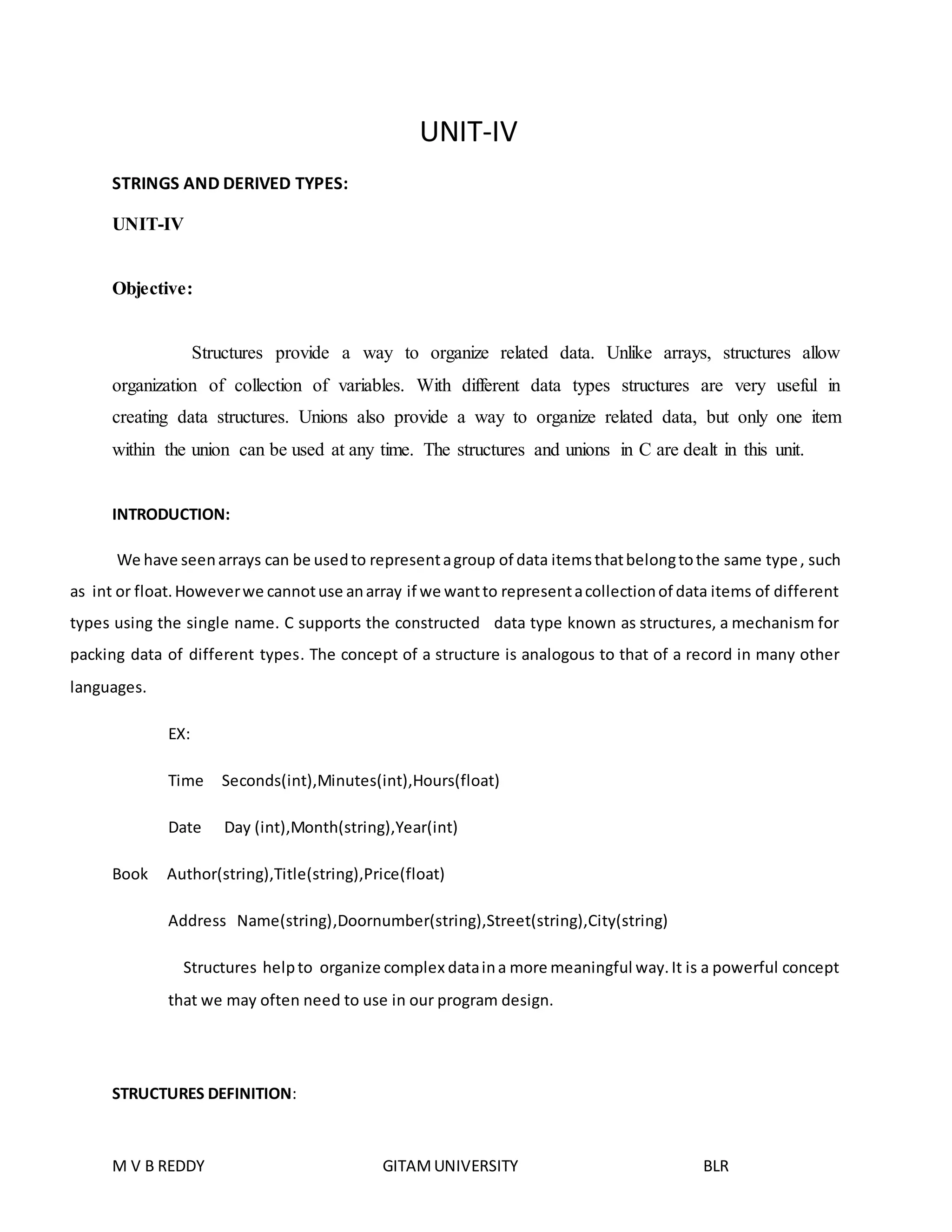

1. UNIT-IV
STRINGS AND DERIVED TYPES:
UNIT-IV
Objective:
Structures provide a way to organize related data. Unlike arrays, structures allow
organization of collection of variables. With different data types structures are very useful in
creating data structures. Unions also provide a way to organize related data, but only one item
within the union can be used at any time. The structures and unions in C are dealt in this unit.
INTRODUCTION:
We have seen arrays can be used to represent a group of data items that belong to the same type , such
as int or float. However we cannot use an array if we want to represent a collection of data items of different
types using the single name. C supports the constructed data type known as structures, a mechanism for
packing data of different types. The concept of a structure is analogous to that of a record in many other
languages.
EX:
Time Seconds(int),Minutes(int),Hours(float)
Date Day (int),Month(string),Year(int)
Book Author(string),Title(string),Price(float)
Address Name(string),Doornumber(string),Street(string),City(string)
Structures help to organize complex data in a more meaningful way. It is a powerful concept
that we may often need to use in our program design.
STRUCTURES DEFINITION:
M V B REDDY GITAM UNIVERSITY BLR

2. A structure in C is heterogeneous compound data type, similar to the records of data base and
PASCAL. It is collection of logically related data items grouped together under a single name called
structure tag. The data items that make up a structure are known as its members, components, or fields
and can be of different type.
THE GENERAL FORMAT:
struct tag
{
type var1;
type var2;
type var3;
.
.
.
.
.
type varn;
};
Ex: struct book_bank
{
char title[25];
char author[20];
M V B REDDY GITAM UNIVERSITY BLR

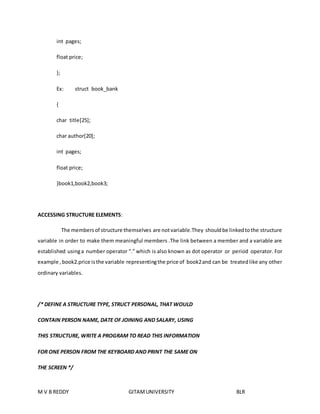

3. int pages;
float price;
};
Ex: struct book_bank
{
char title[25];
char author[20];
int pages;
float price;
}book1,book2,book3;
ACCESSING STRUCTURE ELEMENTS:
The members of structure themselves are not variable.They should be linked to the structure
variable in order to make them meaningful members .The link between a member and a variable are
established using a number operator “.” which is also known as dot operator or period operator. For
example , book2.price is the variable representing the price of book2 and can be treated like any other
ordinary variables.
/* DEFINE A STRUCTURE TYPE, STRUCT PERSONAL, THAT WOULD
CONTAIN PERSON NAME, DATE OF JOINING AND SALARY, USING
THIS STRUCTURE, WRITE A PROGRAM TO READ THIS INFORMATION
FOR ONE PERSON FROM THE KEYBOARD AND PRINT THE SAME ON
THE SCREEN */
M V B REDDY GITAM UNIVERSITY BLR

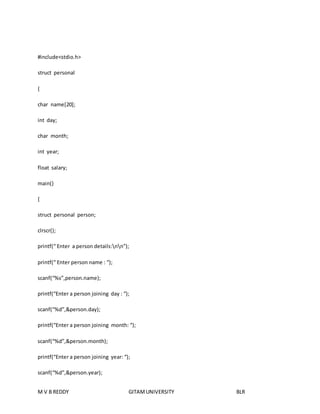

4. #include<stdio.h>
struct personal
{
char name[20];
int day;
char month;
int year;
float salary;
main()
{
struct personal person;
clrscr();
printf(“ Enter a person details:nn”);
printf(“ Enter person name : “);
scanf(“%s”,person.name);
printf(“Enter a person joining day : “);
scanf(“%d”,&person.day);
printf(“Enter a person joining month: “);
scanf(“%d”,&person.month);
printf(“Enter a person joining year: “);
scanf(“%d”,&person.year);
M V B REDDY GITAM UNIVERSITY BLR

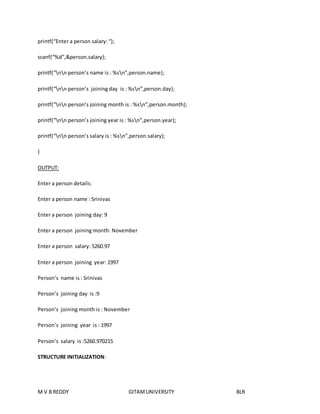

5. printf(“Enter a person salary: “);
scanf(“%d”,&person.salary);
printf(“nn person’s name is : %sn”,person.name);
printf(“nn person’s joining day is : %sn”,person.day);
printf(“nn person’s joining month is : %sn”,person.month);
printf(“nn person’s joining year is : %sn”,person.year);
printf(“nn person’s salary is : %sn”,person.salary);
}
OUTPUT:
Enter a person details:
Enter a person name : Srinivas
Enter a person joining day: 9
Enter a person joining month: November
Enter a person salary: 5260.97
Enter a person joining year: 1997
Person’s name is : Srinivas
Person’s joining day is :9
Person’s joining month is : November
Person’s joining year is : 1997
Person’s salary is :5260.970215
STRUCTURE INITIALIZATION:
M V B REDDY GITAM UNIVERSITY BLR

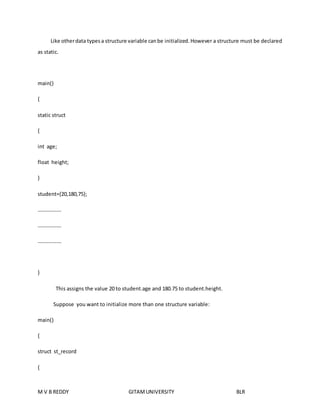

6. Like other data types a structure variable can be initialized. However a structure must be declared
as static.
main()
{
static struct
{
int age;
float height;
}
student={20,180,75};
………………
………………
………………
}
This assigns the value 20 to student.age and 180.75 to student.height.
Suppose you want to initialize more than one structure variable:
main()
{
struct st_record
{
M V B REDDY GITAM UNIVERSITY BLR

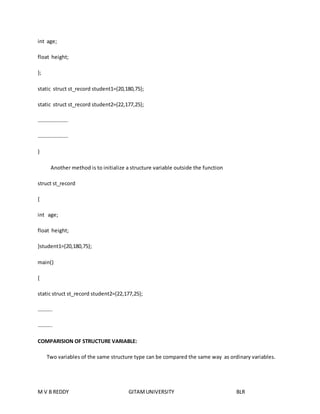

7. int age;
float height;
};
static struct st_record student1={20,180,75};
static struct st_record student2={22,177,25};
…………………..
…………………..
}
Another method is to initialize a structure variable outside the function
struct st_record
{
int age;
float height;
}student1={20,180,75};
main()
{
static struct st_record student2={22,177,25};
………..
………..
COMPARISION OF STRUCTURE VARIABLE:
Two variables of the same structure type can be compared the same way as ordinary variables.
M V B REDDY GITAM UNIVERSITY BLR

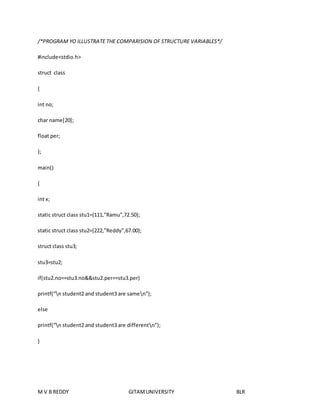

8. /*PROGRAM YO ILLUSTRATE THE COMPARISION OF STRUCTURE VARIABLES*/
#include<stdio.h>
struct class
{
int no;
char name[20];
float per;
};
main()
{
int x;
static struct class stu1={111,”Ramu”,72.50};
static struct class stu2={222,”Reddy”,67.00};
struct class stu3;
stu3=stu2;
if(stu2.no==stu3.no&&stu2.per==stu3.per)
printf(“n student2 and student3 are samen”);
else
printf(“n student2 and student3 are differentn”);
}
M V B REDDY GITAM UNIVERSITY BLR

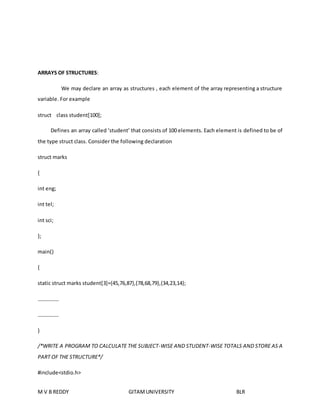

9. ARRAYS OF STRUCTURES:
We may declare an array as structures , each element of the array representing a structure
variable. For example
struct class student[100];
Defines an array called ‘student’ that consists of 100 elements. Each element is defined to be of
the type struct class. Consider the following declaration
struct marks
{
int eng;
int tel;
int sci;
};
main()
{
static struct marks student[3]={45,76,87},{78,68,79},{34,23,14};
…………….
…………….
}
/*WRITE A PROGRAM TO CALCULATE THE SUBJECT-WISE AND STUDENT-WISE TOTALS AND STORE AS A
PART OF THE STRUCTURE*/
#include<stdio.h>
M V B REDDY GITAM UNIVERSITY BLR

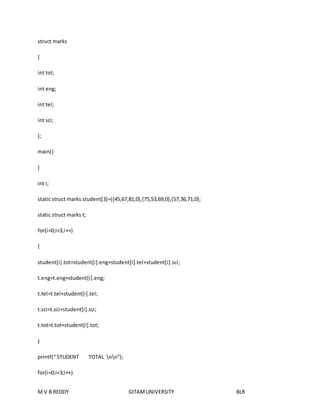

10. struct marks
{
int tot;
int eng;
int tel;
int sci;
};
main()
{
int i;
static struct marks student[3]={{45,67,81,0},{75,53,69,0},{57,36,71,0};
static struct marks t;
for(i=0;i<3,i++)
{
student[i].tot=student[i].eng+student[i].tel+student[i].sci;
t.eng=t.eng+student[i].eng;
t.tel=t.tel+student[i].tel;
t.sci=t.sci+student[i].sci;
t.tot=t.tot+student[i].tot;
}
printf(“ STUDENT TOTAL nn”);
for(i=0;i<3;i++)
M V B REDDY GITAM UNIVERSITY BLR

11. {
printf(“ stu[%d] : %dn”,i+1,stu[i].tot);
printf(“ SUBJECT TOTALnn”);
printf(“English : %dn Telugu : %dn Science : %dn”,t.eng,t.tel,t.sci);
printf(“n Grand total : %dn”,t.tot);
}
ARRAYS WITHIN STRUCTURES:
C permits the use of array as structure member. We can use single or multi -dimensional array
of type int or float.
struct marks
{
int no;
int sub[5];
float fee;
}stu[10];
STRUCTURES WITHIN STRUCTURES:
Structures within structures means nesting of structures .
struct employee
{
char name[30];
int age;
struct
M V B REDDY GITAM UNIVERSITY BLR

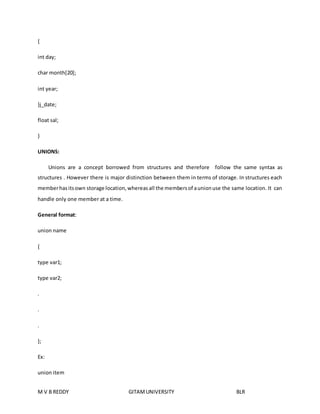

12. {
int day;
char month[20];
int year;
}j_date;
float sal;
}
UNIONS:
Unions are a concept borrowed from structures and therefore follow the same syntax as
structures . However there is major distinction between them in terms of storage. In structures each
member has its own storage location, whereas all the members of a union use the same location. It can
handle only one member at a time.
General format:
union name
{
type var1;
type var2;
.
.
.
};
Ex:
union item
M V B REDDY GITAM UNIVERSITY BLR

13. {
int m;
float x;
char c;
}code;
This declares a variable code of type union item. The union contains three members each with a
different data type.
However we can use only one of them at a time. This is due to the fact that only one location is
allocated for a union variable, irrespective of its size.
65497 65498 65499 65500
c
m
M V B REDDY GITAM UNIVERSITY BLR

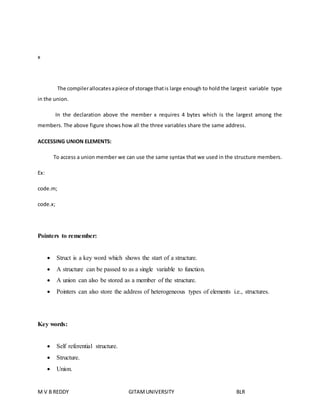

14. x
The compiler allocates a piece of storage that is large enough to hold the largest variable type
in the union.
In the declaration above the member x requires 4 bytes which is the largest among the
members. The above figure shows how all the three variables share the same address.
ACCESSING UNION ELEMENTS:
To access a union member we can use the same syntax that we used in the structure members.
Ex:
code.m;
code.x;
Pointers to remember:
 Struct is a key word which shows the start of a structure.
 A structure can be passed to as a single variable to function.
 A union can also be stored as a member of the structure.
 Pointers can also store the address of heterogeneous types of elements i.e., structures.
Key words:
 Self referential structure.
 Structure.
 Union.
M V B REDDY GITAM UNIVERSITY BLR

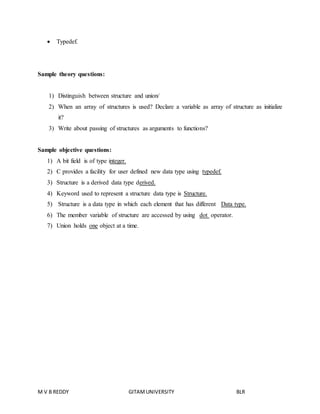

15.  Typedef.
Sample theory questions:
1) Distinguish between structure and union/
2) When an array of structures is used? Declare a variable as array of structure as initialize
it?
3) Write about passing of structures as arguments to functions?
Sample objective questions:
1) A bit field is of type integer.
2) C provides a facility for user defined new data type using typedef.
3) Structure is a derived data type derived.
4) Keyword used to represent a structure data type is Structure.
5) Structure is a data type in which each element that has different Data type.
6) The member variable of structure are accessed by using dot operator.
7) Union holds one object at a time.
