This document discusses flowcharts and provides examples of flowcharts to solve simple problems. It explains that flowcharts use common symbols like rectangles for processes, diamonds for decisions, and arrows for the flow. Sample flowcharts shown include ones to find the sum of two numbers, find the maximum of two numbers, check if a number is odd or even, reverse a number, and find the factorial of a number. Exercises are provided to draw additional flowcharts.

1. C language
flowcharts
PANCHAL KARTIK J
STUDENT OF COMPUTER ENGINEERING

2. ❖ Topic
 Flowcharts
 Examples
 Exercises

3. ❖ Flowcharts
used to start and stop
Or end flow chart
Used for input and
Output operation
Used to represent any
Assignment or expression

4. ❖ Cout….
Condition
Used for any decision
making statements
Indicates flow of sequence
Or control

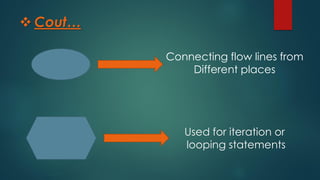

5. ❖ Cout…
Connecting flow lines from
Different places
Used for iteration or
looping statements

6. ❖ Simple flowchart
Draw a flowchart to find sum two number
Start
Read a,b
C = a + b
print “total = “ c
stop
Read to
number
start a program
two number sum
print to the
two number
sum
End of the program

7. Draw a flowchart to find max number from two number
start
Read a,b
a > b
Print “max”
b
Print “min “
b
stop

8. ❖ Exercises
1. Draw a flow chart to find whether give number is ood or even
2. Draw a flow chart to reverse give number e.g. 123 – 321
3. Draw a flow chart to find factorial of given number 1*2*3*…….*n
4. Draw a flow chart to find root of eq 𝑎
𝑥 2
+ 𝑏𝑥 + 𝑐
