C++ IF STATMENT AND ITS TYPE

IF
STATEMENTS
& RELATIONAL
OPERATORS
Decision

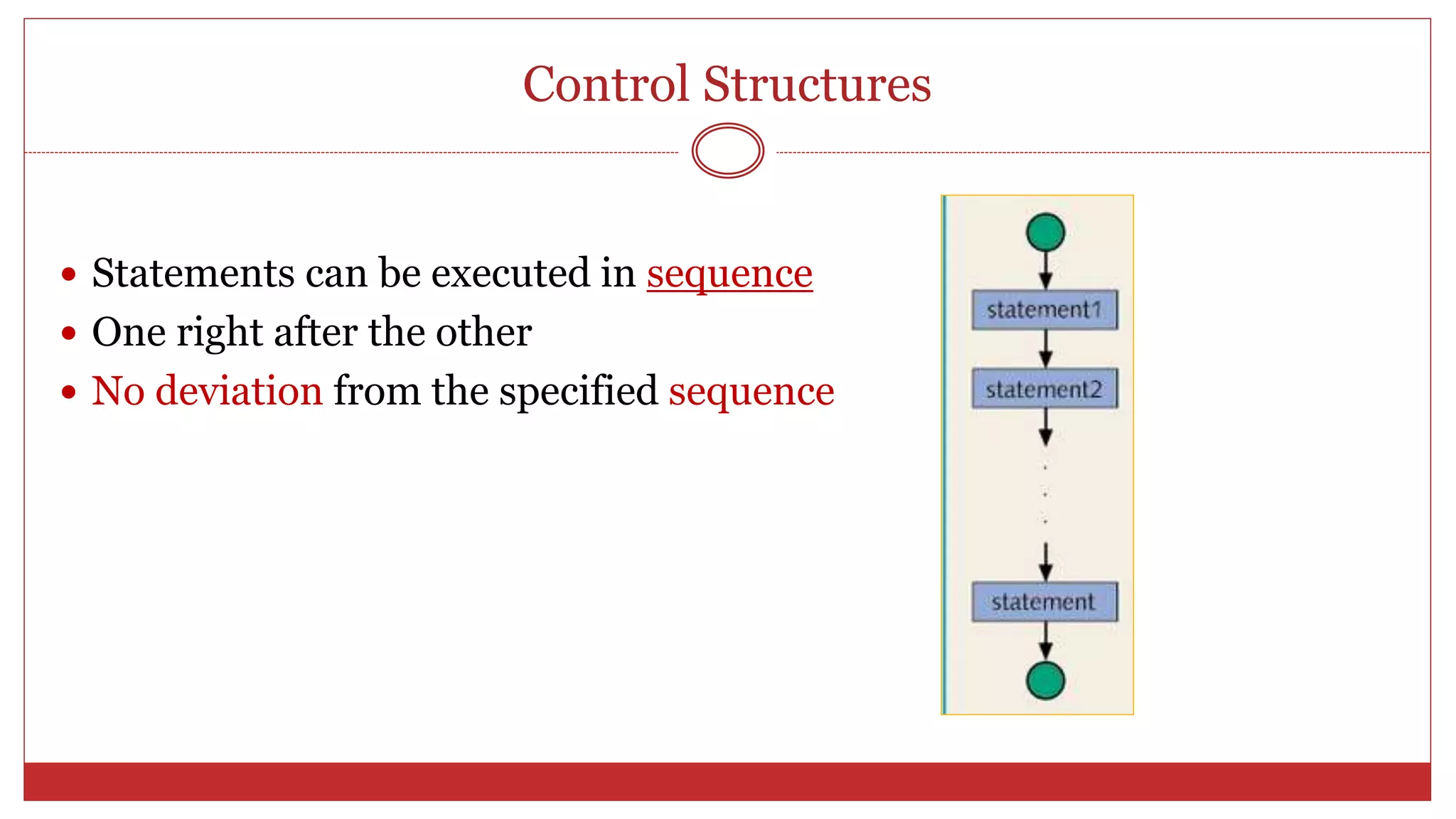

Control Structures
 Statements can be executed in sequence
 One right after the other
 No deviation from the specified sequence

Decision
A mechanism for deciding whether an action should be taken

Conditional Statements
 A conditional statement allows us to control whether a program
segment is executed or not.
 Two constructs
 if statement
 if
 if-else
 if-else-if
 switch statement

Flow Chart Symbols
Start or stop
Process
Continuation mark
Decision
Flow line

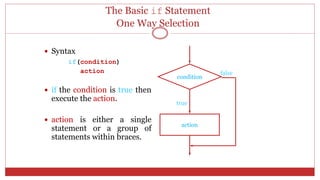

The Basic if Statement
One Way Selection
 Syntax
if(condition)
action
 if the condition is true then
execute the action.
 action is either a single
statement or a group of
statements within braces.
condition
action
true
false

If Statement
One Way Selection
If condition is true
statements
If Ali’s height is greater then 6 feet
Then
Ali can become a member of the Basket
Ball team

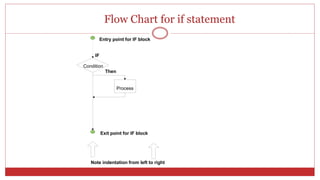

Flow Chart for if statement
Condition
Process
IF
Then
Entry point for IF block
Exit point for IF block
Note indentation from left to right

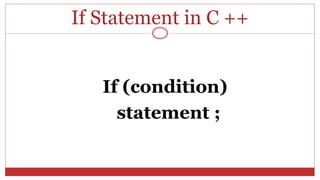

If Statement in C ++
If (condition)
statement ;

Choice (if)
Put multiple action statements
within braces
if (it's raining){
<take umbrella>
<wear raincoat>
}

If Statement in C++
If ( condition )
{
statement1 ;
statement2 ;
:
}

12

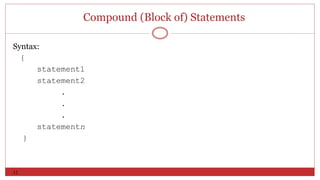

Compound (Block of) Statements
Syntax:
{
statement1
statement2
.
.
.
statementn
}

If statement in C++
if (age1 > age2)
cout<<“Student 1 is older
than student 2” ;

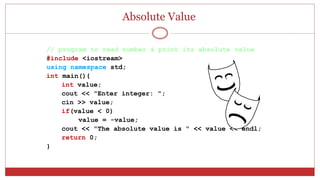

Absolute Value
// program to read number & print its absolute value
#include <iostream>
using namespace std;
int main(){
int value;
cout << "Enter integer: ";
cin >> value;
if(value < 0)
value = -value;
cout << "The absolute value is " << value << endl;
return 0;
}

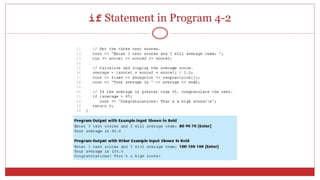

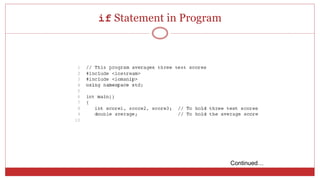

if Statement in Program
Continued…

Relational Operators
Relational operators are used to compare two values to
form a condition.
Math C++ Plain English
= == equals [example: if(a==b) ]
[ (a=b) means put the value of b into a ]
< < less than
 <= less than or equal to
> > greater than
 >= greater than or equal to
 != not equal to

Relational Operators
a != b;
X = 0;
X == 0;

Conditions
Examples:
Number_of_Students < 200
10 > 20
20 * j == 10 + i

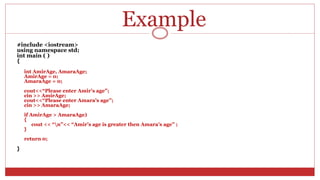

Example
#include <iostream>
int main ( )
{
int AmirAge, AmaraAge;
AmirAge = 0;
AmaraAge = 0;
cout<<“Please enter Amir’s age”;
cin >> AmirAge;
cout<<“Please enter Amara’s age”;
cin >> AmaraAge;
if AmirAge > AmaraAge)
{
cout << “n”<< “Amir’s age is greater then Amara’s age” ;
}
return 0;
}

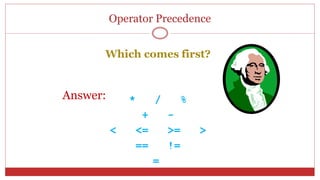

Operator Precedence
Which comes first?
* / %
+ -
< <= >= >
== !=
=
Answer:

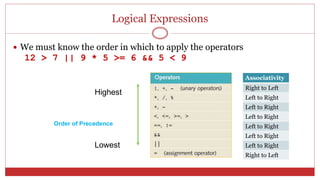

Logical Expressions
 We must know the order in which to apply the operators
12 > 7 || 9 * 5 >= 6 && 5 < 9
Highest
Lowest
Order of Precedence
Associativity
Right to Left
Left to Right
Left to Right
Left to Right
Left to Right
Left to Right
Left to Right
Right to Left

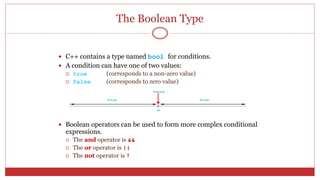

The Boolean Type
 C++ contains a type named bool for conditions.
 A condition can have one of two values:
 true (corresponds to a non-zero value)
 false (corresponds to zero value)
 Boolean operators can be used to form more complex conditional
expressions.
 The and operator is &&
 The or operator is ||
 The not operator is !

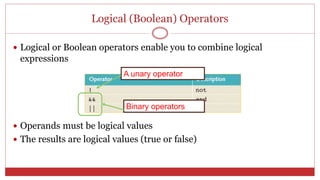

Logical (Boolean) Operators
 Logical or Boolean operators enable you to combine logical
expressions
 Operands must be logical values
 The results are logical values (true or false)
A unary operator
Binary operators

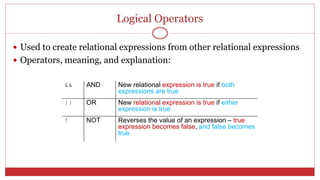

Logical Operators
 Used to create relational expressions from other relational expressions
 Operators, meaning, and explanation:
&& AND New relational expression is true if both
expressions are true
|| OR New relational expression is true if either
expression is true
! NOT Reverses the value of an expression – true
expression becomes false, and false becomes
true

Logical Operators
If a is greater than b
AND c is greater than d
In C++
if(a > b && c> d)
if(age > 18 || height > 5)

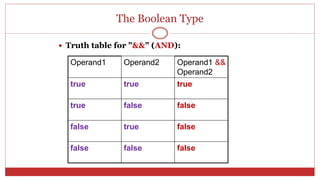

The Boolean Type
 Truth table for "&&" (AND):
Operand1 Operand2 Operand1 &&
Operand2
true true true
true false false
false true false
false false false

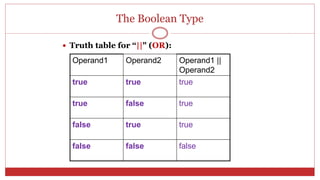

The Boolean Type
 Truth table for “||" (OR):
Operand1 Operand2 Operand1 ||
Operand2
true true true
true false true
false true true
false false false

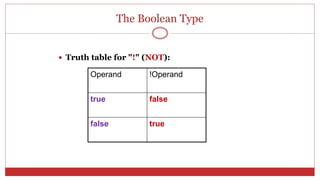

The Boolean Type
 Truth table for "!" (NOT):
Operand !Operand
true false
false true

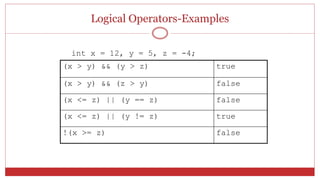

Logical Operators-Examples
int x = 12, y = 5, z = -4;
(x > y) && (y > z) true
(x > y) && (z > y) false
(x <= z) || (y == z) false
(x <= z) || (y != z) true
!(x >= z) false

A Boolean Type
 Assignments to bool type variables
bool P = true;
bool Q = false;
bool R = true;
bool S = P && Q;
bool T = !Q || R;
bool U = !(R && !Q);

More Operator Precedence
 Precedence of operators (from highest to lowest)
 Parentheses ( … ) Left to Right
 Unary operators ! Right to Left
 Multiplicative operators * / % Left to Right
 Additive operators + - Left to Right
 Relational ordering < <= >= > Left to Right
 Relational equality == != Left to Right
 Logical and && Left to Right
 Logical or || Left to Right
 Assignment = Left to Right

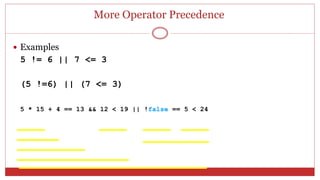

More Operator Precedence
 Examples
5 != 6 || 7 <= 3
(5 !=6) || (7 <= 3)
5 * 15 + 4 == 13 && 12 < 19 || !false == 5 < 24

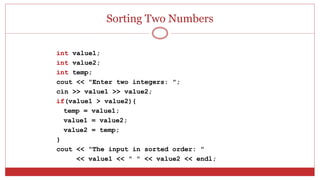

Sorting Two Numbers
int value1;
int value2;
int temp;
cout << "Enter two integers: ";
cin >> value1 >> value2;
if(value1 > value2){
temp = value1;
value1 = value2;
value2 = temp;
}
cout << "The input in sorted order: "
<< value1 << " " << value2 << endl;

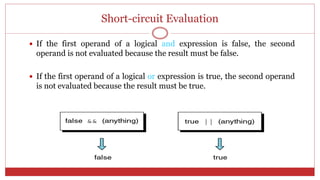

Short-circuit Evaluation
 If the first operand of a logical and expression is false, the second
operand is not evaluated because the result must be false.
 If the first operand of a logical or expression is true, the second operand
is not evaluated because the result must be true.

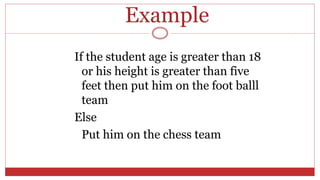

Example
If the student age is greater than 18
or his height is greater than five
feet then put him on the foot balll
team
Else
Put him on the chess team

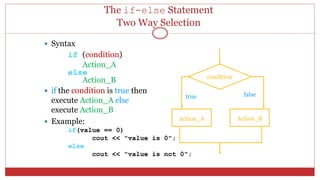

The if-else Statement
Two Way Selection
 Syntax
if (condition)
Action_A
else
Action_B
 if the condition is true then
execute Action_A else
execute Action_B
 Example:
if(value == 0)
cout << "value is 0";
else
cout << "value is not 0";
condition
Action_A Action_B
true false

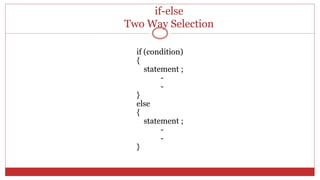

if-else
Two Way Selection
if (condition)
{
statement ;
-
-
}
else
{
statement ;
-
-
}

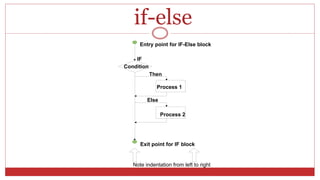

if-else
Condition
Process 1
IF
Then
Entry point for IF-Else block
Exit point for IF block
Process 2
Else
Note indentation from left to right

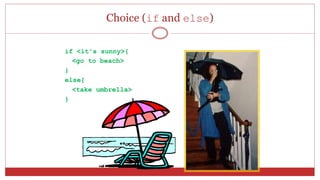

Choice (if and else)
if <it's sunny>{
<go to beach>
}
else{
<take umbrella>
}

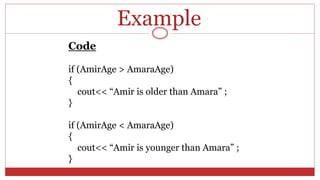

Code
if (AmirAge > AmaraAge)
{
cout<< “Amir is older than Amara” ;
}
if (AmirAge < AmaraAge)
{
cout<< “Amir is younger than Amara” ;
}
Example

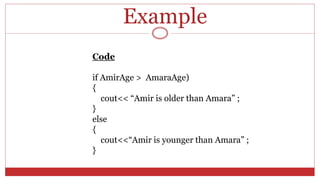

Example
Code
if AmirAge > AmaraAge)
{
cout<< “Amir is older than Amara” ;
}
else
{
cout<<“Amir is younger than Amara” ;
}

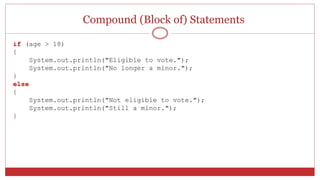

Compound (Block of) Statements
if (age > 18)
{
System.out.println("Eligible to vote.");
System.out.println("No longer a minor.");
}
else
{
System.out.println("Not eligible to vote.");
System.out.println("Still a minor.");
}

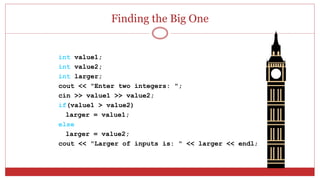

Finding the Big One
int value1;
int value2;
int larger;
cout << "Enter two integers: ";
cin >> value1 >> value2;
if(value1 > value2)
larger = value1;
else
larger = value2;
cout << "Larger of inputs is: " << larger << endl;

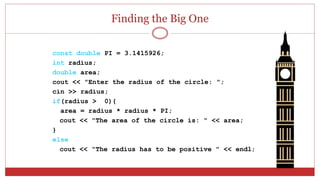

Finding the Big One
const double PI = 3.1415926;
int radius;
double area;
cout << "Enter the radius of the circle: ";
cin >> radius;
if(radius > 0){
area = radius * radius * PI;
cout << "The area of the circle is: " << area;
}
else
cout << "The radius has to be positive " << endl;

Even or Odd
int value1;
bool even;
cout << "Enter a integer : ";
cin >> value;
if(value%2 == 0)
even = true;
else
even = false;
// even = ！（value%2);

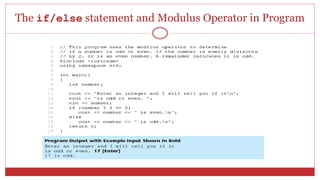

The if/else statement and Modulus Operator in Program

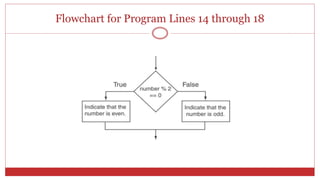

Flowchart for Program Lines 14 through 18

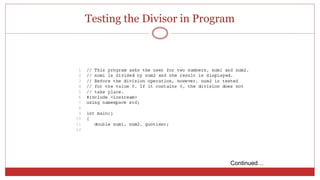

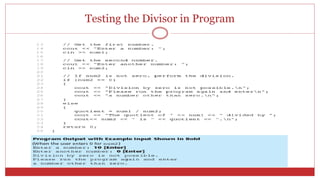

Testing the Divisor in Program
Continued…

Testing the Divisor in Program

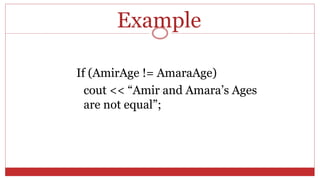

Example
If (AmirAge != AmaraAge)
cout << “Amir and Amara’s Ages
are not equal”;

Unary Not operator !
 !true = false
 !false = true

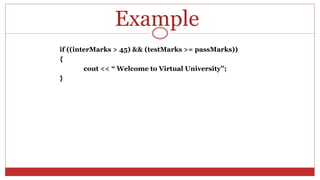

Example
if ((interMarks > 45) && (testMarks >= passMarks))
{
cout << “ Welcome to Virtual University”;
}

Example
If(!((interMarks > 45) && (testMarks >= passMarks)))
?

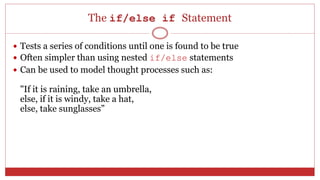

The if/else if Statement
 Tests a series of conditions until one is found to be true
 Often simpler than using nested if/else statements
 Can be used to model thought processes such as:
"If it is raining, take an umbrella,
else, if it is windy, take a hat,
else, take sunglasses”

if/else if Format
if (expression)
statement1; // or block
else if (expression)
statement2; // or block
.
. // other else ifs .
else if (expression)
statementn; // or block

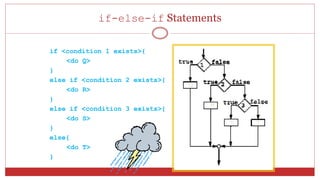

if-else-if Statements
if <condition 1 exists>{
<do Q>
}
else if <condition 2 exists>{
<do R>
}
else if <condition 3 exists>{
<do S>
}
else{
<do T>
}
Q
R
TS

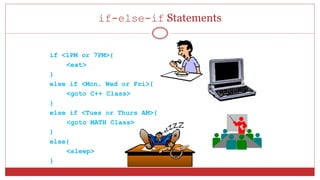

if-else-if Statements
if <1PM or 7PM>{
<eat>
}
else if <Mon, Wed or Fri>{
<goto C++ Class>
}
else if <Tues or Thurs AM>{
<goto MATH Class>
}
else{
<sleep>
}

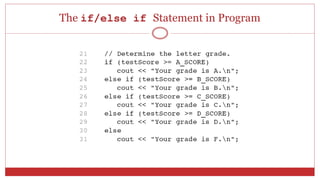

The if/else if Statement in Program

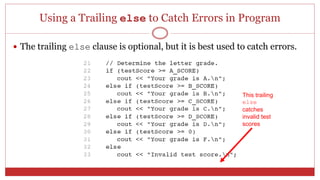

Using a Trailing else to Catch Errors in Program
 The trailing else clause is optional, but it is best used to catch errors.
This trailing
else
catches
invalid test
scores

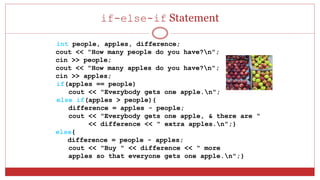

if-else-if Statement
int people, apples, difference;
cout << "How many people do you have?n";
cin >> people;
cout << "How many apples do you have?n";
cin >> apples;
if(apples == people)
cout << "Everybody gets one apple.n";
else if(apples > people){
difference = apples - people;
cout << "Everybody gets one apple, & there are "
<< difference << " extra apples.n";}
else{
difference = people - apples;
cout << "Buy " << difference << " more
apples so that everyone gets one apple.n";}

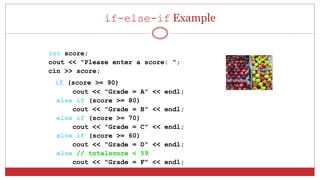

if-else-if Example
int score;
cout << "Please enter a score: ";
cin >> score;
if (score >= 90)
cout << "Grade = A" << endl;
else if (score >= 80)
cout << "Grade = B" << endl;
cout << "Grade = C" << endl;
cout << "Grade = D" << endl;
else // totalscore < 59
cout << "Grade = F" << endl;

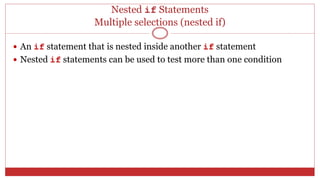

Nested if Statements
Multiple selections (nested if)
 An if statement that is nested inside another if statement
 Nested if statements can be used to test more than one condition

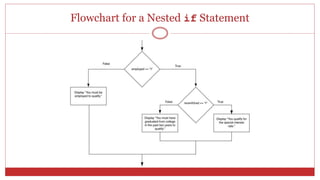

Flowchart for a Nested if Statement

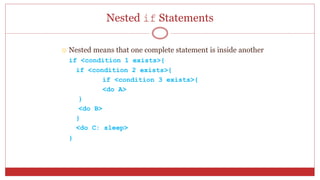

 Nested means that one complete statement is inside another
<do A>
}
<do B>
}
<do C: sleep>
}

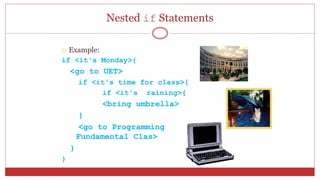

 Example:
if <it's Monday>{
<go to UET>
if <it's time for class>{
if <it's raining>{
<bring umbrella>
}
<go to Programming
Fundamental Clas>
}
}

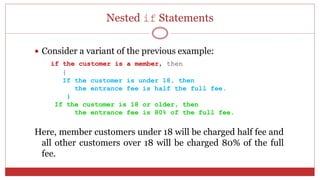

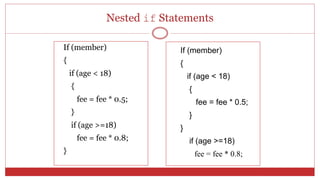

 Consider the following example:
if the customer is a member, then
{
If the customer is under 18, then
the entrance fee is half the full fee.
If the customer is 18 or older, then
the entrance fee is 80% of the full fee.
}
The if statements deciding whether to charge half fee to someone under 18
or whether to charge 80% to someone over 18 are only executed if the
outer if statement is true, i.e. the customer is a member. Non-members,
no matter what their age, are charged full fee.

 Consider a variant of the previous example:
if the customer is a member, then
{
If the customer is under 18, then
the entrance fee is half the full fee.
}
If the customer is 18 or older, then
the entrance fee is 80% of the full fee.
Here, member customers under 18 will be charged half fee and
all other customers over 18 will be charged 80% of the full
fee.

 From Program

 Another example, from Program

If (member)
{
if (age < 18)
{
fee = fee * 0.5;
}
if (age >=18)
fee = fee * 0.8;
}
If (member)
{
if (age < 18)
{
fee = fee * 0.5;
}
}
if (age >=18)
fee = fee * 0.8;

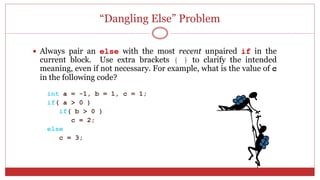

“Dangling Else” Problem
 Always pair an else with the most recent unpaired if in the
current block. Use extra brackets { } to clarify the intended
meaning, even if not necessary. For example, what is the value of c
in the following code?
int a = -1, b = 1, c = 1;
if( a > 0 )
if( b > 0 )
c = 2;
else
c = 3;

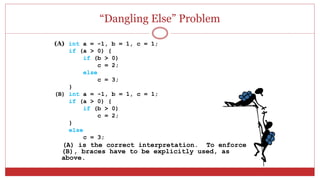

“Dangling Else” Problem
(A) int a = -1, b = 1, c = 1;
if (a > 0) {
if (b > 0)
c = 2;
else
c = 3;
}
(B) int a = -1, b = 1, c = 1;
if (a > 0) {
if (b > 0)
c = 2;
}
else
c = 3;
(A) is the correct interpretation. To enforce
(B), braces have to be explicitly used, as
above.

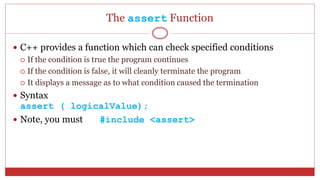

The assert Function
 C++ provides a function which can check specified conditions
 If the condition is true the program continues
 If the condition is false, it will cleanly terminate the program
 It displays a message as to what condition caused the termination
 Syntax
assert ( logicalValue);
 Note, you must #include <assert>

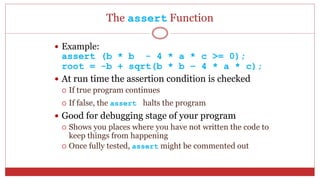

The assert Function
 Example:
assert (b * b - 4 * a * c >= 0);
root = -b + sqrt(b * b – 4 * a * c);
 At run time the assertion condition is checked
 If true program continues
 If false, the assert halts the program
 Good for debugging stage of your program
 Shows you places where you have not written the code to
keep things from happening
 Once fully tested, assert might be commented out

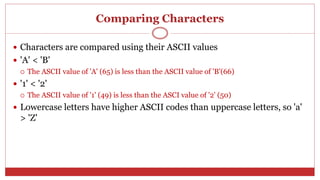

Comparing Characters
 Characters are compared using their ASCII values
 'A' < 'B'
 The ASCII value of 'A' (65) is less than the ASCII value of 'B'(66)
 '1' < '2'
 The ASCII value of '1' (49) is less than the ASCI value of '2' (50)
 Lowercase letters have higher ASCII codes than uppercase letters, so 'a'
> 'Z'

Relational Operators Compare Characters in Program

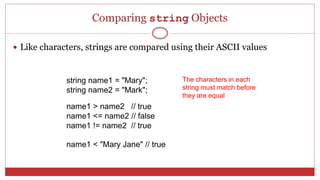

Comparing string Objects
 Like characters, strings are compared using their ASCII values
string name1 = "Mary";
string name2 = "Mark";
name1 > name2 // true
name1 <= name2 // false
name1 != name2 // true
name1 < "Mary Jane" // true
The characters in each
string must match before
they are equal

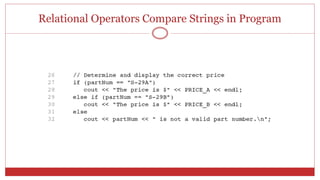

Relational Operators Compare Strings in Program

82

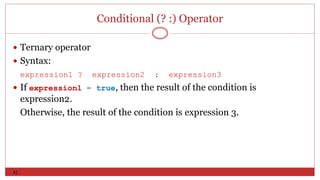

Conditional (? :) Operator
 Ternary operator
 Syntax:
expression1 ? expression2 : expression3
 If expression1 = true, then the result of the condition is
expression2.
Otherwise, the result of the condition is expression 3.

The Conditional Operator
 Can use to create short if/else statements
 Format: expr ? expr : expr;
x<0 ? y=10 : z=20;
First Expression:
Expression to be
tested
2nd Expression:
Executes if first
expression is true
3rd Expression:
Executes if the first
expression is false

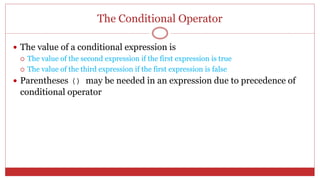

The Conditional Operator
 The value of a conditional expression is
 The value of the second expression if the first expression is true
 The value of the third expression if the first expression is false
 Parentheses () may be needed in an expression due to precedence of
conditional operator

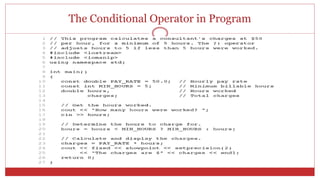

The Conditional Operator in Program

if ( grade ==‘A’ )
cout << “ Excellent ” ;
if ( grade ==‘B’ )
cout << “ Very Good ” ;
if ( grade ==‘C’ )
cout << “ Good ” ;
if ( grade ==‘D’ )
cout << “ Poor ” ;
if ( grade ==‘F’ )
cout << “ Fail ” ;
if Statements

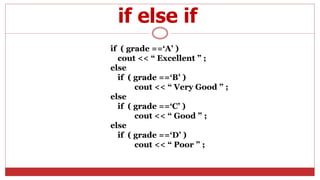

if ( grade ==‘A’ )
else
if ( grade ==‘B’ )
else
if ( grade ==‘C’ )
cout << “ Good ” ;
else
if ( grade ==‘D’ )

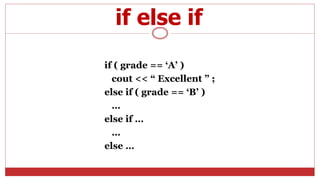

if else if

if ( grade == ‘A’ )
else if ( grade == ‘B’ )
…
else if …
…
else …
if else if

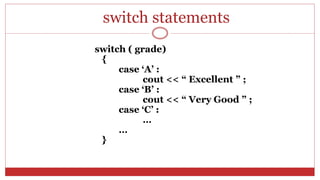

switch statements
switch ( variable name )
{
case ‘a’ :
statements;
case ‘b’ :
statements;
case ‘c’ :
statements;
…
}

switch ( grade)
{
case ‘A’ :
case ‘B’ :
case ‘C’ :
…
…
}
switch statements

Example
switch ( grade)
{
case ‘A’ :
case ‘B’ :
case ‘C’ :
cout << “Good ” ;
case ‘D’ :
case ‘F’ :
cout << “ Fail ” ;
}

The switch Statement
 Used to select among statements from several alternatives
 In some cases, can be used instead of if/else if statements

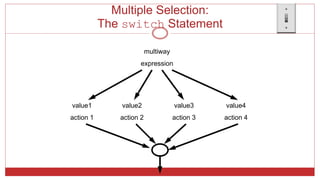

Multiple Selection:
value1
action 1
value2
action 2
value3
action 3
value4
action 4
multiway
expression

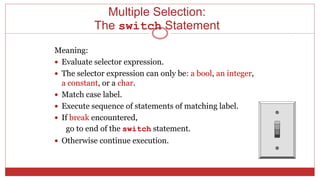

Multiple Selection:
Meaning:
 Evaluate selector expression.
 The selector expression can only be: a bool, an integer,
a constant, or a char.
 Match case label.
 Execute sequence of statements of matching label.
 If break encountered,
go to end of the switch statement.
 Otherwise continue execution.

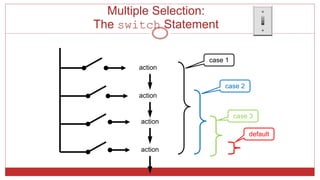

Multiple Selection:
action
action
action
action
case 1
case 2
case 3
default

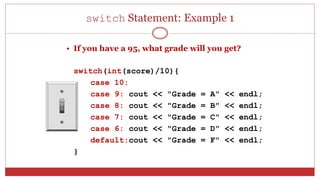

switch Statement: Example 1
• If you have a 95, what grade will you get?
switch(int(score)/10){
case 10:
case 9: cout << "Grade = A" << endl;
case 8: cout << "Grade = B" << endl;
case 7: cout << "Grade = C" << endl;
case 6: cout << "Grade = D" << endl;
default:cout << "Grade = F" << endl;
}

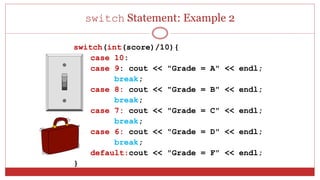

switch(int(score)/10){
case 10:
case 9: cout << "Grade = A" << endl;
break;
case 8: cout << "Grade = B" << endl;
break;
case 7: cout << "Grade = C" << endl;
break;
case 6: cout << "Grade = D" << endl;
break;
default:cout << "Grade = F" << endl;
}

is equivalent to:
if (score >= 90)
cout << "Grade = A" << endl;
cout << "Grade = B" << endl;
cout << "Grade = C" << endl;
cout << "Grade = D" << endl;
else // score < 59
cout << "Grade = F" << endl;

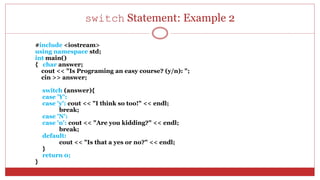

#include <iostream>
int main()
{ char answer;
cout << "Is Programing an easy course? (y/n): ";
cin >> answer;
switch (answer){
case 'Y':
case 'y': cout << "I think so too!" << endl;
break;
case 'N':
case 'n': cout << "Are you kidding?" << endl;
break;
default:
cout << "Is that a yes or no?" << endl;
}
return 0;
}

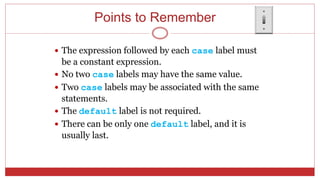

Points to Remember
 The expression followed by each case label must
be a constant expression.
 No two case labels may have the same value.
 Two case labels may be associated with the same
statements.
 The default label is not required.
 There can be only one default label, and it is
usually last.

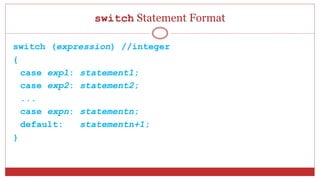

switch Statement Format
switch (expression) //integer
{
case exp1: statement1;
case exp2: statement2;
...
case expn: statementn;
default: statementn+1;
}

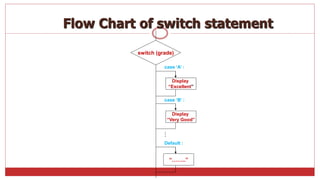

switch (grade)
Display
“Excellent”
case ‘B’ :
case ‘A’ :
Display
“Very Good”
Default :
“……..”
Flow Chart of switch statement
…

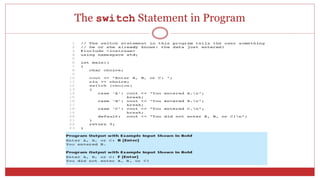

The switch Statement in Program

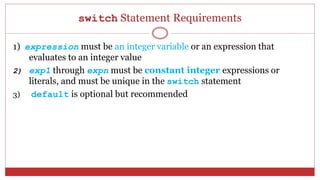

switch Statement Requirements
1) expression must be an integer variable or an expression that
evaluates to an integer value
2) exp1 through expn must be constant integer expressions or
literals, and must be unique in the switch statement
3) default is optional but recommended

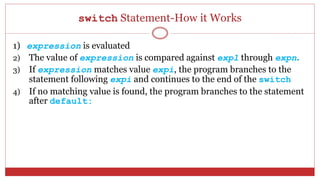

switch Statement-How it Works
1) expression is evaluated
2) The value of expression is compared against exp1 through expn.
3) If expression matches value expi, the program branches to the
statement following expi and continues to the end of the switch
4) If no matching value is found, the program branches to the statement
after default:

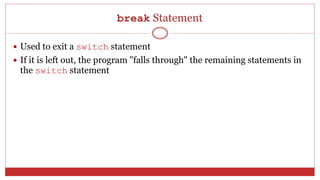

break Statement
 Used to exit a switch statement
 If it is left out, the program "falls through" the remaining statements in
the switch statement

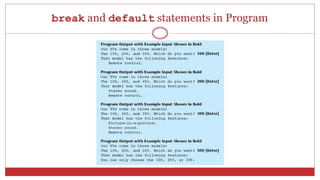

break and default statements in Program
Continued…

break and default statements in Program

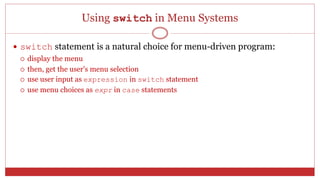

Using switch in Menu Systems
 switch statement is a natural choice for menu-driven program:
 display the menu
 then, get the user's menu selection
 use user input as expression in switch statement
 use menu choices as expr in case statements

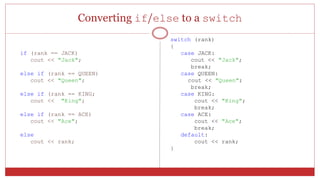

Converting if/else to a switch
if (rank == JACK)
cout << "Jack";
else if (rank == QUEEN)
cout << "Queen";
else if (rank == KING;
cout << "King";
else if (rank == ACE)
cout << "Ace";
else
cout << rank;
switch (rank)
{
case JACK:
cout << "Jack";
break;
case QUEEN:
cout << "Queen";
break;
case KING:
cout << "King";
break;
case ACE:
cout << "Ace";
break;
default:
cout << rank;
}

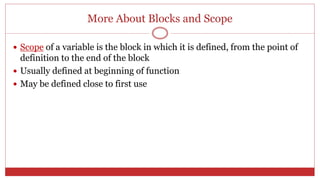

More About Blocks and Scope
 Scope of a variable is the block in which it is defined, from the point of
definition to the end of the block
 Usually defined at beginning of function
 May be defined close to first use

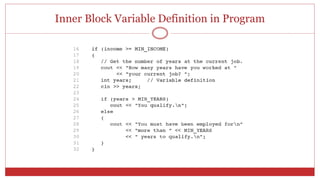

Inner Block Variable Definition in Program

Variables with the Same Name
 Variables defined inside { } have local or block scope
 When inside a block within another block, can define variables with the
same name as in the outer block.
 When in inner block, outer definition is not available
 Not a good idea

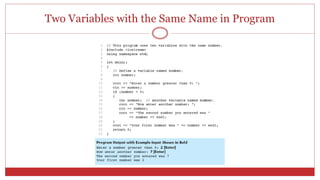

Two Variables with the Same Name in Program

C++ IF STATMENT AND ITS TYPE

More Related Content

What's hot

Similar to C++ IF STATMENT AND ITS TYPE

More from UNIVERSITY OF ENGINEERING AND TECHNOLOGY TAXILA

Recently uploaded

C++ IF STATMENT AND ITS TYPE
