1. Pranab Bandhu Nath
(Senior Lecturer)
Department of CSE
City University, Dhaka.
Name: Maksudujjaman
ID: 1915002517
Batch: 50
th
Semester: Summer’21
Program: B.Sc. in CSE
Submitted By :
CITY UNIVERSITY
Faculty of Science and Engineering
Department of Computer Science & Engineering
CSE 318 Computer Networks Lab, Summer’21
Supervised By :
Experiment Name: Bus Topology
Course Code: CSE 318
Course Title: Computer Networks Laboratory
Experiment Name: 03

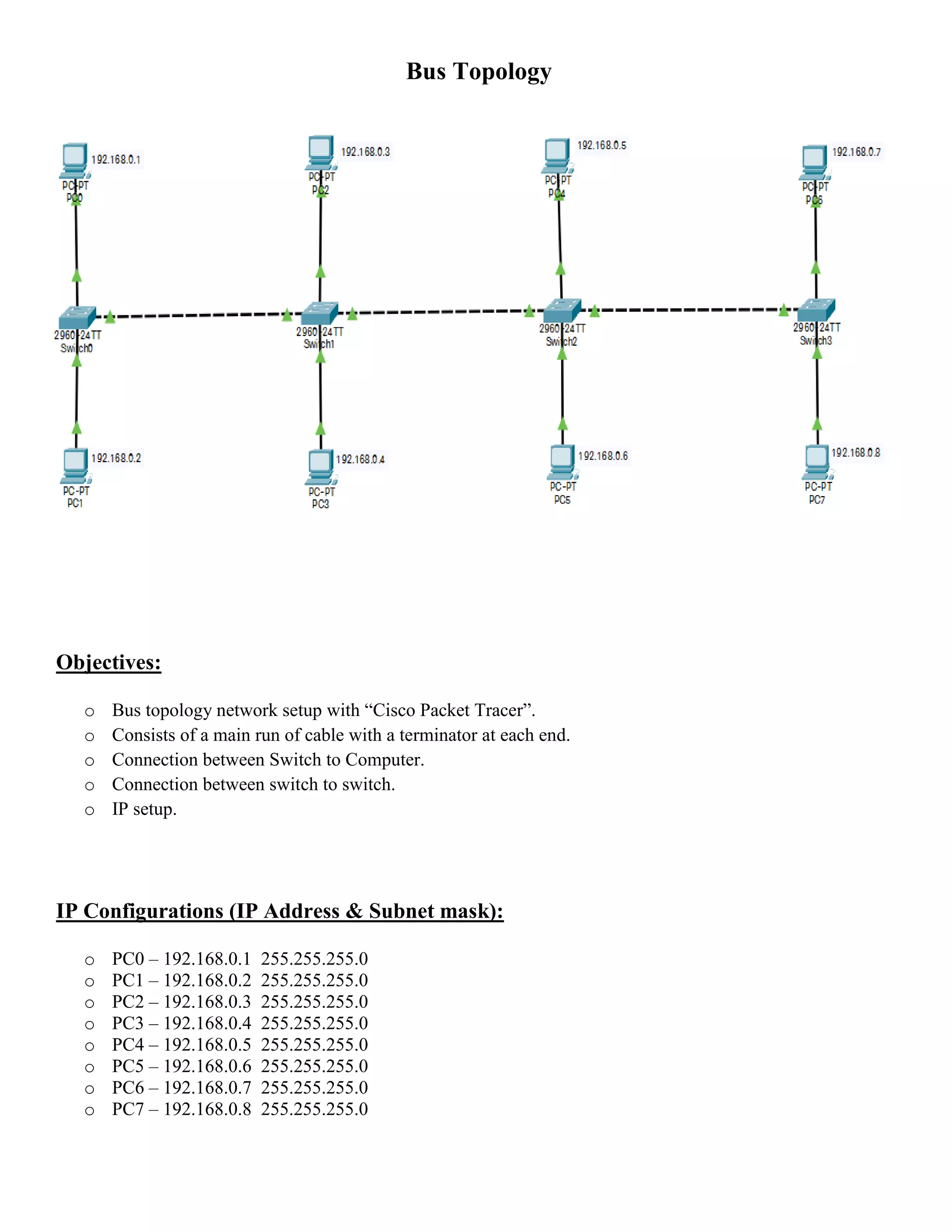

2. Bus Topology
Objectives:
o Bus topology network setup with “Cisco Packet Tracer”.
o Consists of a main run of cable with a terminator at each end.
o Connection between Switch to Computer.
o Connection between switch to switch.
o IP setup.
IP Configurations (IP Address & Subnet mask):
o PC0 – 192.168.0.1 255.255.255.0
o PC1 – 192.168.0.2 255.255.255.0
o PC2 – 192.168.0.3 255.255.255.0
o PC3 – 192.168.0.4 255.255.255.0
o PC4 – 192.168.0.5 255.255.255.0
o PC5 – 192.168.0.6 255.255.255.0
o PC6 – 192.168.0.7 255.255.255.0
o PC7 – 192.168.0.8 255.255.255.0
