This note showed how to design Mesh Topology with Cisco Packet Tracer

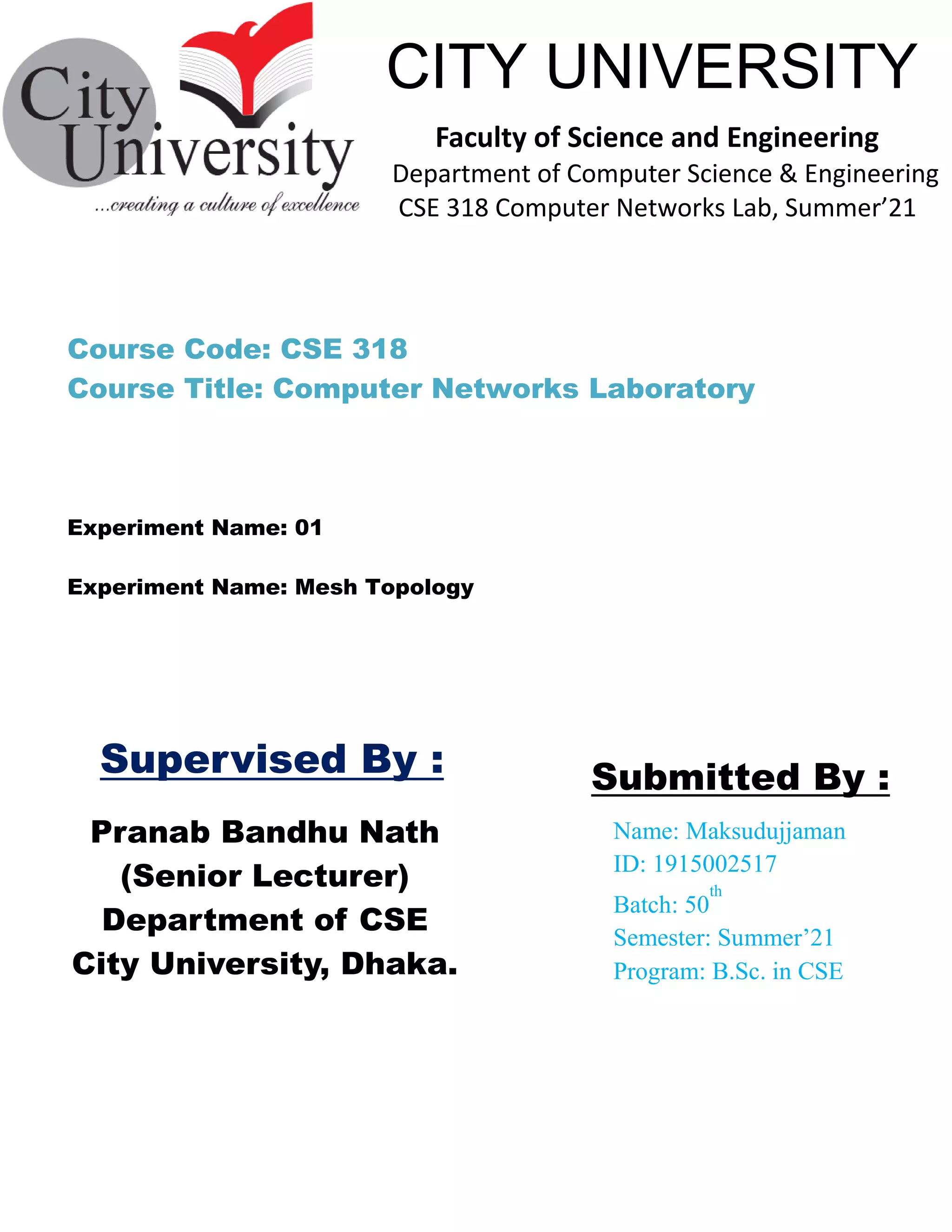

1. Pranab Bandhu Nath
(Senior Lecturer)
Department of CSE
City University, Dhaka.
Name: Maksudujjaman
ID: 1915002517
Batch: 50
th
Semester: Summer’21
Program: B.Sc. in CSE
Submitted By :
CITY UNIVERSITY
Faculty of Science and Engineering
Department of Computer Science & Engineering
CSE 318 Computer Networks Lab, Summer’21
Supervised By :
Experiment Name: Mesh Topology
Course Code: CSE 318
Course Title: Computer Networks Laboratory
Experiment Name: 01

2. Mesh Topology
Objectives:
o Mesh topology network setup with “Cisco Packet Tracer”.
o Setup allows for most transmissions to be distributed.
o Connection between Computer to Switch.
o Connection between switch to switch.
IP Configurations (IP Address & Subnet mask):
o PC0 – 192.168.0.1 255.255.255.0
o PC1 – 192.168.0.2 255.255.255.0
o PC2 – 192.168.0.3 255.255.255.0
o PC3 – 192.168.0.4 255.255.255.0
