This document describes a lab experiment on computer networks using Cisco Packet Tracer. The objectives were to set up a LAN with computers, switches, printers and a router. IP configurations and default gateways were assigned to 15 devices on 3 different networks - PCs and printers on 10.10.10.0/24, 20.20.20.0/24, and 30.30.30.0/24 networks.

1. ````````````––
Pranab Bandhu Nath
Senioe Lecturer,
Department of CSE
City University, Dhaka.
Name : Md Ashikur Rahman
ID : 1925102528
Batch : 51
th
Semester : Summer 2021
Program : B.Sc. in CSE
Submitted By :

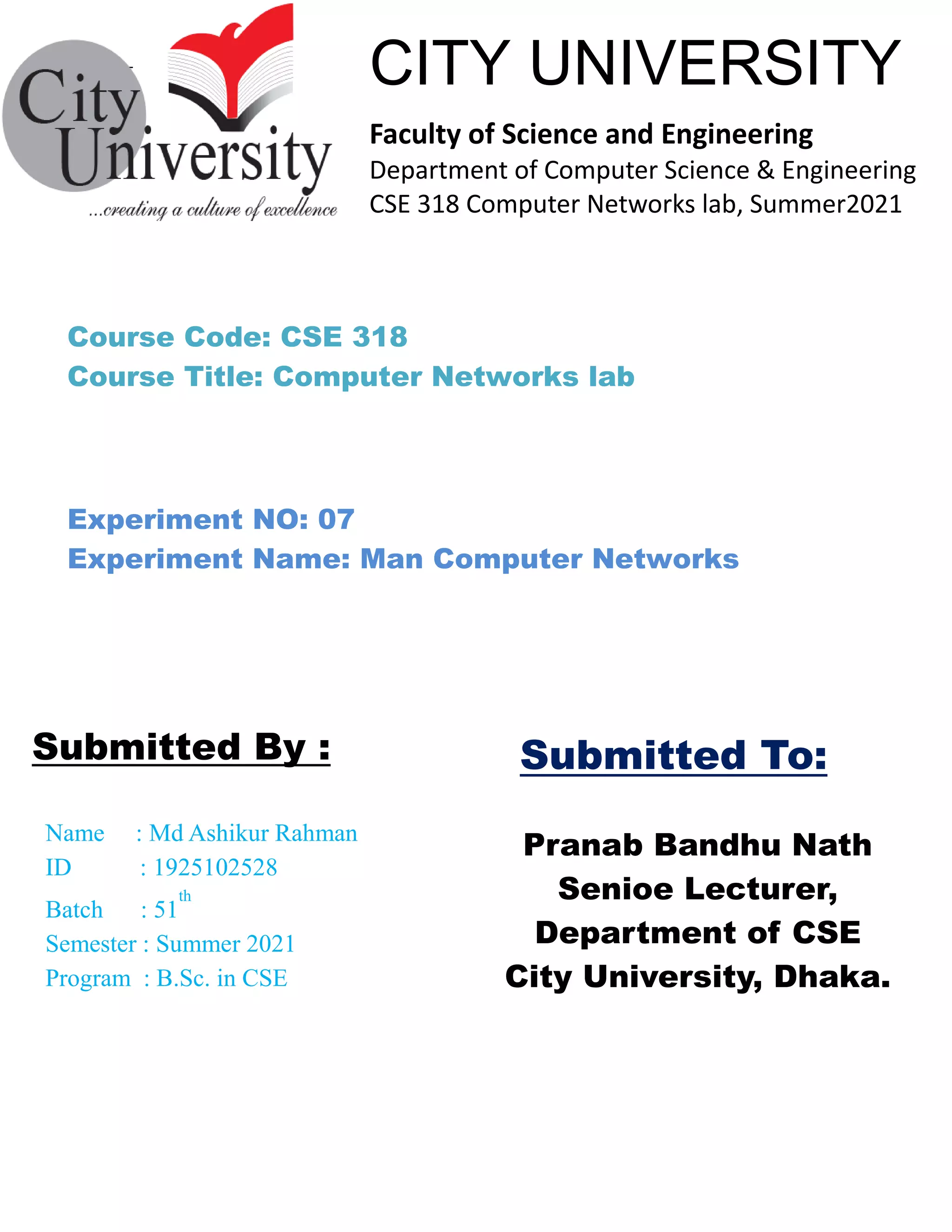

CITY UNIVERSITY
Faculty of Science and Engineering
Department of Computer Science & Engineering
CSE 318 Computer Networks lab, Summer2021
Submitted To:
Course Code: CSE 318
Course Title: Computer Networks lab
Experiment NO: 07
Experiment Name: Man Computer Networks

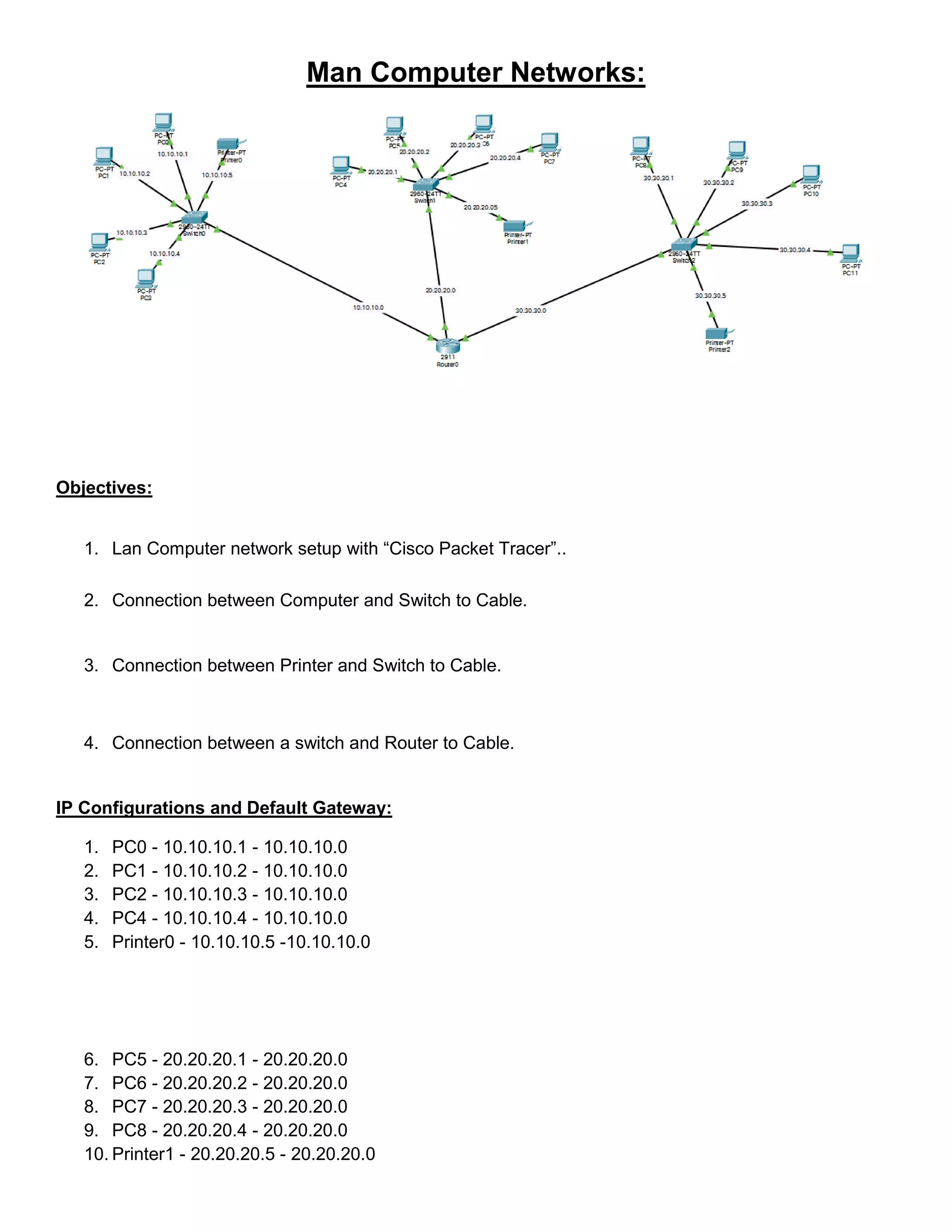

2. Man Computer Networks:
Objectives:
1. Lan Computer network setup with “Cisco Packet Tracer”..
2. Connection between Computer and Switch to Cable.
3. Connection between Printer and Switch to Cable.
4. Connection between a switch and Router to Cable.
IP Configurations and Default Gateway:
1. PC0 - 10.10.10.1 - 10.10.10.0
2. PC1 - 10.10.10.2 - 10.10.10.0
3. PC2 - 10.10.10.3 - 10.10.10.0
4. PC4 - 10.10.10.4 - 10.10.10.0
5. Printer0 - 10.10.10.5 -10.10.10.0
6. PC5 - 20.20.20.1 - 20.20.20.0
7. PC6 - 20.20.20.2 - 20.20.20.0
8. PC7 - 20.20.20.3 - 20.20.20.0
9. PC8 - 20.20.20.4 - 20.20.20.0
10. Printer1 - 20.20.20.5 - 20.20.20.0

3. 11. PC9 - 30.30.30.1 - 30.30.30.0
12. PC10 - 30.30.30.2 - 30.30.30.0
13. PC11 - 30.30.30.3 - 30.30.30.0
14. PC12 - 30.30.30.4 - 30.30.30.0
15. Printer3 - 30.30.30.5 - 30.30.30.0
