Building the carrier grade nfv infrastructure
This document discusses an all-in-one rack-based solution for network functions virtualization infrastructure (NFVI) that aims to address problems with traditional NFV deployments. It proposes a rack-based delivery approach with integrated computing, storage, networking hardware and software components including virtualized infrastructure manager, platform infrastructure manager and virtual network functions. The solution aims to reduce costs and complexity through pre-integration, standardized racks and centralized management. Future plans include further standardization, field testing and collaboration with industry partners.
More Related Content
Similar to Building the carrier grade nfv infrastructure
Building the carrier grade nfv infrastructure

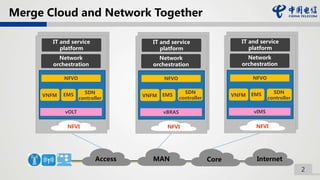

- 2. 2 Merge Cloud andNetwork Together MAN CoreAccess Internet NFVI NFVO vIMS Network orchestration VNFM EMS NFVI NFVO vBRAS Network orchestration VNFM EMS NFVI NFVO vOLT Network orchestration VNFM EMS SDN controller IT and service platform IT and service platform IT and service platform SDN controller SDN controller

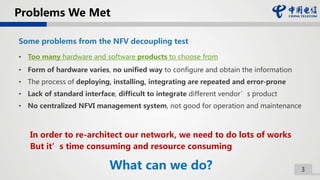

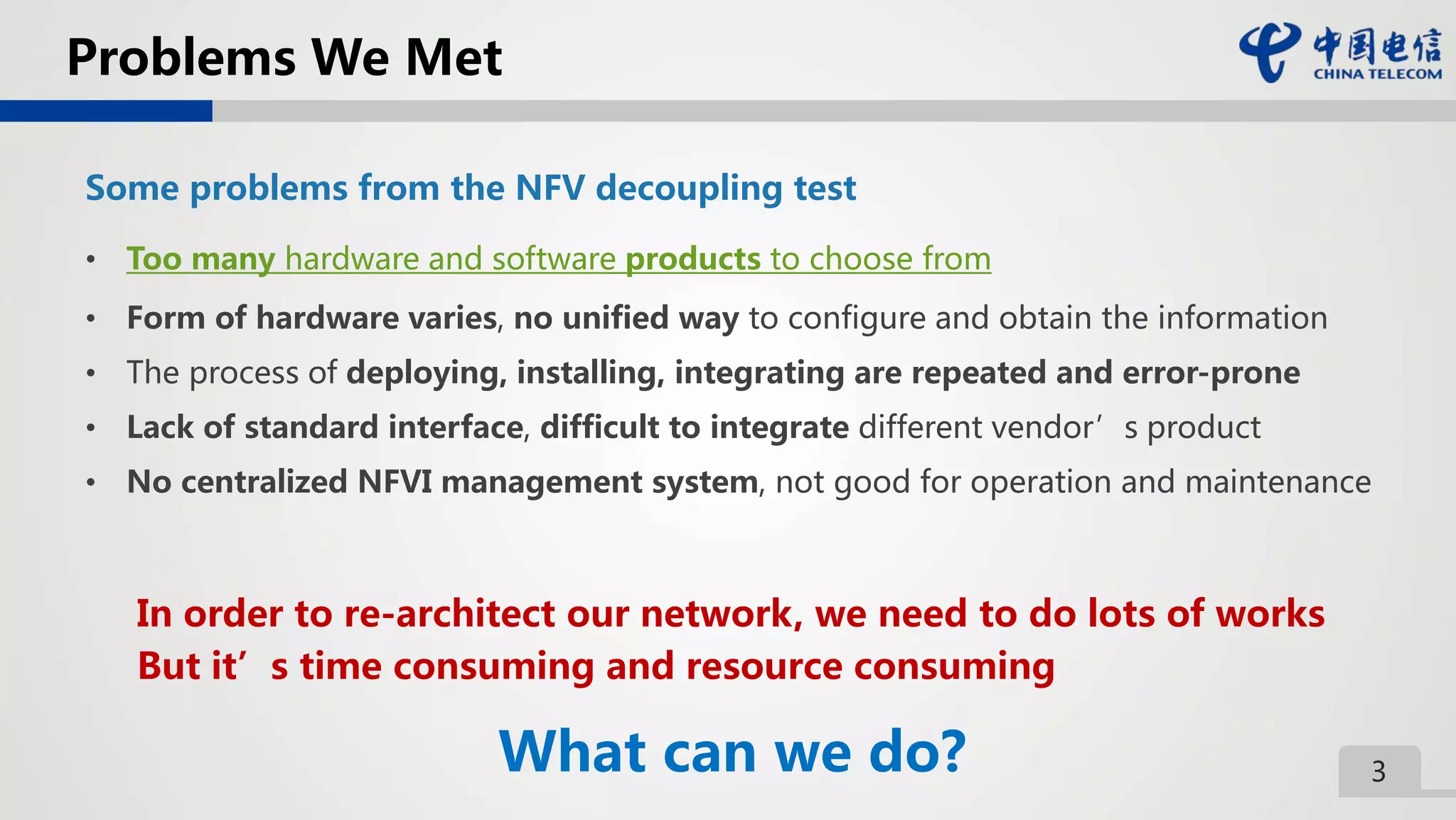

- 3. 3 Problems We Met Someproblems from the NFV decoupling test • Too many hardware and software products to choose from • Form of hardware varies, no unified way to configure and obtain the information • The process of deploying, installing, integrating are repeated and error-prone • Lack of standard interface, difficult to integrate different vendor’s product • No centralized NFVI management system, not good for operation and maintenance In order to re-architect our network, we need to do lots of works But it’s time consuming and resource consuming What can we do?

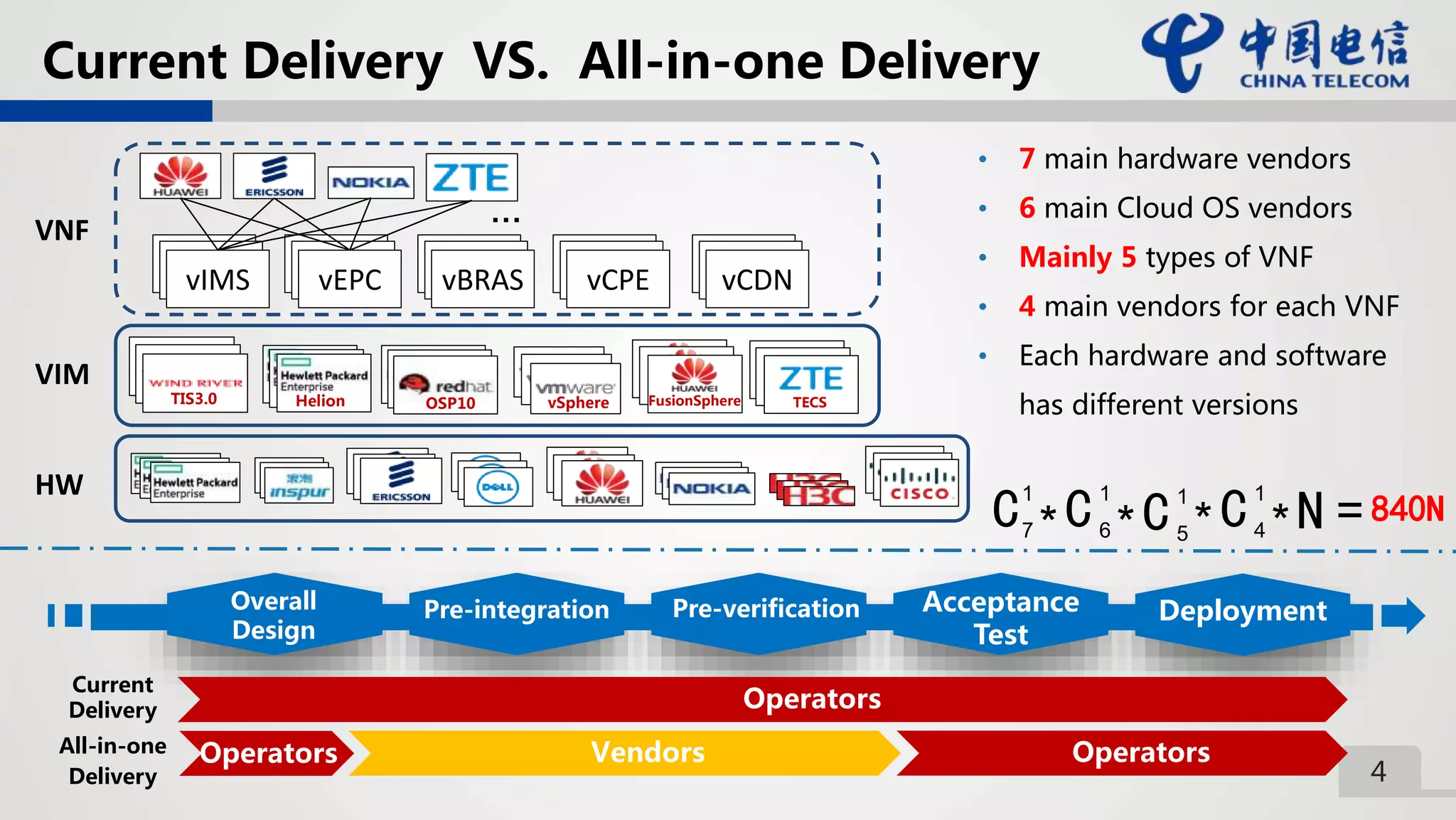

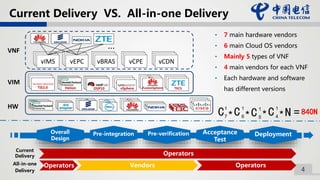

- 4. 4 Current Delivery VS.All-in-one Delivery Overall Design Pre-integration Pre-verification Acceptance Test Deployment Operators Current Delivery • 7 main hardware vendors • 6 main Cloud OS vendors • Mainly 5 types of VNF • 4 main vendors for each VNF • Each hardware and software has different versions HelionHelionHelionTIS3.0 OSP10 FusionSpherevSphere TECS TECS TECS vBRASvBRASvIMS vBRASvBRASvEPC vBRASvBRASvBRAS vBRASvBRASvCPE vBRASvBRASvCDN HW VIM VNF … C6 1 *C5 1 =840NC7 1 * *C4 1 *N Vendors OperatorsAll-in-one Delivery Operators

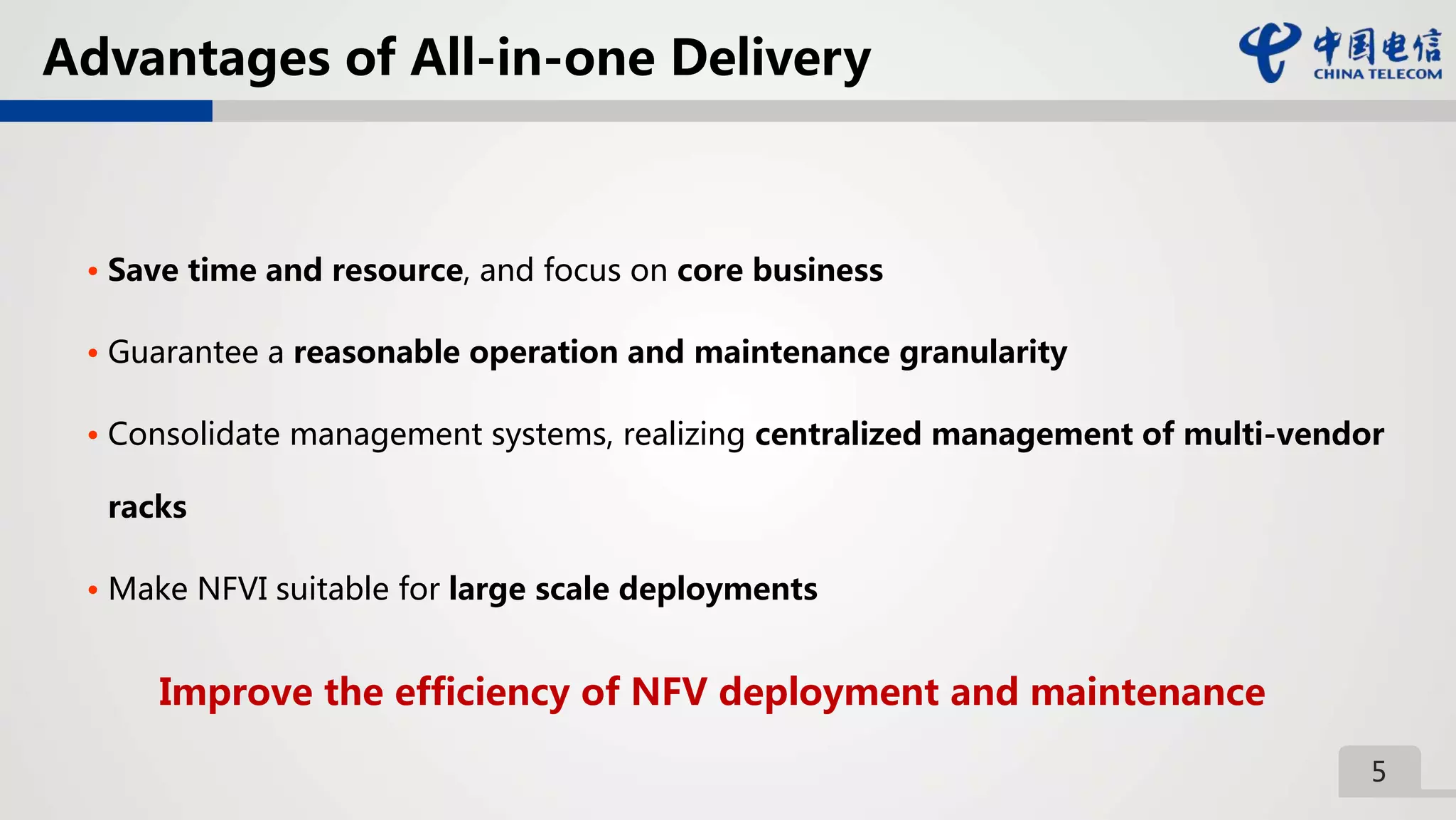

- 5. 5 Advantages of All-in-oneDelivery • Save time and resource, and focus on core business • Guarantee a reasonable operation and maintenance granularity • Consolidate management systems, realizing centralized management of multi-vendor racks • Make NFVI suitable for large scale deployments Improve the efficiency of NFV deployment and maintenance

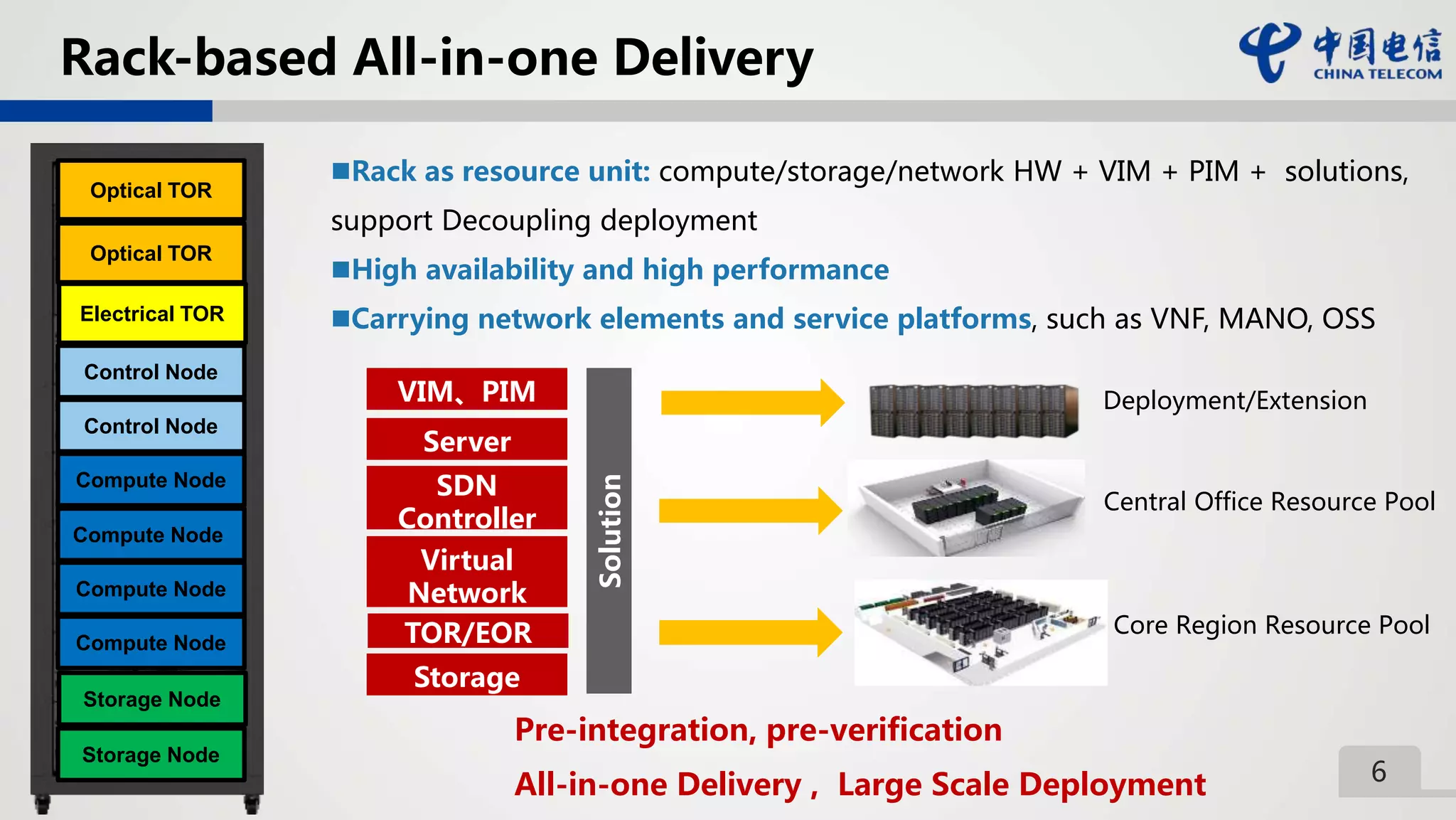

- 6. 6 Rack-based All-in-one Delivery OpticalTOR Optical TOR Electrical TOR Control Node Control Node Compute Node Compute Node Compute Node Compute Node Storage Node Storage Node Rack as resource unit: compute/storage/network HW + VIM + PIM + solutions, support Decoupling deployment High availability and high performance Carrying network elements and service platforms, such as VNF, MANO, OSS Deployment/Extension Central Office Resource Pool Core Region Resource Pool Server TOR/EOR Storage Virtual Network VIM、PIM Solution SDN Controller Pre-integration, pre-verification All-in-one Delivery , Large Scale Deployment

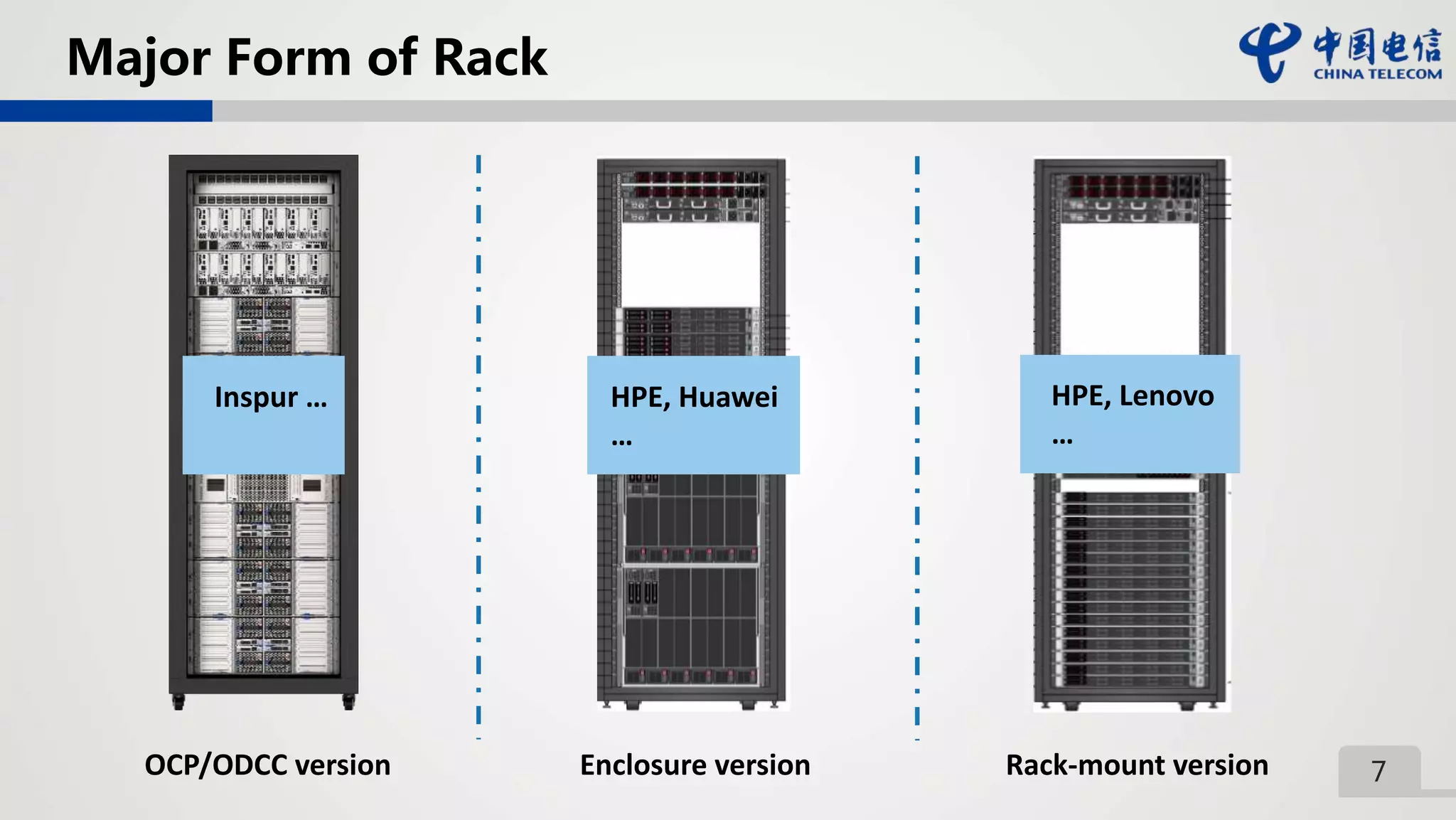

- 7. 7 Major Form ofRack Inspur … HPE, Huawei … HPE, Lenovo … Enclosure version Rack-mount versionOCP/ODCC version

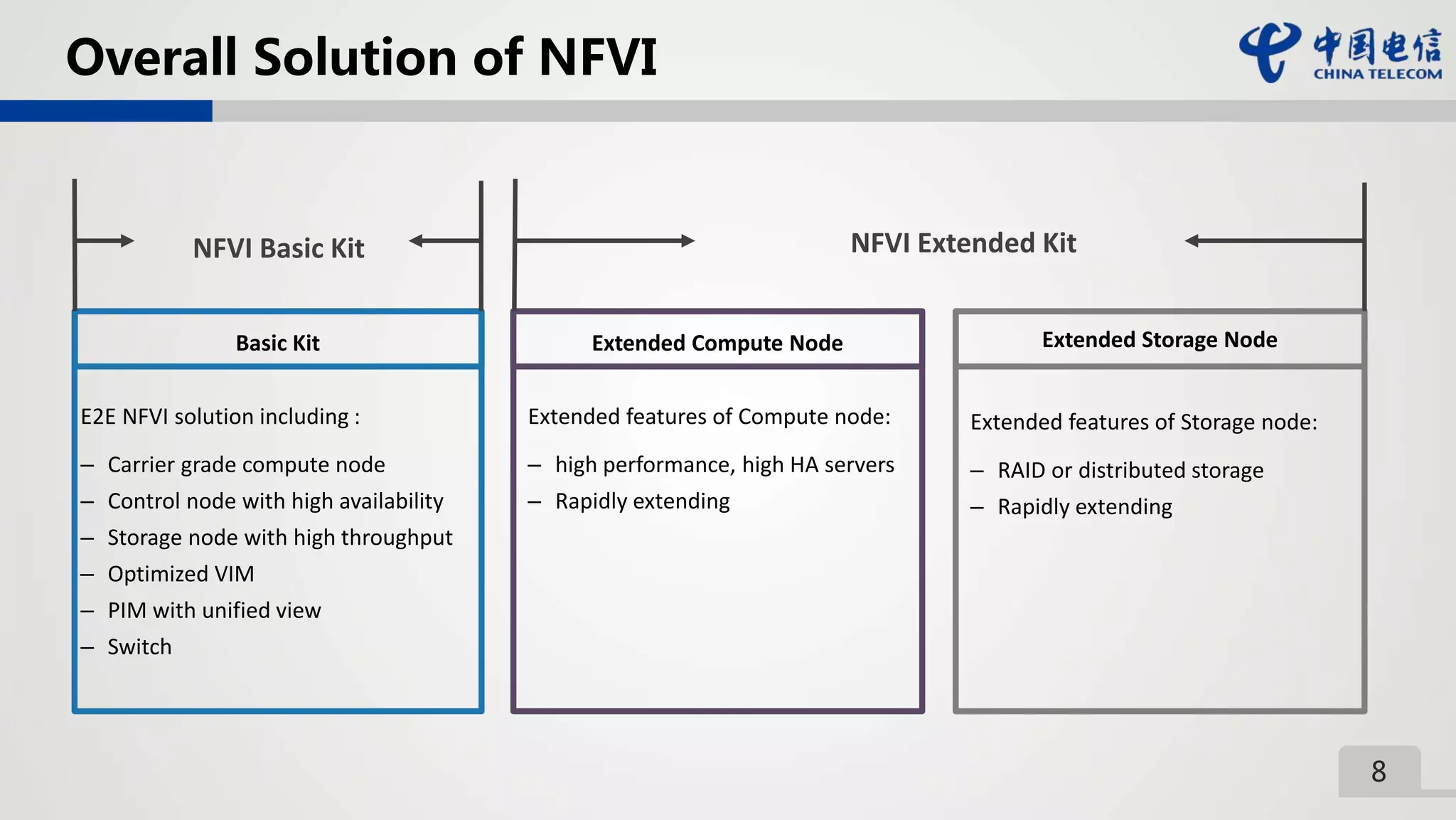

- 8. 8 Overall Solution ofNFVI NFVI Basic Kit Basic Kit E2E NFVI solution including : – Carrier grade compute node – Control node with high availability – Storage node with high throughput – Optimized VIM – PIM with unified view – Switch Extended Compute Node Extended features of Compute node: – high performance, high HA servers – Rapidly extending Extended Storage Node Extended features of Storage node: – RAID or distributed storage – Rapidly extending NFVI Extended Kit

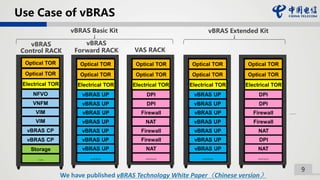

- 9. 9 Use Case ofvBRAS …… vBRAS Control RACK Optical TOR Optical TOR Electrical TOR NFVO VNFM VIM vBRAS CP vBRAS CP … Storage VIM Optical TOR Optical TOR Electrical TOR vBRAS UP vBRAS UP vBRAS UP vBRAS UP vBRAS UP vBRAS UP vBRAS UP …… vBRAS Forward RACK vBRAS Extended KitvBRAS Basic Kit Optical TOR Optical TOR Electrical TOR DPI DPI NAT Firewall NAT Firewall Firewall …… VAS RACK Optical TOR Optical TOR Electrical TOR vBRAS UP vBRAS UP vBRAS UP vBRAS UP vBRAS UP vBRAS UP vBRAS UP …… Optical TOR Optical TOR Electrical TOR DPI DPI Firewall DPI NAT NAT Firewall …… We have published vBRAS Technology White Paper（Chinese version）

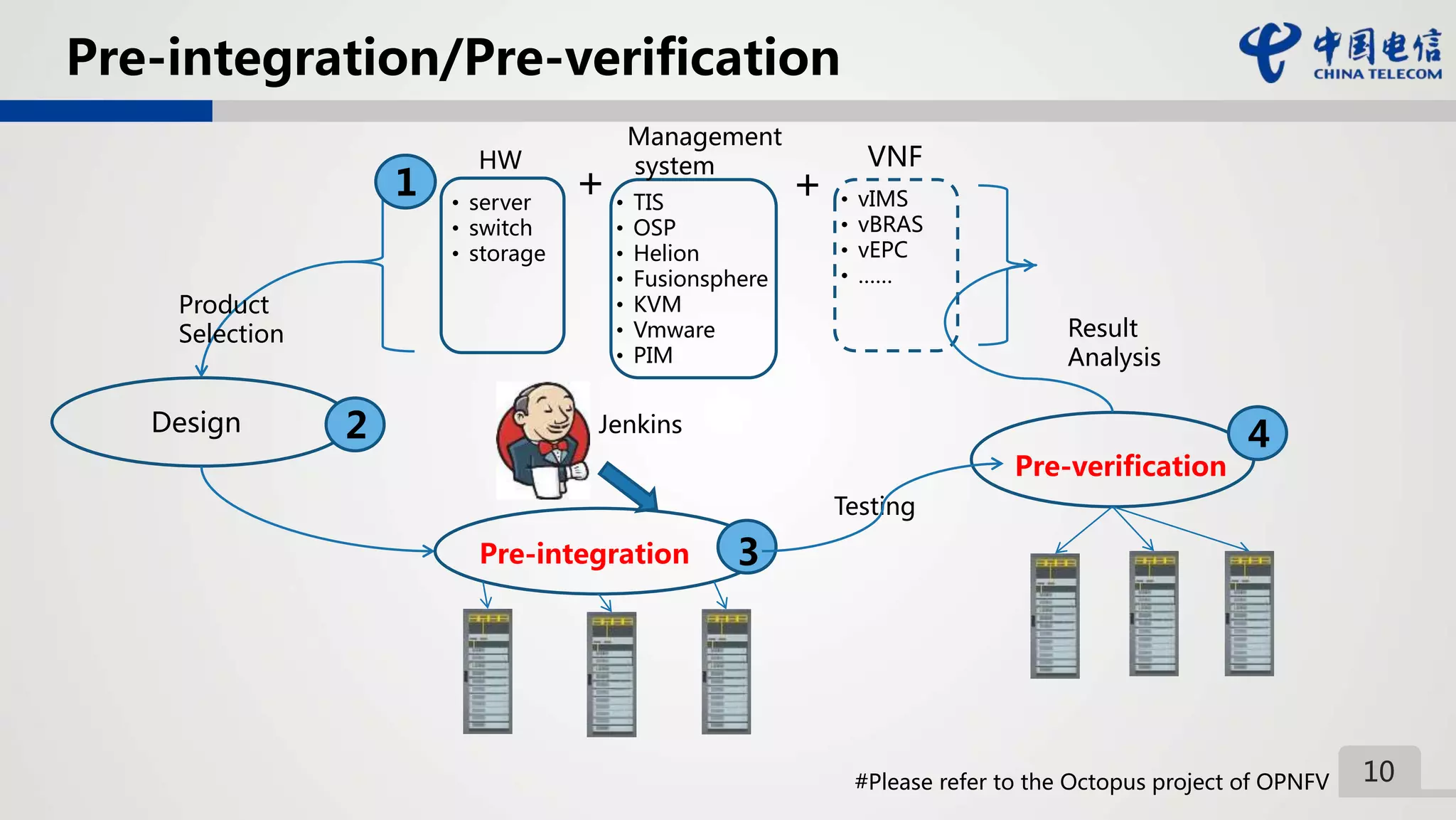

- 10. 10 Pre-integration/Pre-verification Design Pre-integration Pre-verification • TIS • OSP •Helion • Fusionsphere • KVM • Vmware • PIM VNF • vIMS • vBRAS • vEPC • …… + Result Analysis Product Selection 1 2 3 4 Testing Jenkins HW • server • switch • storage + Management system #Please refer to the Octopus project of OPNFV

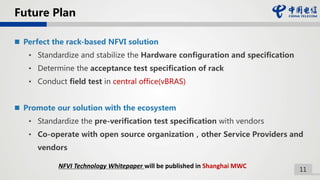

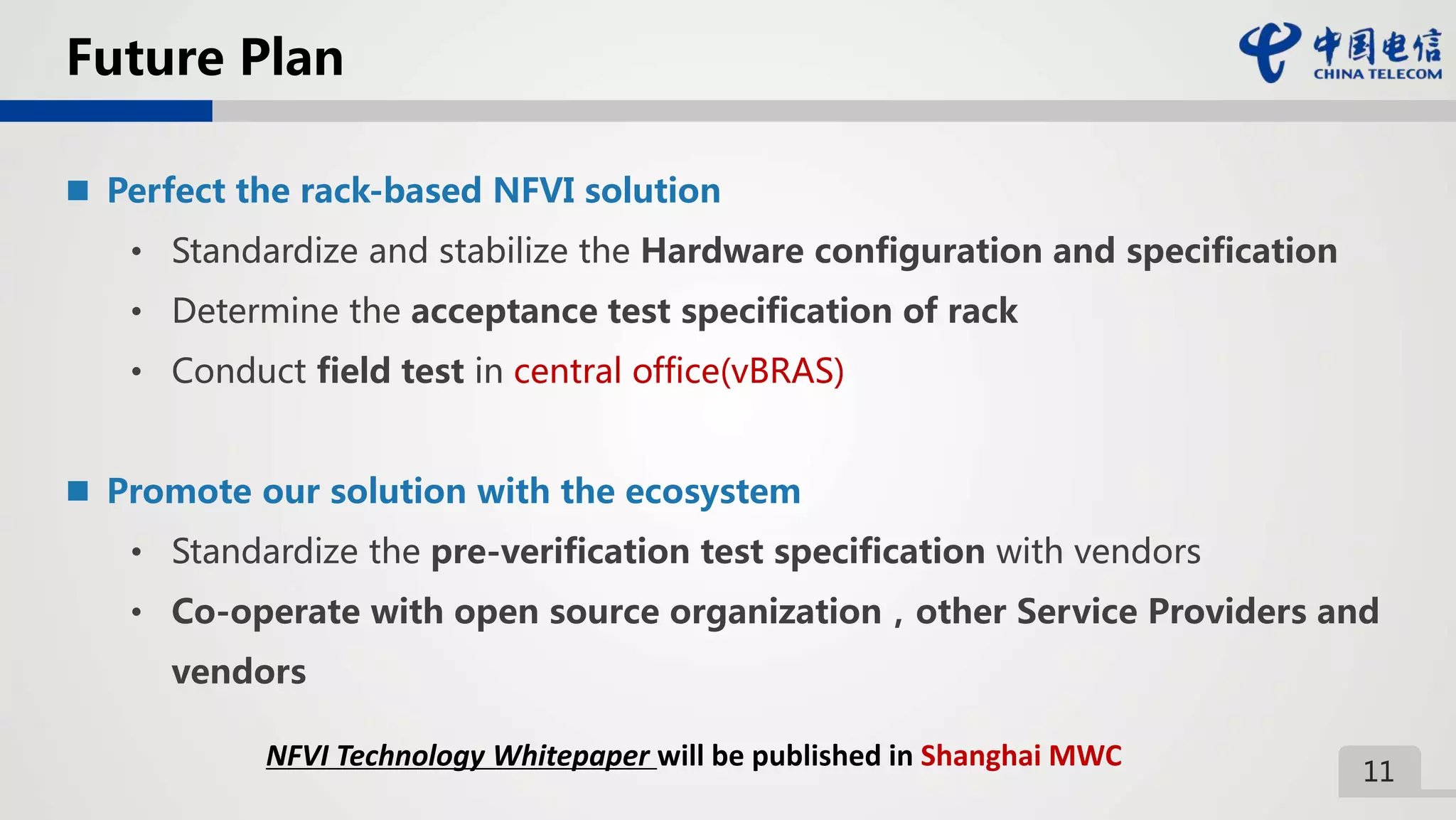

- 11. 11 Future Plan Perfectthe rack-based NFVI solution • Standardize and stabilize the Hardware configuration and specification • Determine the acceptance test specification of rack • Conduct field test in central office(vBRAS) Promote our solution with the ecosystem • Standardize the pre-verification test specification with vendors • Co-operate with open source organization，other Service Providers and vendors NFVI Technology Whitepaper will be published in Shanghai MWC
