2. Upstream testing
collaboration
Jose Lausuch
Ericsson, Functest PTL

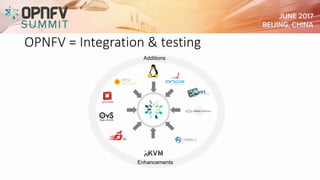

3. OPNFV = Integration & testing
Enhancements
Additions

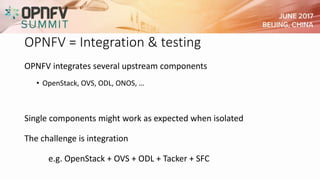

4. OPNFV = Integration & testing
OPNFV integrates several upstream components
• OpenStack, OVS, ODL, ONOS, …
Single components might work as expected when isolated
The challenge is integration
e.g. OpenStack + OVS + ODL + Tacker + SFC

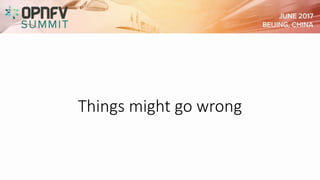

5. Things might go wrong

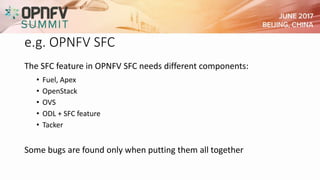

6. e.g. OPNFV SFC
The SFC feature in OPNFV SFC needs different components:
• Fuel, Apex
• OpenStack
• OVS
• ODL + SFC feature
• Tacker
Some bugs are found only when putting them all together

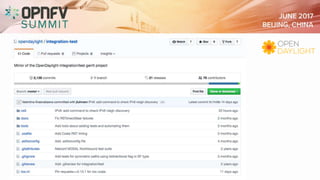

7. The community decided to use Robot as the test framework
There are a lot of tests dealing with each module in the architecture
• netvirt, genius, Netconf, ovsdb, opensack, etc …
OPNFV is mainly interested about ODL integration with OpenStack

9. • Basic & Neutron.Basic.Restconf Modules
• Get the complete list of networks
• Get the complete list of subnets
• Get the complete list of ports
• Check OpenStack Networks
• Check OpenDaylight Networks
• Create new network in OpenStack Check network created in OpenDaylight
• Check network created in OpenDaylight
• Delete Network
• Check network deleted in OpenDaylight• Check OpenStack Subnets
• Check OpenDaylight subnets
• Create new subnet in OpenStack
• Check new subnet created in OpenDaylight
• Delete New subnet
• Check subnet deleted in OpenDaylight
• Check OpenStack ports
• Check OpenDaylight ports
• Create new port in OpenStack
• Check new port created in OpenDaylight
• Delete New Port
• Check port deleted in OpenDaylight

10. New
Patchset
(Commit)
Create Virtual
Testing Platform
Download/Install
new artifact
Use standard
testing framework
e.g. Functest
Build ODL
artifact
10 min 15 min 35 min
Unit test
Installer Project
e.g. Apex
Snapshot
5 min
Positive -> Merge commit
Negative -> Prevent merge
Investigate the
logs/Find bugs
ODL OPNFV
Feedback

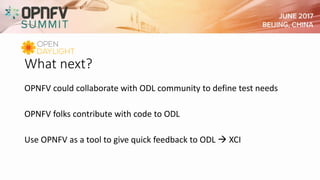

11. What next?
OPNFV could collaborate with ODL community to define test needs
OPNFV folks contribute with code to ODL
Use OPNFV as a tool to give quick feedback to ODL  XCI

12. Tempest
Set of integration tests exercising the OpenStack APIs
In OPNFV:
• Tempest smoke
• Tempest full
OPNFV scenarios are complex and some tests might must blacklisted

13. Rally
Benchmarking tool of the OpenStack services
In OPNFV:
• Rally sanity
• Rally full
OPNFV has collaborated upstream with some bug fixes

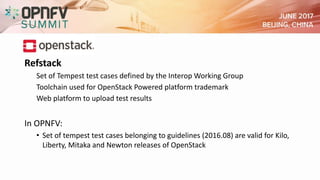

14. Refstack
Set of Tempest test cases defined by the Interop Working Group
Toolchain used for OpenStack Powered platform trademark
Web platform to upload test results
In OPNFV:
• Set of tempest test cases belonging to guidelines (2016.08) are valid for Kilo,
Liberty, Mitaka and Newton releases of OpenStack

15. Refstack
OpenStack is interested about NFV certification track
We have the NFV knowledge
They have the experience of running certification programs
Why don’t we upstream our NFV use cases to e.g. Tempest?

16. Cross CI
Integrate in OPNFV the latest OpenStack master
Automated integration and testing
Quick feedback to upstream Projects

17. VNF managers
OPNFV’s mission is not to to test the functionality of a VNF manager
OPNFV cares about
• successful integration of the VNF manager
• it can deploy a VNF
• VNF lifecycle, etc…
Examples
• Tacker for SFC test case
• Cloudify for vIMS in Functest

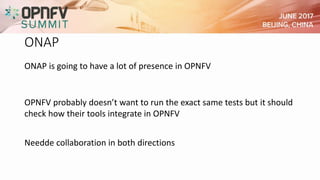

18. ONAP
ONAP is going to have a lot of presence in OPNFV
OPNFV probably doesn’t want to run the exact same tests but it should
check how their tools integrate in OPNFV
Needde collaboration in both directions

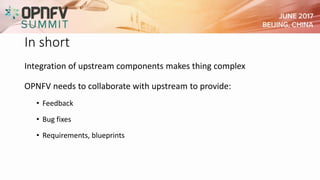

19. In short
Integration of upstream components makes thing complex
OPNFV needs to collaborate with upstream to provide:
• Feedback
• Bug fixes
• Requirements, blueprints

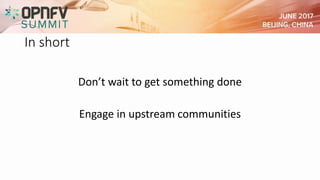

20. In short
Don’t wait to get something done
Engage in upstream communities

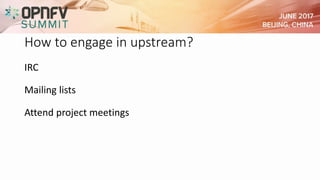

21. How to engage in upstream?
IRC
Mailing lists
Attend project meetings
