Building Secure Systems with ArcGIS Server
The document discusses building secure applications using ArcGIS Server, focusing on authentication methods such as Windows authentication and token-based authentication. It outlines the importance of managing tokens, configuring proxies for secured service access, and emphasizes the need to treat security with caution. Various configuration tips, risks involved, and resources for reference are provided throughout the text.
More Related Content
Similar to Building Secure Systems with ArcGIS Server
Building Secure Systems with ArcGIS Server
- 1. Building Secure Apps Dave Bouwman http://www.flickr.com/photos/heraklit/169566548
- 3.

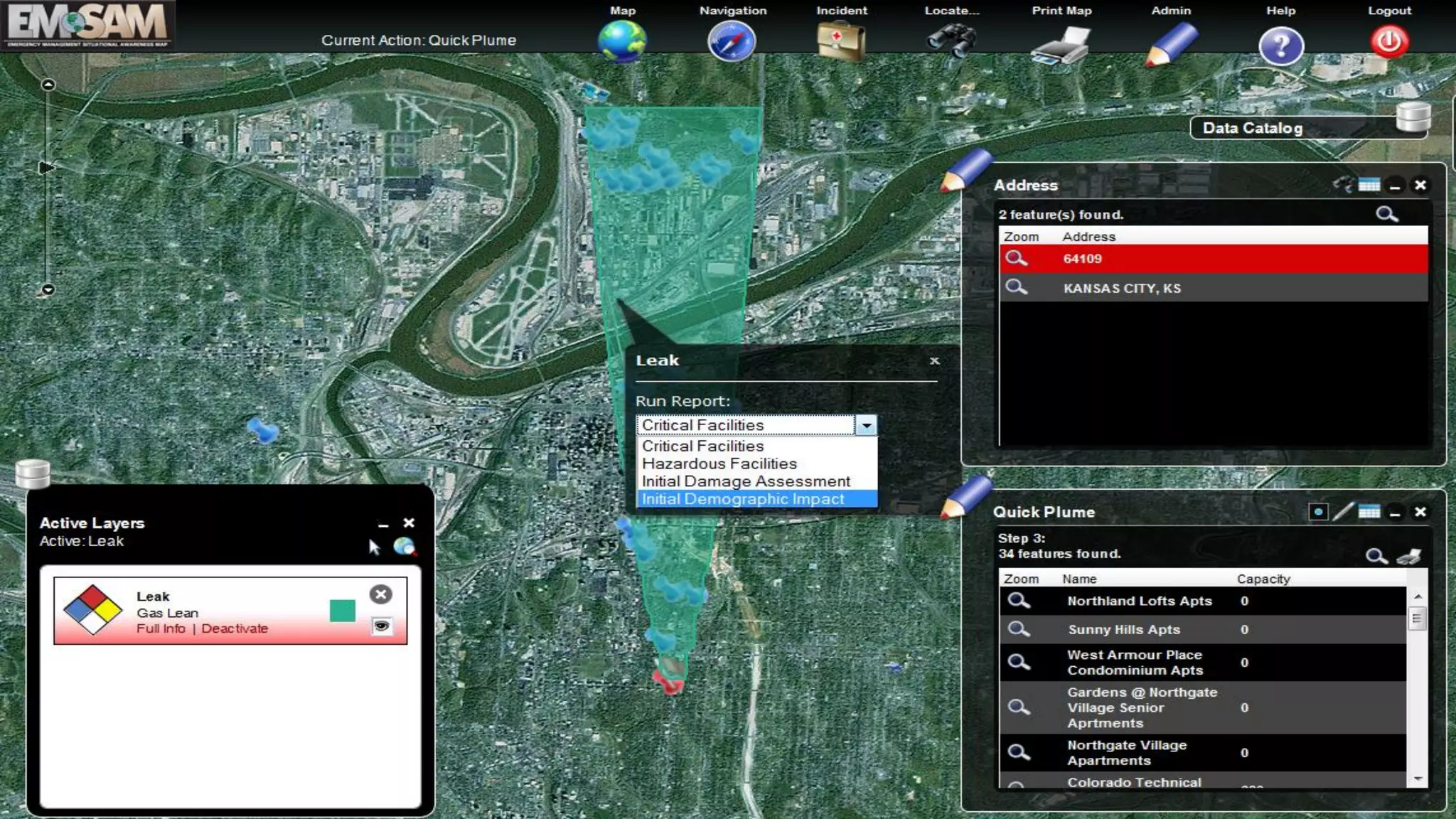

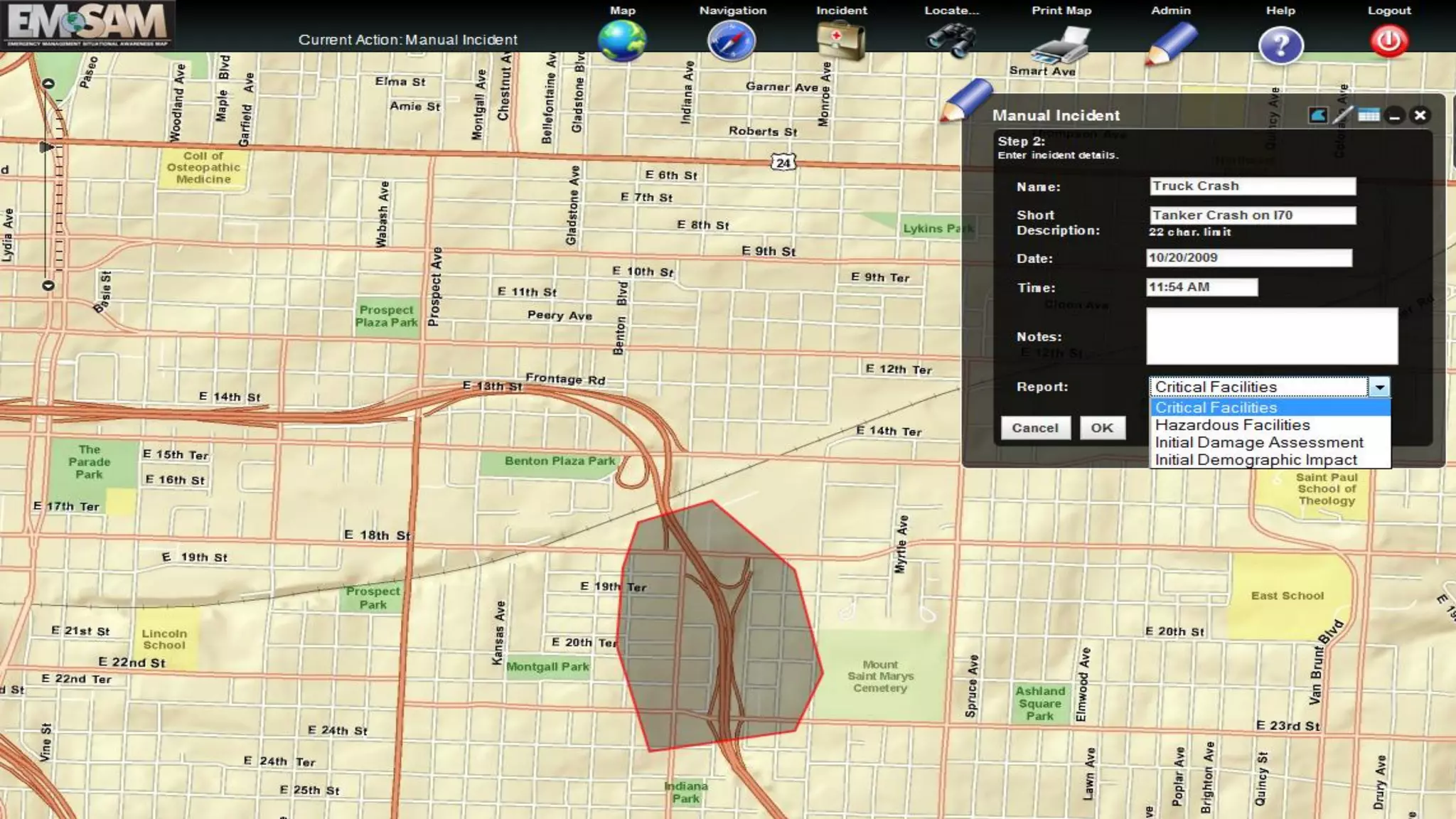

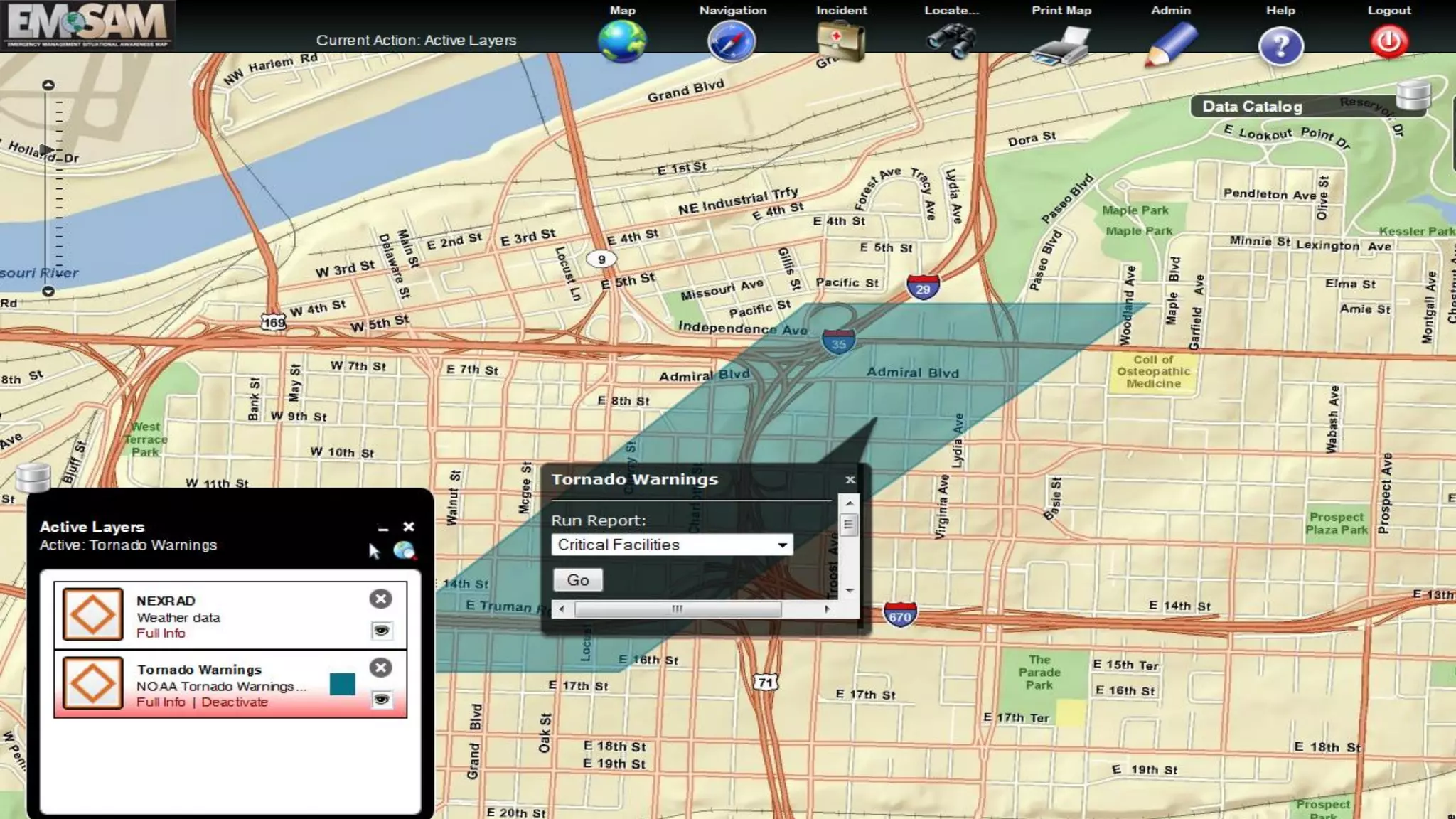

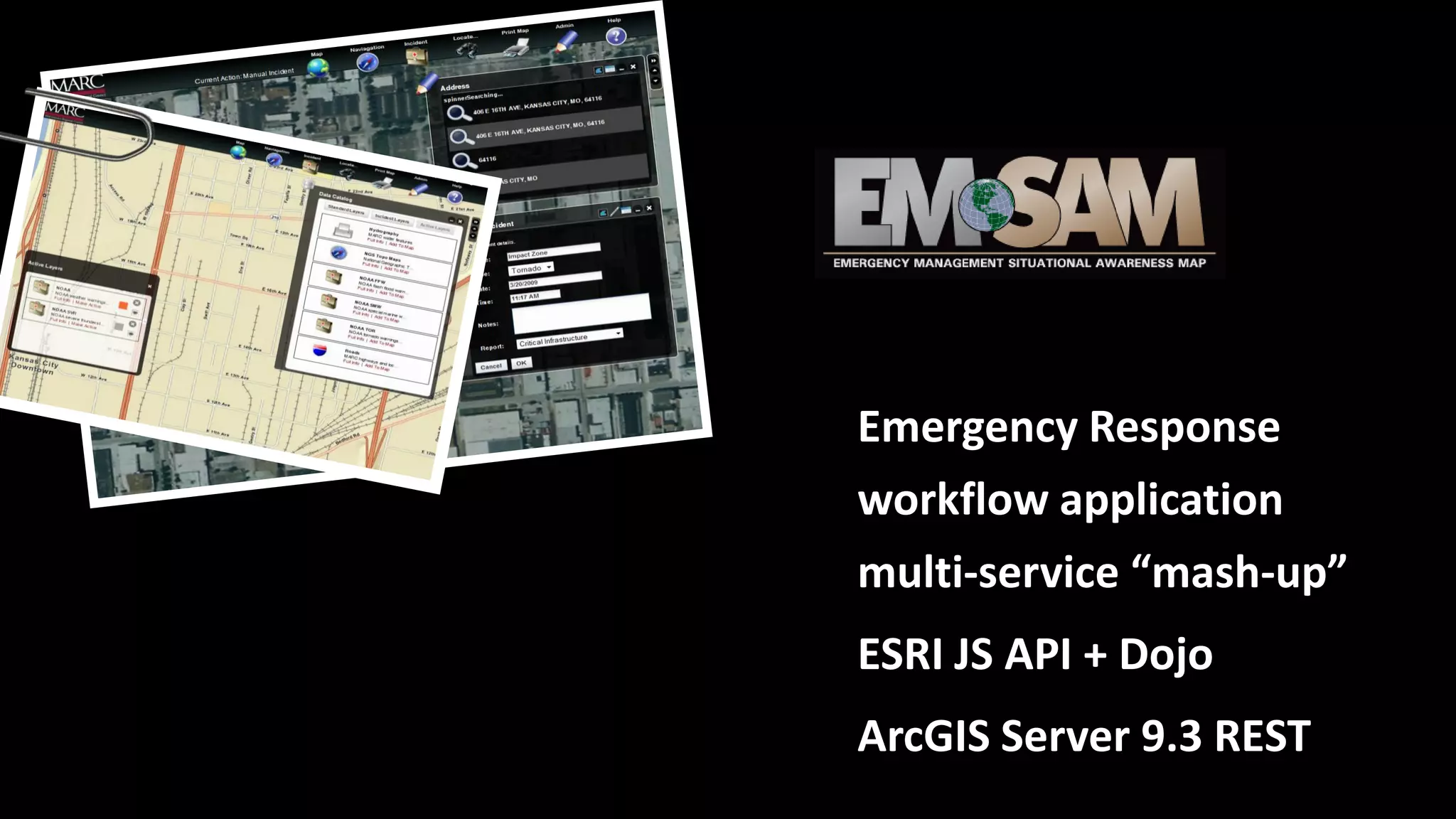

- 4. Emergency Response workflow application multi-service“mash-up” ESRI JS API + Dojo ArcGIS Server 9.3 REST
- 5.
- 6.
- 7.
- 8.
- 9.
- 11.
- 13.
- 15.

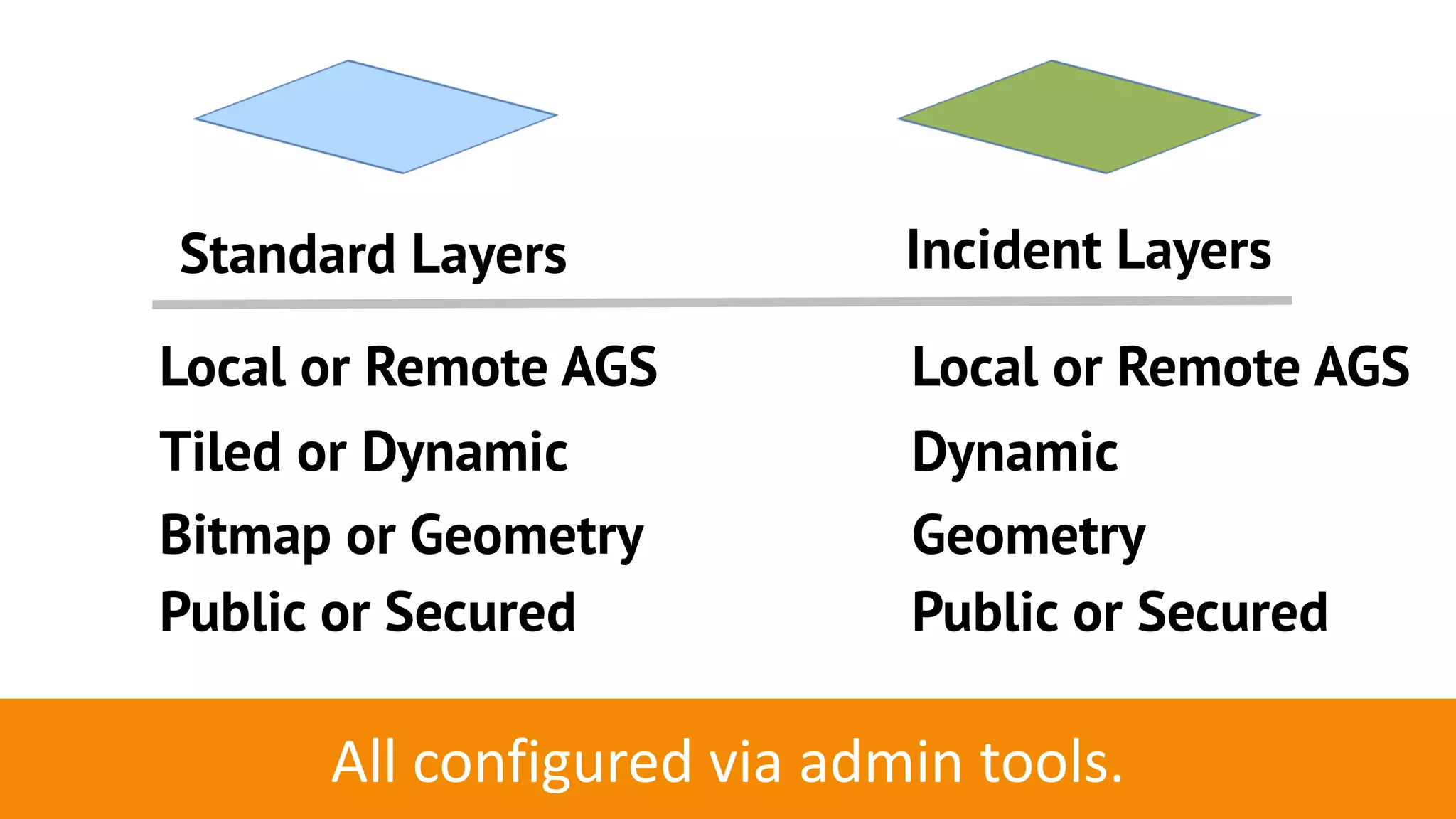

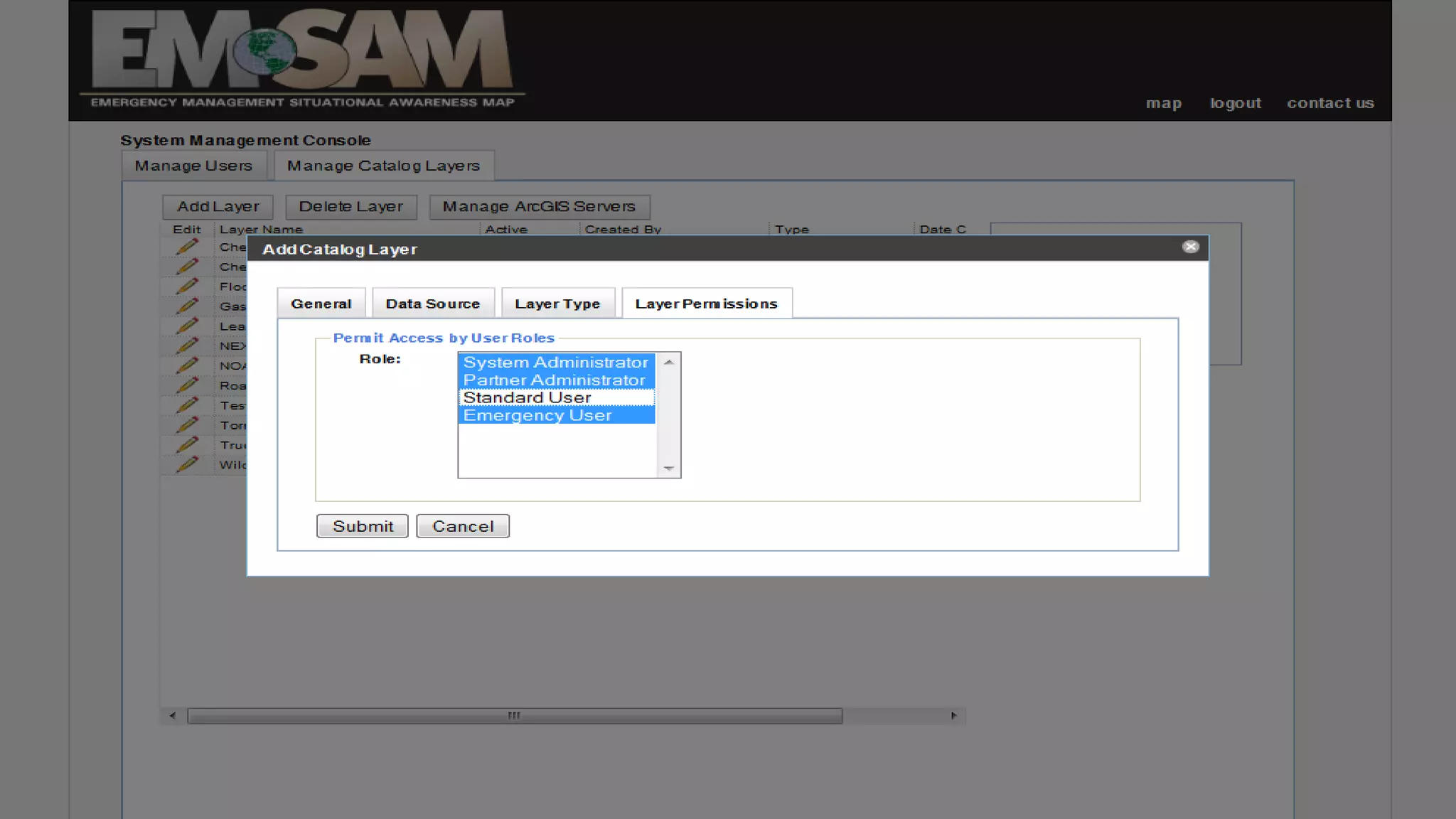

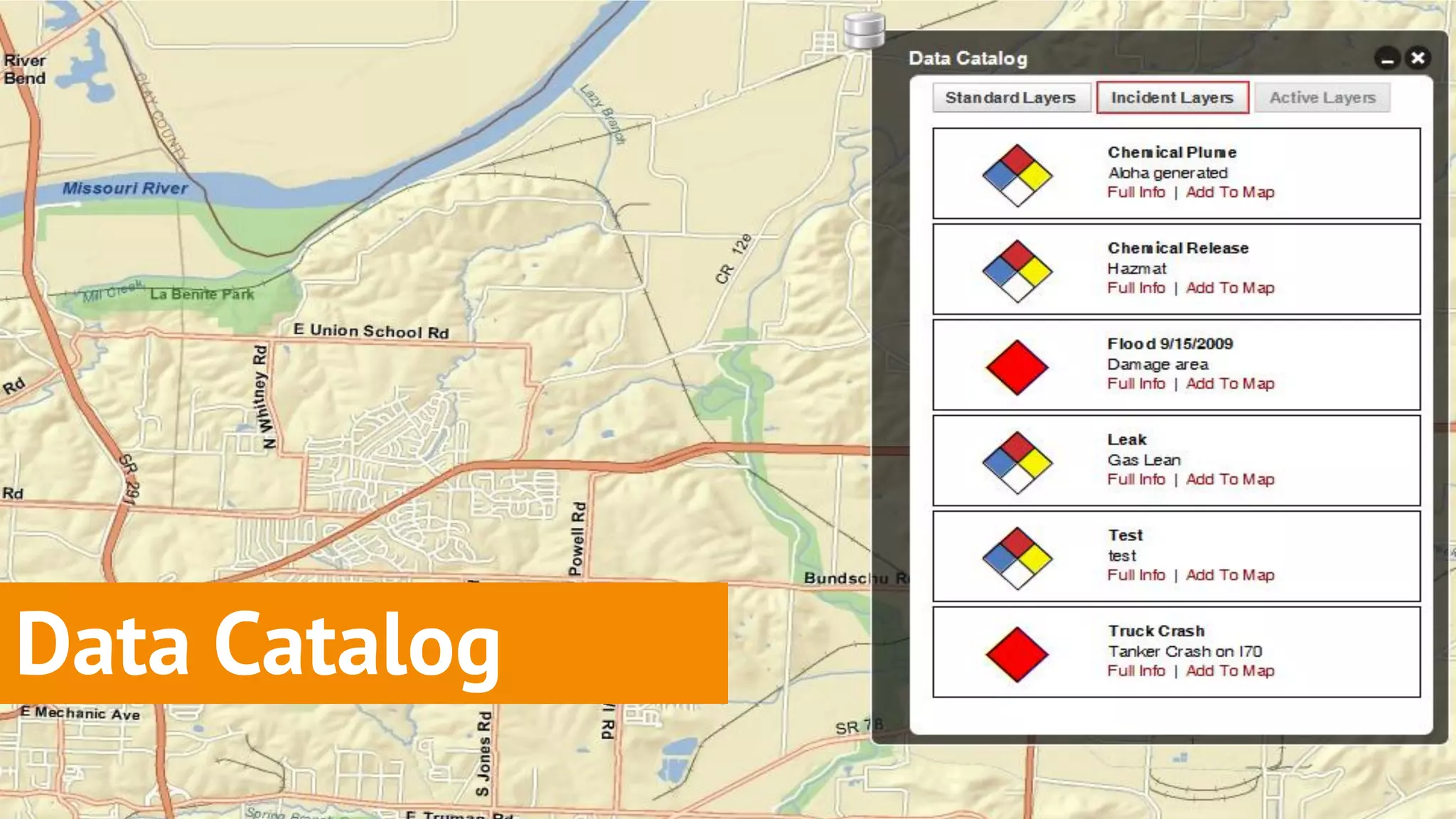

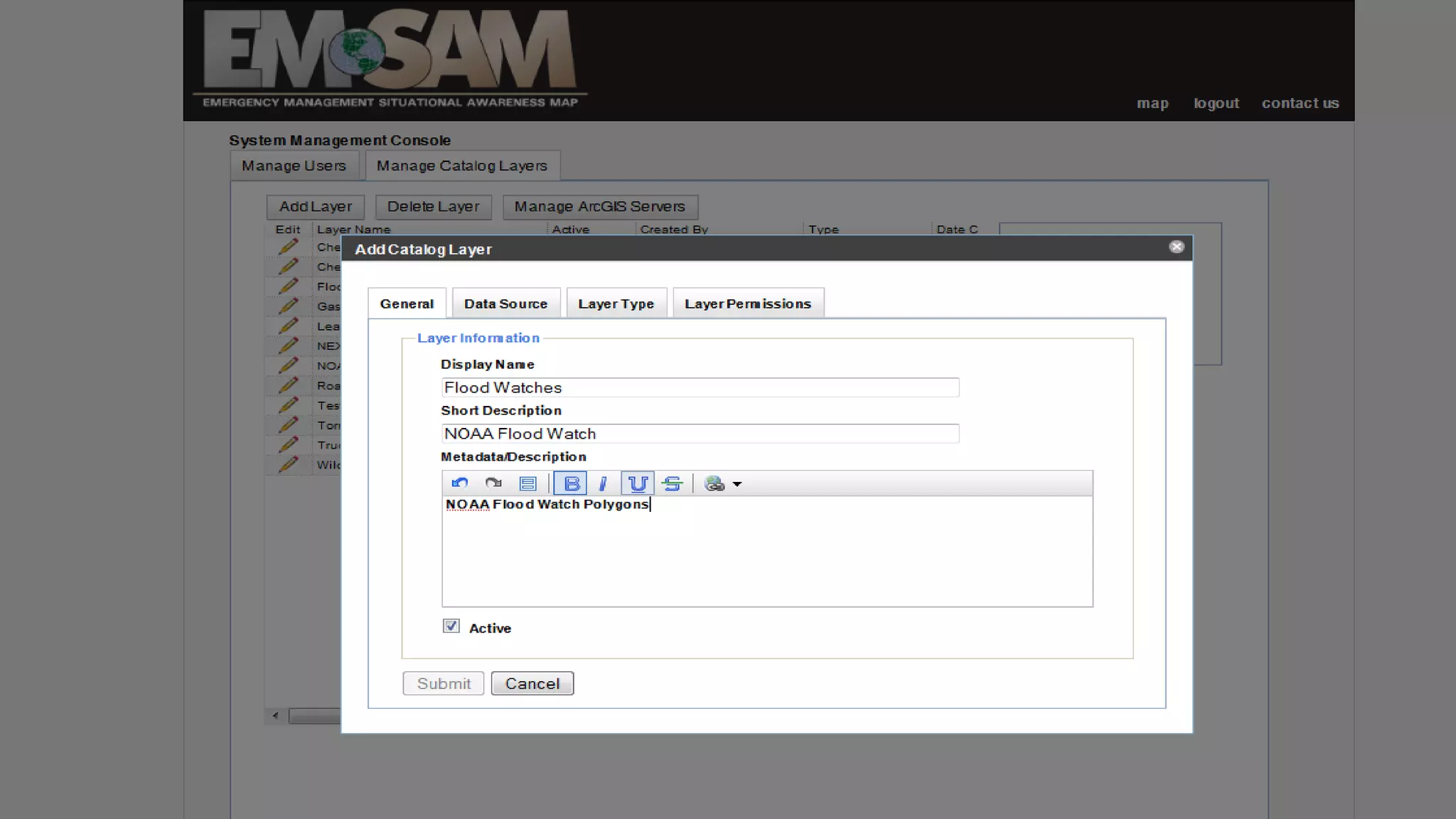

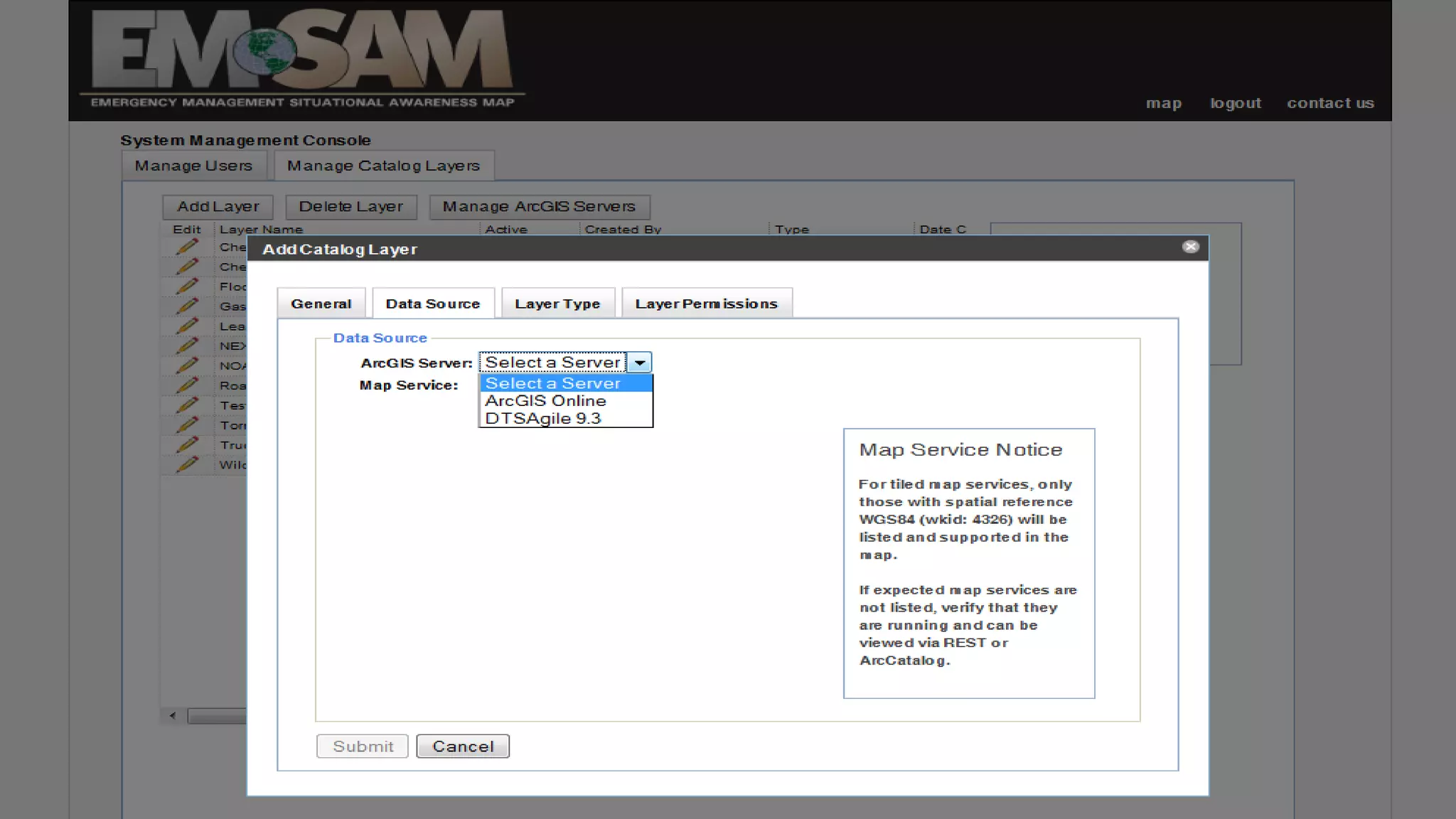

- 16. Standard Layers Incident Layers Local or Remote AGS Local or Remote AGS Tiled or Dynamic Dynamic Bitmap or Geometry Geometry Public or Secured Public or Secured All configured via admin tools.
- 23.
- 24.
- 25.
- 26. Identity Access

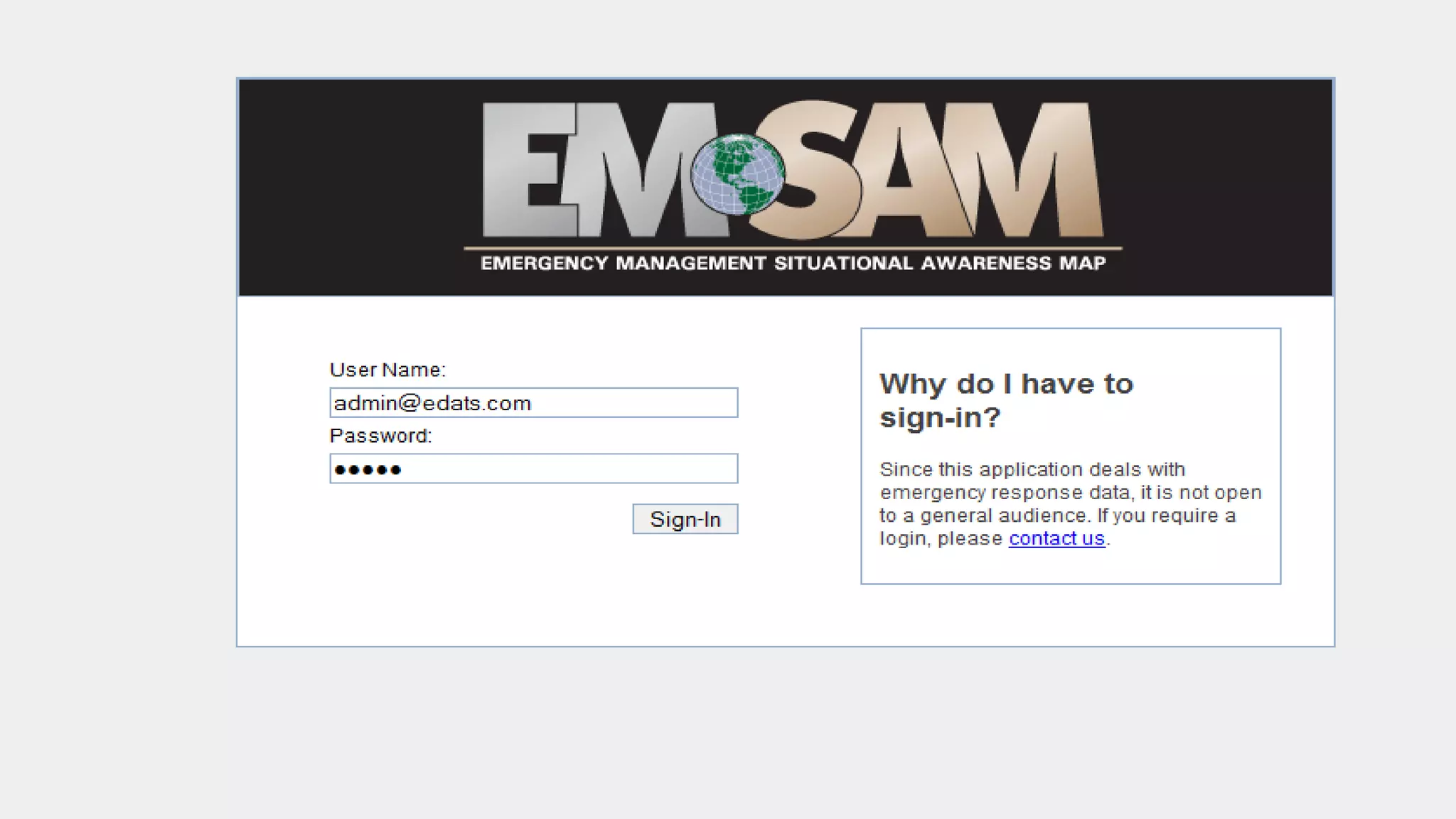

- 28. LOGIN: dave PASSWORD: ******

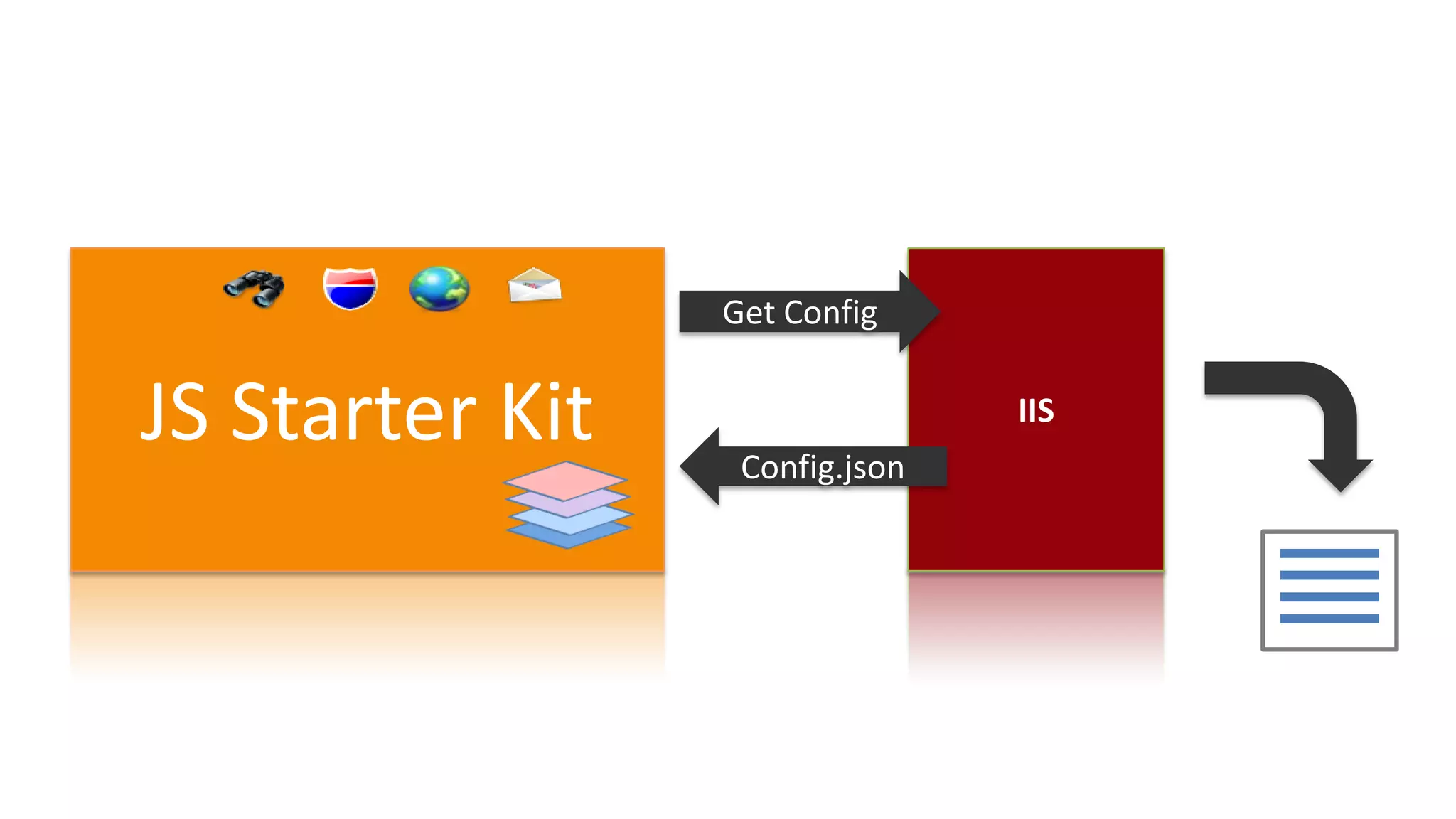

- 31. Get Config JS StarterKit Config.json IIS
- 32.

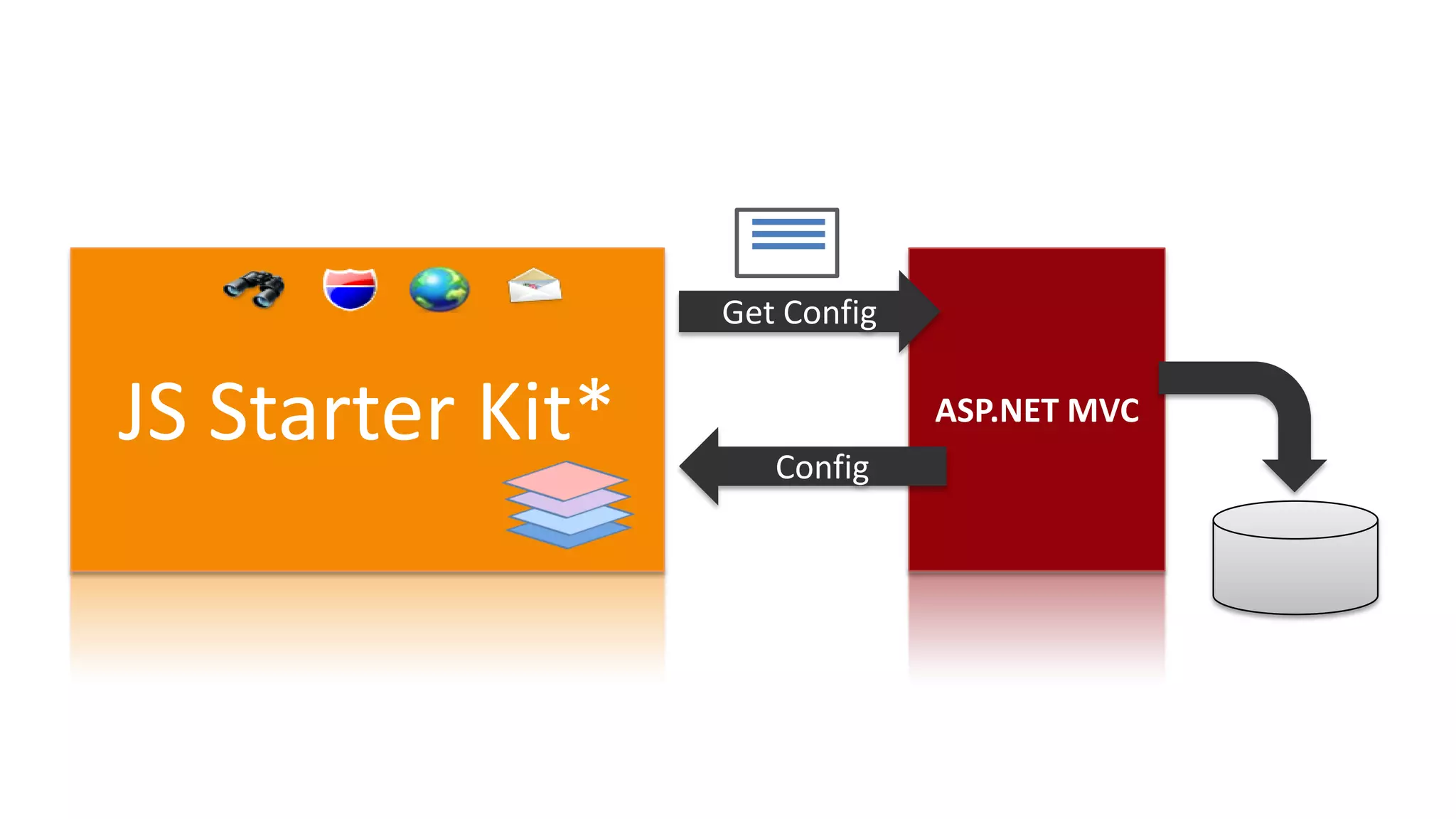

- 33. Get Config JS StarterKit* Config ASP.NET MVC
- 34. Locking up ArcGISServer

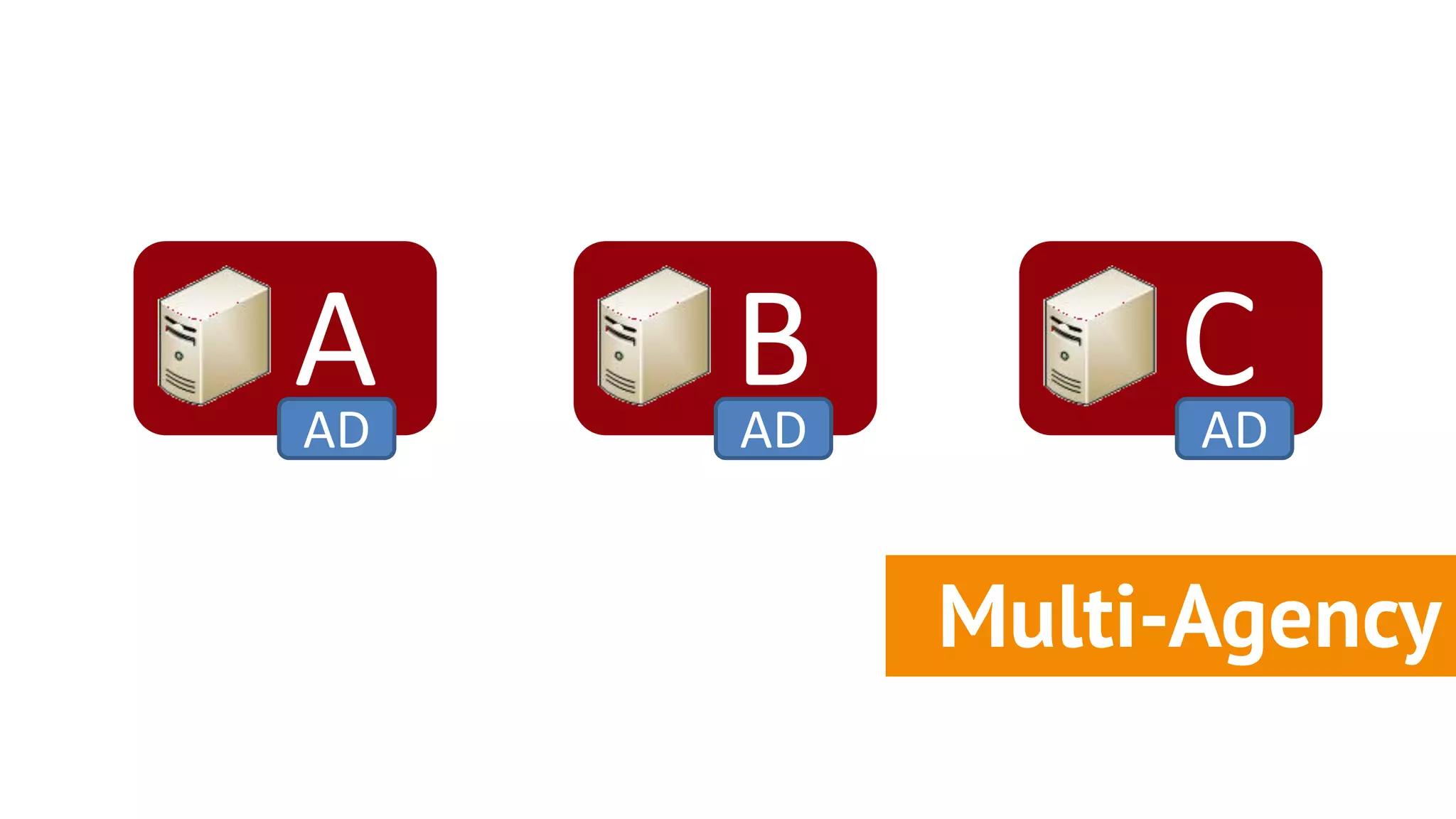

- 35. A AD B AD CAD Multi-Agency

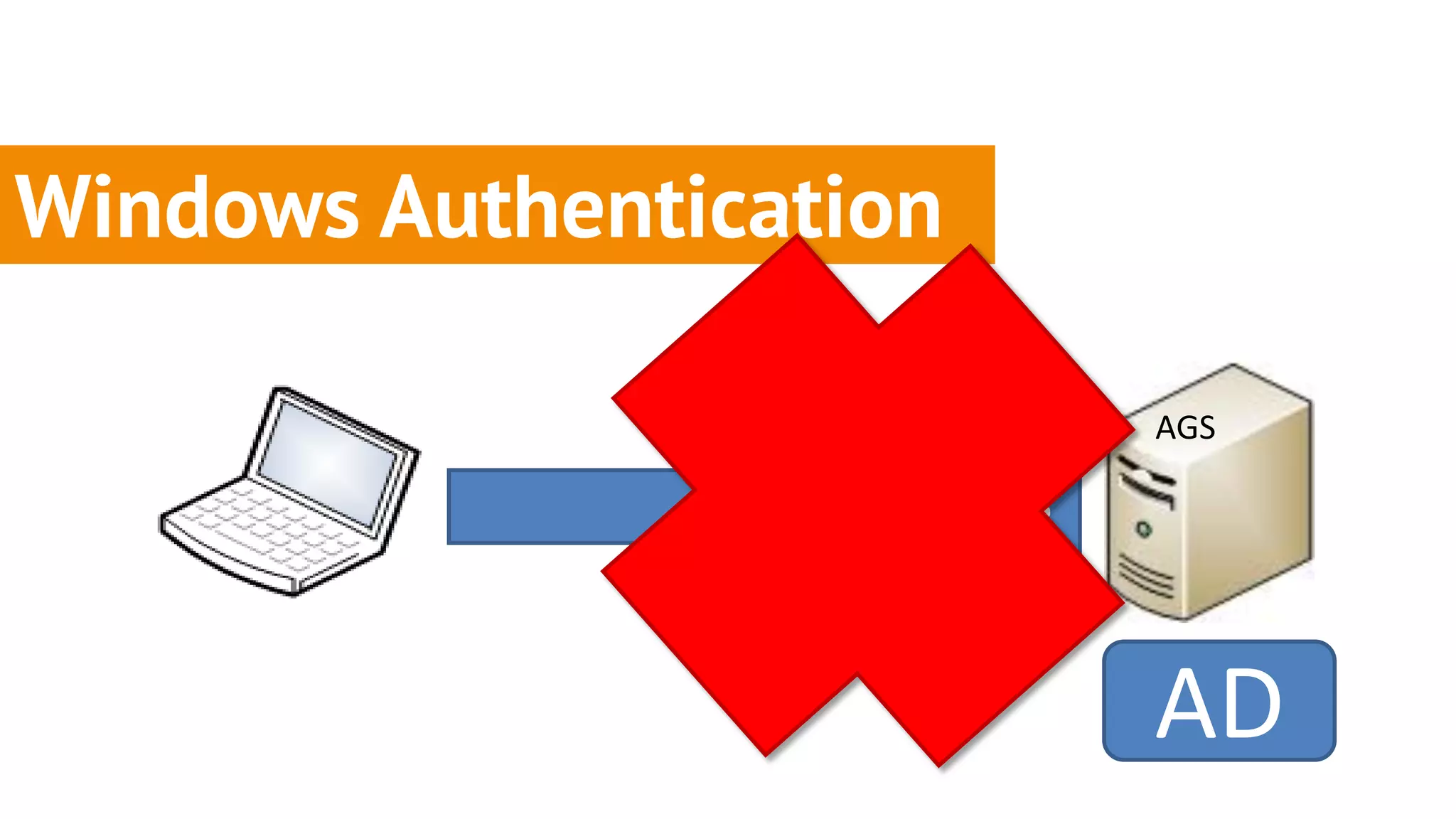

- 36. Windows Authentication AGS IIS AD

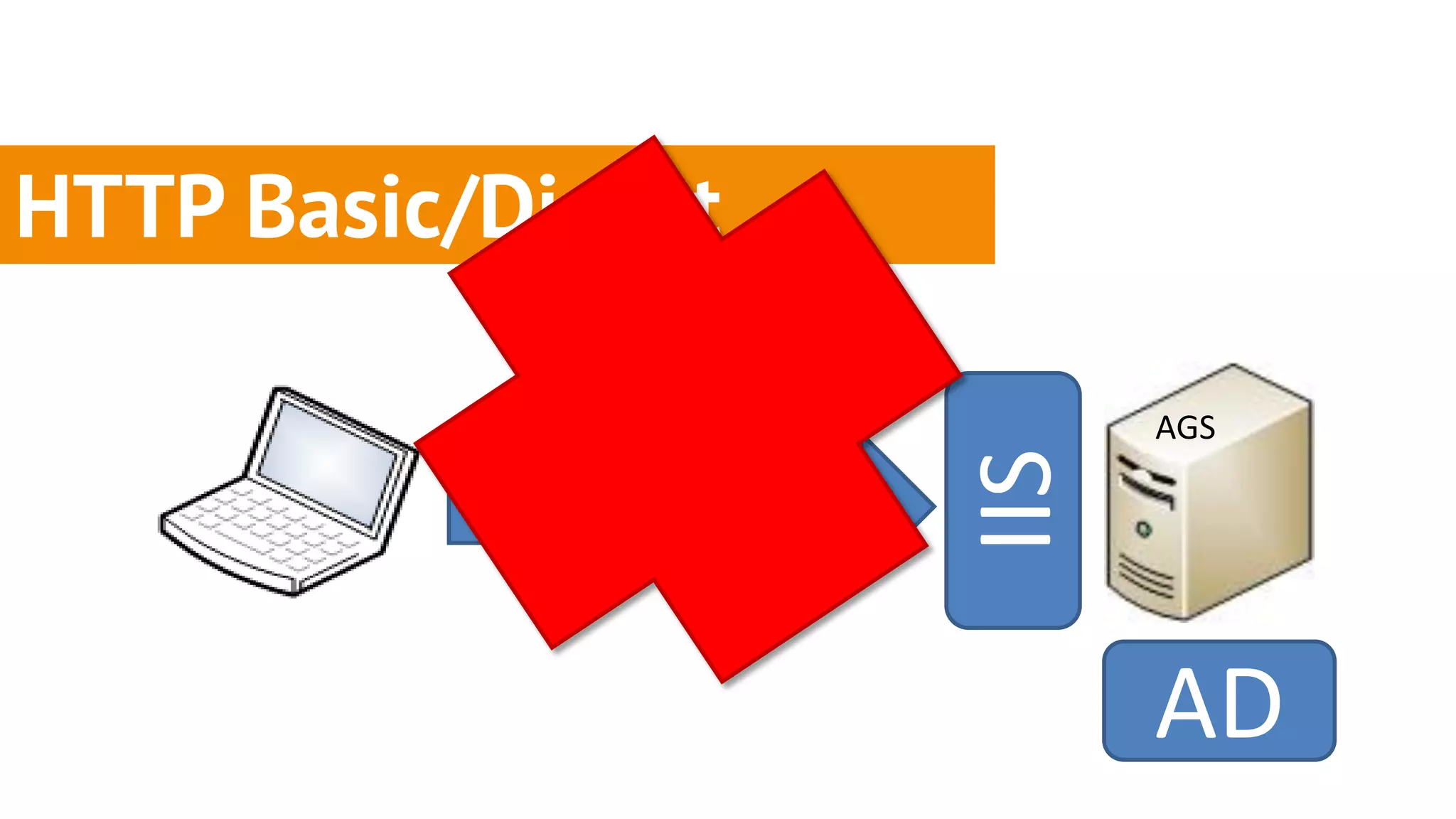

- 37. HTTP Basic/Digest dave ******* AGS IIS AD

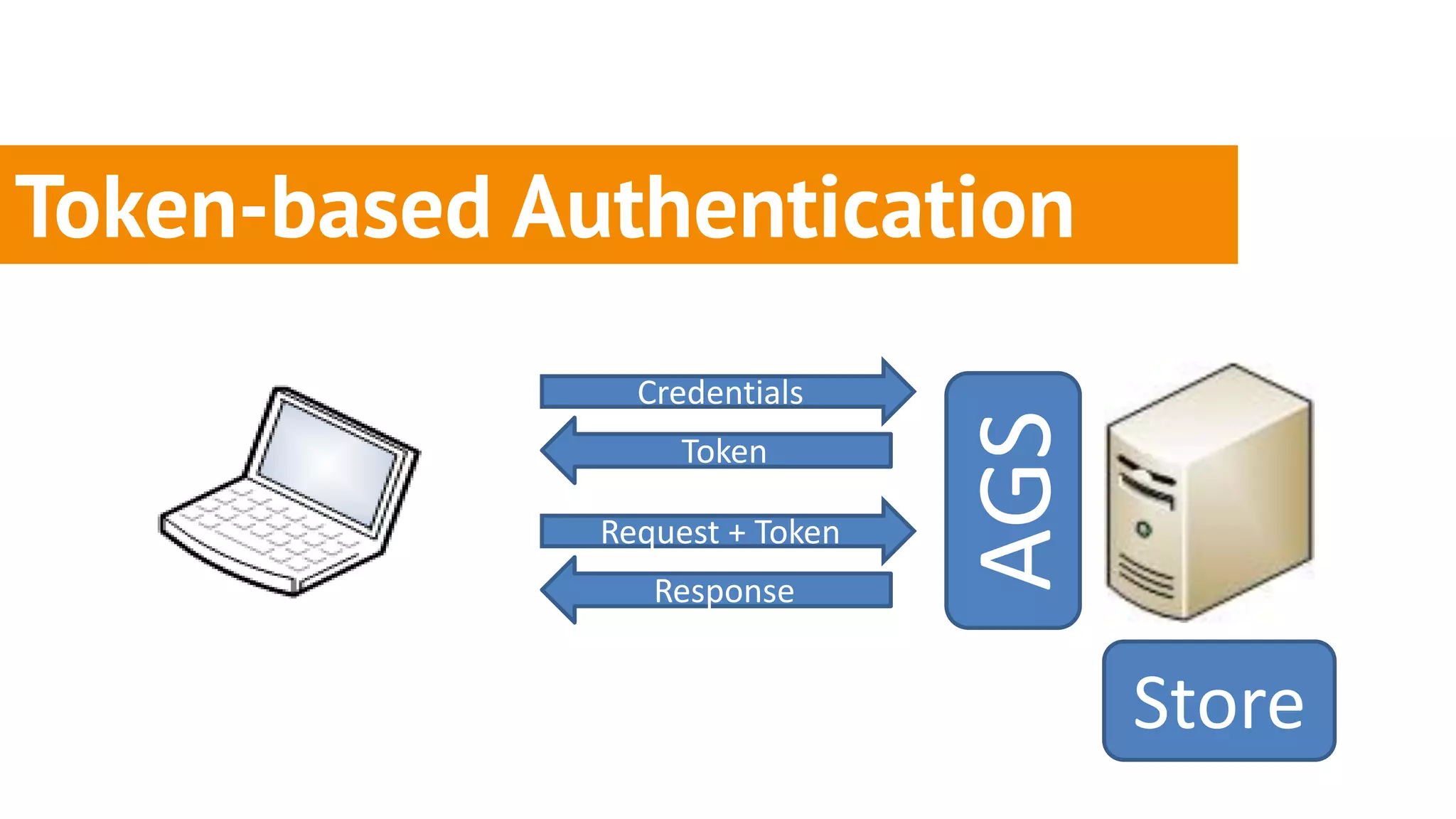

- 38. Token-based Authentication Credentials AGS Token Request + Token Response Store

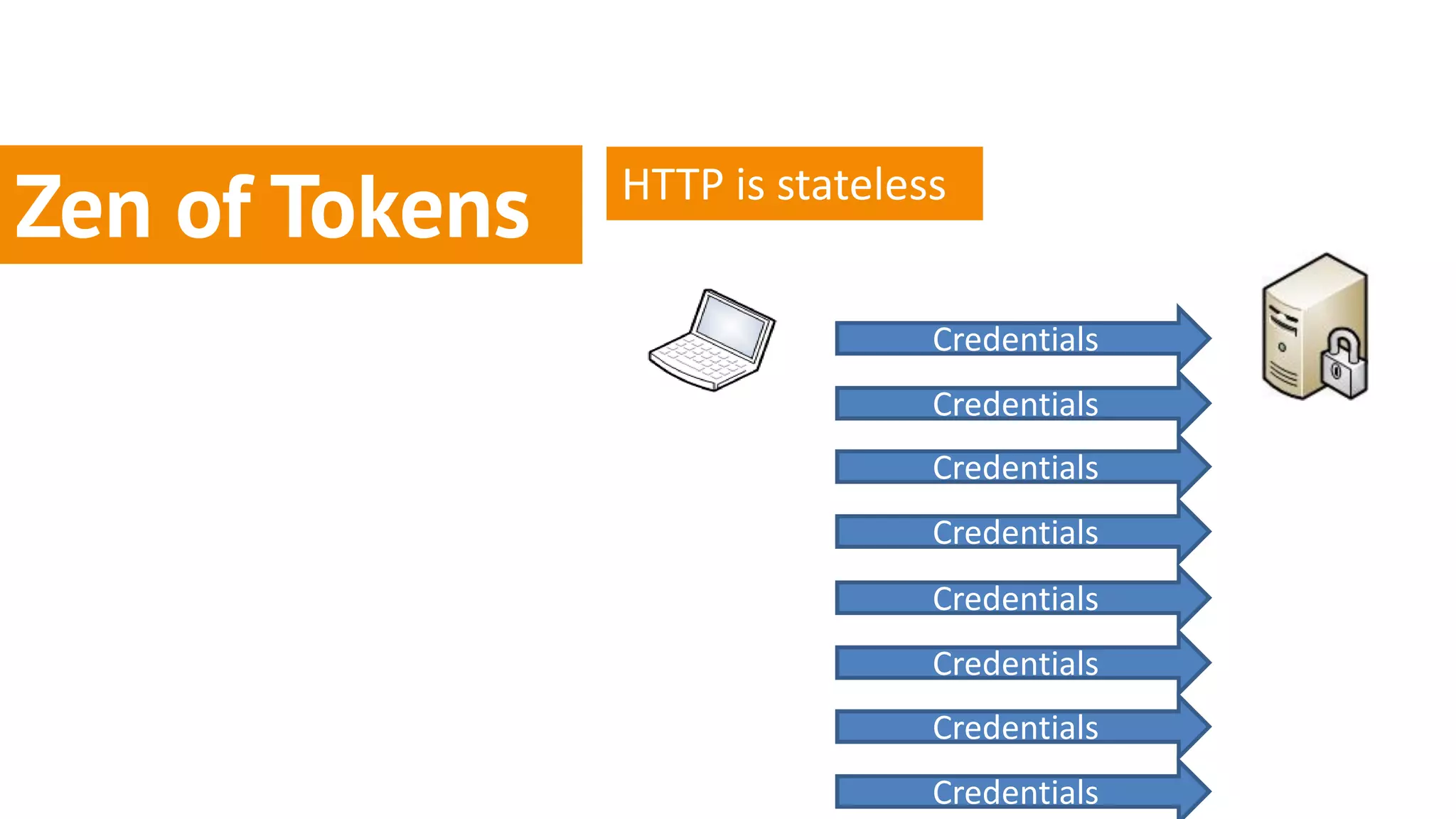

- 40. HTTP is stateless Zenof Tokens Credentials Credentials Credentials Credentials Credentials Credentials Credentials Credentials

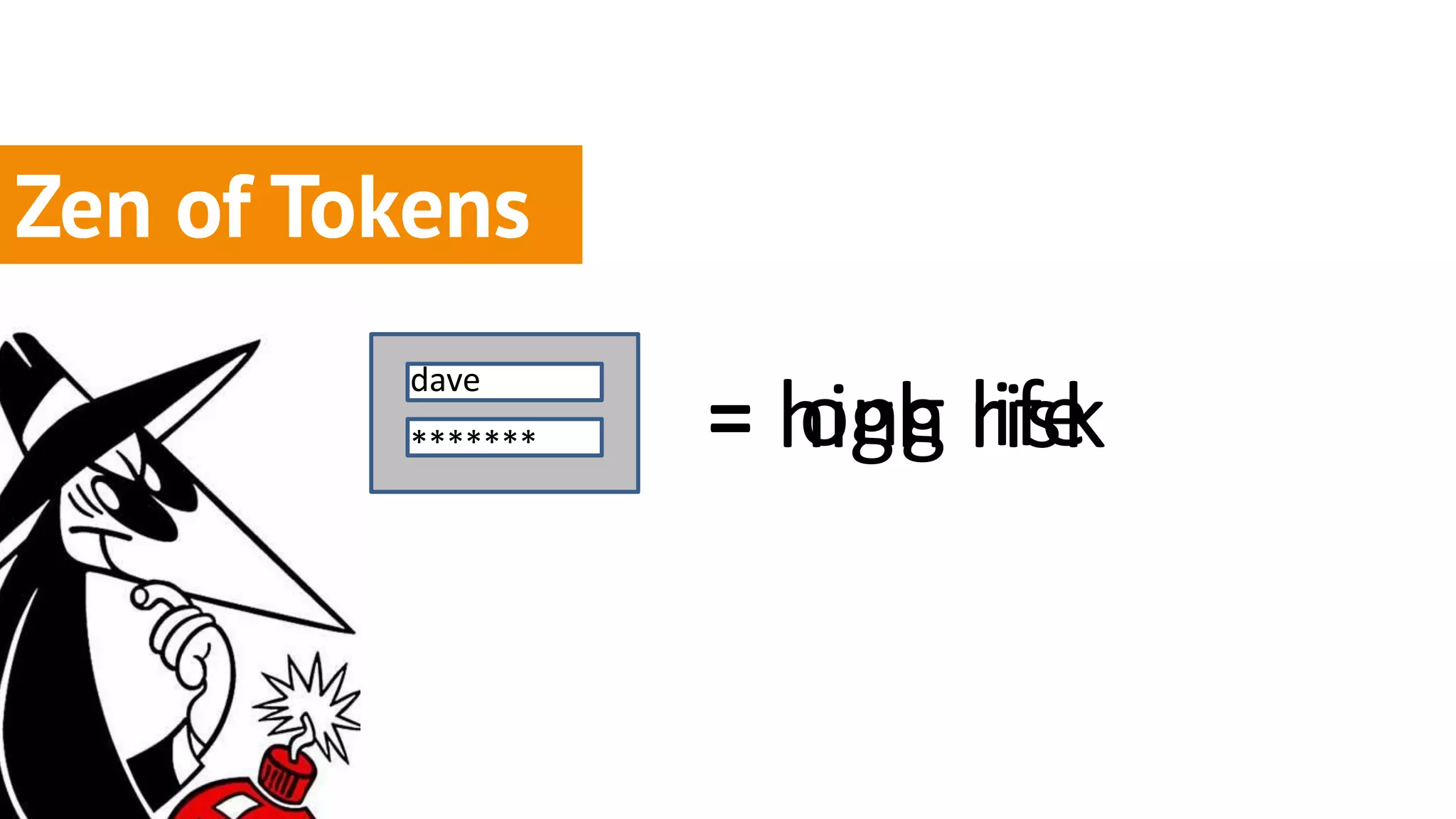

- 41. Zen of Tokens dave ******* = long risk high life

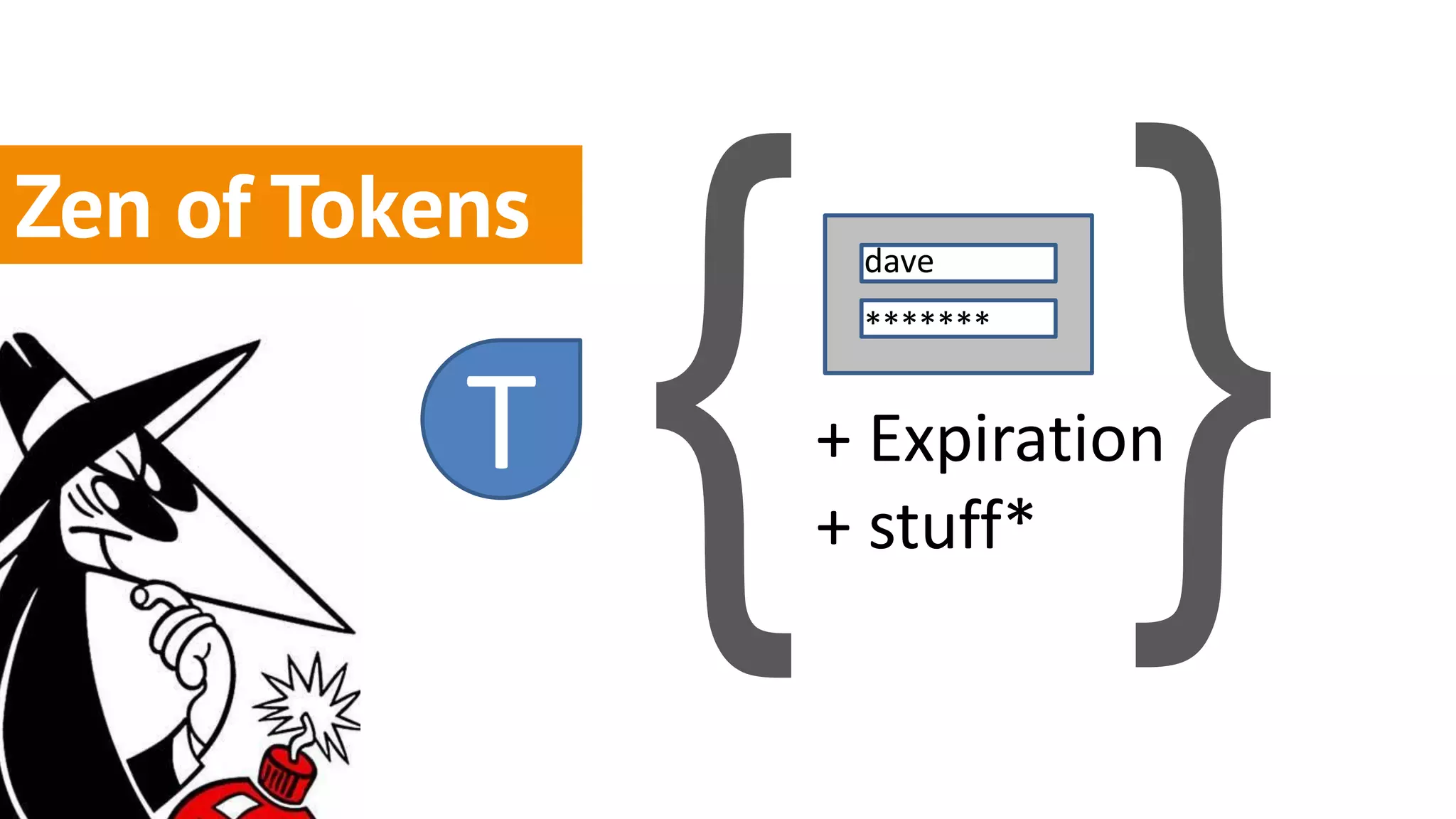

- 42. Zen of Tokens dave ******* T + Expiration + stuff*
- 46.

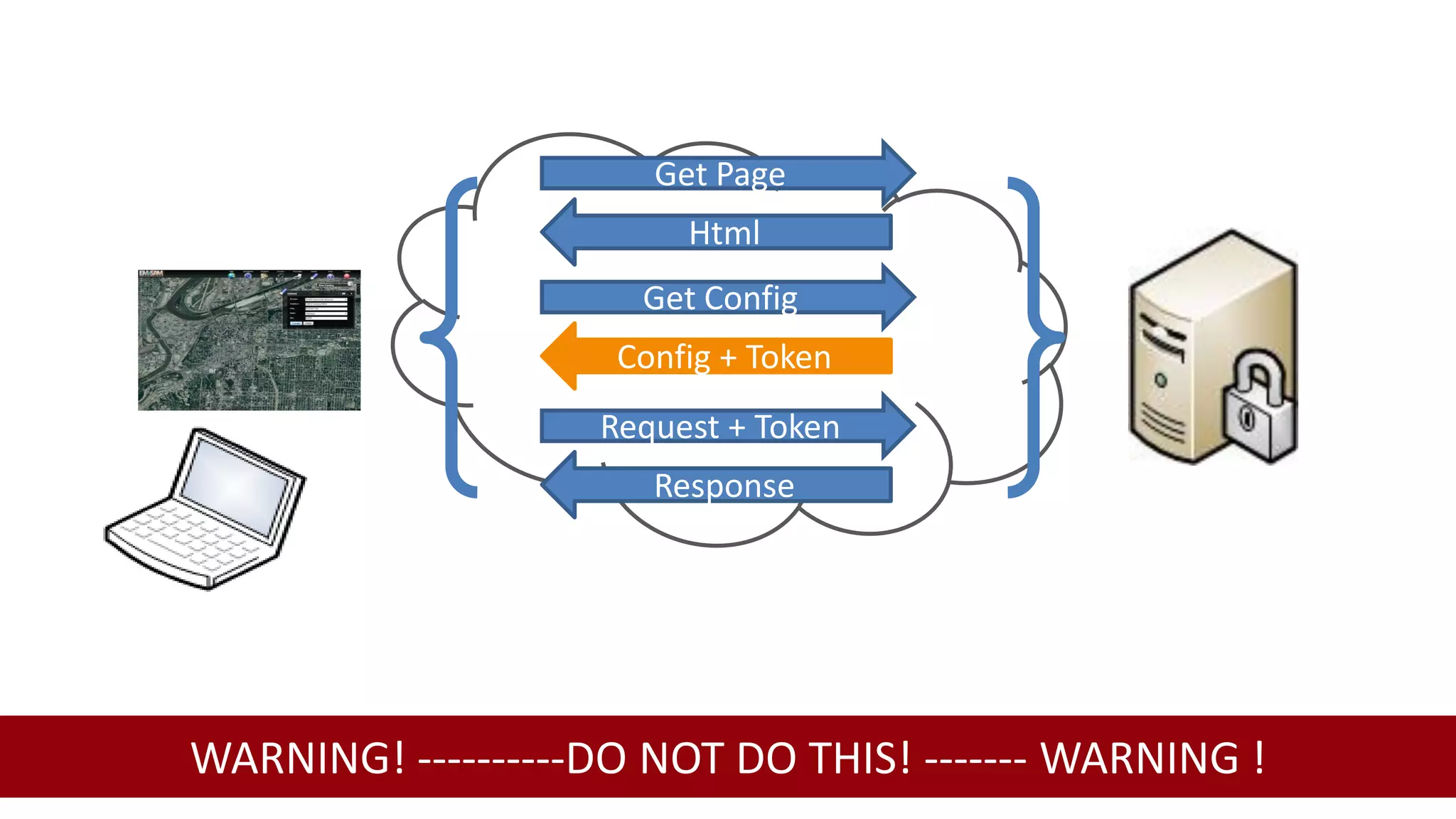

- 47. Get Page Html Get Config Config + Token Request + Token Response WARNING! ----------DO NOT DO THIS! ------- WARNING !

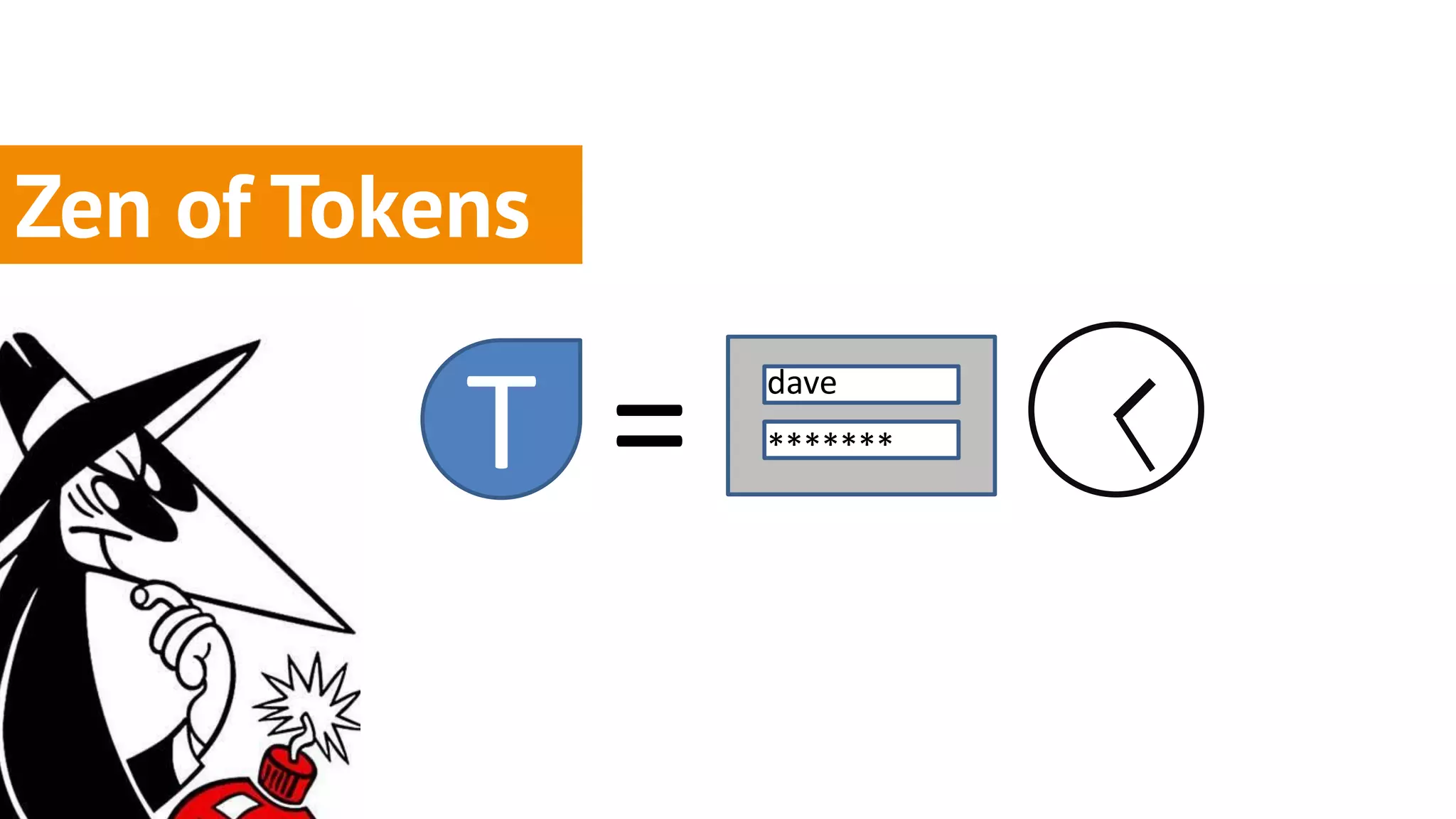

- 51. Zen of Tokens T = dave *******

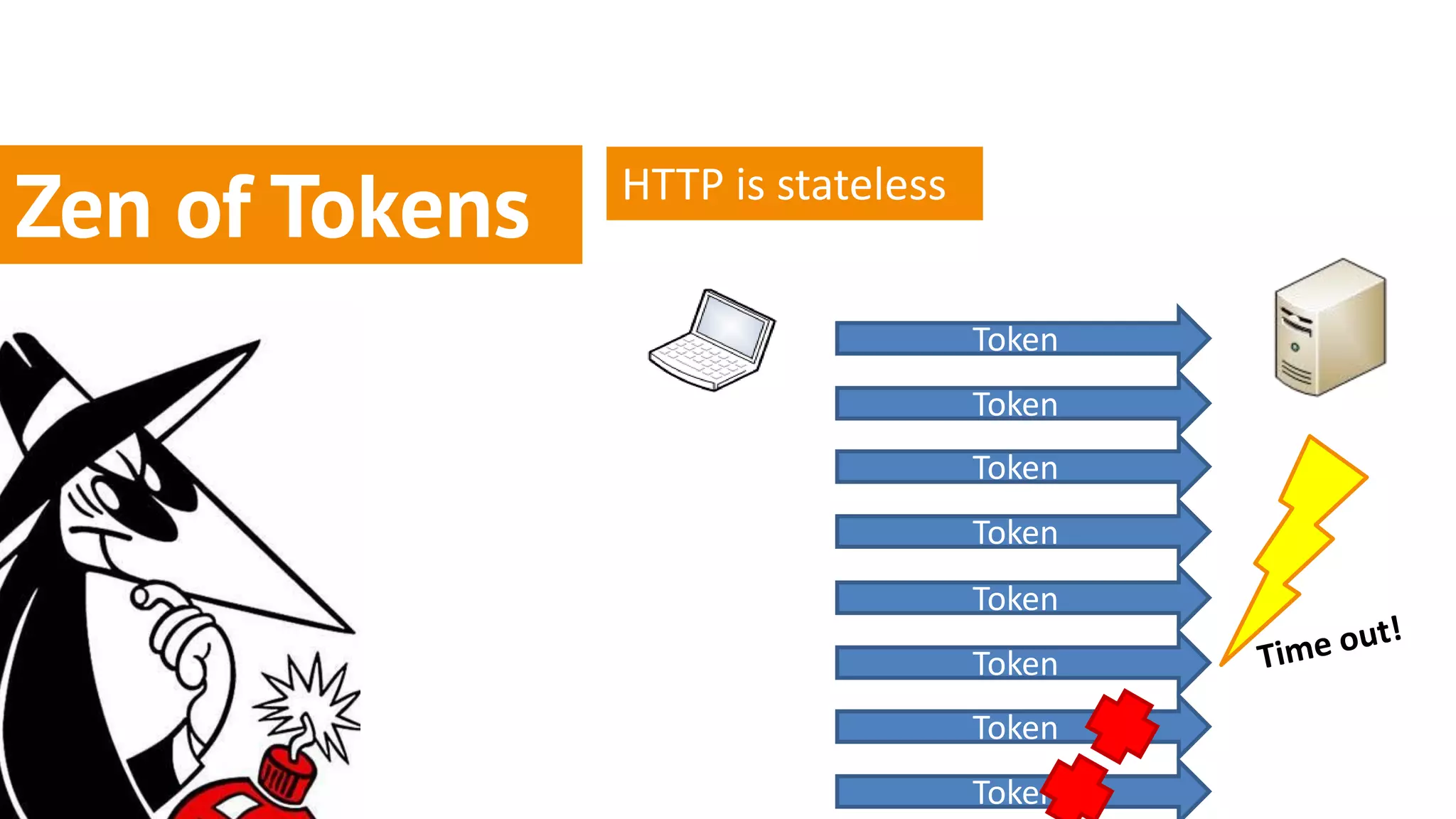

- 52. HTTP is stateless Zenof Tokens Token Token Token Token Token Token Token Token

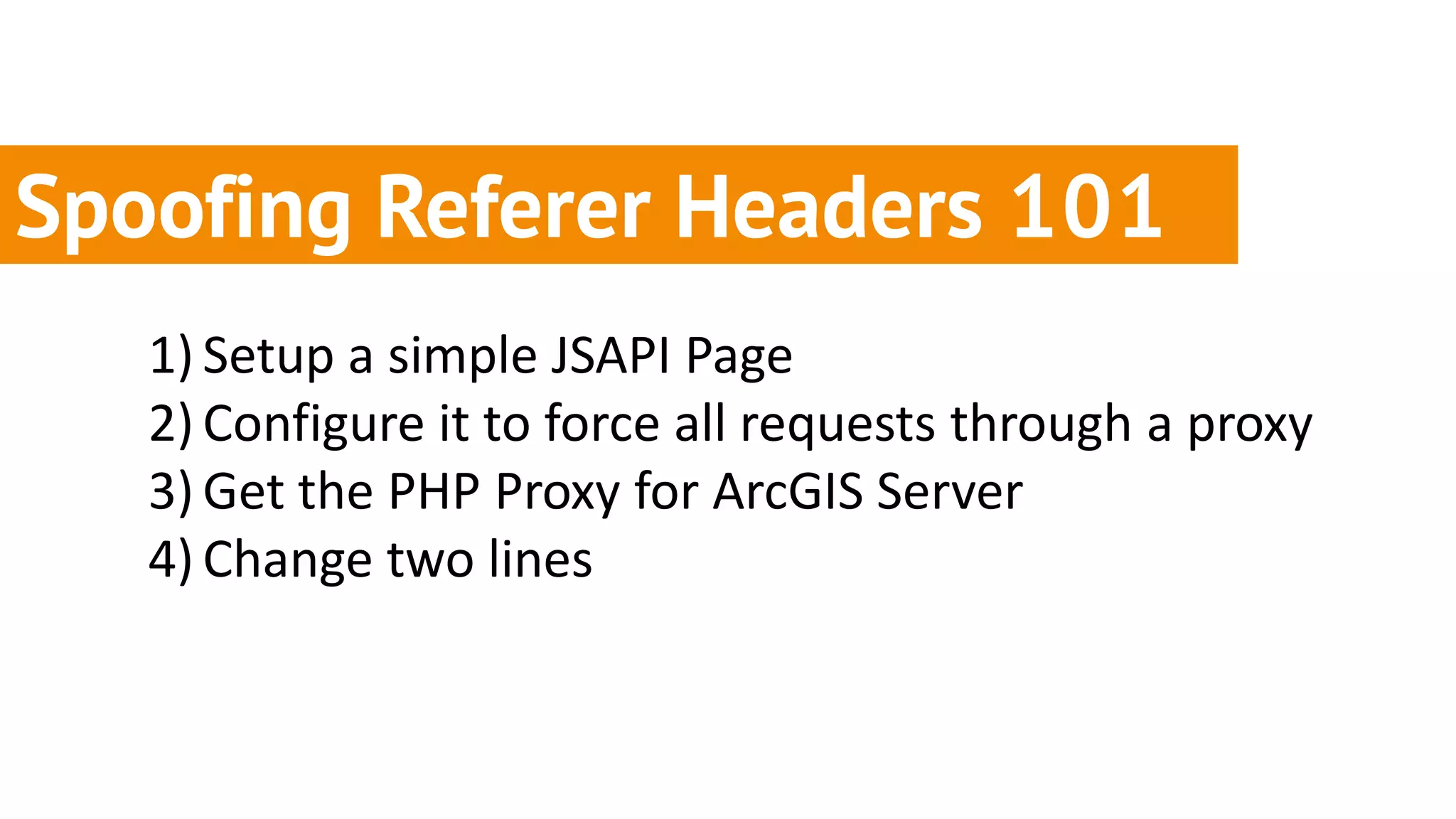

- 53. Spoofing Referer Headers101 1) Setup a simple JSAPI Page 2) Configure it to force all requests through a proxy 3) Get the PHP Proxy for ArcGIS Server 4) Change two lines

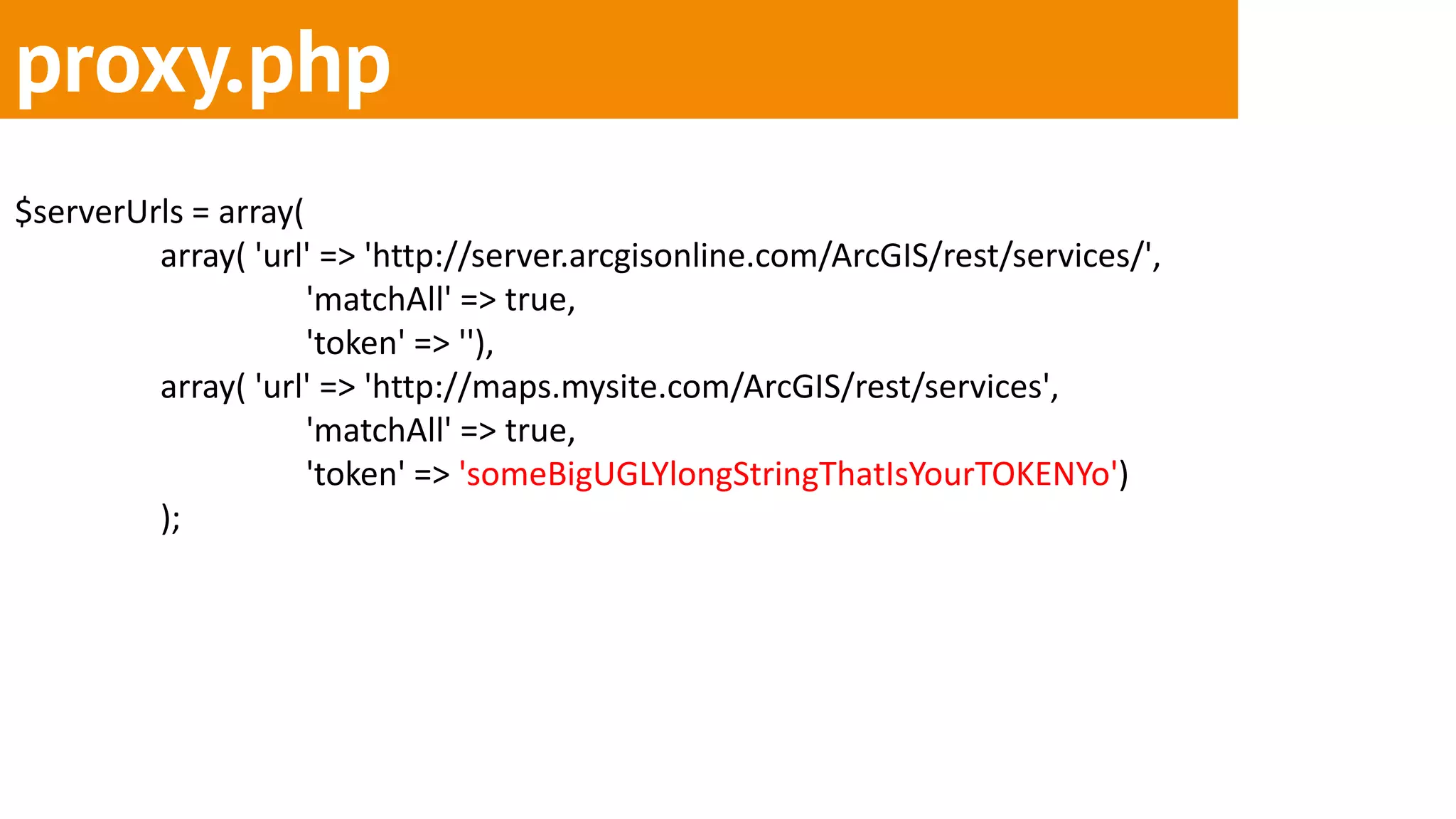

- 54. proxy.php $serverUrls = array( array( 'url' => 'http://server.arcgisonline.com/ArcGIS/rest/services/', 'matchAll' => true, 'token' => ''), array( 'url' => 'http://maps.mysite.com/ArcGIS/rest/services', 'matchAll' => true, 'token' => 'someBigUGLYlongStringThatIsYourTOKENYo') );

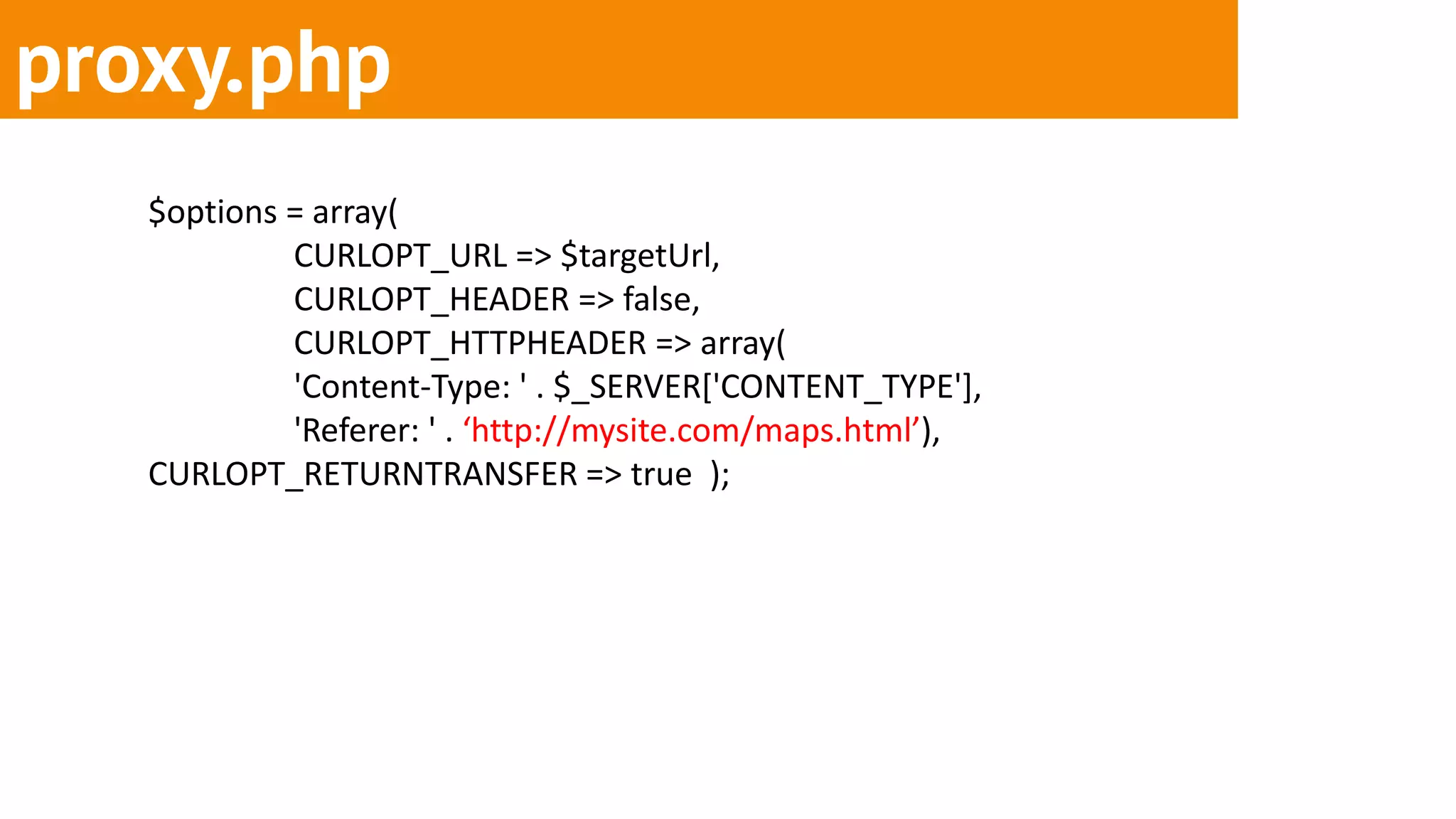

- 55. proxy.php $options = array( CURLOPT_URL => $targetUrl, CURLOPT_HEADER => false, CURLOPT_HTTPHEADER => array( 'Content-Type: ' . $_SERVER['CONTENT_TYPE'], 'Referer: ' . ‘http://mysite.com/maps.html’), CURLOPT_RETURNTRANSFER => true );
- 56. Zen of Tokens Exposed tokens MUST quickly! expire
- 57. Hiding Tokens behinda Proxy
- 58. PROXY Credentials AGS Request Token Response Request + Token Response Credentials

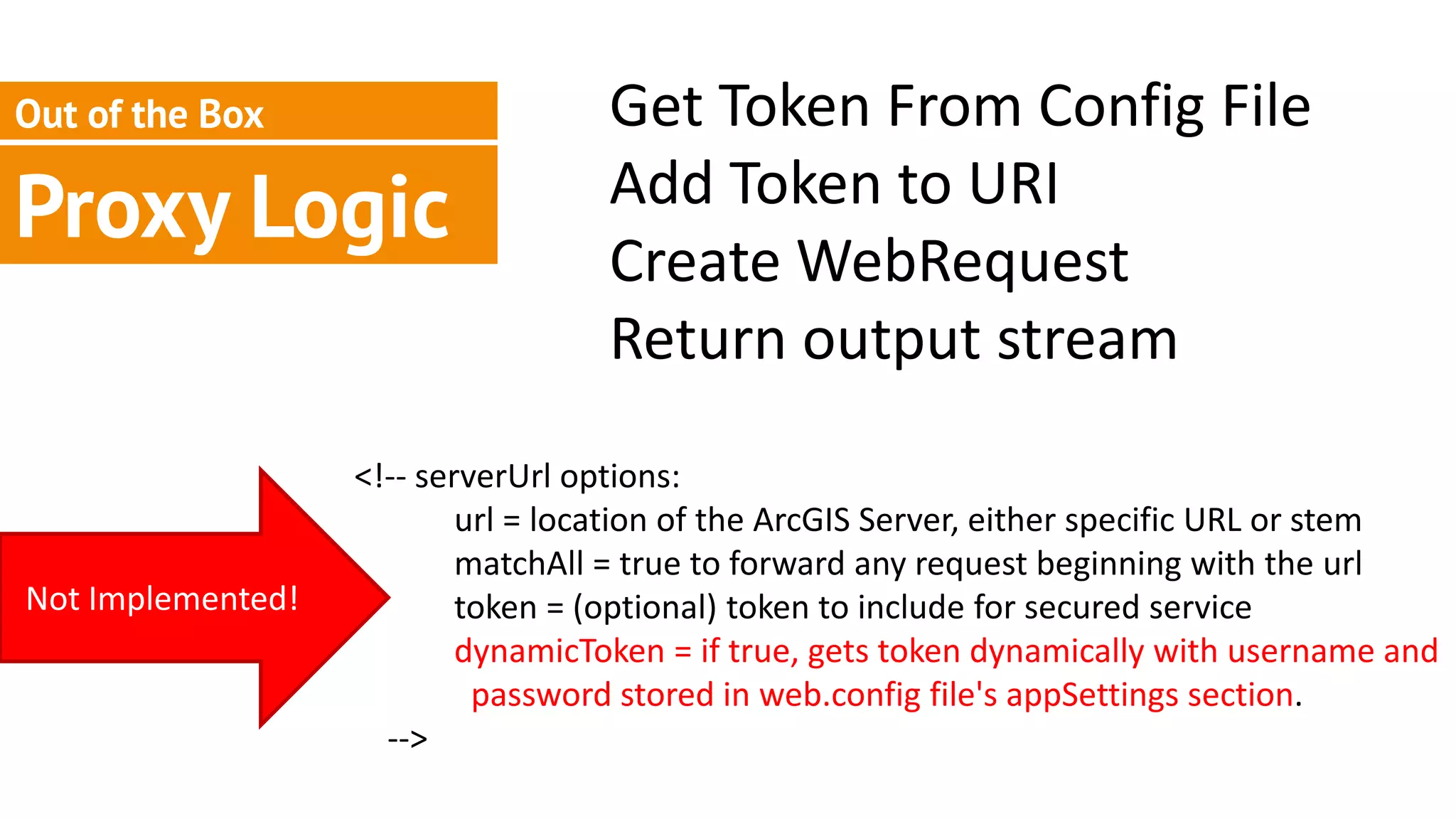

- 59. Out of theBox Get Token From Config File Add Token to URI Proxy Logic Create WebRequest Return output stream <!-- serverUrl options: url = location of the ArcGIS Server, either specific URL or stem matchAll = true to forward any request beginning with the url Not Implemented! token = (optional) token to include for secured service dynamicToken = if true, gets token dynamically with username and password stored in web.config file's appSettings section. -->
- 60. PROXY++ Credentials AGS Request Token Response Request + Token Response Credentials

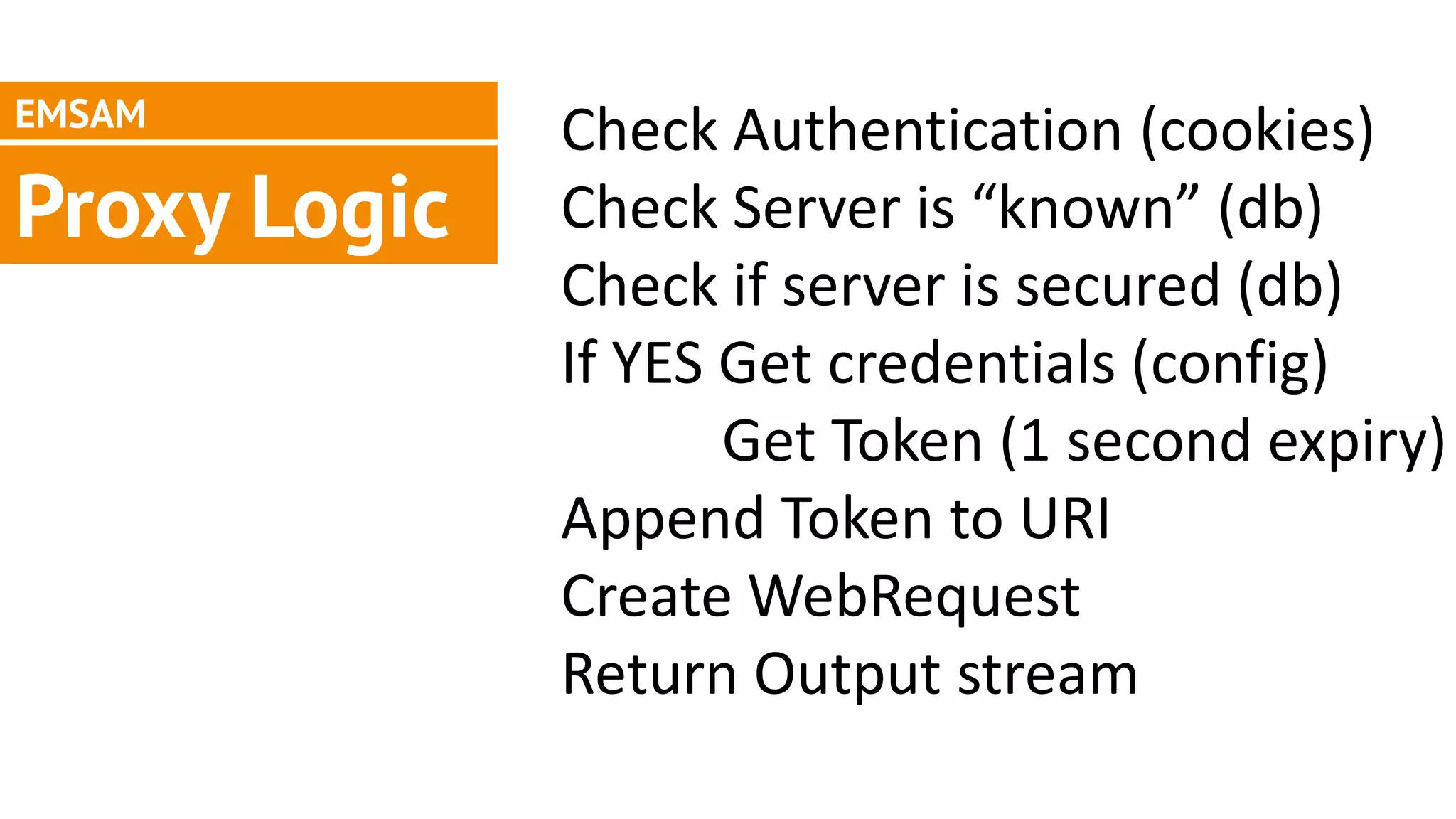

- 61. EMSAM Check Authentication (cookies) Proxy Logic Check Server is “known” (db) Check if server is secured (db) If YES Get credentials (config) Get Token (1 second expiry) Append Token to URI Create WebRequest Return Output stream

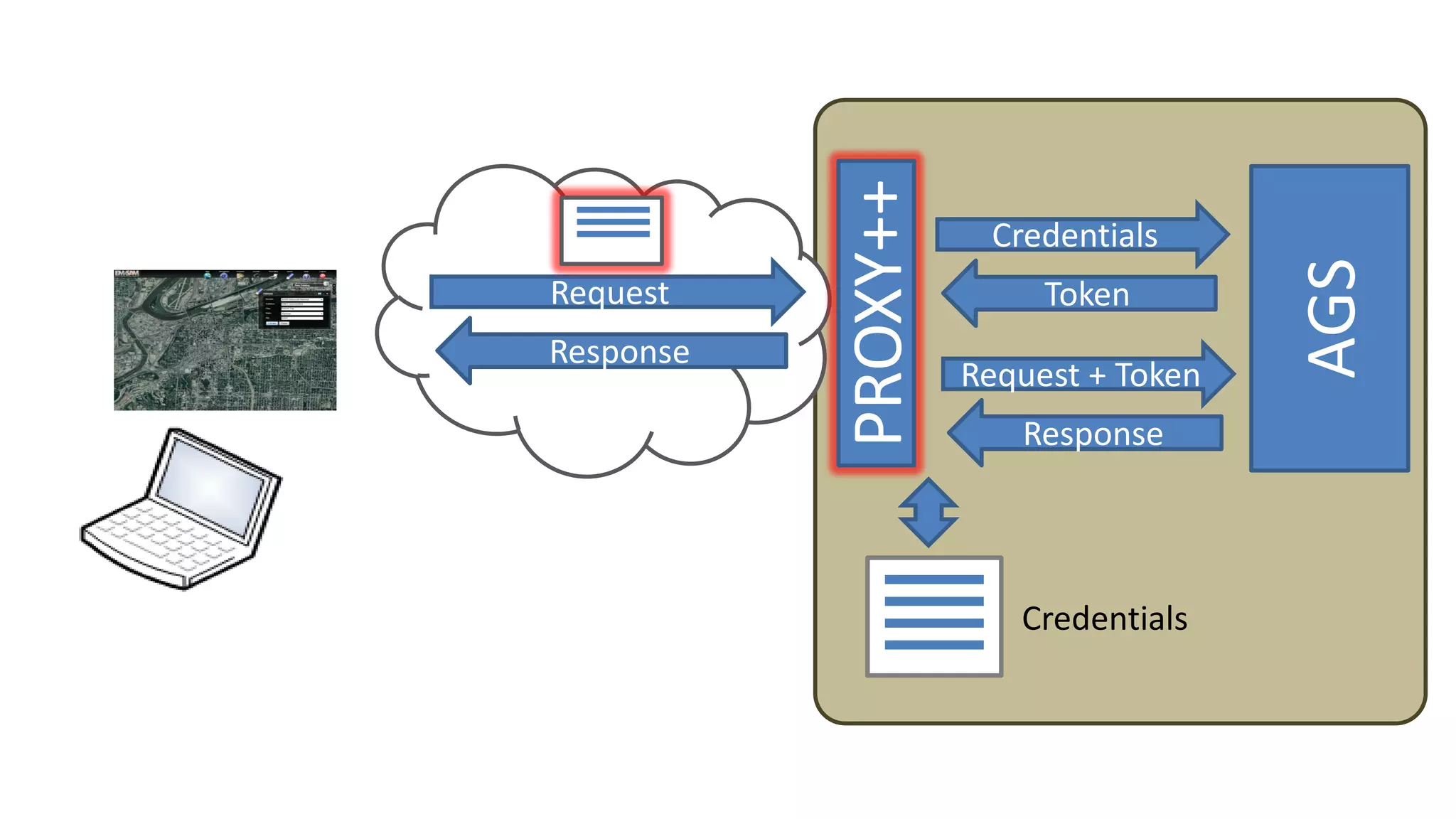

- 62. PROXY++ Credentials AGS Request Token Response Request + Token Response Credentials
- 63.

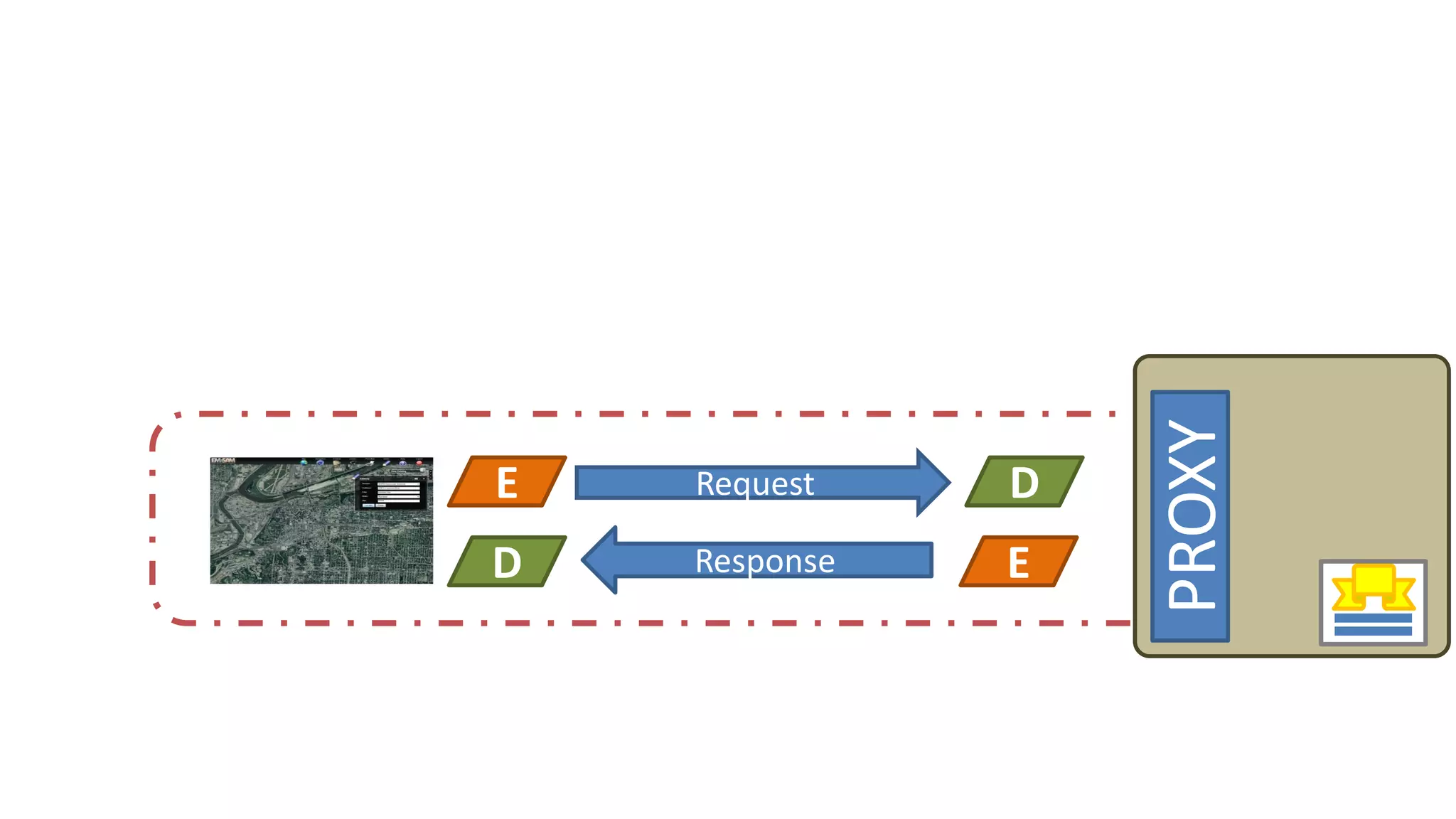

- 64. PROXY E Request D D Response E

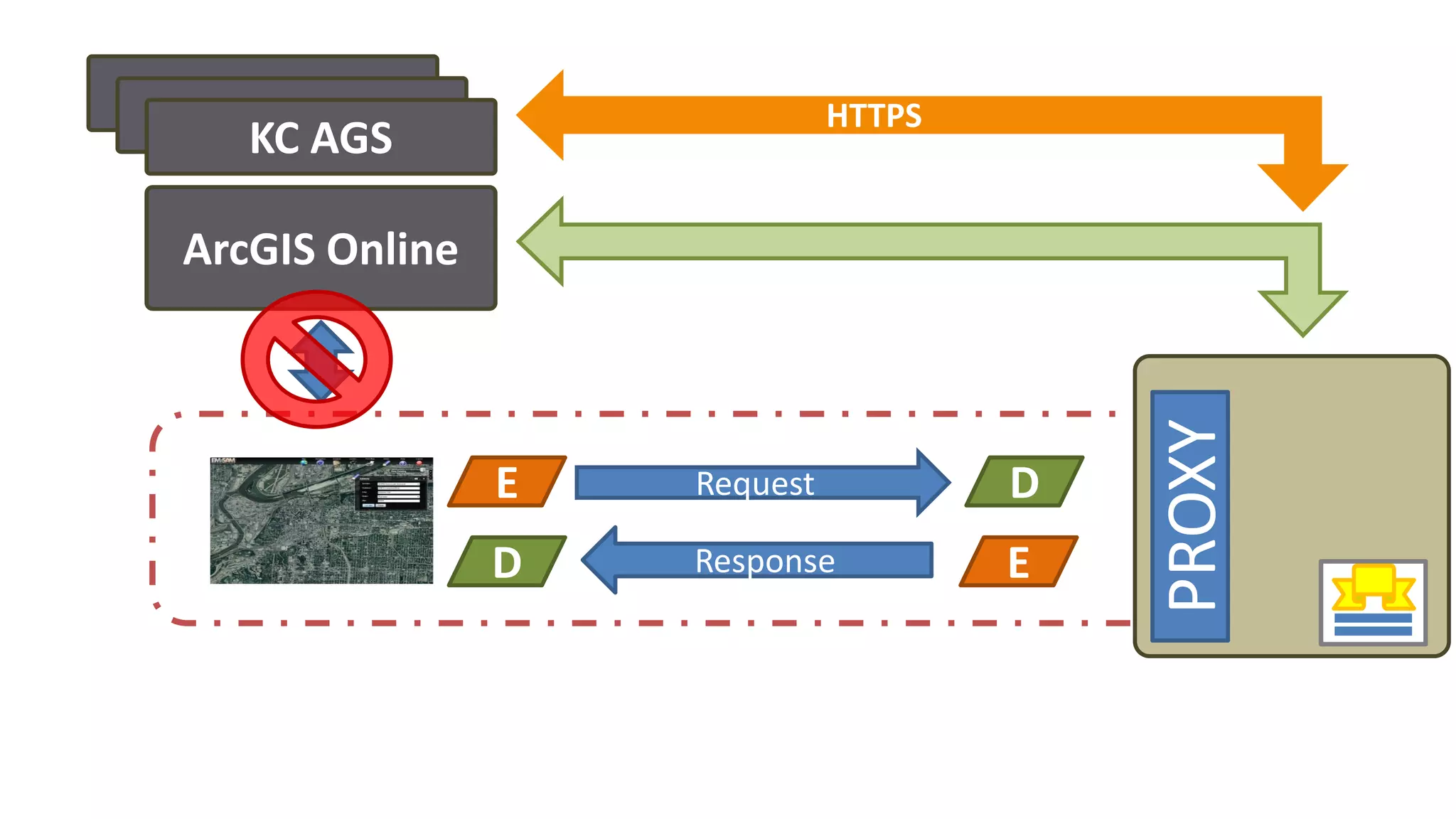

- 65. KC AGS KCAGS HTTPS KC AGS ArcGIS Online PROXY E Request D D Response E

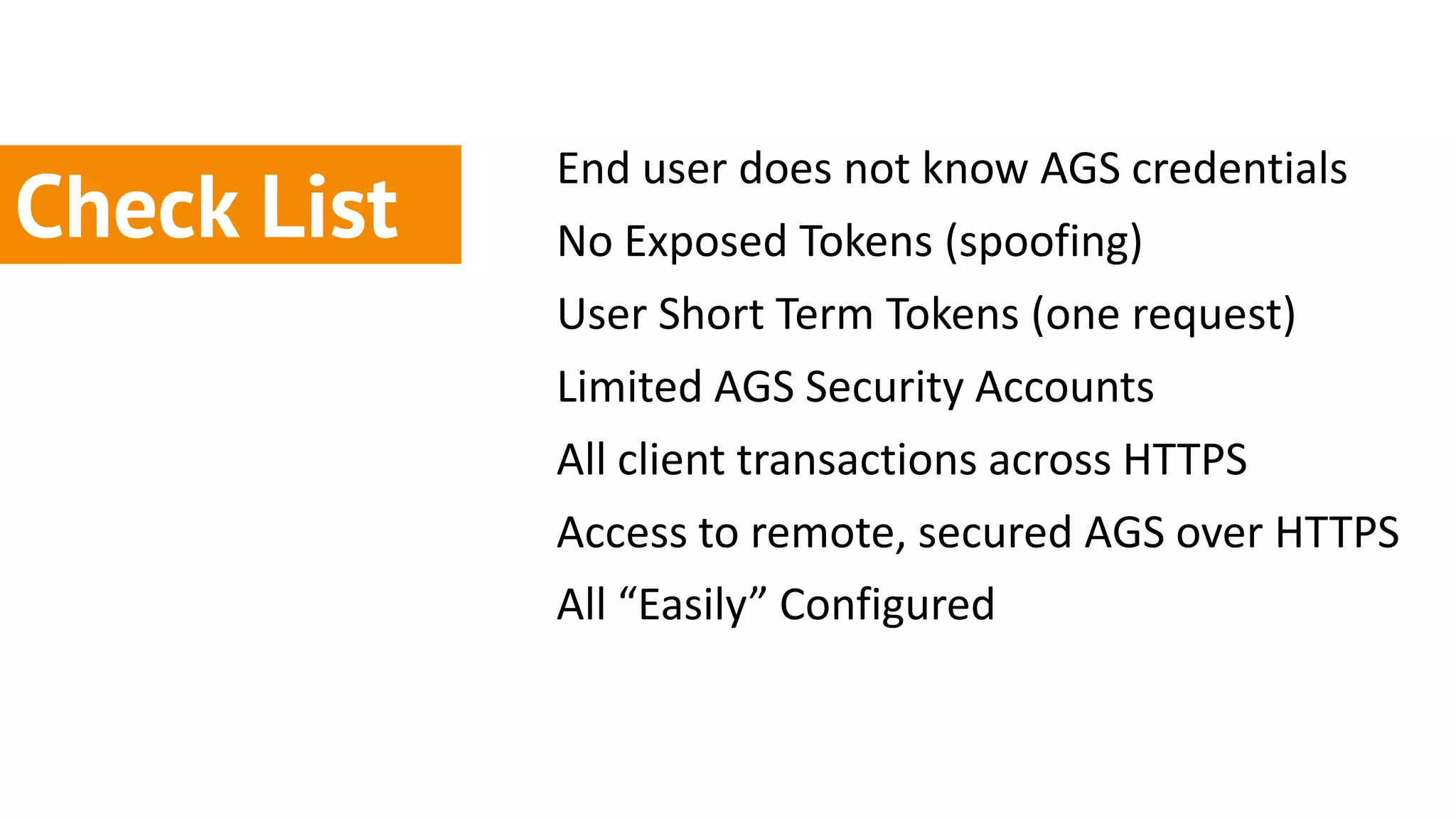

- 66. End user doesnot know AGS credentials Check List No Exposed Tokens (spoofing) User Short Term Tokens (one request) Limited AGS Security Accounts All client transactions across HTTPS Access to remote, secured AGS over HTTPS All “Easily” Configured
- 67.
- 68.
- 70. Everything is a tradeoff. http://www.flickr.com/photos/ericmcgregor/103895441
- 71. Think like ahacker.
- 72.
- 73.
- 74. It’s not secure until it’s secure.

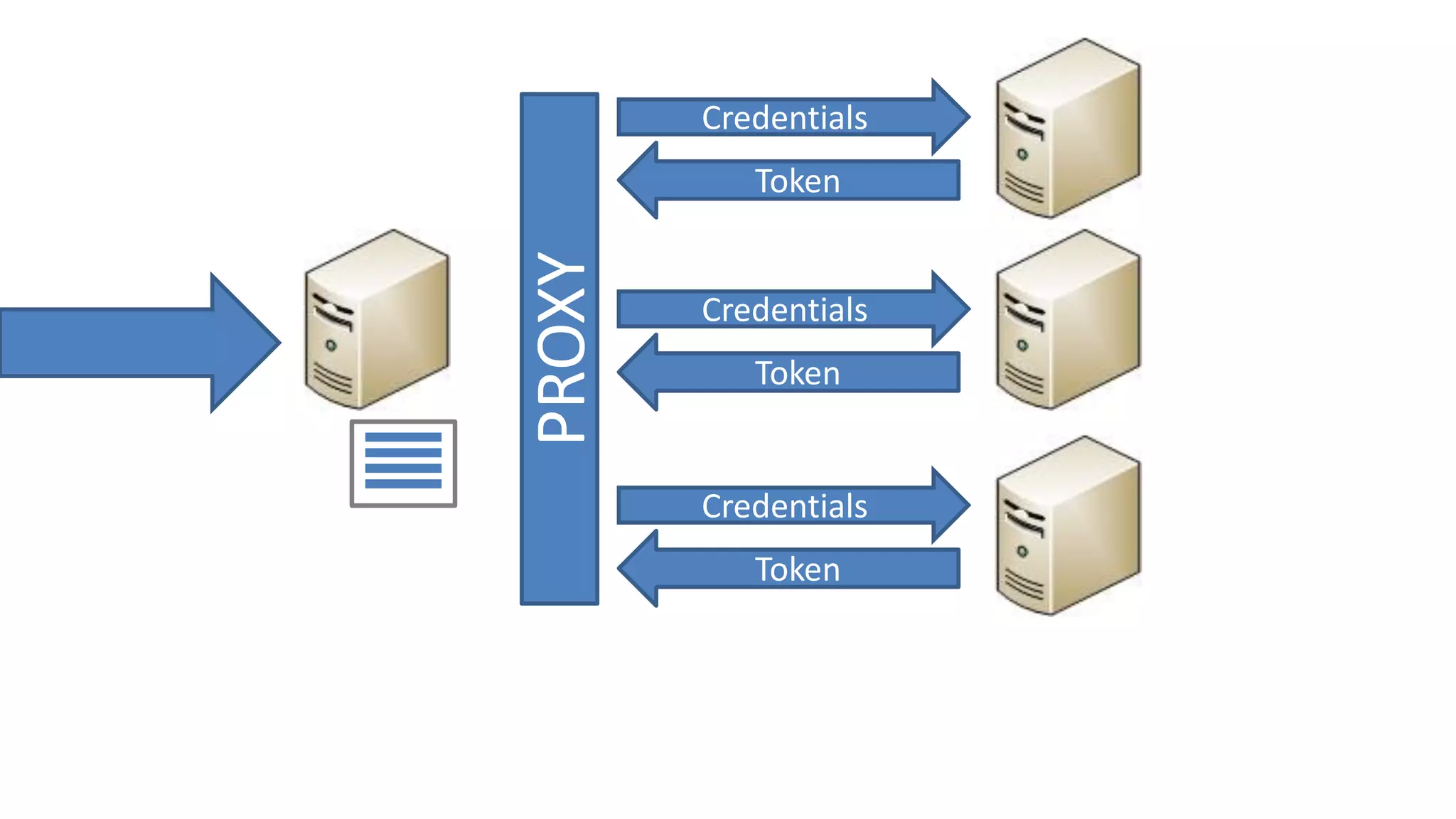

- 75. Credentials Token PROXY Credentials Token Credentials Token

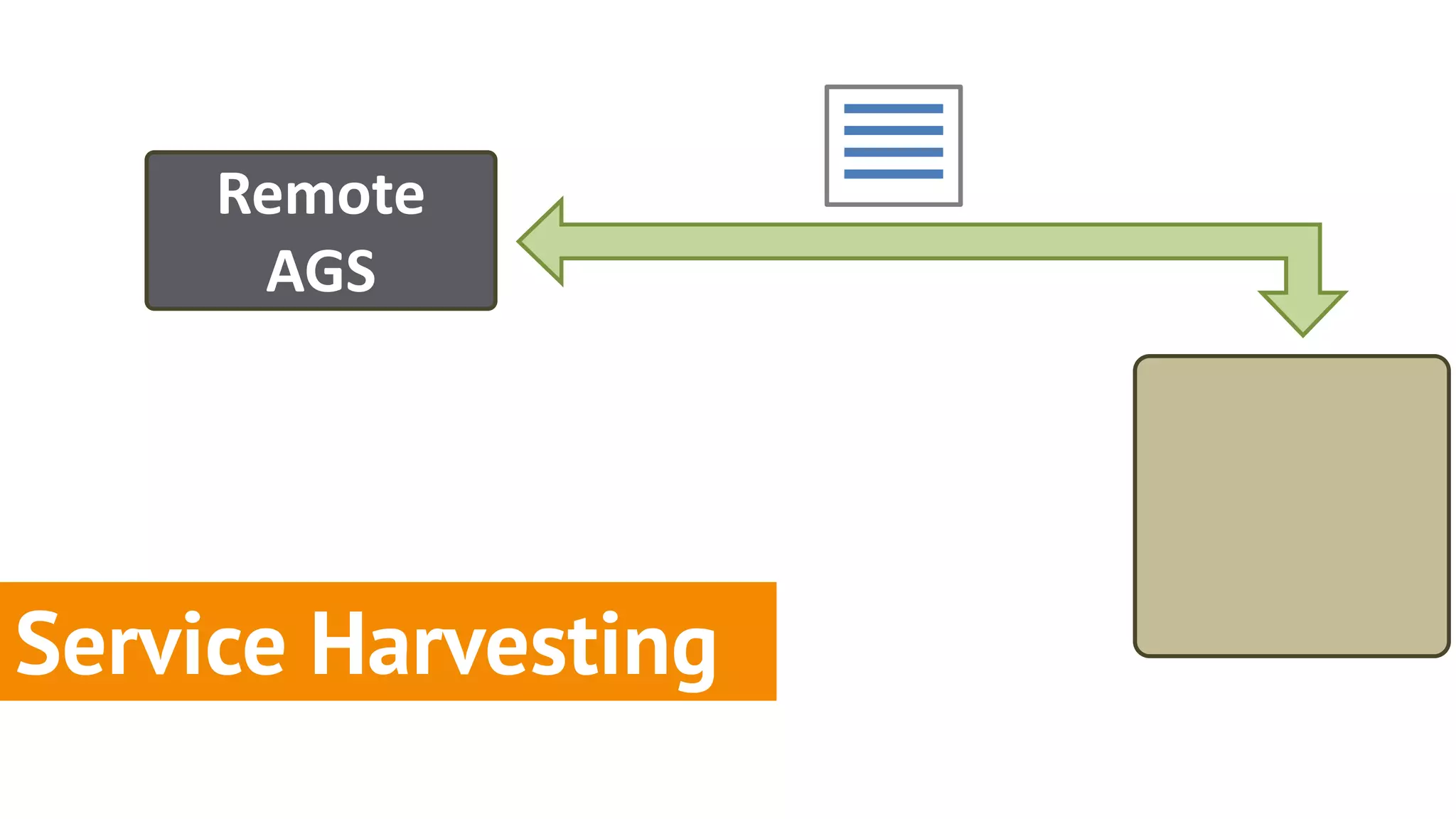

- 76. Remote AGS Service Harvesting

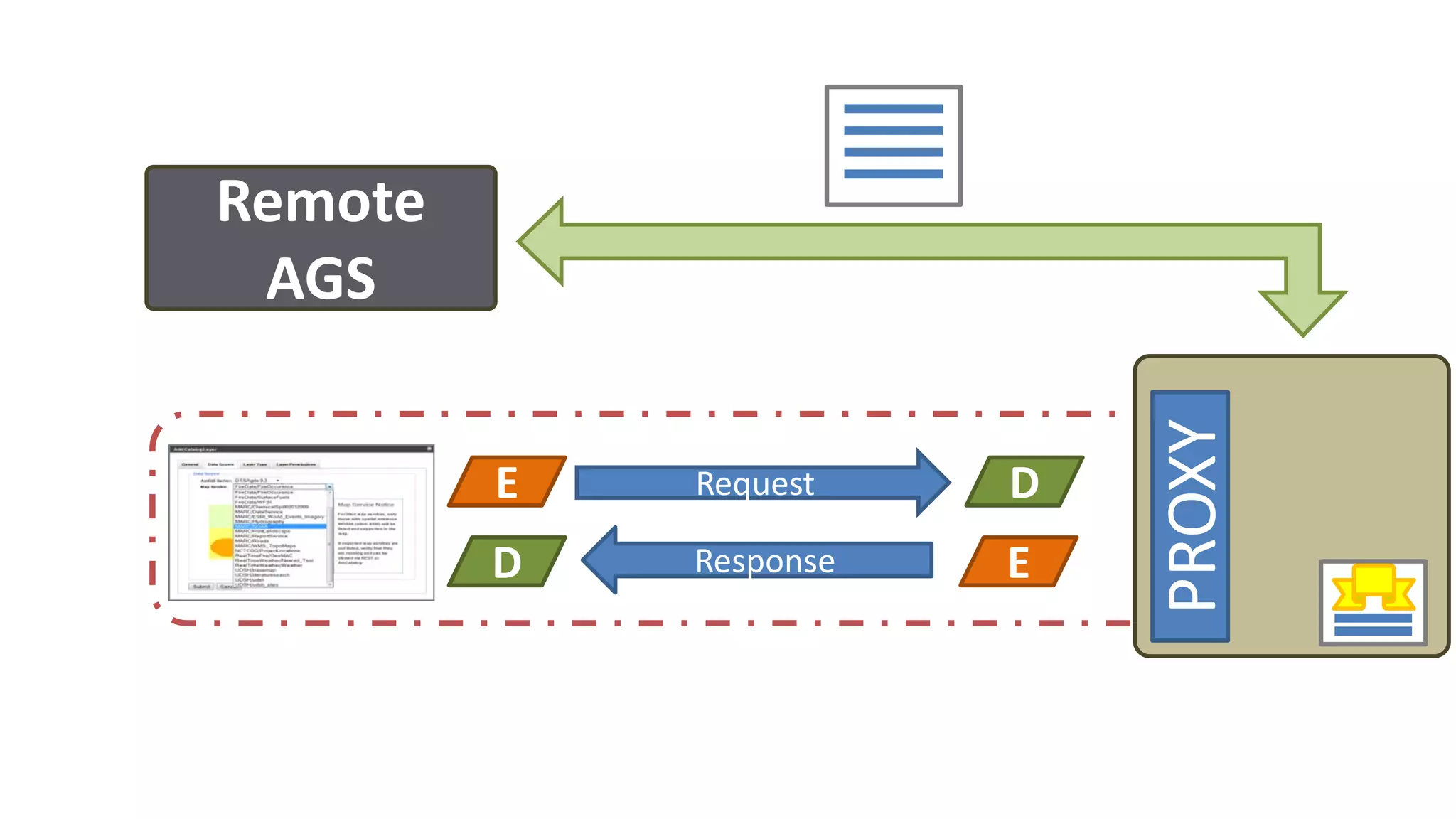

- 77. Remote AGS PROXY E Request D D Response E
- 78.
- 79. The best laidplans… http://www.flickr.com/photos/ericmcgregor/103895441

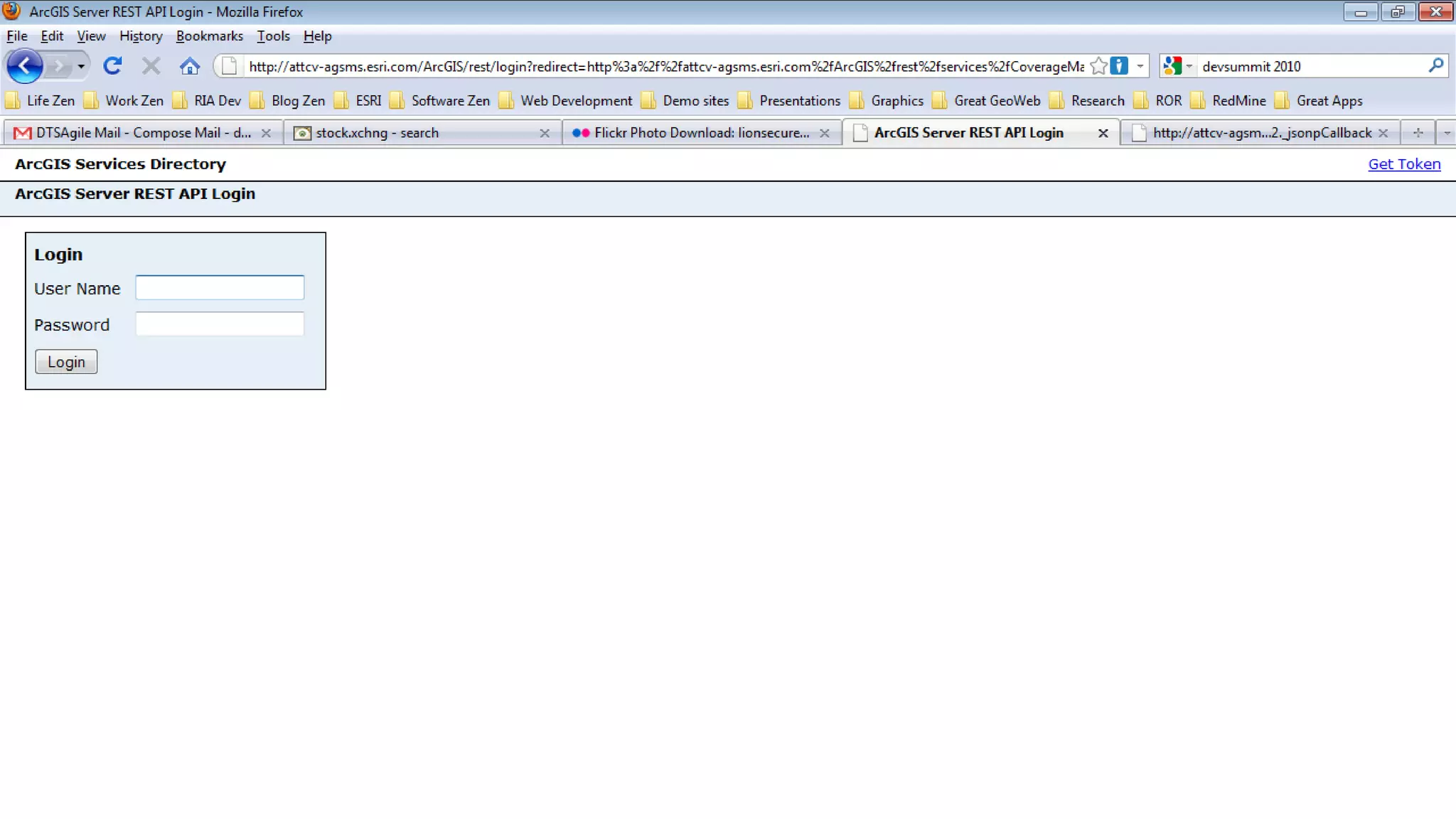

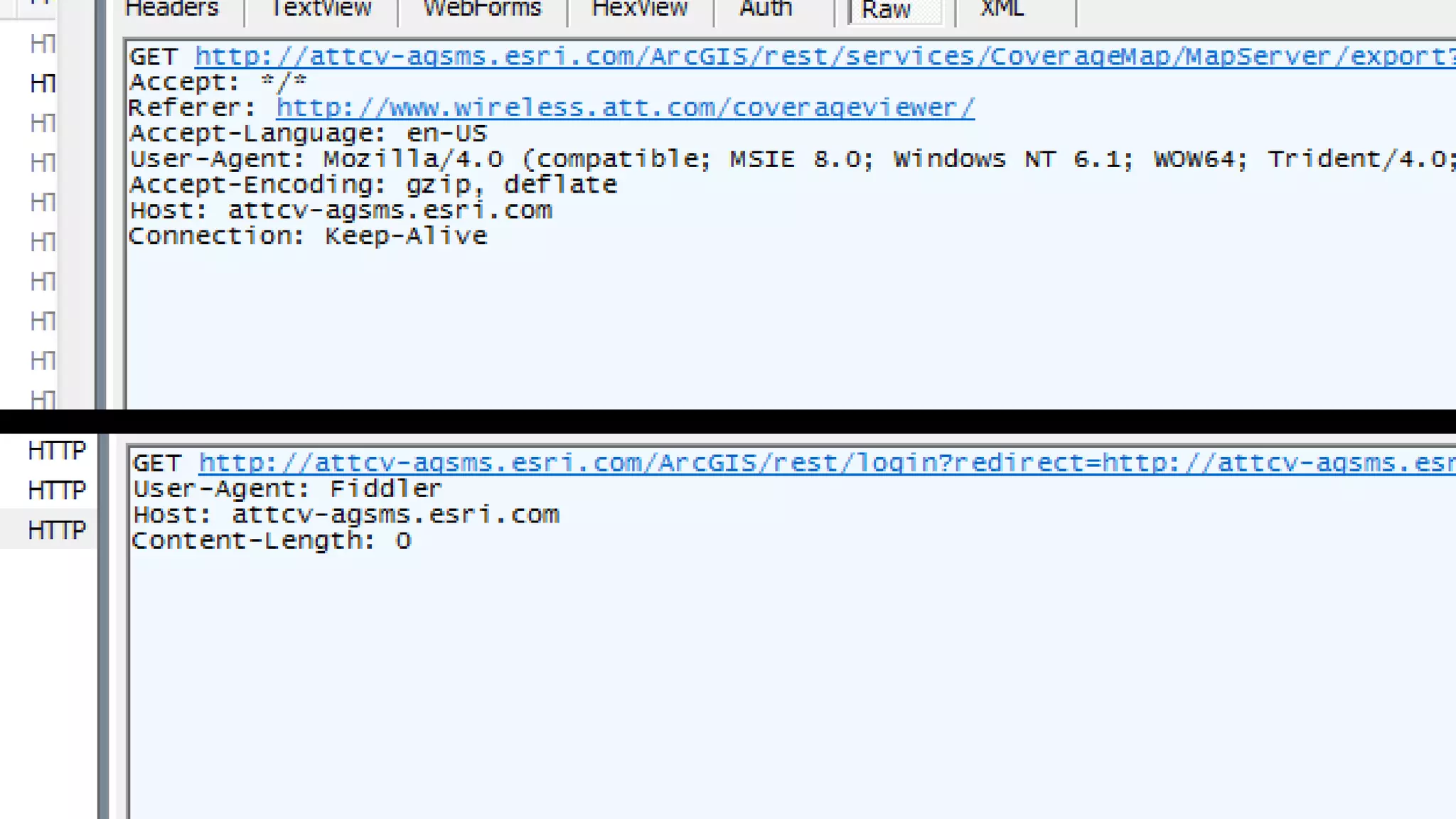

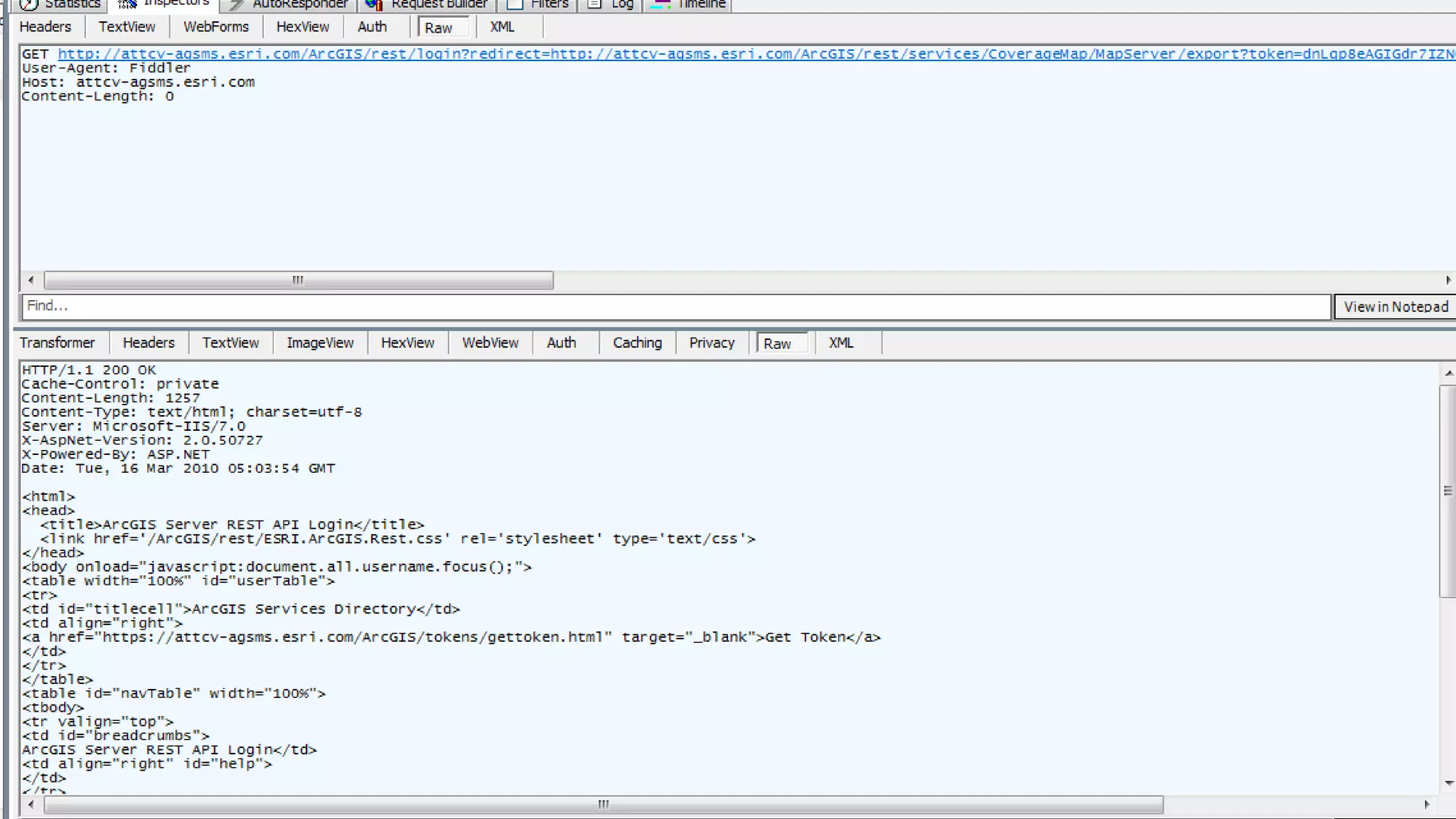

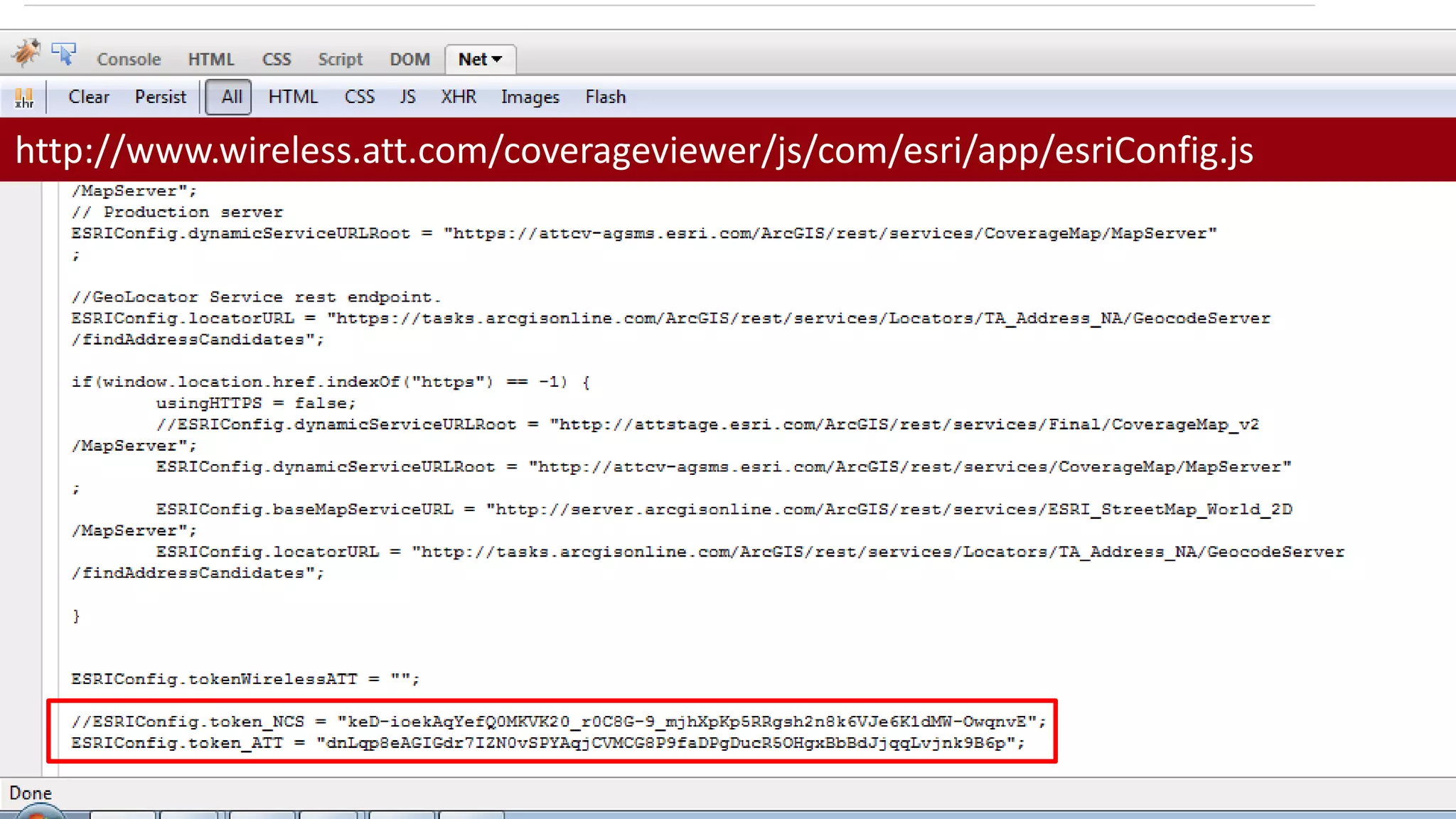

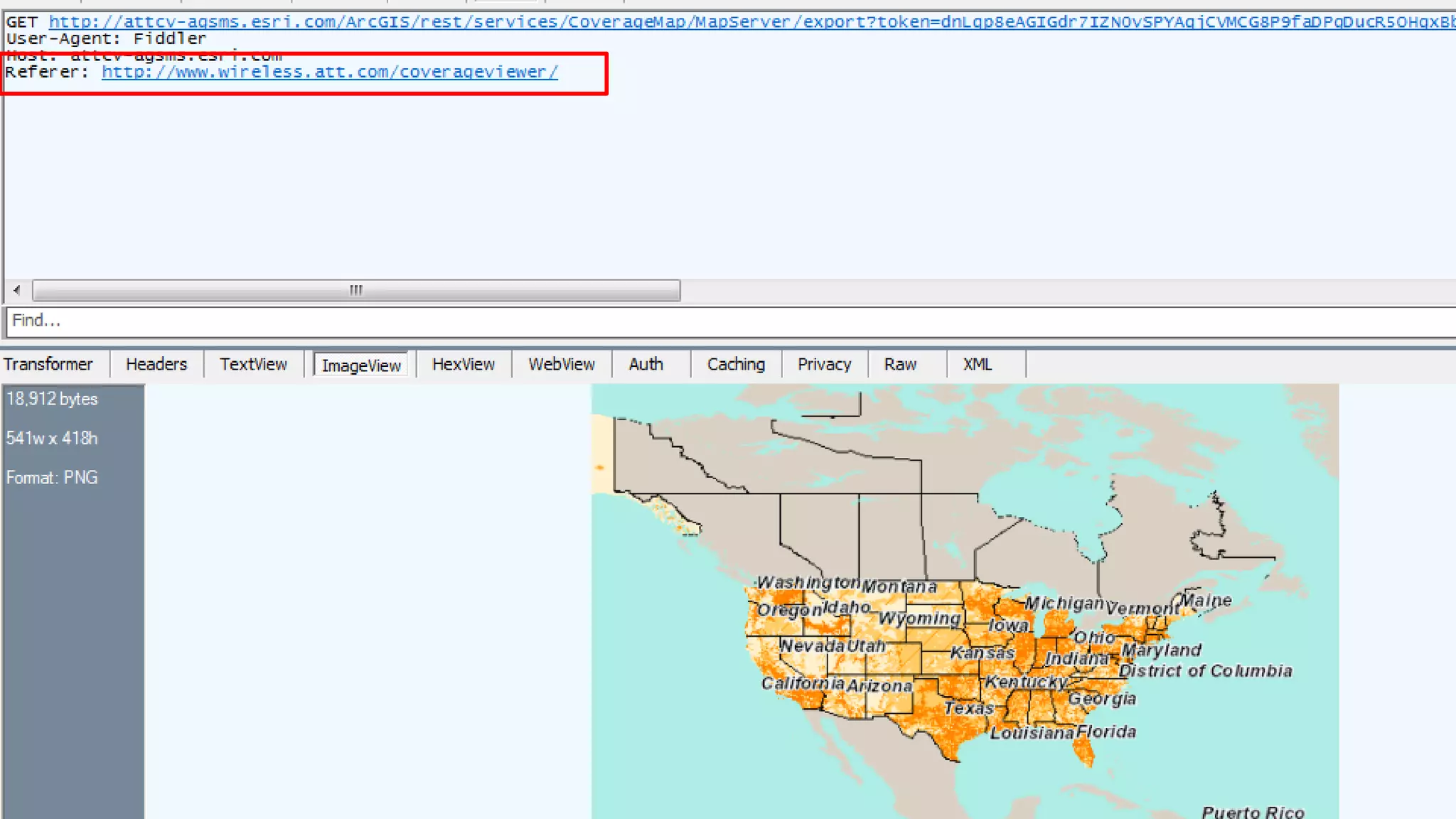

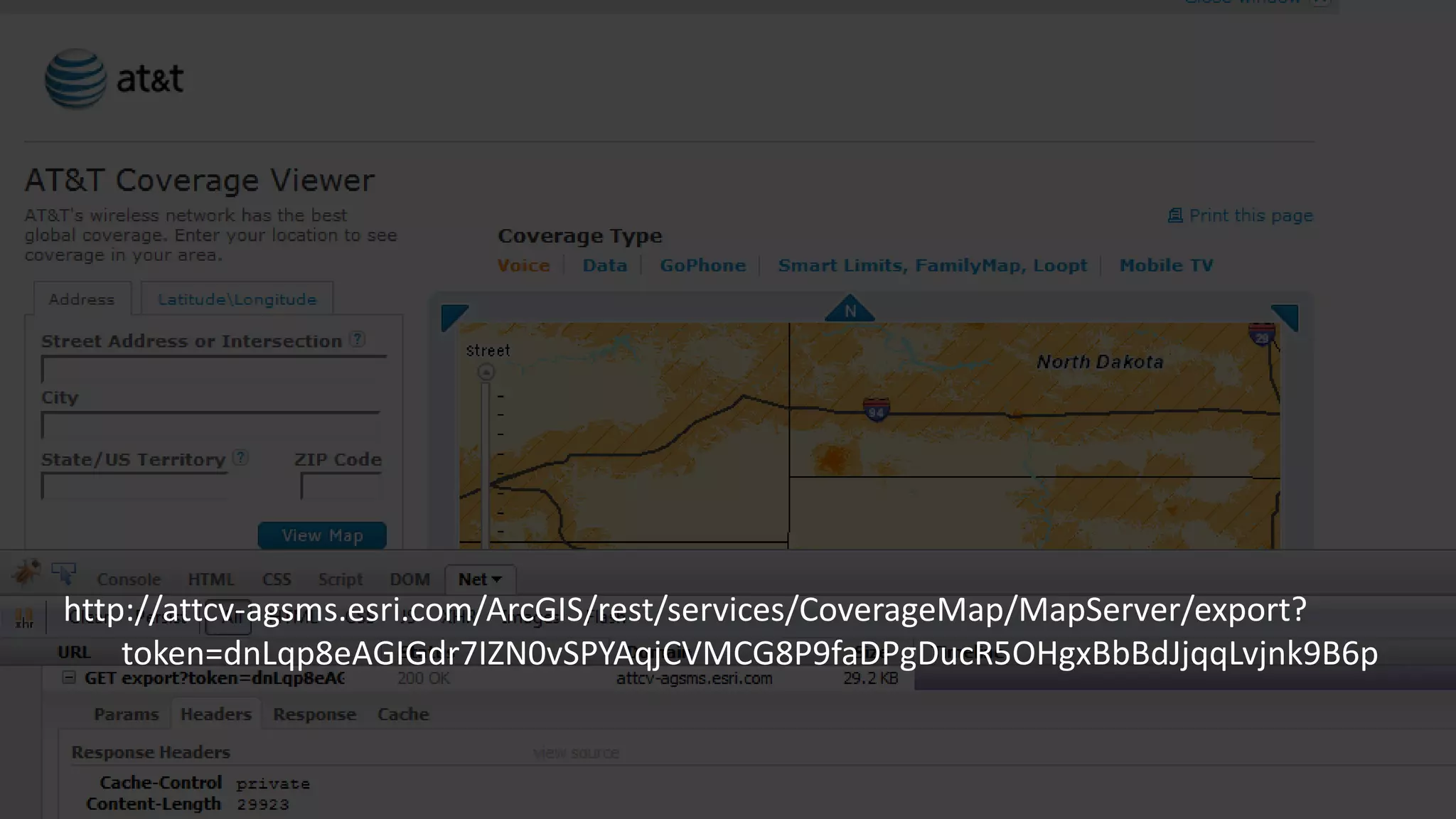

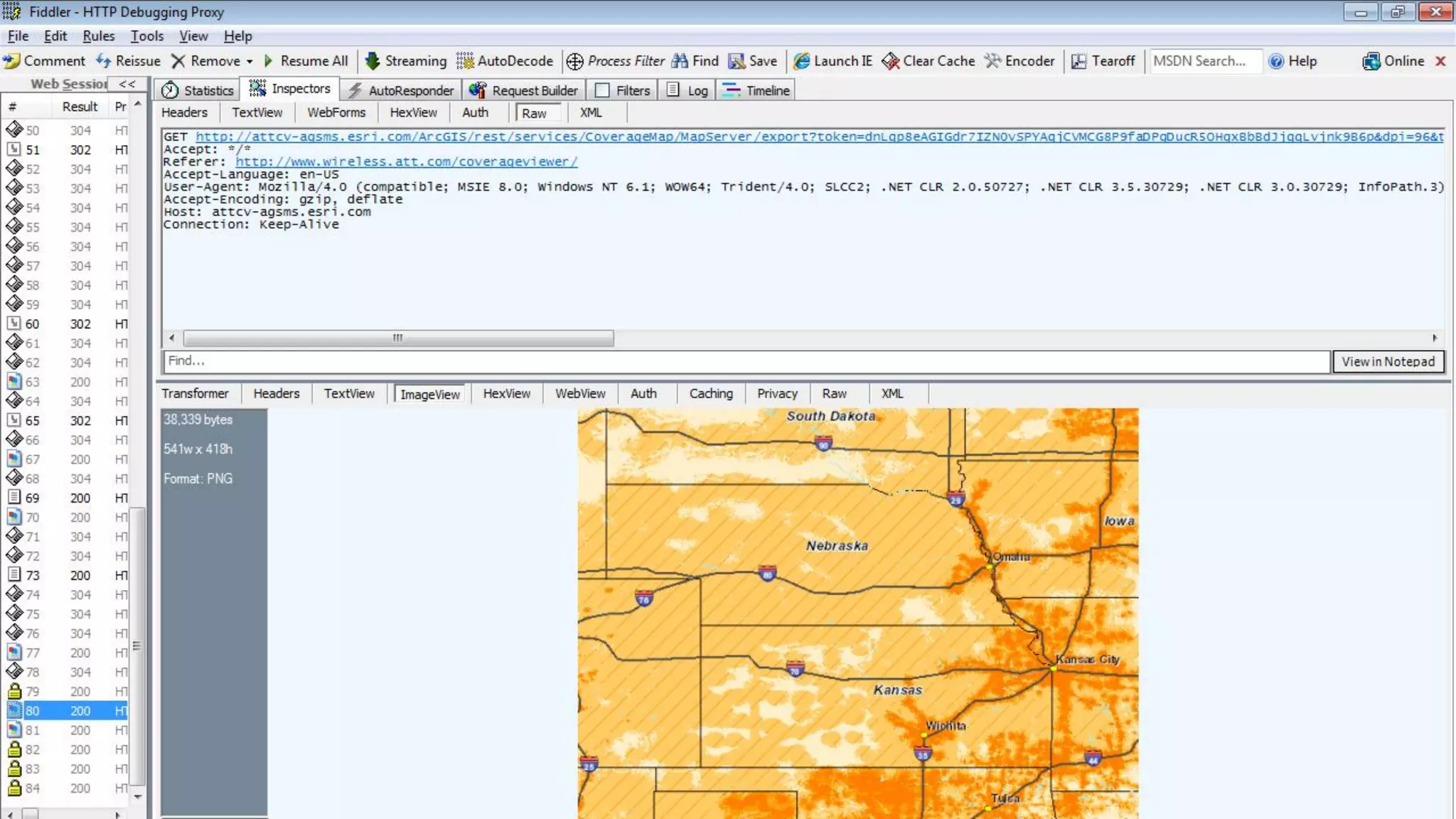

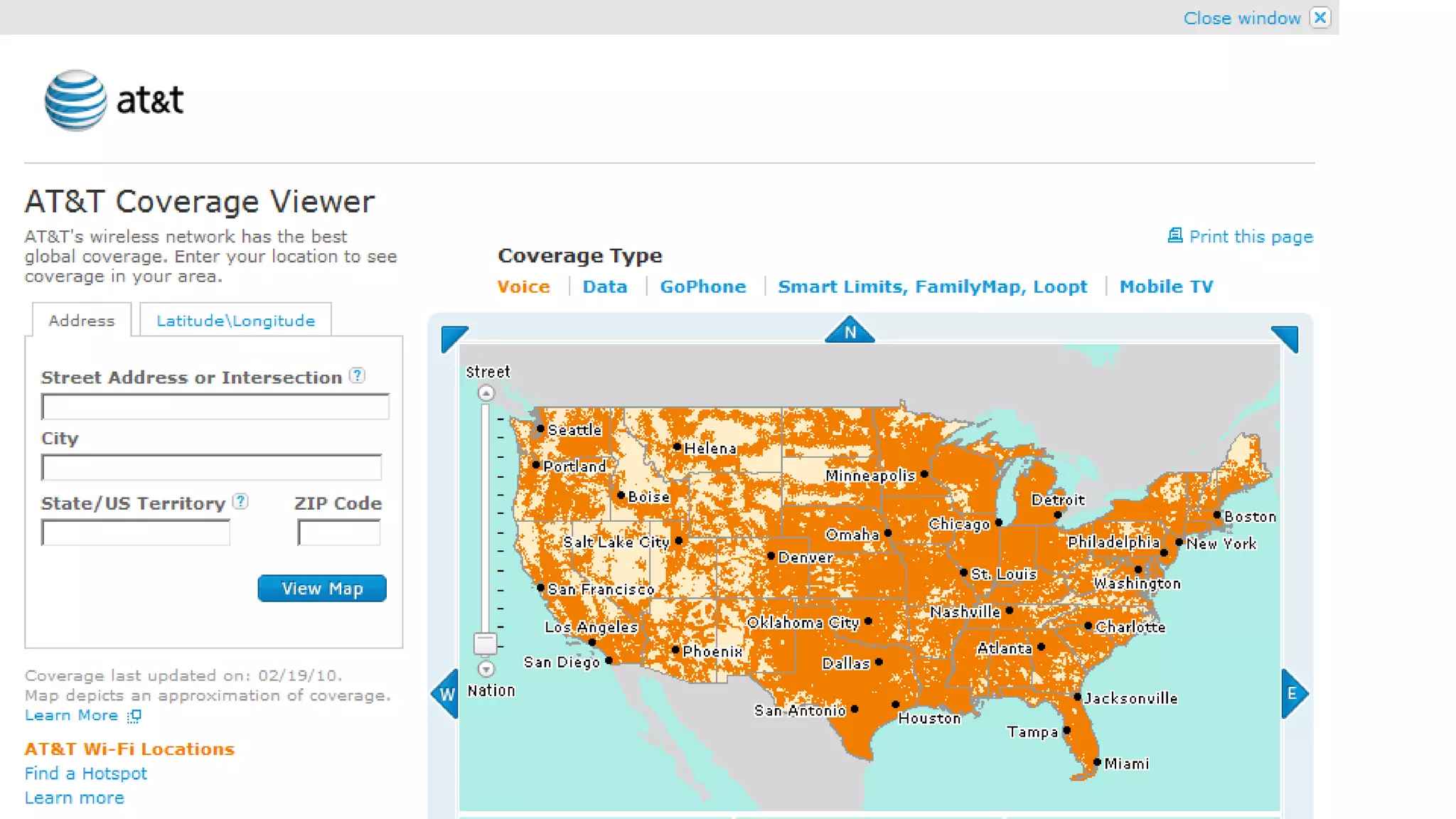

- 82. http://attcv-agsms.esri.com/ArcGIS/rest/services/CoverageMap/MapServer/export? token=dnLqp8eAGIGdr7IZN0vSPYAqjCVMCG8P9faDPgDucR5OHgxBbBdJjqqLvjnk9B6p
- 83.
- 89.
- 92.

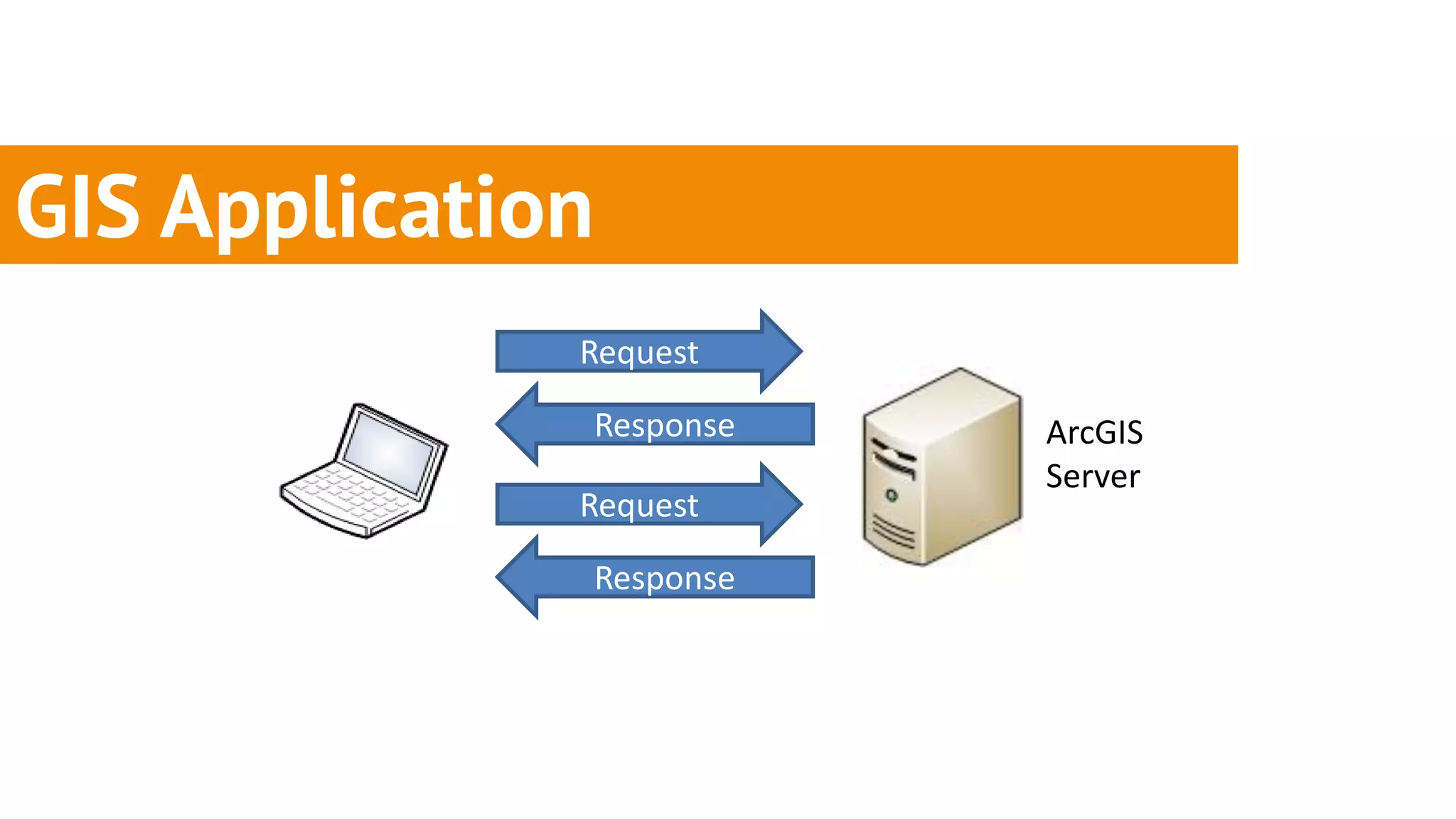

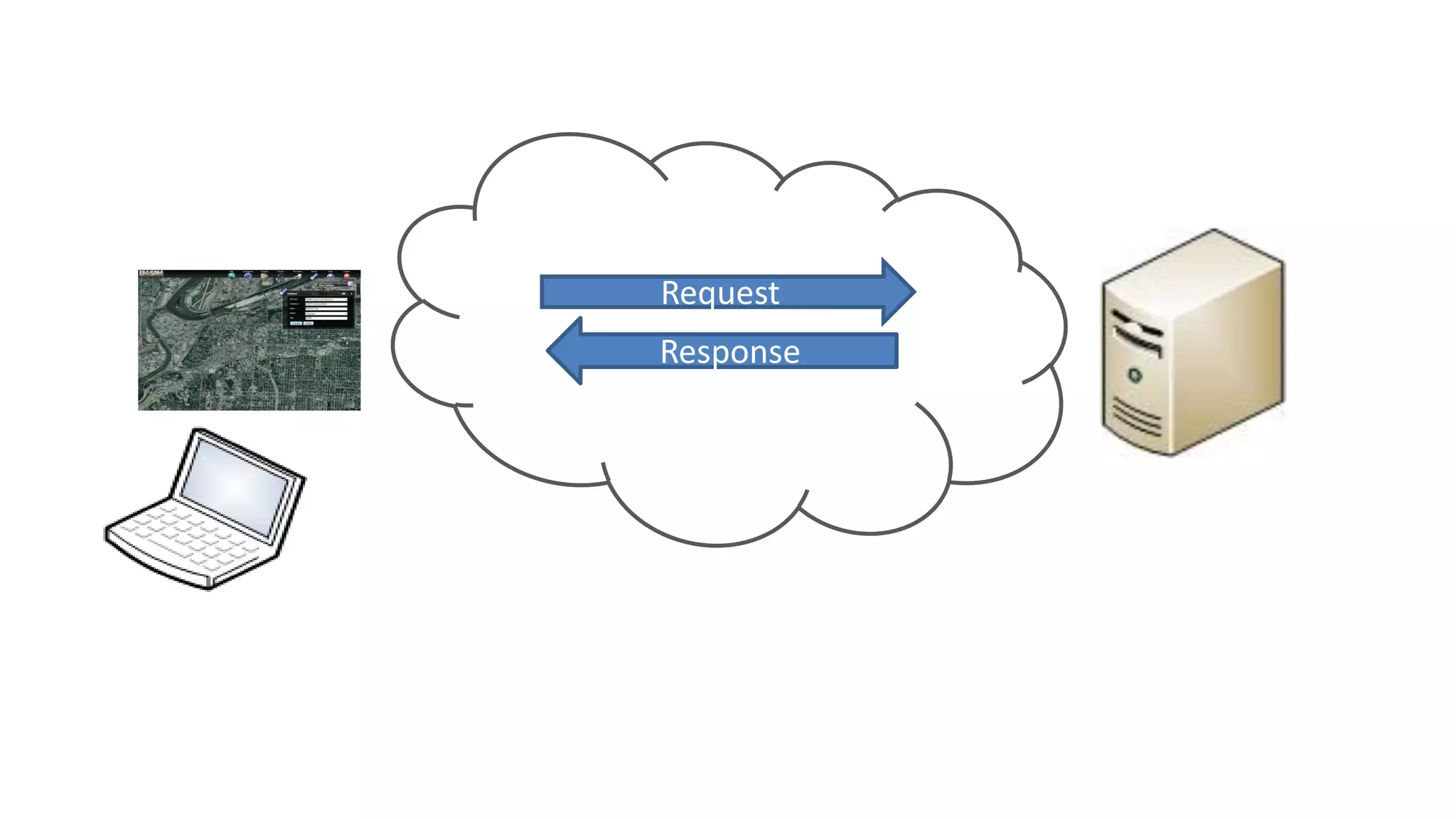

- 93. GIS Application Request Response ArcGIS Server Request Response

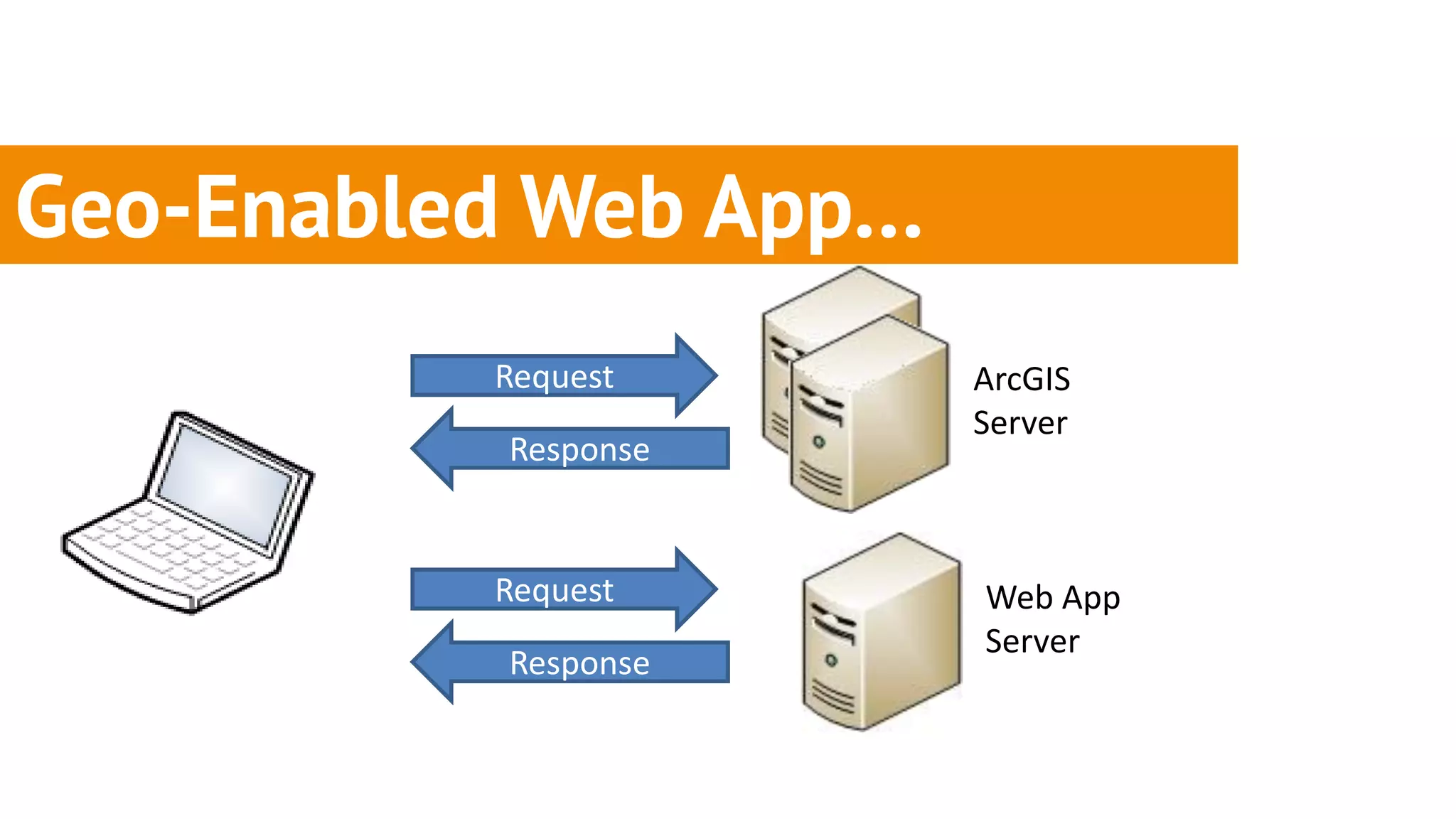

- 94. Geo-Enabled Web App… Request ArcGIS Server Response Request Web App Server Response
- 95.
- 96. Dude… I’s tryinto be cool here - where are tokens??
- 97.
- 98.
- 99.
- 100.
- 101. Windows Authentication HTTP Basic/Digest Token-based Authentication
- 103.

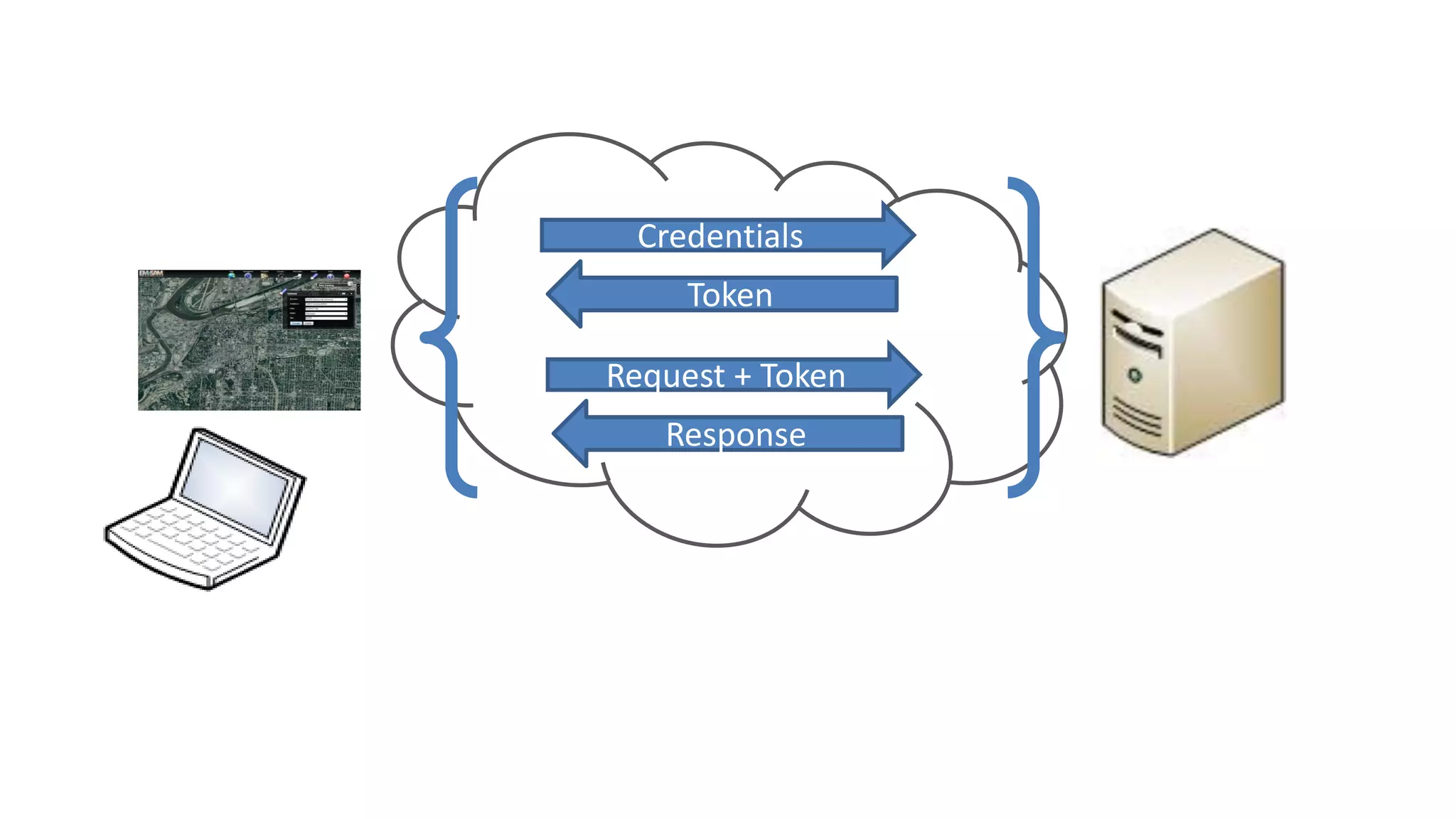

- 104. Credentials Token Request + Token Response

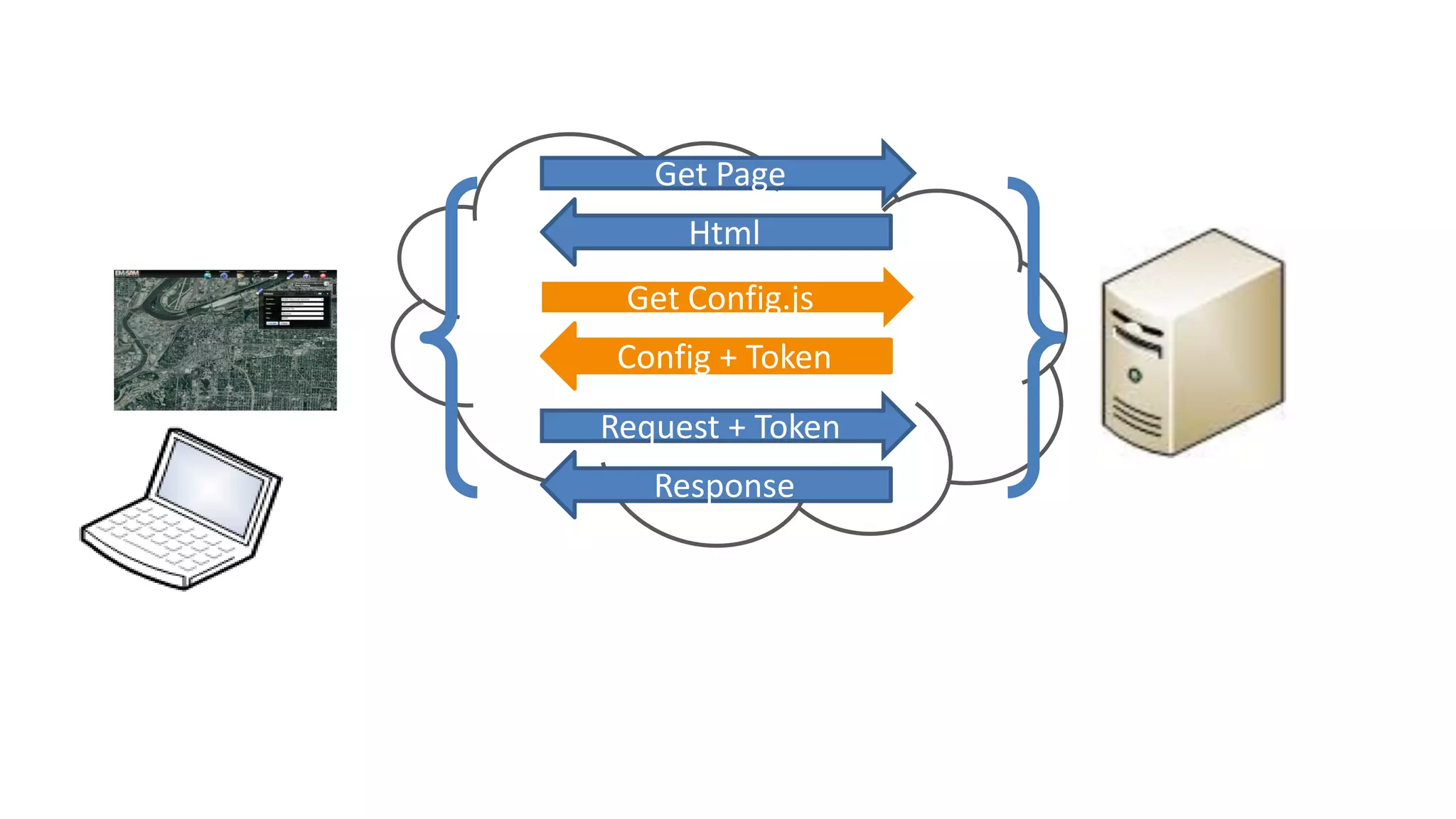

- 105. Get Page Html Get Config.js Config + Token Request + Token Response
