1. Building Pinterest Realtime Ads
Platform Using Kafka Streams
Liquan Pei, Boyang Chen
Kafka Summit SF 2018

2. Liquan Pei
liquanpei@pinterest.com
Boyang Chen
bychen@pinterest.com

3. Visual Discovery Engine
250M MAU
100B Pins created by people
10B Recommendations per day
A great platform for ads

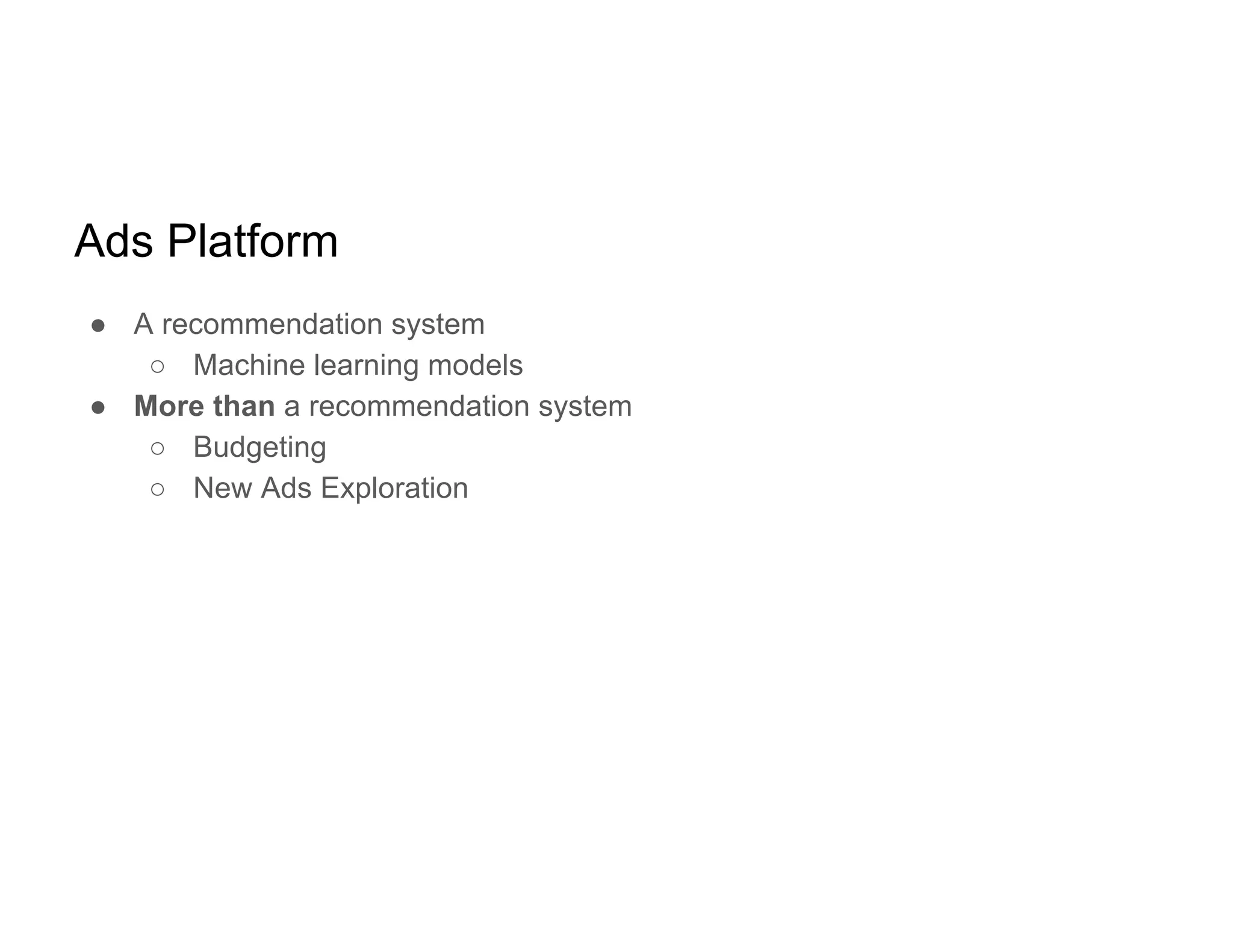

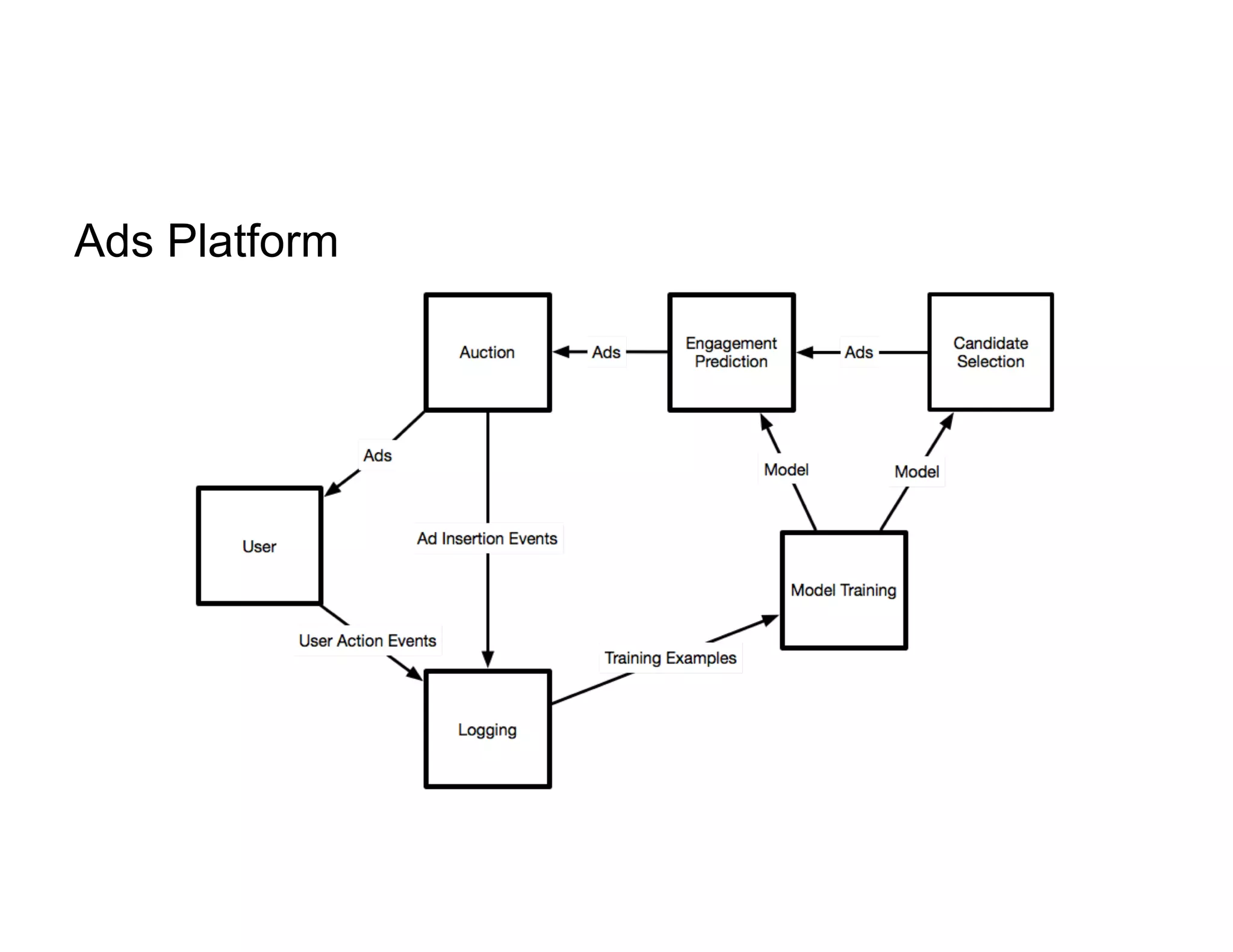

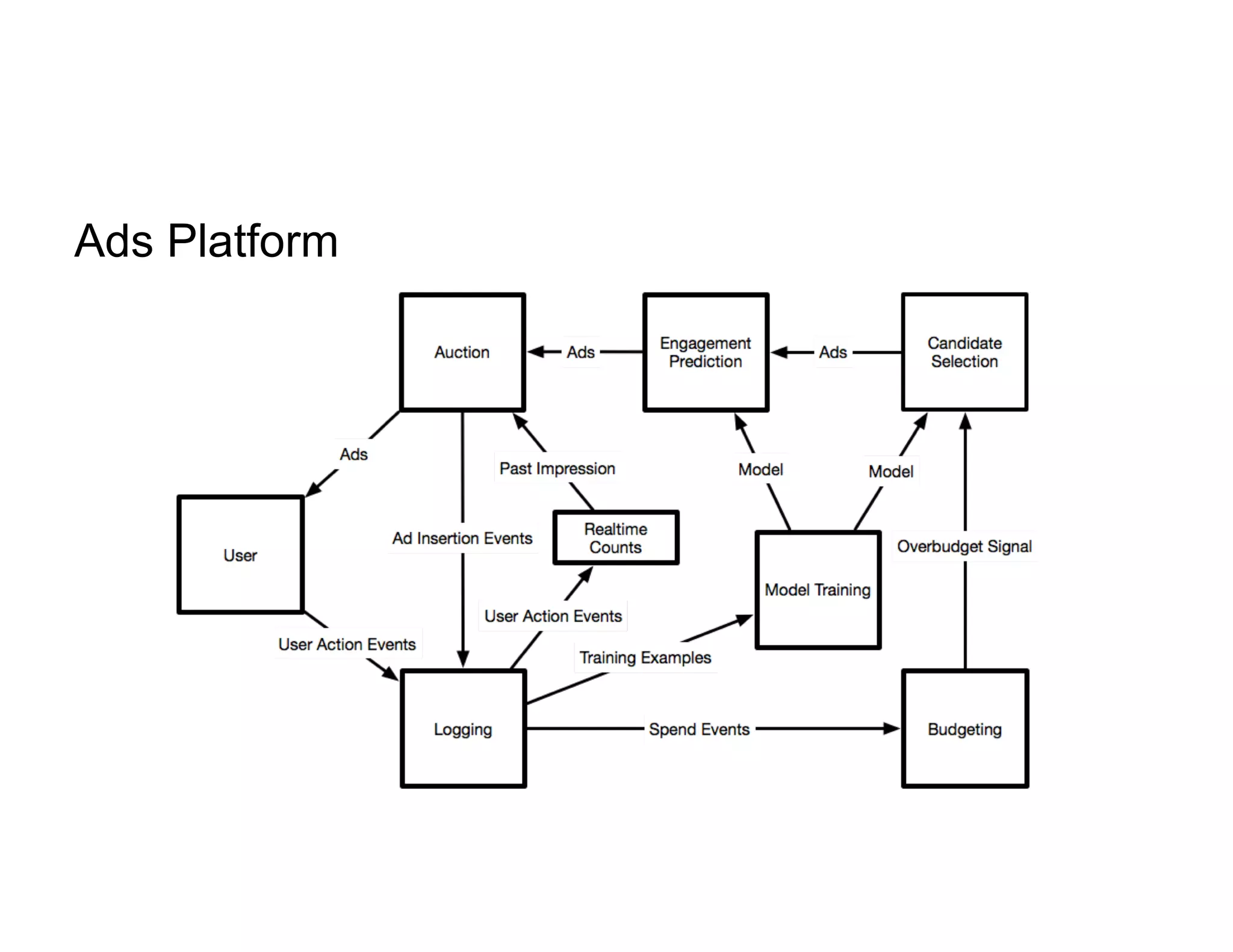

5. Ads Platform

6. Ads Platform
● A recommendation system
○ Machine learning models
● More than a recommendation system
○ Budgeting
○ New Ads Exploration

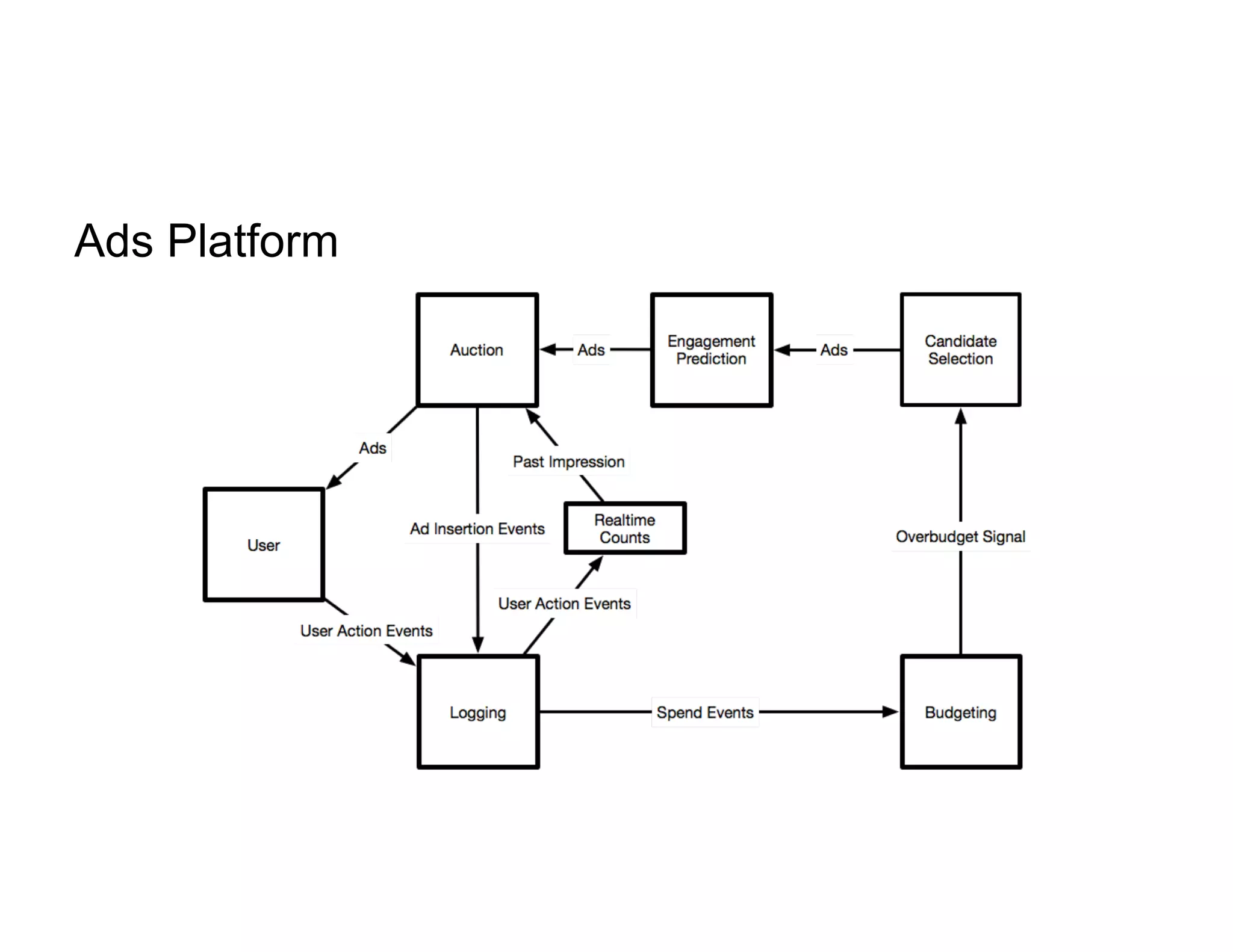

7. Ads Platform

8. Ads Platform

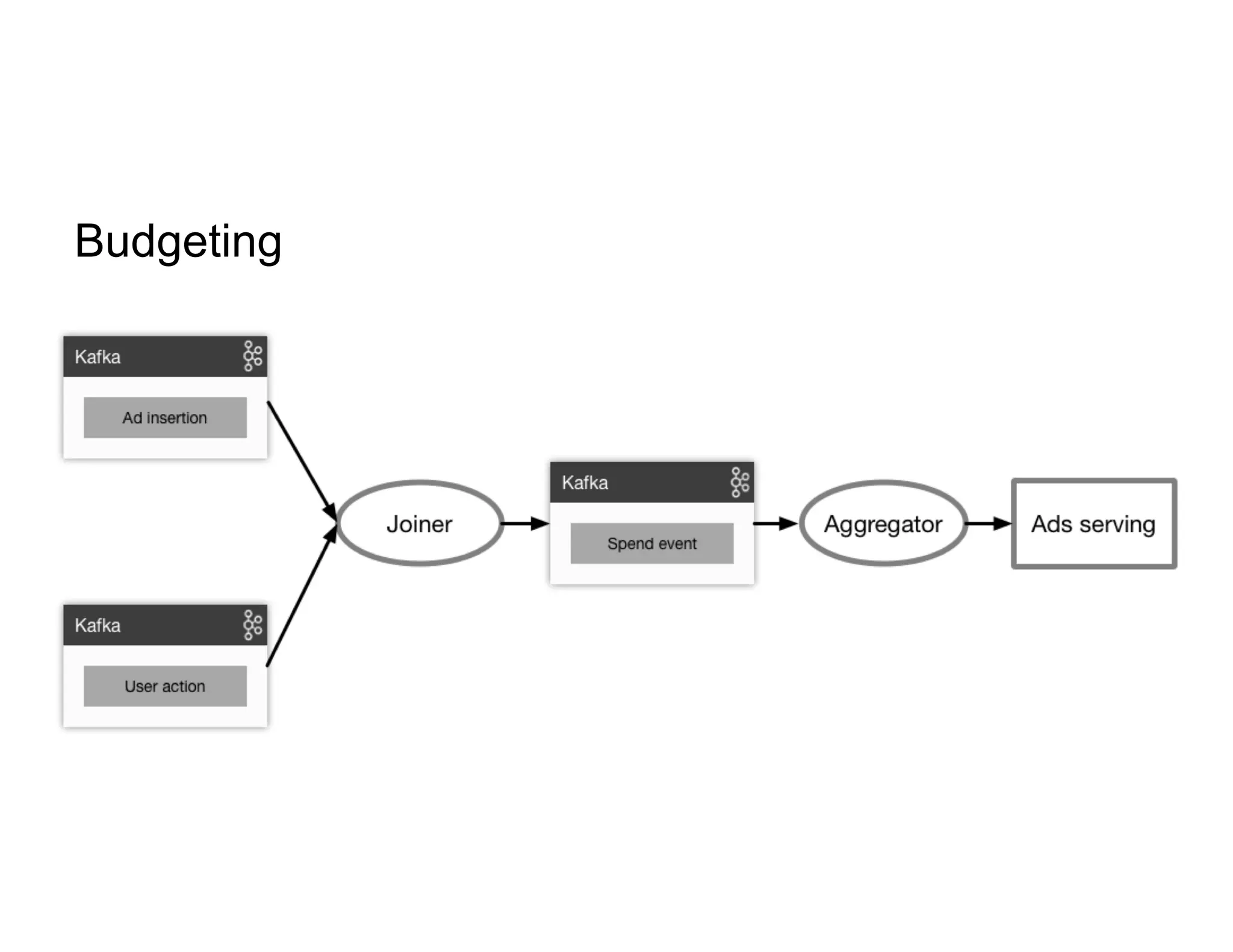

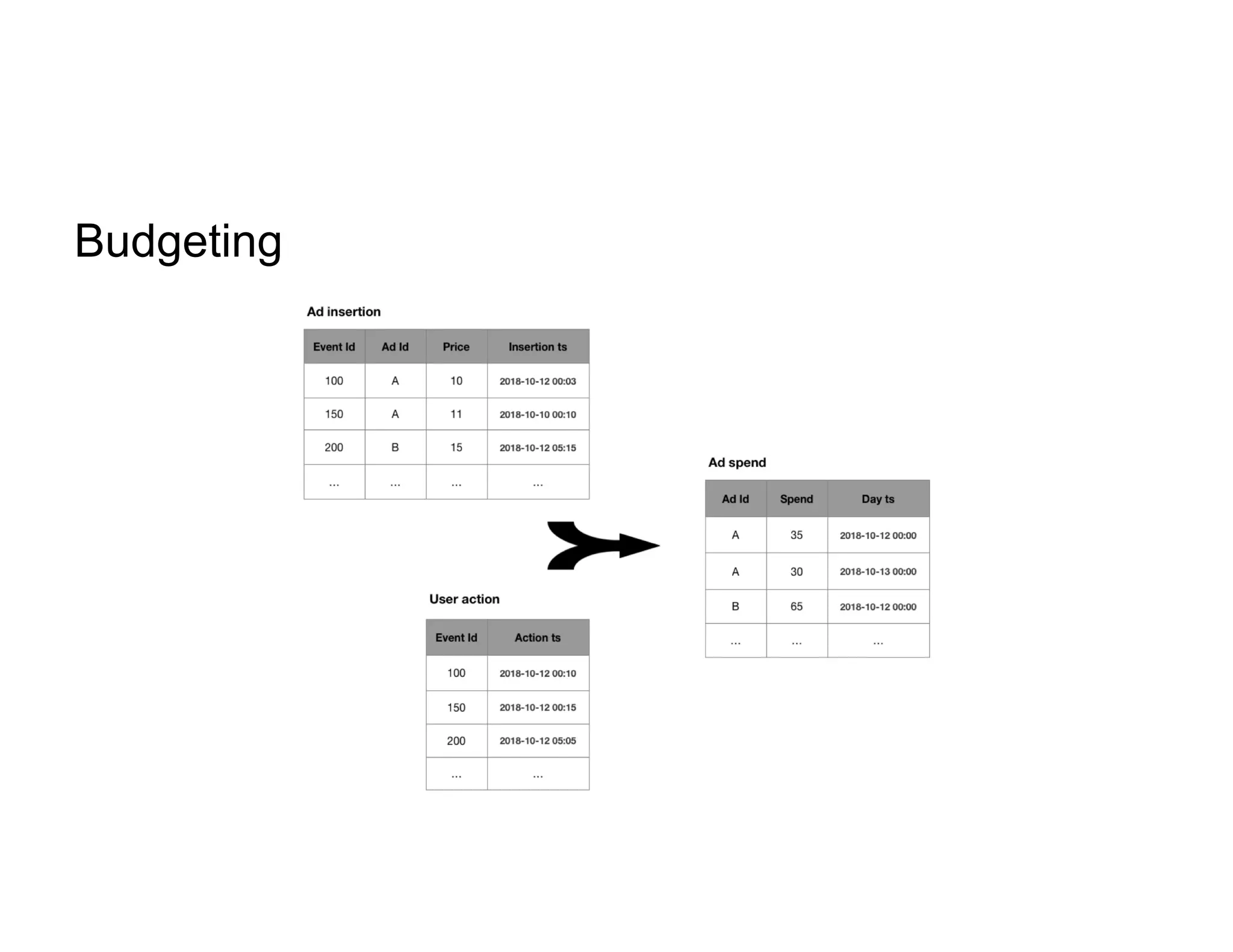

9. Budgeting

10. Budgeting

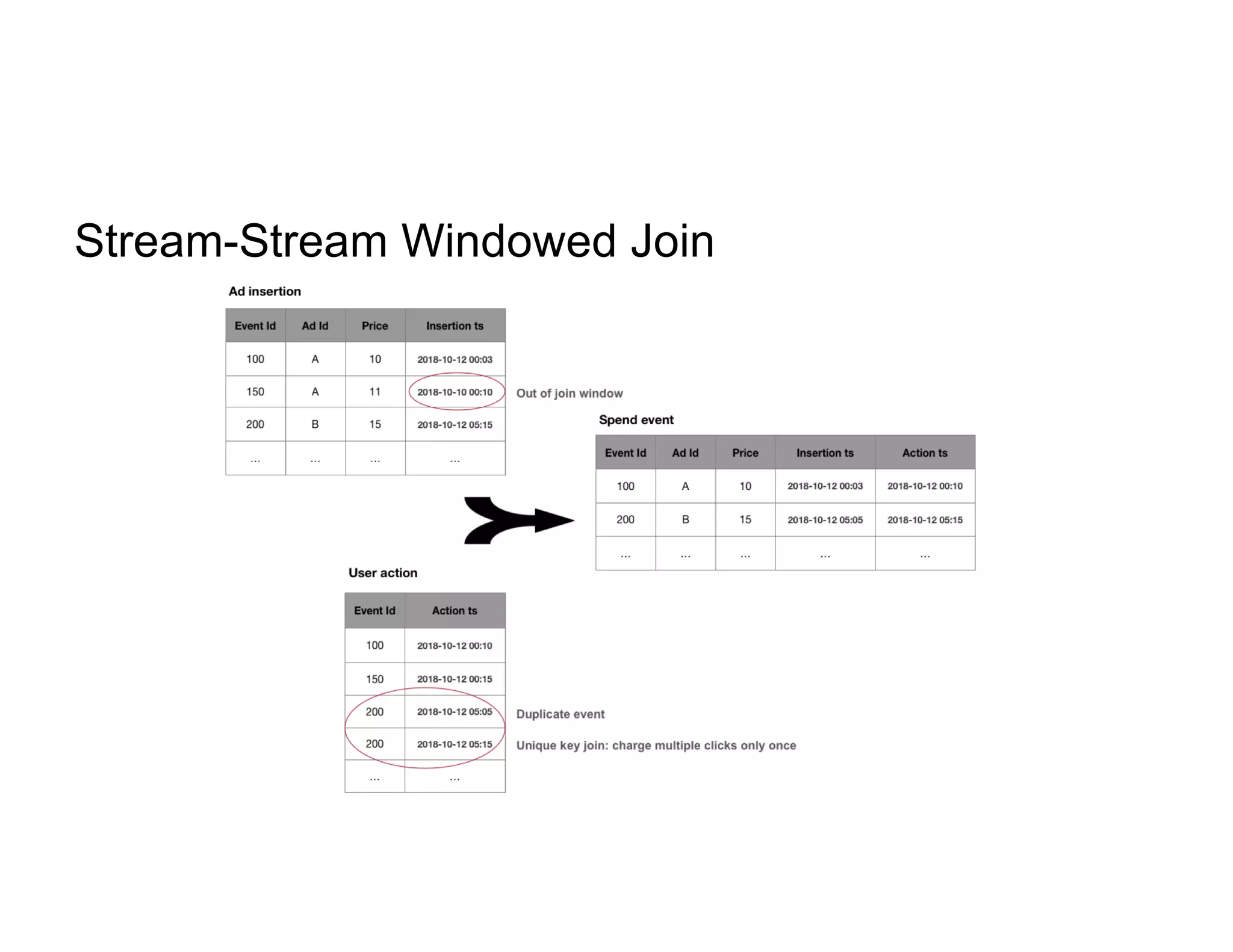

11. Stream-Stream Windowed Join

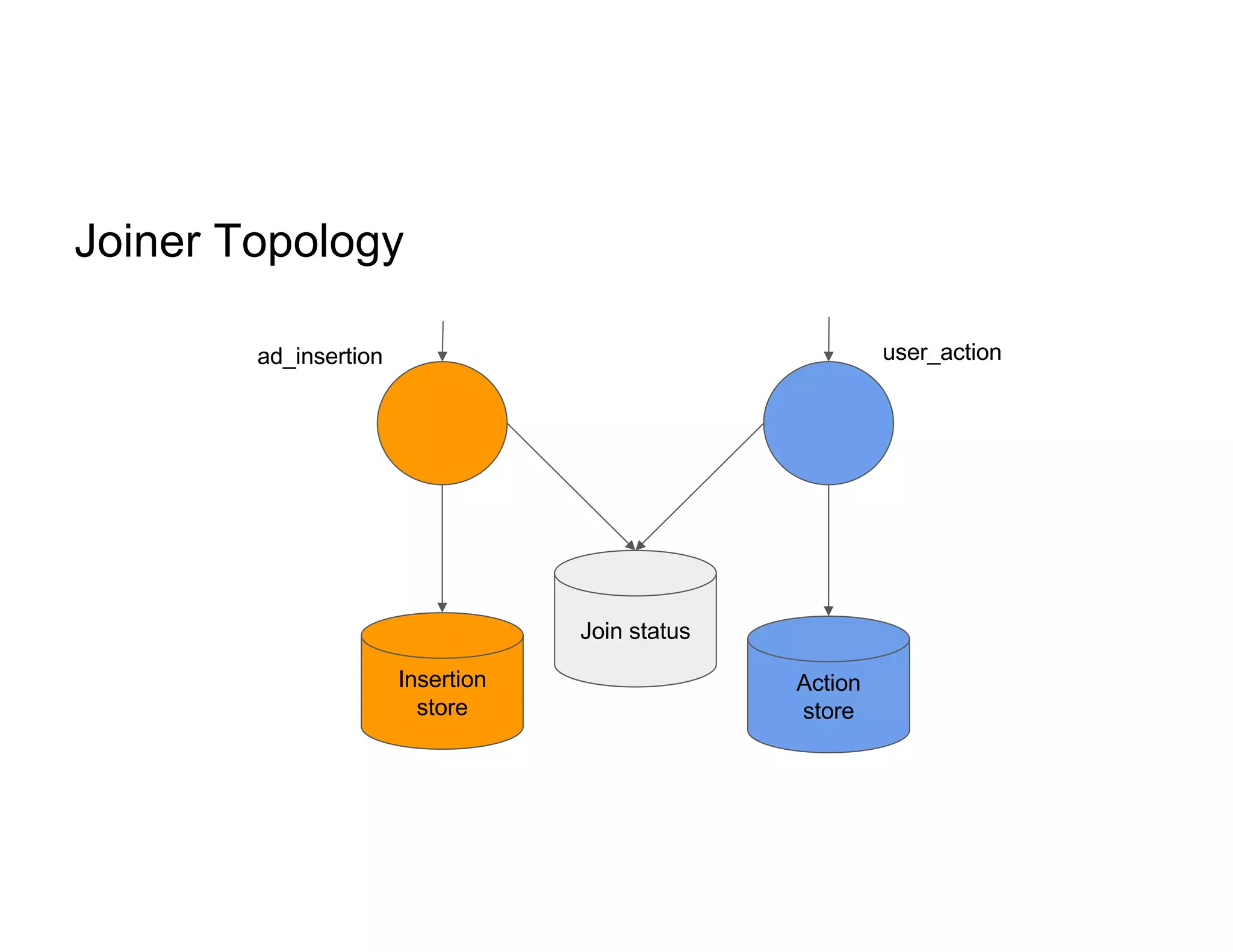

12. Joiner Topology
Insertion
store
Action
store
ad_insertion user_action
Join status

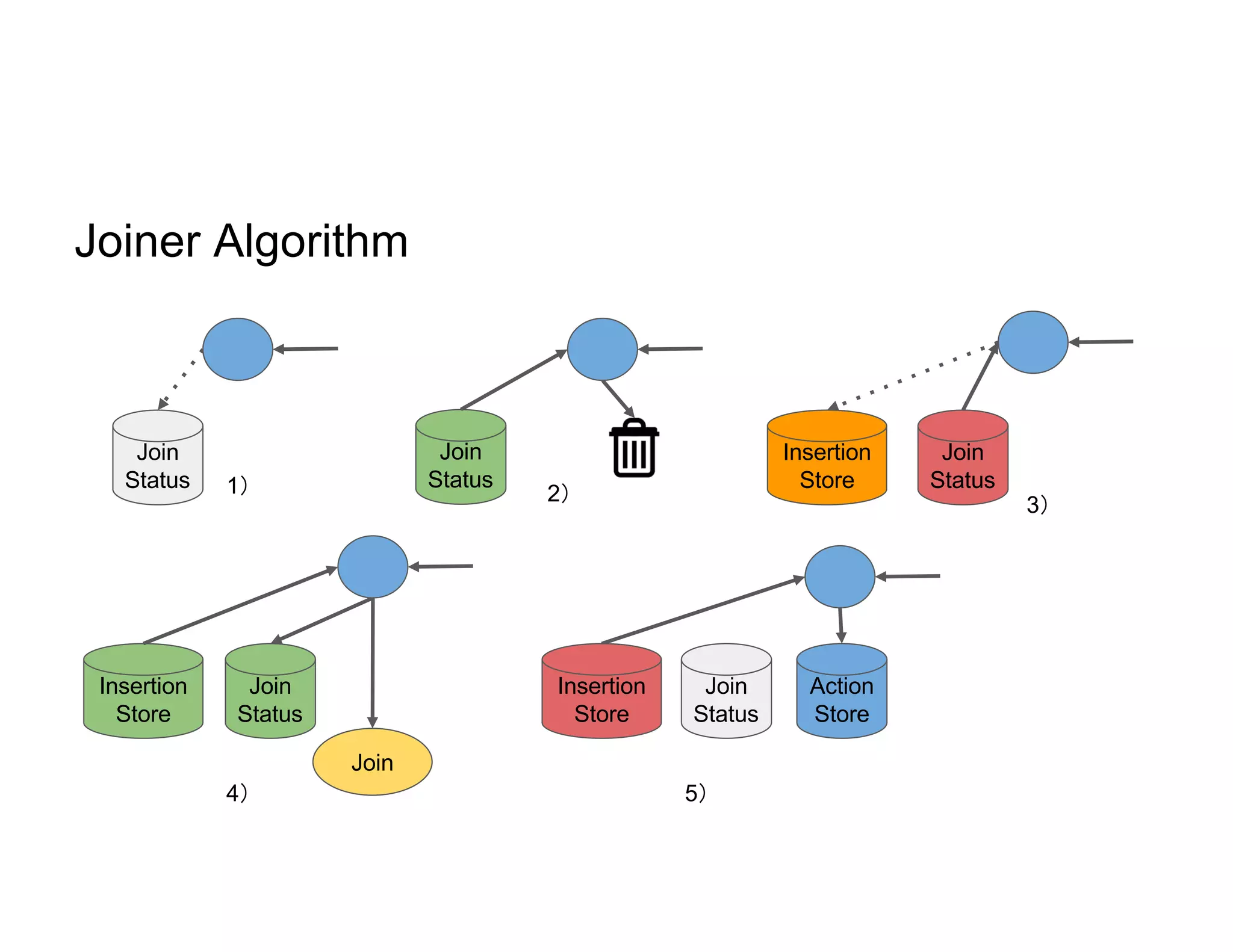

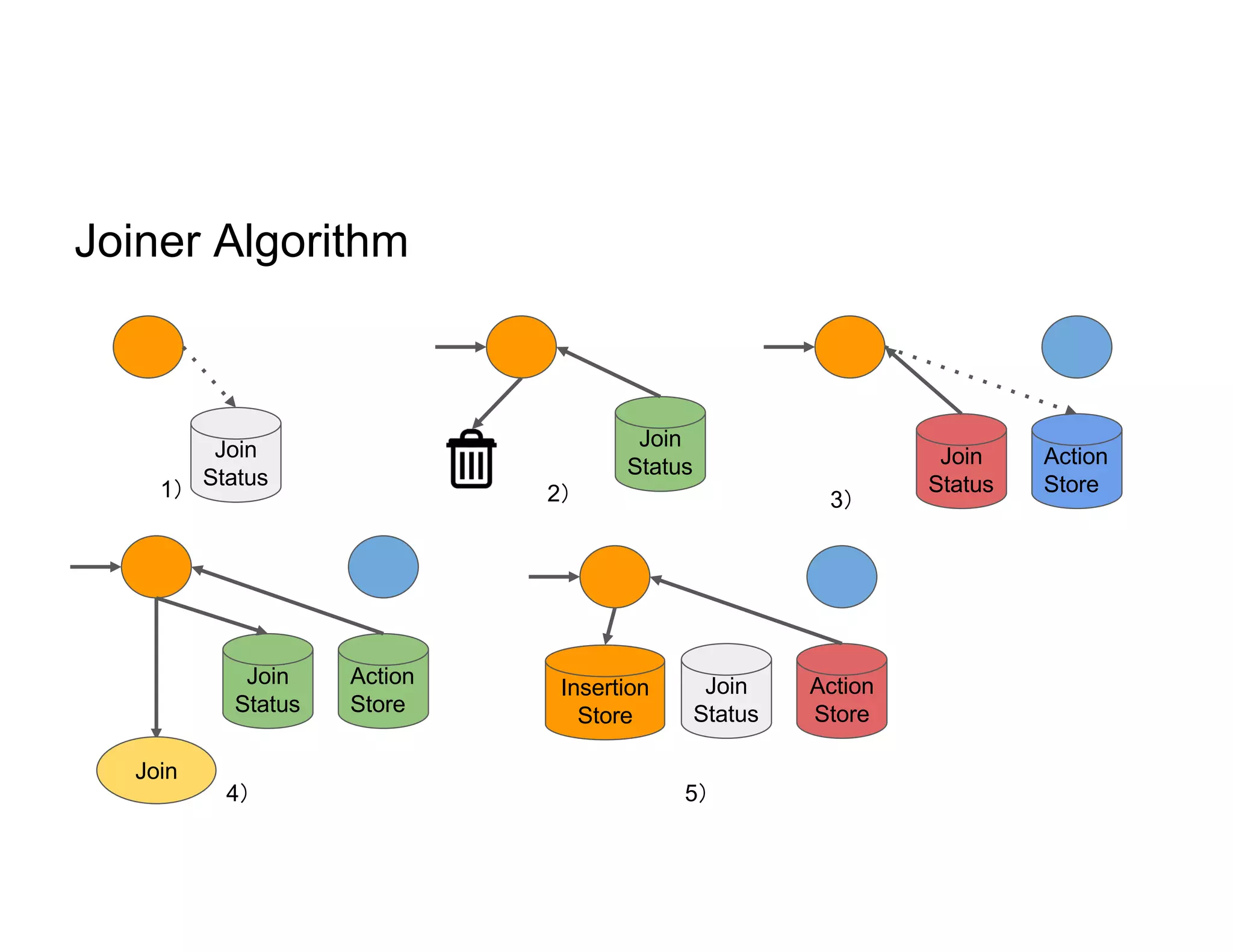

13. Joiner Algorithm
Join
Status
1
Join
Status
Action
Store
4
Join
Status
2
Join
Status
Action
Store
3
Join
Join
Status
Action
Store
5
Insertion
Store

14. Joiner Algorithm
Join
Status 1
Join
Status
2
Join
Status
3
Insertion
Store
Join
4
Join
Status
Insertion
Store
Join
Status
Action
Store
5
Insertion
Store

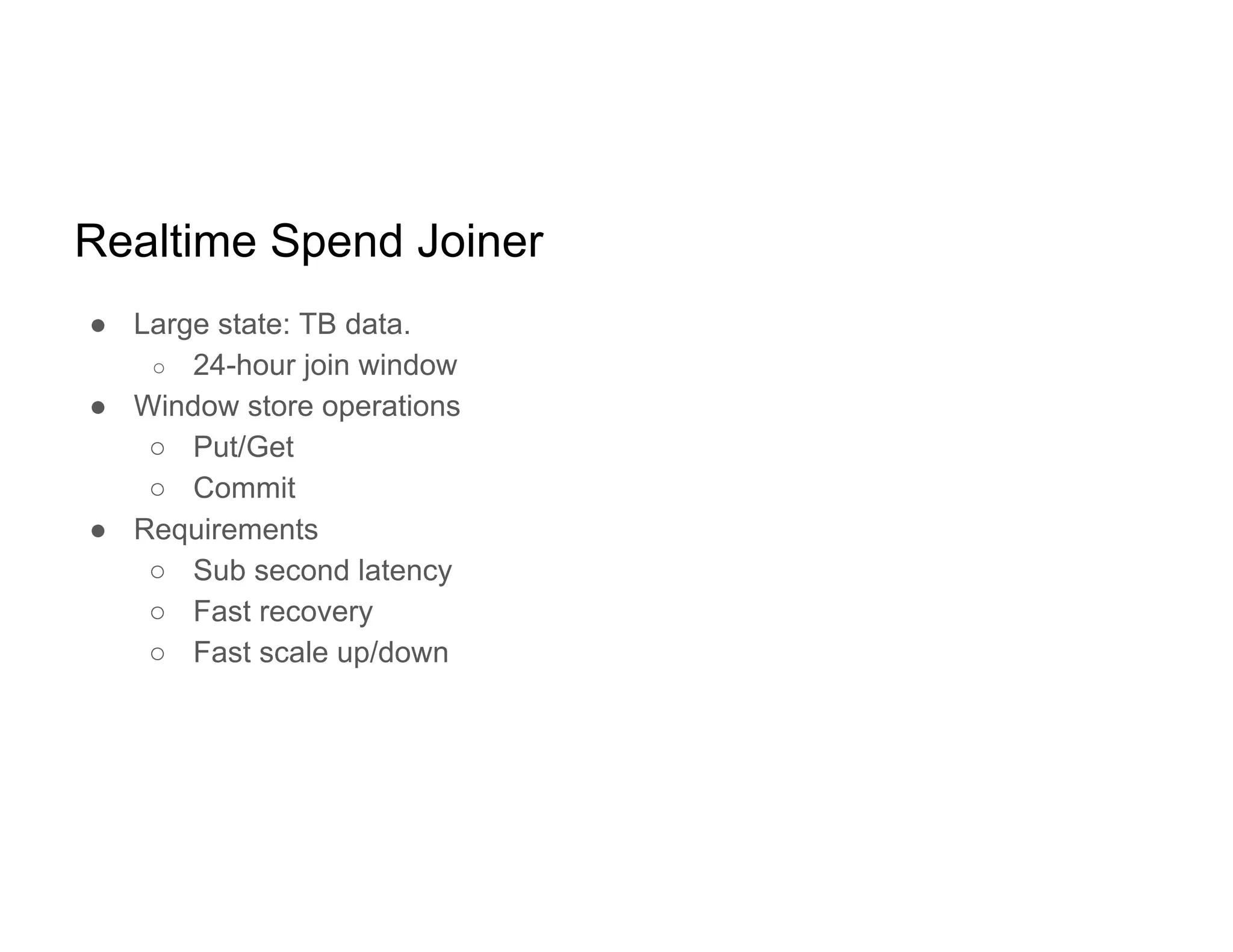

15. Realtime Spend Joiner
● Large state: TB data.
○ 24-hour join window
● Window store operations
○ Put/Get
○ Commit
● Requirements
○ Sub second latency
○ Fast recovery
○ Fast scale up/down

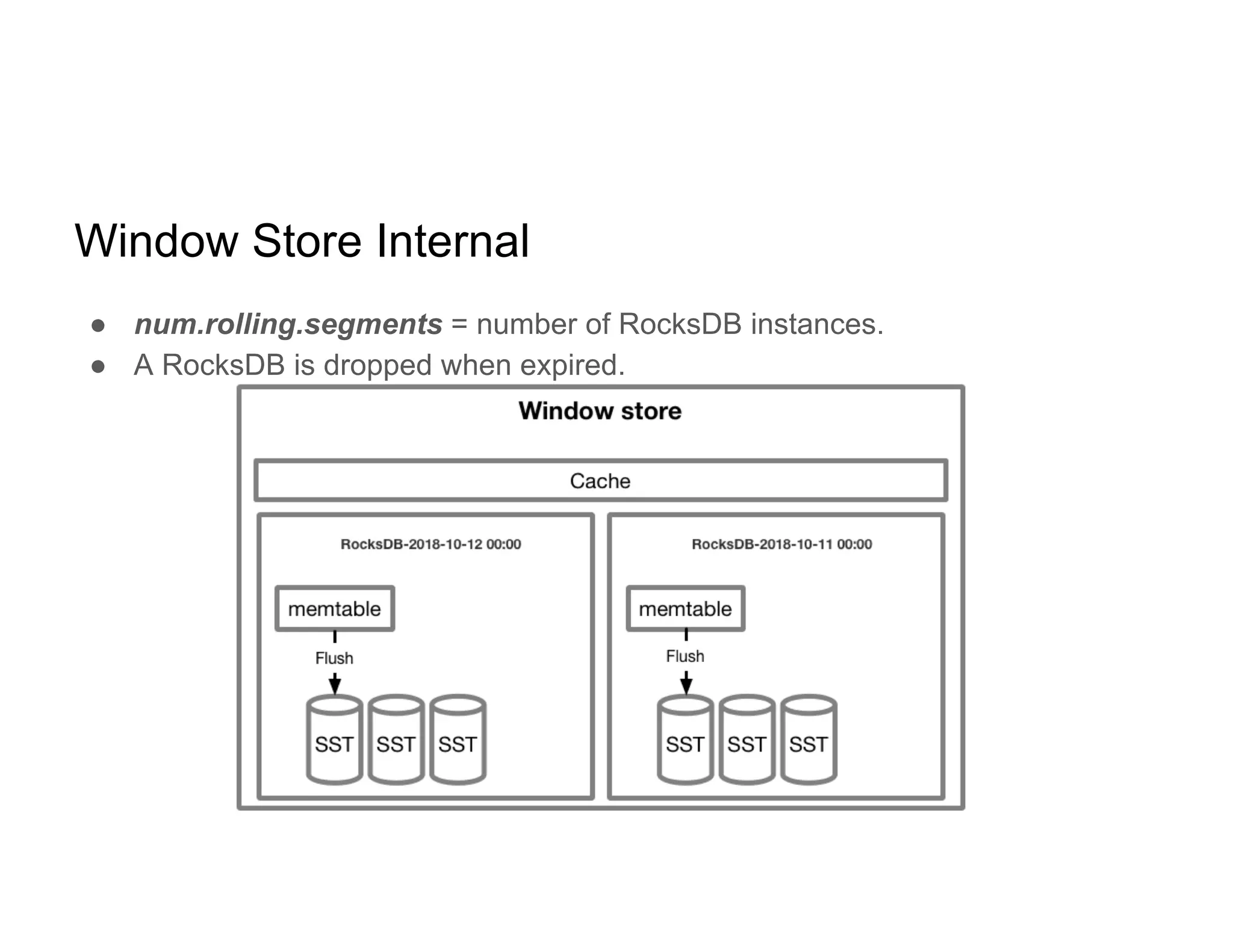

16. ● num.rolling.segments = number of RocksDB instances.
● A RocksDB is dropped when expired.
Window Store Internal

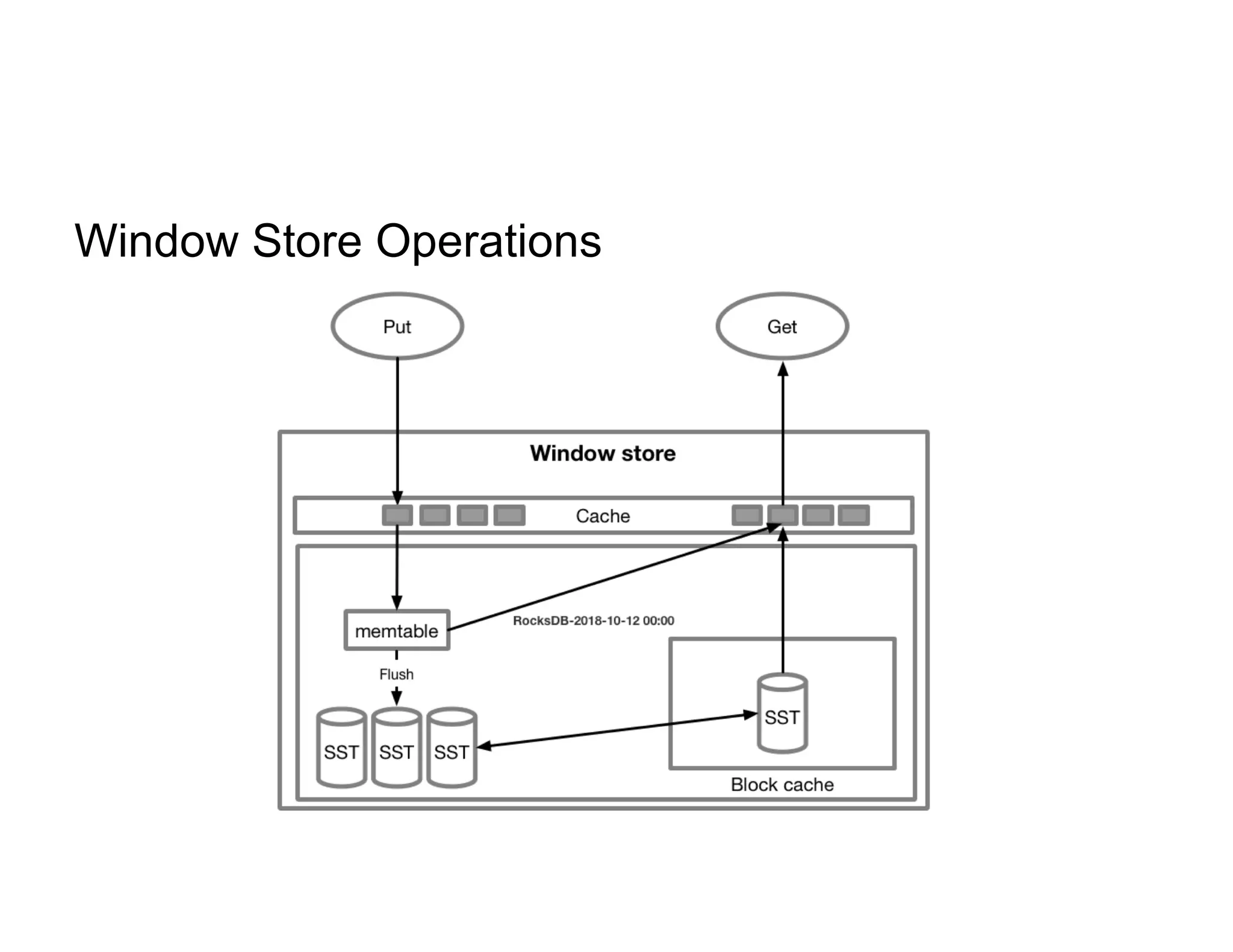

17. Window Store Operations

18. ● Read/write performance
○ Use point query for fast lookup
■ fetch(key, timeFrom, timeTo);
■ fetch(key, windowStartTime); [ >=Kafka 2.0.0 ]
○ Increase block cache size
○ Reduce action state store size

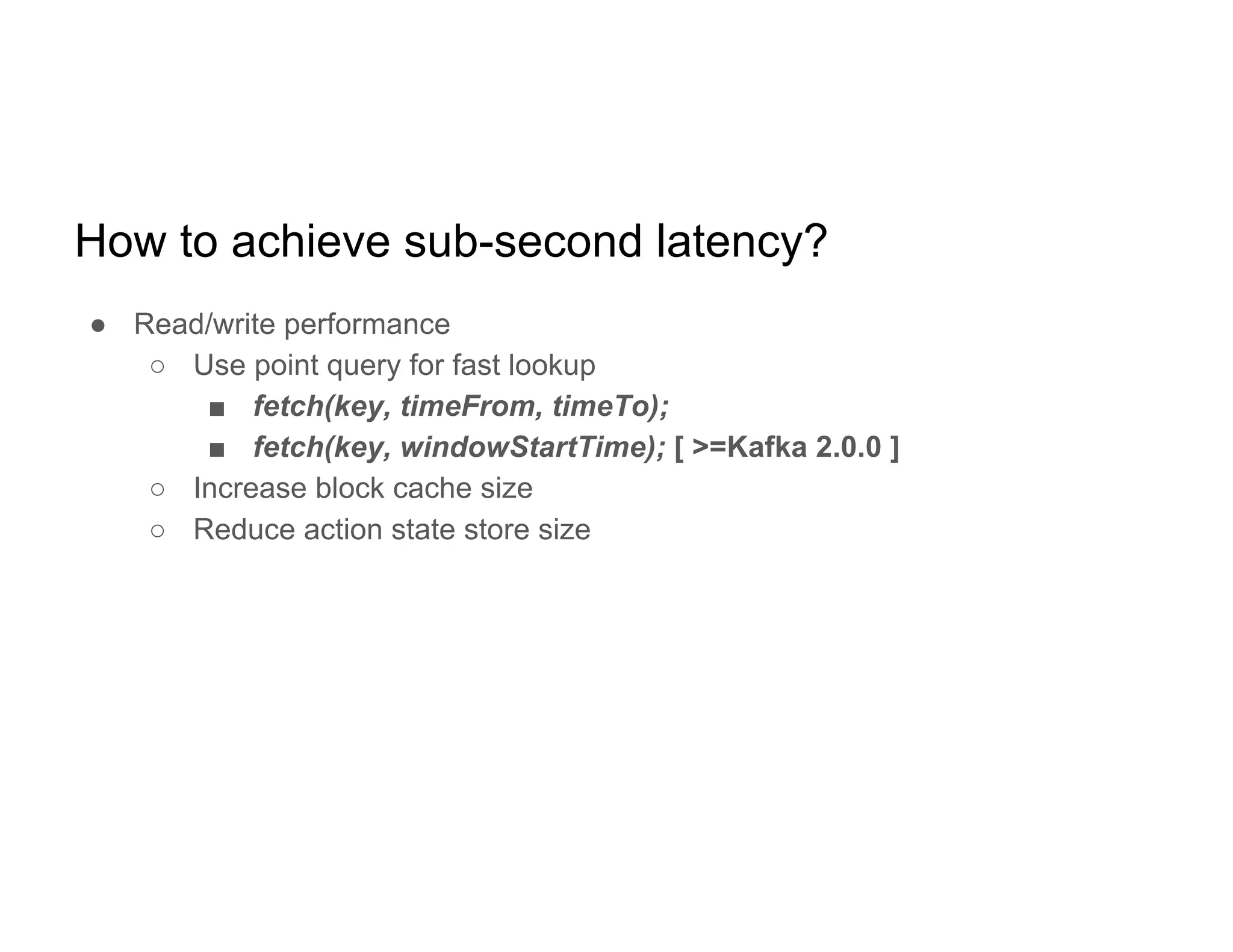

How to achieve sub-second latency?

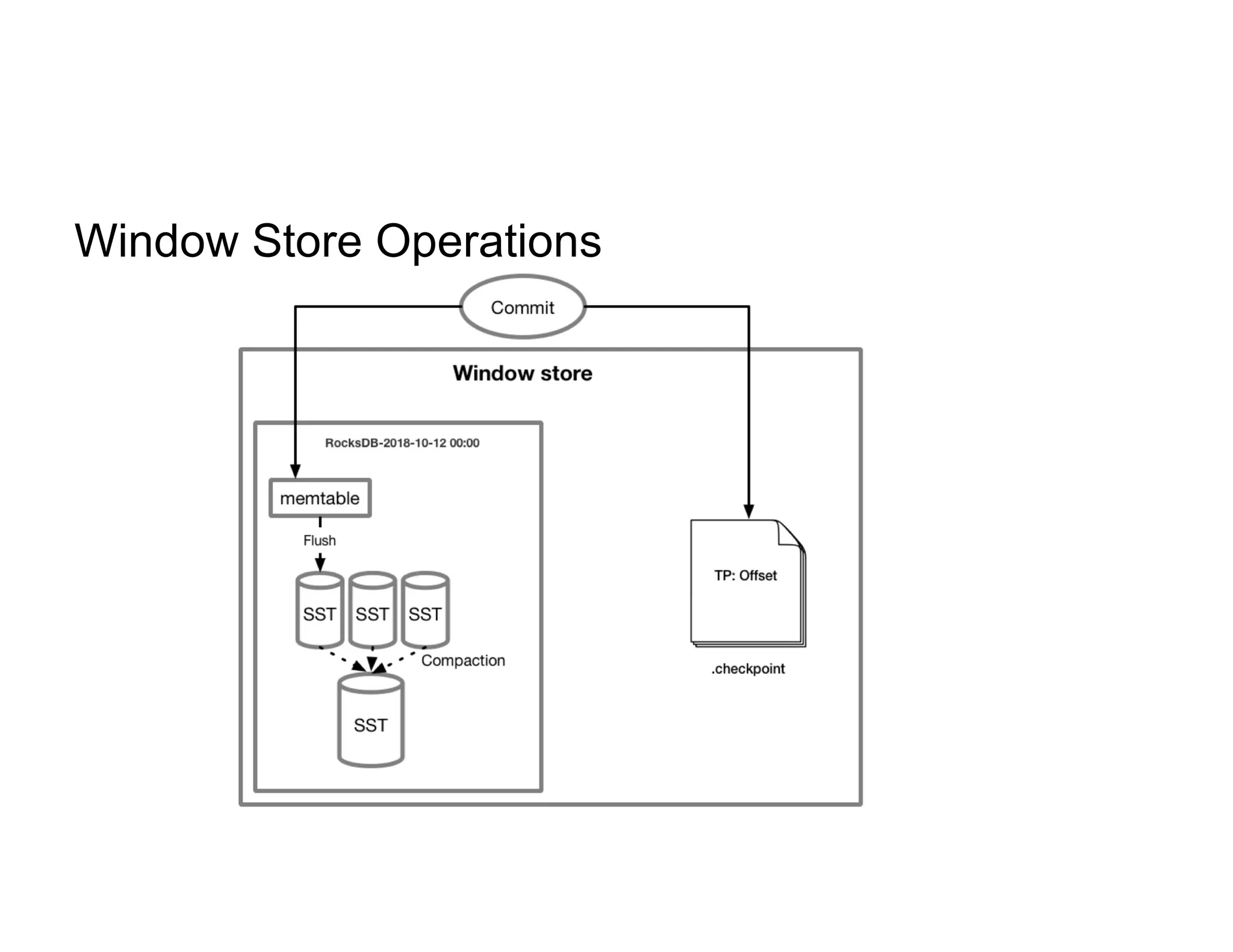

19. Window Store Operations

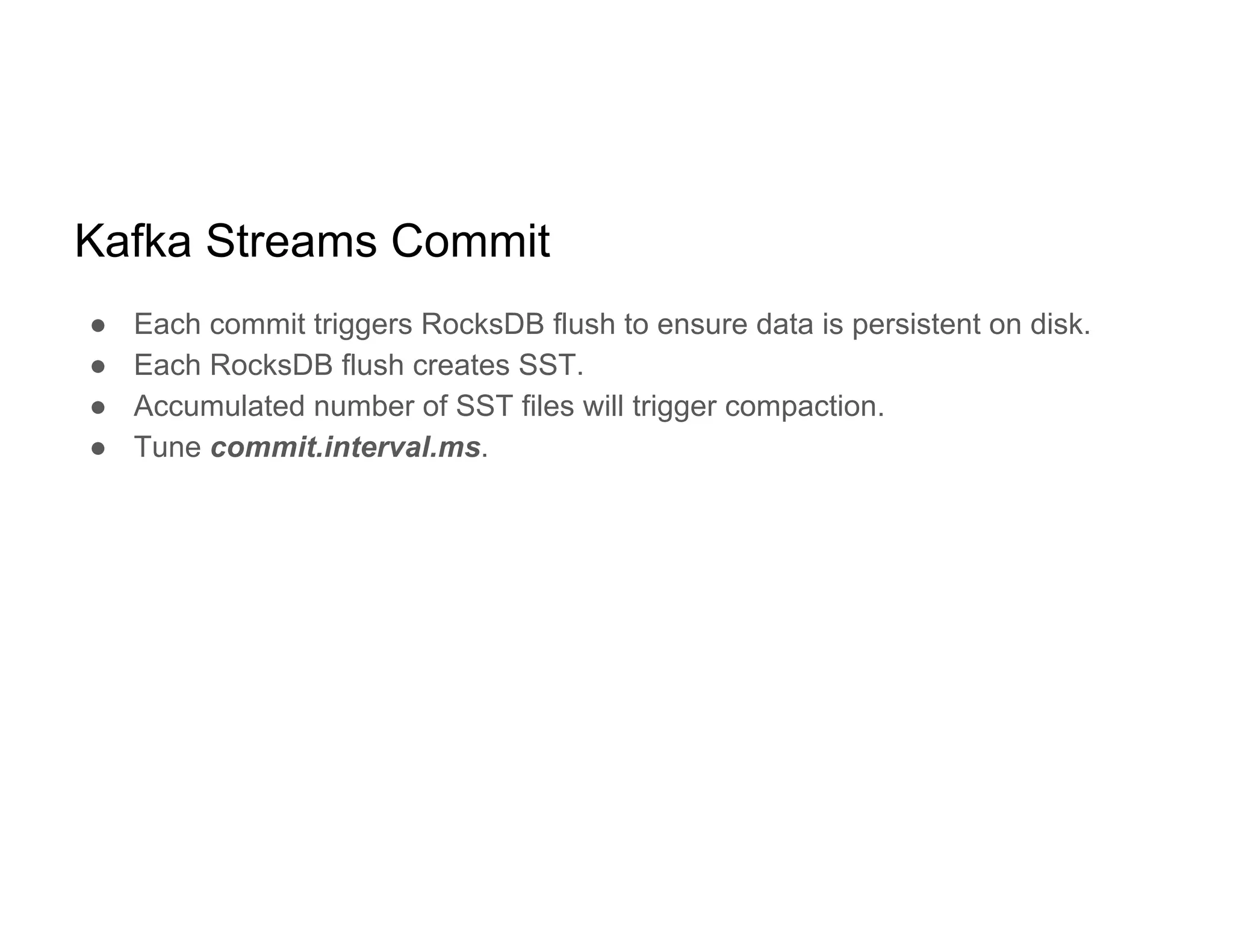

20. ● Each commit triggers RocksDB flush to ensure data is persistent on disk.
● Each RocksDB flush creates SST.
● Accumulated number of SST files will trigger compaction.
● Tune commit.interval.ms.
Kafka Streams Commit

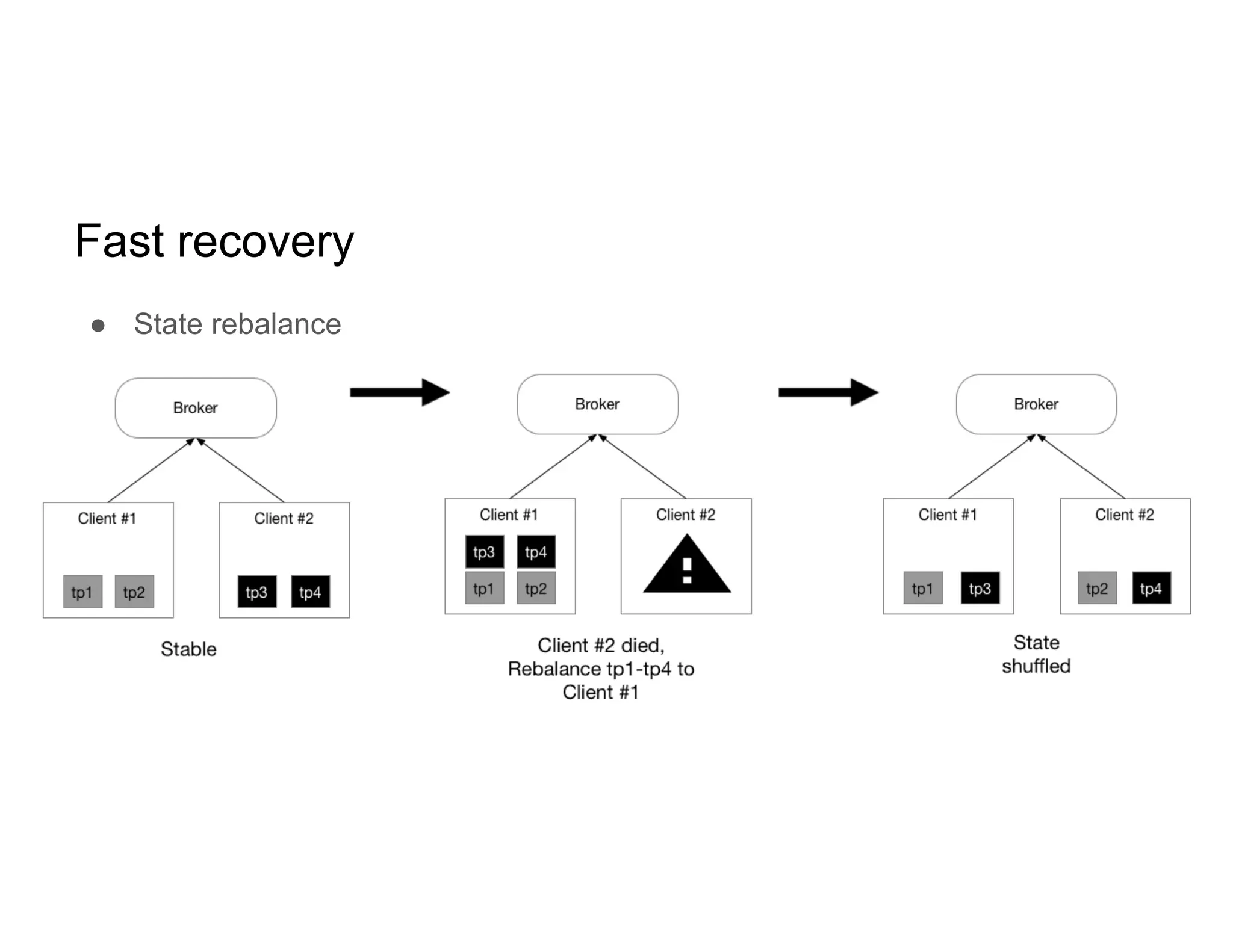

21. Fast recovery
● State rebalance

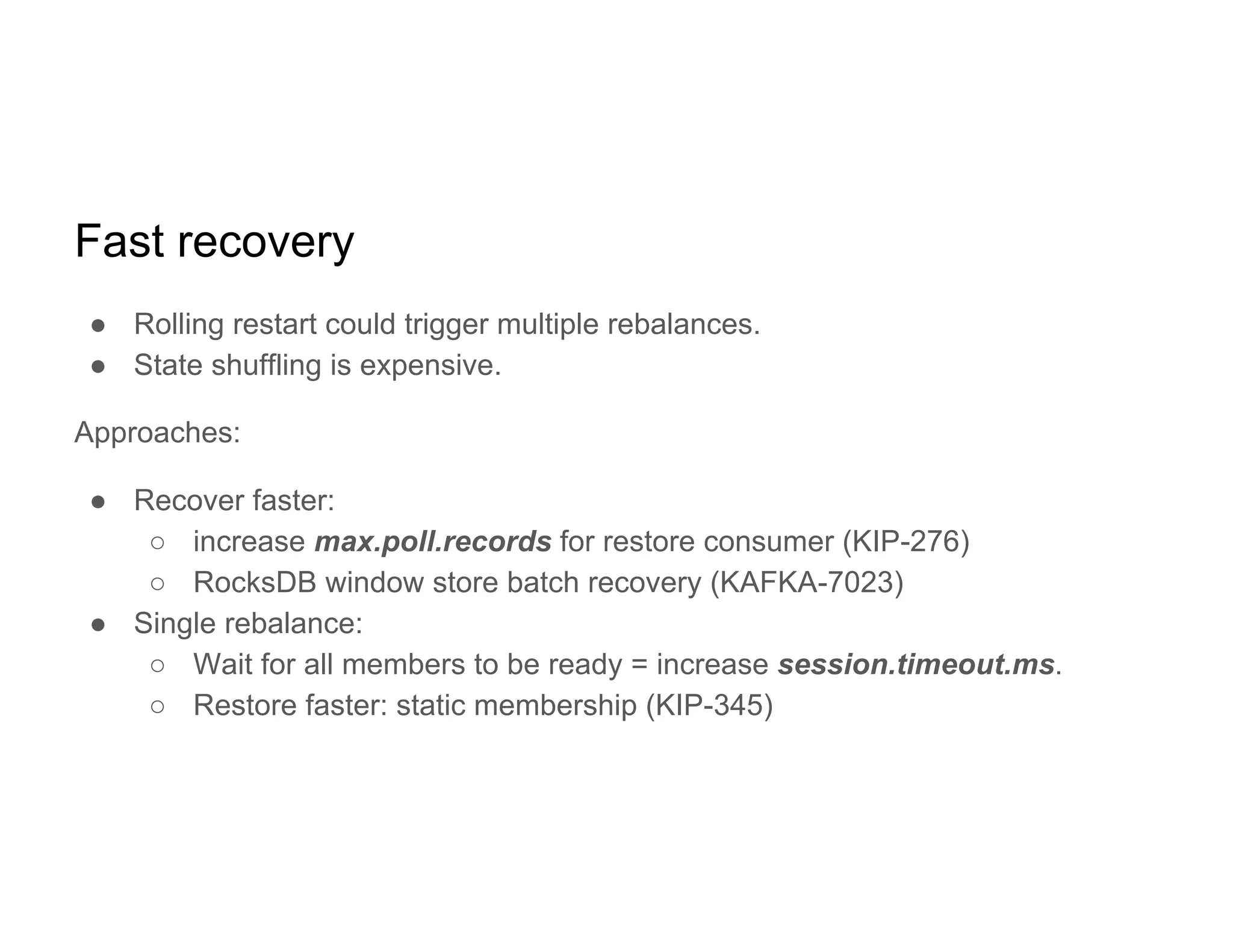

22. Fast recovery
● Rolling restart could trigger multiple rebalances.
● State shuffling is expensive.
Approaches:
● Recover faster:
○ increase max.poll.records for restore consumer (KIP-276)
○ RocksDB window store batch recovery (KAFKA-7023)
● Single rebalance:
○ Wait for all members to be ready = increase session.timeout.ms.
○ Restore faster: static membership (KIP-345)

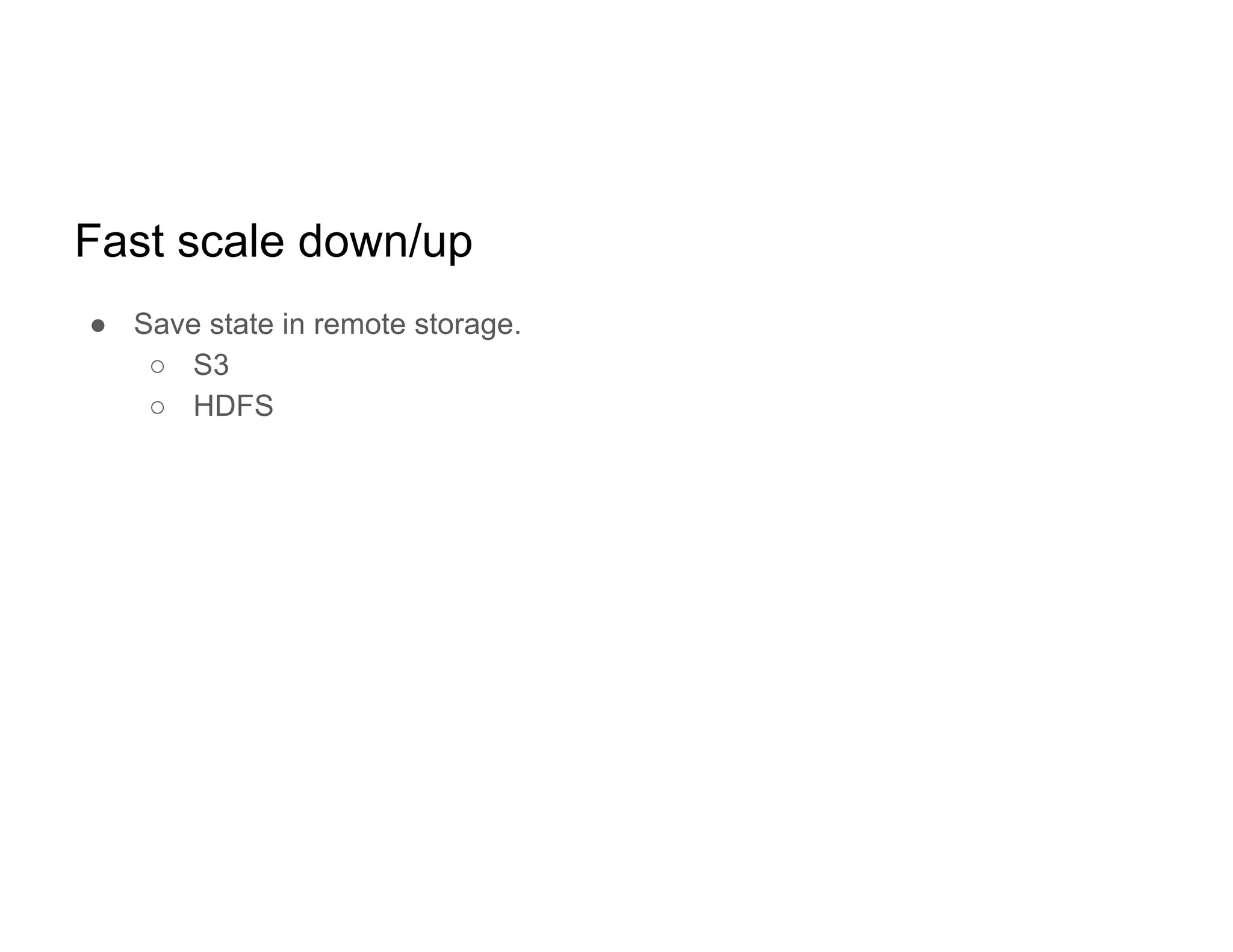

23. Fast scale down/up
● Save state in remote storage.
○ S3
○ HDFS

24. Budgeting

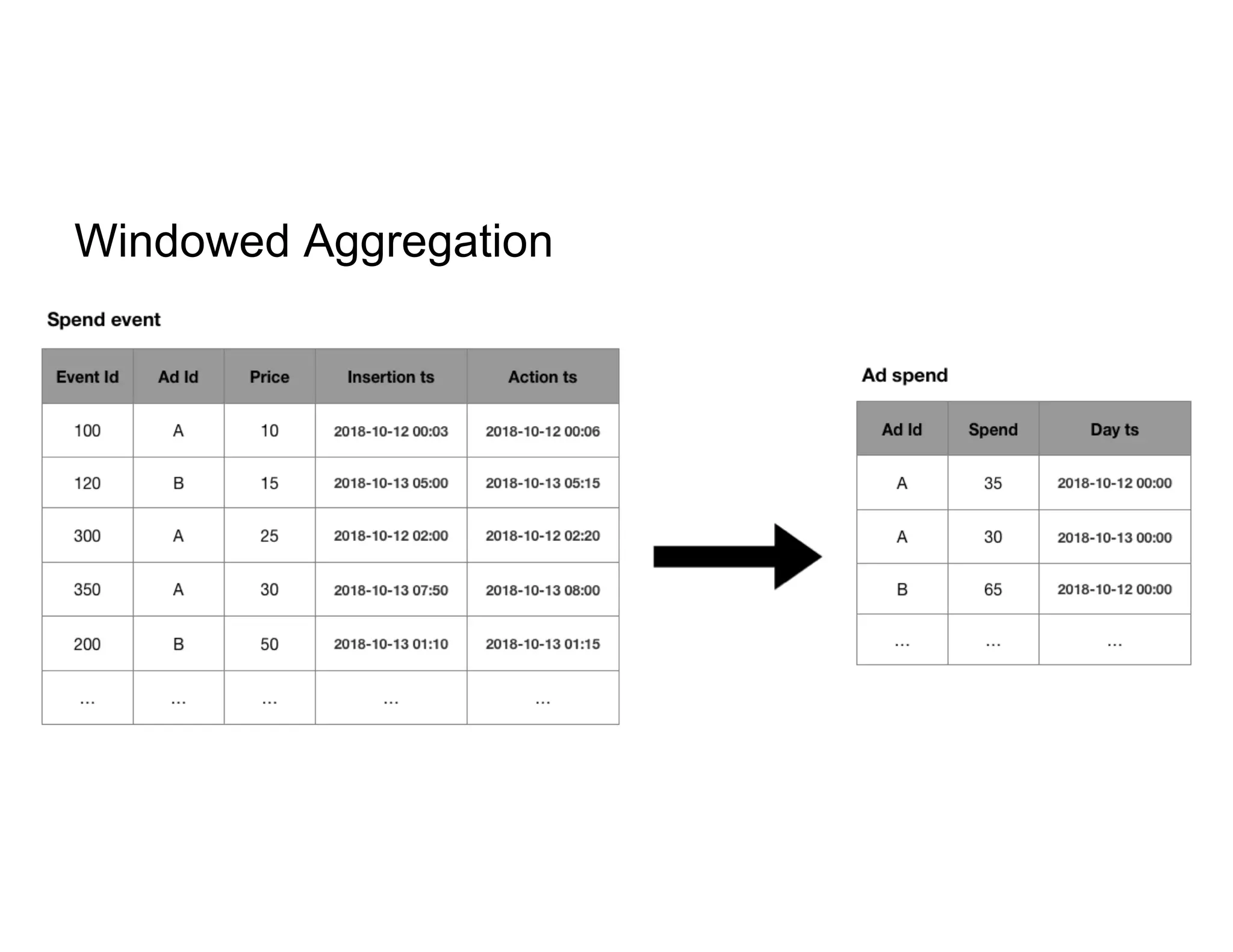

25. Windowed Aggregation

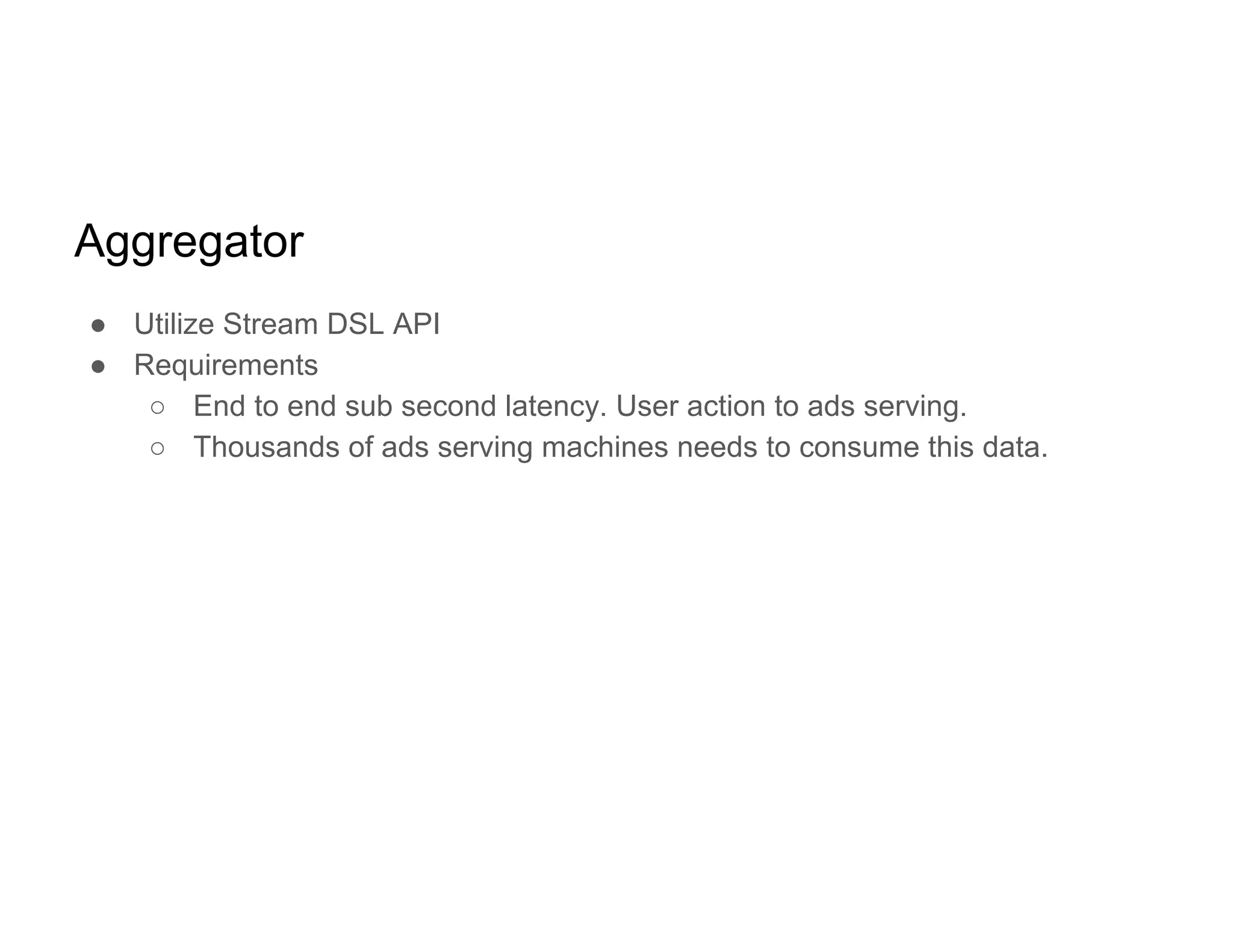

26. Aggregator
● Utilize Stream DSL API
● Requirements
○ End to end sub second latency. User action to ads serving.
○ Thousands of ads serving machines needs to consume this data.

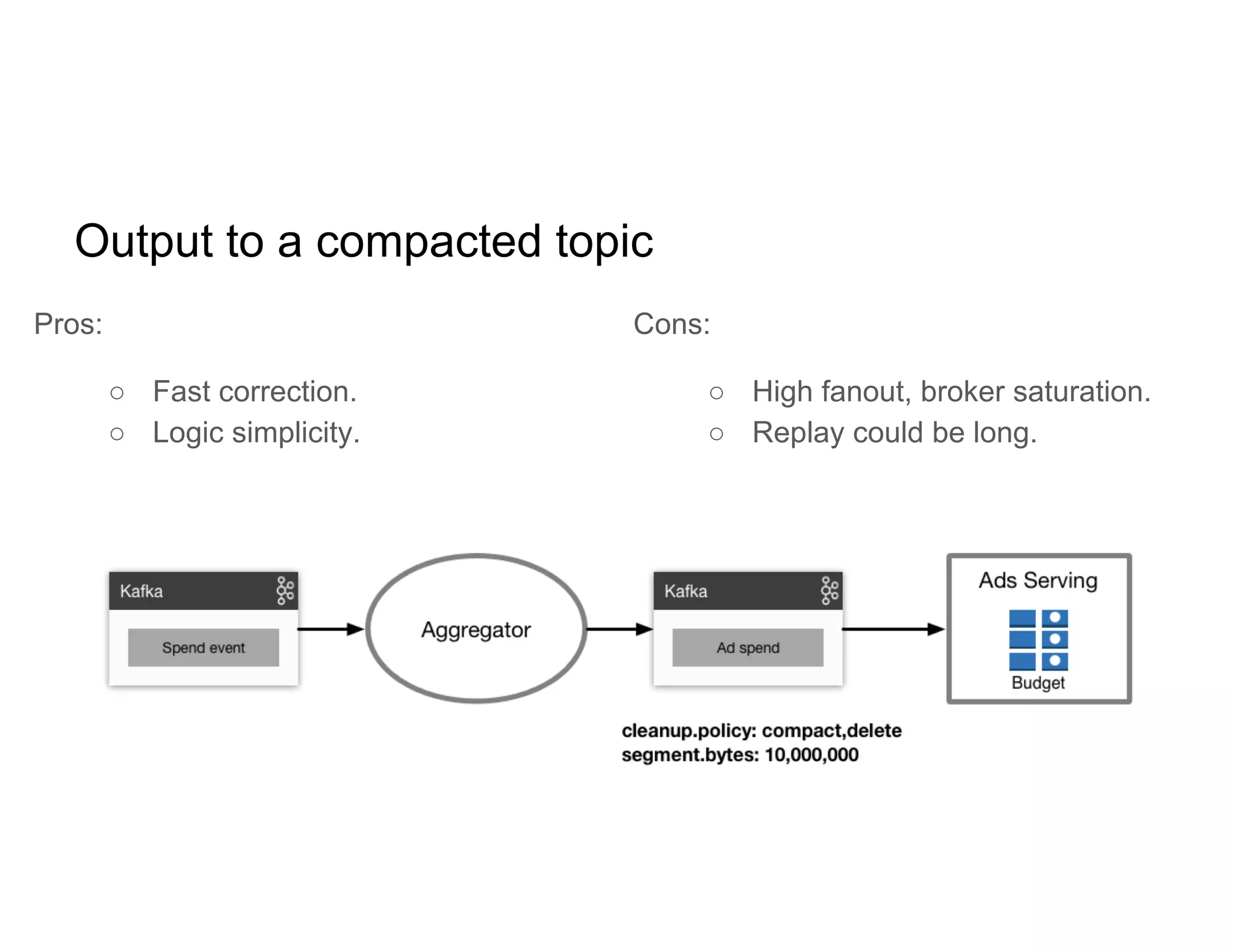

27. Output to a compacted topic
Cons:
○ High fanout, broker saturation.
○ Replay could be long.
Pros:
○ Fast correction.
○ Logic simplicity.

28. Cons:
○ Event based: no way to reset.
○ Time based: expensive batch
operation.
Pros:
○ Very small volume.
○ Logic consolidation.

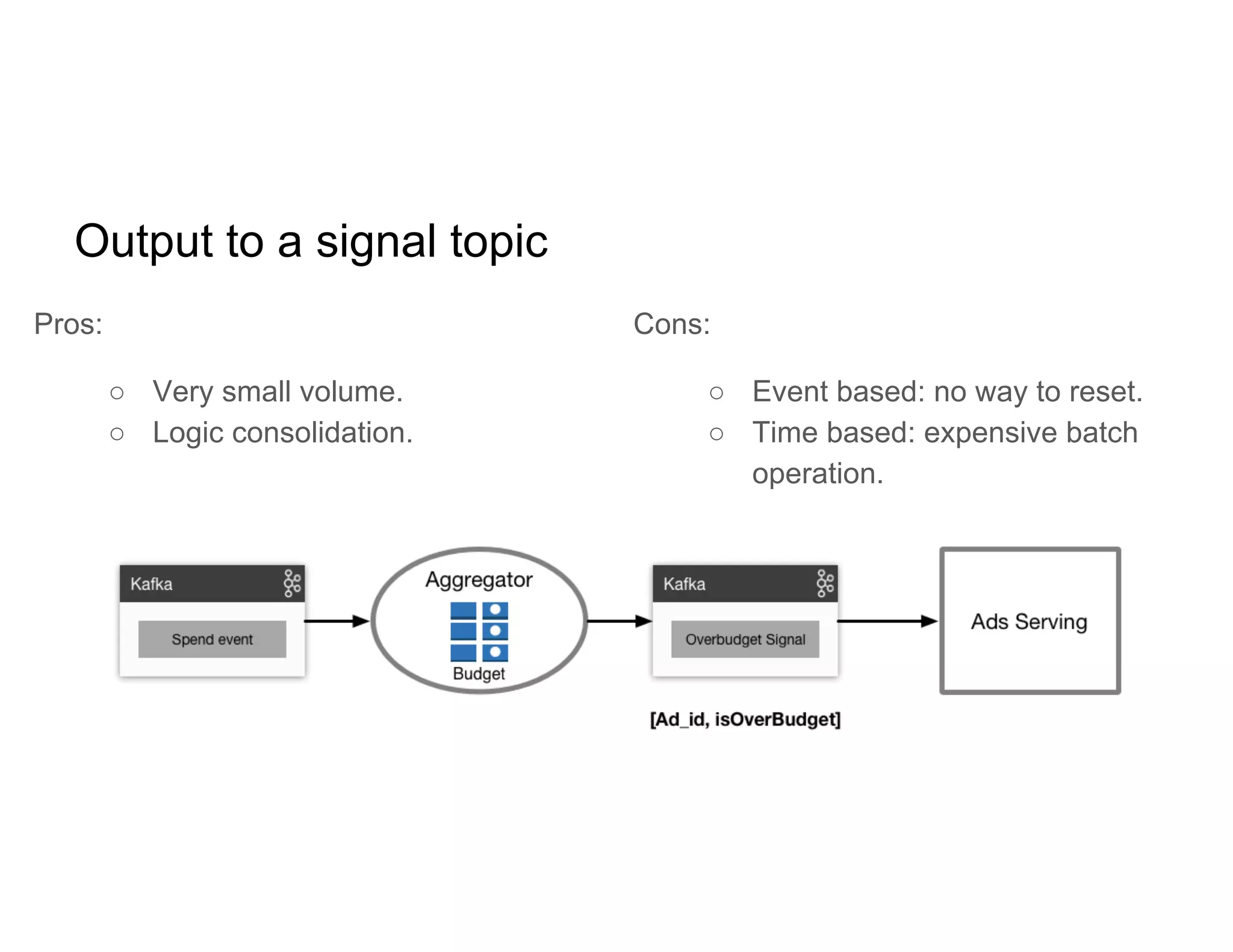

Output to a signal topic

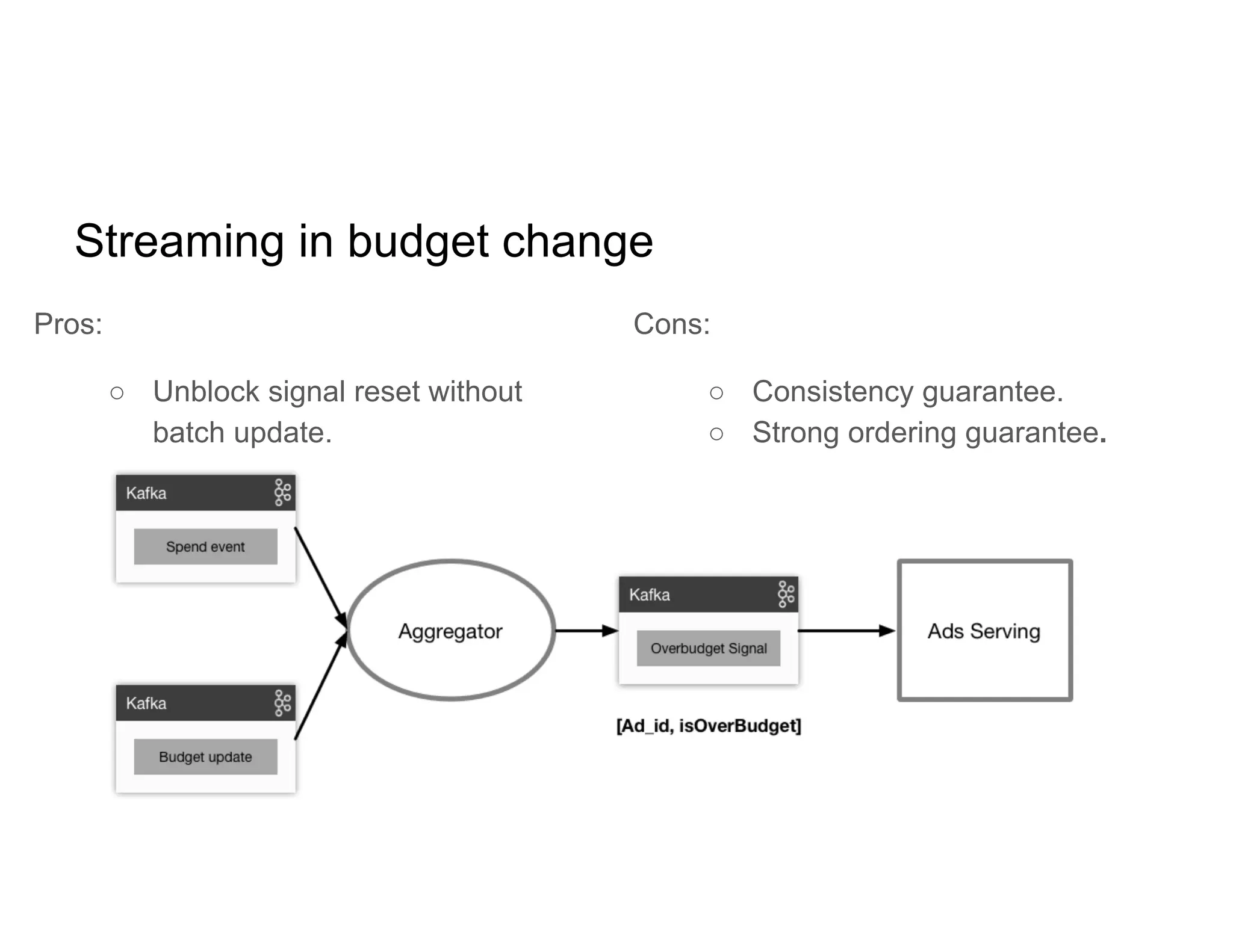

29. Streaming in budget change
Pros:
○ Unblock signal reset without
batch update.
Cons:
○ Consistency guarantee.
○ Strong ordering guarantee.

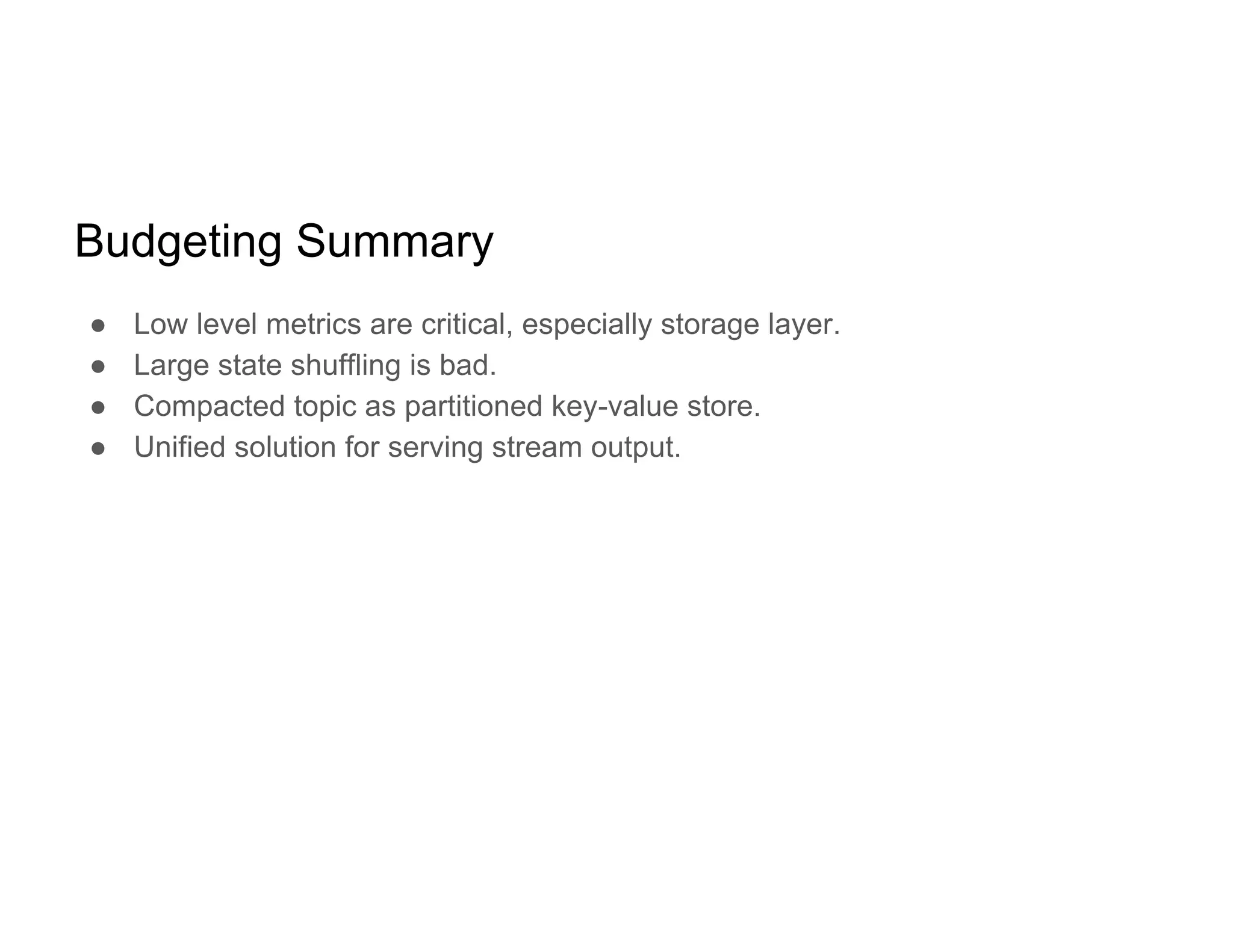

30. Budgeting Summary
● Low level metrics are critical, especially storage layer.
● Large state shuffling is bad.
● Compacted topic as partitioned key-value store.
● Unified solution for serving stream output.

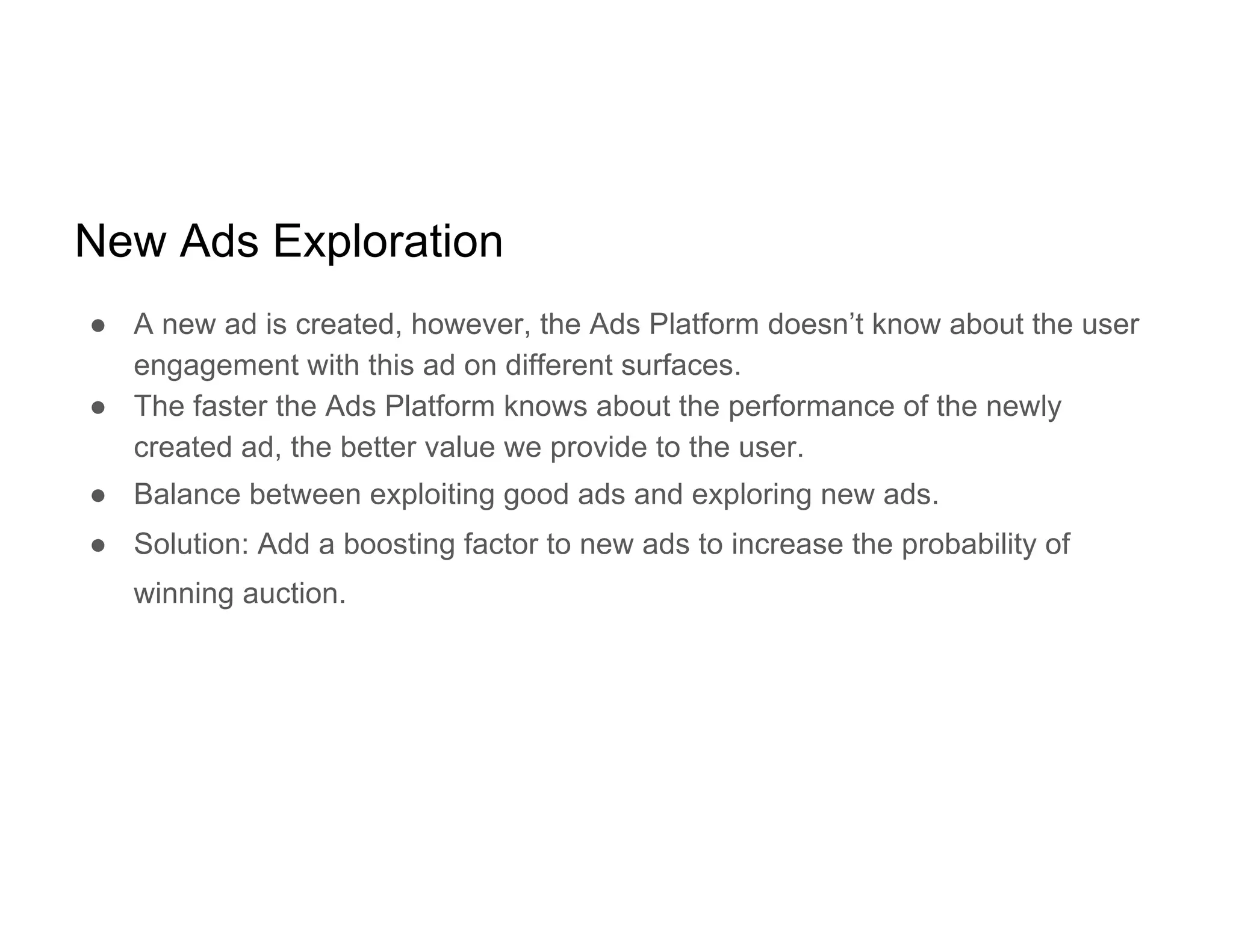

31. New Ads Exploration
● A new ad is created, however, the Ads Platform doesn’t know about the user
engagement with this ad on different surfaces.
● The faster the Ads Platform knows about the performance of the newly
created ad, the better value we provide to the user.
● Balance between exploiting good ads and exploring new ads.
● Solution: Add a boosting factor to new ads to increase the probability of
winning auction.

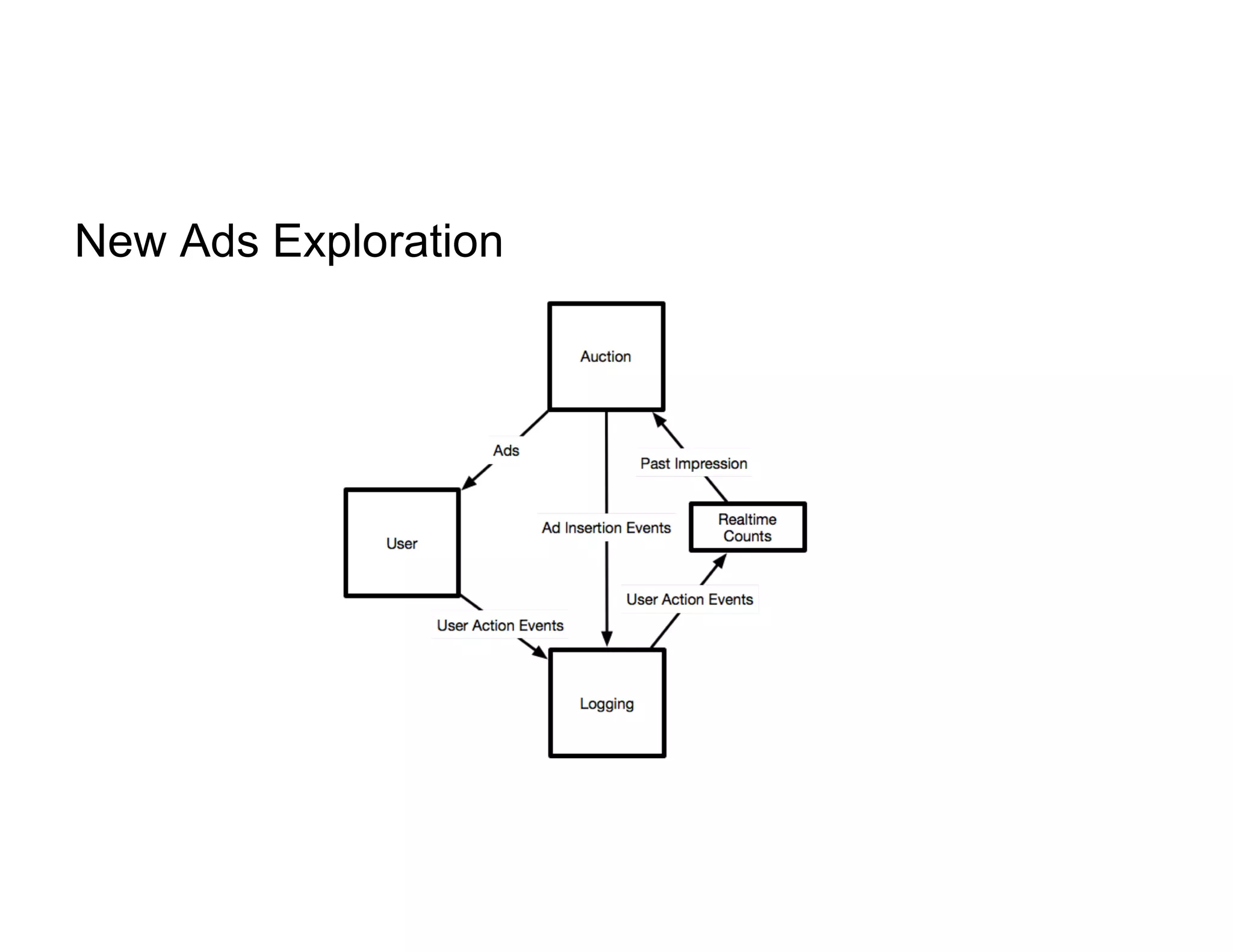

32. New Ads Exploration

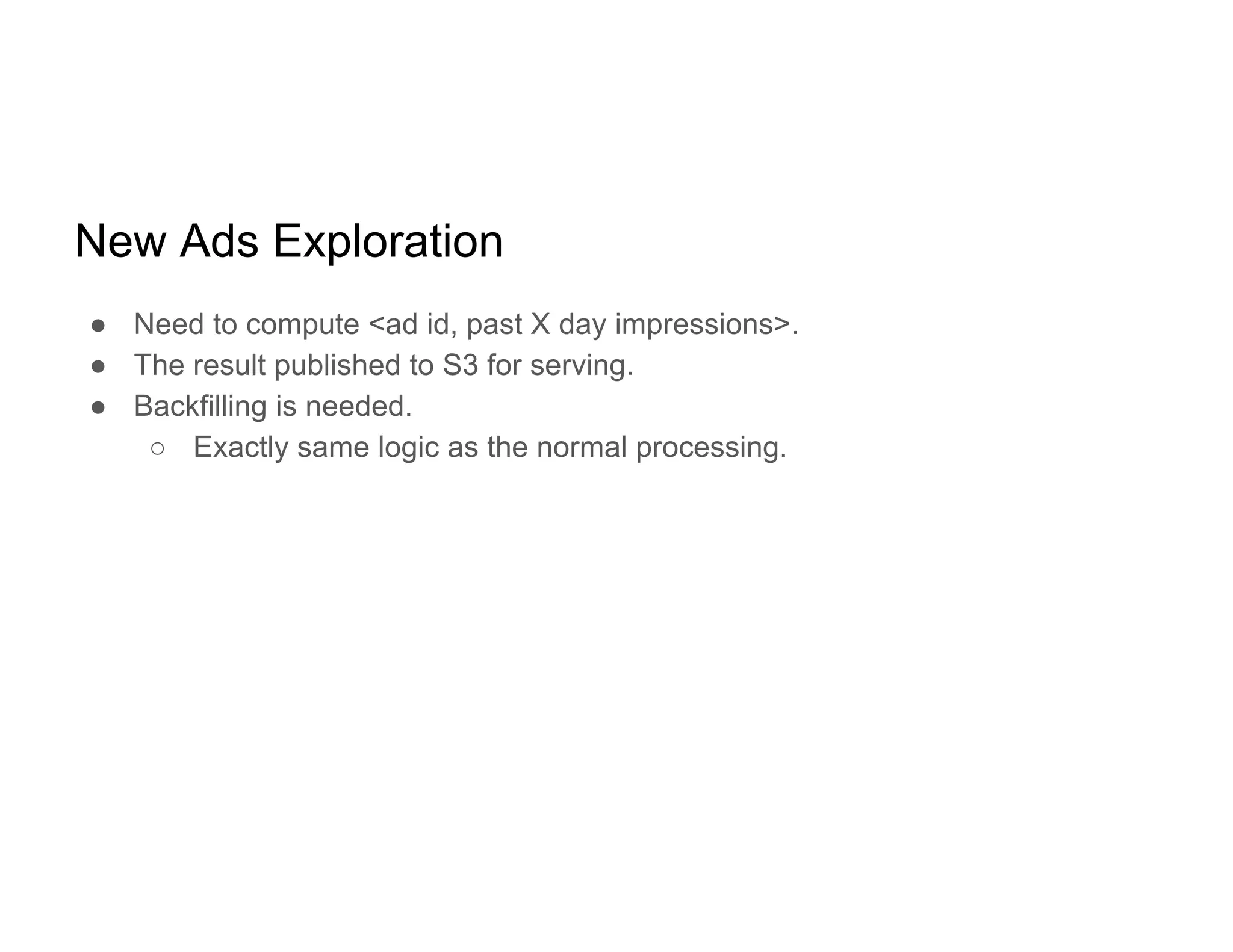

33. New Ads Exploration
● Need to compute <ad id, past X day impressions>.
● The result published to S3 for serving.
● Backfilling is needed.
○ Exactly same logic as the normal processing.

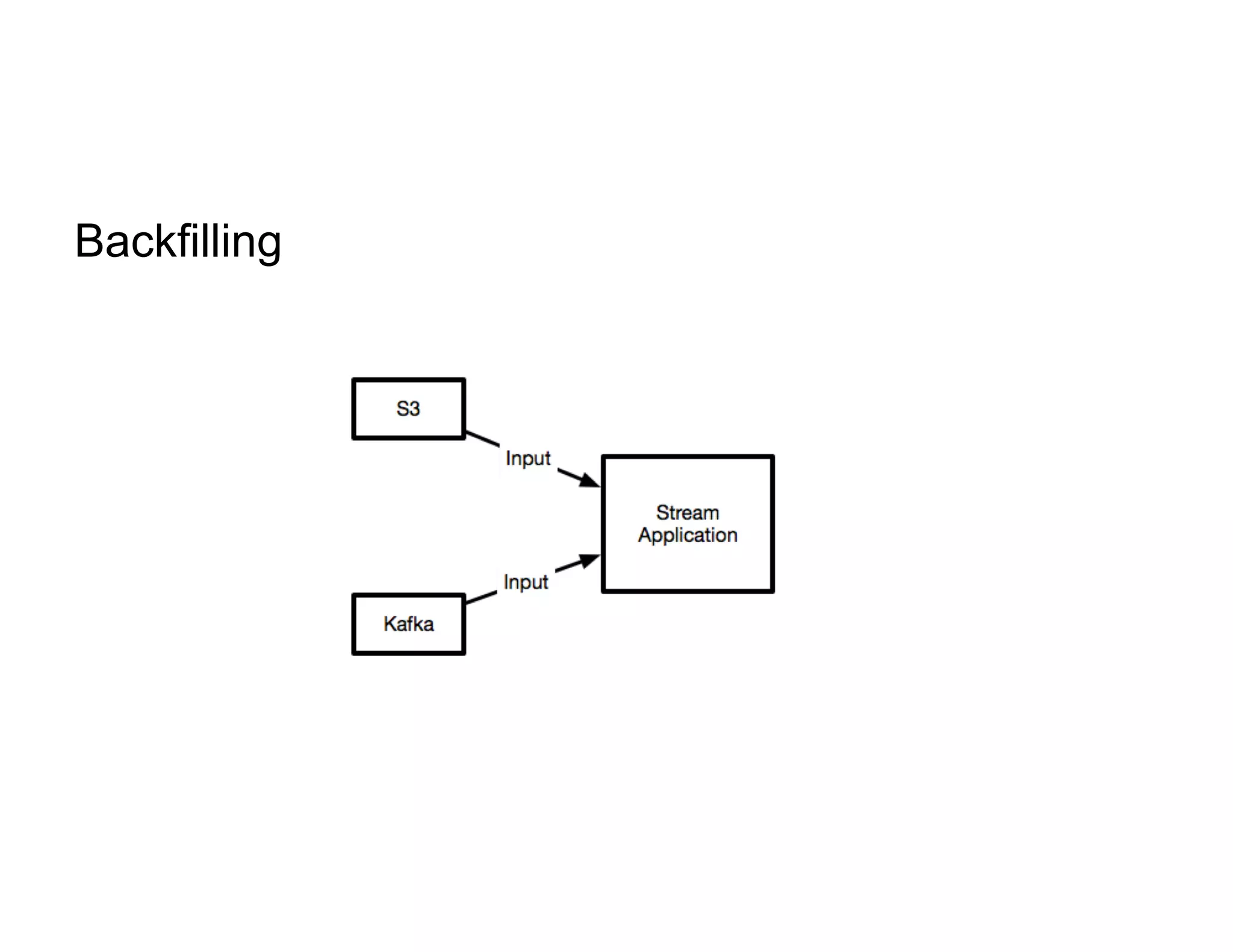

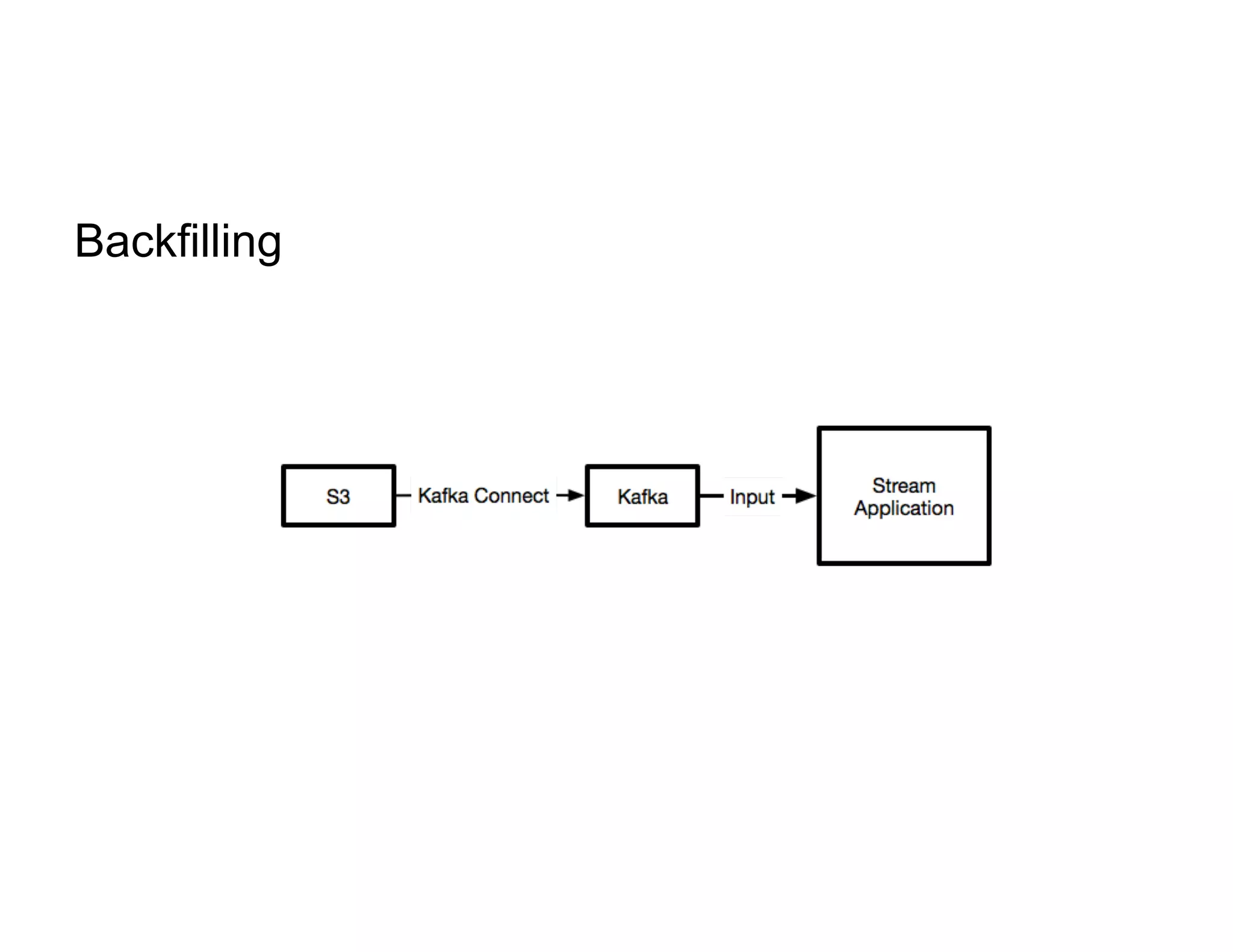

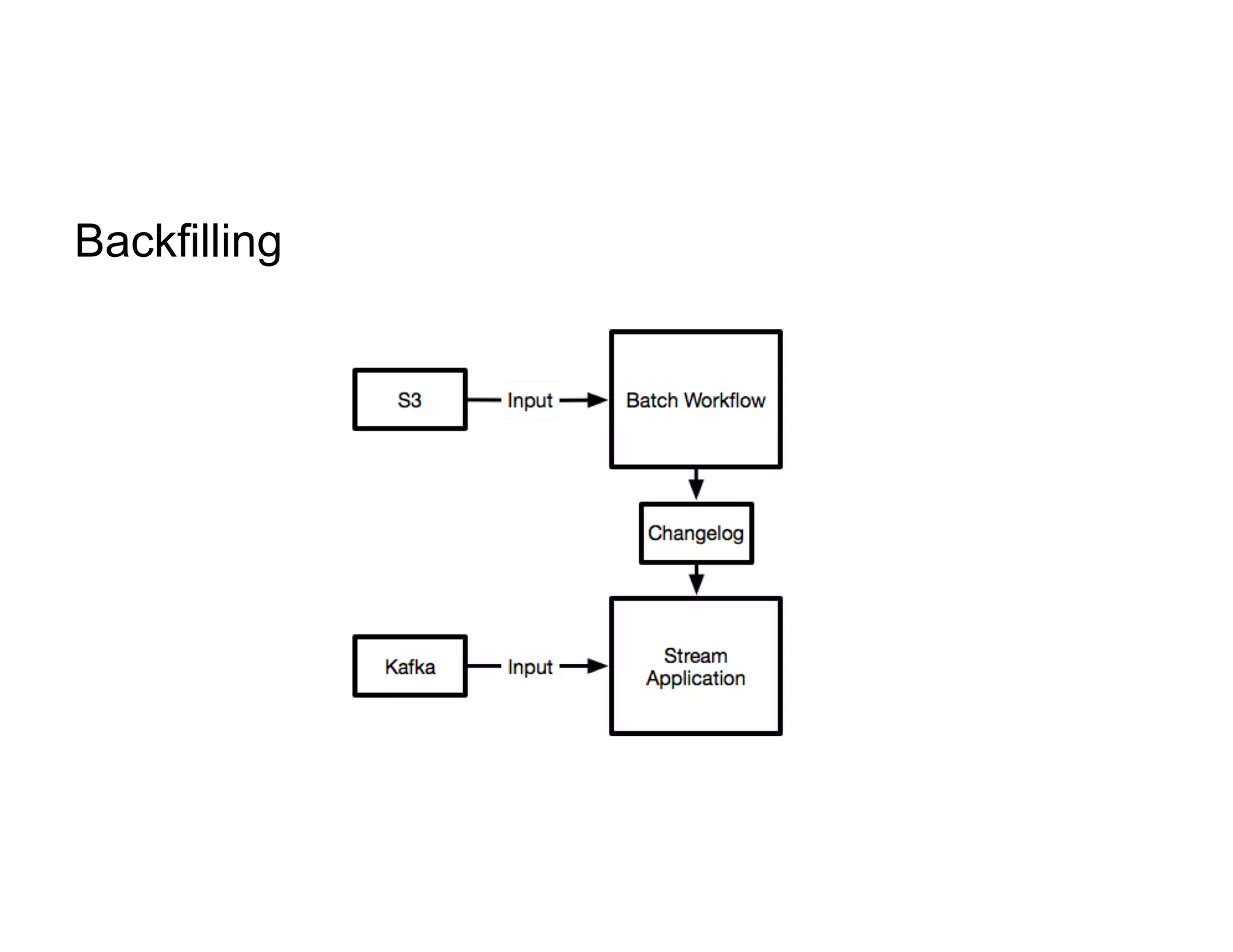

34. Backfilling

35. Backfilling

36. Backfilling

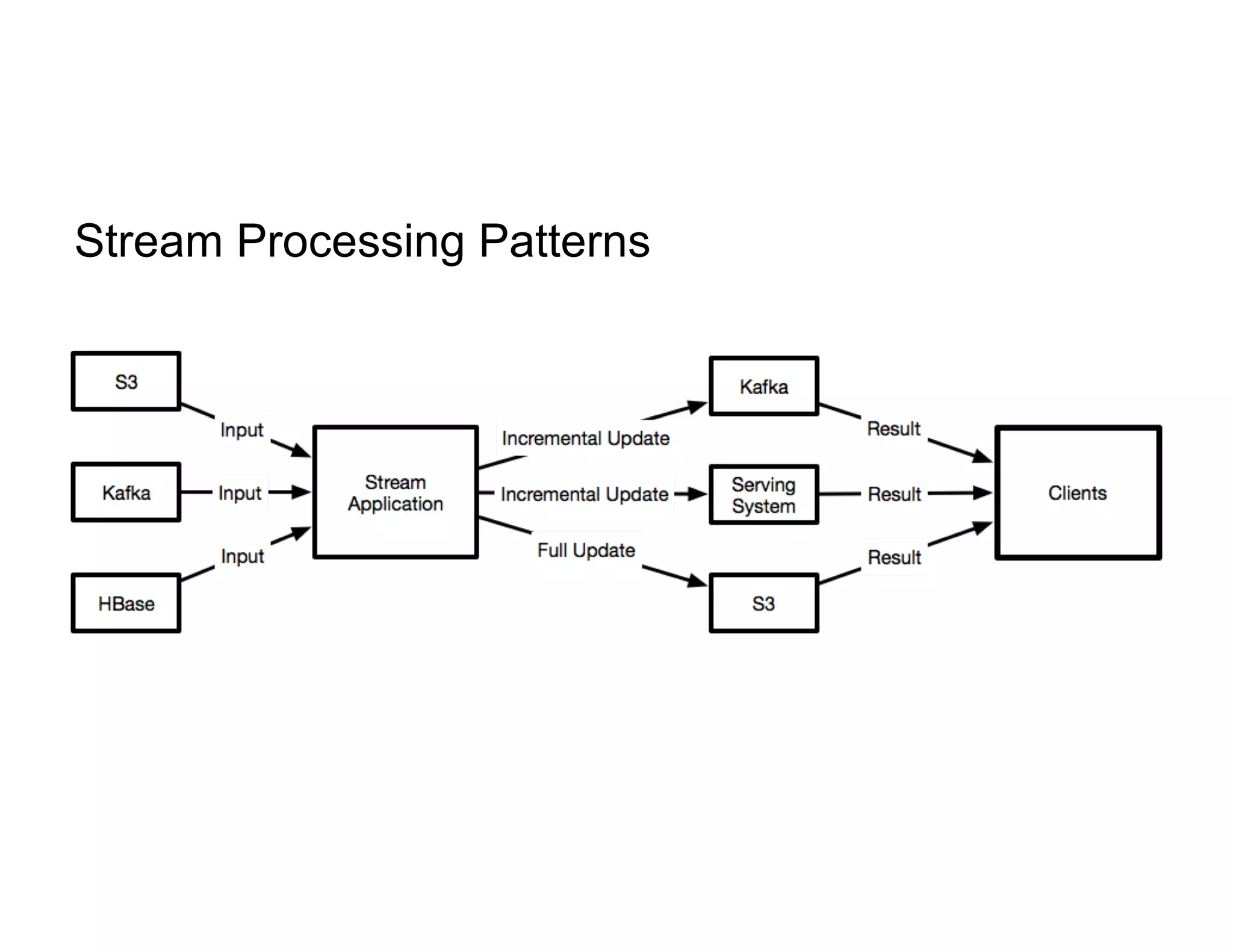

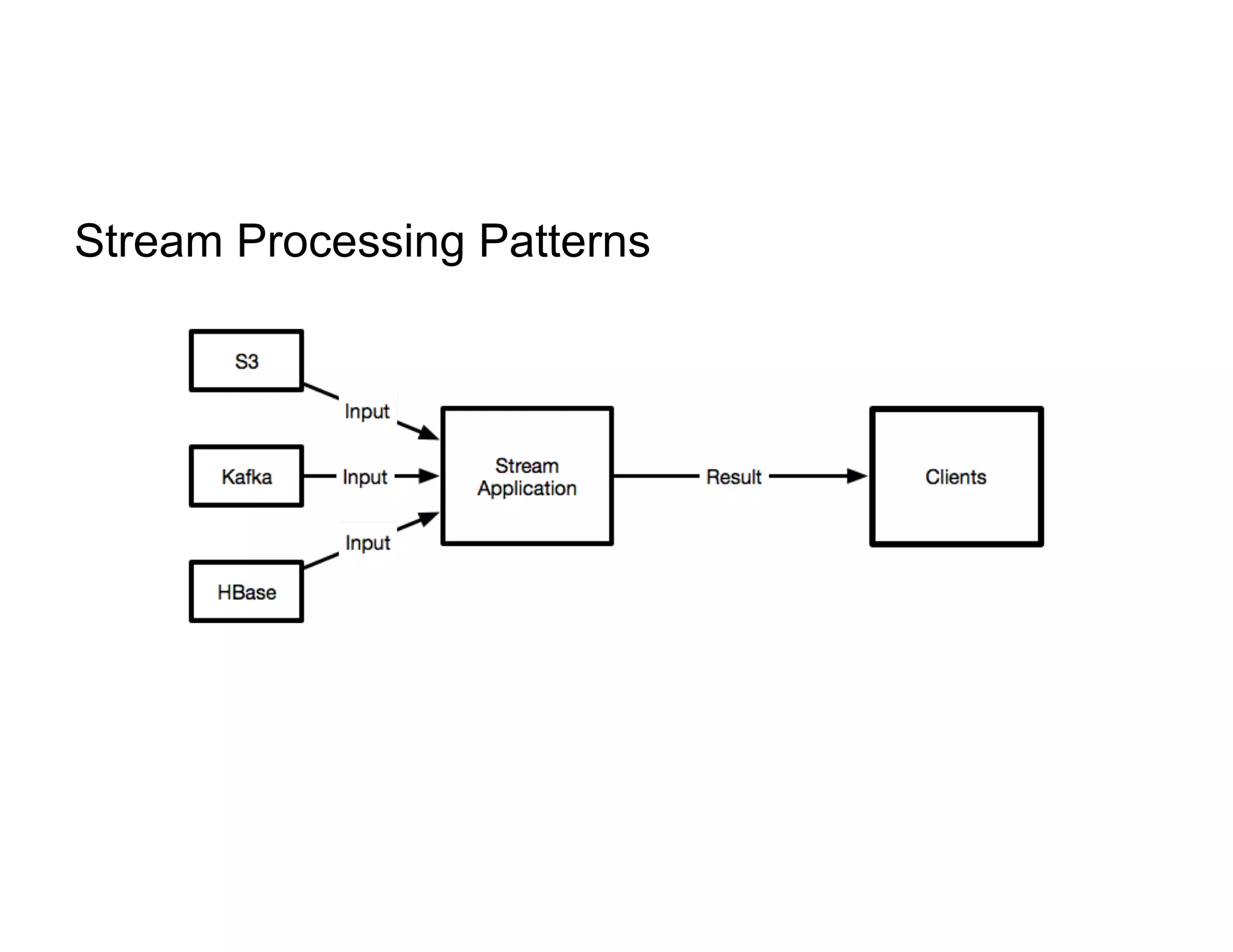

37. Stream Processing Patterns

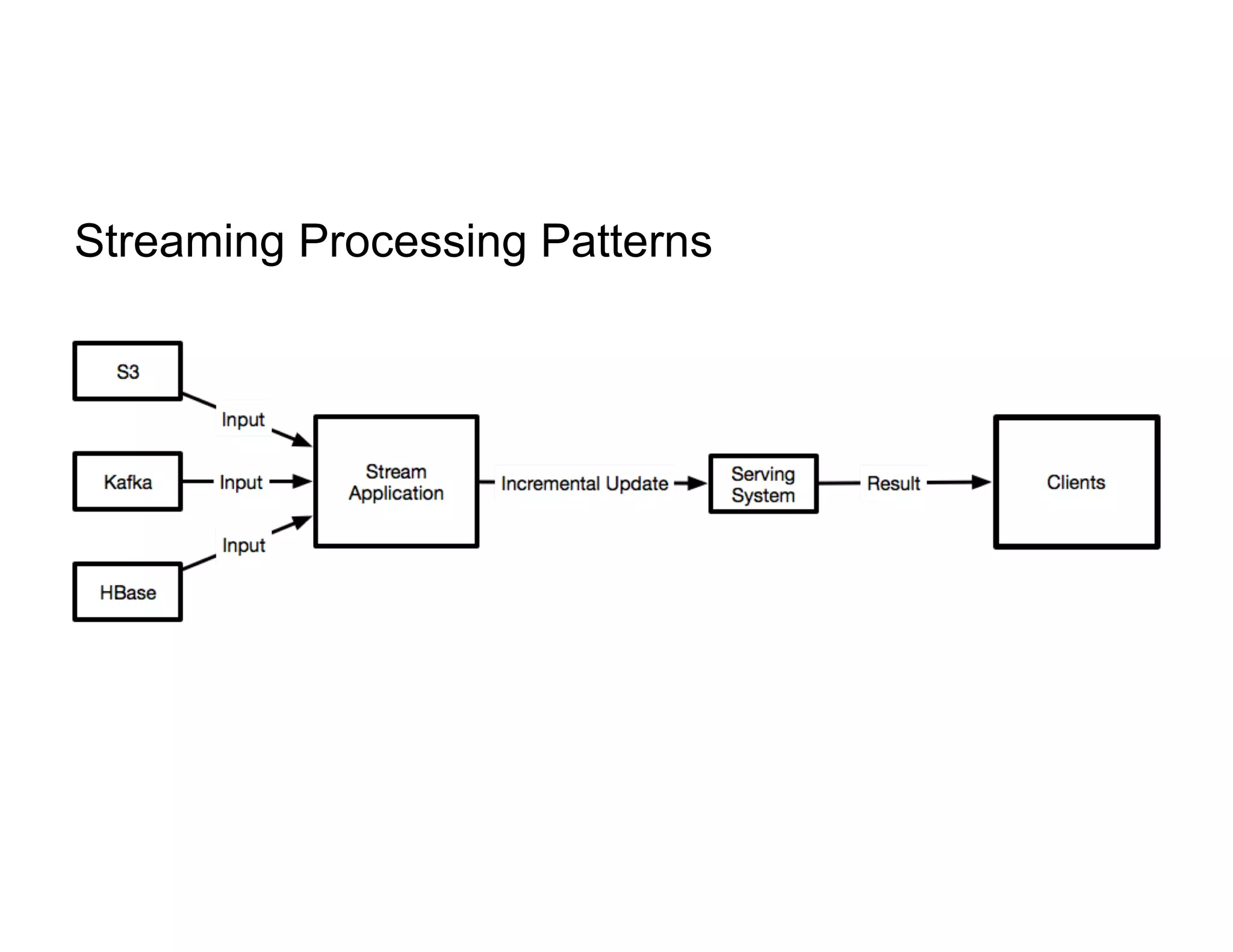

38. Streaming Processing Patterns

39. Stream Processing Patterns

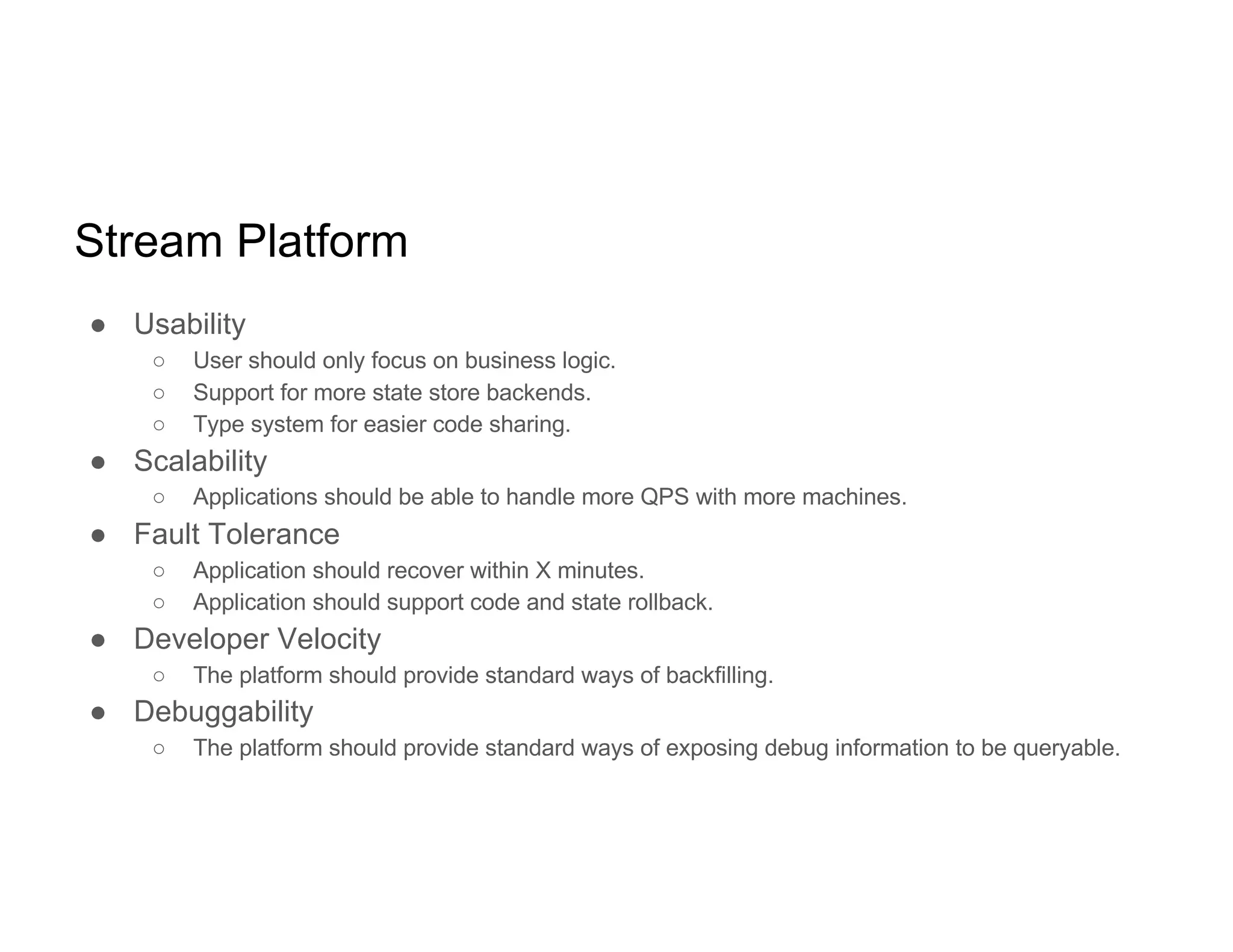

40. Stream Platform
● Usability
○ User should only focus on business logic.
○ Support for more state store backends.
○ Type system for easier code sharing.
● Scalability
○ Applications should be able to handle more QPS with more machines.
● Fault Tolerance
○ Application should recover within X minutes.
○ Application should support code and state rollback.
● Developer Velocity
○ The platform should provide standard ways of backfilling.
● Debuggability
○ The platform should provide standard ways of exposing debug information to be queryable.

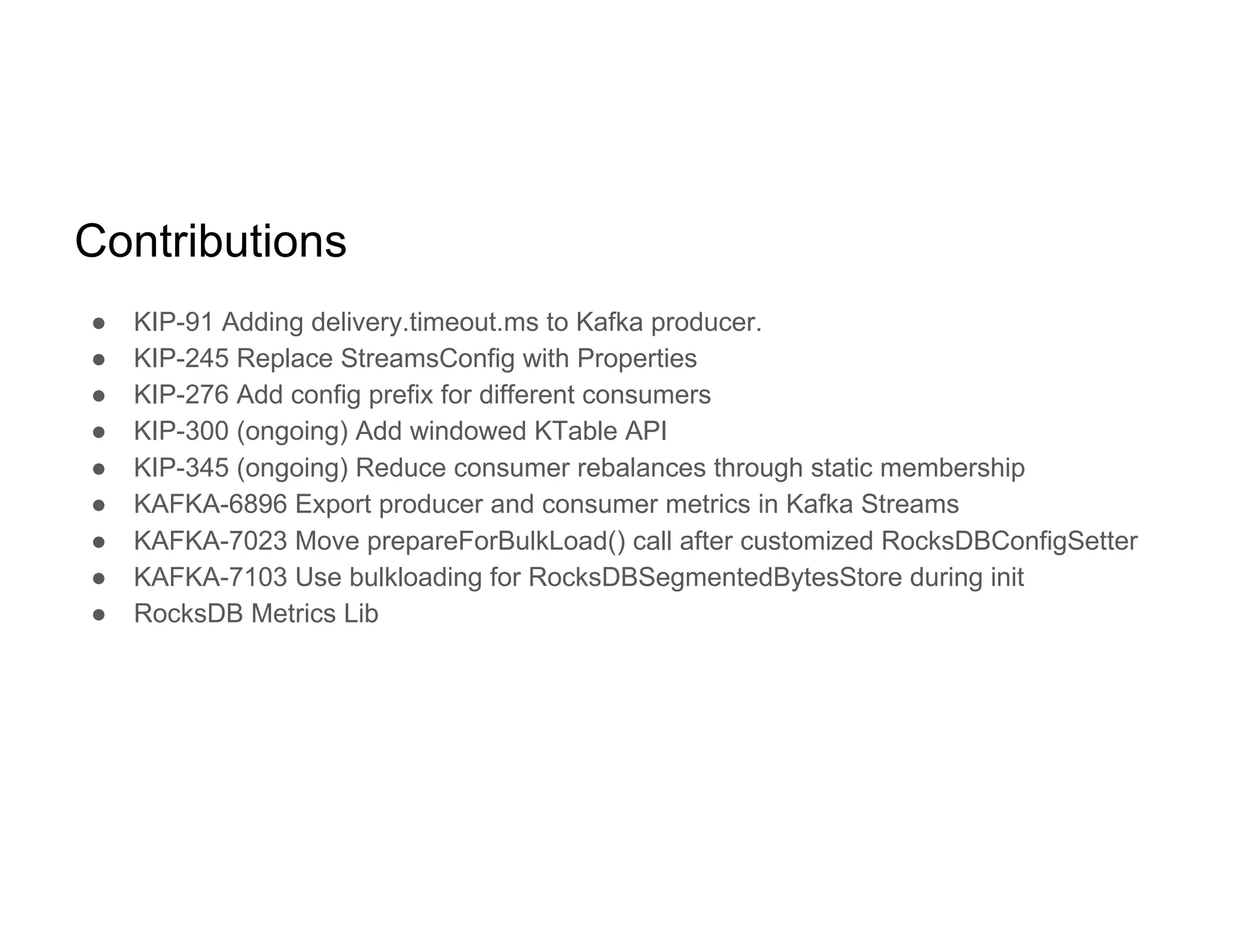

41. Contributions
● KIP-91 Adding delivery.timeout.ms to Kafka producer.
● KIP-245 Replace StreamsConfig with Properties
● KIP-276 Add config prefix for different consumers
● KIP-300 (ongoing) Add windowed KTable API
● KIP-345 (ongoing) Reduce consumer rebalances through static membership
● KAFKA-6896 Export producer and consumer metrics in Kafka Streams
● KAFKA-7023 Move prepareForBulkLoad() call after customized RocksDBConfigSetter
● KAFKA-7103 Use bulkloading for RocksDBSegmentedBytesStore during init
● RocksDB Metrics Lib

42. Acknowledgements
Guozhang and Matthias from Confluent
Yu Yang, Zack Drach and Shawn Nguyen from Pinterest
The Ads Realtime Team

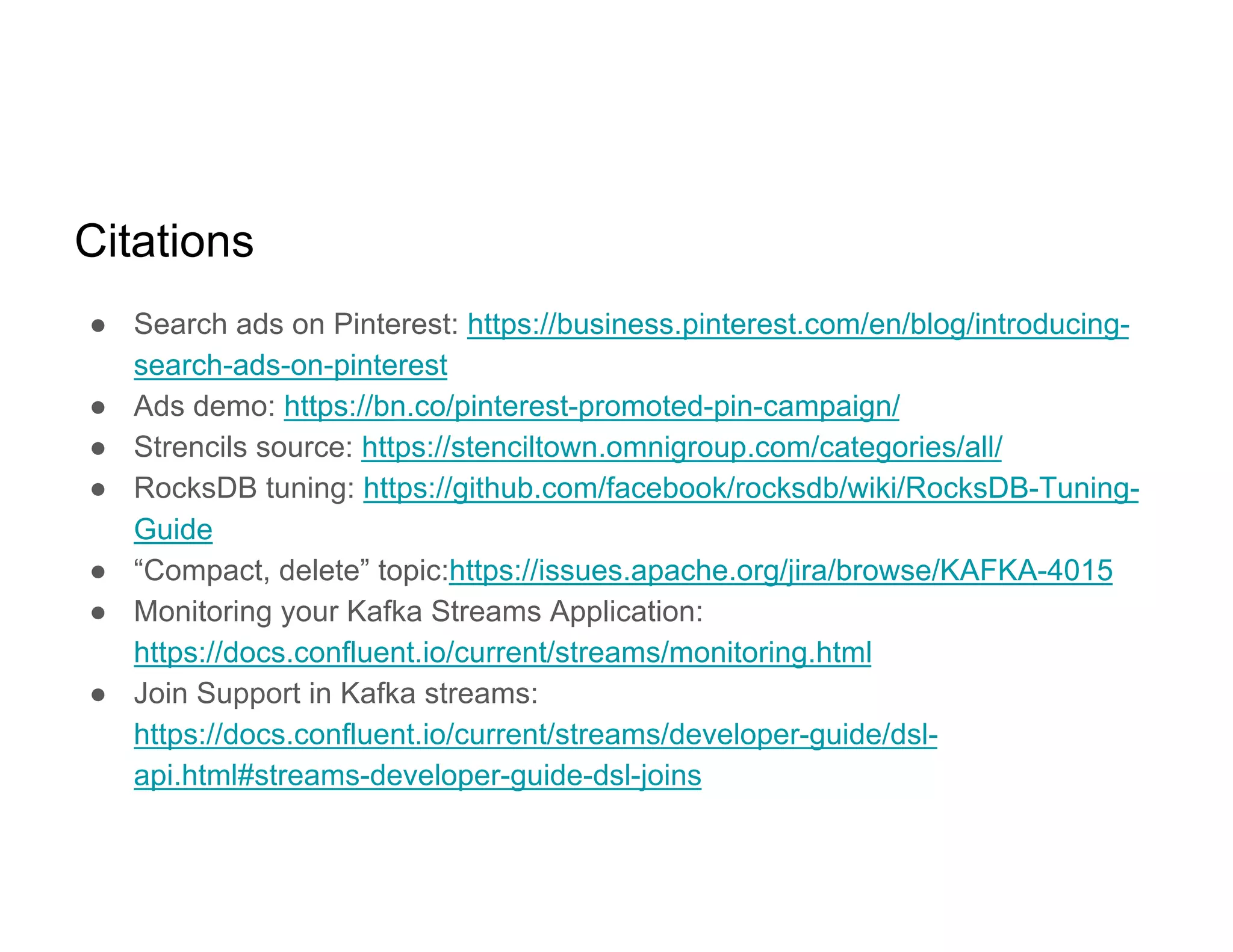

43. Citations
