BIM –Join The (R)evolution
PMI Chennai Chapter
IIT Madras
July 15, 2017
Rahul Shah
Head - BIM Strategy
L&T Construction

2. 2
About Me
Head - BIM Strategy at L&T Construction, with over 15 years
of experience working in the UK AEC industry implementing
and managing BIM technologies and processes
Have ‘BIM managed’ variety of projects from small scale to
large scale and led efforts migrating practices from 2D CAD to
3D, 4D and 5D BIM based project delivery
Besides that I have done all the work you would expect of a
Revit addict!

3. 3

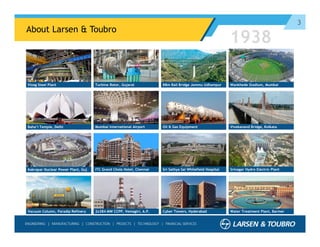

About Larsen & Toubro
Wankhede Stadium, Mumbai
Baha’i Temple, Delhi
Vizag Steel Plant 88m Rail Bridge Jammu UdhampurTurbine Rotor, Gujarat
Oil & Gas EquipmentMumbai International Airport Vivekanand Bridge, Kolkata
ITC Grand Chola Hotel, Chennai Sri Sathya Sai Whitefield Hospital Srinagar Hydro Electric Plant
2x384 MW CCPP, Vemagiri, A.P. Cyber Towers, Hyderabad Water Treatment Plant, BarmerVacuum Column, Paradip Refinery
Kakrapar Nuclear Power Plant, Guj
1938

4. 4
NMC Speciality hospital, Abu Dhabi
Bhukara Hotel, Uzbeckistan
Stadium at Barbados Twin Towers, Dubai MarinaSalalah Airport, Oman
Fabrication Facility, Oman
Sheikh Khalifa Interchange, UAE Coal Gasifier for China Transmission Lines, Fujirah, Dhaid
Petronas Refinery, Malaysia Bi-metallic Urea Stripper for Saudi MV Switchgear Factory, MalaysiaWater Treatment Plant, Doha
Punatsangchhu HEP, Bhutan
World’s Longest Conveyer, Bangladesh Bulk Cement Terminal, Colombo
About Larsen & Toubro
30

5. 5

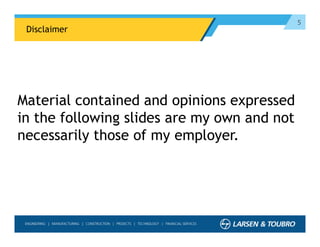

Disclaimer
Material contained and opinions expressed
in the following slides are my own and not
necessarily those of my employer.

6. 6
The Power of Visual Story-telling

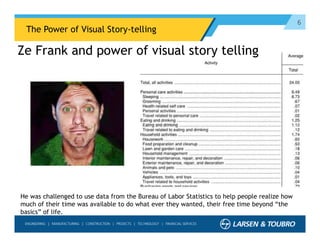

He was challenged to use data from the Bureau of Labor Statistics to help people realize how
much of their time was available to do what ever they wanted, their free time beyond “the
basics” of life.
Ze Frank and power of visual story telling

7. 7
The Power of Visual Story-telling

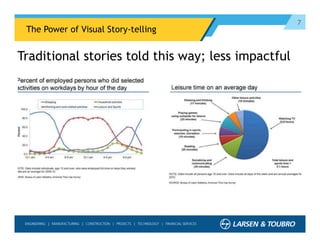

Traditional stories told this way; less impactful

8. 8
The Power of Visual Story-telling

9. 9
Past
1 person x 1 pc = 100,000 seconds
Present
1 person x 100,000 pcs = 1 second
The World is Changing…

10. 10
The World is Changing…
Thomas Suarez 12 Year Old App Developer

11. 11
World’s first 3D printed fully functional office - Dubai
The World is Changing…

12. 12

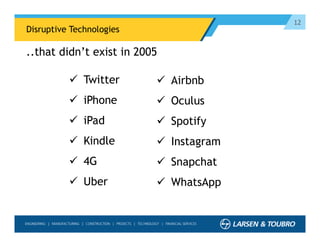

Disruptive Technologies
..that didn’t exist in 2005
 Twitter
 iPhone
 iPad
 Kindle
 4G
 Uber
 Airbnb
 Oculus
 Spotify
 Instagram
 Snapchat
 WhatsApp

13. 13

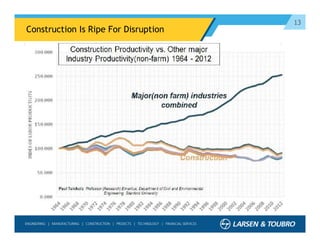

Construction Is Ripe For Disruption

14. 14
Construction Is Ripe For Disruption

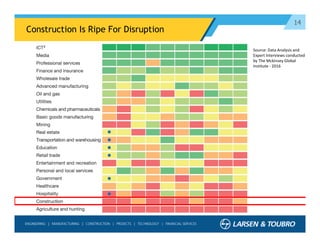

Source: Data Analysis and
Expert Interviews conducted
by The Mckinsey Global
Institute - 2016

15. 15

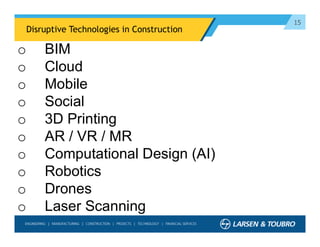

Disruptive Technologies in Construction
o BIM
o Cloud
o Mobile
o Social
o 3D Printing
o AR / VR / MR
o Computational Design (AI)
o Robotics
o Drones
o Laser Scanning

16. 16

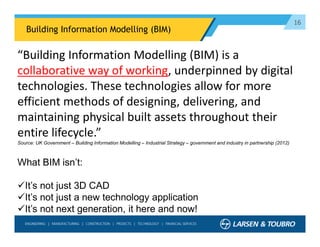

Building Information Modelling (BIM)
What BIM isn’t:
It’s not just 3D CAD
It’s not just a new technology application
It’s not next generation, it here and now!
“Building Information Modelling (BIM) is a
collaborative way of working, underpinned by digital
technologies. These technologies allow for more
efficient methods of designing, delivering, and
maintaining physical built assets throughout their
entire lifecycle.”
Source: UK Government – Building Information Modelling – Industrial Strategy – government and industry in partnership (2012)

17. 17
Building Information Modelling (BIM)

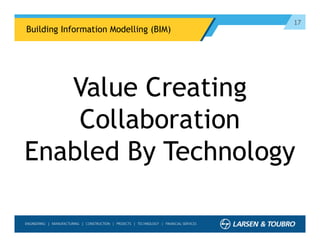

Value Creating
Collaboration
Enabled By Technology

18. 18

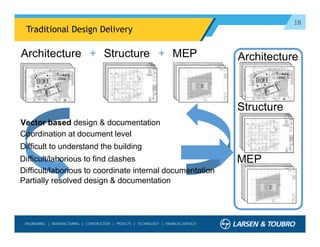

Traditional Design Delivery
Architecture Structure MEP+ + Architecture
Structure
MEP
Coordination at document level
Difficult to understand the building
Difficult/laborious to find clashes
Difficult/laborious to coordinate internal documentation
Vector based design & documentation
Partially resolved design & documentation

19. 19

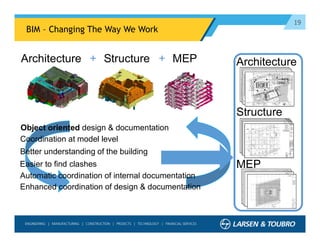

BIM – Changing The Way We Work
Architecture Structure MEP+ + Architecture
Structure
MEP
Coordination at model level
Better understanding of the building
Easier to find clashes
Automatic coordination of internal documentation
Object oriented design & documentation
Enhanced coordination of design & documentation

20. 20

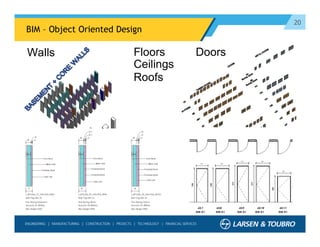

BIM – Object Oriented Design
Walls DoorsFloors
Ceilings
Roofs

21. 21

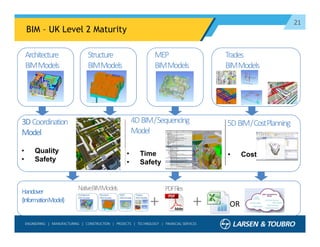

BIM – UK Level 2 Maturity
Architecture
BIMModels
Structure
BIMModels
MEP
BIMModels
3DCoordination
Model
4D BIM/Sequencing
Model
• Quality
• Safety
• Time
• Safety
• Cost
Handover
(InformationModel)
NativeBIMModels
+
PDFFiles
+ OR
Trades
BIMModels
5D BIM/CostPlanning

22. 22
BIM – Resource Management

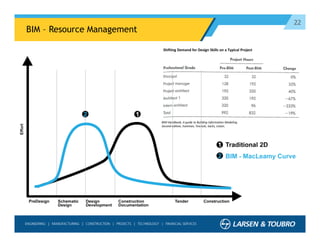

BIM Handbook, A guide to Building Information Modeling.
Second edition, Eastman, Teicholz, Sacks, Liston.
Shifting Demand for Design Skills on a Typical Project

23. 23

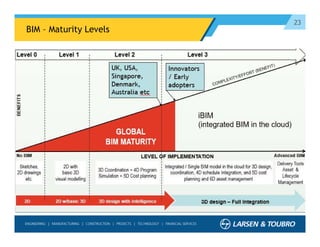

BIM – Maturity Levels

24. 24

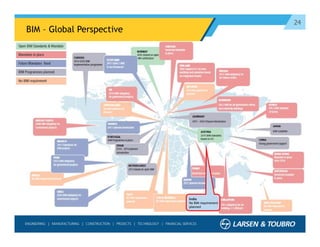

BIM – Global Perspective
India
No BIM requirement
planned

25. 25

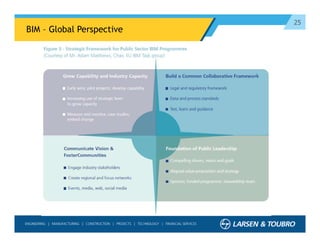

BIM – Global Perspective

26. 26
BIM – UK Perspective - 2011
“We want Level 2 BIM on all public
procured projects by 2016…”

27. 27
BIM – UK Perspective

28. 28

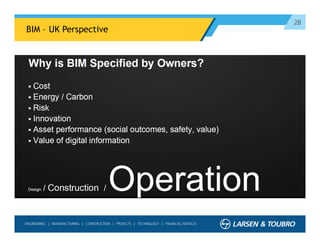

BIM – UK Perspective

29. 29

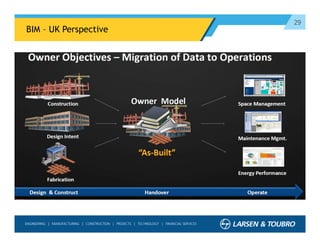

BIM – UK Perspective

30. 30

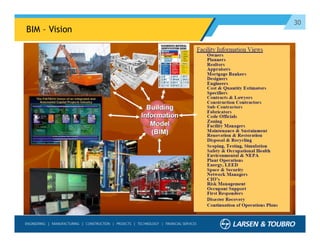

BIM – Vision

31. 31

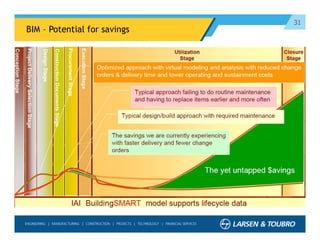

BIM – Potential for savings

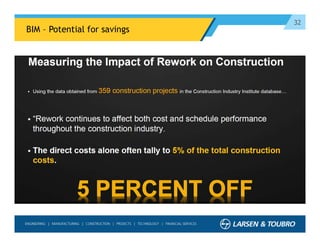

32. 32
BIM – Potential for savings

33. 33

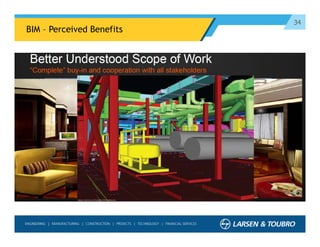

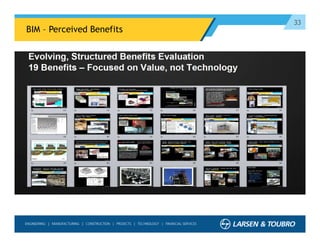

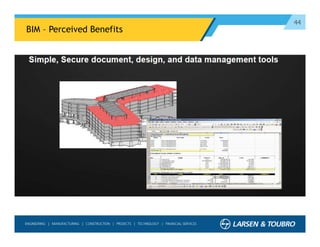

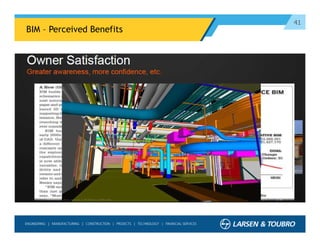

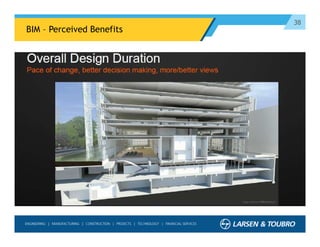

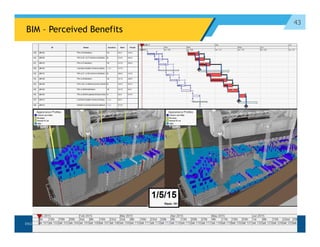

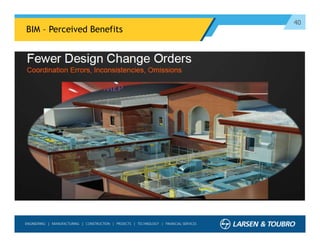

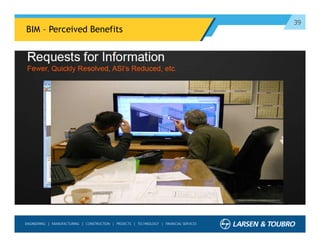

BIM – Perceived Benefits

34. 34
BIM – Perceived Benefits

35. 35
BIM – Perceived Benefits

36. 36

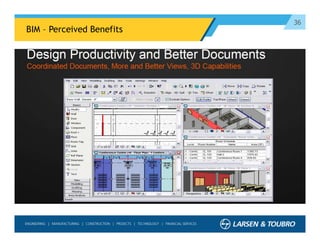

BIM – Perceived Benefits

37. 37
BIM – Perceived Benefits

38. 38
BIM – Perceived Benefits

39. 39
BIM – Perceived Benefits

40. 40
BIM – Perceived Benefits

41. 41
BIM – Perceived Benefits

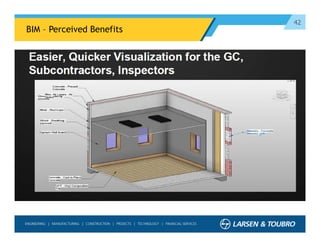

42. 42
BIM – Perceived Benefits

43. 43
BIM – Perceived Benefits

44. 44
BIM – Perceived Benefits

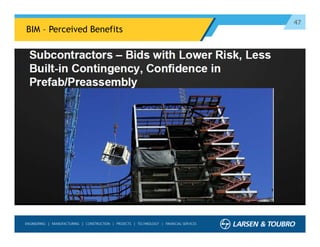

45. 45
BIM – Perceived Benefits

46. 46

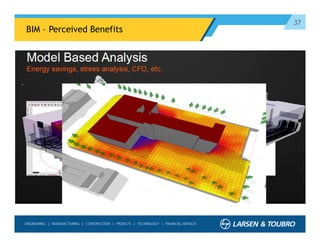

BIM – Perceived Benefits

47. 47
BIM – Perceived Benefits

48. 48
BIM – Perceived Benefits

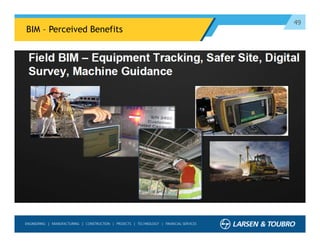

49. 49
BIM – Perceived Benefits

50. 50

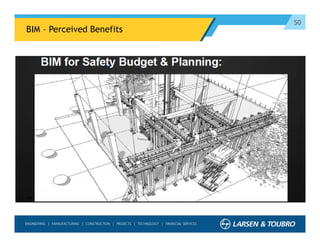

BIM – Perceived Benefits

51. 51
BIM – Perceived Benefits

52. 52

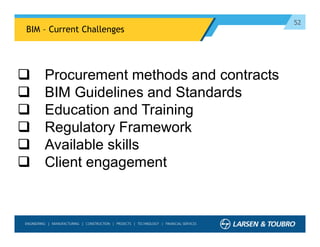

BIM – Current Challenges
 Procurement methods and contracts
 BIM Guidelines and Standards
 Education and Training
 Regulatory Framework
 Available skills
 Client engagement

53. 53
Thank You
