1. PRESENTATION ON
BUILDING BYE LAWS
PRESENTED BY:
TO:
MOHAMMAD FARZAN (12ARB557)
PRESENTED
AR. KHALID
1

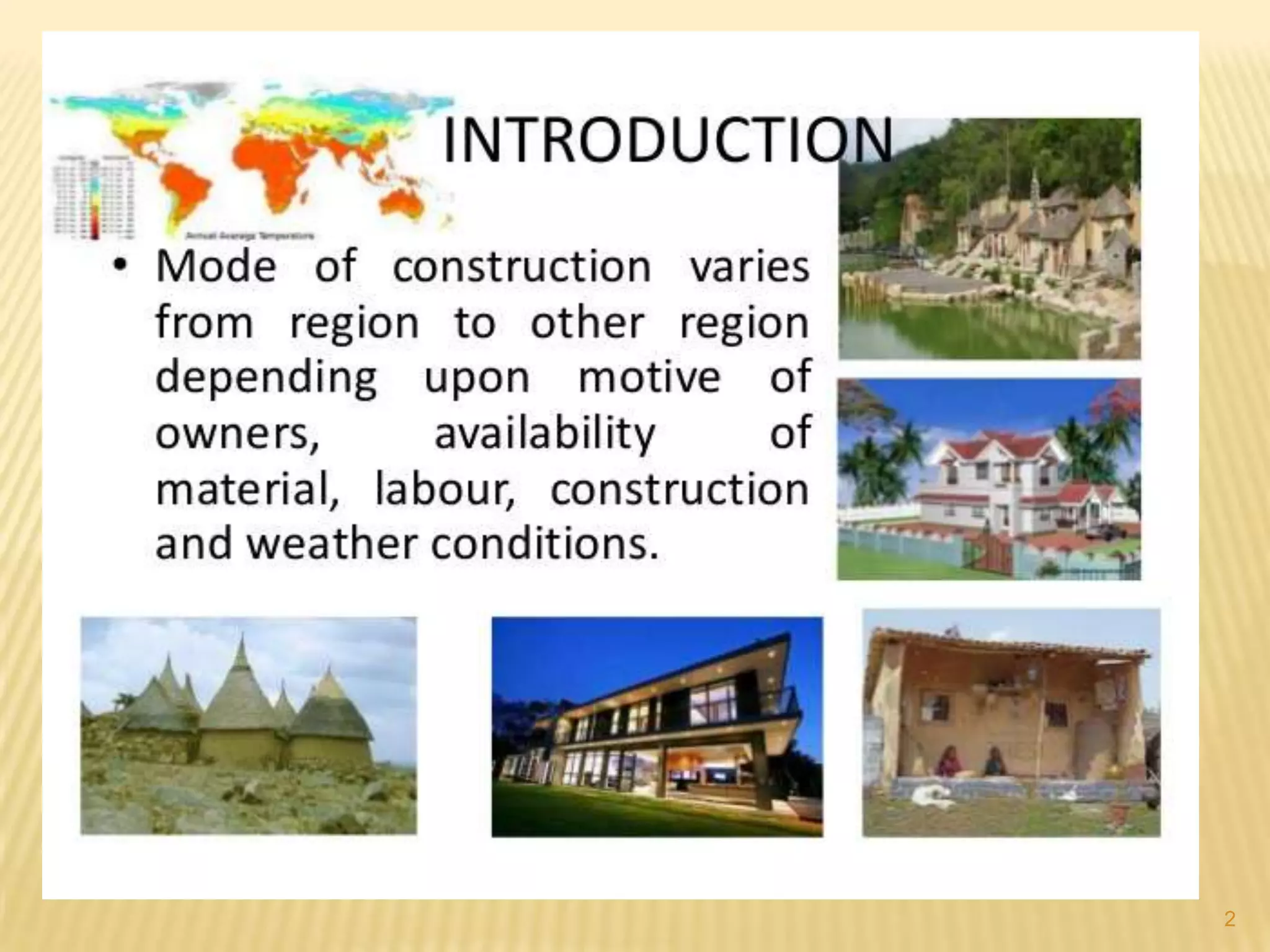

2. 2

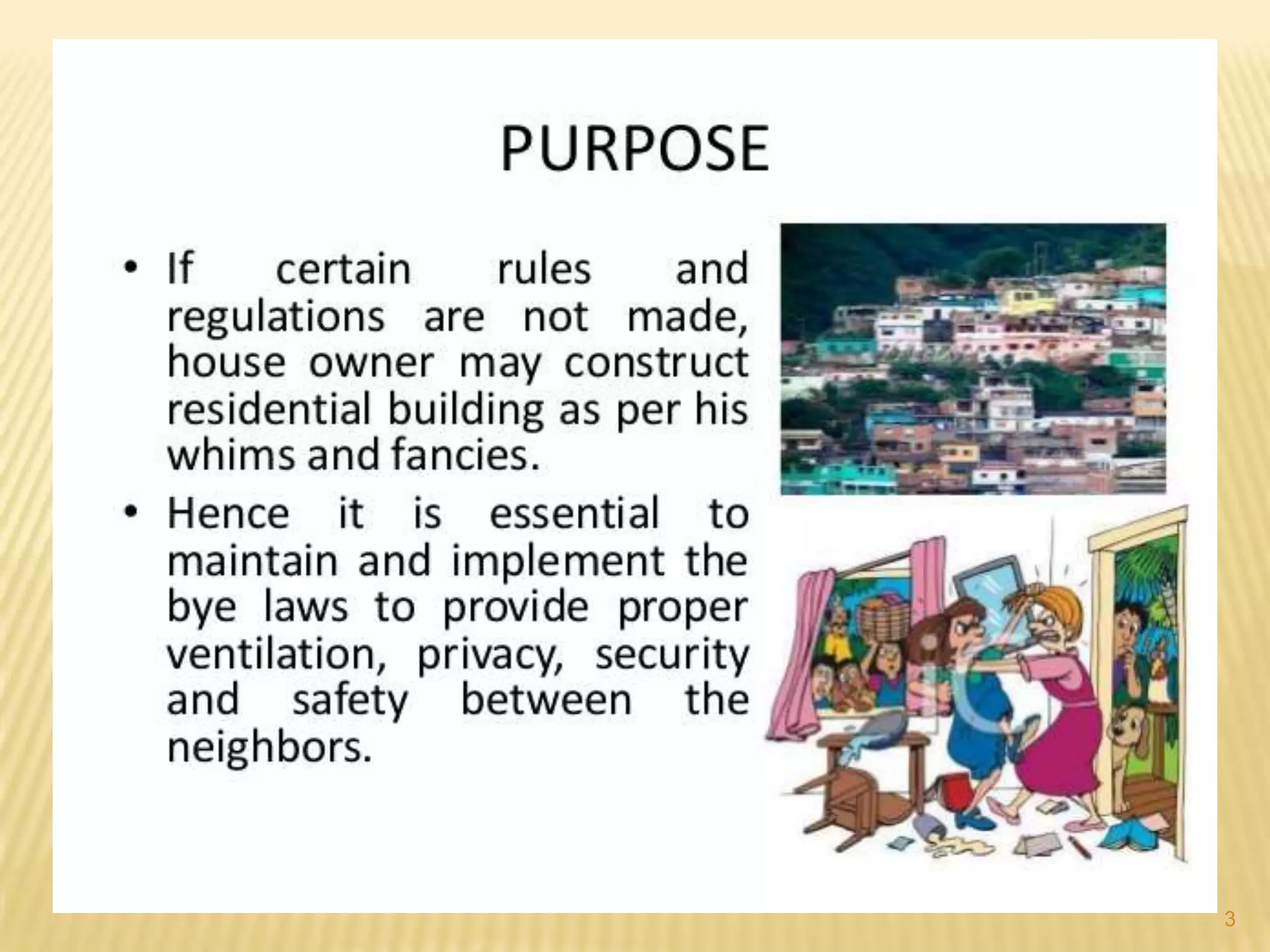

3. 3

4. 4

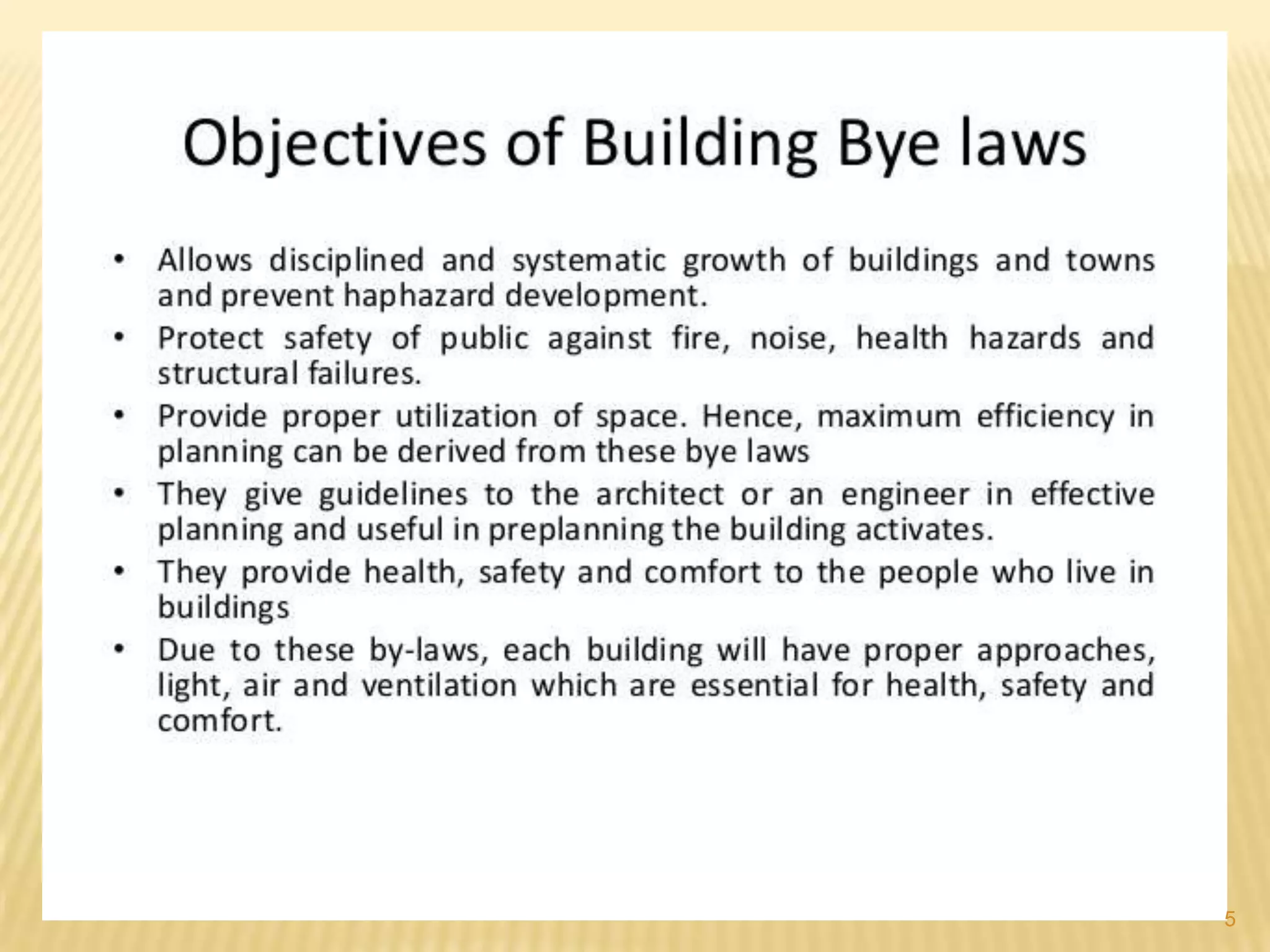

5. 5

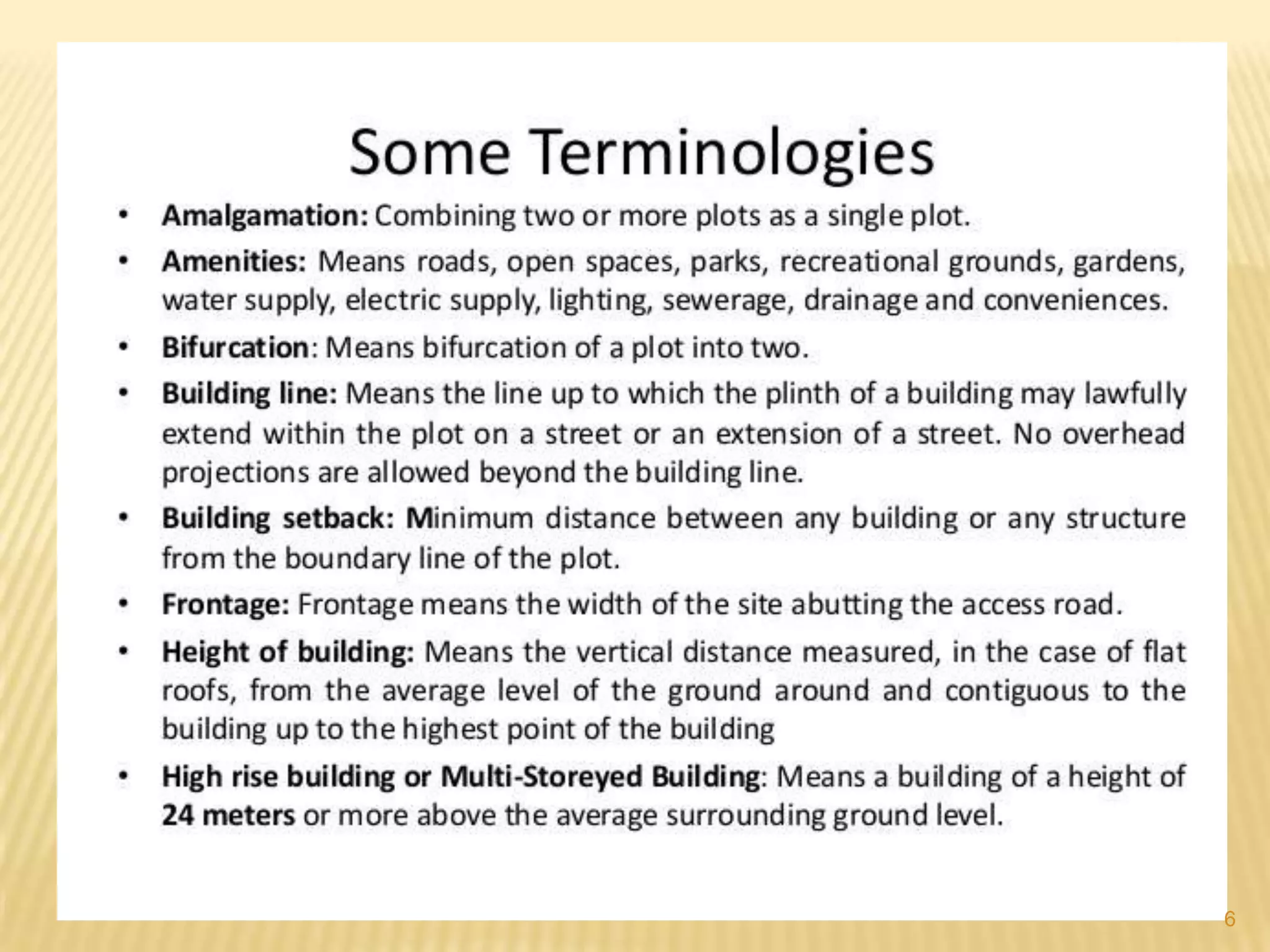

6. 6

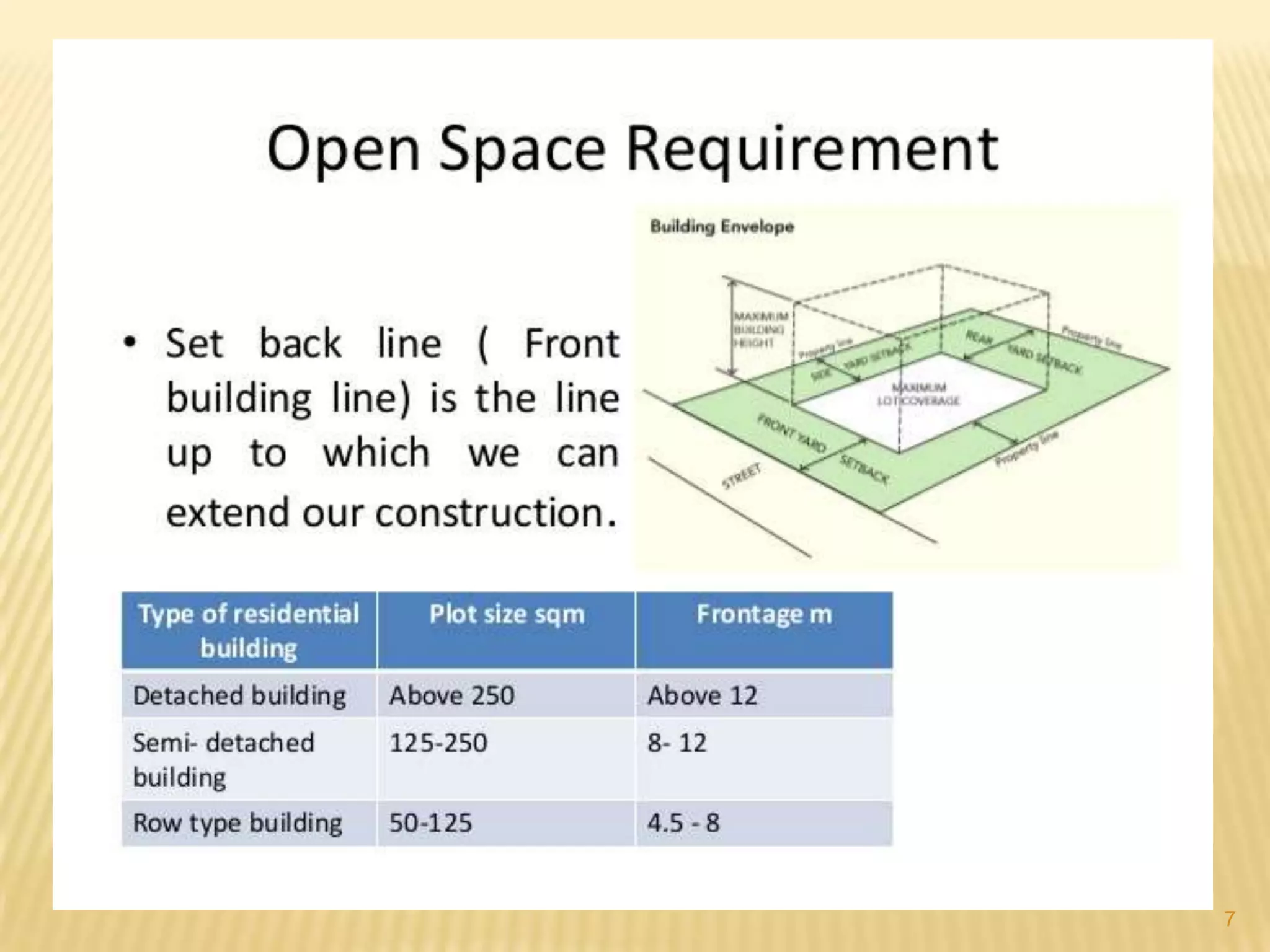

7. 7

8. 8

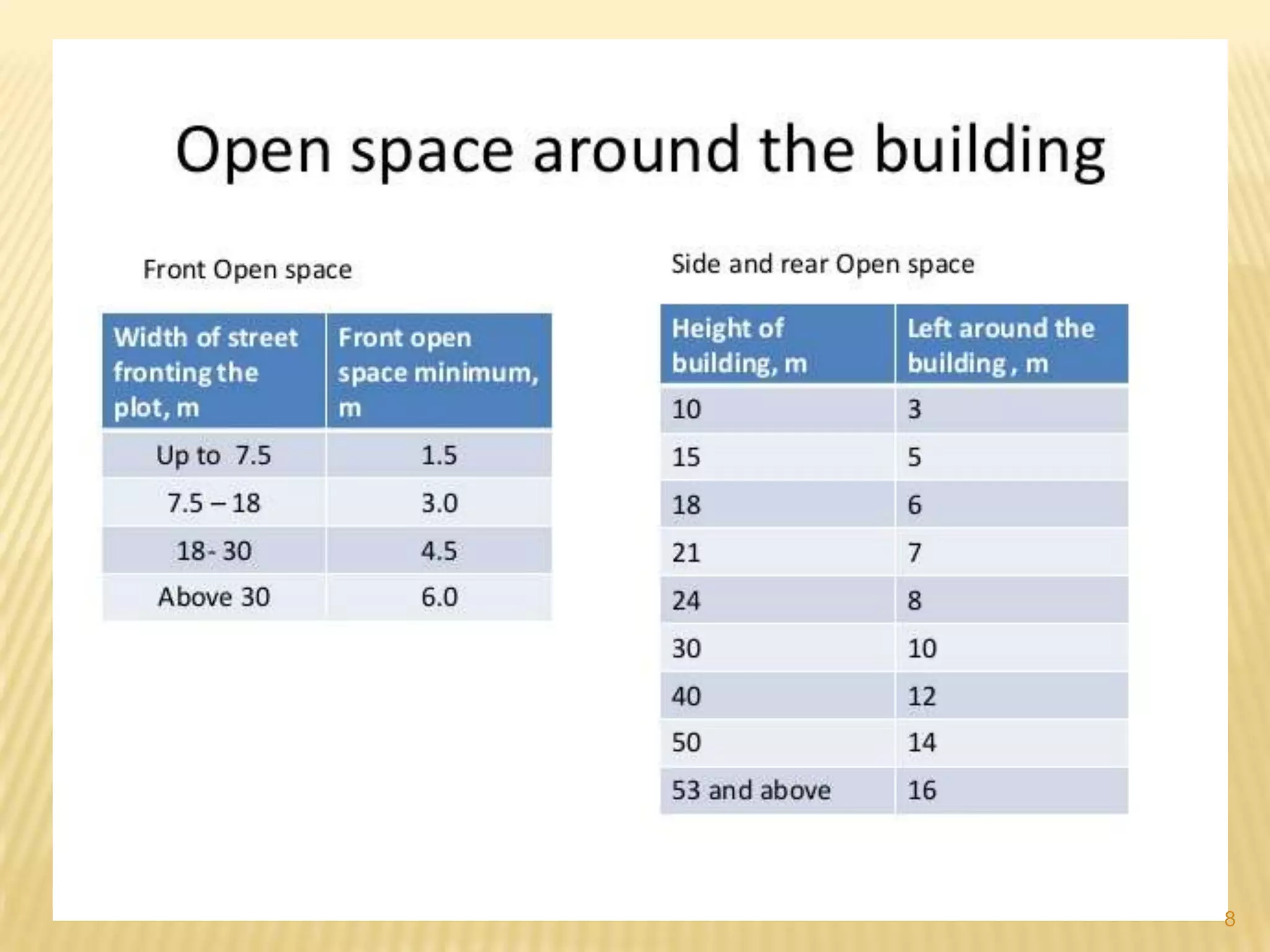

9. 9

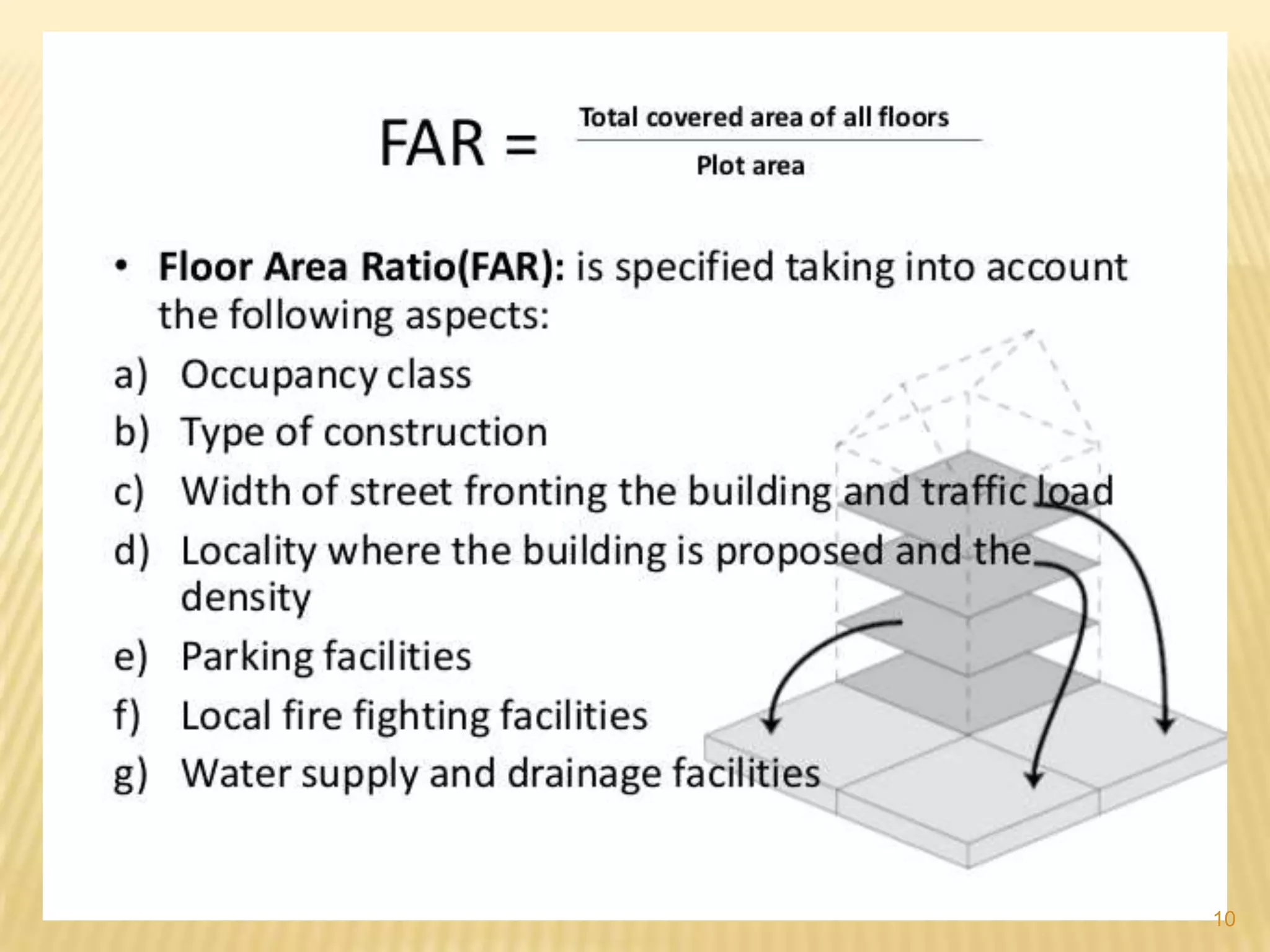

10. 10

11. 11

12. 12

13. 13

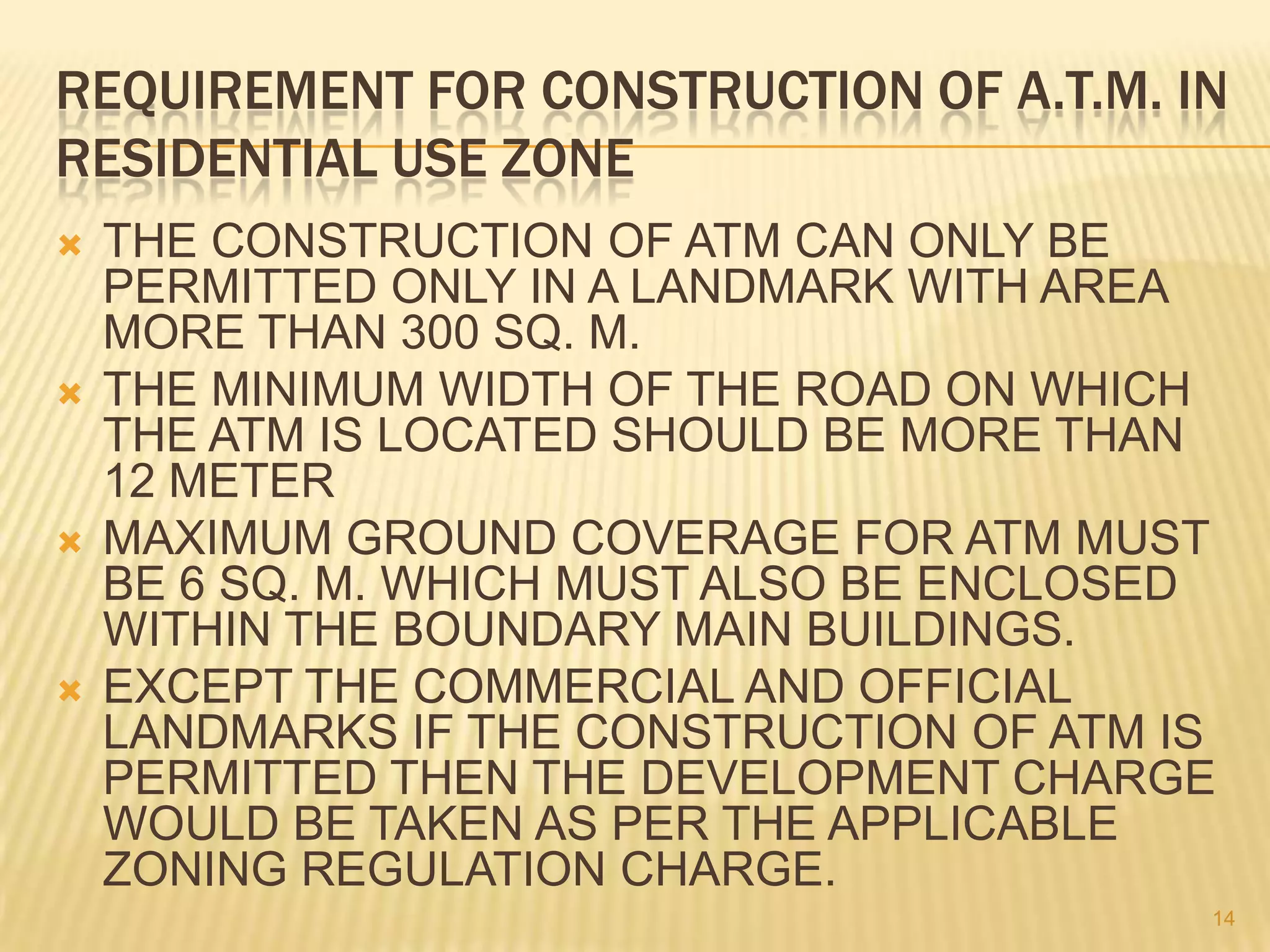

14. REQUIREMENT FOR CONSTRUCTION OF A.T.M. IN
RESIDENTIAL USE ZONE




THE CONSTRUCTION OF ATM CAN ONLY BE
PERMITTED ONLY IN A LANDMARK WITH AREA
MORE THAN 300 SQ. M.
THE MINIMUM WIDTH OF THE ROAD ON WHICH
THE ATM IS LOCATED SHOULD BE MORE THAN
12 METER
MAXIMUM GROUND COVERAGE FOR ATM MUST
BE 6 SQ. M. WHICH MUST ALSO BE ENCLOSED
WITHIN THE BOUNDARY MAIN BUILDINGS.
EXCEPT THE COMMERCIAL AND OFFICIAL
LANDMARKS IF THE CONSTRUCTION OF ATM IS
PERMITTED THEN THE DEVELOPMENT CHARGE
WOULD BE TAKEN AS PER THE APPLICABLE
ZONING REGULATION CHARGE.
14

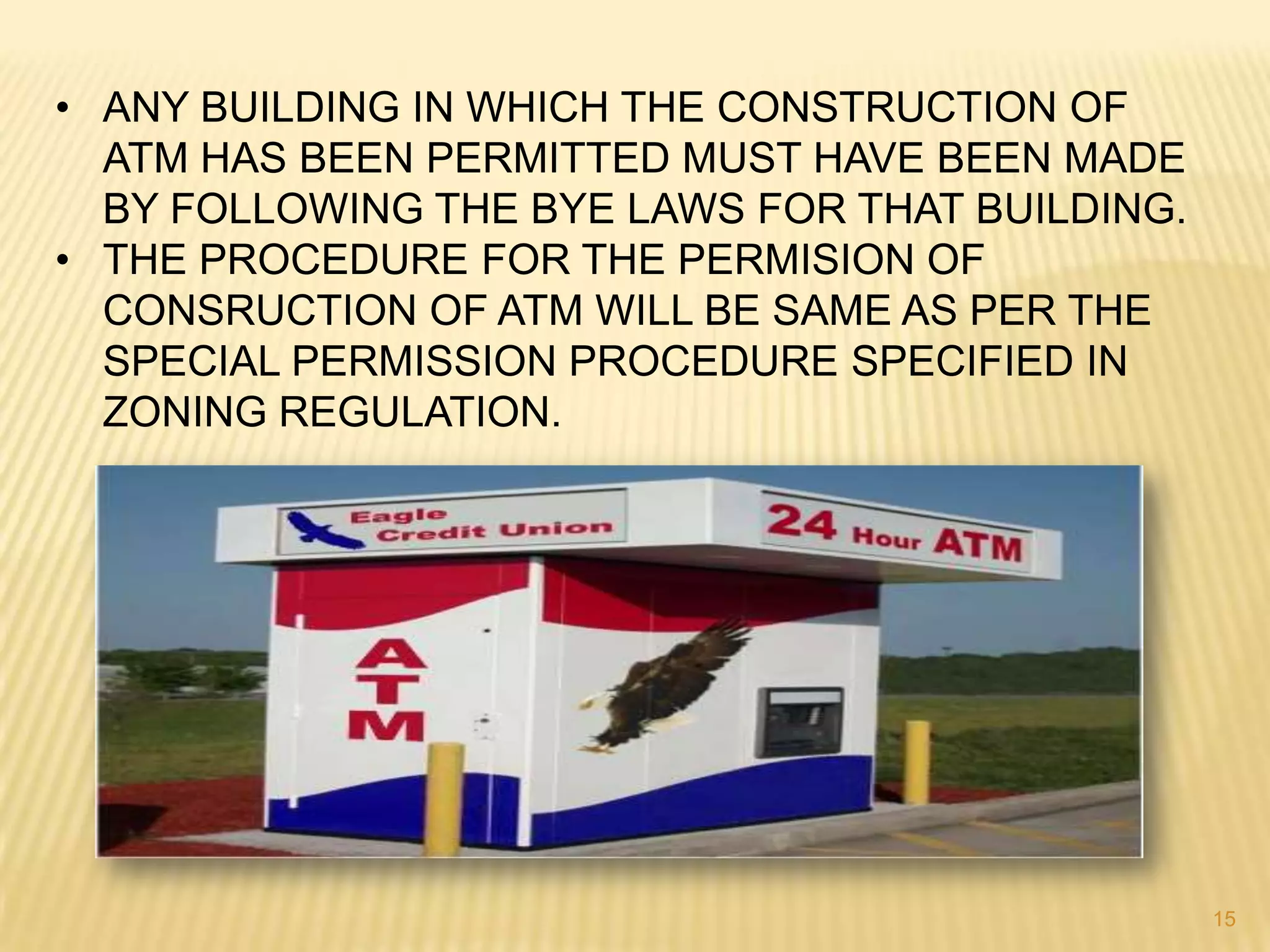

15. • ANY BUILDING IN WHICH THE CONSTRUCTION OF
ATM HAS BEEN PERMITTED MUST HAVE BEEN MADE
BY FOLLOWING THE BYE LAWS FOR THAT BUILDING.
• THE PROCEDURE FOR THE PERMISION OF
CONSRUCTION OF ATM WILL BE SAME AS PER THE
SPECIAL PERMISSION PROCEDURE SPECIFIED IN
ZONING REGULATION.
15

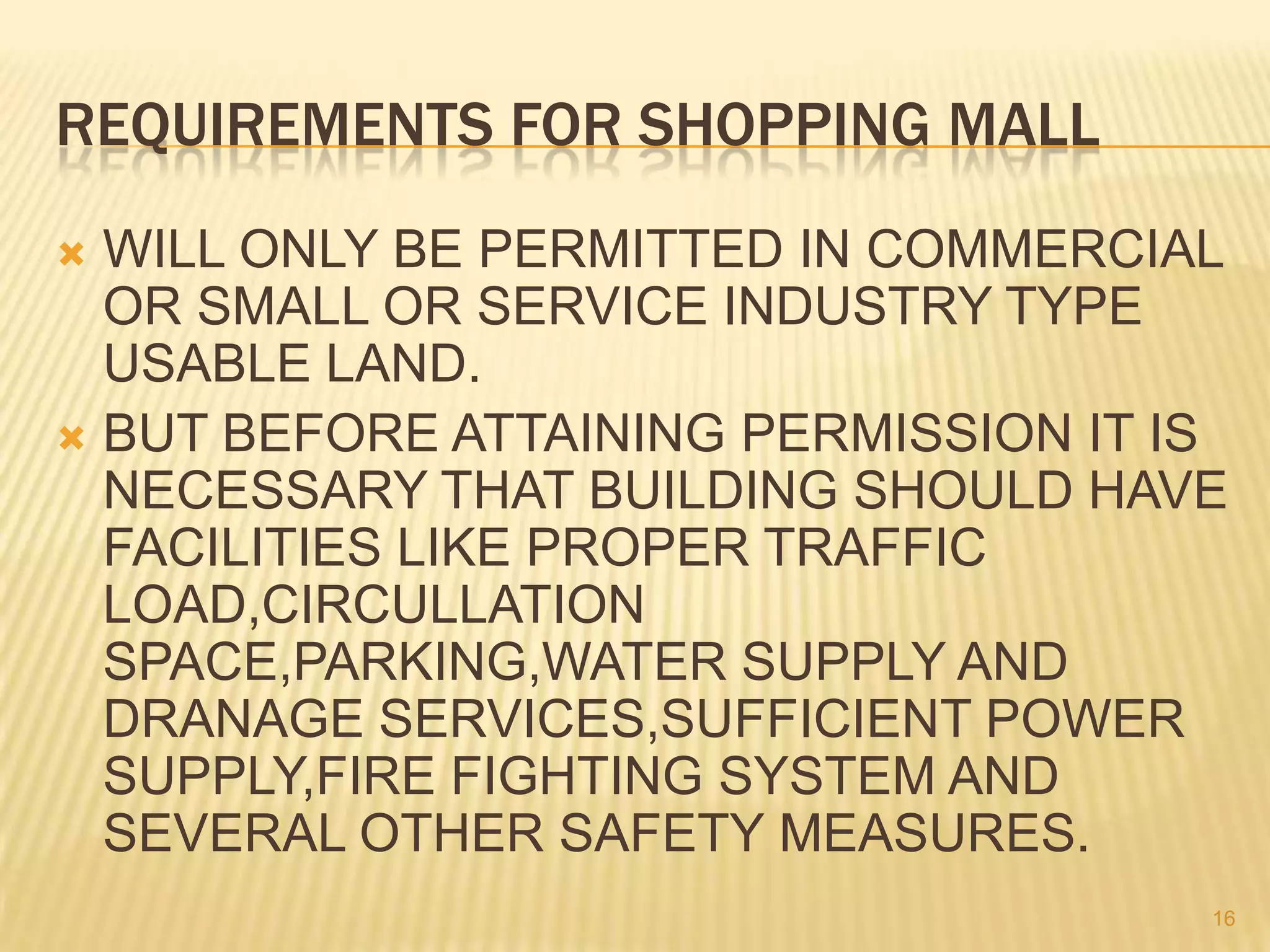

16. REQUIREMENTS FOR SHOPPING MALL
WILL ONLY BE PERMITTED IN COMMERCIAL
OR SMALL OR SERVICE INDUSTRY TYPE
USABLE LAND.
 BUT BEFORE ATTAINING PERMISSION IT IS
NECESSARY THAT BUILDING SHOULD HAVE
FACILITIES LIKE PROPER TRAFFIC
LOAD,CIRCULLATION
SPACE,PARKING,WATER SUPPLY AND
DRANAGE SERVICES,SUFFICIENT POWER
SUPPLY,FIRE FIGHTING SYSTEM AND
SEVERAL OTHER SAFETY MEASURES.

16

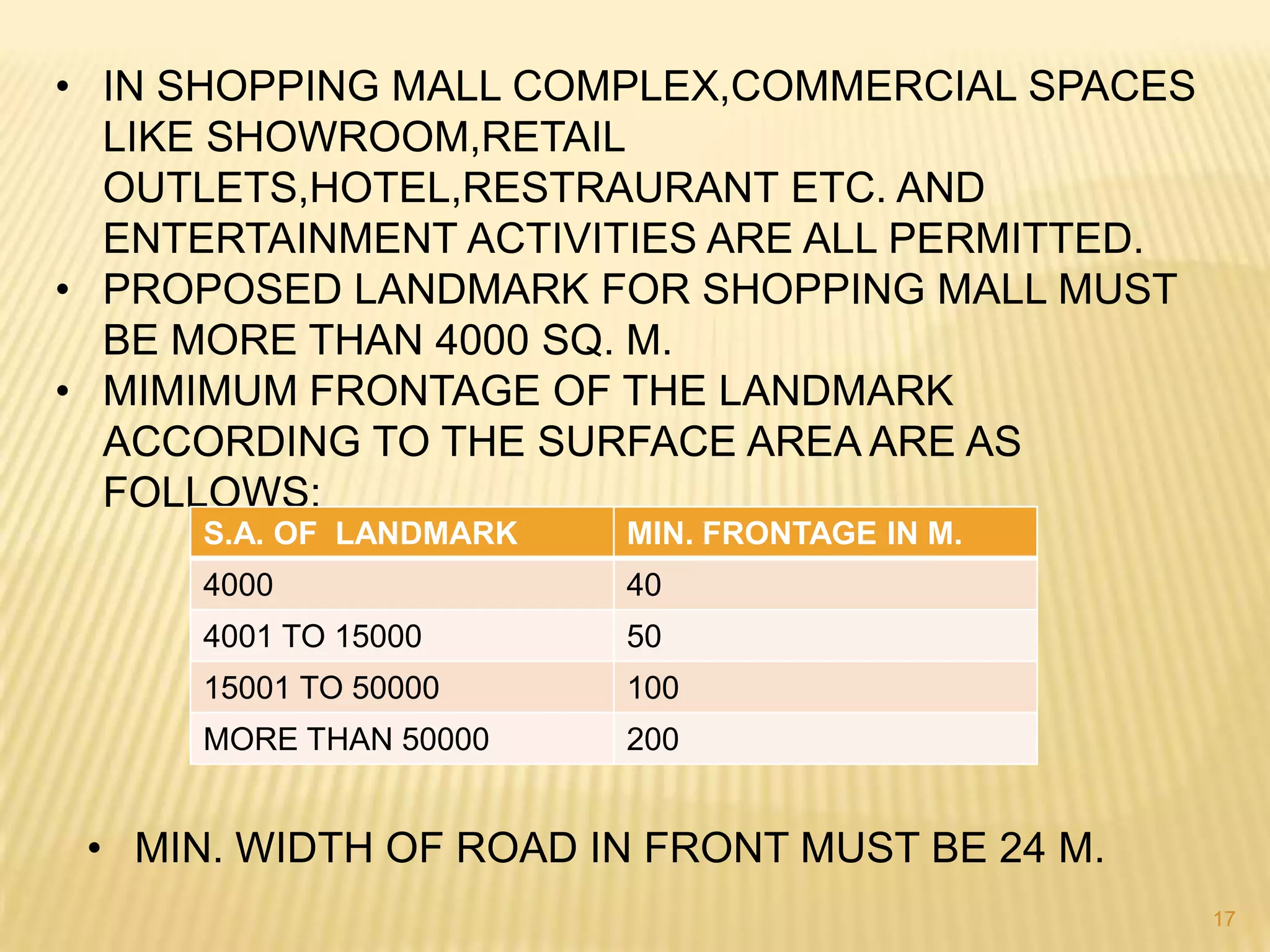

17. • IN SHOPPING MALL COMPLEX,COMMERCIAL SPACES
LIKE SHOWROOM,RETAIL
OUTLETS,HOTEL,RESTRAURANT ETC. AND
ENTERTAINMENT ACTIVITIES ARE ALL PERMITTED.
• PROPOSED LANDMARK FOR SHOPPING MALL MUST
BE MORE THAN 4000 SQ. M.
• MIMIMUM FRONTAGE OF THE LANDMARK
ACCORDING TO THE SURFACE AREA ARE AS
FOLLOWS:
S.A. OF LANDMARK
MIN. FRONTAGE IN M.
4000
40
4001 TO 15000
50
15001 TO 50000
100
MORE THAN 50000
200
• MIN. WIDTH OF ROAD IN FRONT MUST BE 24 M.
17

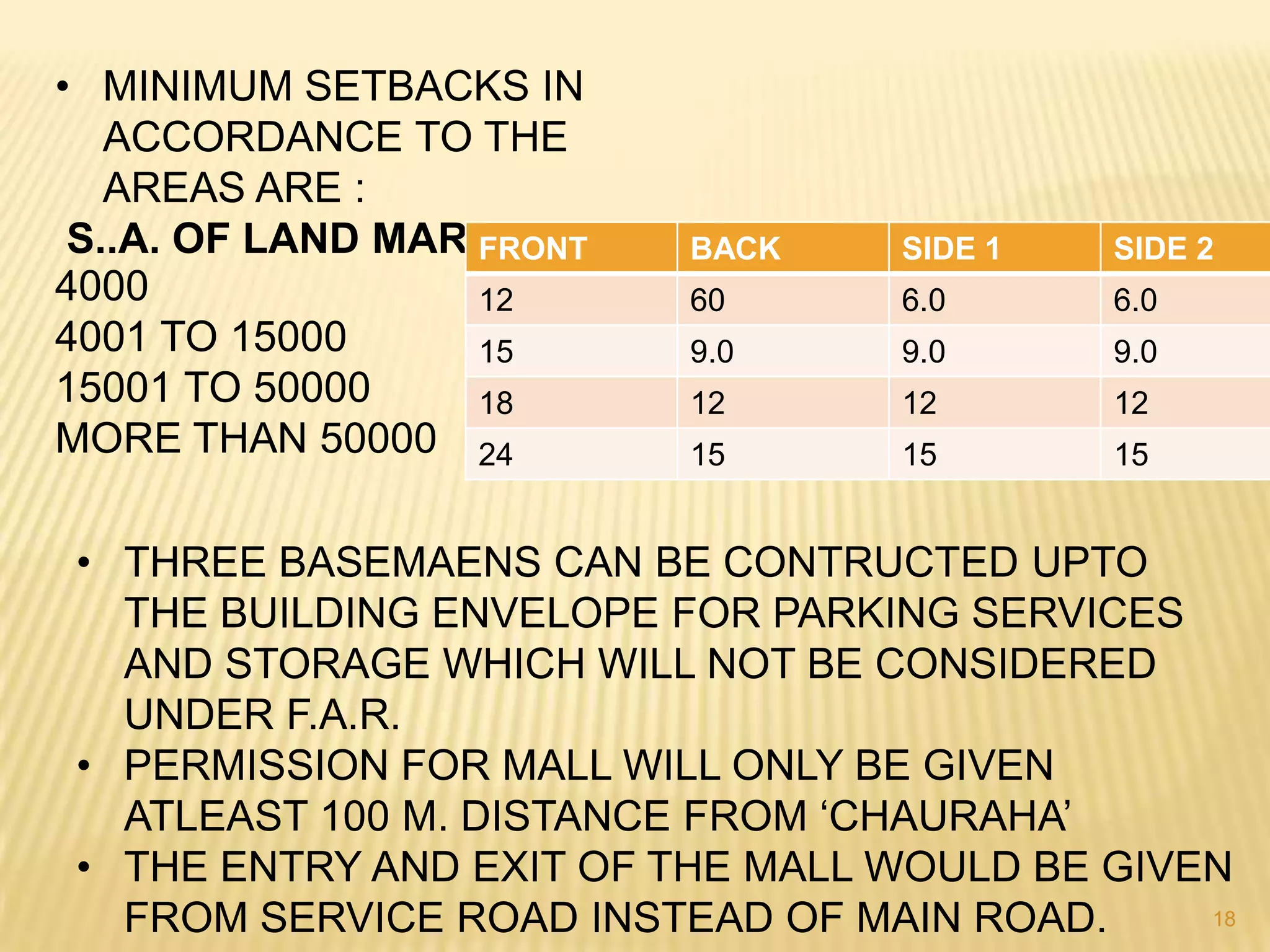

18. • MINIMUM SETBACKS IN
ACCORDANCE TO THE
AREAS ARE :
S..A. OF LAND MARK
FRONT
4000
12
4001 TO 15000
15
15001 TO 50000
18
MORE THAN 50000 24
BACK
SIDE 1
SIDE 2
60
6.0
6.0
9.0
9.0
9.0
12
12
12
15
15
15
• THREE BASEMAENS CAN BE CONTRUCTED UPTO
THE BUILDING ENVELOPE FOR PARKING SERVICES
AND STORAGE WHICH WILL NOT BE CONSIDERED
UNDER F.A.R.
• PERMISSION FOR MALL WILL ONLY BE GIVEN
ATLEAST 100 M. DISTANCE FROM ‘CHAURAHA’
• THE ENTRY AND EXIT OF THE MALL WOULD BE GIVEN
18
FROM SERVICE ROAD INSTEAD OF MAIN ROAD.

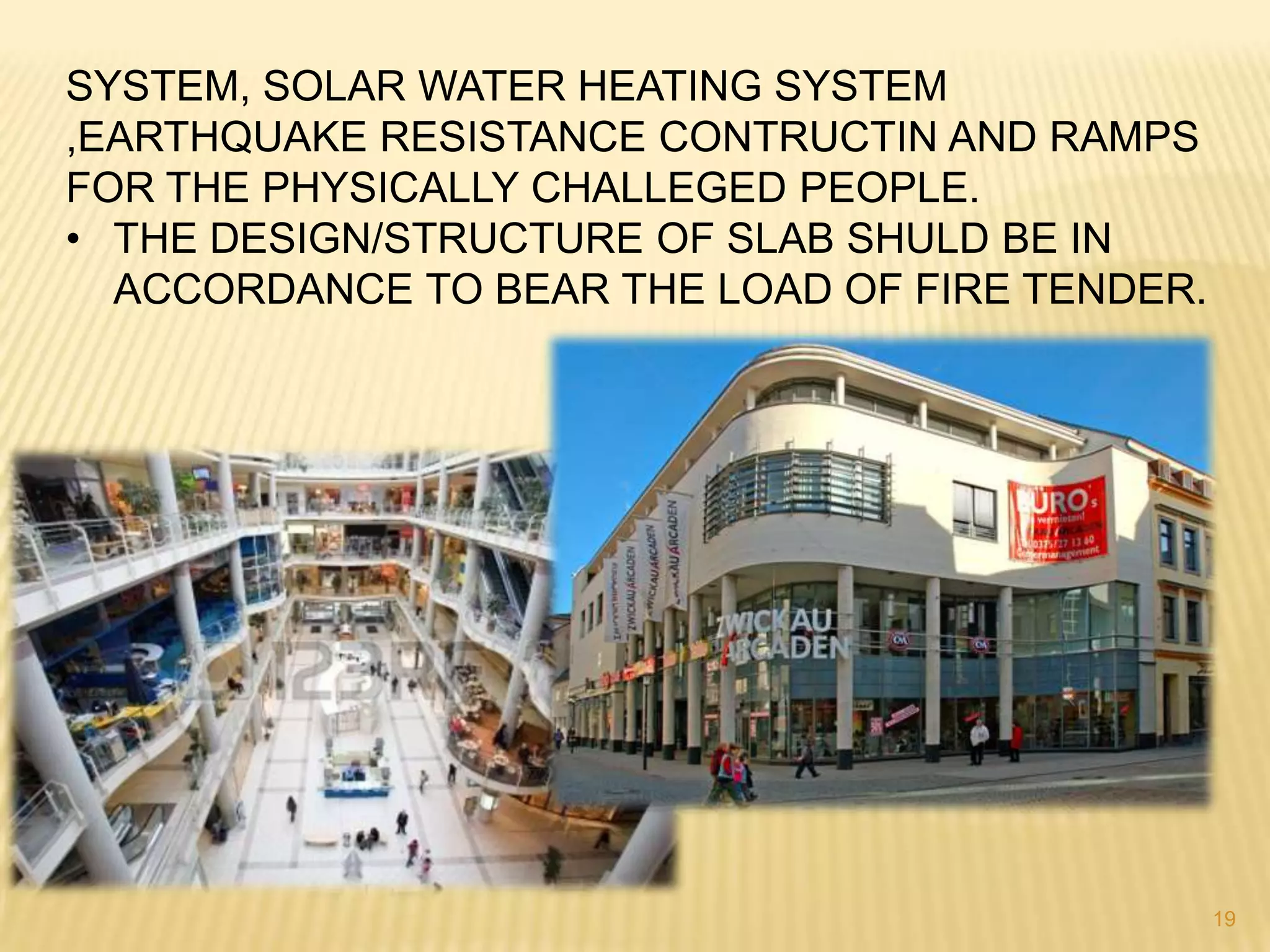

19. SYSTEM, SOLAR WATER HEATING SYSTEM
,EARTHQUAKE RESISTANCE CONTRUCTIN AND RAMPS
FOR THE PHYSICALLY CHALLEGED PEOPLE.
• THE DESIGN/STRUCTURE OF SLAB SHULD BE IN
ACCORDANCE TO BEAR THE LOAD OF FIRE TENDER.
19

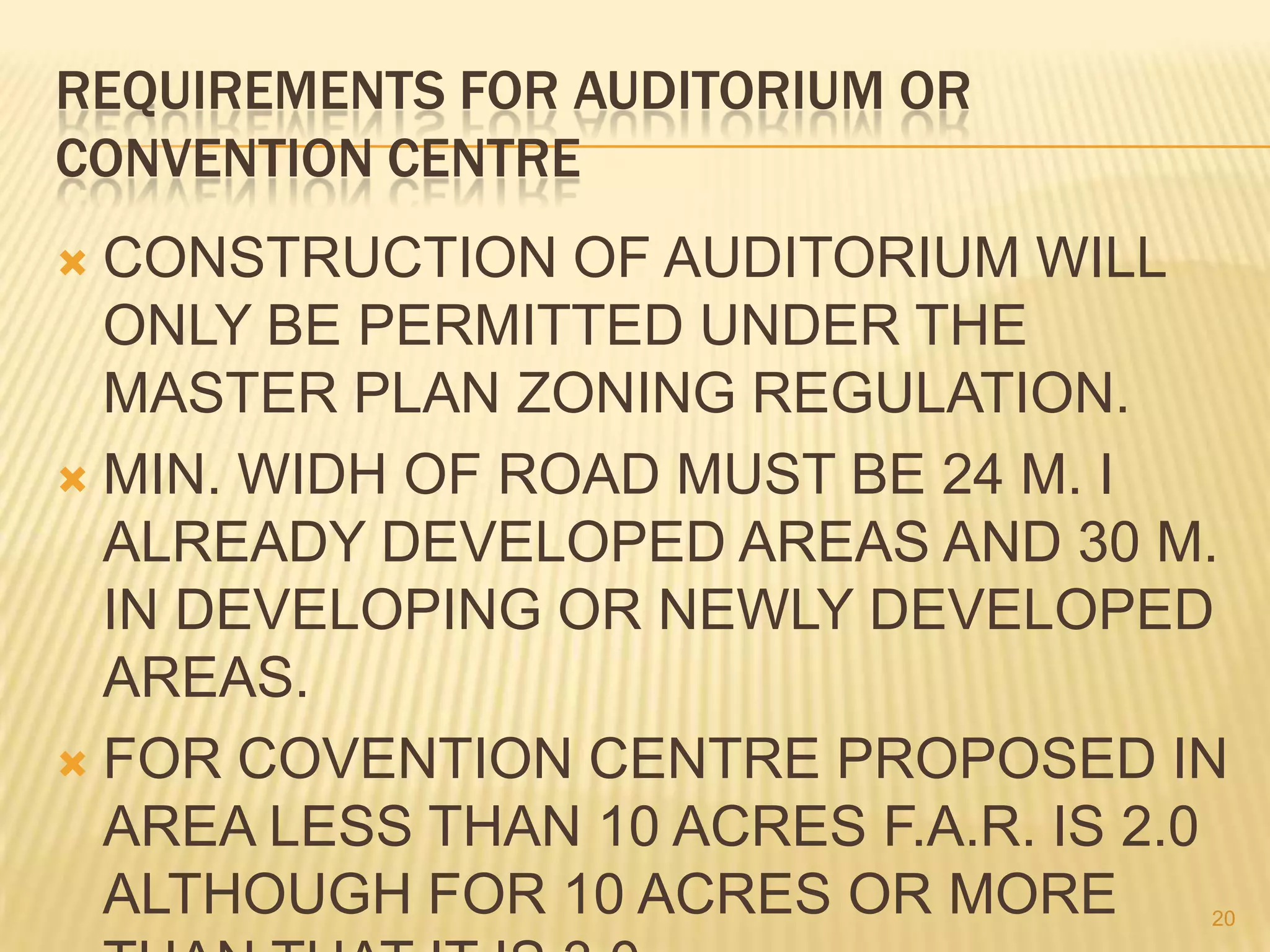

20. REQUIREMENTS FOR AUDITORIUM OR
CONVENTION CENTRE
CONSTRUCTION OF AUDITORIUM WILL
ONLY BE PERMITTED UNDER THE
MASTER PLAN ZONING REGULATION.
 MIN. WIDH OF ROAD MUST BE 24 M. I
ALREADY DEVELOPED AREAS AND 30 M.
IN DEVELOPING OR NEWLY DEVELOPED
AREAS.
 FOR COVENTION CENTRE PROPOSED IN
AREA LESS THAN 10 ACRES F.A.R. IS 2.0
ALTHOUGH FOR 10 ACRES OR MORE

20

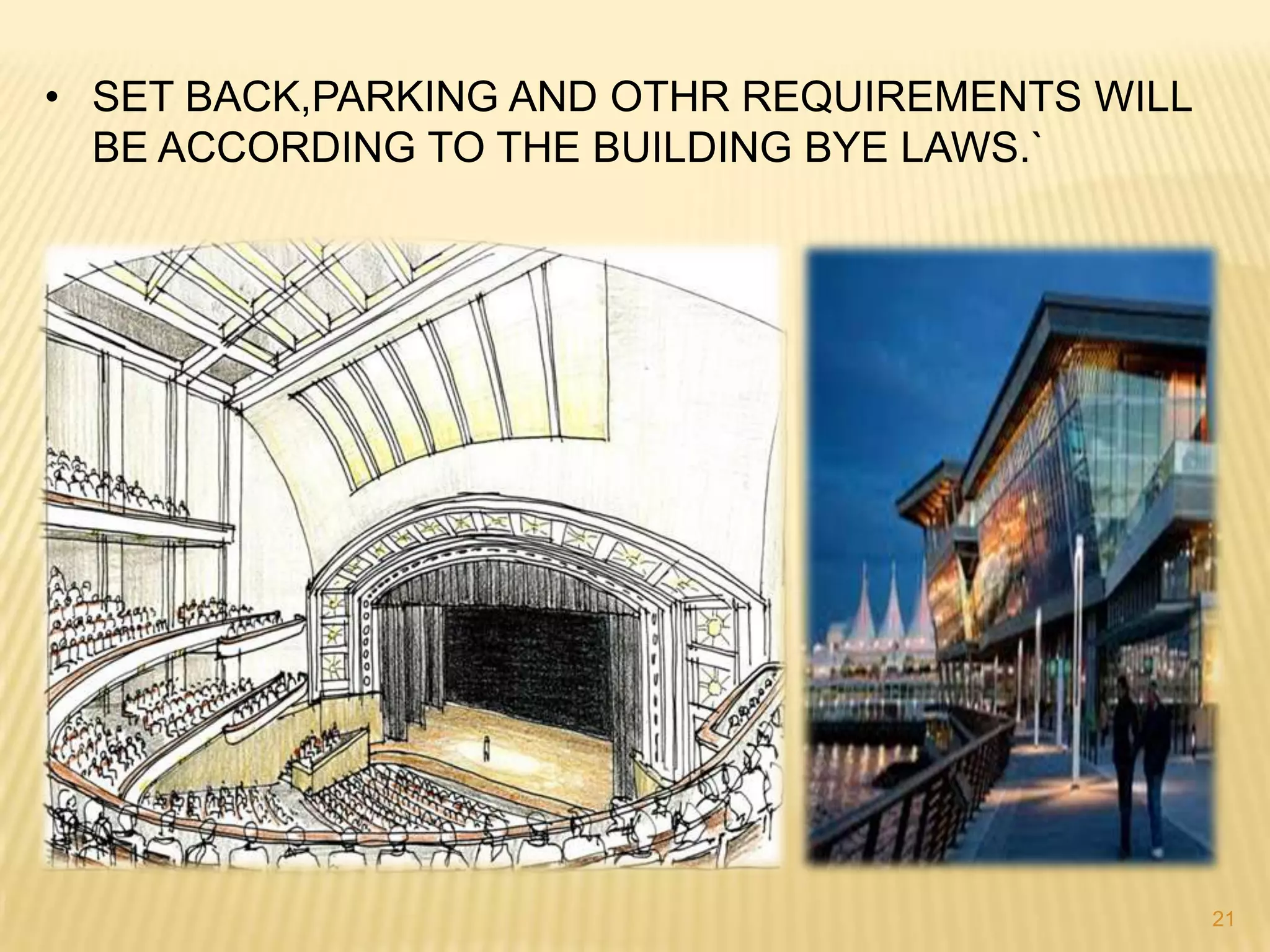

21. • SET BACK,PARKING AND OTHR REQUIREMENTS WILL
BE ACCORDING TO THE BUILDING BYE LAWS.`
21

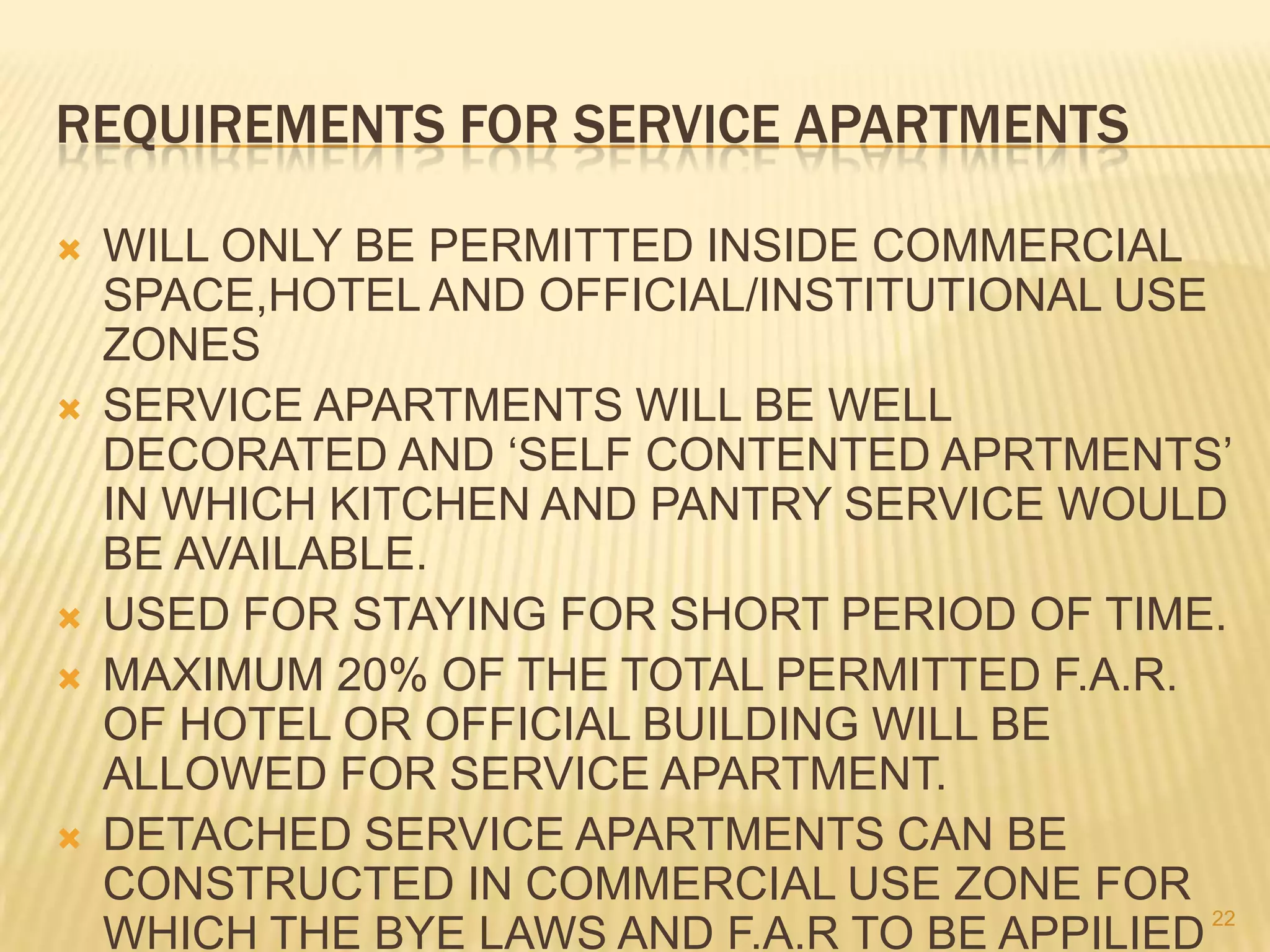

22. REQUIREMENTS FOR SERVICE APARTMENTS





WILL ONLY BE PERMITTED INSIDE COMMERCIAL
SPACE,HOTEL AND OFFICIAL/INSTITUTIONAL USE
ZONES
SERVICE APARTMENTS WILL BE WELL
DECORATED AND ‘SELF CONTENTED APRTMENTS’
IN WHICH KITCHEN AND PANTRY SERVICE WOULD
BE AVAILABLE.
USED FOR STAYING FOR SHORT PERIOD OF TIME.
MAXIMUM 20% OF THE TOTAL PERMITTED F.A.R.
OF HOTEL OR OFFICIAL BUILDING WILL BE
ALLOWED FOR SERVICE APARTMENT.
DETACHED SERVICE APARTMENTS CAN BE
CONSTRUCTED IN COMMERCIAL USE ZONE FOR
22
WHICH THE BYE LAWS AND F.A.R TO BE APPILIED

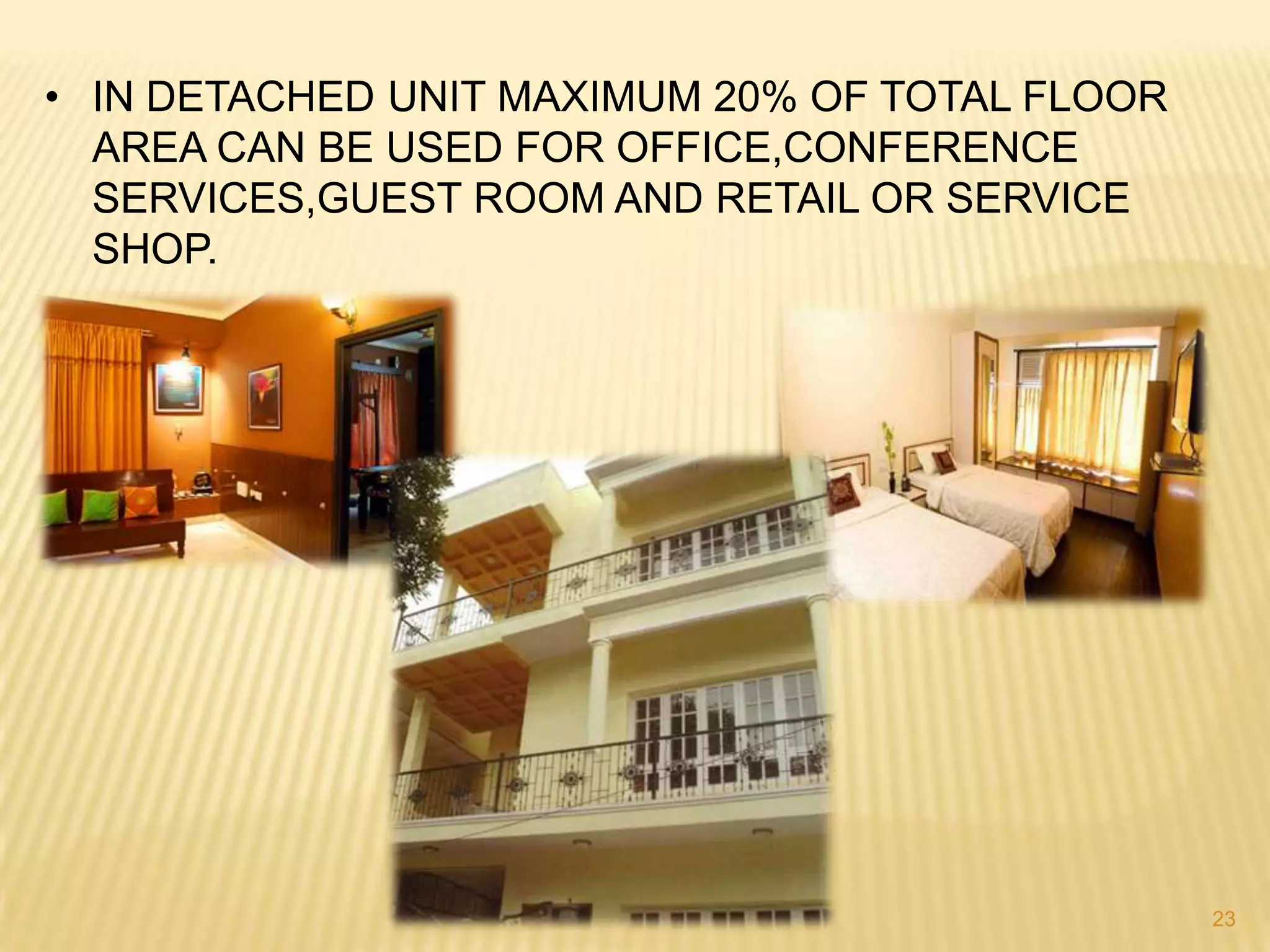

23. • IN DETACHED UNIT MAXIMUM 20% OF TOTAL FLOOR
AREA CAN BE USED FOR OFFICE,CONFERENCE
SERVICES,GUEST ROOM AND RETAIL OR SERVICE
SHOP.
23
