This document summarizes the key features and benefits of Azure Database for PostgreSQL: 1) It offers more choices and full integration with Azure services through automatic updates, security fixes, and access to innovations in AI and analytics. 2) The database can elastically scale performance to meet spikes in demand and scale compute and storage independently with high availability and disaster recovery with a single click. 3) It provides secure and compliant hosting of data with certifications and compliance across key standards and regulations.

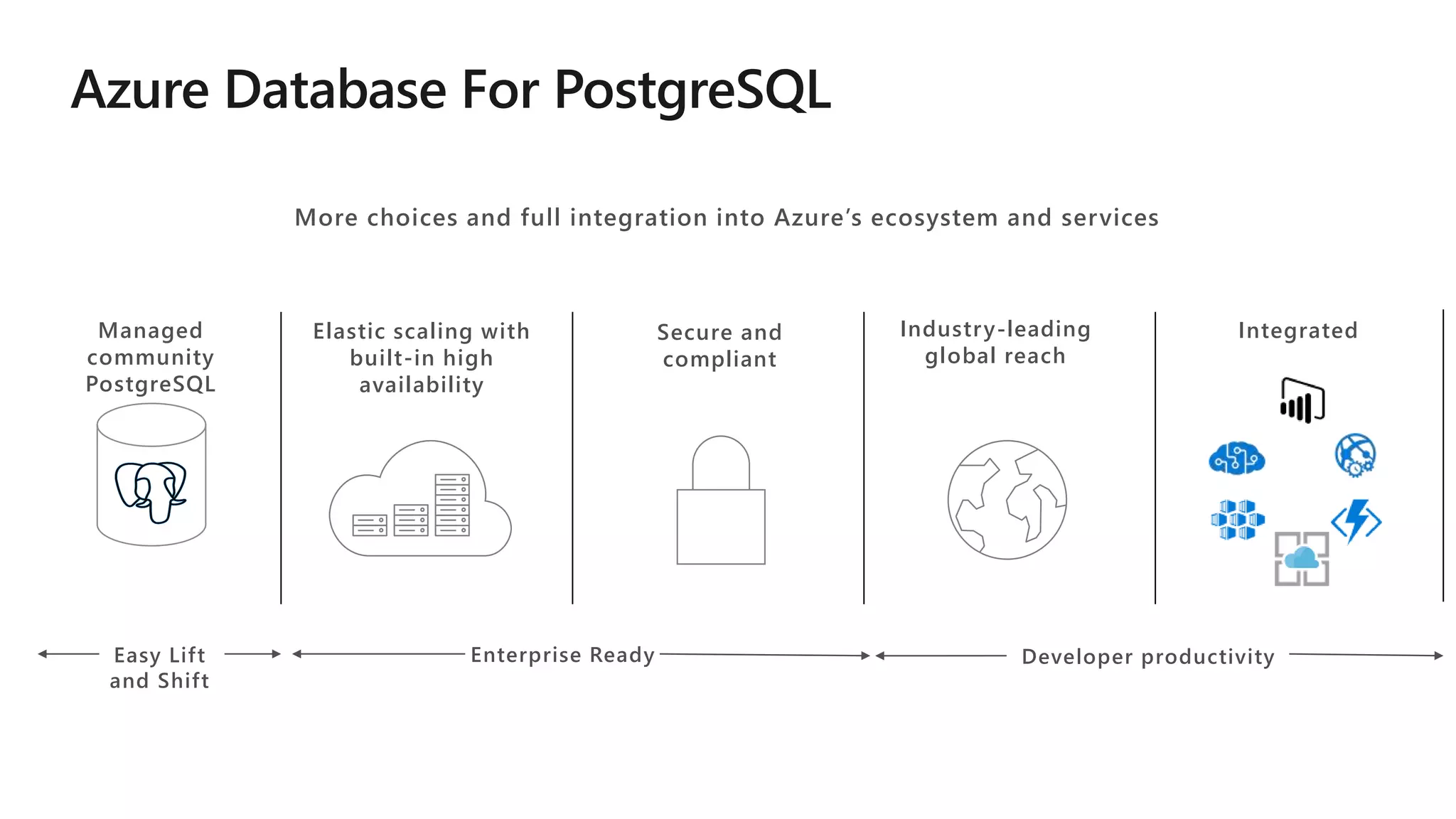

4. More choices and full integration into Azure’s ecosystem and services
Managed
community
PostgreSQL
Integrated
Easy Lift
and Shift
Enterprise Ready
Elastic scaling with
built-in high
availability
Secure and
compliant
Industry-leading
global reach
Developer productivity

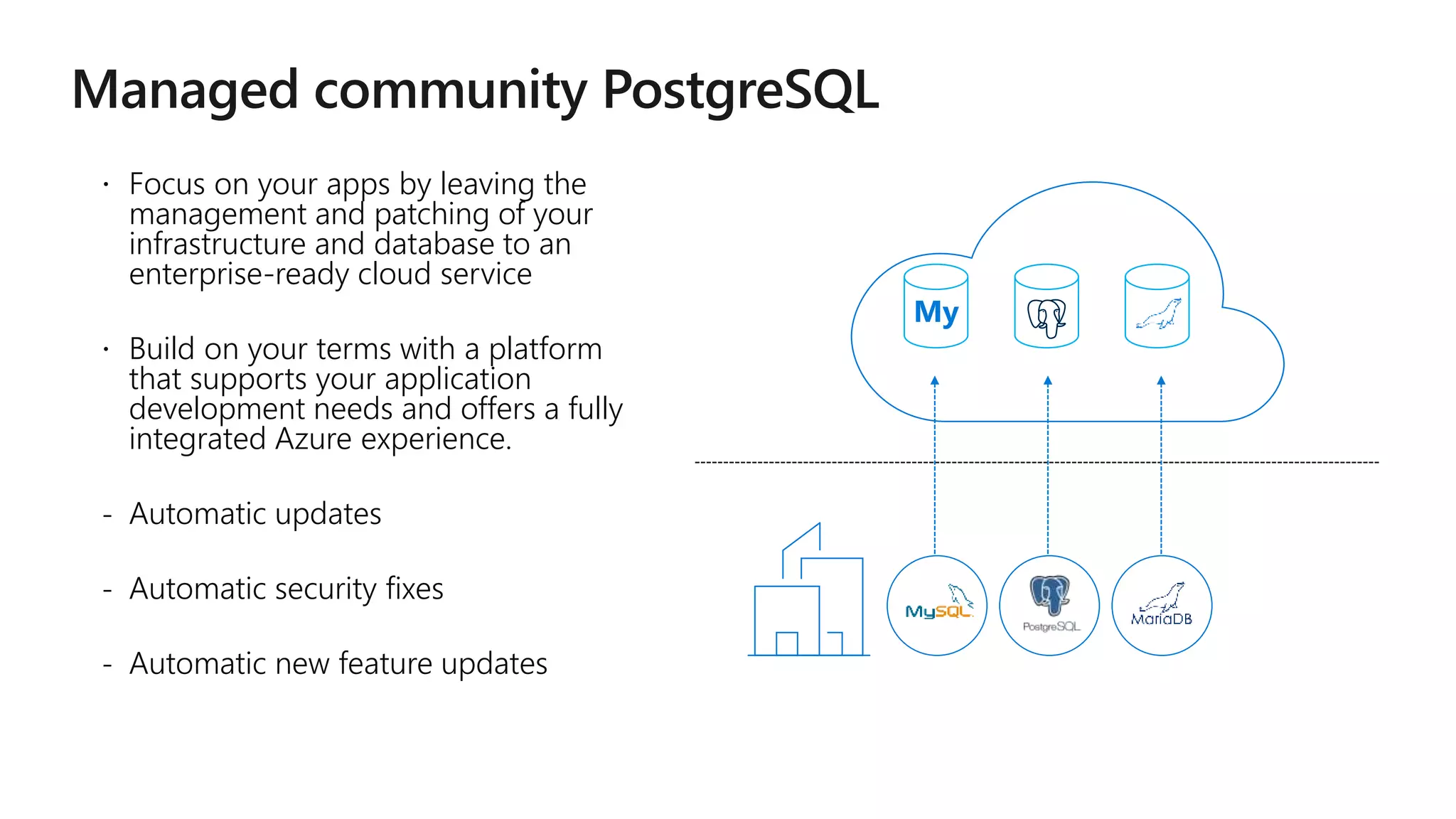

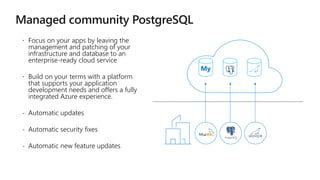

5.  Focus on your apps by leaving the
management and patching of your
infrastructure and database to an
enterprise-ready cloud service
 Build on your terms with a platform
that supports your application
development needs and offers a fully
integrated Azure experience.
- Automatic updates
- Automatic security fixes
- Automatic new feature updates
My

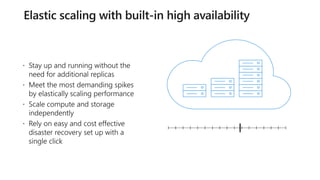

6.  Stay up and running without the
need for additional replicas
 Meet the most demanding spikes
by elastically scaling performance
 Scale compute and storage
independently
 Rely on easy and cost effective
disaster recovery set up with a
single click

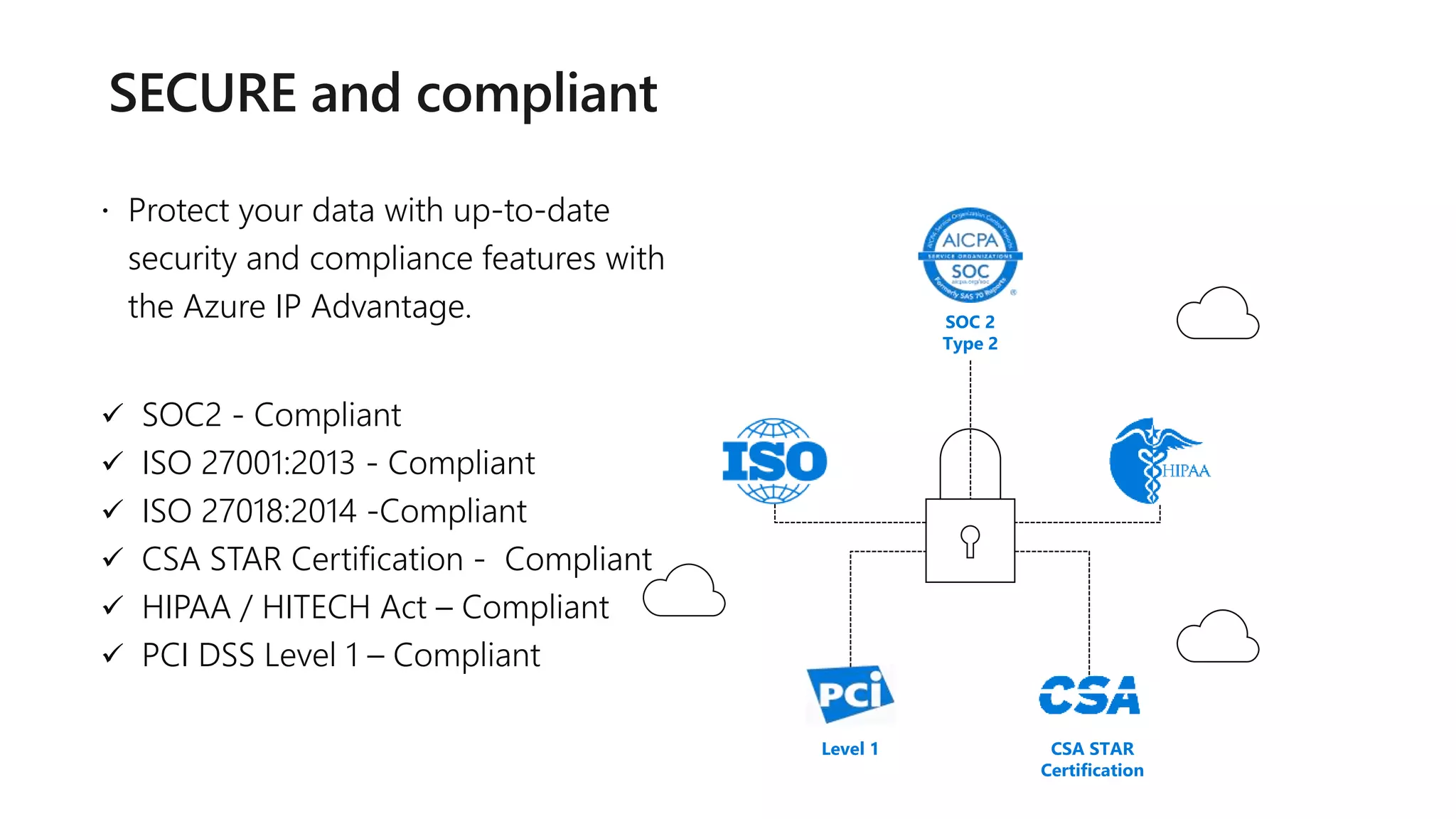

7.  Protect your data with up-to-date
security and compliance features with
the Azure IP Advantage.
 SOC2 - Compliant
 ISO 27001:2013 - Compliant
 ISO 27018:2014 -Compliant
 CSA STAR Certification - Compliant
 HIPAA / HITECH Act – Compliant
 PCI DSS Level 1 – Compliant
SOC 2
Type 2
CSA STAR
Certification
Level 1

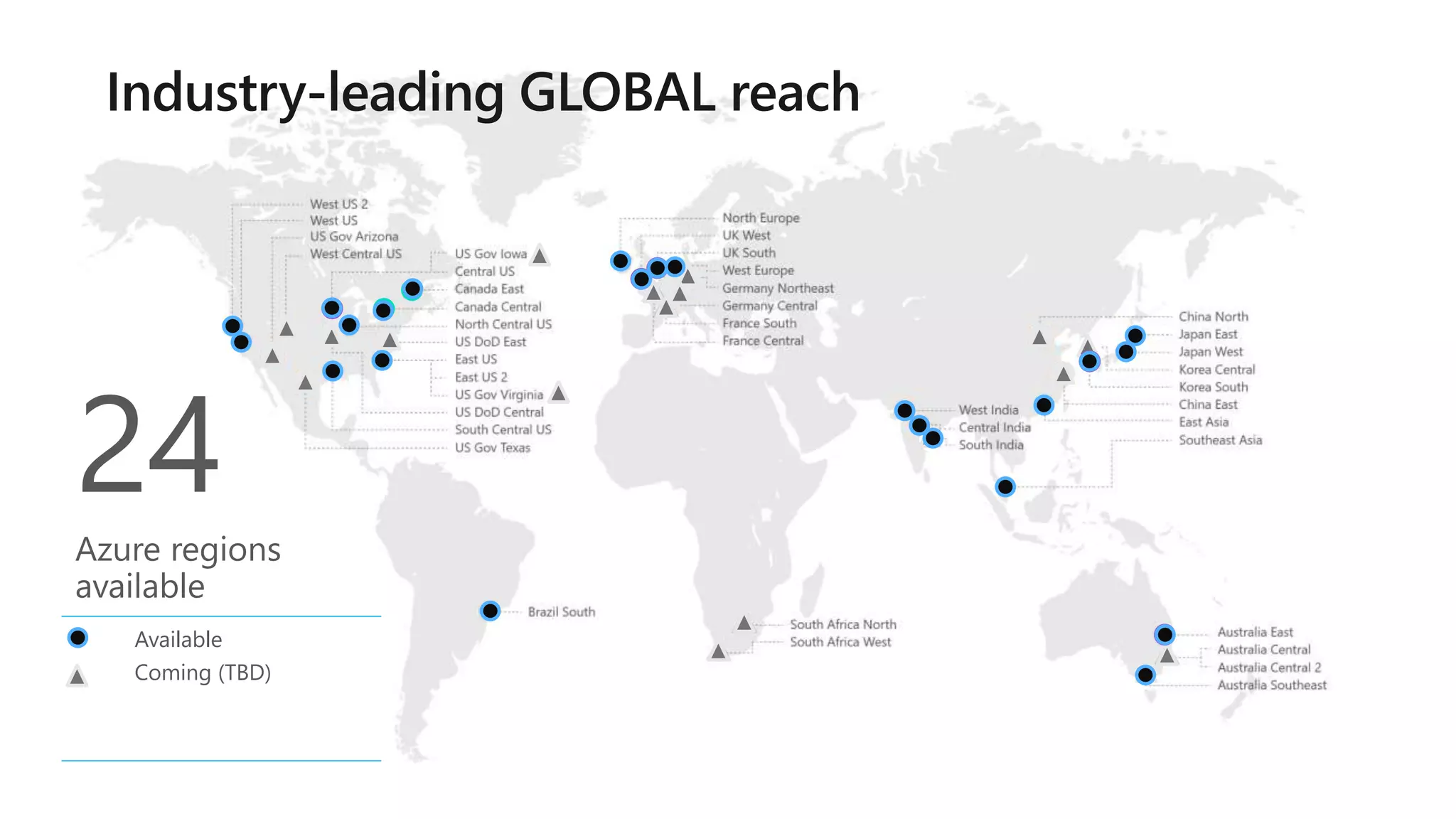

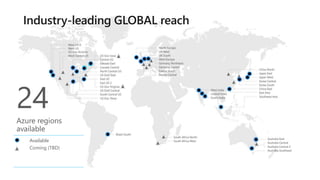

8. Available
Coming (TBD)
24
Azure regions
available

9. Demo
Rachel

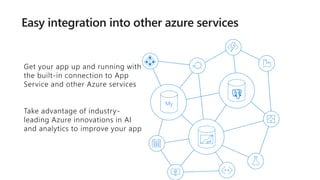

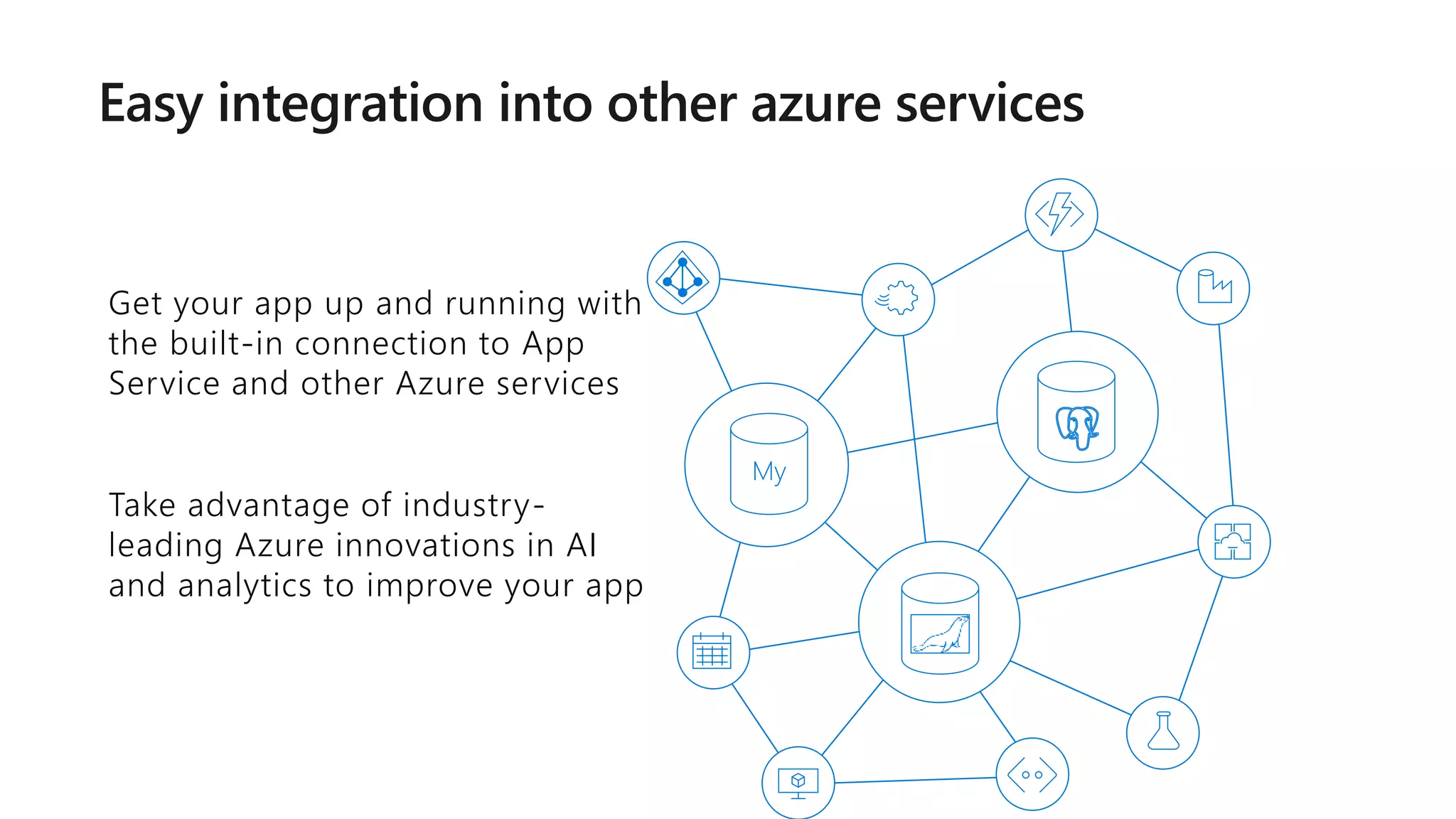

10. Get your app up and running with
the built-in connection to App
Service and other Azure services
Take advantage of industry-
leading Azure innovations in AI
and analytics to improve your app
My

11. Managed service

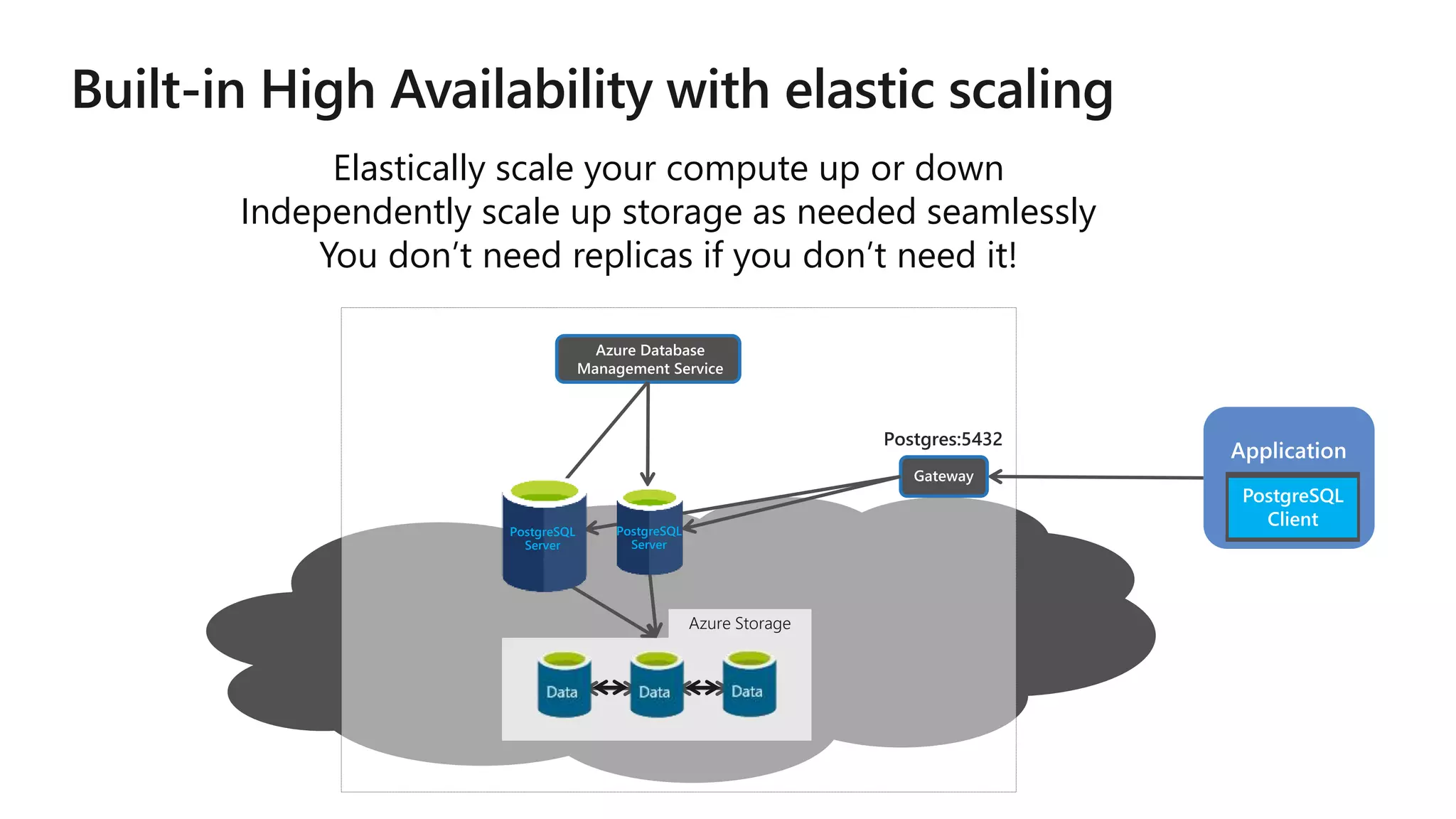

13. Elastically scale your compute up or down
Independently scale up storage as needed seamlessly
You don’t need replicas if you don’t need it!
Postgres:5432
Azure Storage
PostgreSQL
Server
PostgreSQL
Server

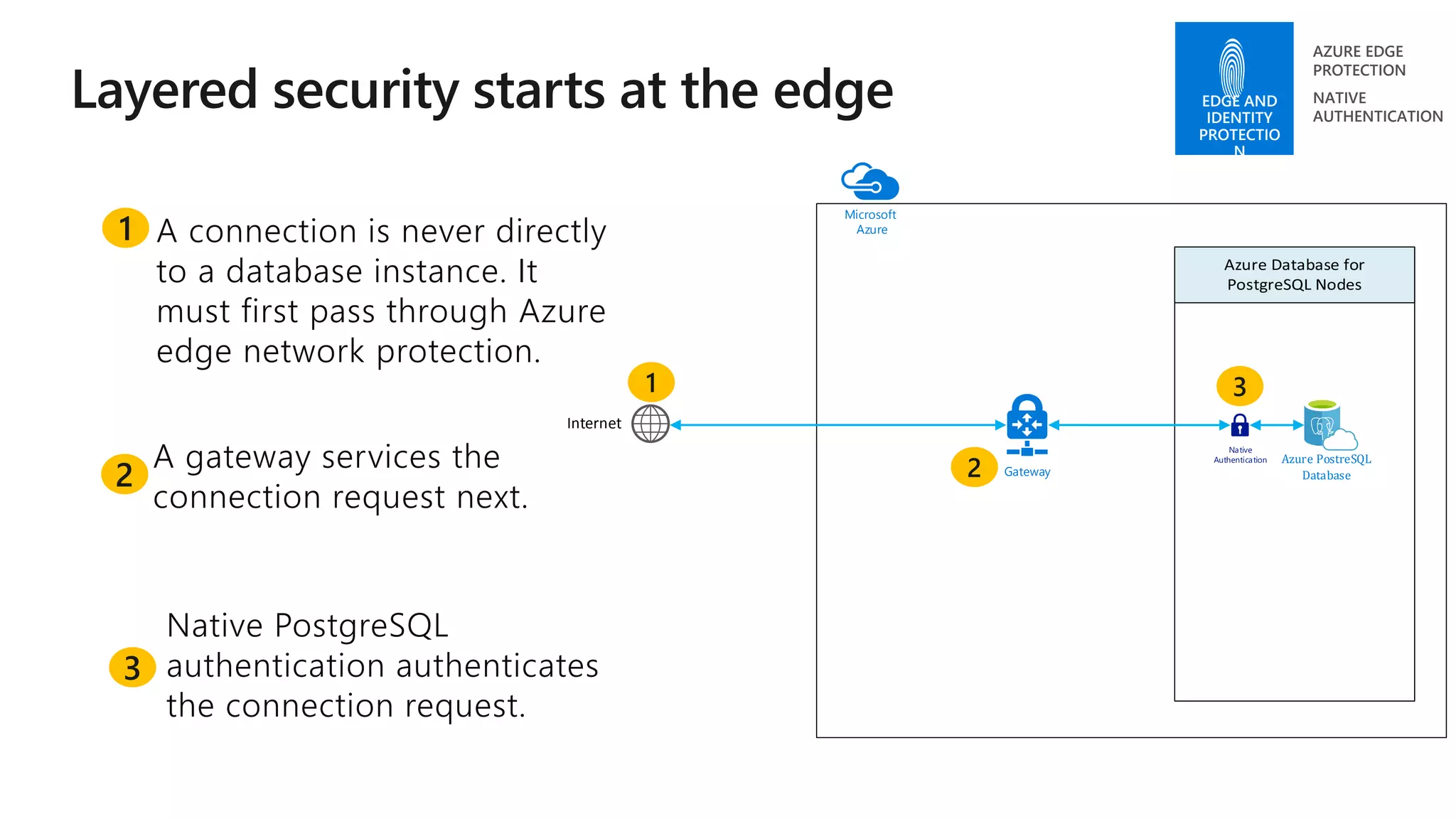

14. Microsoft
Azure
Azure PostreSQL
Database
Internet
Gateway
Native
Authentication
EDGE AND
IDENTITY
PROTECTIO
N
AZURE EDGE
PROTECTION
NATIVE
AUTHENTICATION
1
1
2 2
3
3
A connection is never directly
to a database instance. It
must first pass through Azure
edge network protection.
A gateway services the
connection request next.
Native PostgreSQL
authentication authenticates
the connection request.

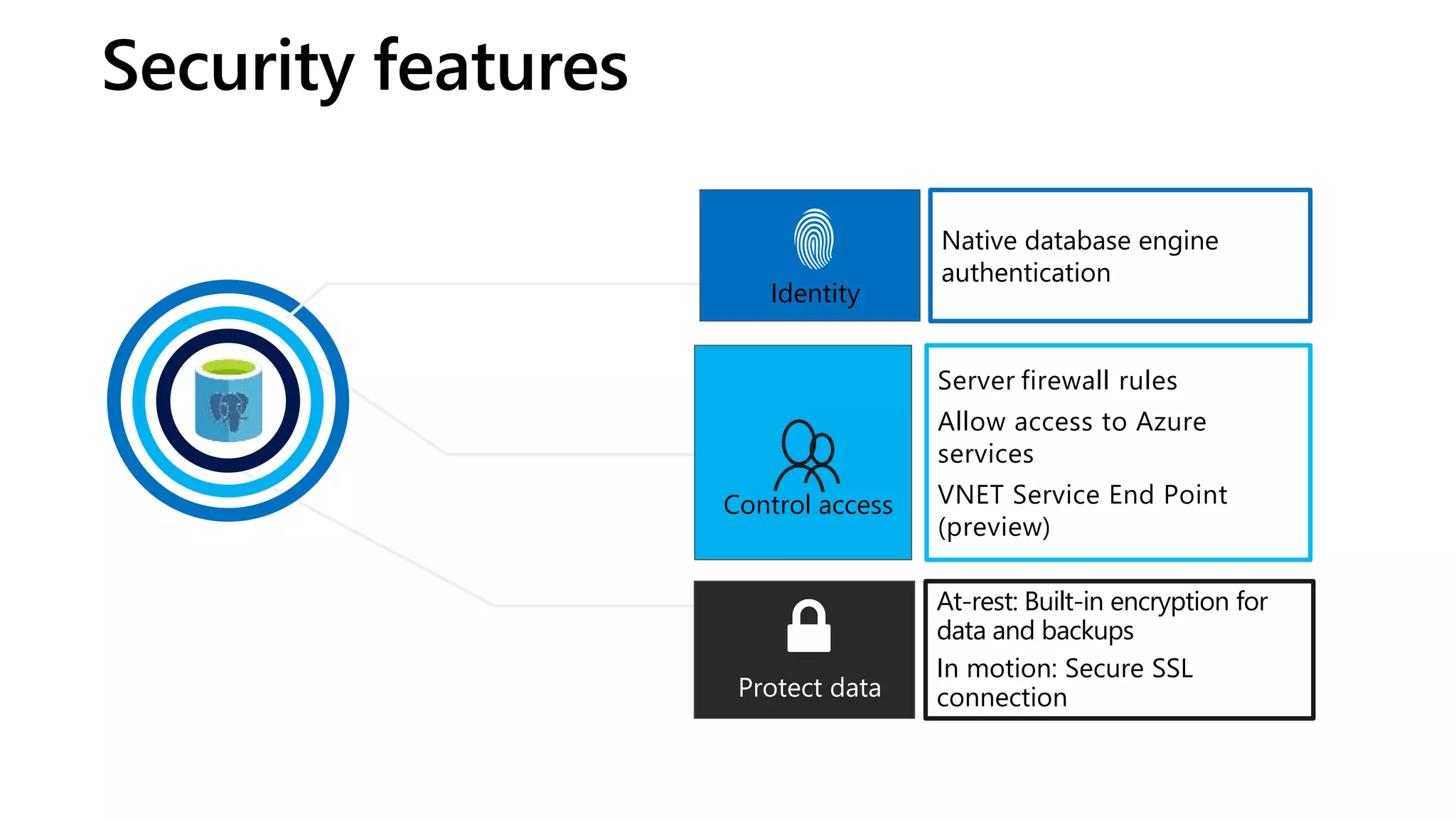

15. Control access
Server firewall rules
Allow access to Azure
services
VNET Service End Point
(preview)
Protect data
At-rest: Built-in encryption for
data and backups
In motion: Secure SSL
connection
Security features
Identity
Native database engine
authentication

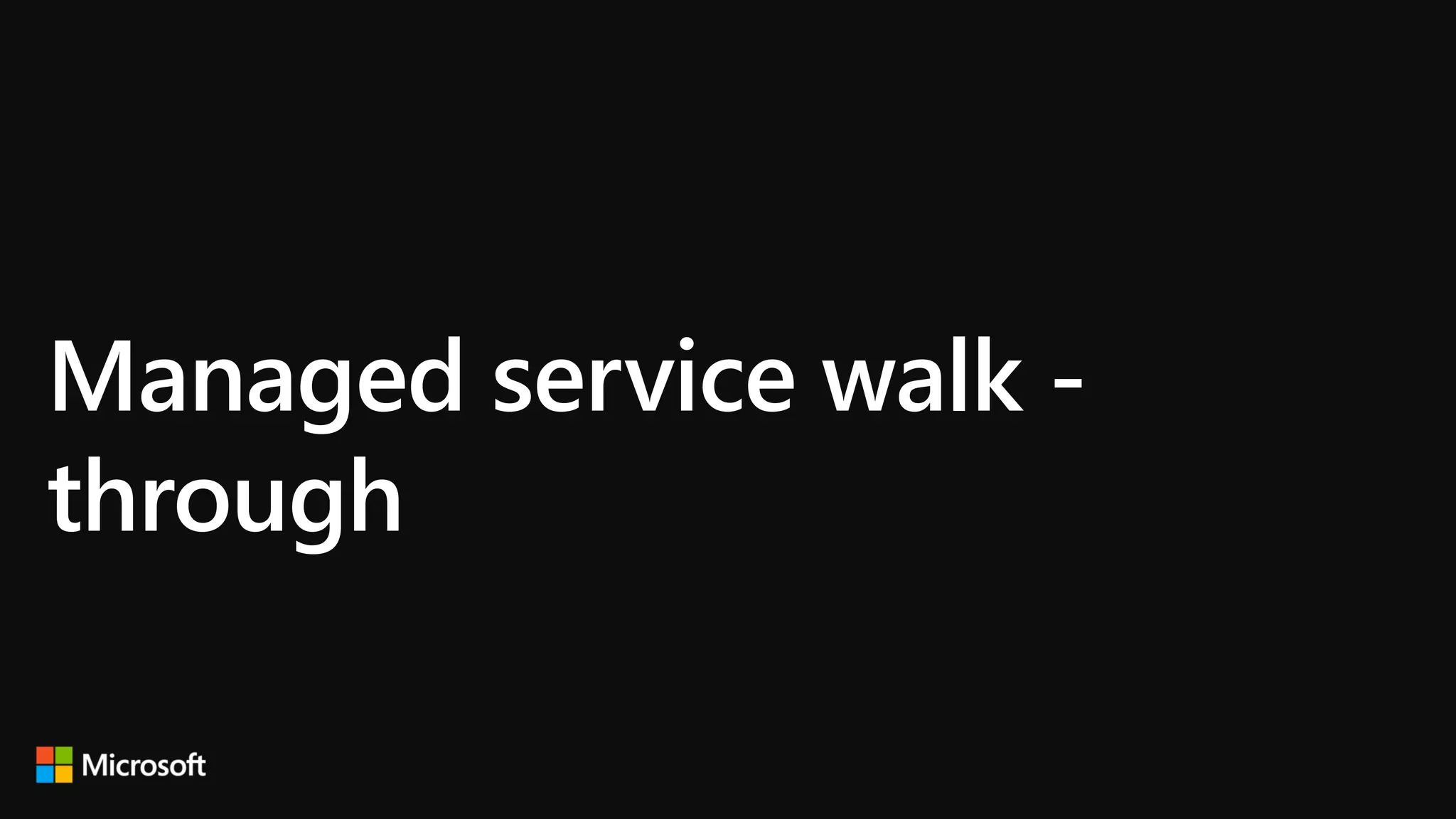

16. Managed service walk -
through

17. Best Practices for optimal
performance

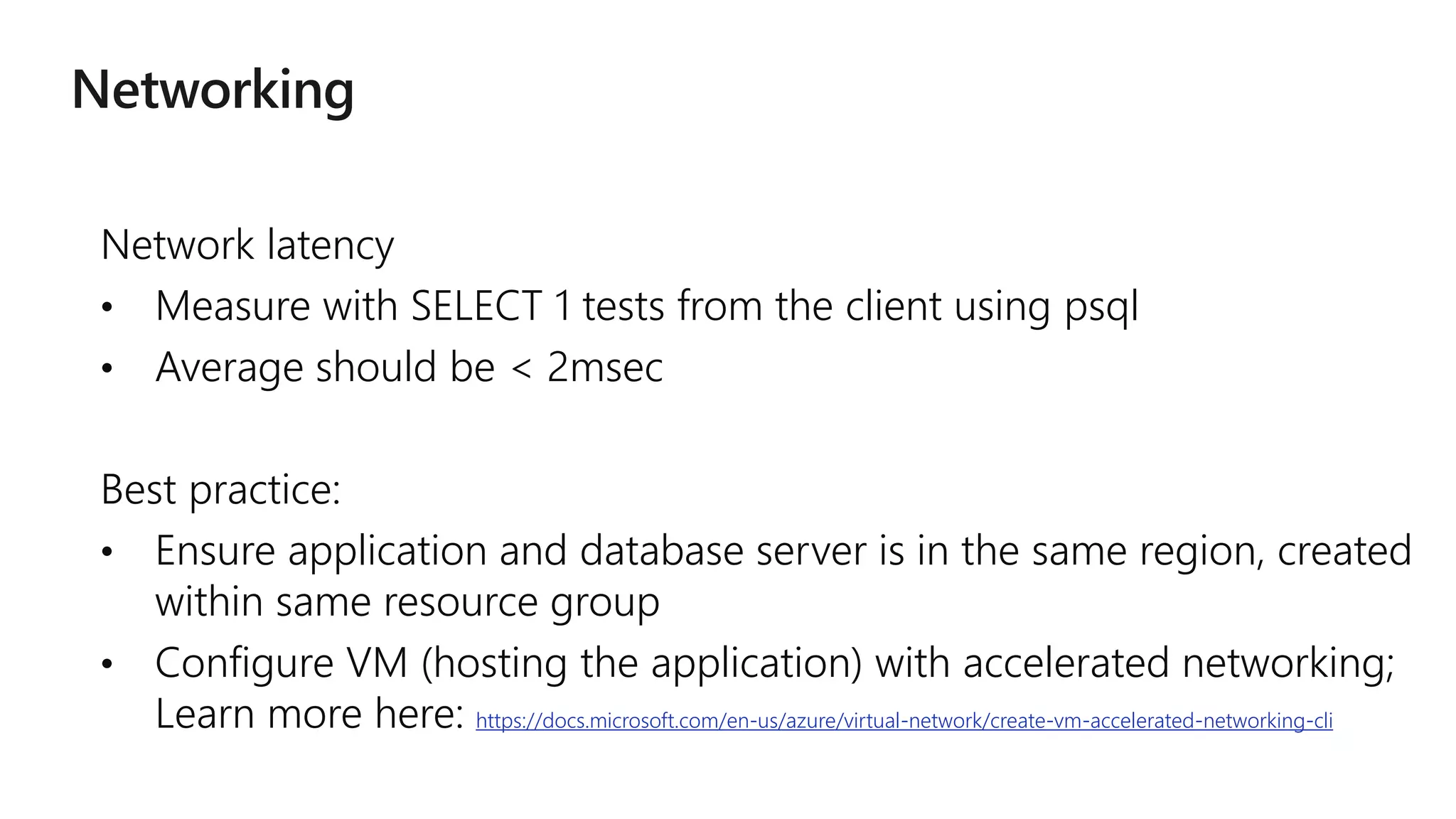

18. Network latency
• Measure with SELECT 1 tests from the client using psql
• Average should be < 2msec
Best practice:
• Ensure application and database server is in the same region, created
within same resource group
• Configure VM (hosting the application) with accelerated networking;
Learn more here: https://docs.microsoft.com/en-us/azure/virtual-network/create-vm-accelerated-networking-cli

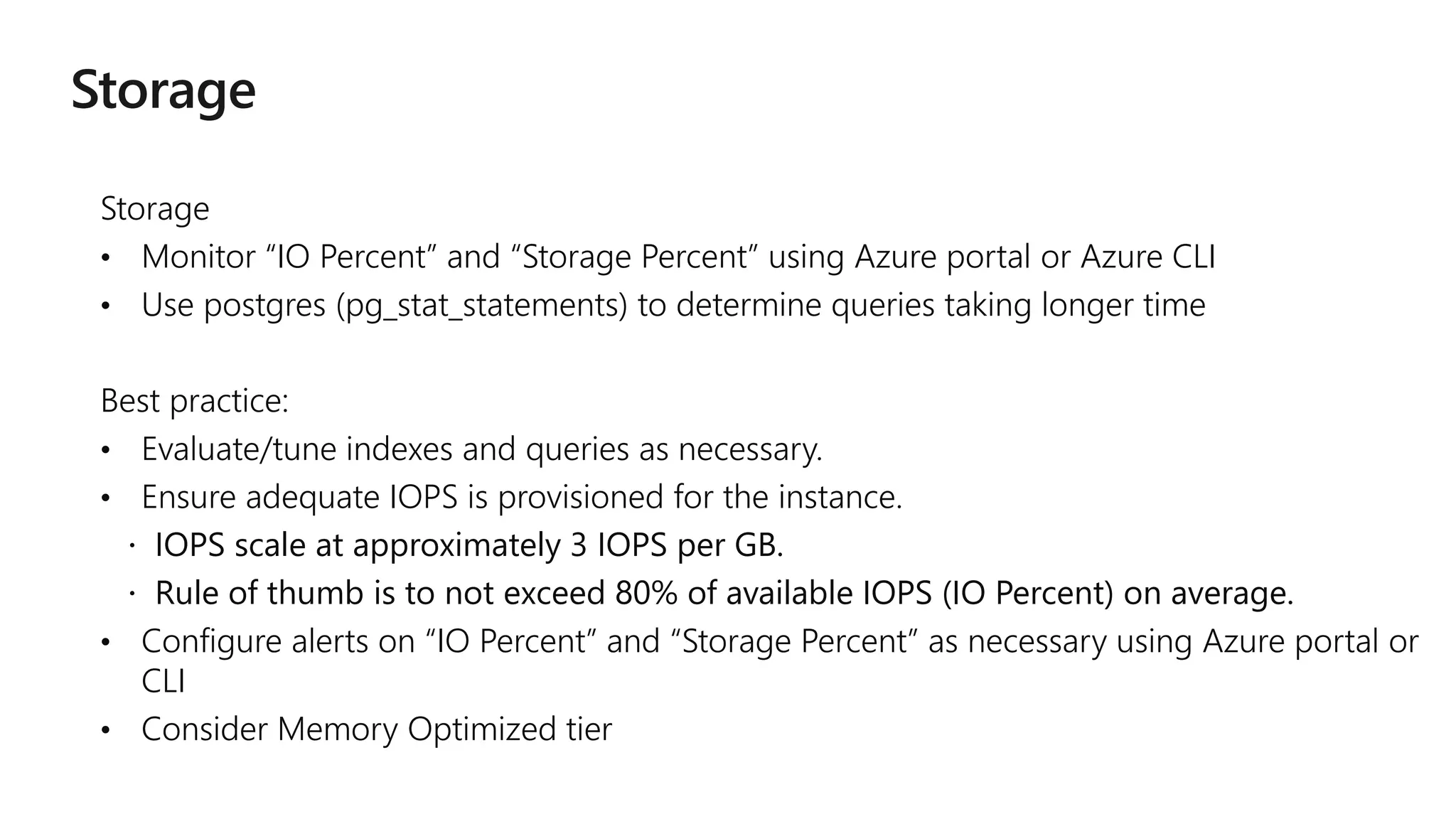

19. Storage
• Monitor “IO Percent” and “Storage Percent” using Azure portal or Azure CLI
• Use postgres (pg_stat_statements) to determine queries taking longer time
Best practice:
• Evaluate/tune indexes and queries as necessary.
• Ensure adequate IOPS is provisioned for the instance.
 IOPS scale at approximately 3 IOPS per GB.
 Rule of thumb is to not exceed 80% of available IOPS (IO Percent) on average.
• Configure alerts on “IO Percent” and “Storage Percent” as necessary using Azure portal or
CLI
• Consider Memory Optimized tier

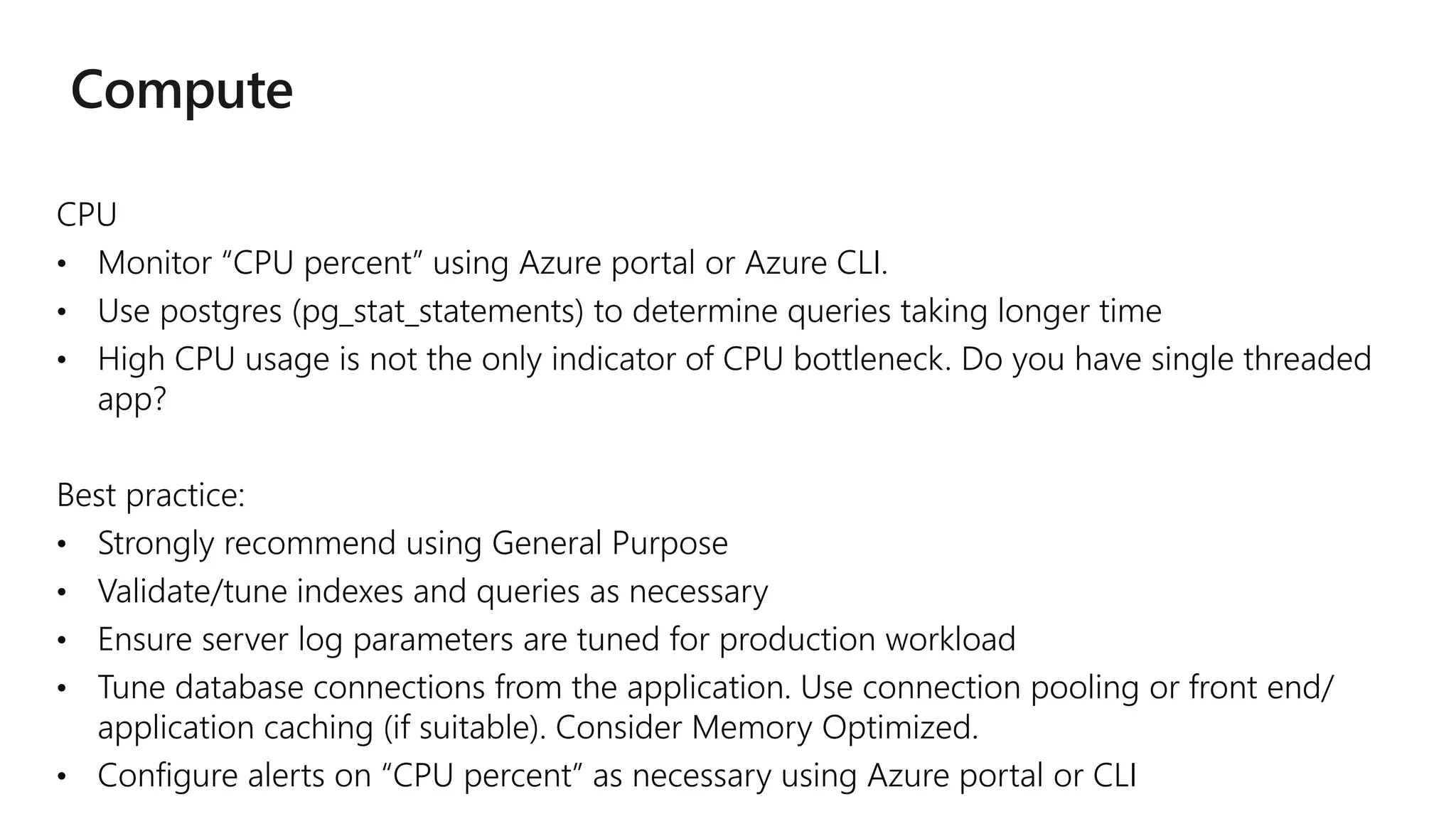

20. CPU
• Monitor “CPU percent” using Azure portal or Azure CLI.
• Use postgres (pg_stat_statements) to determine queries taking longer time
• High CPU usage is not the only indicator of CPU bottleneck. Do you have single threaded
app?
Best practice:
• Strongly recommend using General Purpose
• Validate/tune indexes and queries as necessary
• Ensure server log parameters are tuned for production workload
• Tune database connections from the application. Use connection pooling or front end/
application caching (if suitable). Consider Memory Optimized.
• Configure alerts on “CPU percent” as necessary using Azure portal or CLI

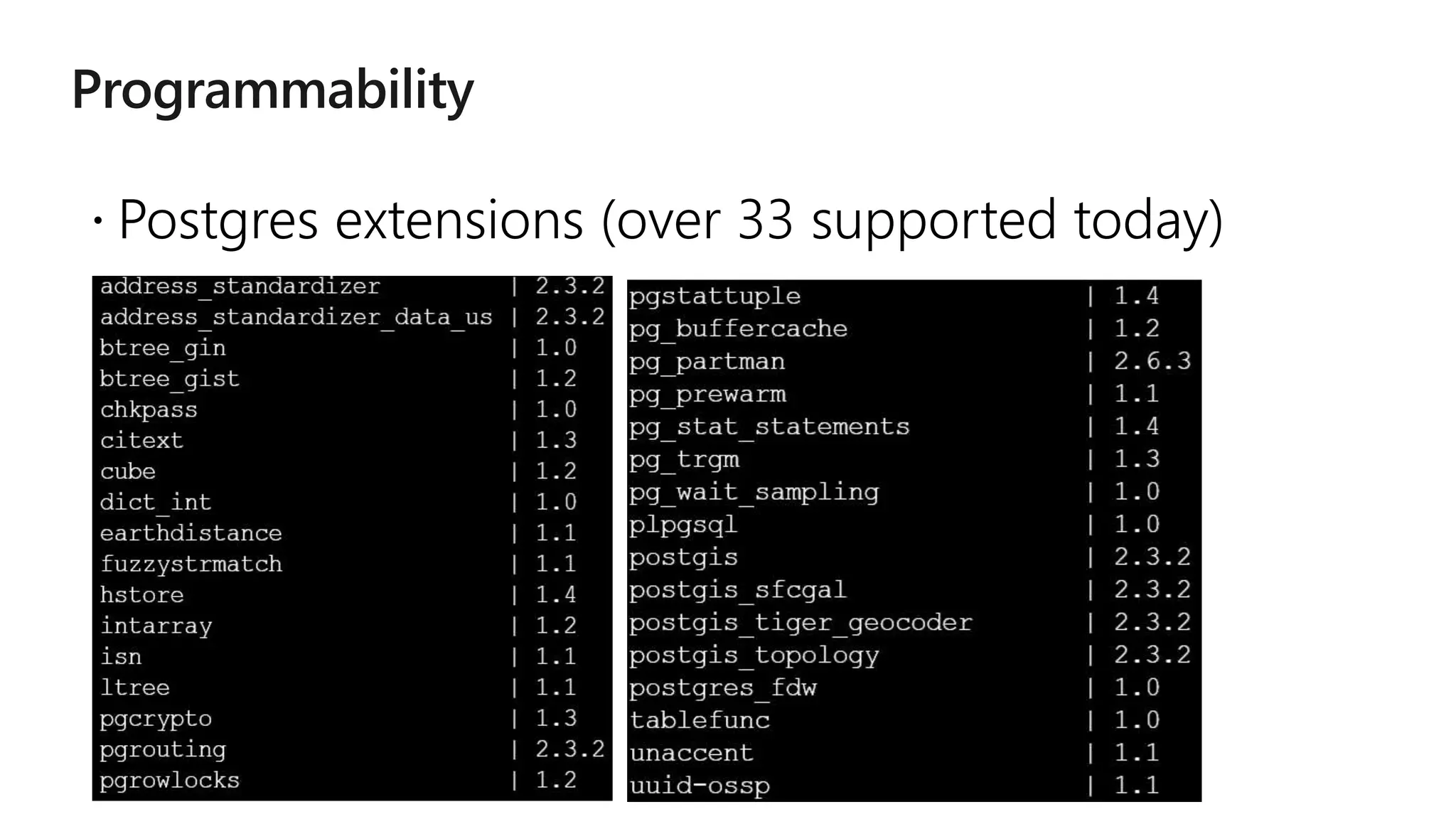

21.  Postgres extensions (over 33 supported today)

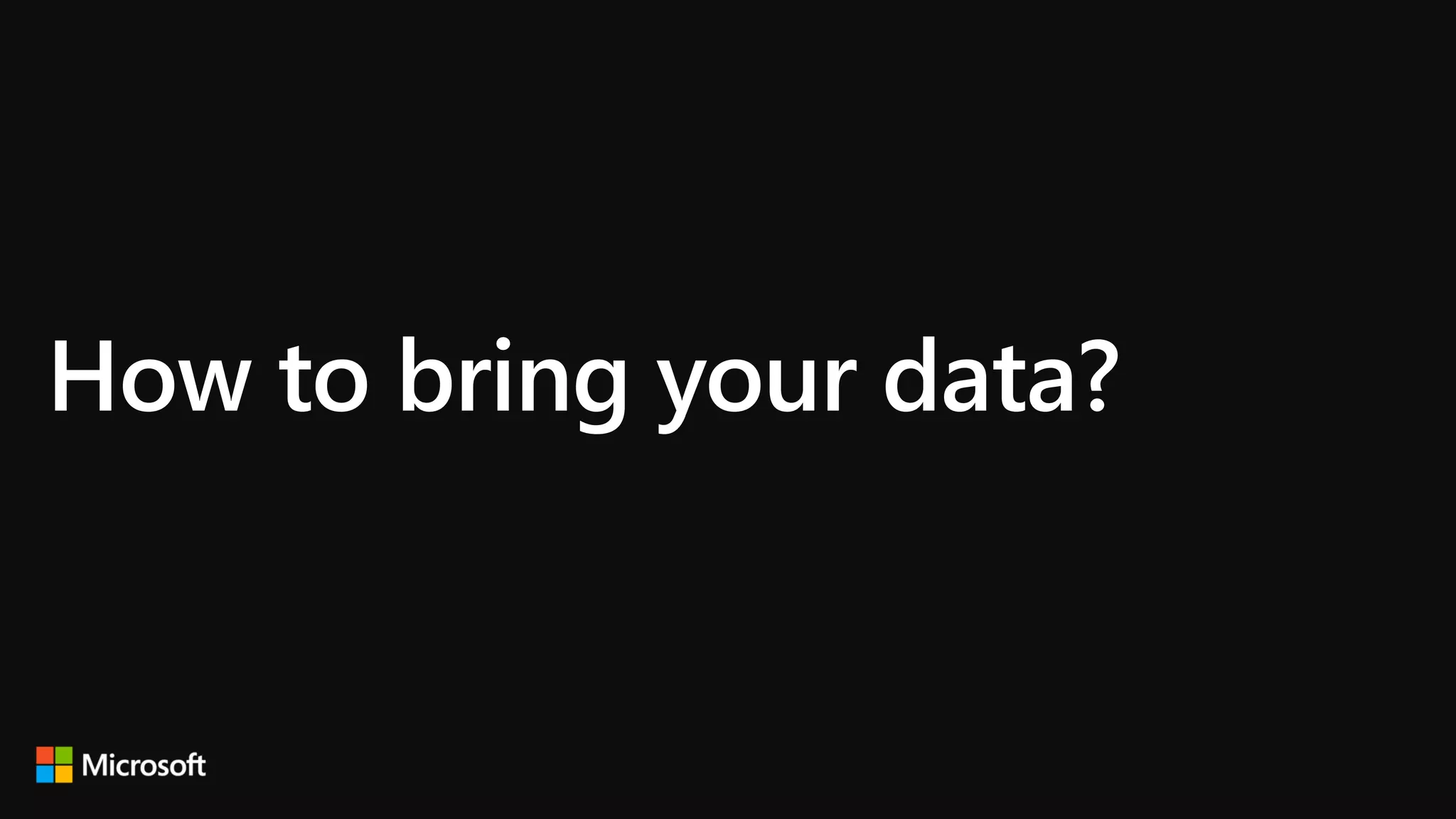

22. How to bring your data?

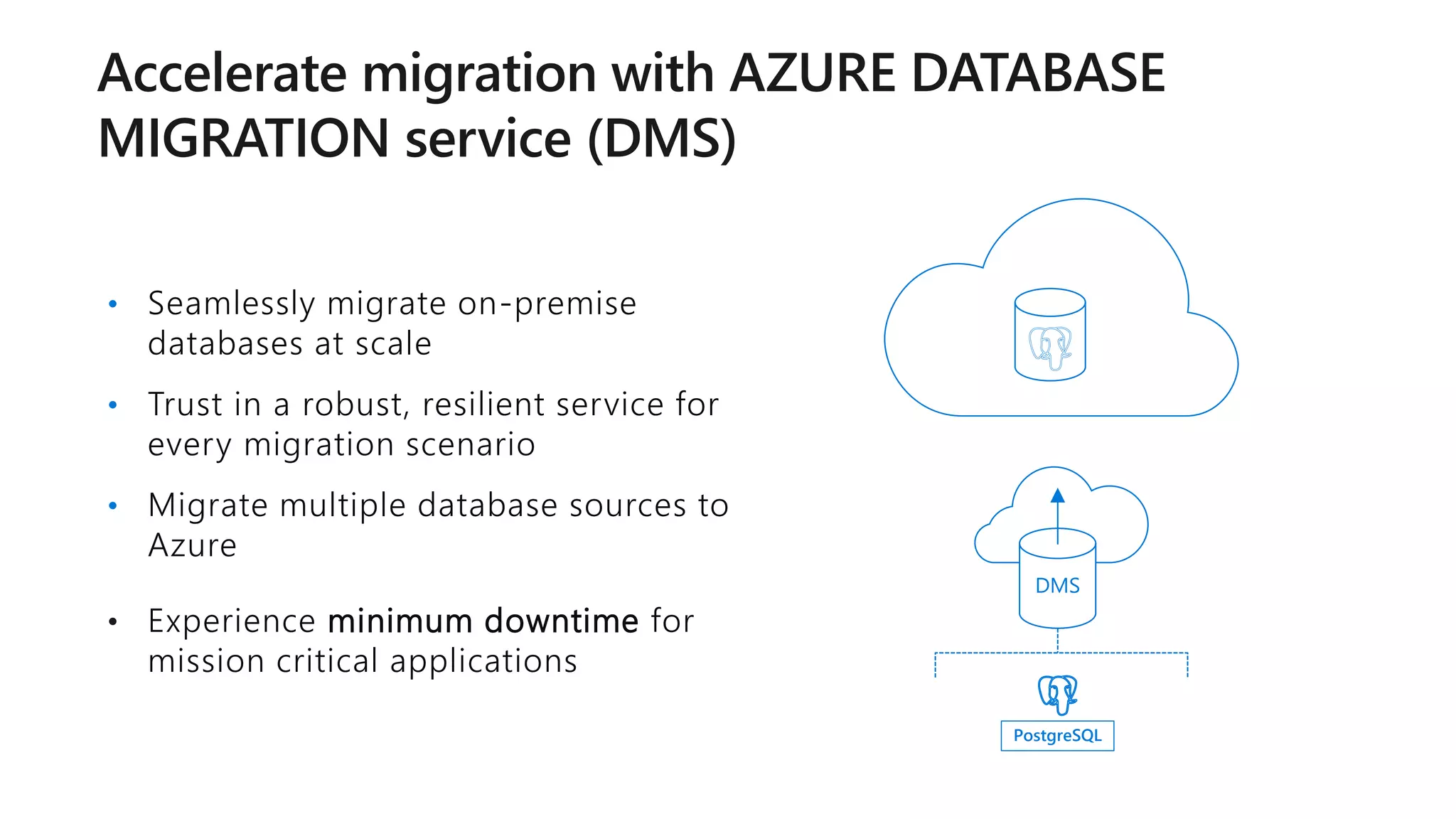

23. • Seamlessly migrate on-premise
databases at scale
• Trust in a robust, resilient service for
every migration scenario
• Migrate multiple database sources to
Azure
• Experience minimum downtime for
mission critical applications
DMS
PostgreSQL

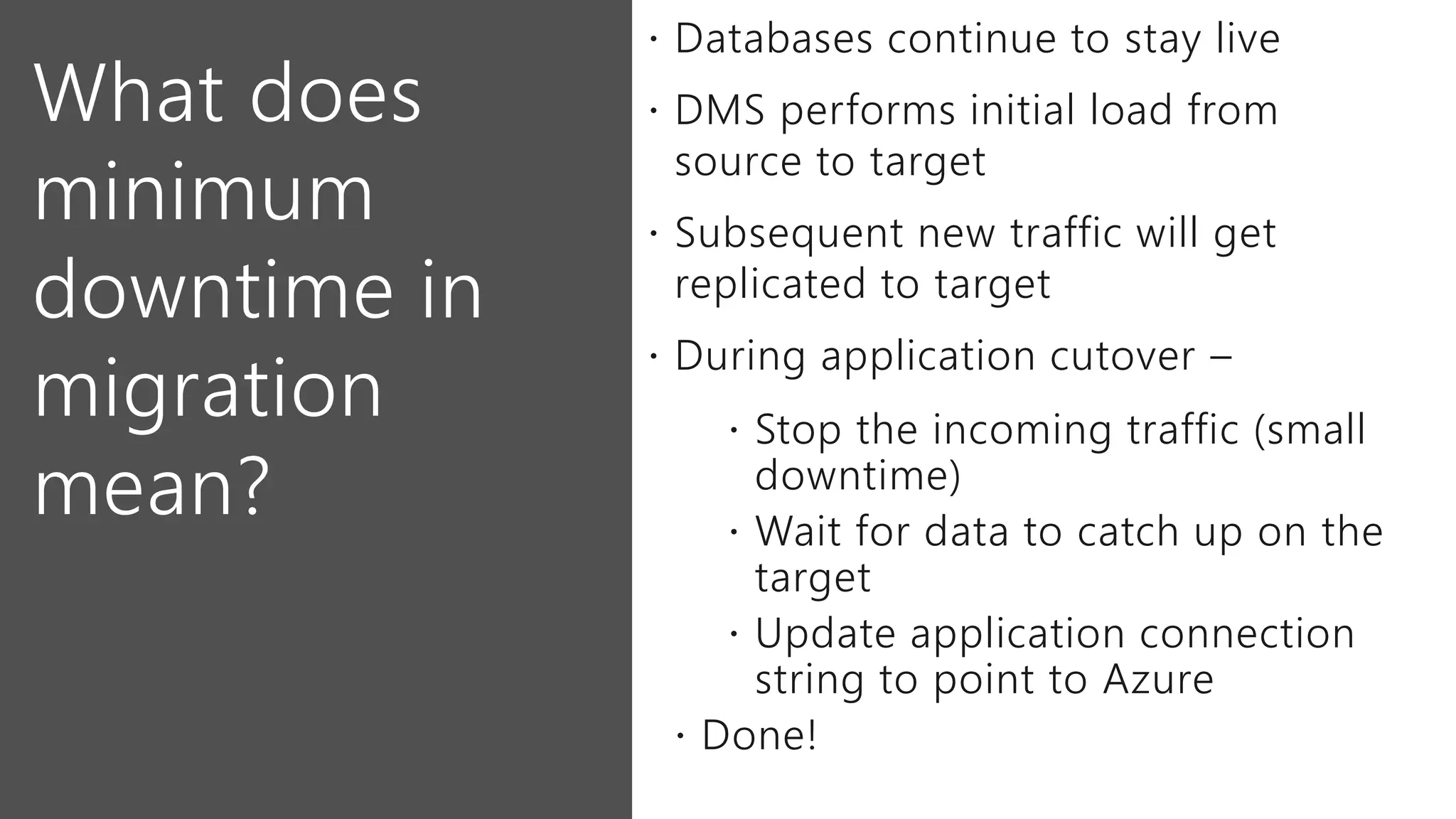

24. What does
minimum
downtime in
migration
mean?
 Databases continue to stay live
 DMS performs initial load from
source to target
 Subsequent new traffic will get
replicated to target
 During application cutover –
 Stop the incoming traffic (small
downtime)
 Wait for data to catch up on the
target
 Update application connection
string to point to Azure
 Done!

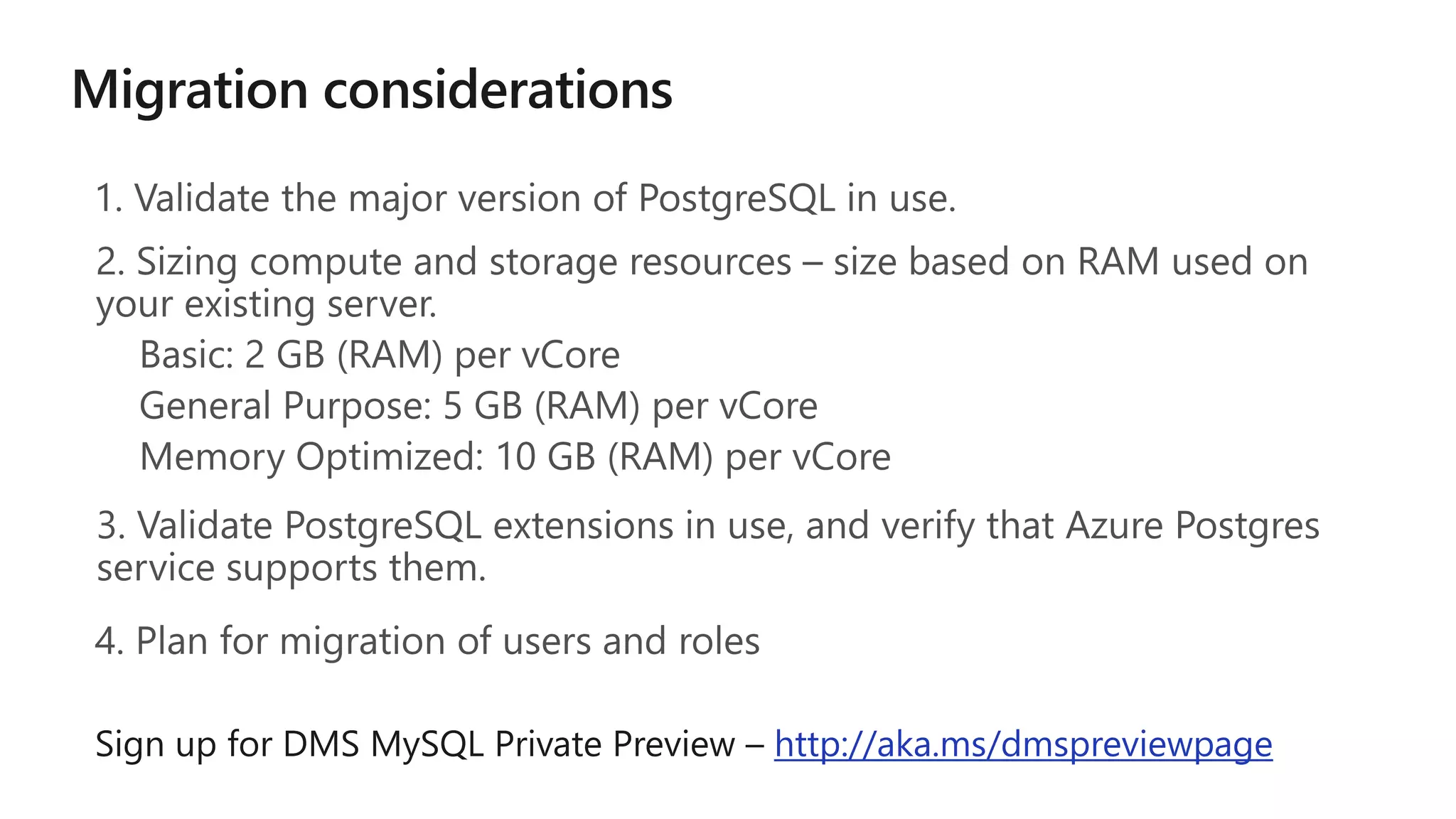

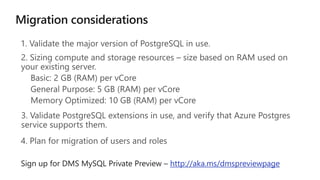

25. Migration considerations
Sign up for DMS MySQL Private Preview – http://aka.ms/dmspreviewpage

26. Data Migration Service
Demo
PostgreSQL Migration Sign-up –
http://aka.ms/dmspreviewpage

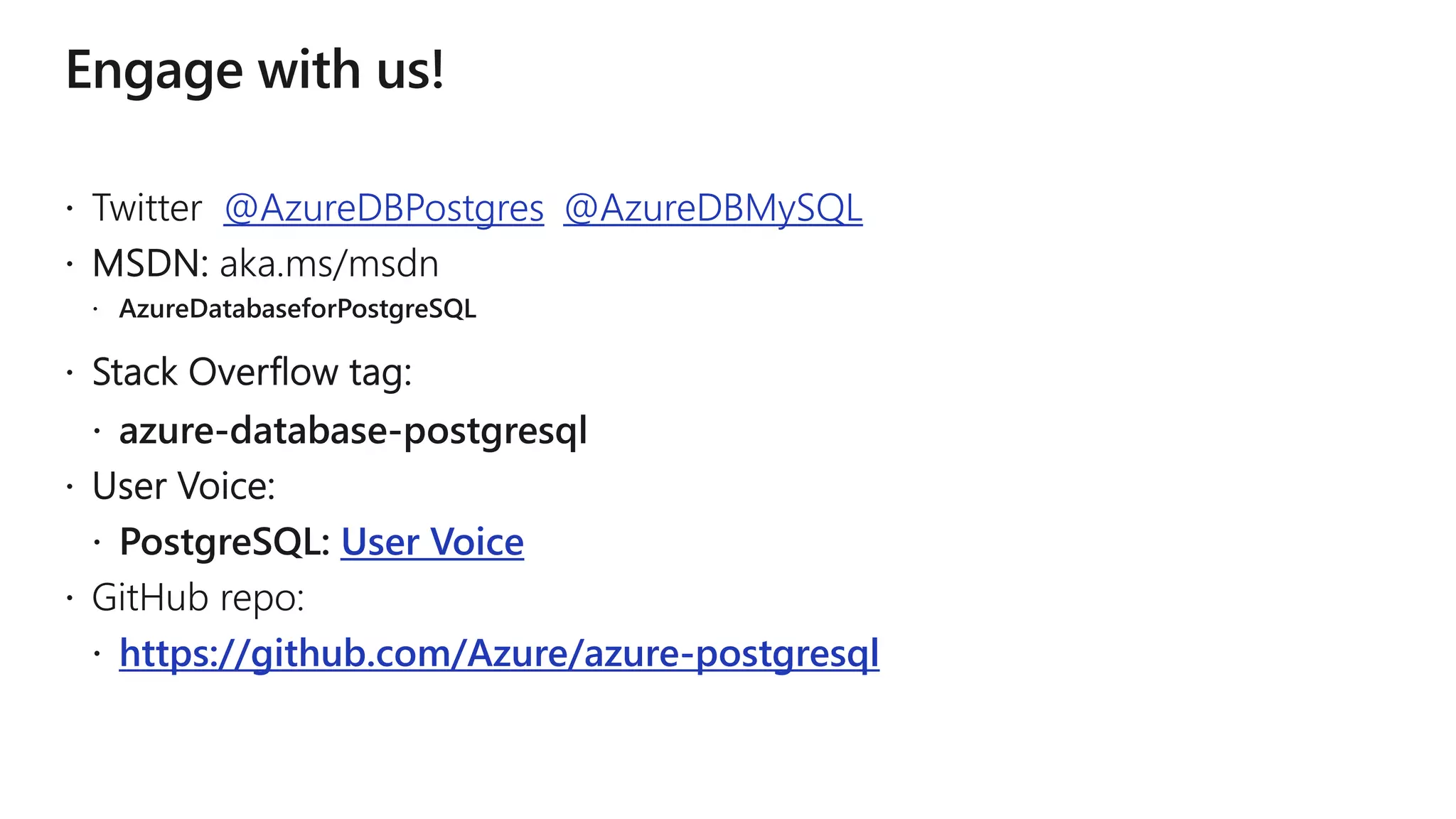

27. @AzureDBPostgres @AzureDBMySQL
User Voice
https://github.com/Azure/azure-postgresql
