1. Broken Twill, Transposed Twill
Topic-4

2. Alpha breathing

3. Branch: B.Tech (TT) Semester: S5
Subject code & Title: 18TT503- Fabric Structure and Design
Unit/Lesson No: Unit I, Lesson 5
T-L tools: Chalk and Talk, PPT Presentation, Online Presentation
Faculty Name: Dr.M.Janarthanan

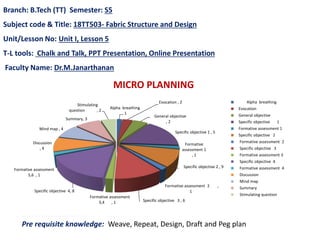

MICRO PLANNING
Pre requisite knowledge: Weave, Repeat, Design, Draft and Peg plan
Alpha breathing
, 1
Evocation , 2
General objective
, 2
Specific objective 1 , 5
Formative
assessment 1
, 1
Specific objective 2 , 9
Formative assessment 2 ,
1
Specific objective 3 , 6
Formative assessment
3,4 , 1
Specific objective 4, 8
Formative assessment
5,6 , 1
Discussion
, 4
Mind map , 4
Summary, 3
Stimulating
question , 2
Alpha breathing
Evocation
General objective
Specific objective 1
Formative assessment 1
Specific objective 2
Formative assessment 2
Specific objective 3
Formative assessment 3
Specific objective 4
Formative assessment 4
Discussion
Mind map
Summary
Stimulating question

4. •Topic for Learning through Evocation:

5. 2. Topic Introduction:
• Broken Twill weave and Transposed twill weaves

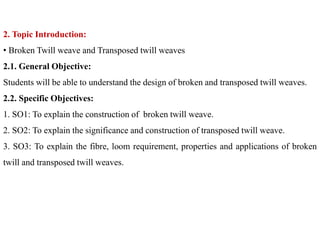

2.1. General Objective:
Students will be able to understand the design of broken and transposed twill weaves.
2.2. Specific Objectives:
1. SO1: To explain the construction of broken twill weave.
2. SO2: To explain the significance and construction of transposed twill weave.
3. SO3: To explain the fibre, loom requirement, properties and applications of broken
twill and transposed twill weaves.

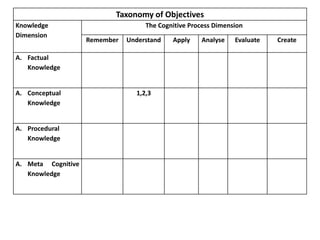

6. Taxonomy of Objectives
Knowledge
Dimension
The Cognitive Process Dimension
Remember Understand Apply Analyse Evaluate Create
A. Factual
Knowledge
A. Conceptual
Knowledge
1,2,3
A. Procedural
Knowledge
A. Meta Cognitive
Knowledge

7. 2.4. Key words:
Design, Broken draft, Peg plan, Twill angle
2.5. Reference book
Fabric Structure and Design by N.Gokernasan, PP-46-48
2.6. Key diagrams (if any): -
Broken Twill Weave Transposed Twill

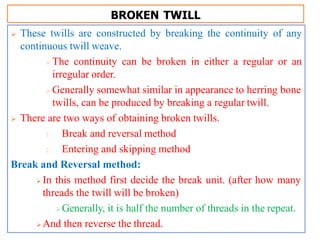

8. BROKEN TWILL
 These twills are constructed by breaking the continuity of any
continuous twill weave.
 The continuity can be broken in either a regular or an
irregular order.
 Generally somewhat similar in appearance to herring bone
twills, can be produced by breaking a regular twill.
 There are two ways of obtaining broken twills.
1. Break and reversal method
2. Entering and skipping method
Break and Reversal method:
 In this method first decide the break unit. (after how many
threads the twill will be broken)
Generally, it is half the number of threads in the repeat.
 And then reverse the thread.

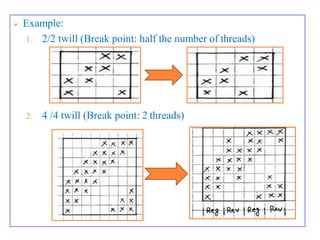

9.  Example:
1. 2/2 twill (Break point: half the number of threads)
2. 4 /4 twill (Break point: 2 threads)

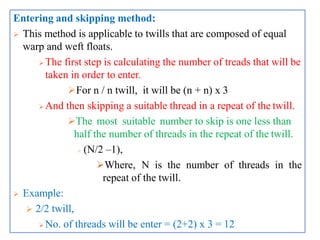

10. Entering and skipping method:
 This method is applicable to twills that are composed of equal
warp and weft floats.
 The first step is calculating the number of treads that will be
taken in order to enter.
For n / n twill, it will be (n + n) x 3
 And then skipping a suitable thread in a repeat of the twill.
The most suitable number to skip is one less than
half the number of threads in the repeat of the twill.
 (N/2 –1),
Where, N is the number of threads in the
repeat of the twill.
 Example:
 2/2 twill,

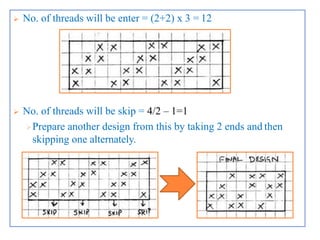

 No. of threads will be enter = (2+2) x 3 = 12

11.  No. of threads will be enter = (2+2) x 3 = 12
 No. of threads will be skip = 4/2 – 1=1
Prepare another design from this by taking 2 ends and then
skipping one alternately.

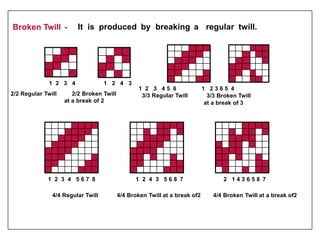

12. Broken Twill - It is produced by breaking a regular twill.
1 2 3 4 1 2 4 3
2/2 Regular Twill 2/2 Broken Twill
at a break of 2
1 2 3 4 5 6
3/3 Regular Twill
1 2 3 6 5 4
3/3 Broken Twill
at a break of 3
1 2 3 4 5 6 7 8 1 2 4 3 5 6 8 7 2 1 4 3 6 5 8 7
4/4 Regular Twill 4/4 Broken Twill at a break of2 4/4 Broken Twill at a break of2

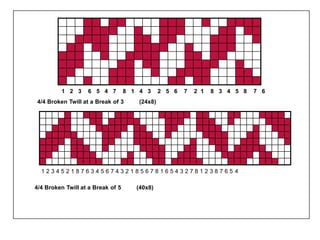

13. 1 2 3 6 5 4 7 8 1 4 3 2 5 6 7 2 1 8 3 4 5 8 7 6
4/4 Broken Twill at a Break of 3 (24x8)
1 2 3 4 5 2 1 8 7 6 3 4 5 6 7 4 3 2 1 8 5 6 7 8 1 6 5 4 3 2 7 8 1 2 3 8 7 6 5 4
4/4 Broken Twill at a Break of 5 (40x8)

14. COMBINATION TWILL
 In these types of weaves two different types of twills are
combined together alternately.
 The combination may be warp way or weft way.
 Accordingly warp or weft faced twills may be used suitably.
 These twills are constructed by two methods:
1. End and end combination
2. Pick and pick combination
 In the first method the twill weaves are combined
end way and in the second method twill weaves are
combined in pick way.
 The type of draft used here is the skipped draft.
 The heald shafts are divided into two groups,
 The first group controls the first design and the
second heald shaft controls the second design.

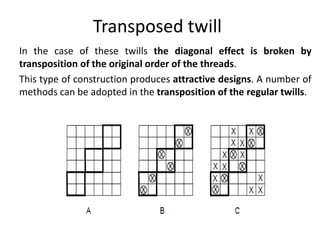

16. Transposed twill
In the case of these twills the diagonal effect is broken by
transposition of the original order of the threads.
This type of construction produces attractive designs. A number of
methods can be adopted in the transposition of the regular twills.

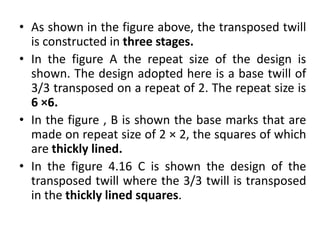

17. • As shown in the figure above, the transposed twill
is constructed in three stages.
• In the figure A the repeat size of the design is
shown. The design adopted here is a base twill of
3/3 transposed on a repeat of 2. The repeat size is
6 ×6.
• In the figure , B is shown the base marks that are
made on repeat size of 2 × 2, the squares of which
are thickly lined.
• In the figure 4.16 C is shown the design of the
transposed twill where the 3/3 twill is transposed
in the thickly lined squares.

18. SUMMARY
 These twills are constructed by breaking the continuity of any
continuous twill weave.
 There are two ways of obtaining broken twills.
1. Break and reversal method
2. Entering and skipping method
 In these types of weaves two different types of twills are
combined together alternately.
 The combination may be warp way or weft way.
 Accordingly warp or weft faced twills may be used suitably.
 In the case of these twills the diagonal effect is broken by
transposition of the original order of the threads.

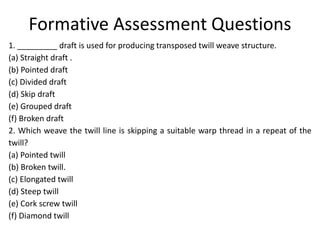

19. Formative Assessment Questions
1. _________ draft is used for producing transposed twill weave structure.
(a) Straight draft .
(b) Pointed draft
(c) Divided draft
(d) Skip draft
(e) Grouped draft
(f) Broken draft
2. Which weave the twill line is skipping a suitable warp thread in a repeat of the
twill?
(a) Pointed twill
(b) Broken twill.
(c) Elongated twill
(d) Steep twill
(e) Cork screw twill
(f) Diamond twill

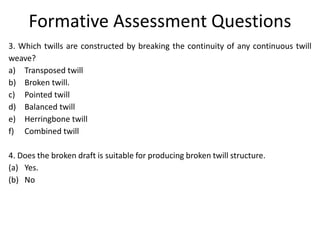

20. Formative Assessment Questions
3. Which twills are constructed by breaking the continuity of any continuous twill
weave?
a) Transposed twill
b) Broken twill.
c) Pointed twill
d) Balanced twill
e) Herringbone twill
f) Combined twill
4. Does the broken draft is suitable for producing broken twill structure.
(a) Yes.
(b) No
