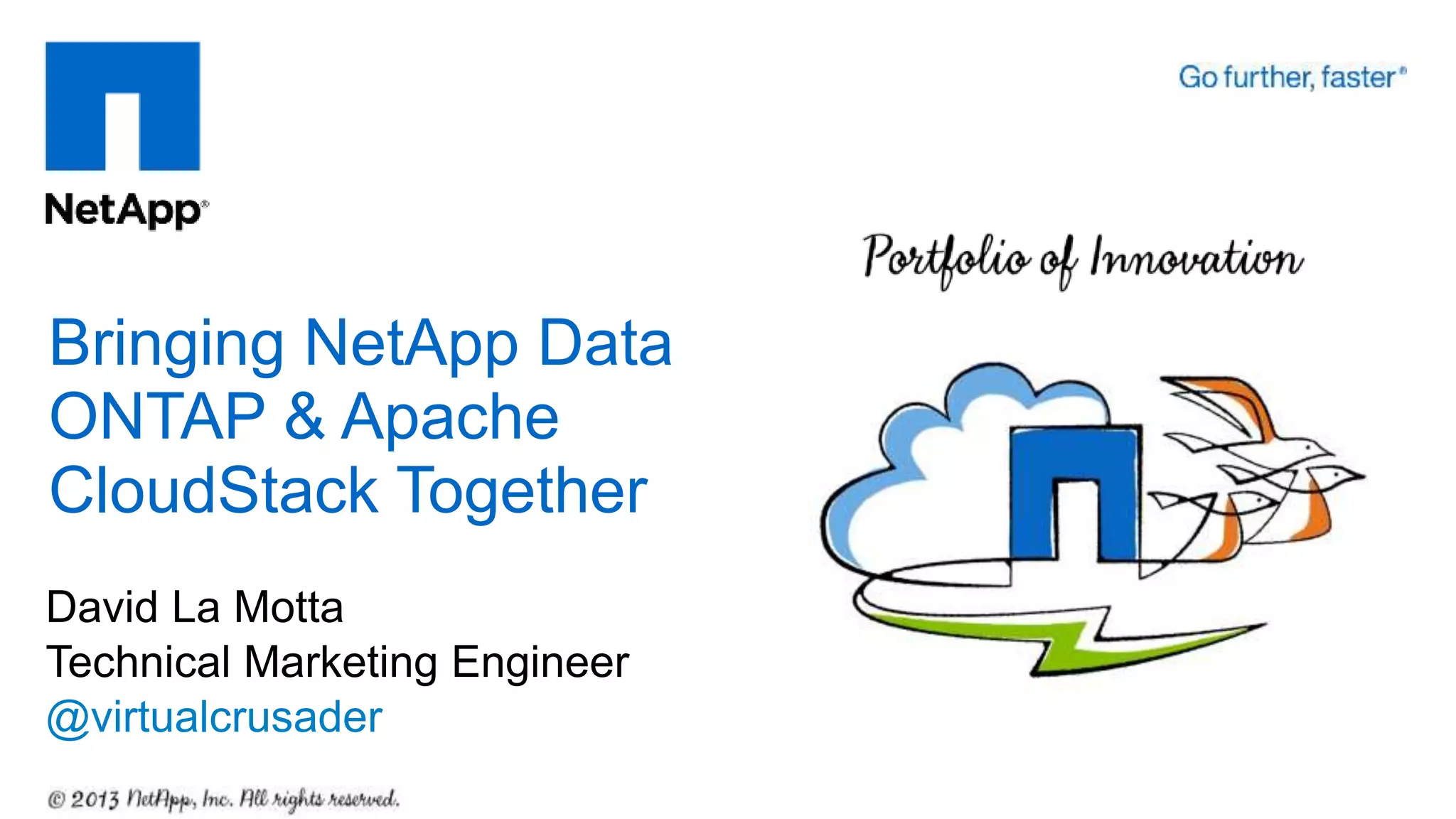

1. David La Motta
Technical Marketing Engineer
@virtualcrusader
Bringing NetApp Data
ONTAP & Apache
CloudStack Together

2. 2
 Clustered Data ONTAP, goodness for
the cloud
 Orchestrating storage management via
the Virtual Storage Console – demo!
 Pedal to the metal: deploying
CloudPlatform on FlexPod

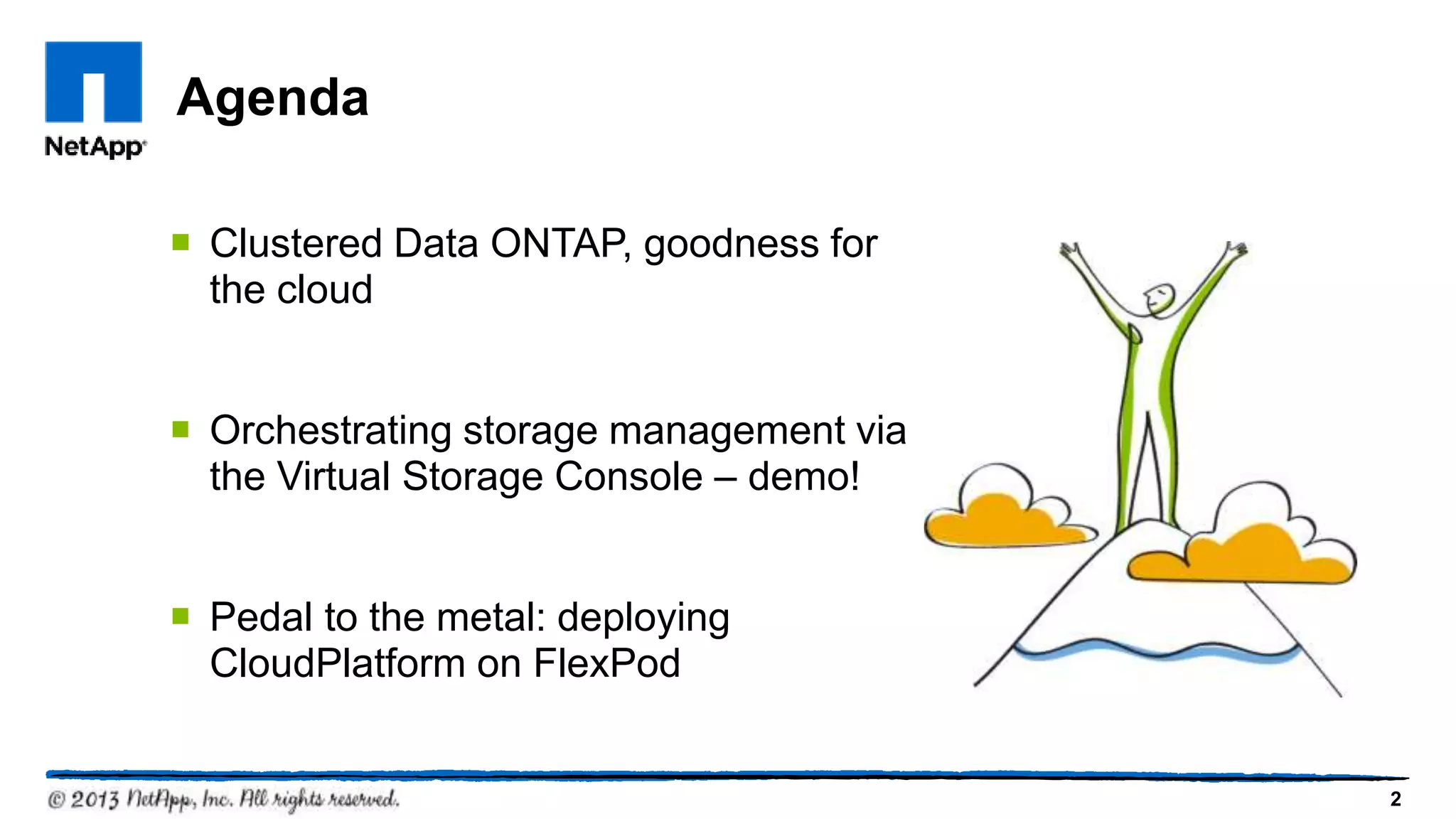

Agenda

3. 3
Clustered Data
ONTAP, goodness for
the cloud

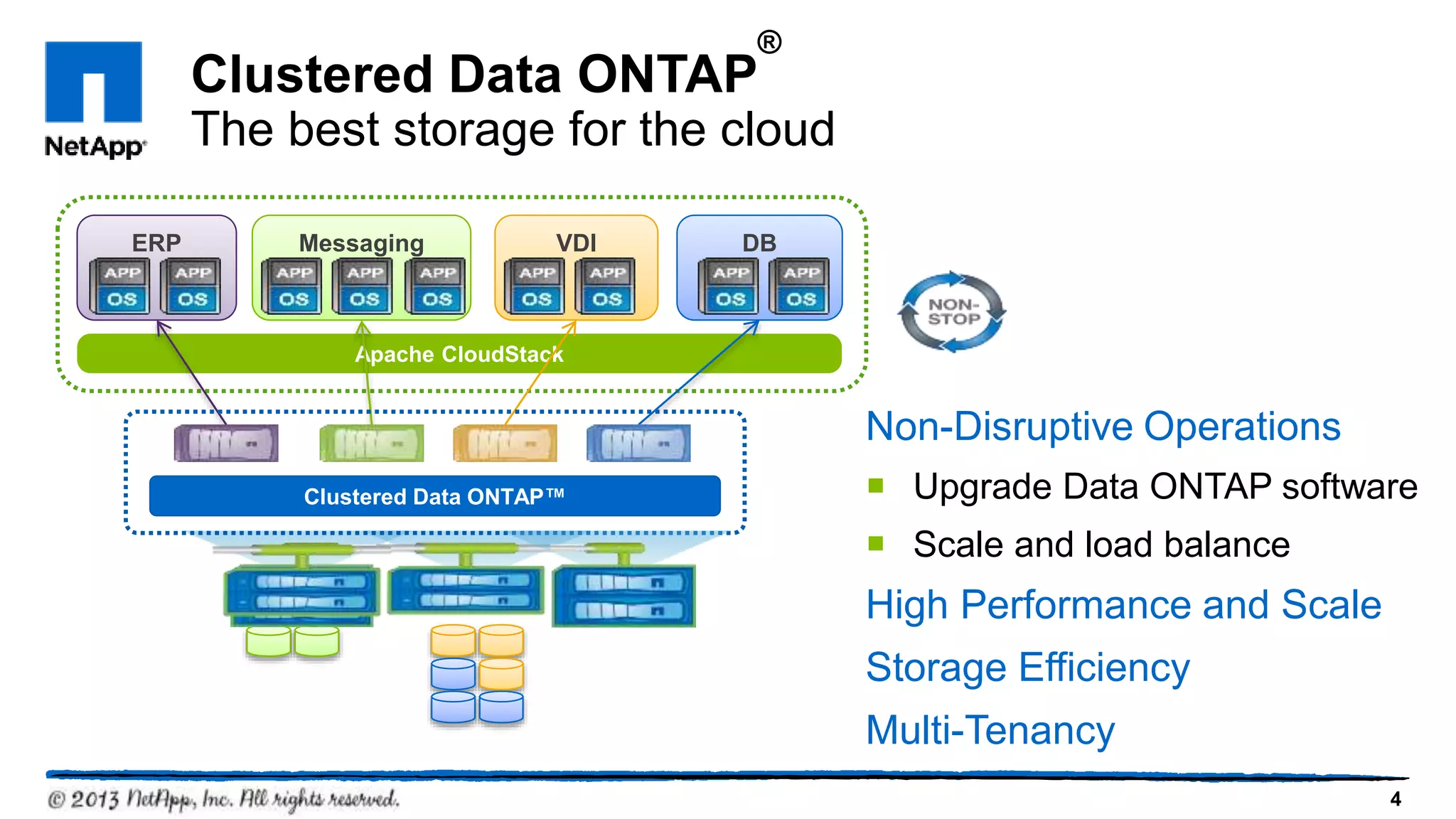

4. 4
Apache CloudStack
Clustered Data ONTAP
®
The best storage for the cloud
Non-Disruptive Operations
 Upgrade Data ONTAP software
 Scale and load balance
High Performance and Scale
Storage Efficiency
Multi-Tenancy
DBVDIMessagingERP
Clustered Data ONTAP™

5. 5
Snapshot™
Point-in-time copies that write only
changed blocks. Minimal
performance penalty.
Virtual Copies (FlexClone
®
)
Near-zero-space, instant
“virtual” copies. Only
subsequent changes in cloned
data set get stored.
Thin Provisioning (FlexVol
®
)
Create flexible volumes that appear
to be a certain size but are really a
much smaller pool.
RAID 6 Protection (RAID-DP
®
)
Helps protect against double disk
failure with little performance penalty.
Deduplication
Removes data redundancies
in primary and secondary
storage.
Thin Replication
(SnapVault
®
/SnapMirror
®
)
Make data copies for disaster
recovery and backup using a minimal
amount of space.

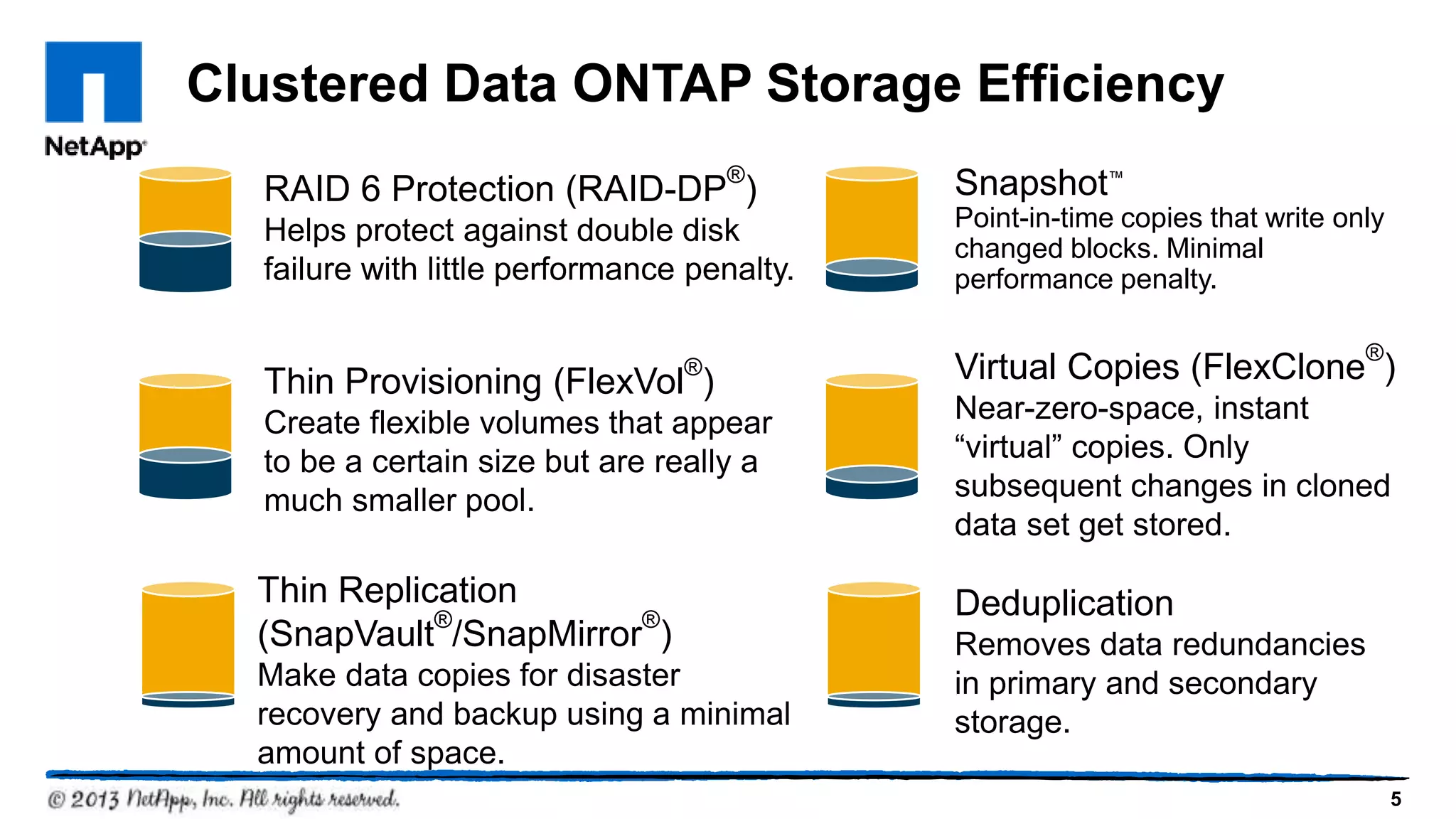

Clustered Data ONTAP Storage Efficiency

6. 6
Orchestrating storage
management with the
Virtual Storage
Console - demo

7. 7

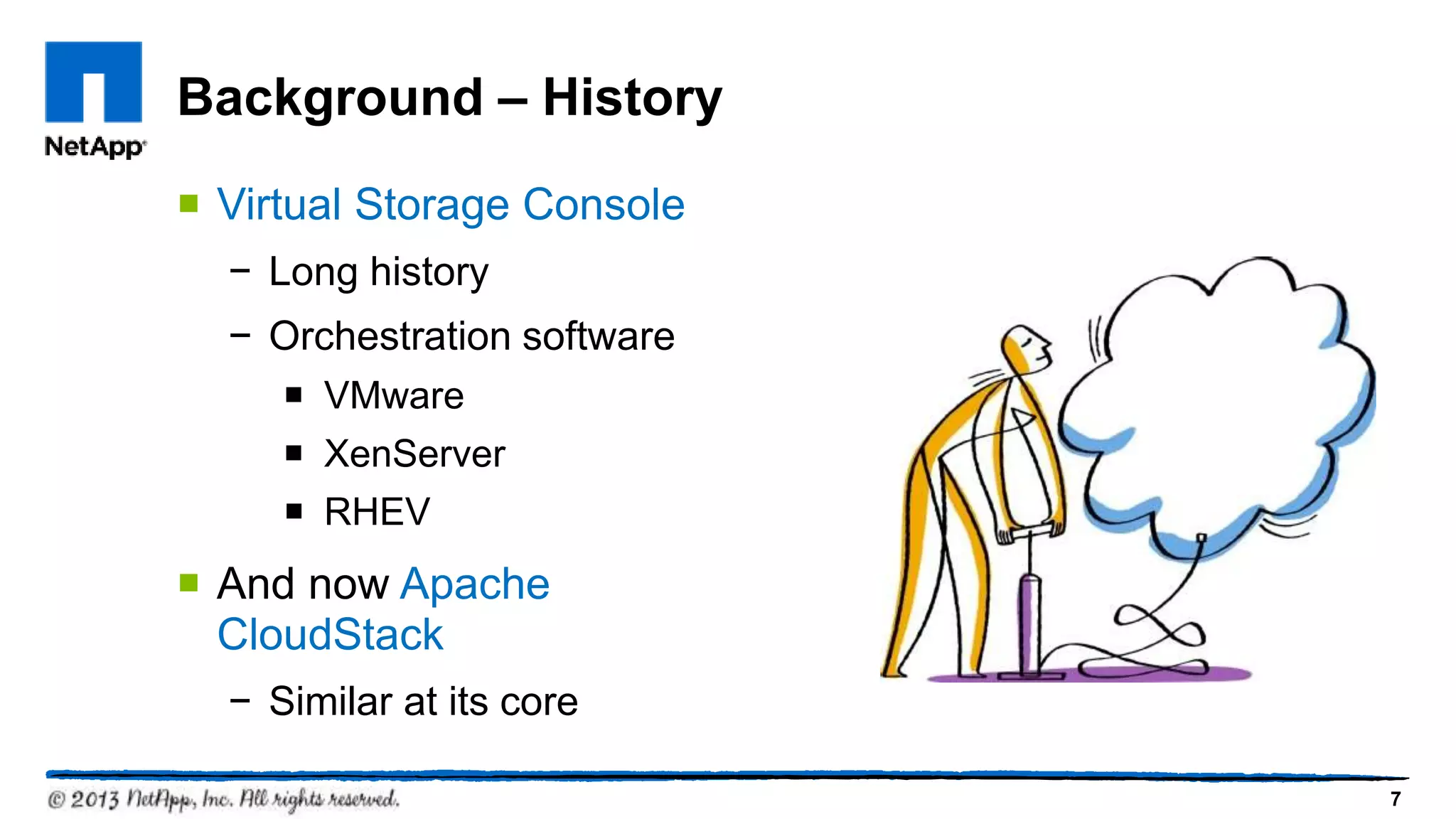

 Virtual Storage Console
− Long history
− Orchestration software
 VMware
 XenServer
 RHEV
 And now Apache
CloudStack
− Similar at its core
Background – History

8. 8

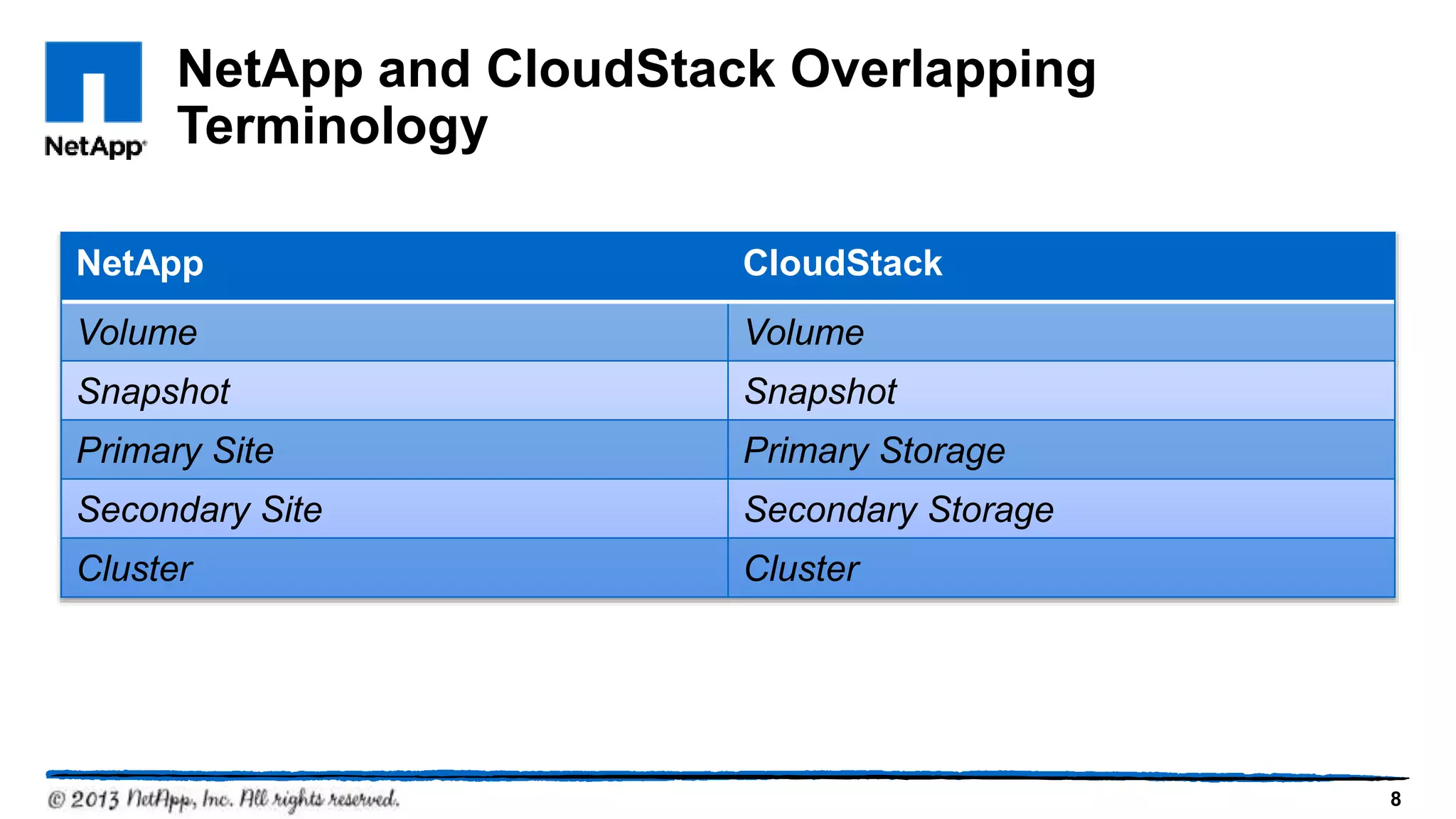

NetApp and CloudStack Overlapping
Terminology
NetApp CloudStack
Volume Volume
Snapshot Snapshot
Primary Site Primary Storage
Secondary Site Secondary Storage
Cluster Cluster

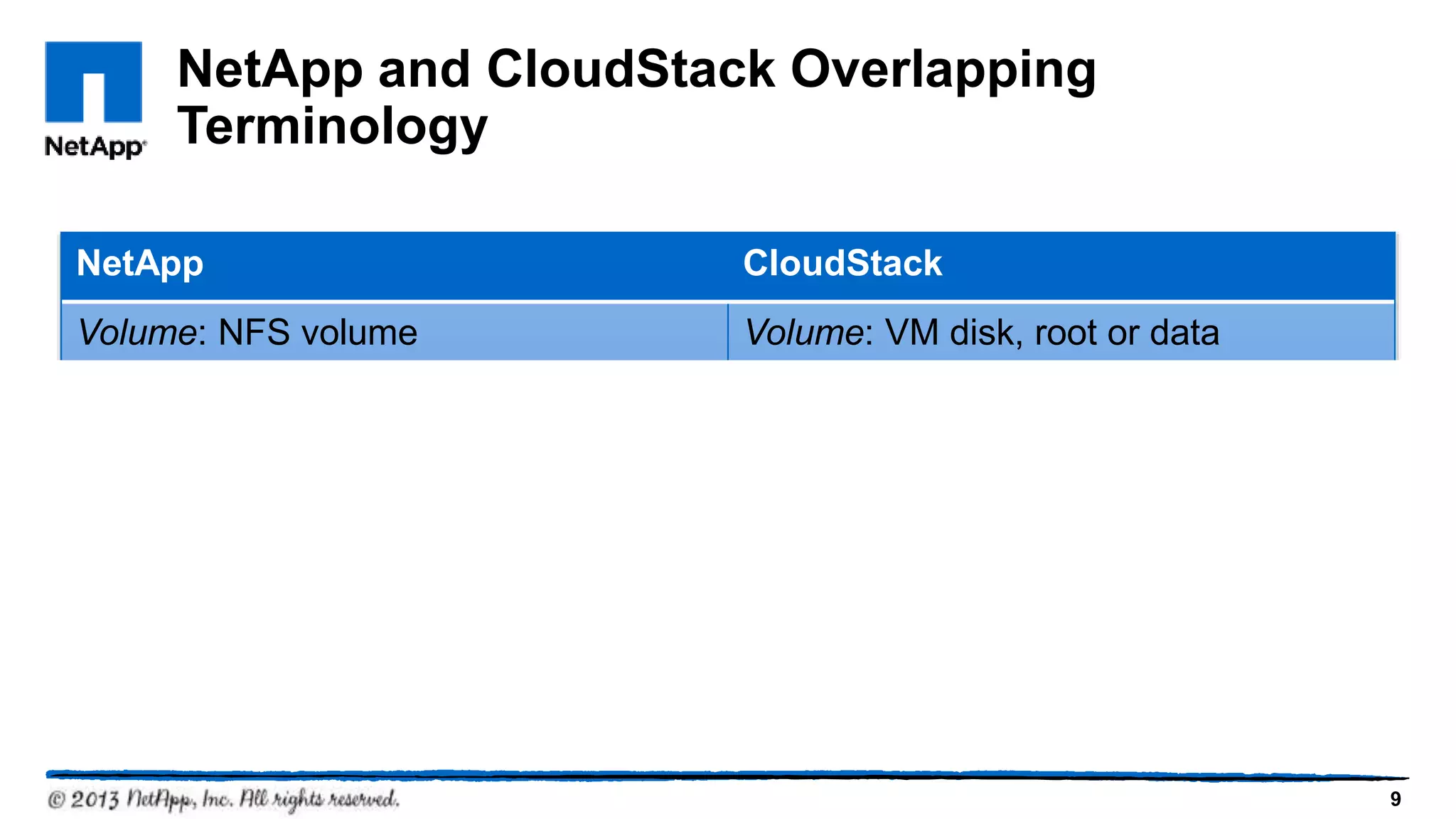

9. 9
NetApp and CloudStack Overlapping
Terminology
NetApp CloudStack
Volume: NFS volume Volume: VM disk, root or data
Snapshot: volume snapshot Snapshot: VM backup
Primary: SnapVault primary site Primary Storage: hosts VMs
Secondary: SnapVault secondary site Secondary Storage: templates, ISOs
Cluster: collection of NetApp controllers Cluster: collection of hypervisors

10. 10
 What the integration consists of:
− Backup & Recovery (VMware, MySQL)
− Storage Provisioning (v1 only NFS)
− Resize, destroy, dedupe
− Storage analytics
− API Integrated

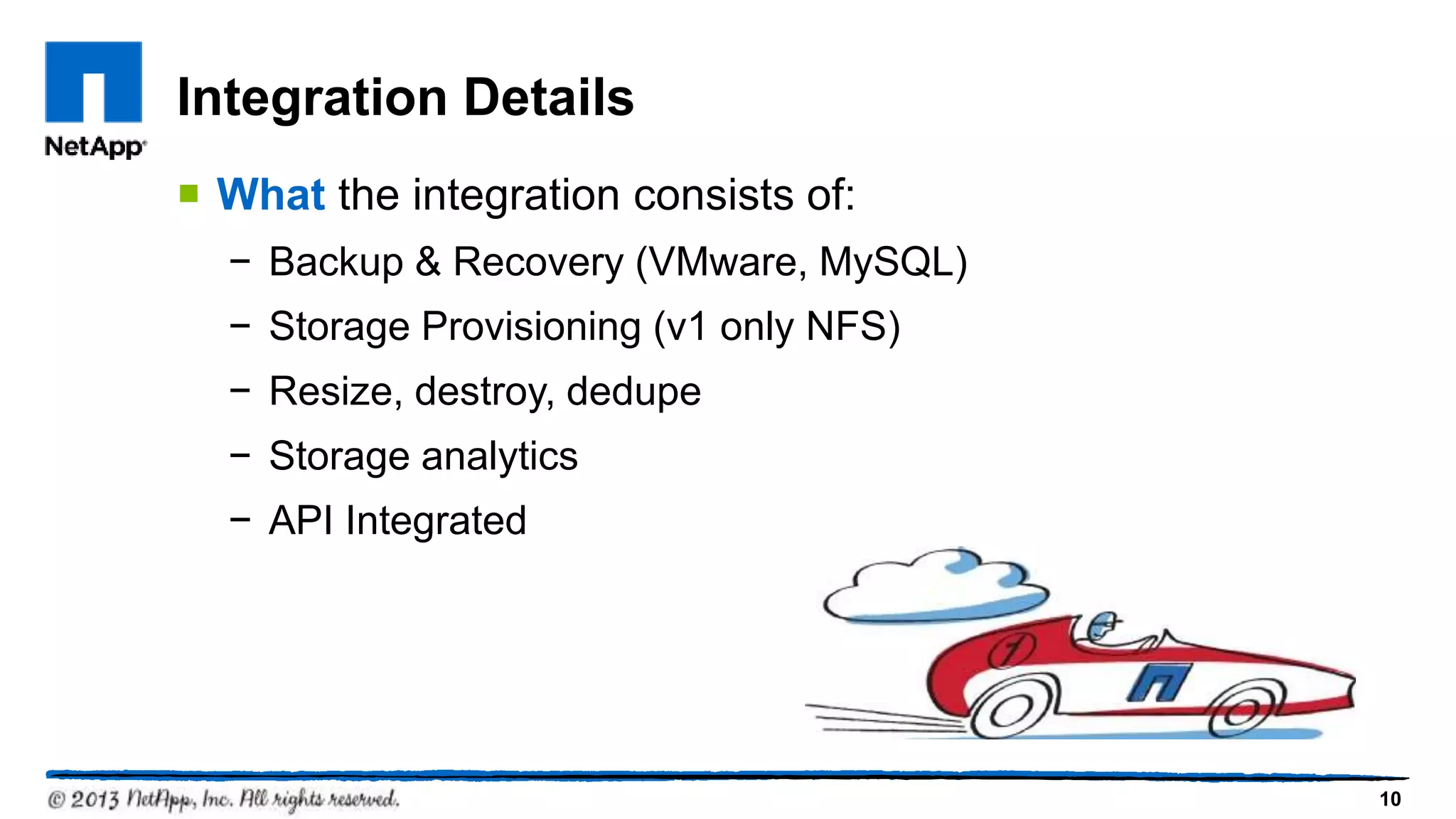

Integration Details

11. 11
 Strategic alignment – First enterprise-class
storage vendor to provide deep integrations
 How is the integration being delivered:
− UI / API Plug-in
− Clustered Data ONTAP 8.2 & 8.2.1
− RPM Installer

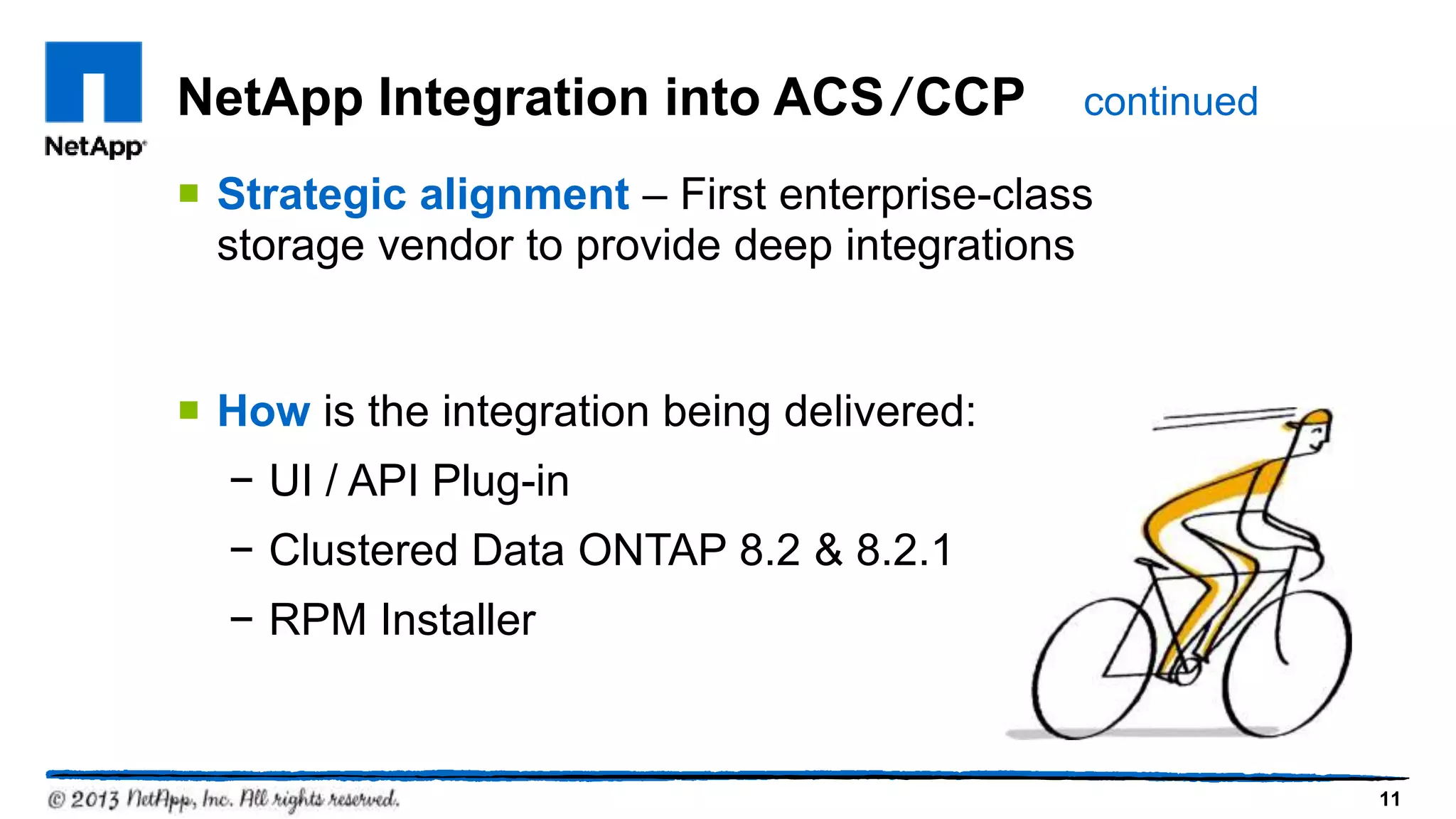

NetApp Integration into ACS/ CCP continued

12. 12

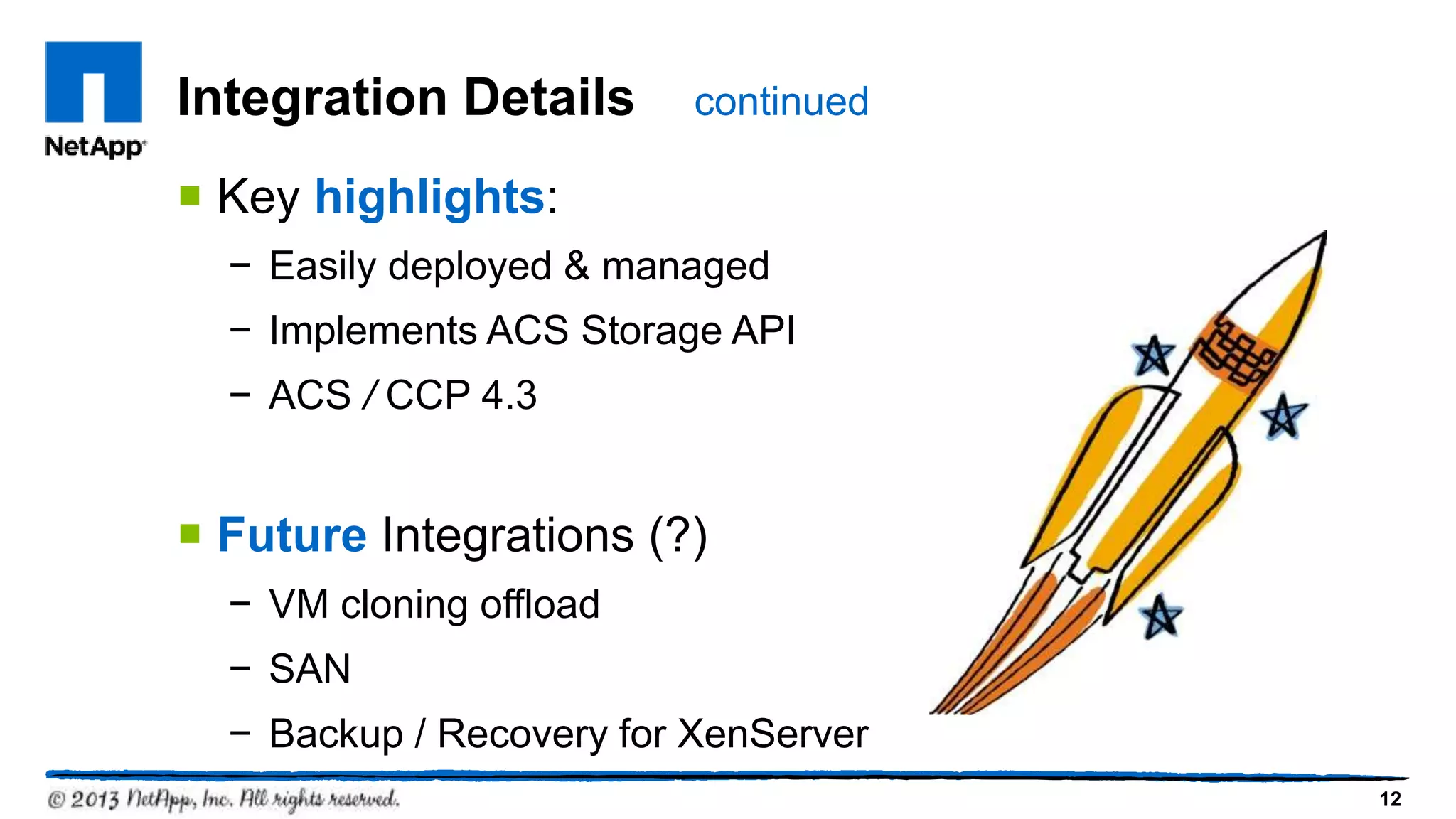

 Key highlights:
− Easily deployed & managed
− Implements ACS Storage API
− ACS / CCP 4.3
 Future Integrations (?)
− VM cloning offload
− SAN
− Backup / Recovery for XenServer
Integration Details continued

13. 13

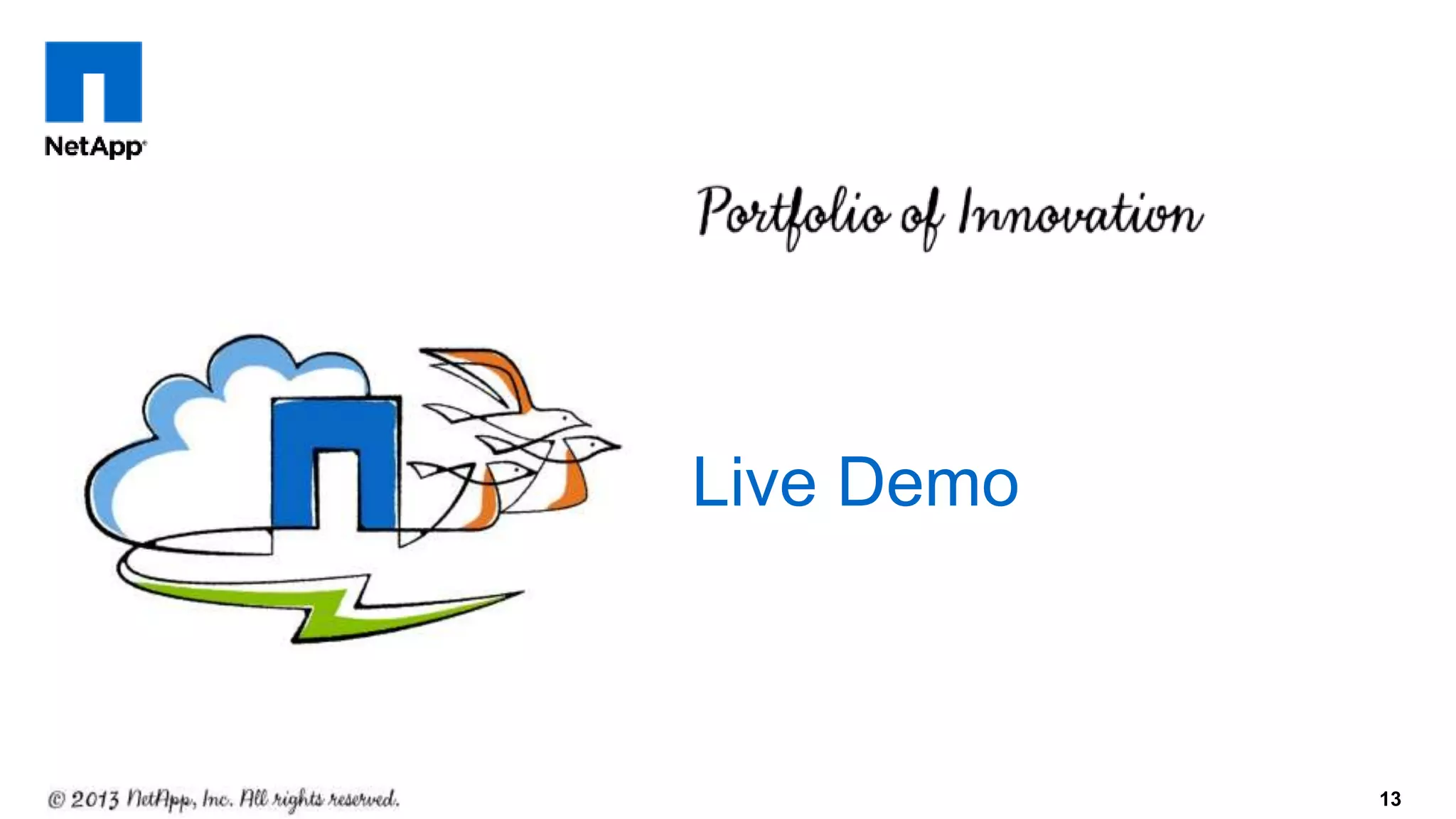

Live Demo

14. 14
Pedal to the metal:
deploying
CloudPlatform on
FlexPod

15. 15
 Delivered as Cisco Validated Design (CVD)
− Design and Deployment Best Practices
− Clustered Data ONTAP 8.2
− CloudPlatform 4.2.1
− vSphere 5.1
− Cisco UCS Manager 2.1 MR2

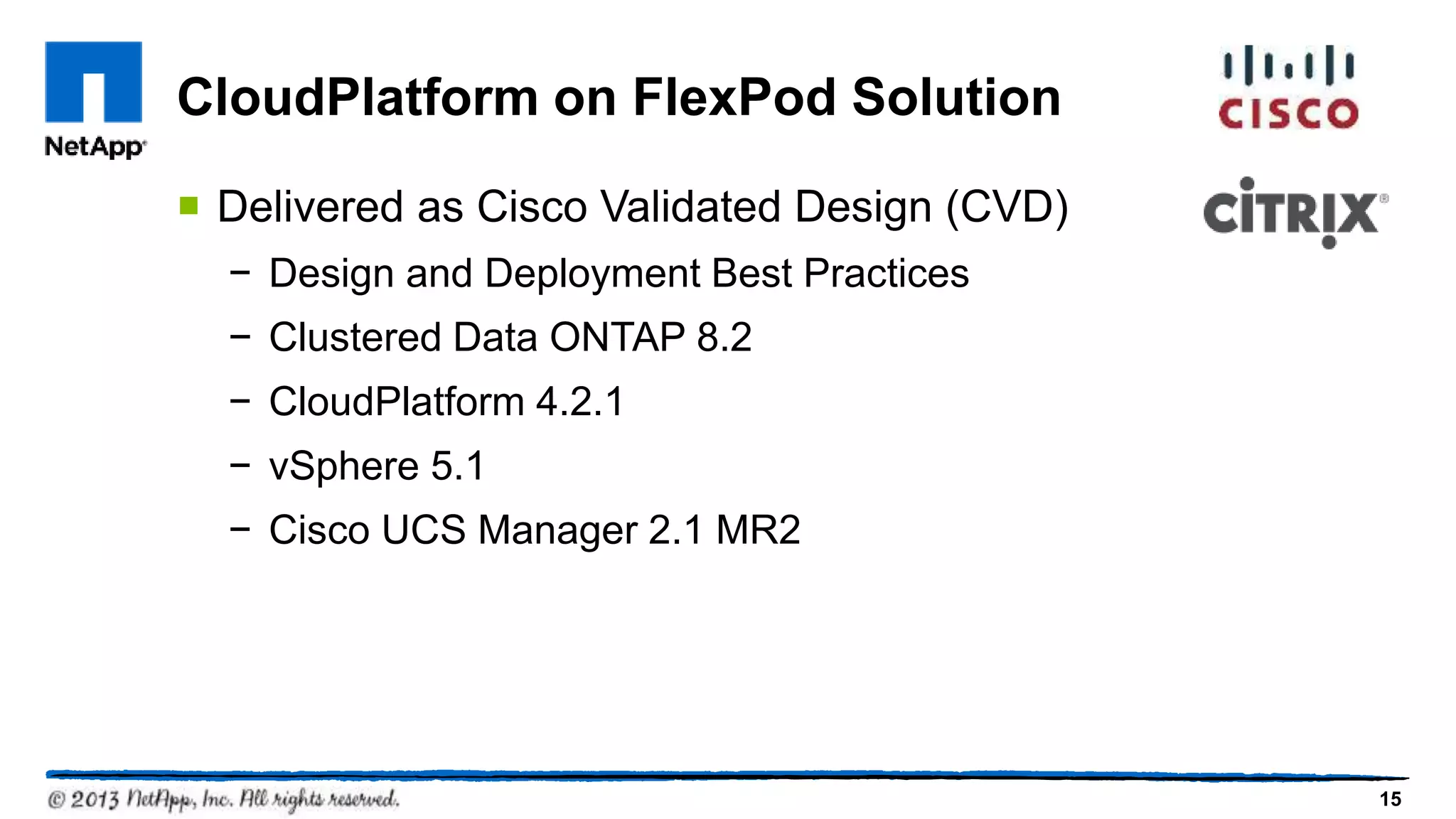

CloudPlatform on FlexPod Solution

16. 16
 Multi-tenancy through Storage Virtual Machines
 Live migration and failover testing
 Leverage Citrix integration with UCS Manager
 Other tools used in CVD:
− Cisco NetScaler 1000V Load Balancing
− NetApp OnCommand Balance, VSC for vSphere
− Citrix User Profile Manager on NetApp CIFS / SMB 3.0
 Release date: December 2013

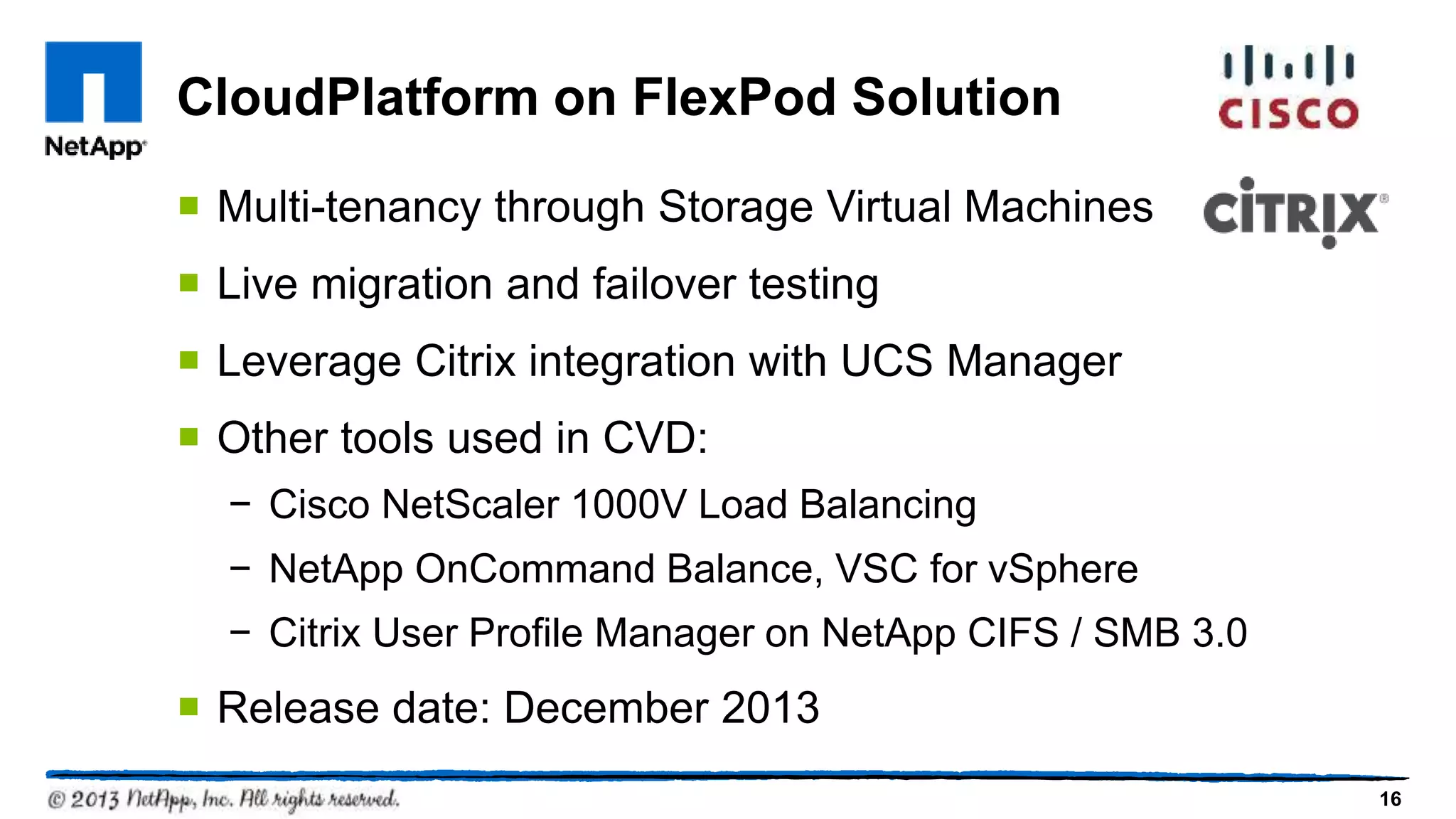

CloudPlatform on FlexPod Solution

17. 17

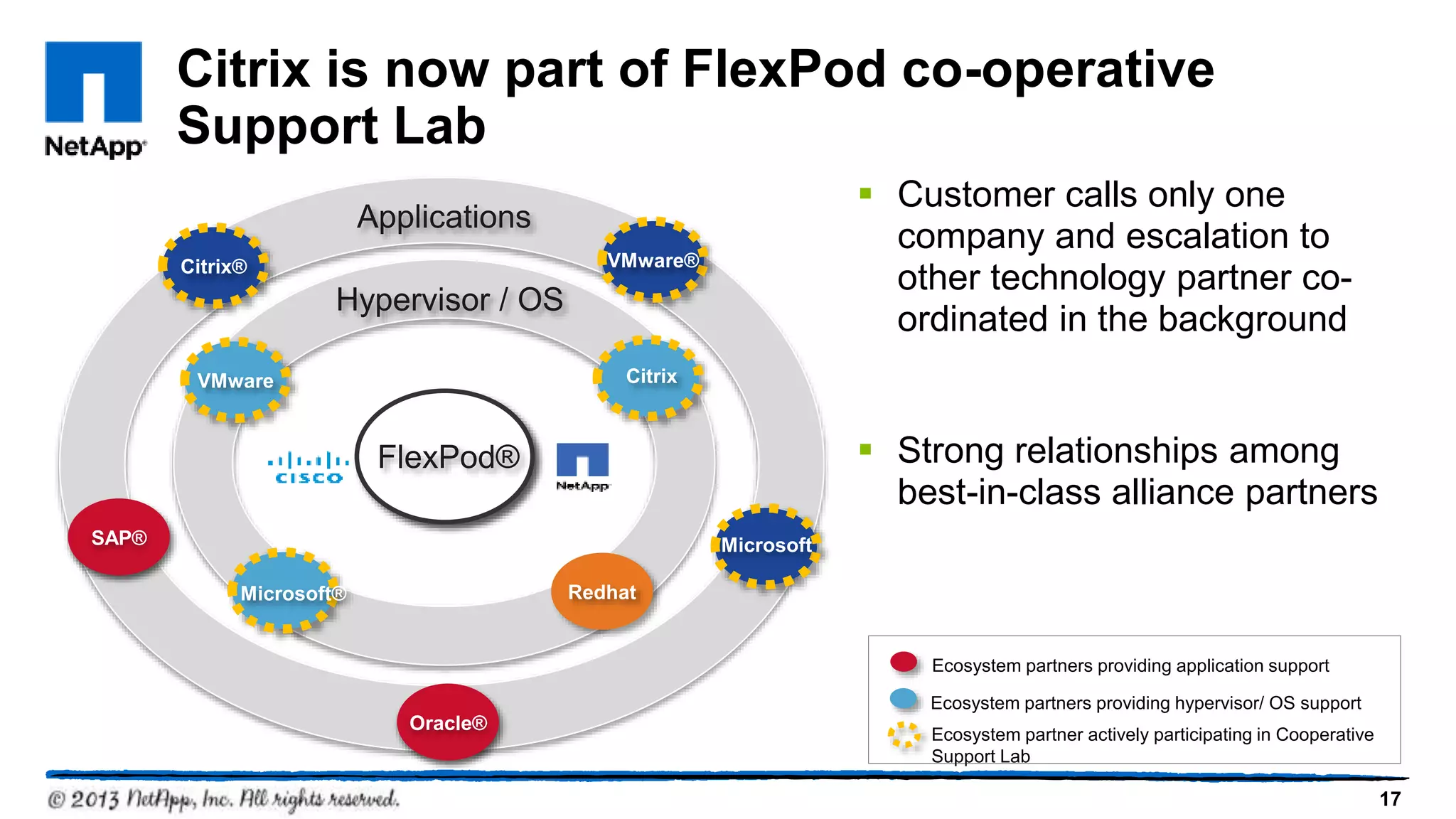

Citrix is now part of FlexPod co-operative
Support Lab
 Customer calls only one
company and escalation to
other technology partner co-
ordinated in the background
 Strong relationships among
best-in-class alliance partners
FlexPod®
Hypervisor / OS
Applications
VMware
Redhat
SAP®
Oracle®
VMware®
Ecosystem partners providing application support
Ecosystem partners providing hypervisor/ OS support
Ecosystem partner actively participating in Cooperative
Support Lab
Citrix
Citrix®
Microsoft®
Microsoft

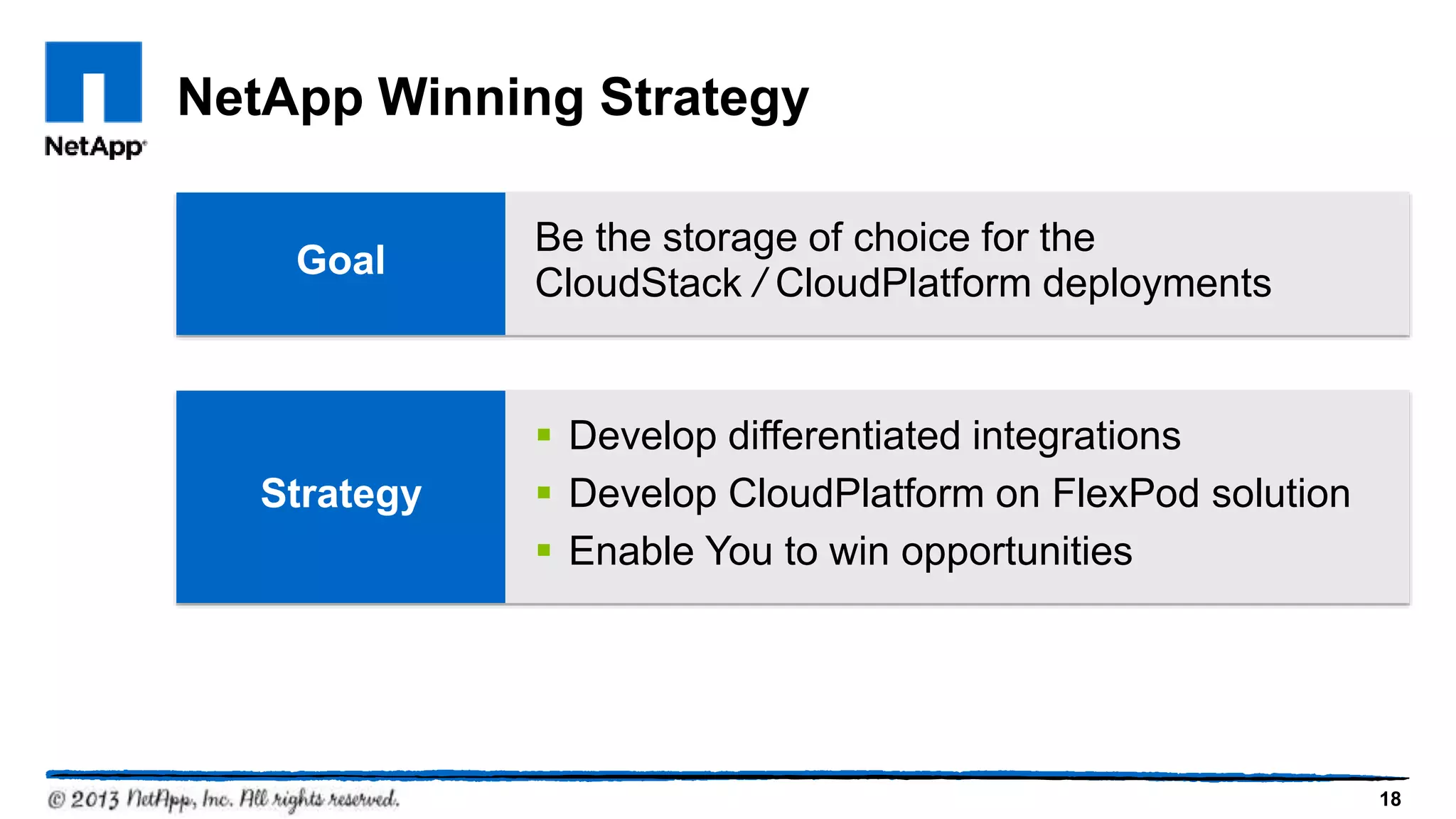

18. 18
NetApp Winning Strategy
Goal
Be the storage of choice for the
CloudStack / CloudPlatform deployments
Strategy
 Develop differentiated integrations
 Develop CloudPlatform on FlexPod solution
 Enable You to win opportunities

19. 19
Summary

20. 20
Summary
 Clustered Data ONTAP lends itself
beautifully to operate and scale in the
cloud
 Orchestrating storage management via
the Virtual Storage Console
 Citrix CloudPlatform CVD demonstrated
from a practical view how to get there

21. 21
Q & A

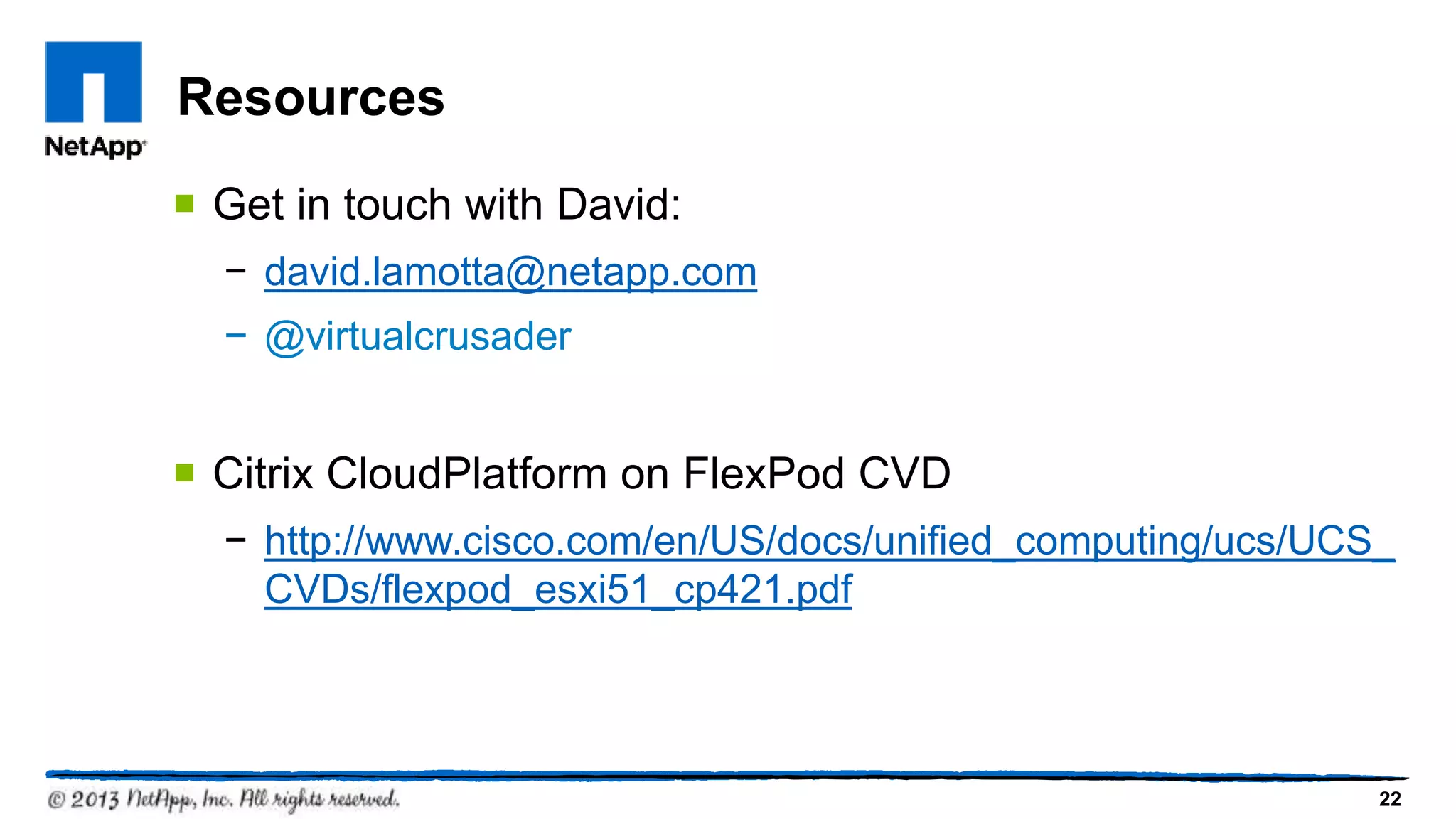

22. 22
 Get in touch with David:
− david.lamotta@netapp.com
− @virtualcrusader
 Citrix CloudPlatform on FlexPod CVD
− http://www.cisco.com/en/US/docs/unified_computing/ucs/UCS_
CVDs/flexpod_esxi51_cp421.pdf
Resources

23. 23
© 2013 NetApp, Inc. All rights reserved. No portions of this document may be reproduced without prior written consent
of NetApp, Inc. Specifications are subject to change without notice. NetApp, the NetApp logo, and Go further, faster,
are trademarks or registered trademarks of NetApp, Inc. in the United States and/or other countries. All other brands
or products are trademarks or registered trademarks of their respective holders and should be treated as such.

24. 24
Appendix

25. 25

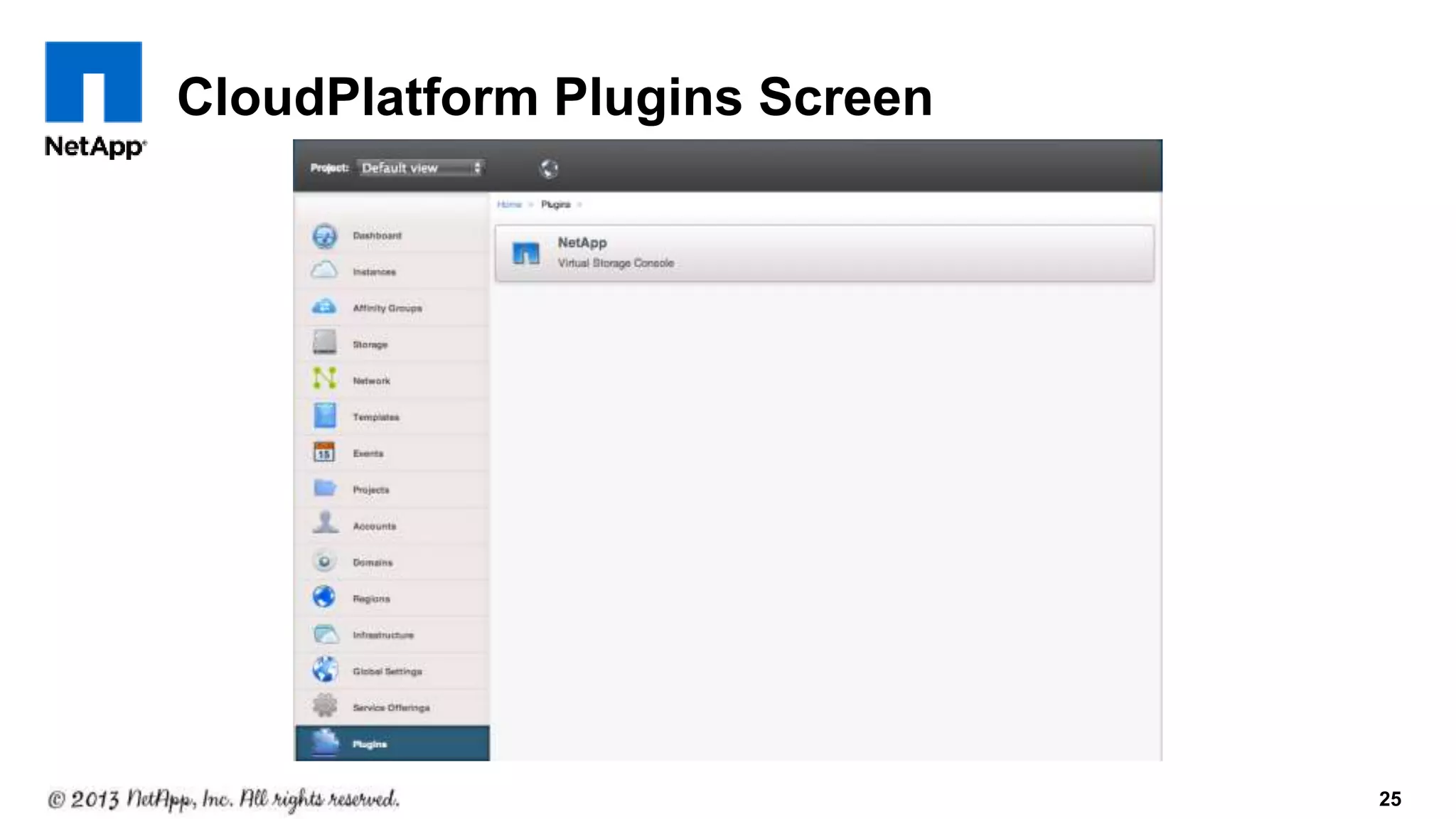

CloudPlatform Plugins Screen

26. 26

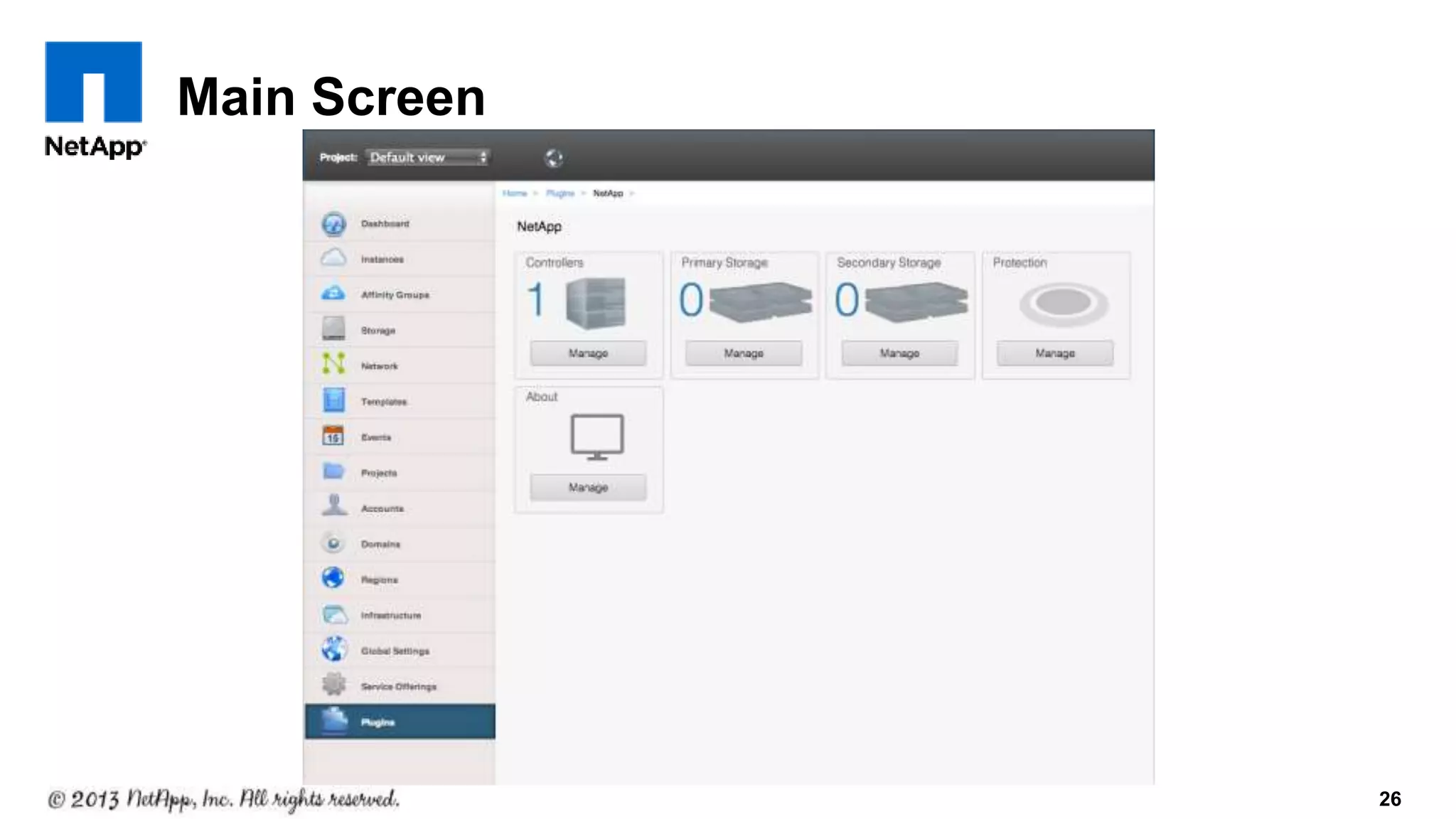

Main Screen

27. 27

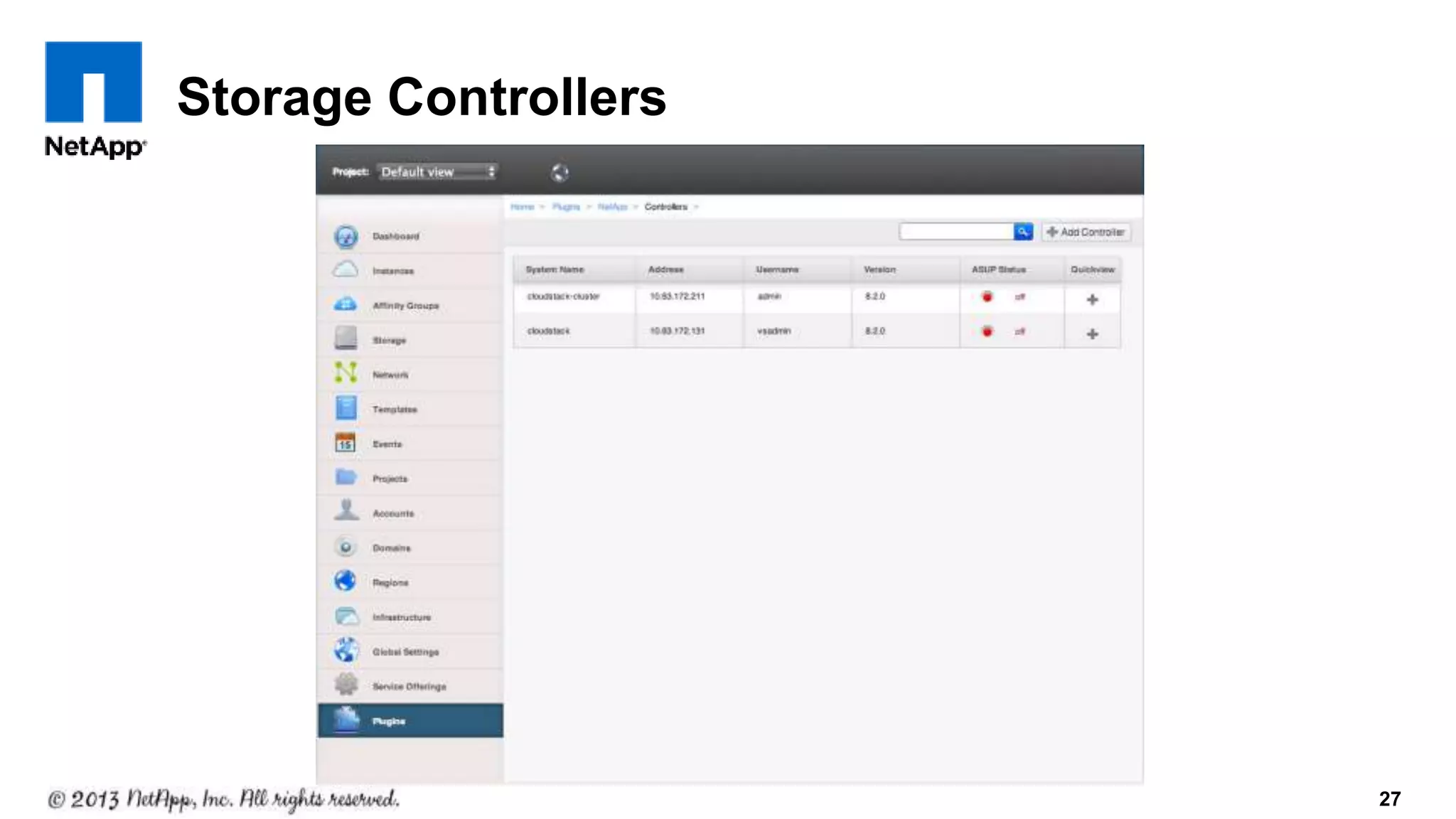

Storage Controllers

28. 28

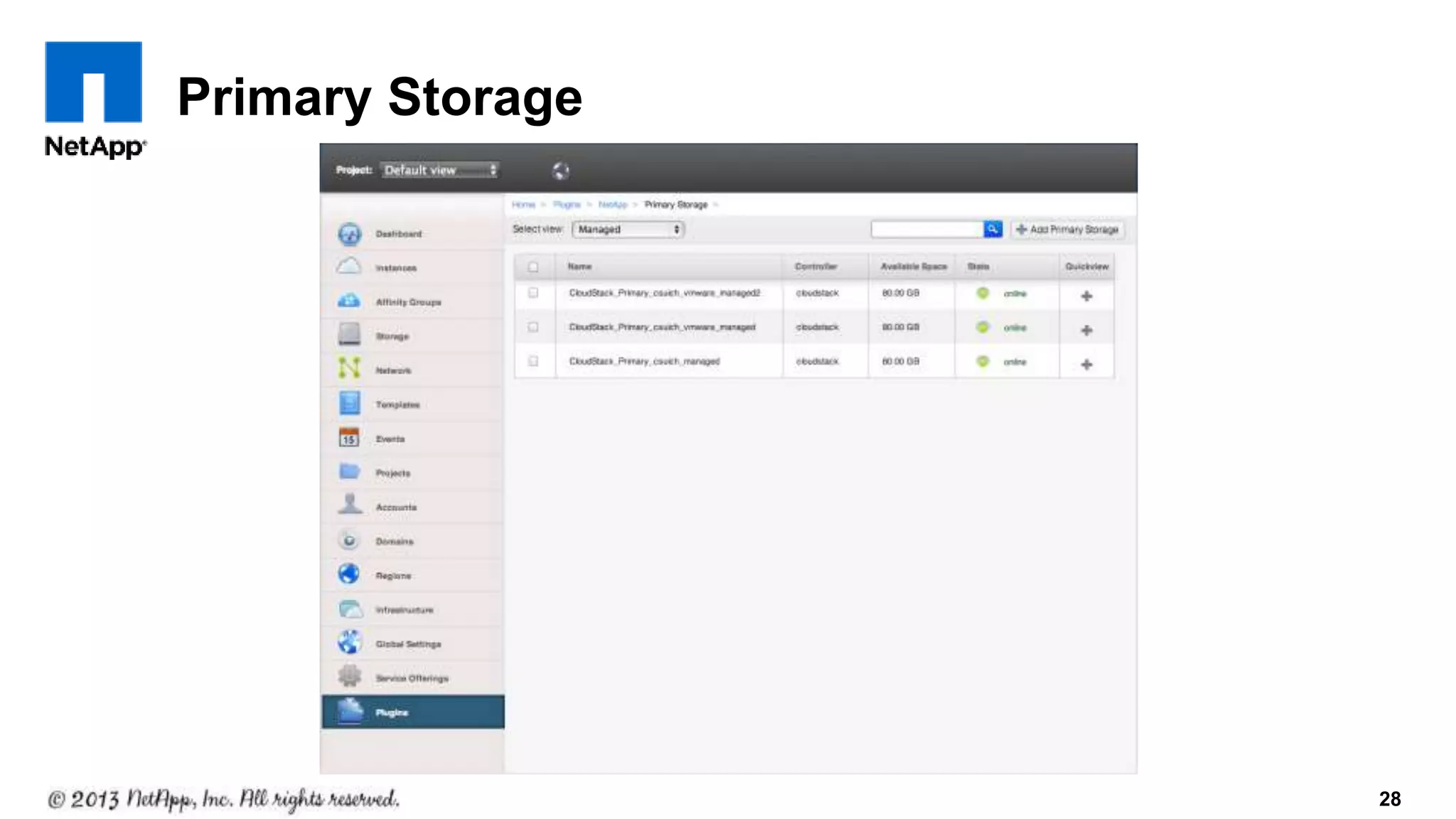

Primary Storage

29. 29

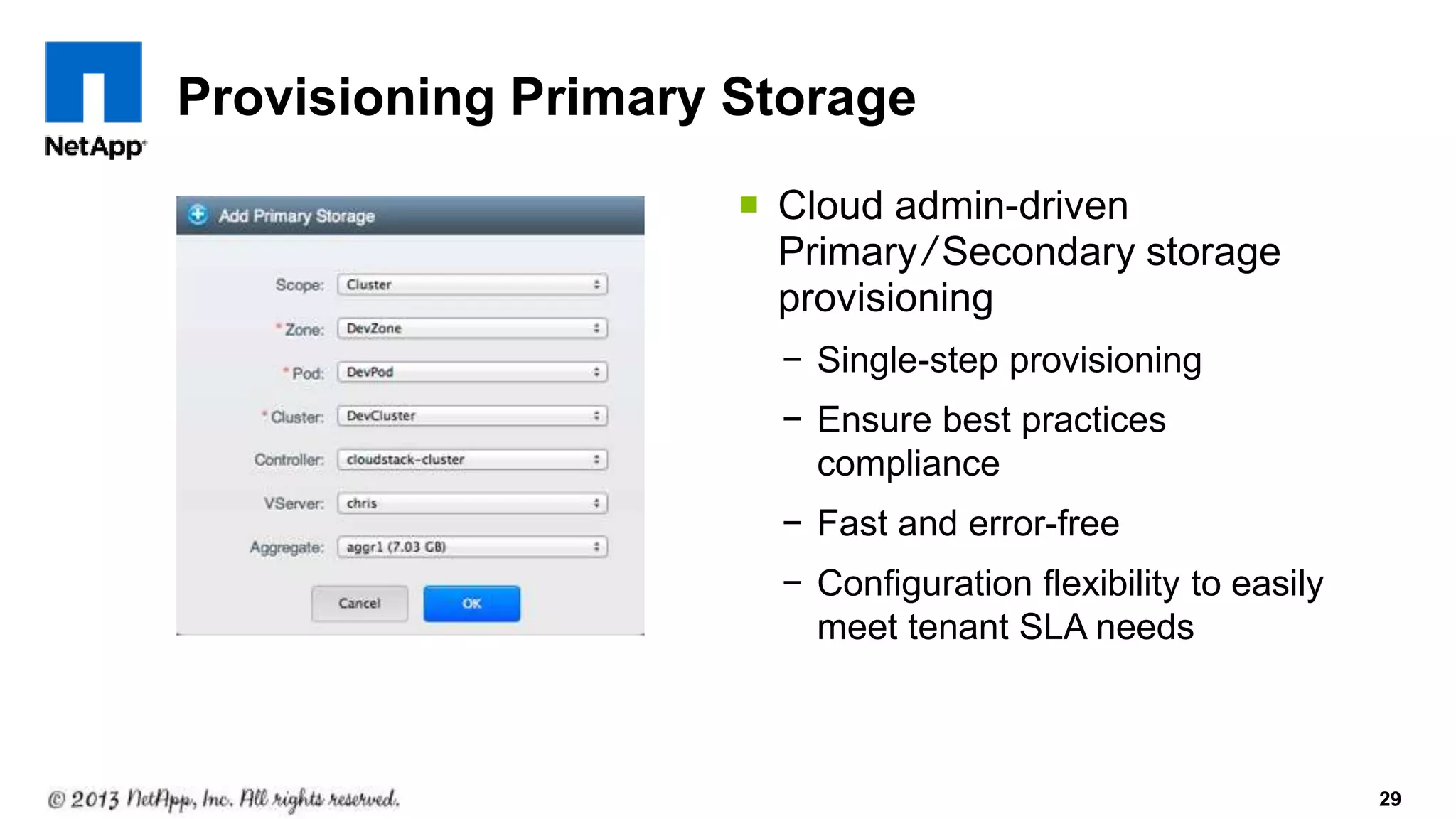

Provisioning Primary Storage
 Cloud admin-driven
Primary/ Secondary storage
provisioning
− Single-step provisioning
− Ensure best practices
compliance
− Fast and error-free
− Configuration flexibility to easily
meet tenant SLA needs

30. 30

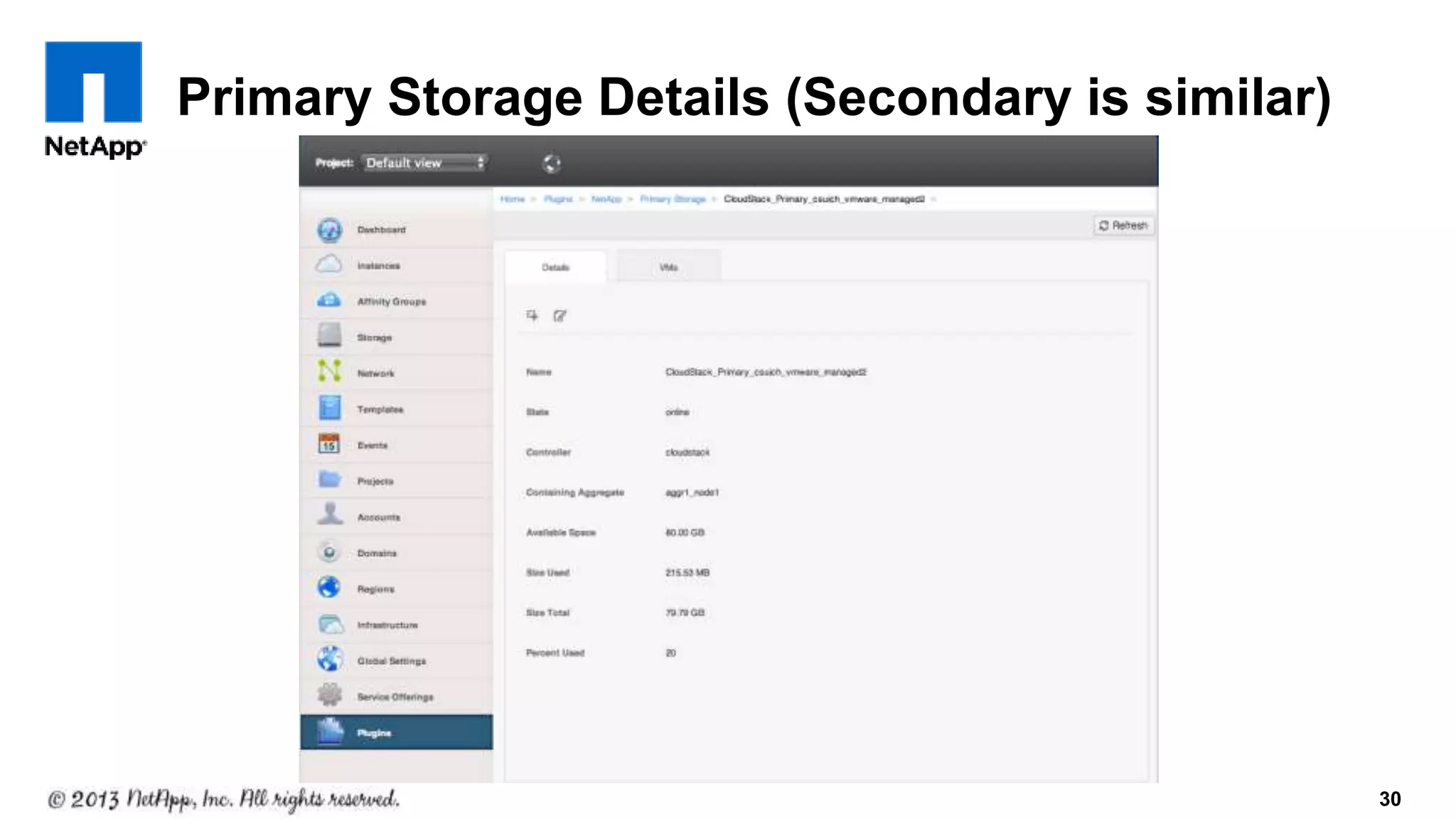

Primary Storage Details (Secondary is similar)

31. 31

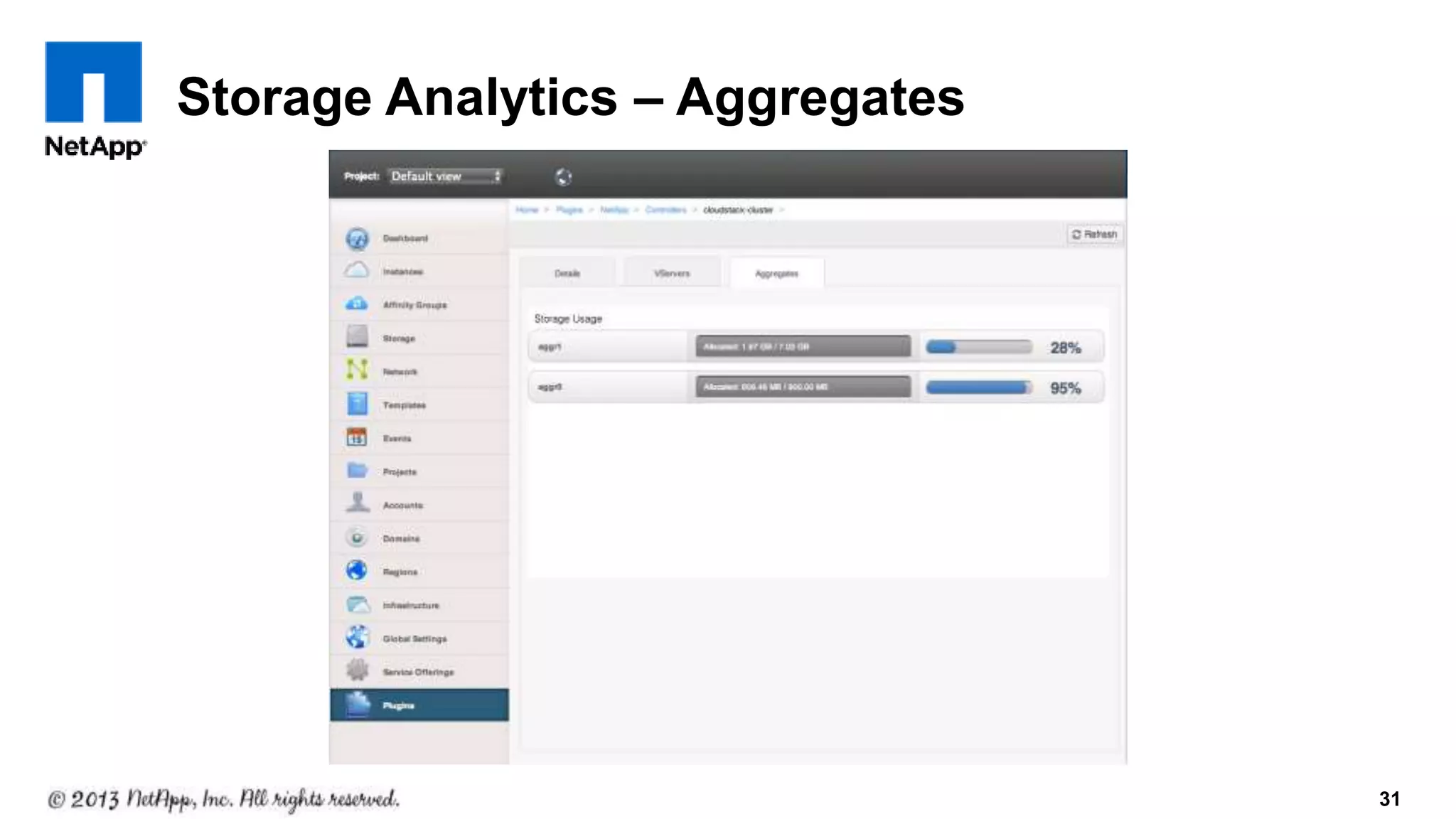

Storage Analytics – Aggregates

32. 32

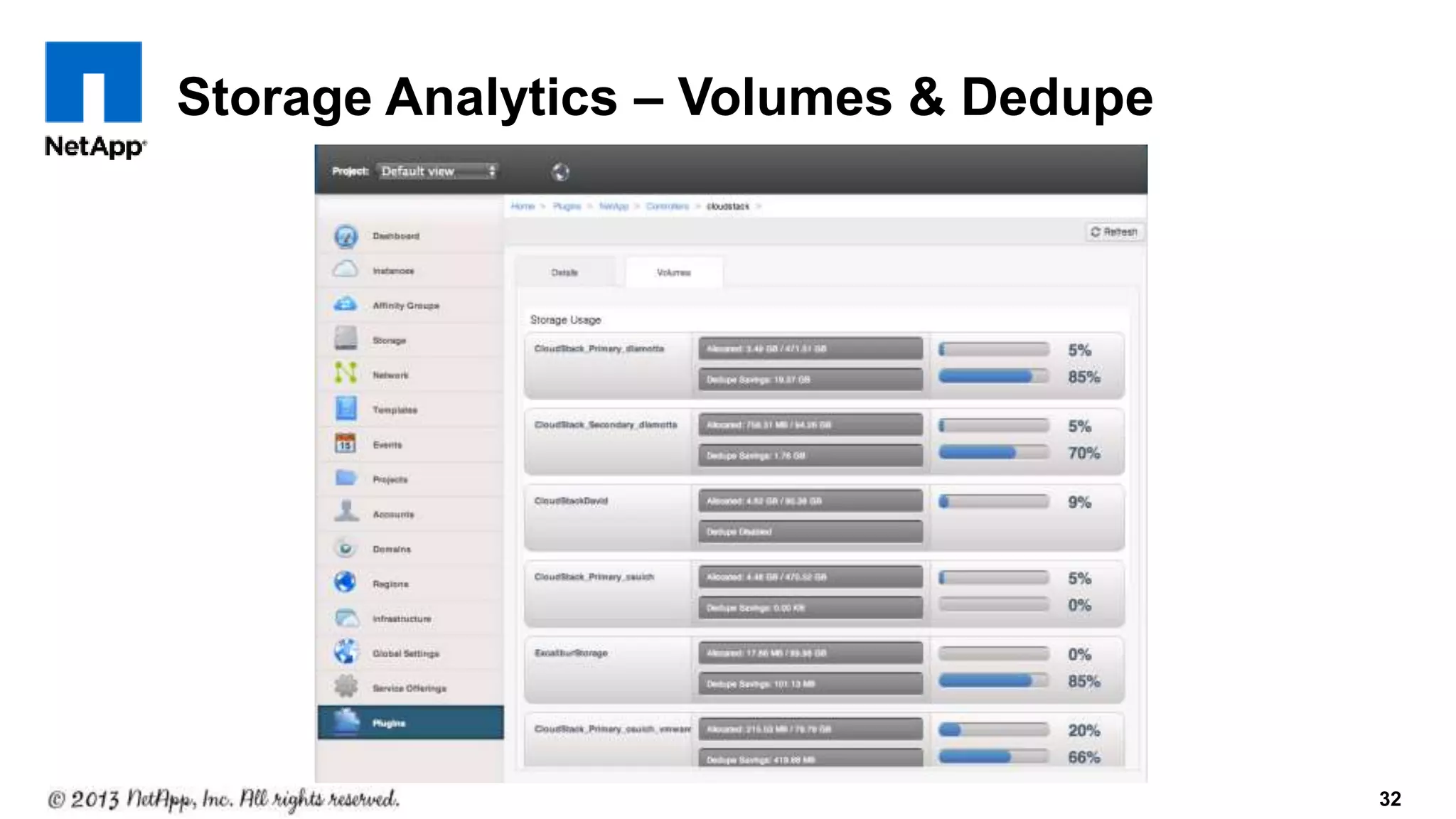

Storage Analytics – Volumes & Dedupe

33. 33

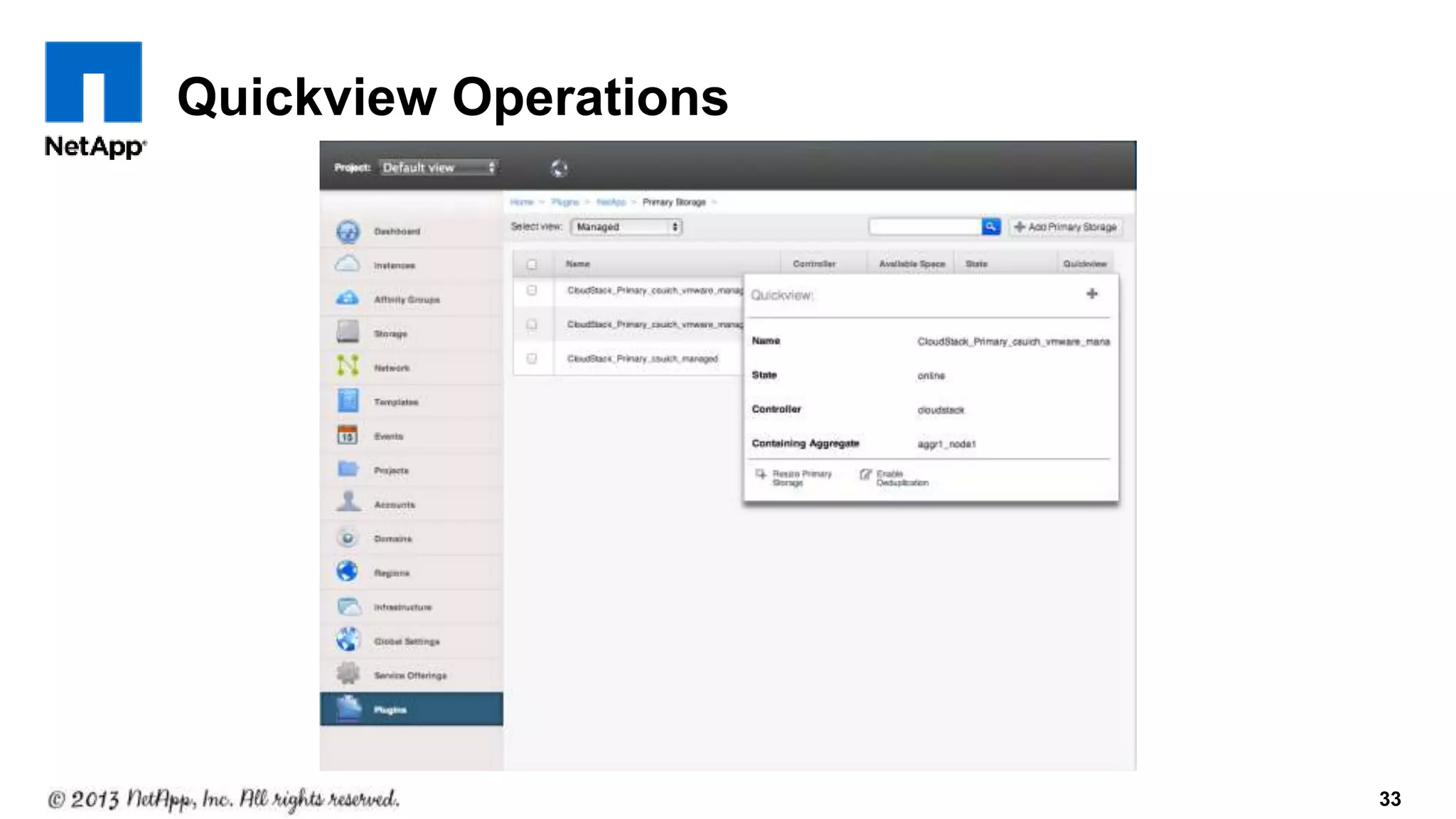

Quickview Operations

34. 34

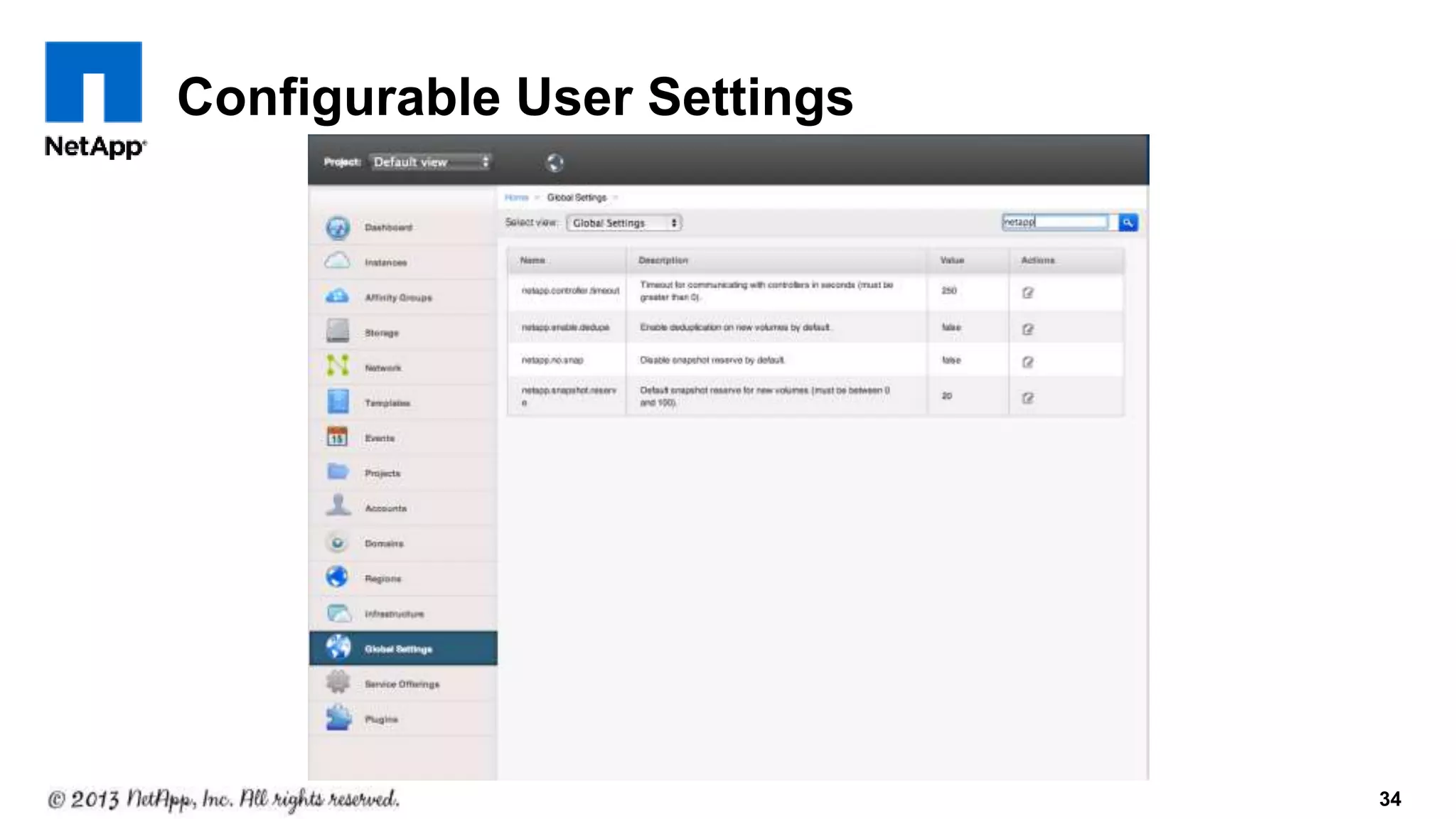

Configurable User Settings

35. 35

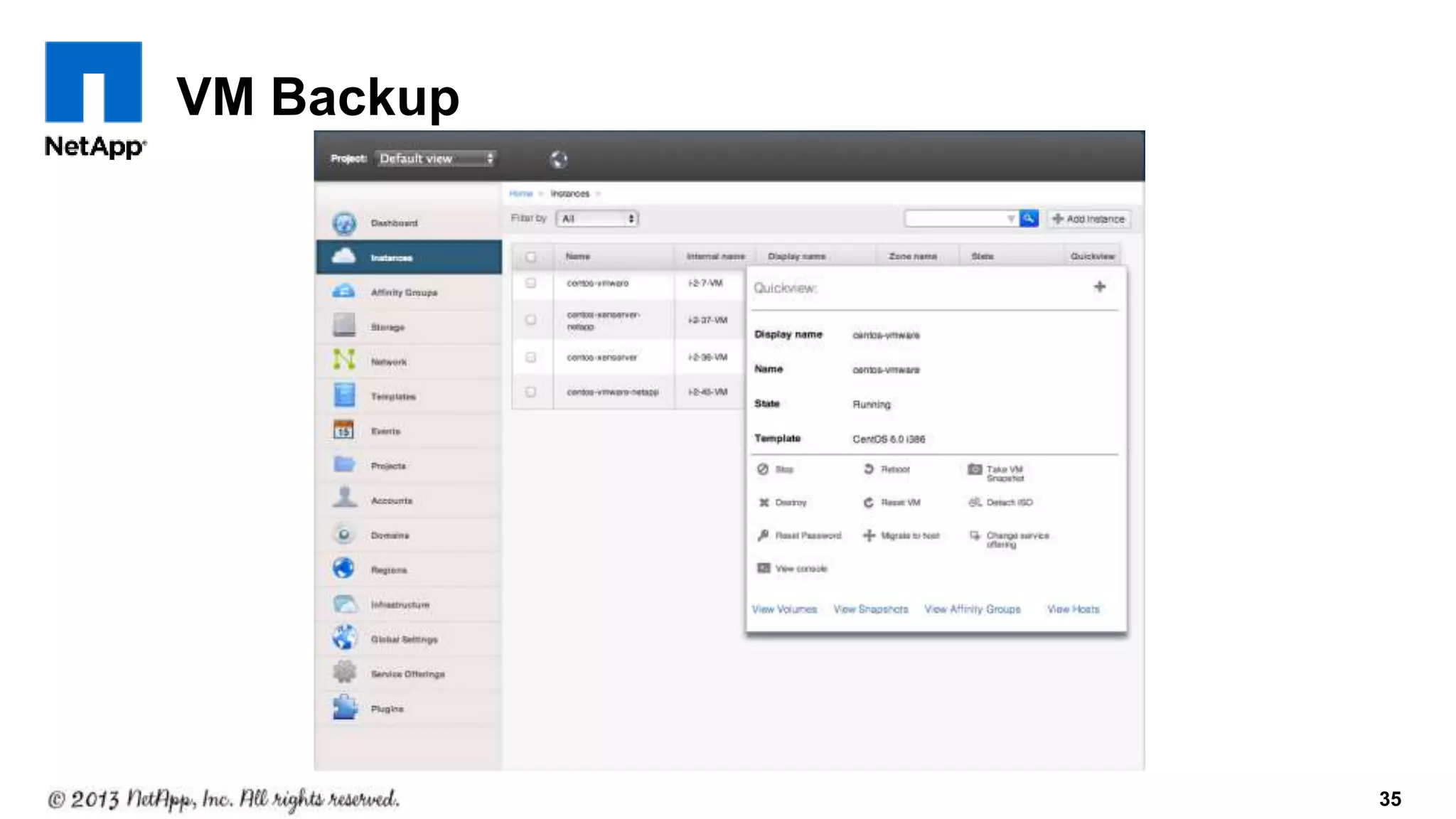

VM Backup

36. 36

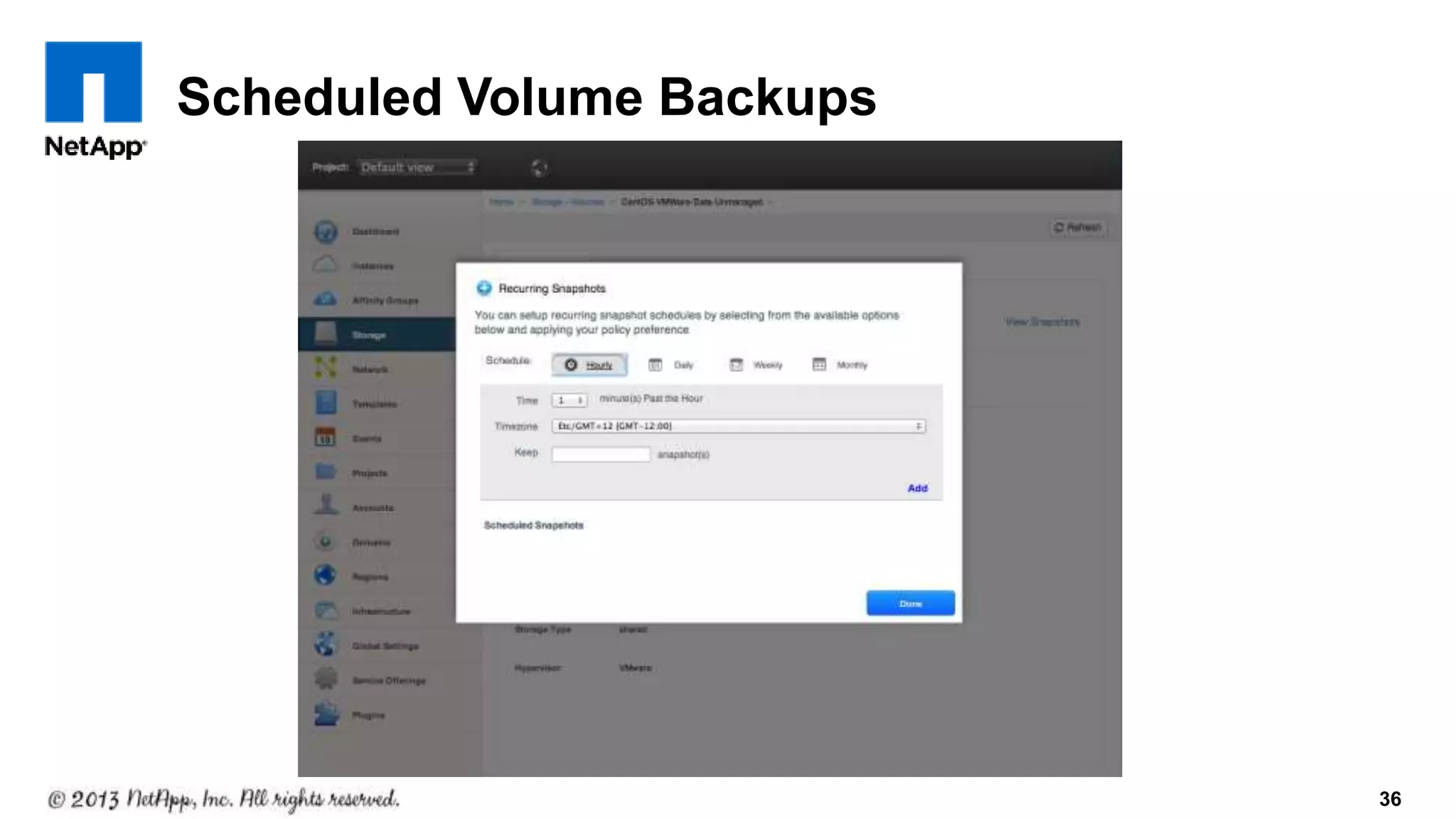

Scheduled Volume Backups

37. 37

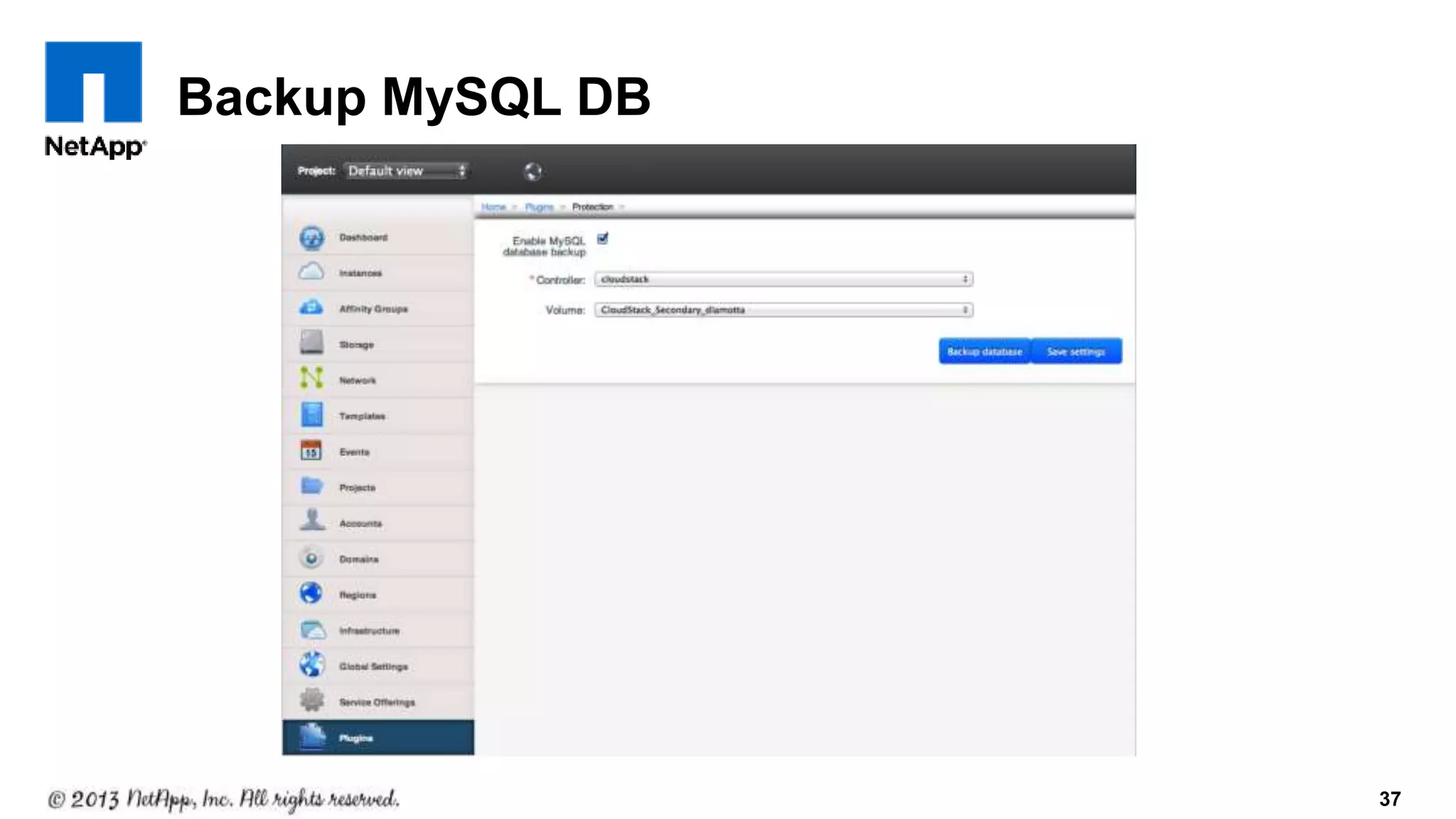

Backup MySQL DB
