1. Breaking the Monolith
Microservice Extraction at SoundCloud

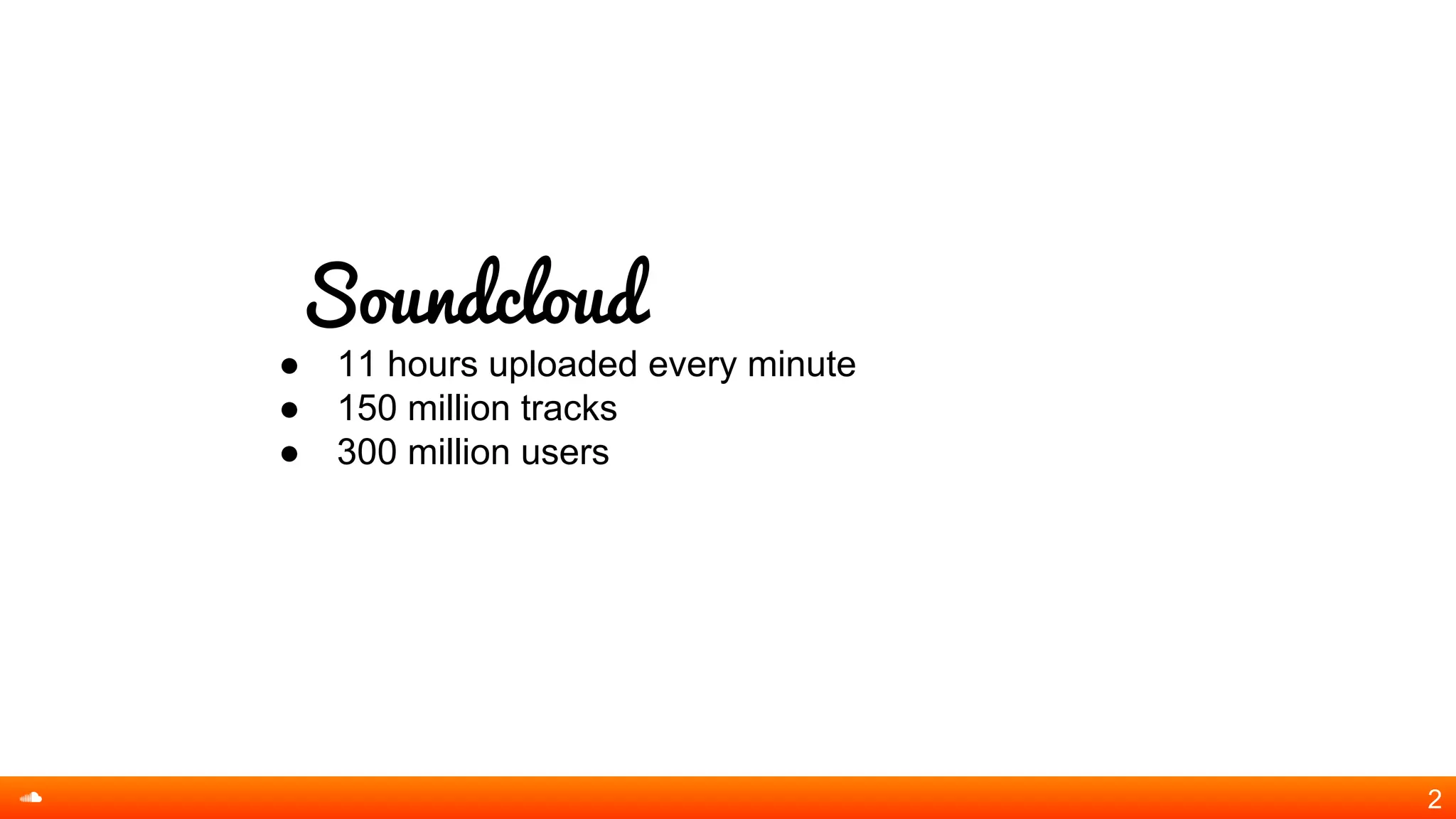

2. Soundcloud
● 11 hours uploaded every minute
● 150 million tracks
● 300 million users
2

3. History
● Rails 2.3
● MySQL
● S3
3

4. What happened then?
4

5. Success!
5

6. History
● Rails 2.3
● MySQL
● AWS
● Cassandra
● Hadoop
● SolR
● RabbitMQ
https://developers.soundcloud.com/blog/evolution-of-soundclouds-architecture
6

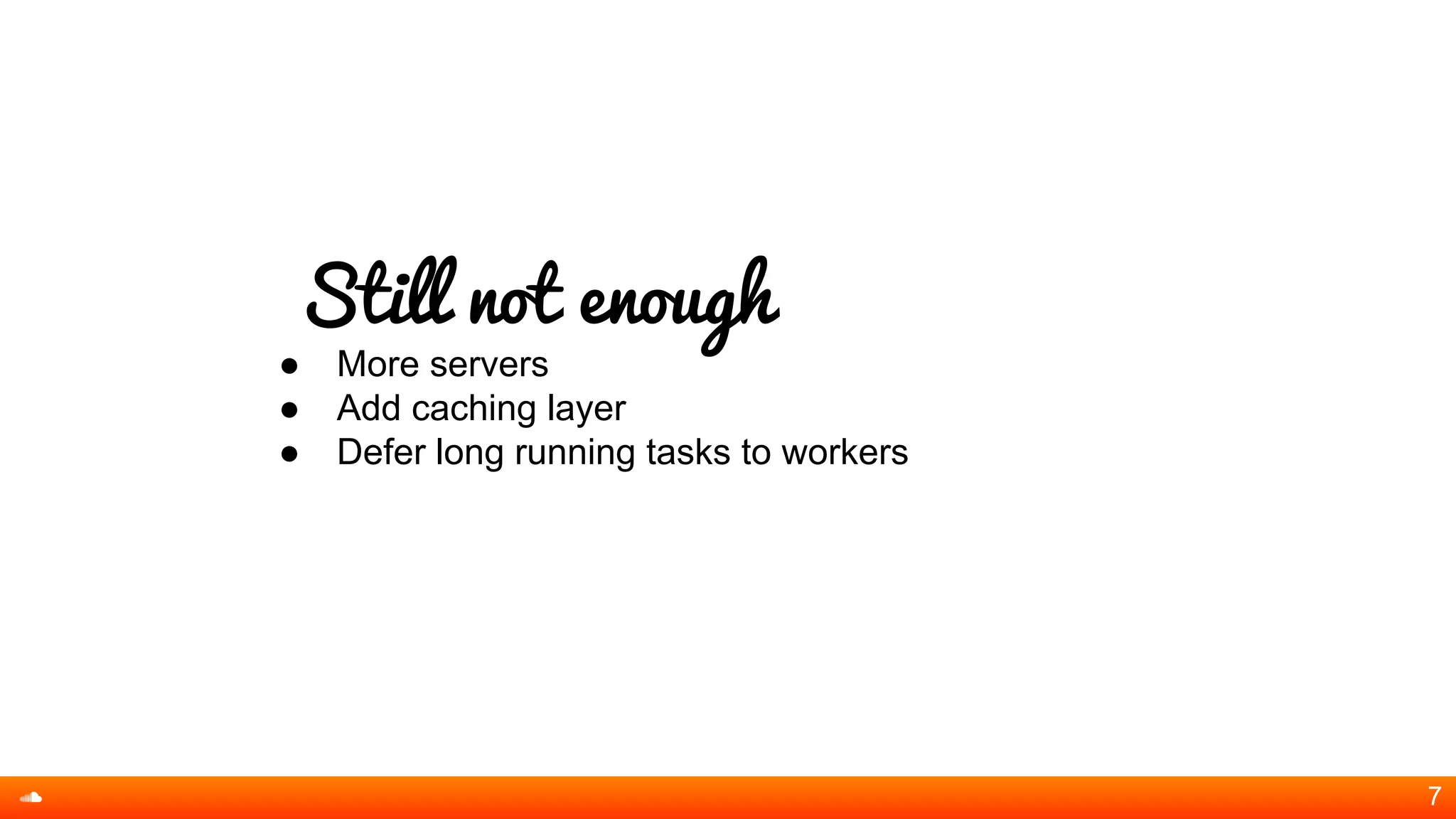

7. Still not enough
● More servers
● Add caching layer
● Defer long running tasks to workers
7

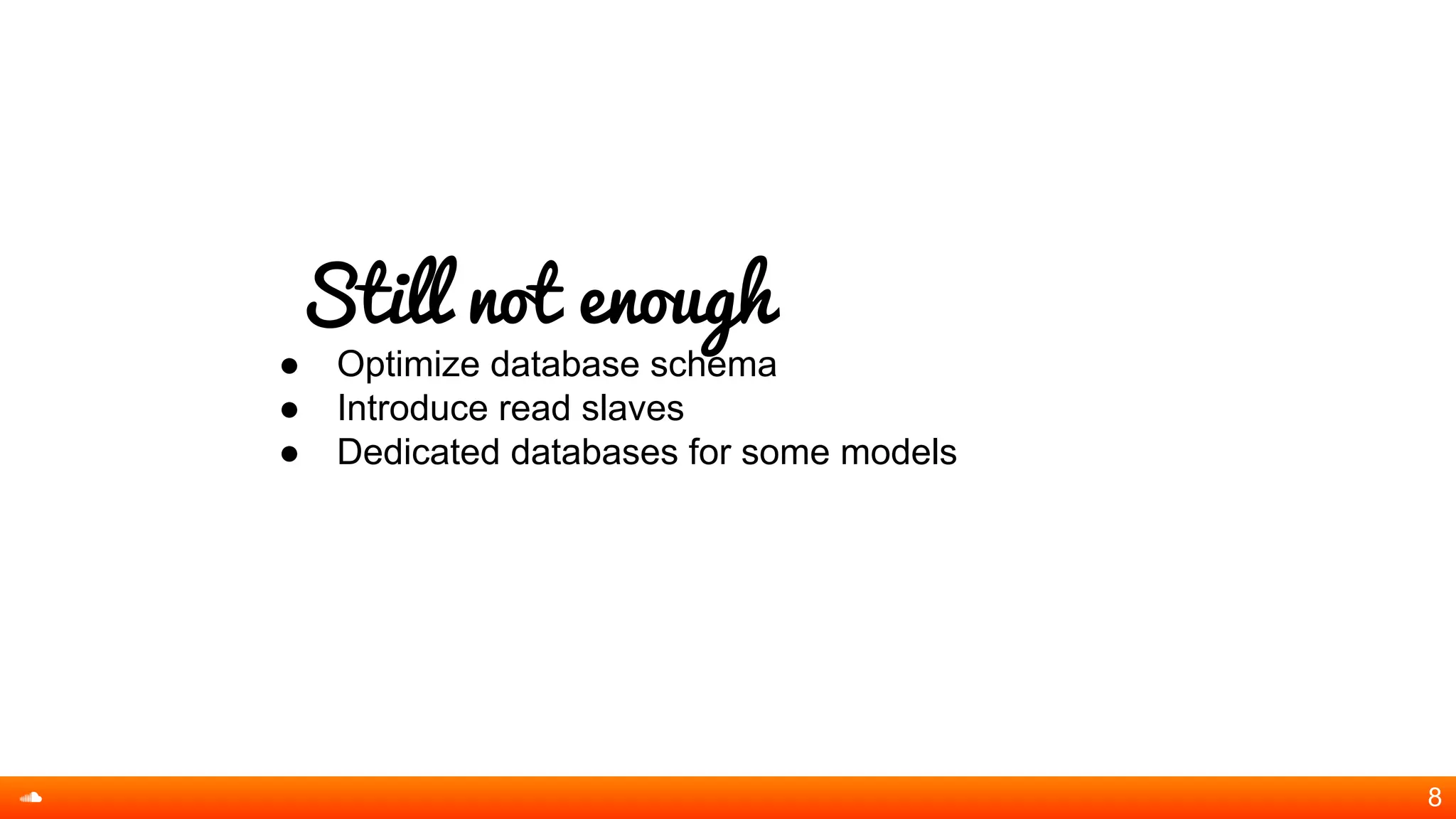

8. Still not enough
● Optimize database schema
● Introduce read slaves
● Dedicated databases for some models
8

9. Monolith
9

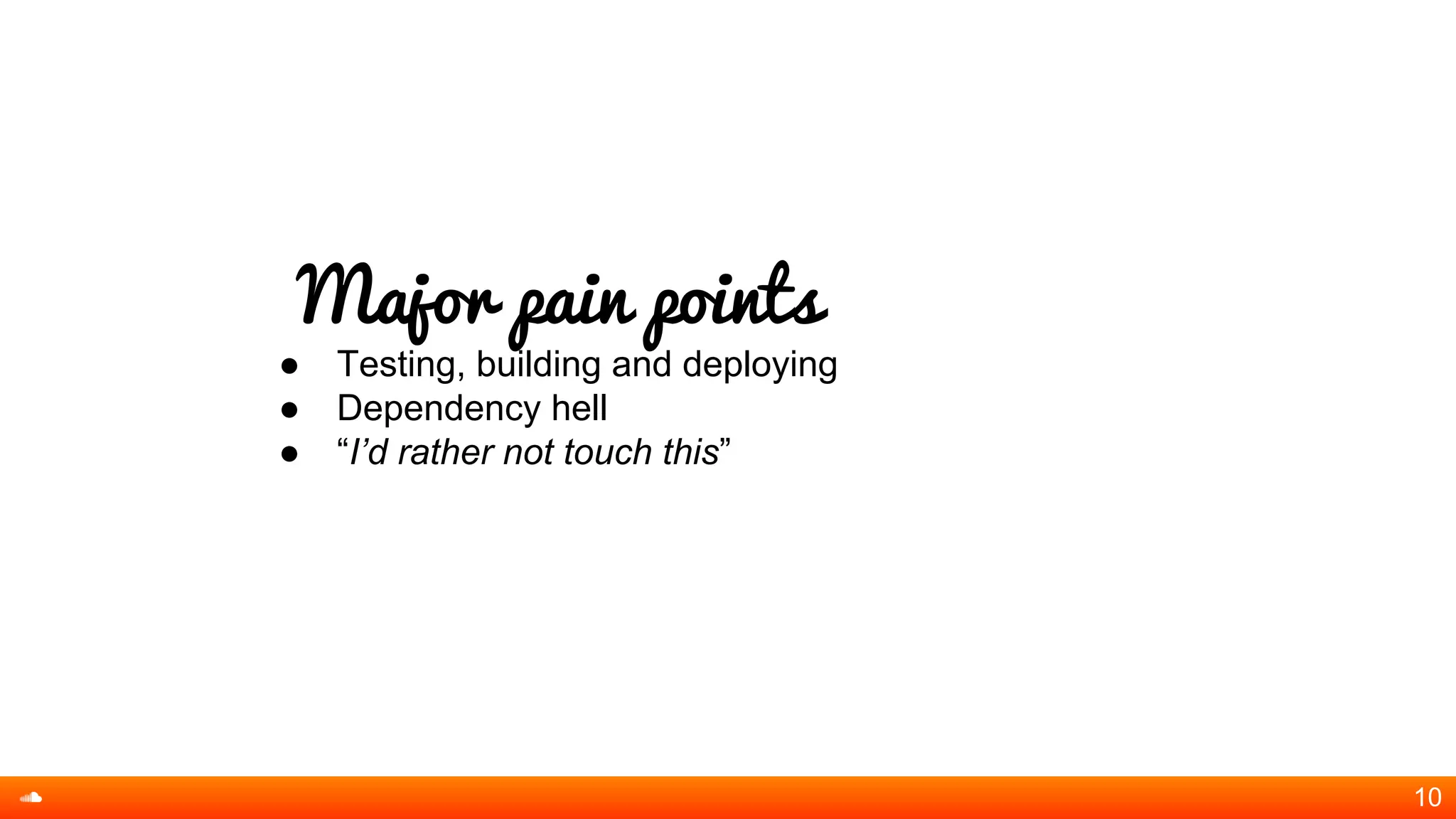

10. Major pain points
● Testing, building and deploying
● Dependency hell
● “I’d rather not touch this”
10

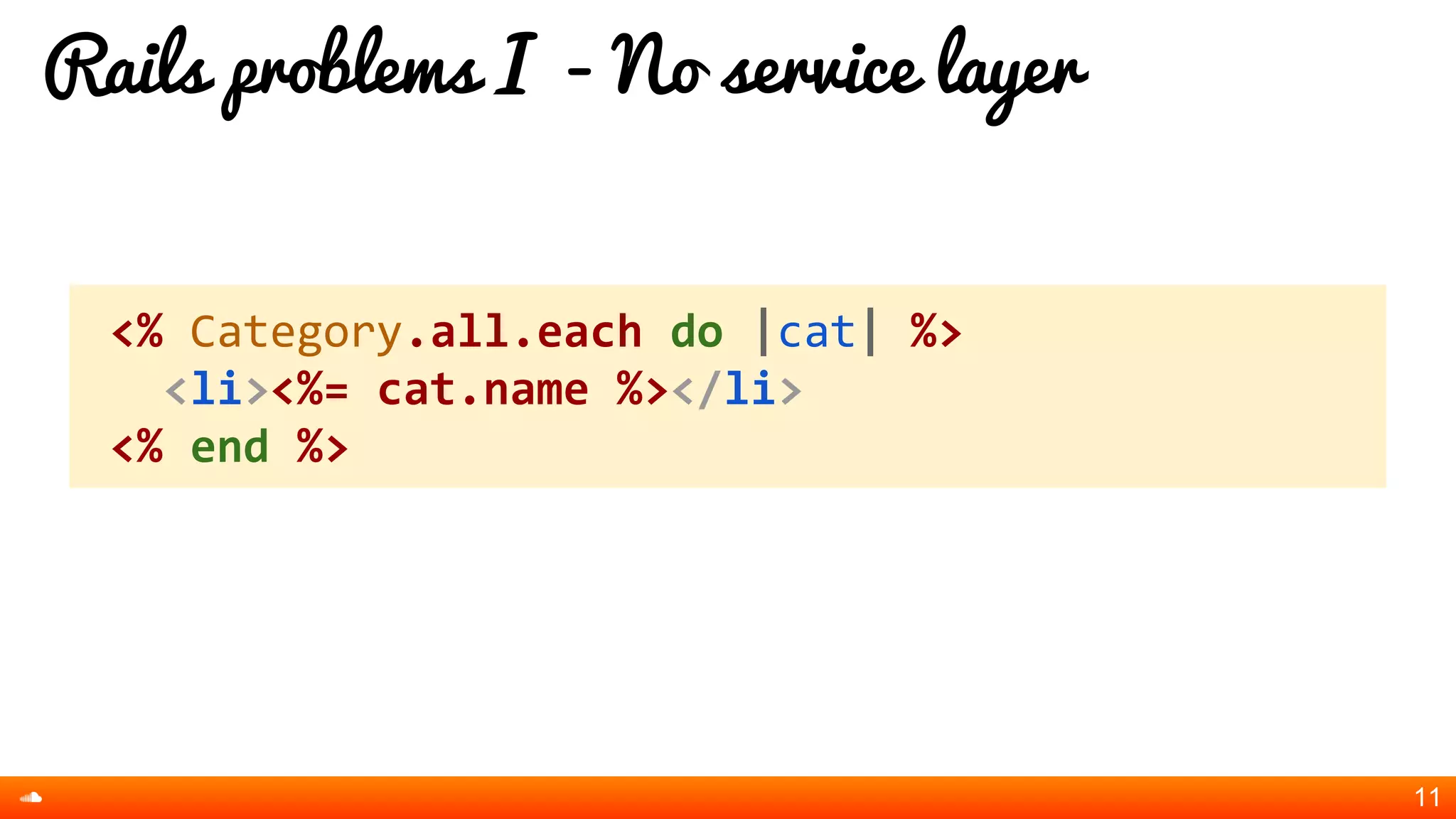

11. Rails problems I - No service layer
11
<% Category.all.each do |cat| %>
<li><%= cat.name %></li>
<% end %>

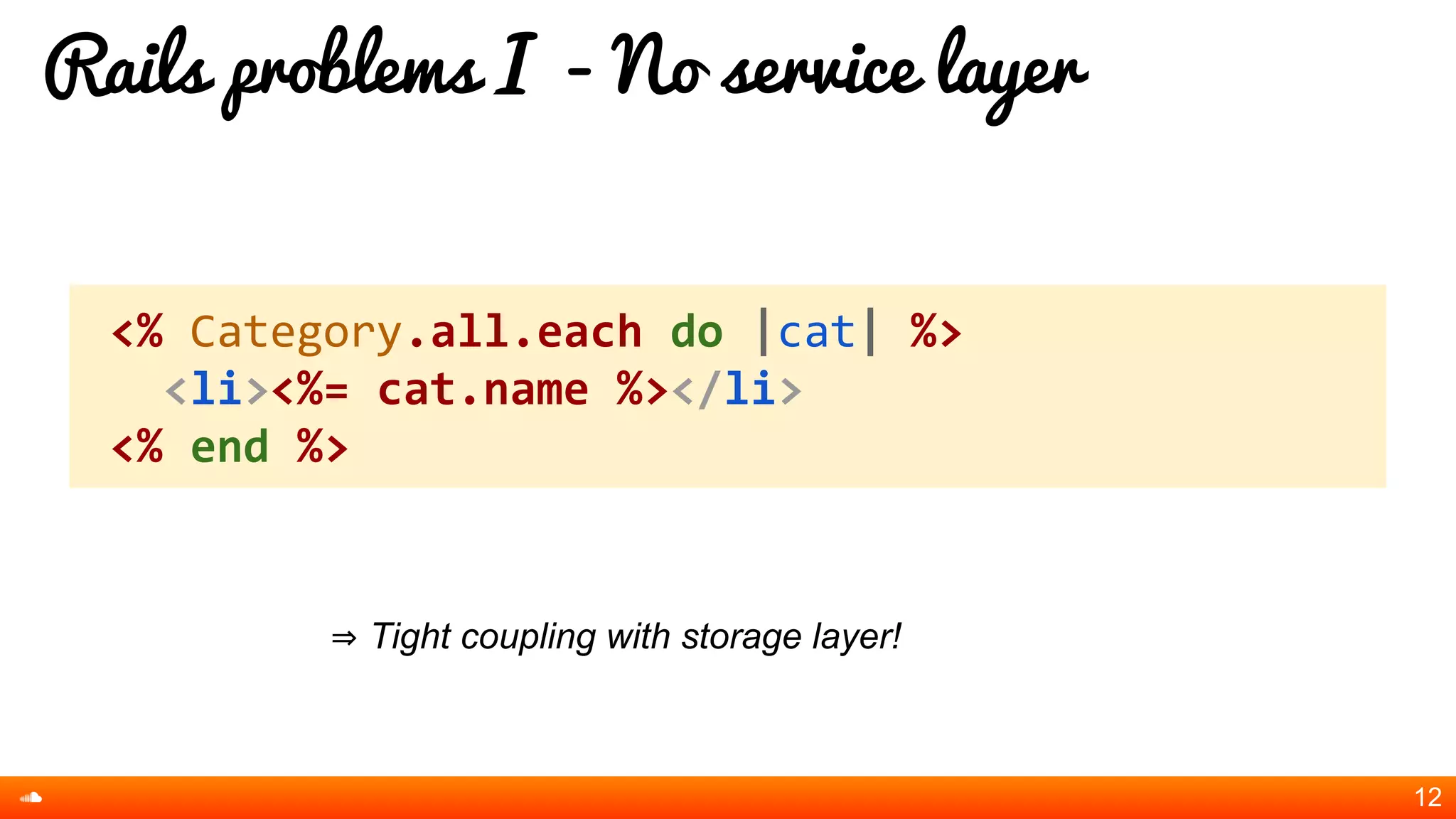

12. Rails problems I - No service layer
⇒ Tight coupling with storage layer!
12
<% Category.all.each do |cat| %>
<li><%= cat.name %></li>
<% end %>

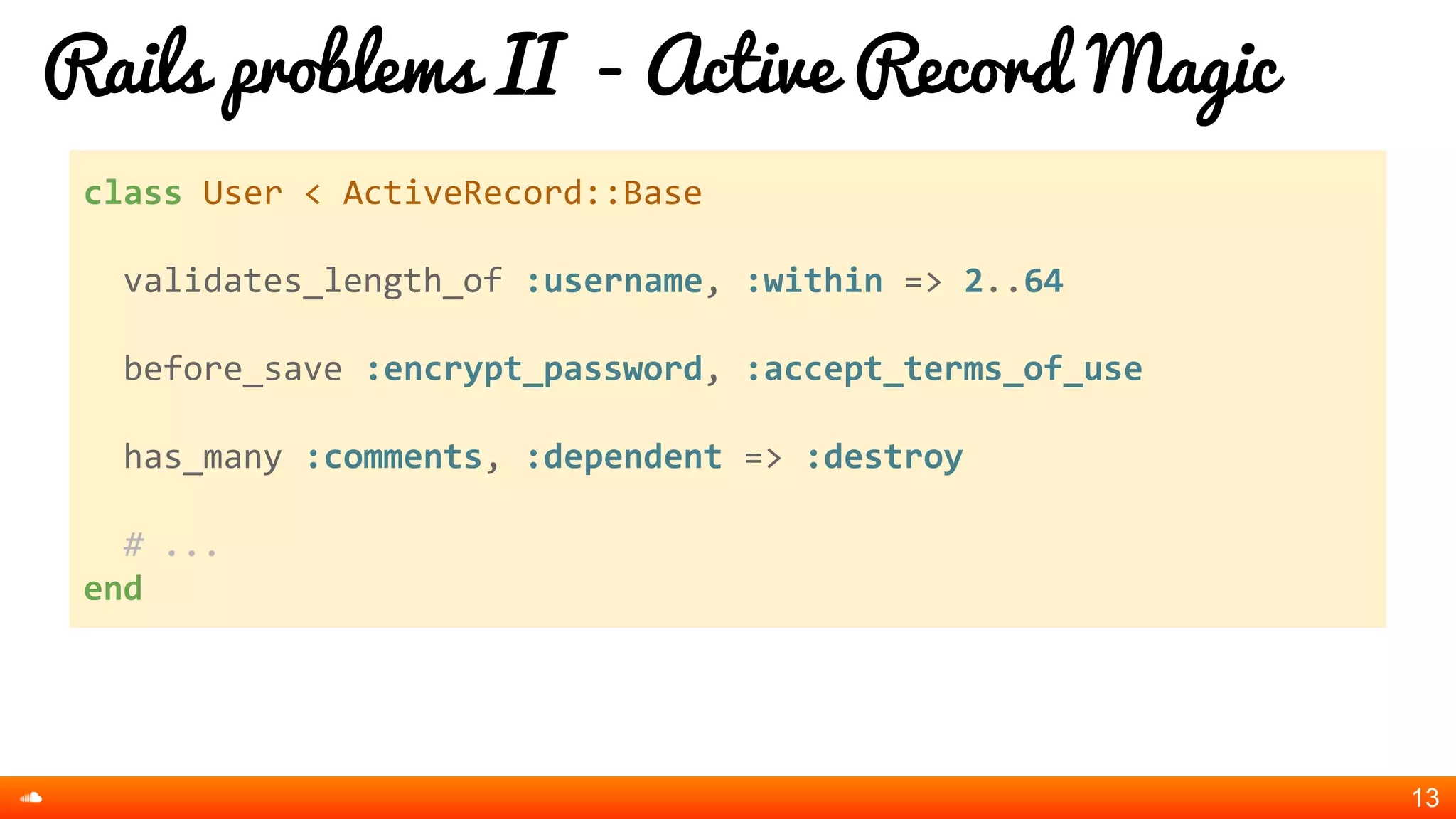

13. Rails problems II - Active Record Magic
13
class User < ActiveRecord::Base
validates_length_of :username, :within => 2..64
before_save :encrypt_password, :accept_terms_of_use
has_many :comments, :dependent => :destroy
# ...
end

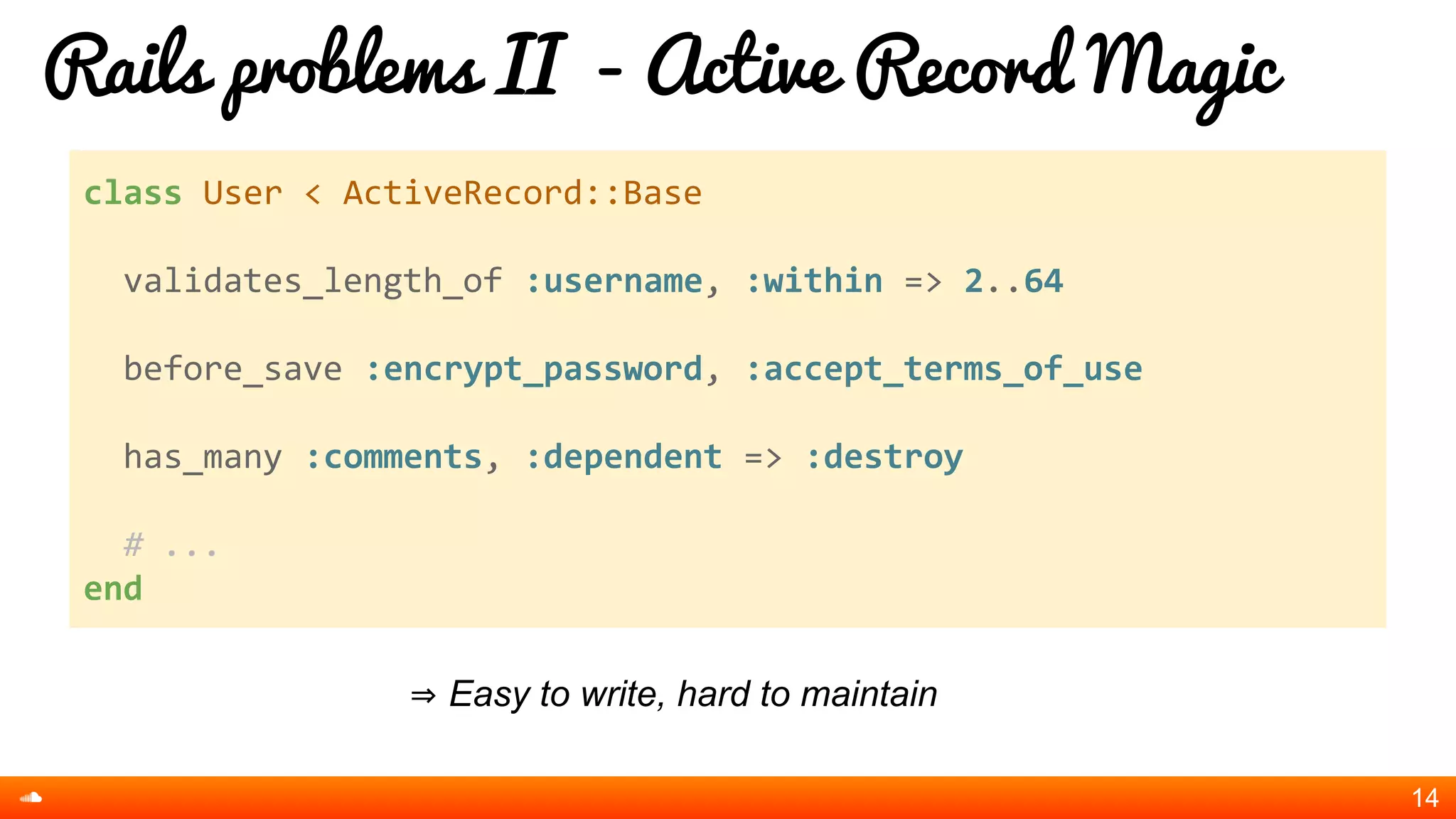

14. Rails problems II - Active Record Magic
⇒ Easy to write, hard to maintain
14
class User < ActiveRecord::Base
validates_length_of :username, :within => 2..64
before_save :encrypt_password, :accept_terms_of_use
has_many :comments, :dependent => :destroy
# ...
end

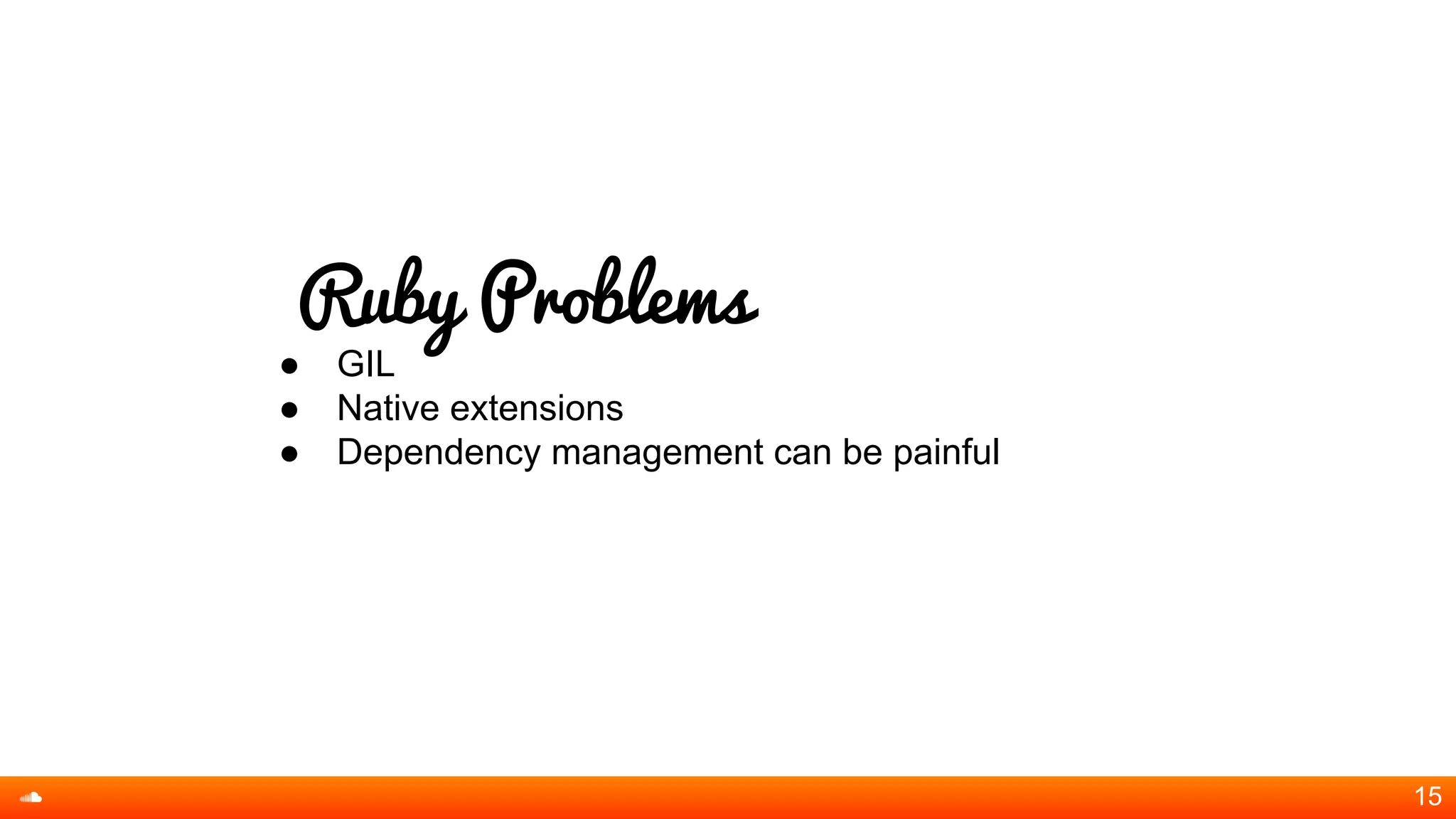

15. Ruby Problems
● GIL
● Native extensions
● Dependency management can be painful
15

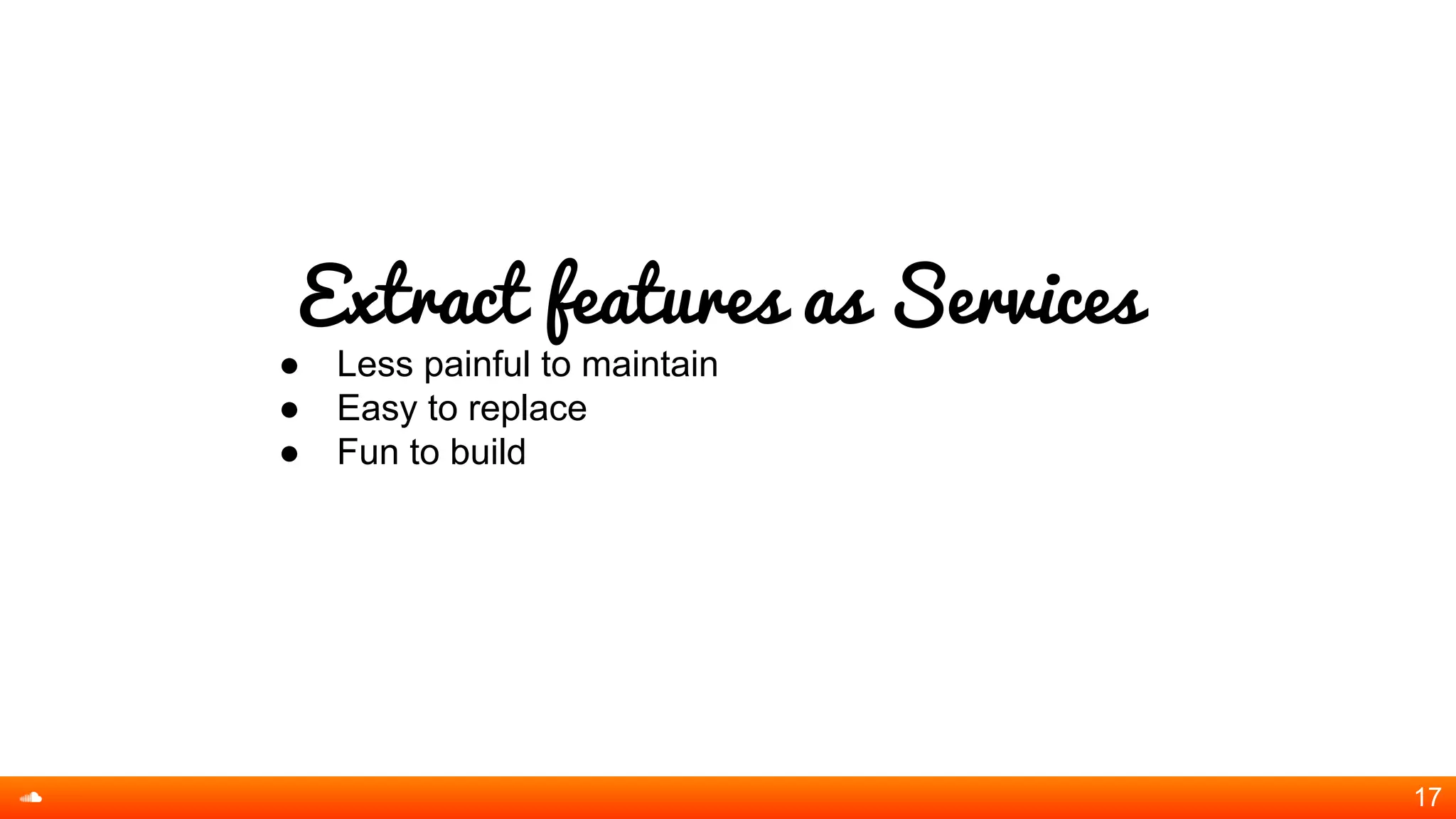

17. Extract features as Services
● Less painful to maintain
● Easy to replace
● Fun to build
17

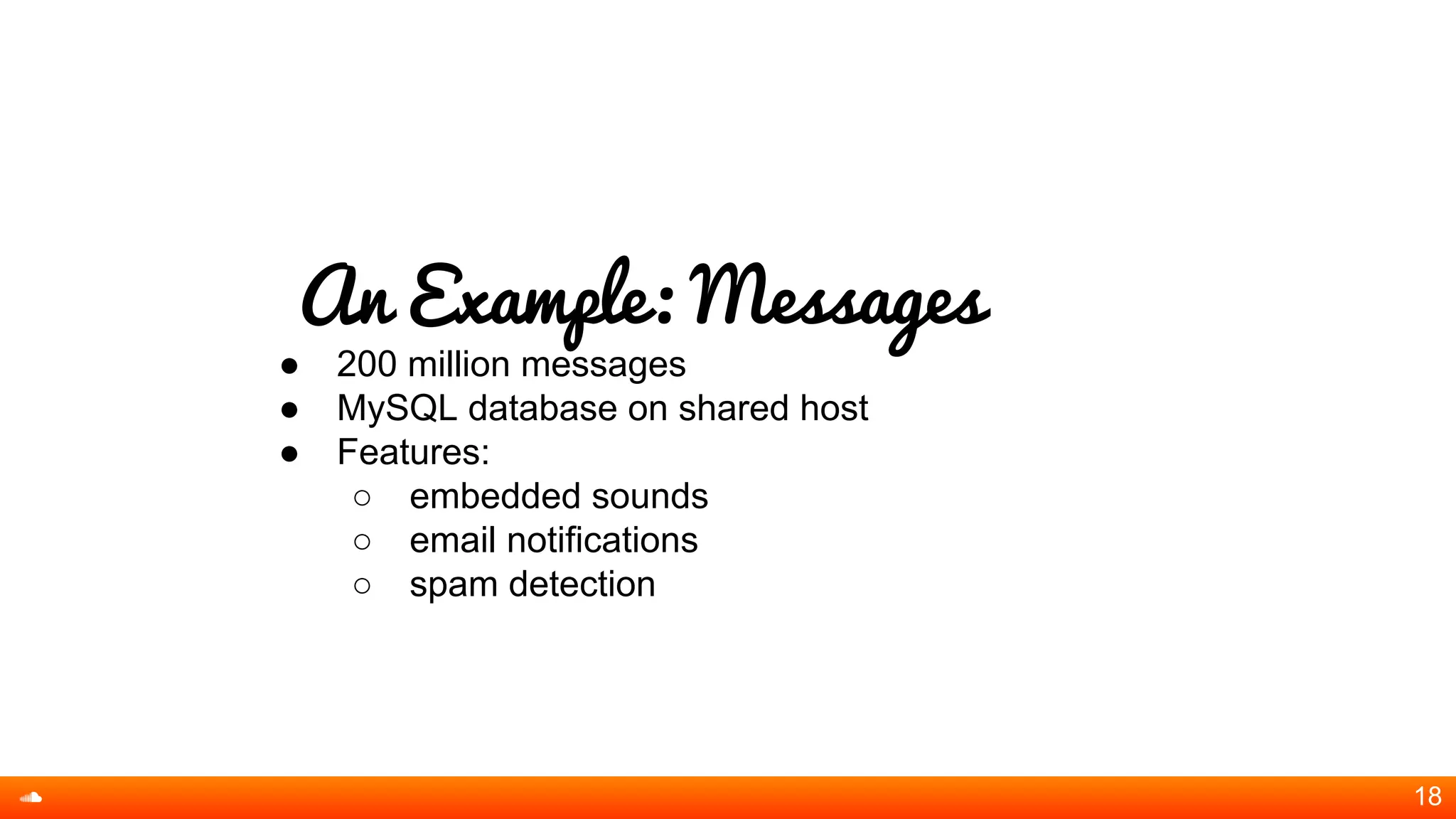

18. An Example: Messages
● 200 million messages
● MySQL database on shared host
● Features:
○ embedded sounds
○ email notifications
○ spam detection
18

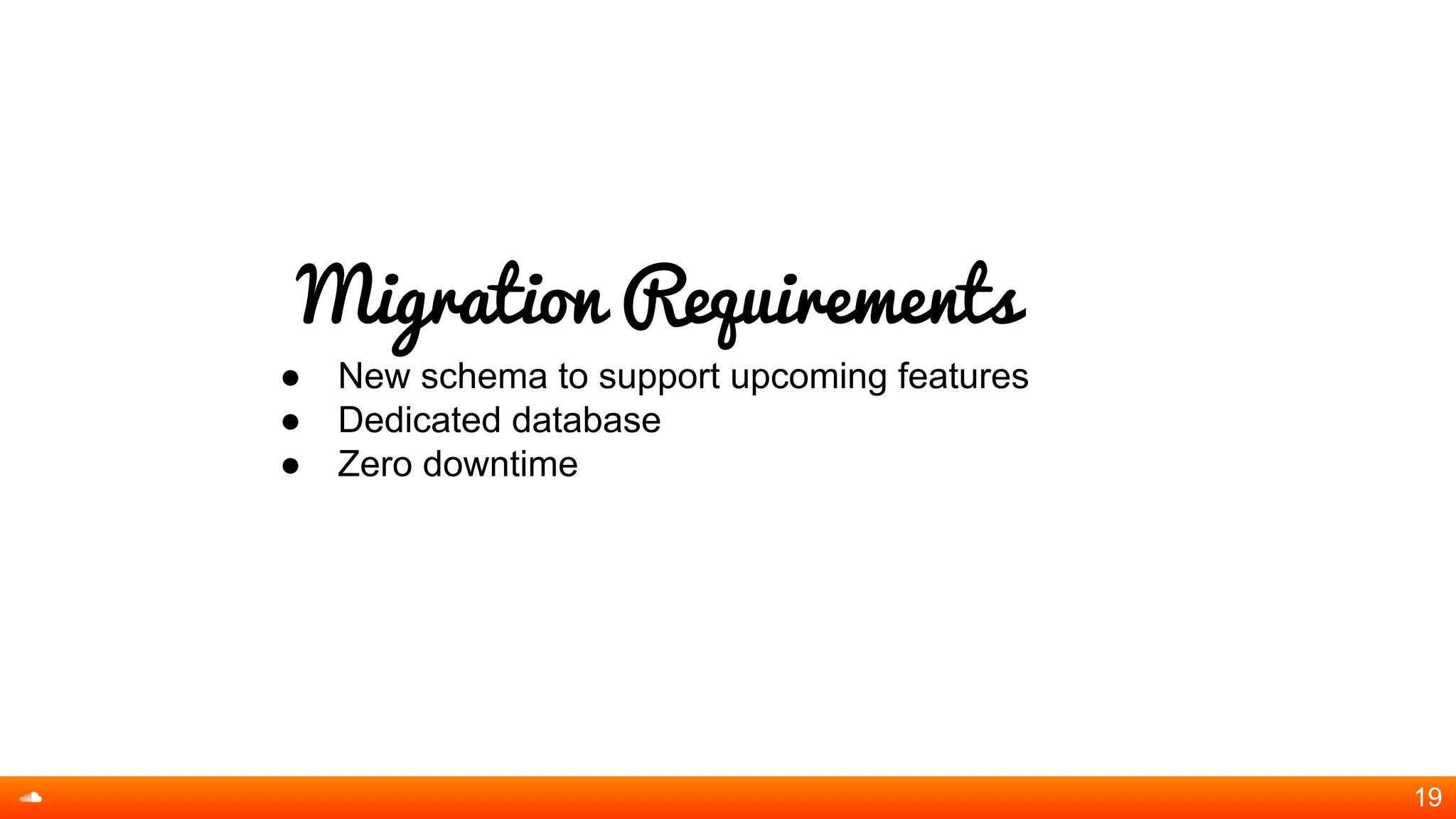

19. Migration Requirements
● New schema to support upcoming features
● Dedicated database
● Zero downtime
19

20. Chapter 1
The Database

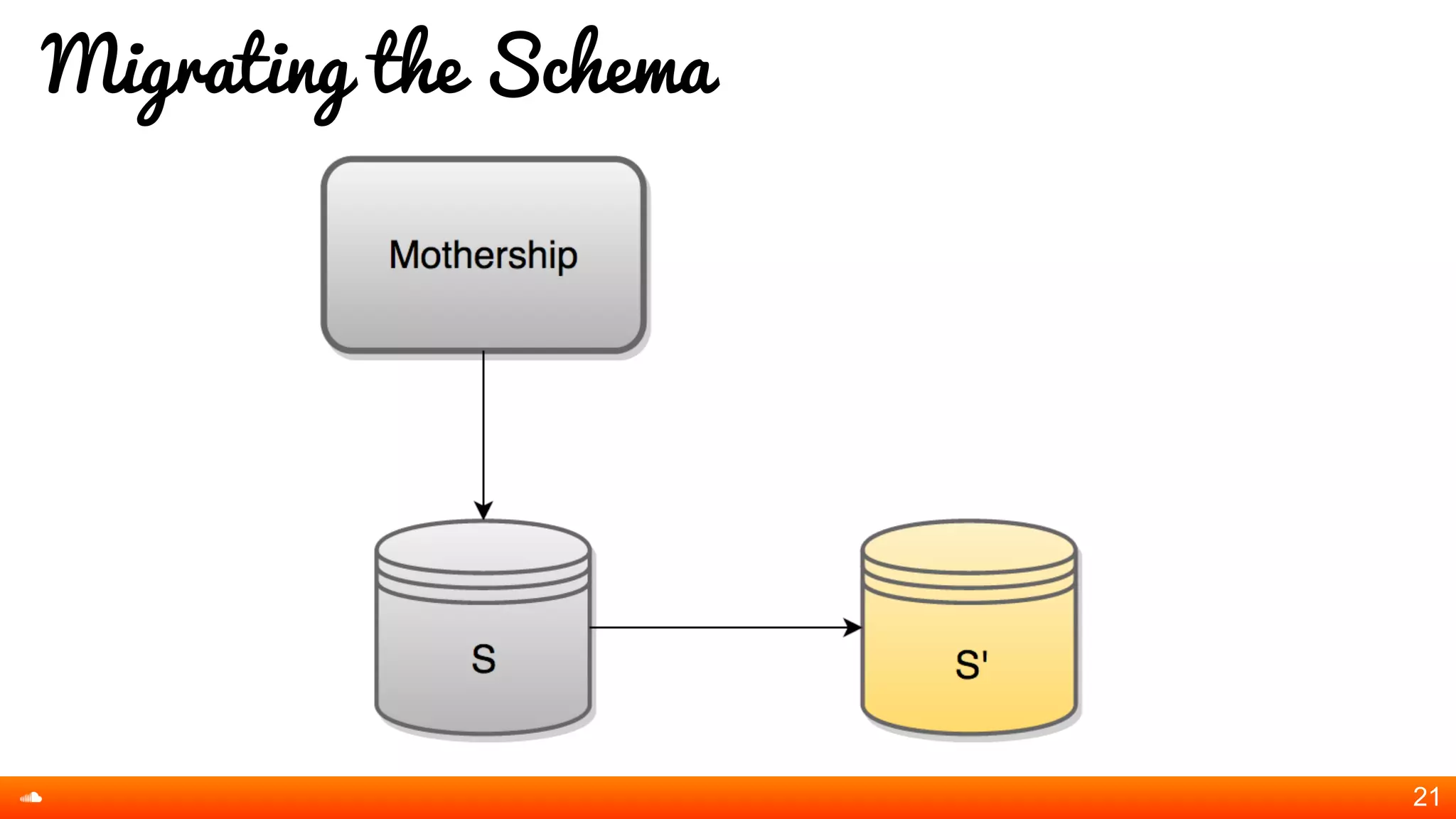

21. Migrating the Schema
21

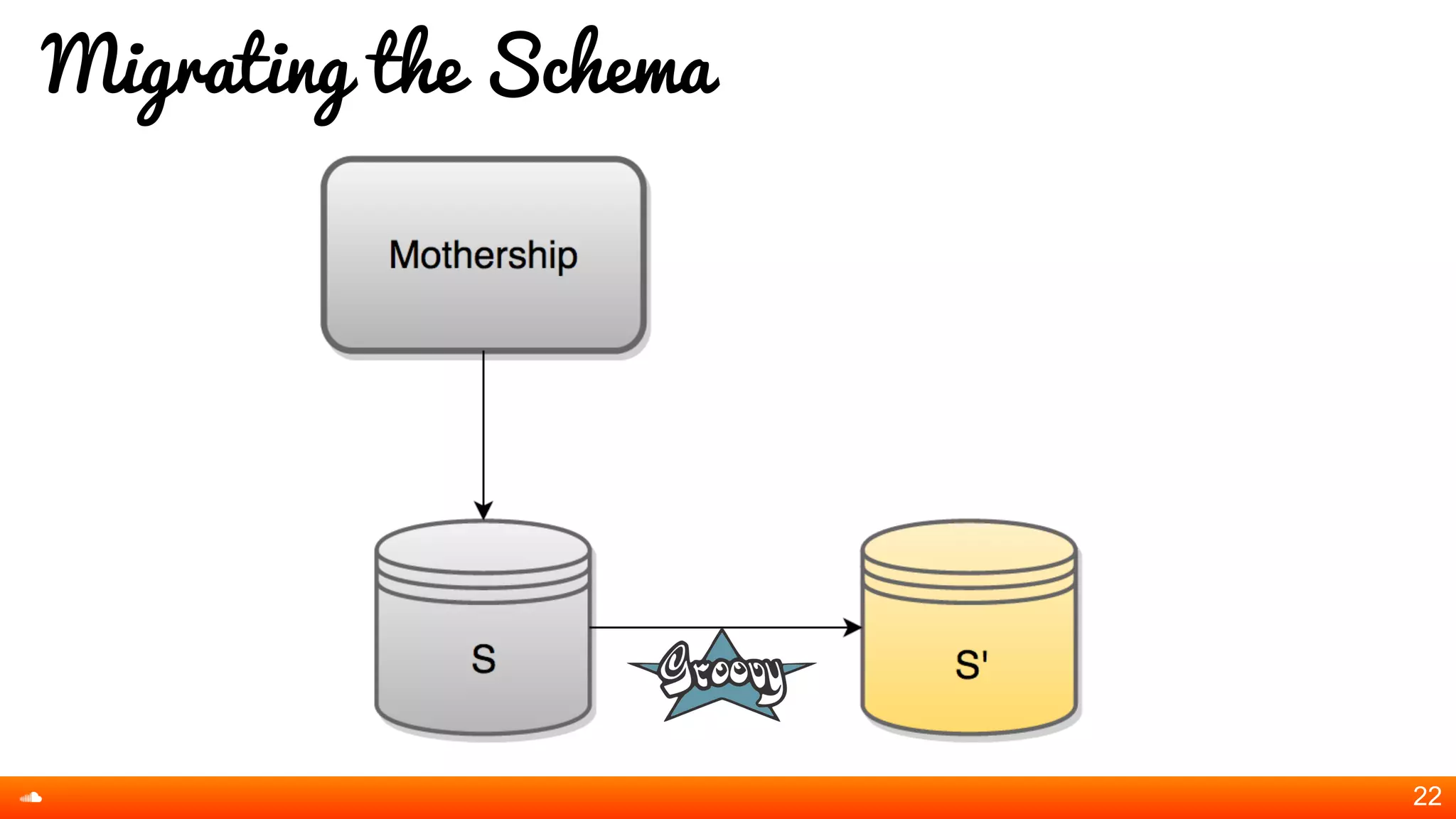

22. Migrating the Schema
22

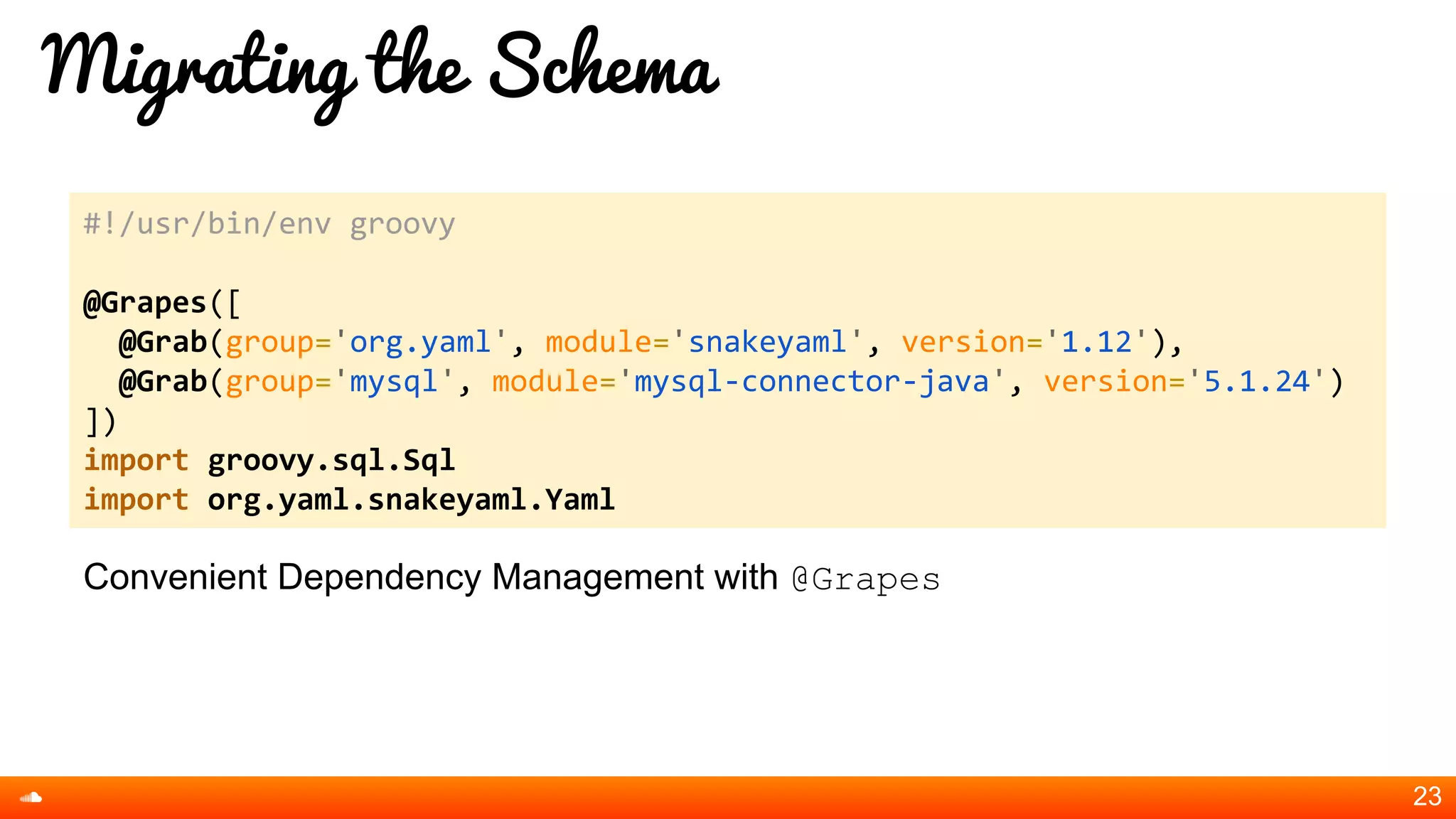

23. Migrating the Schema
Convenient Dependency Management with @Grapes
23
#!/usr/bin/env groovy
@Grapes([
@Grab(group='org.yaml', module='snakeyaml', version='1.12'),
@Grab(group='mysql', module='mysql-connector-java', version='5.1.24')
])
import groovy.sql.Sql
import org.yaml.snakeyaml.Yaml

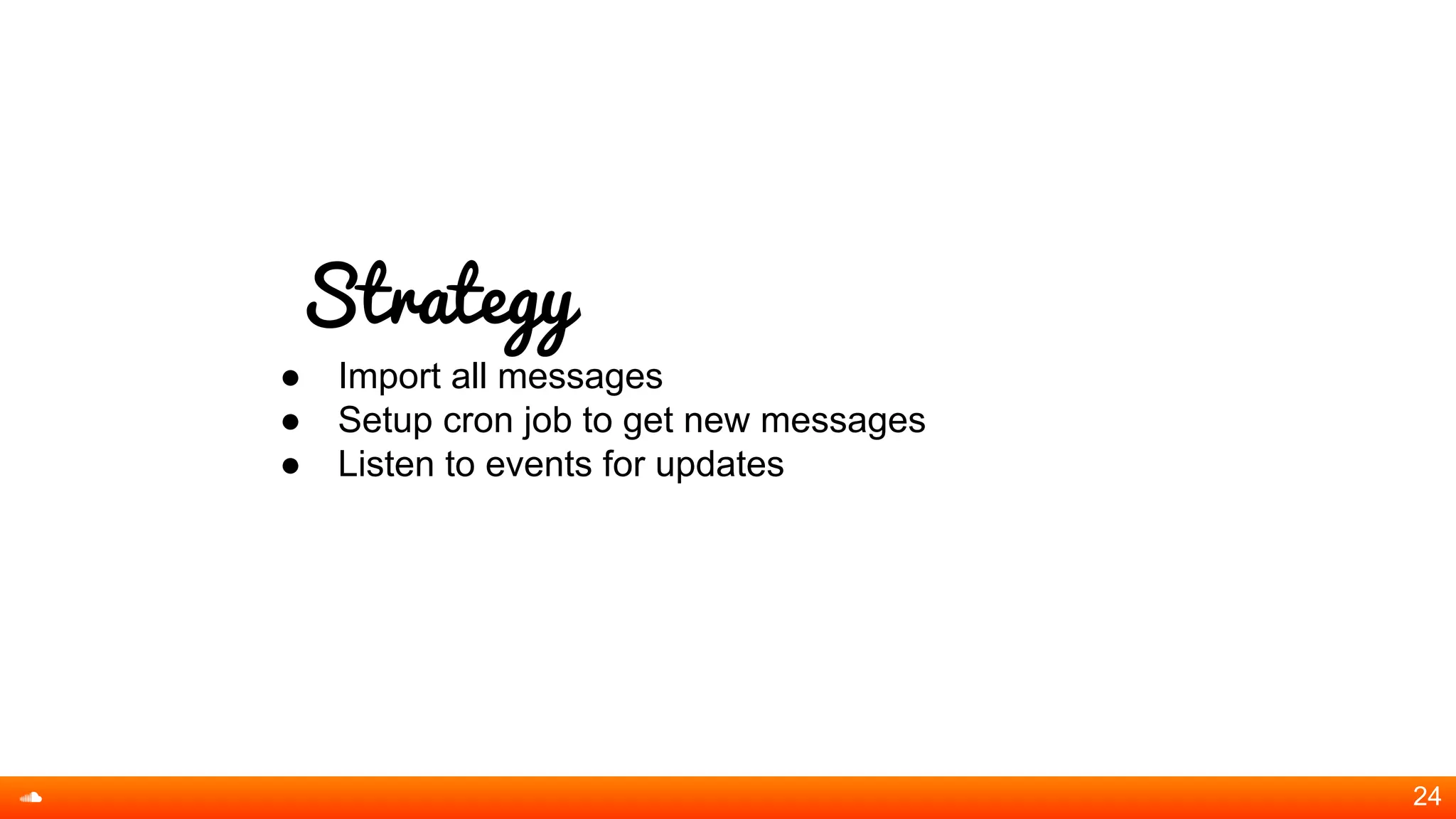

24. Strategy
● Import all messages
● Setup cron job to get new messages
● Listen to events for updates
24

25. Chapter 2
The Application

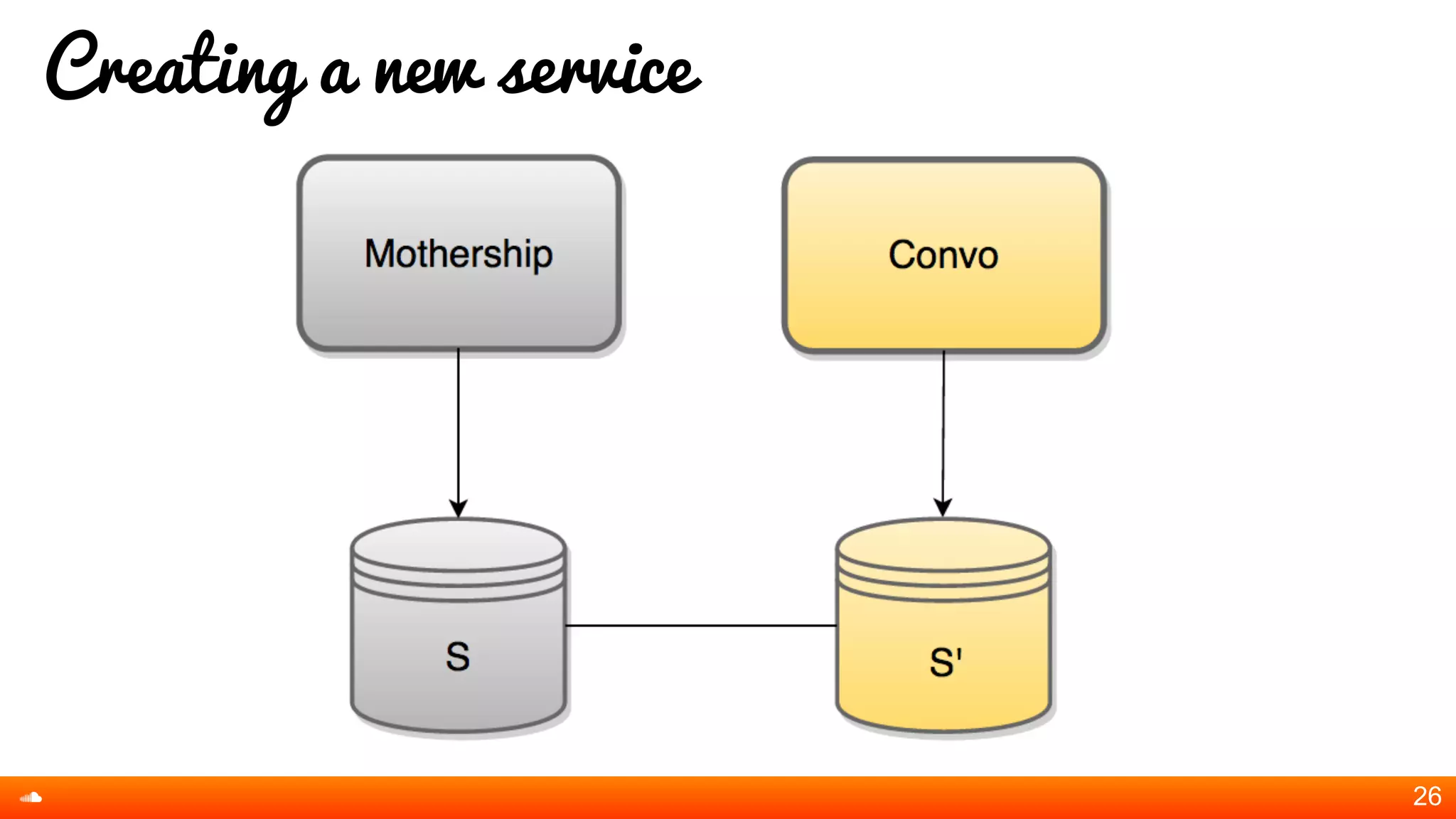

26. Creating a new service
26

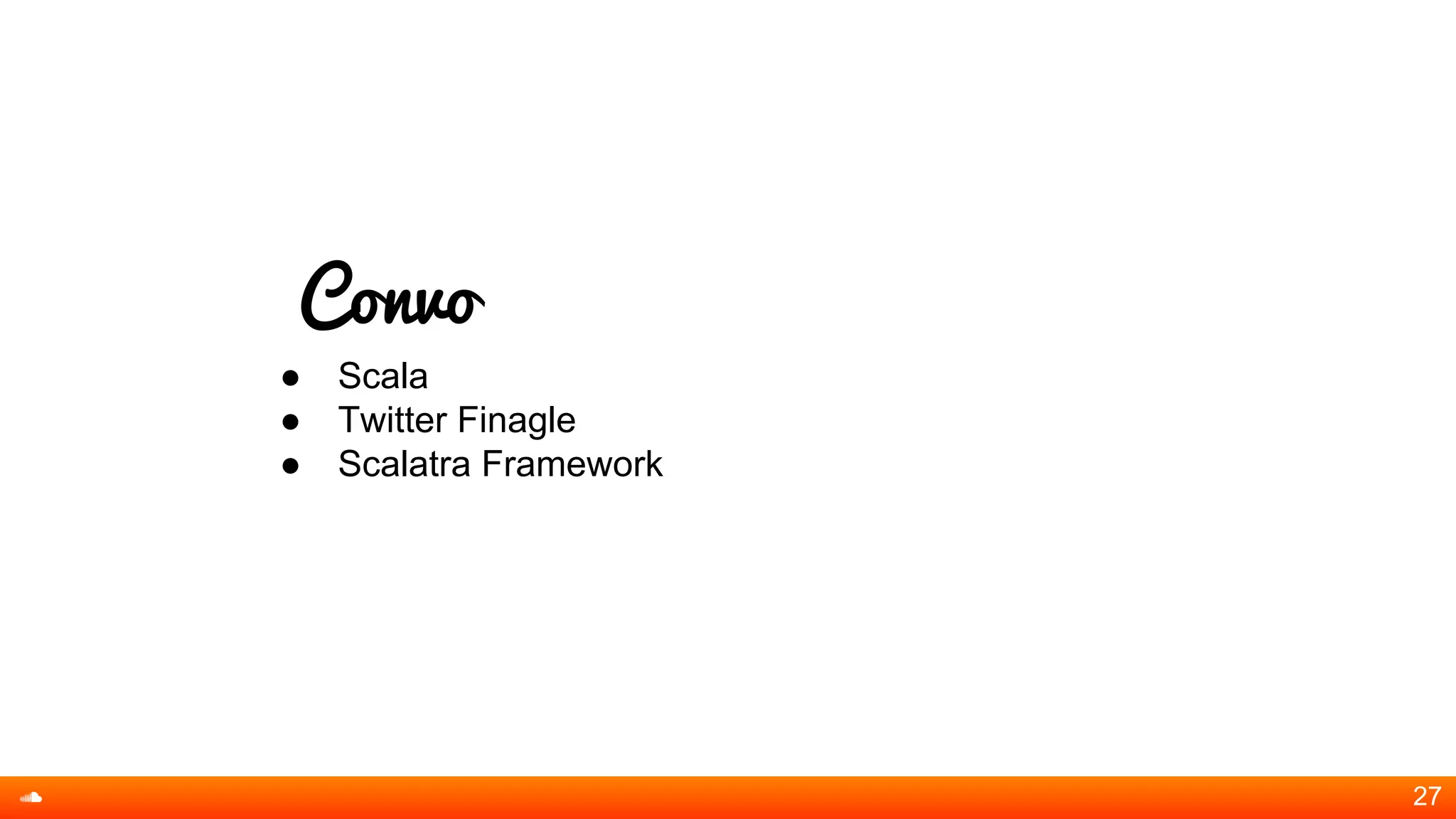

27. Convo
● Scala
● Twitter Finagle
● Scalatra Framework
27

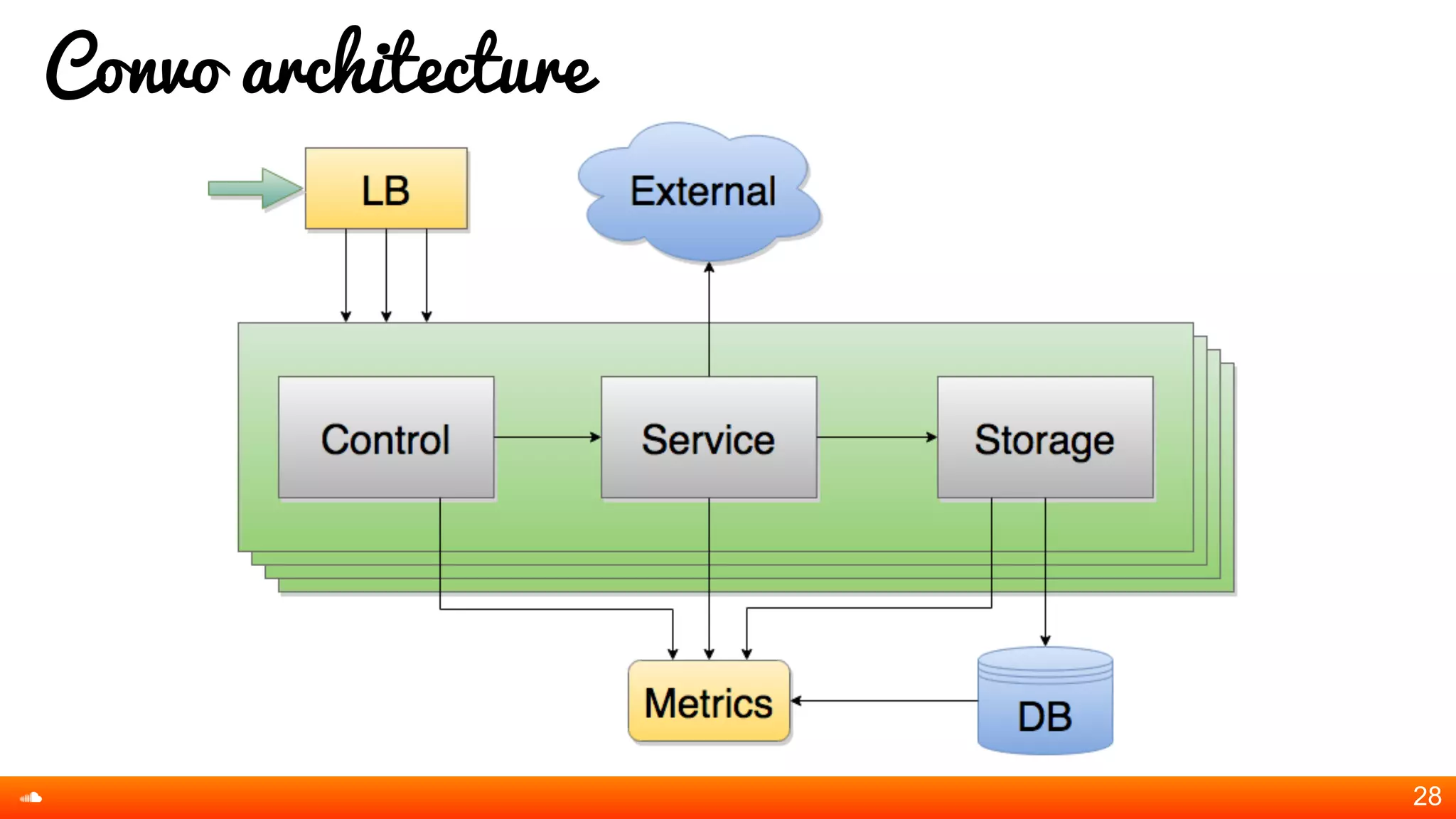

28. Convo architecture
28

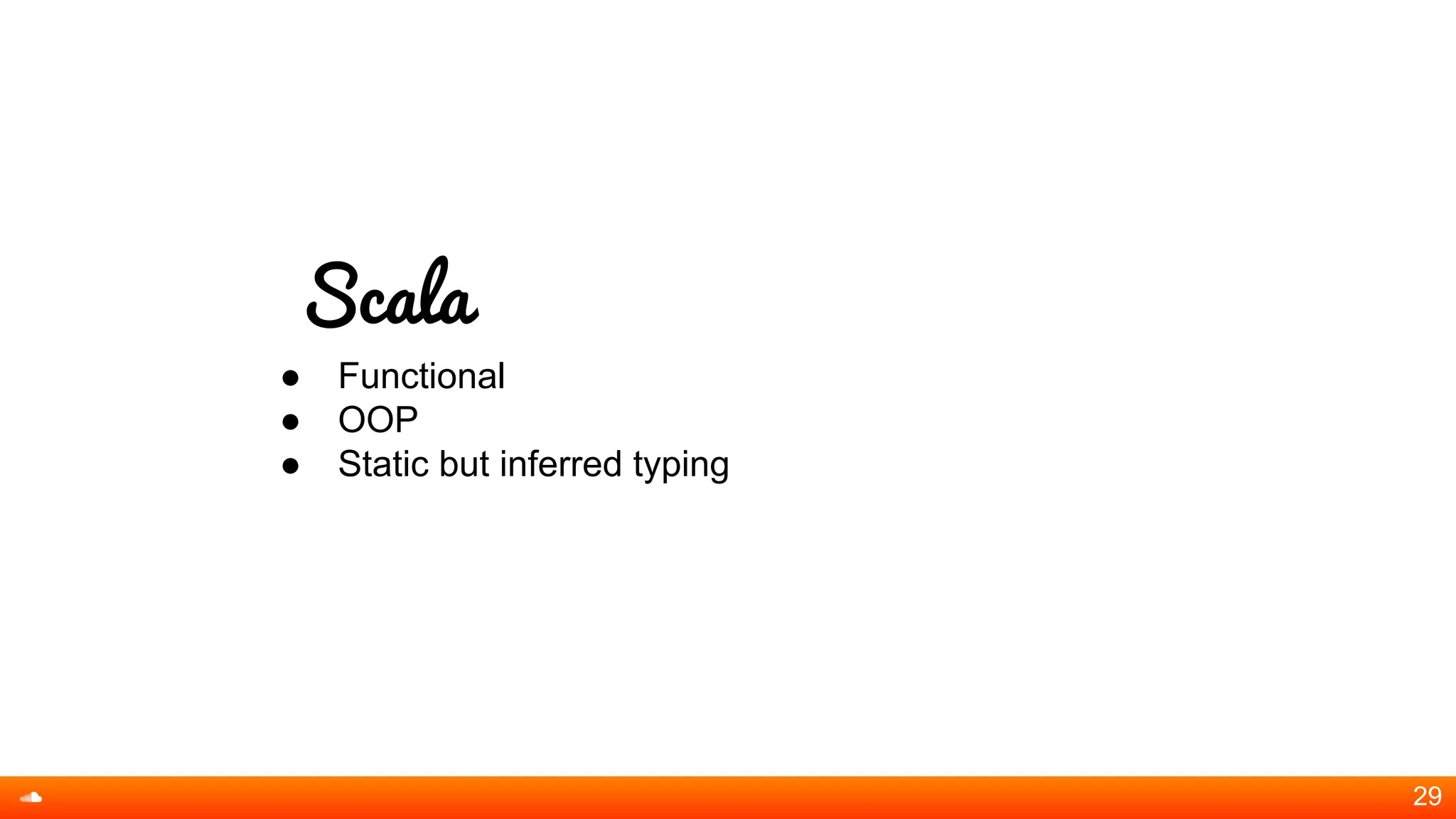

29. Scala
● Functional
● OOP
● Static but inferred typing
29

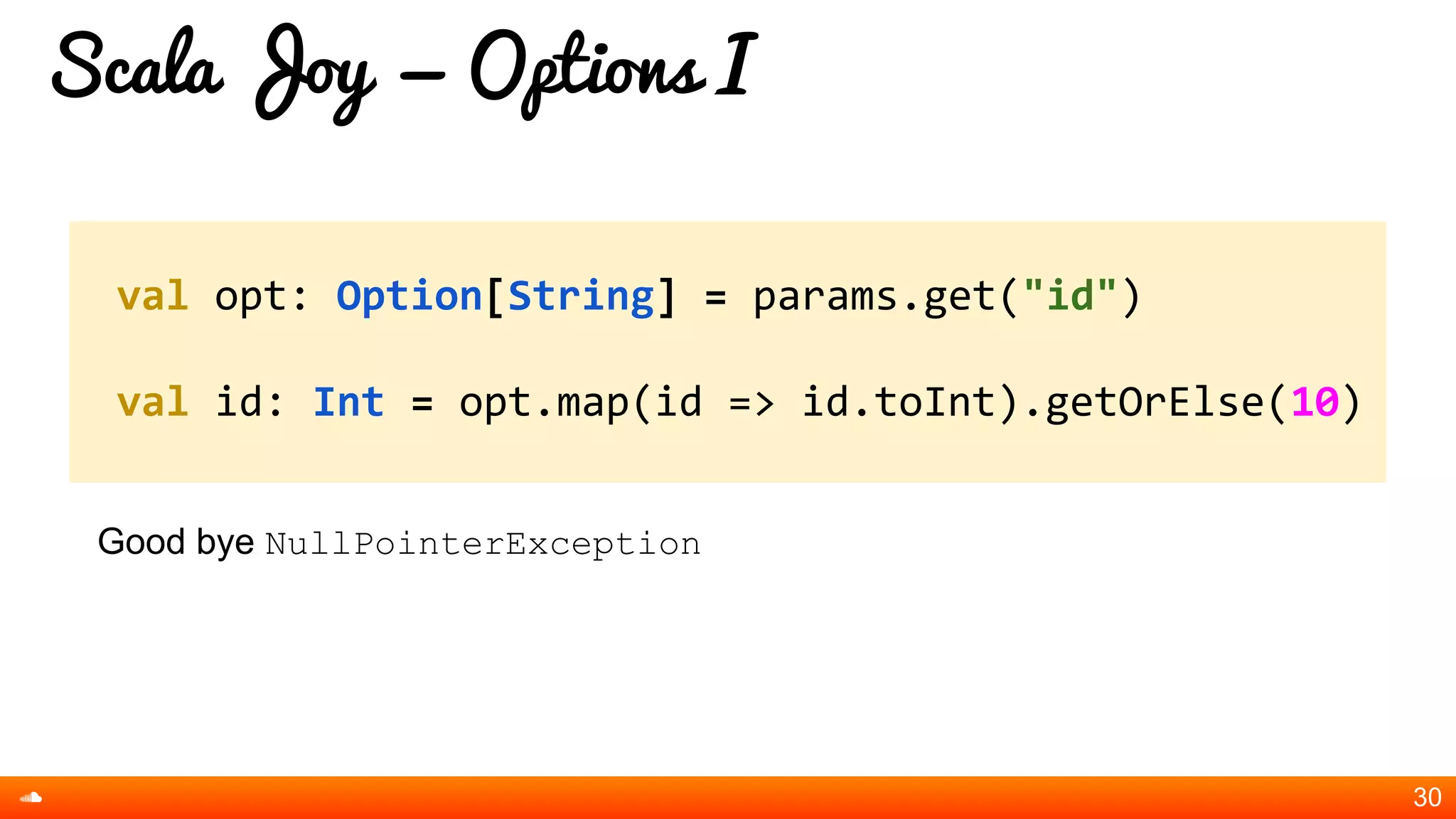

30. Scala Joy = Options I
Good bye NullPointerException
30
val opt: Option[String] = params.get("id")
val id: Int = opt.map(id => id.toInt).getOrElse(10)

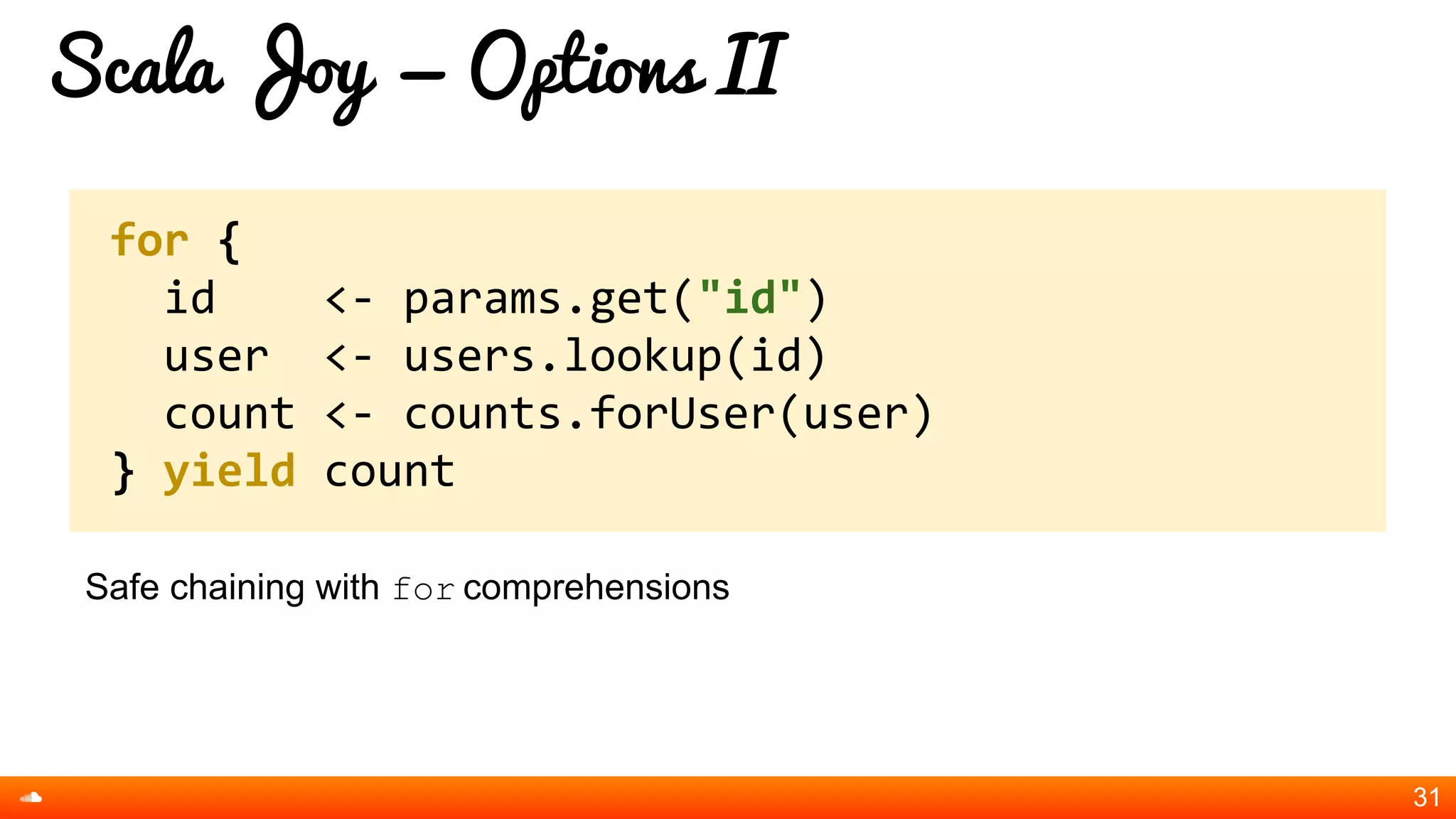

31. Scala Joy = Options II
Safe chaining with for comprehensions
31
for {
id <- params.get("id")
user <- users.lookup(id)
count <- counts.forUser(user)
} yield count

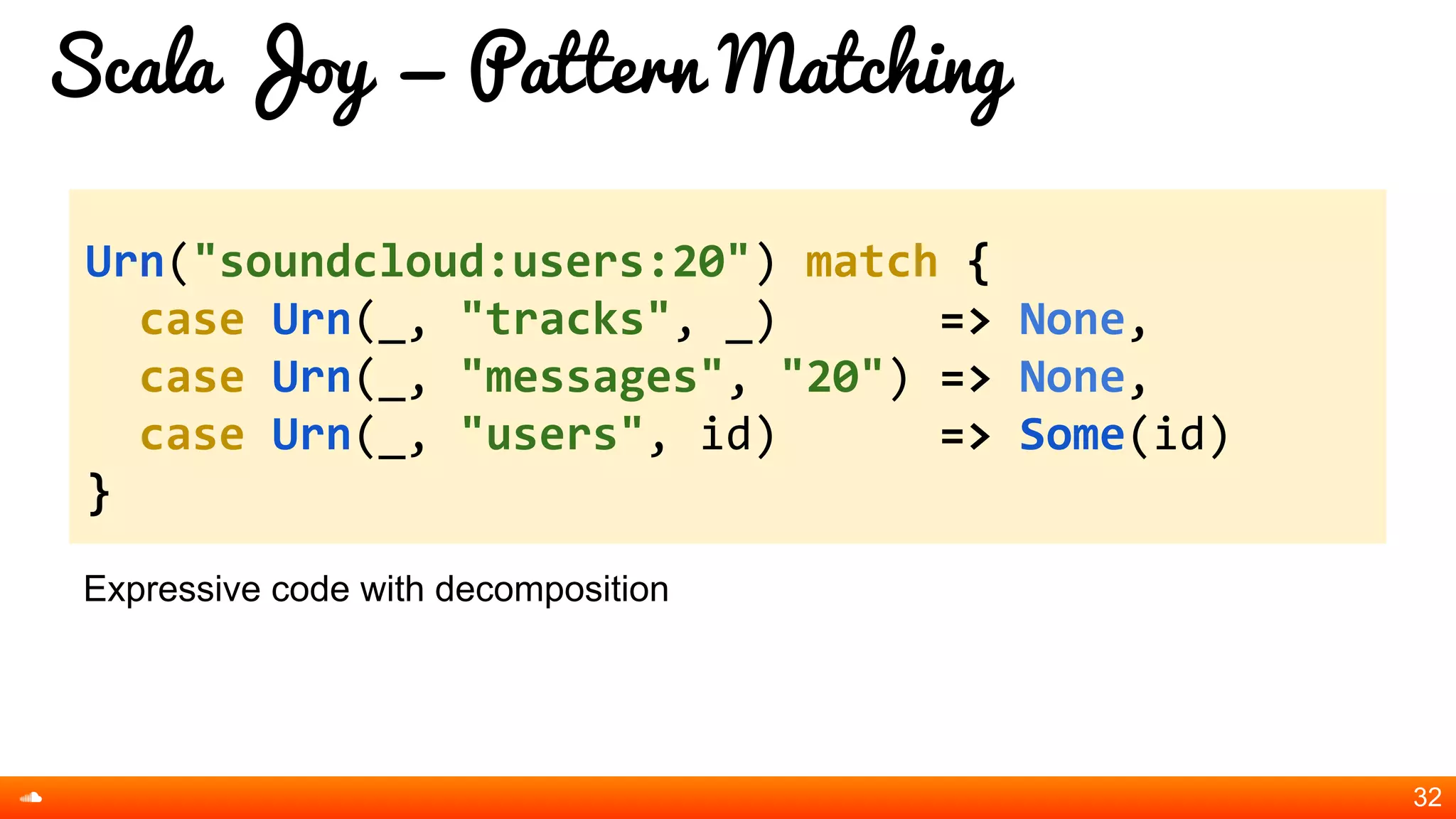

32. Scala Joy = Pattern Matching
Expressive code with decomposition
32
Urn("soundcloud:users:20") match {
case Urn(_, "tracks", _) => None,
case Urn(_, "messages", "20") => None,
case Urn(_, "users", id) => Some(id)
}

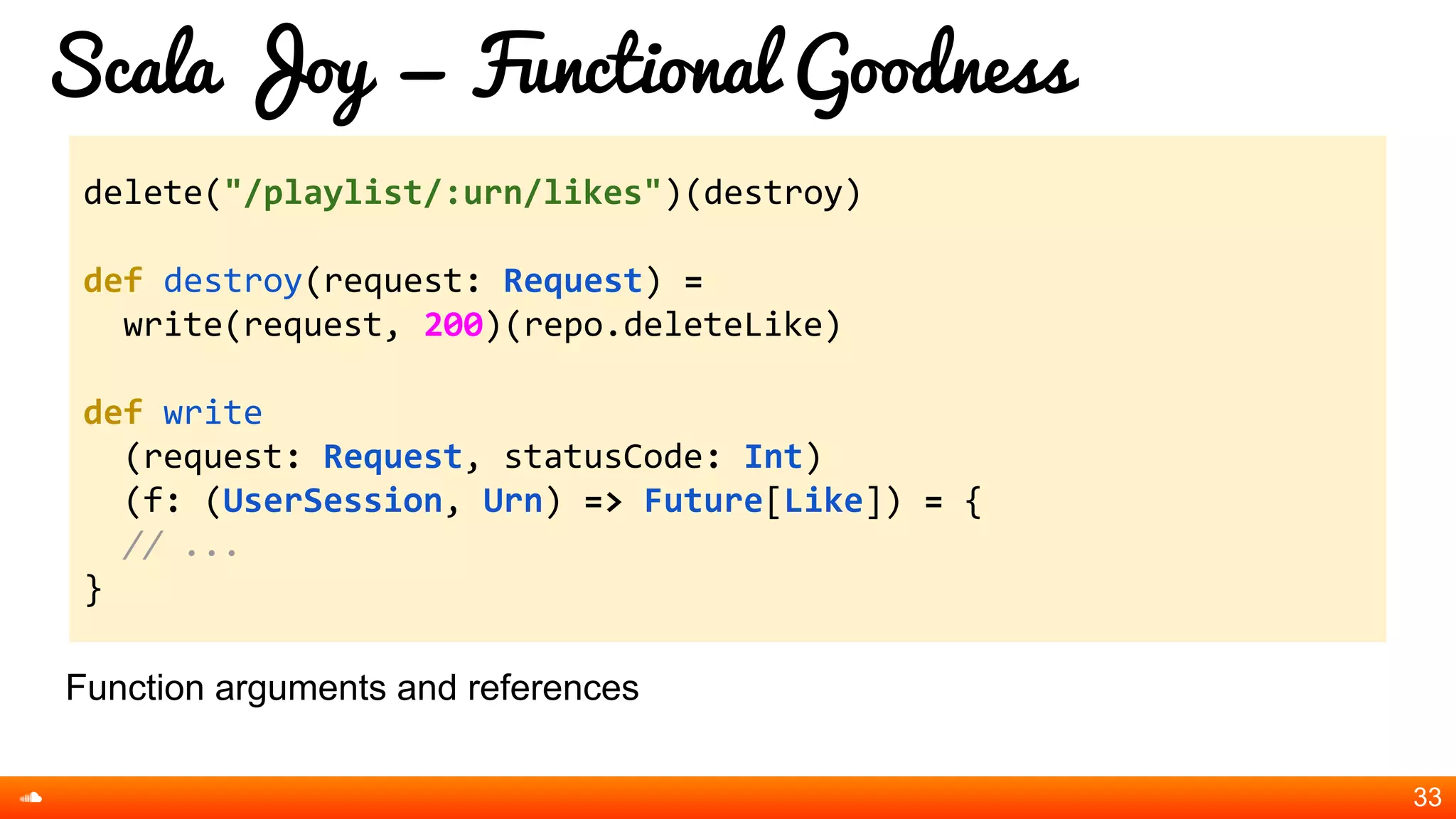

33. Scala Joy = Functional Goodness
Function arguments and references
33
delete("/playlist/:urn/likes")(destroy)
def destroy(request: Request) =
write(request, 200)(repo.deleteLike)
def write
(request: Request, statusCode: Int)
(f: (UserSession, Urn) => Future[Like]) = {
// ...
}

34. Futures!

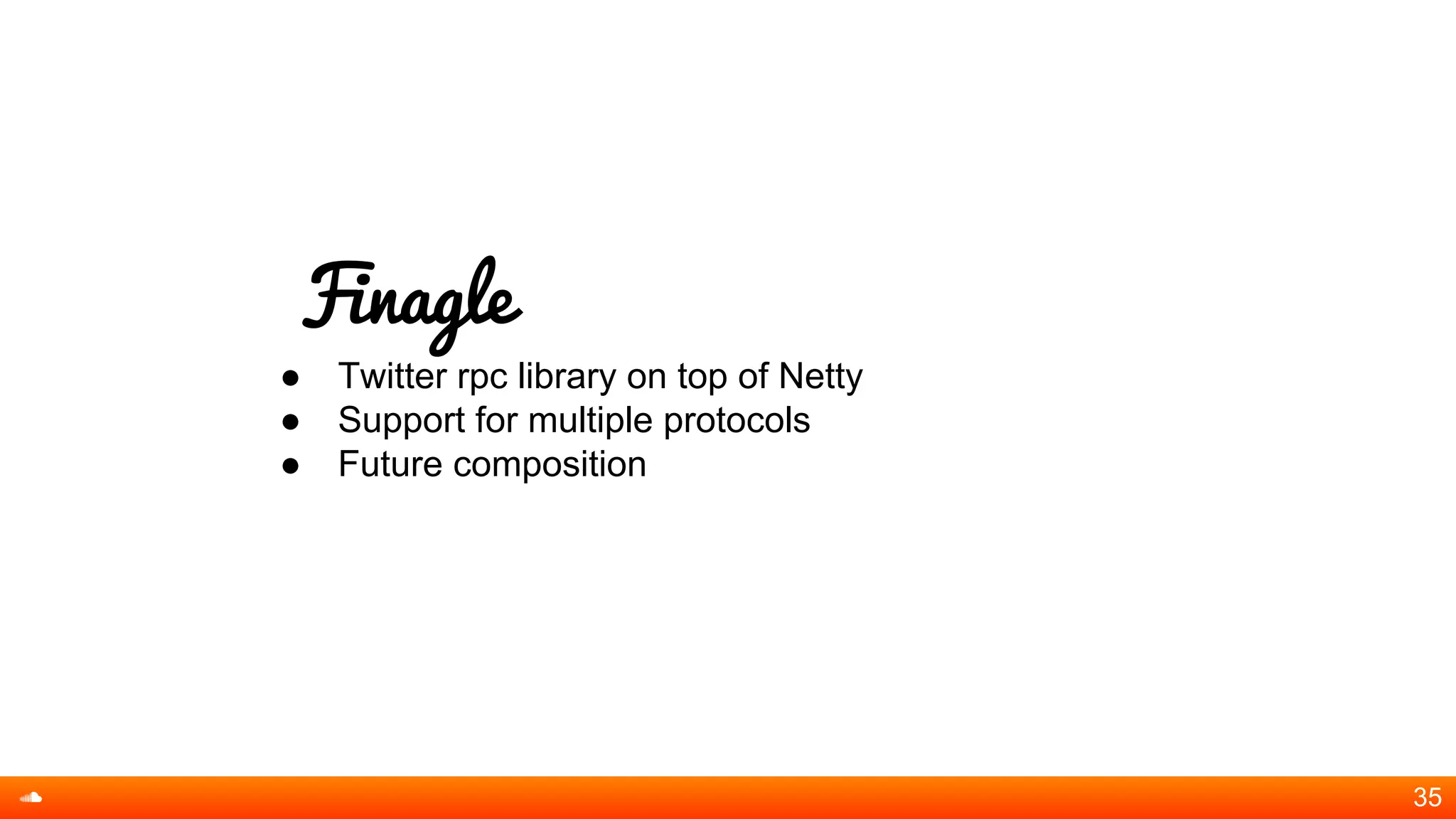

35. Finagle
● Twitter rpc library on top of Netty
● Support for multiple protocols
● Future composition
35

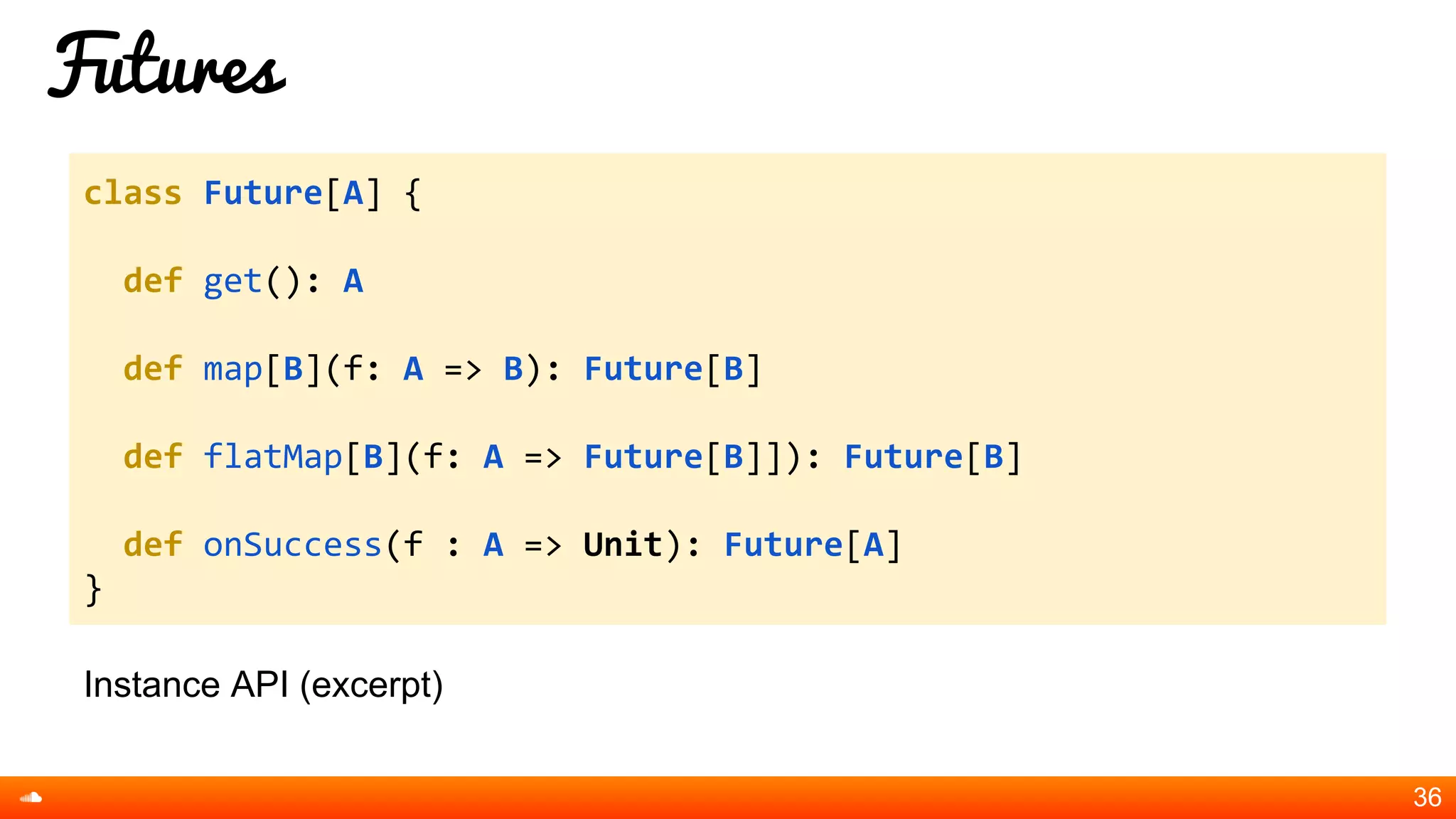

36. Futures
Instance API (excerpt)
36
class Future[A] {
def get(): A
def map[B](f: A => B): Future[B]
def flatMap[B](f: A => Future[B]]): Future[B]
def onSuccess(f : A => Unit): Future[A]
}

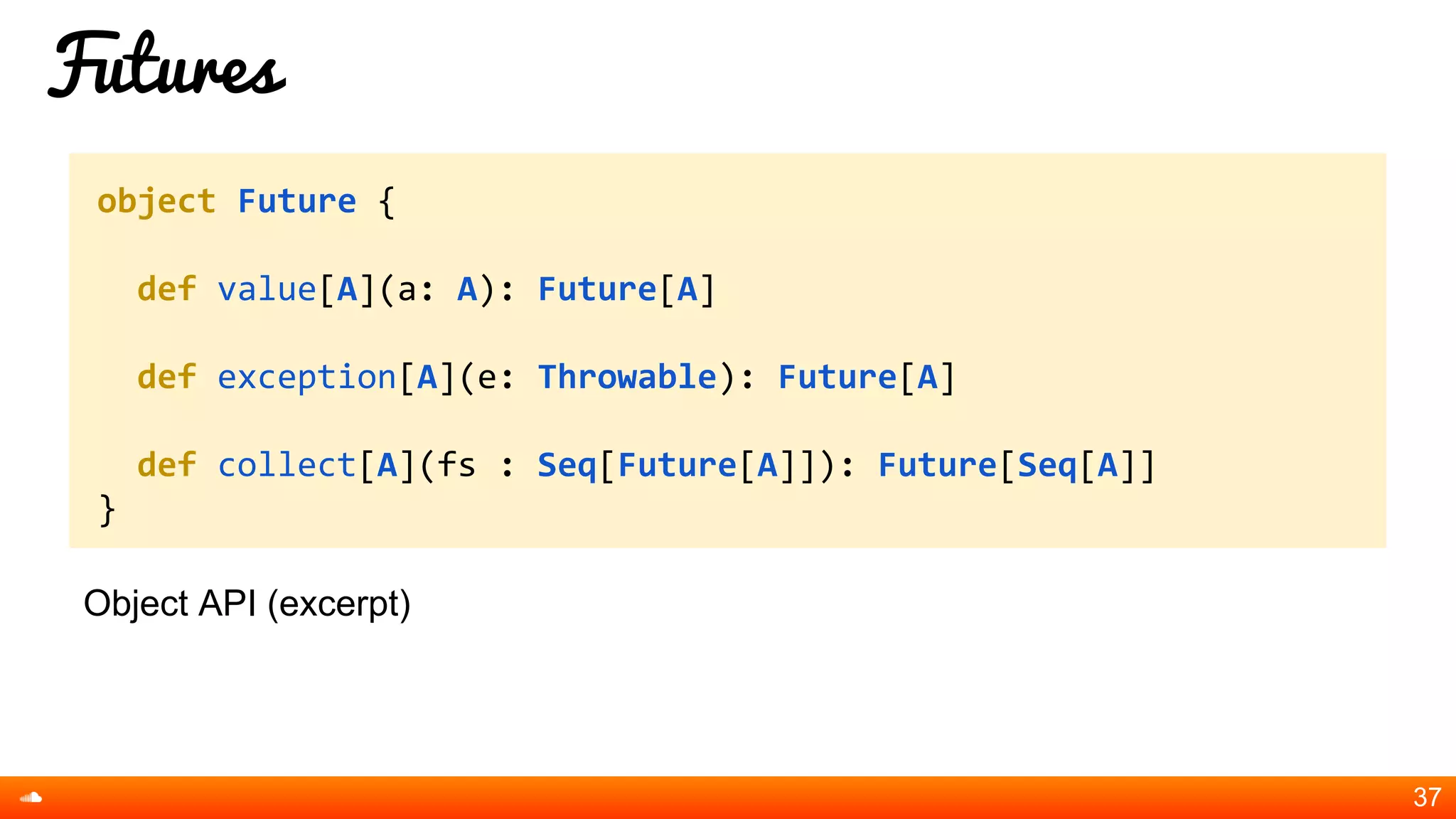

37. Futures
Object API (excerpt)
37
object Future {
def value[A](a: A): Future[A]
def exception[A](e: Throwable): Future[A]
def collect[A](fs : Seq[Future[A]]): Future[Seq[A]]
}

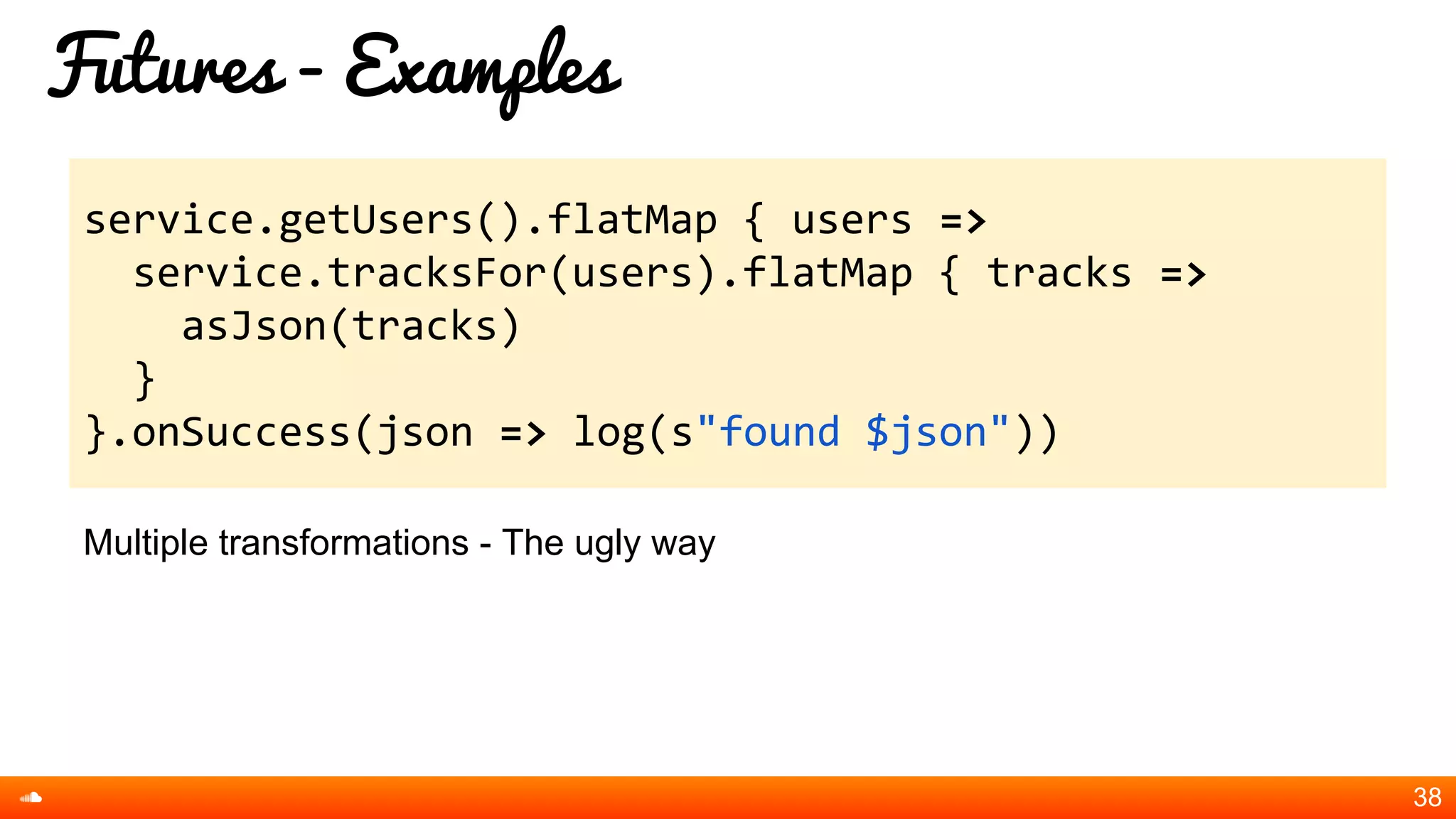

38. Futures - Examples
Multiple transformations - The ugly way
38
service.getUsers().flatMap { users =>
service.tracksFor(users).flatMap { tracks =>
asJson(tracks)
}
}.onSuccess(json => log(s"found $json"))

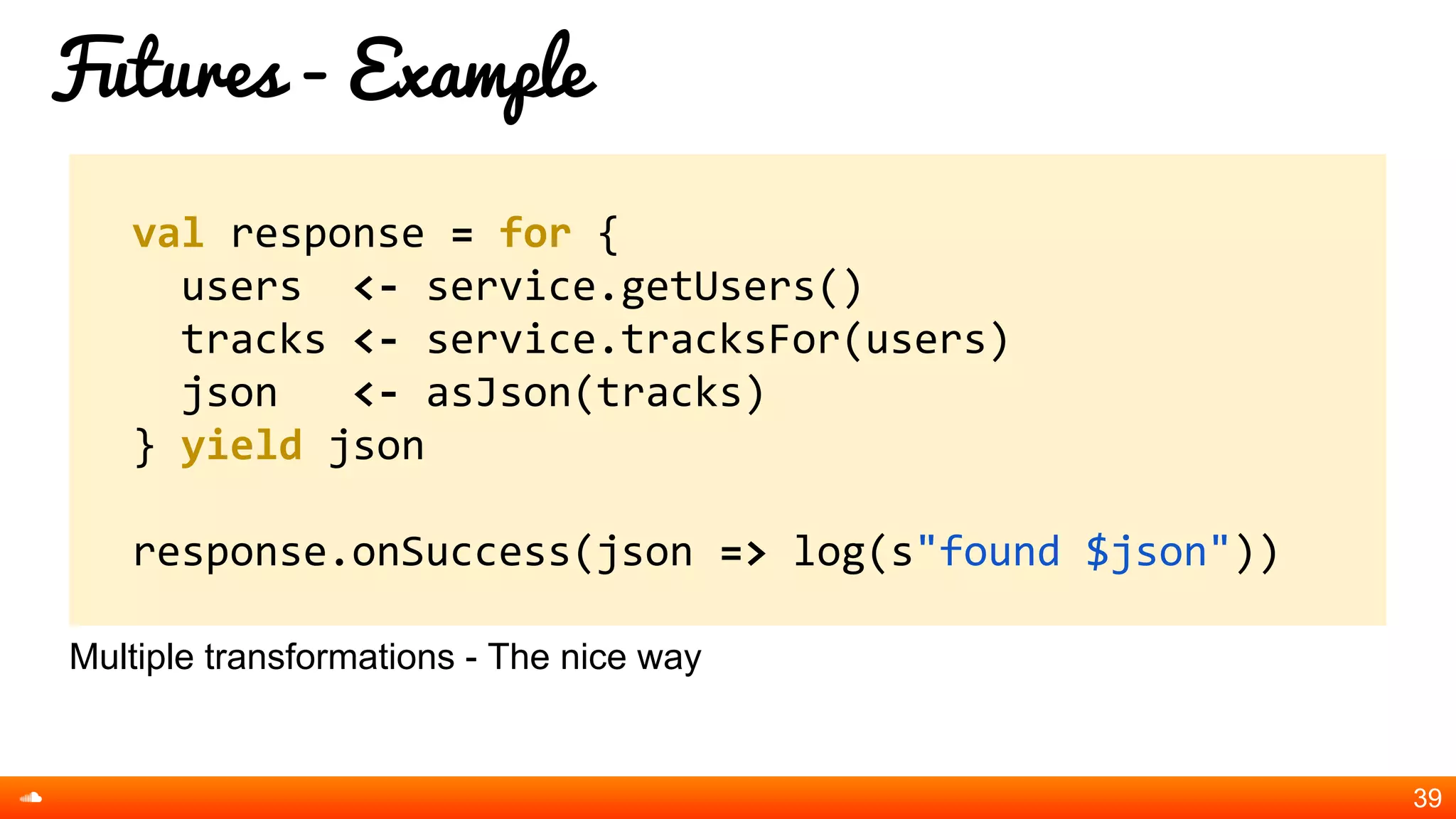

39. Futures - Example
Multiple transformations - The nice way
39
val response = for {
users <- service.getUsers()
tracks <- service.tracksFor(users)
json <- asJson(tracks)
} yield json
response.onSuccess(json => log(s"found $json"))

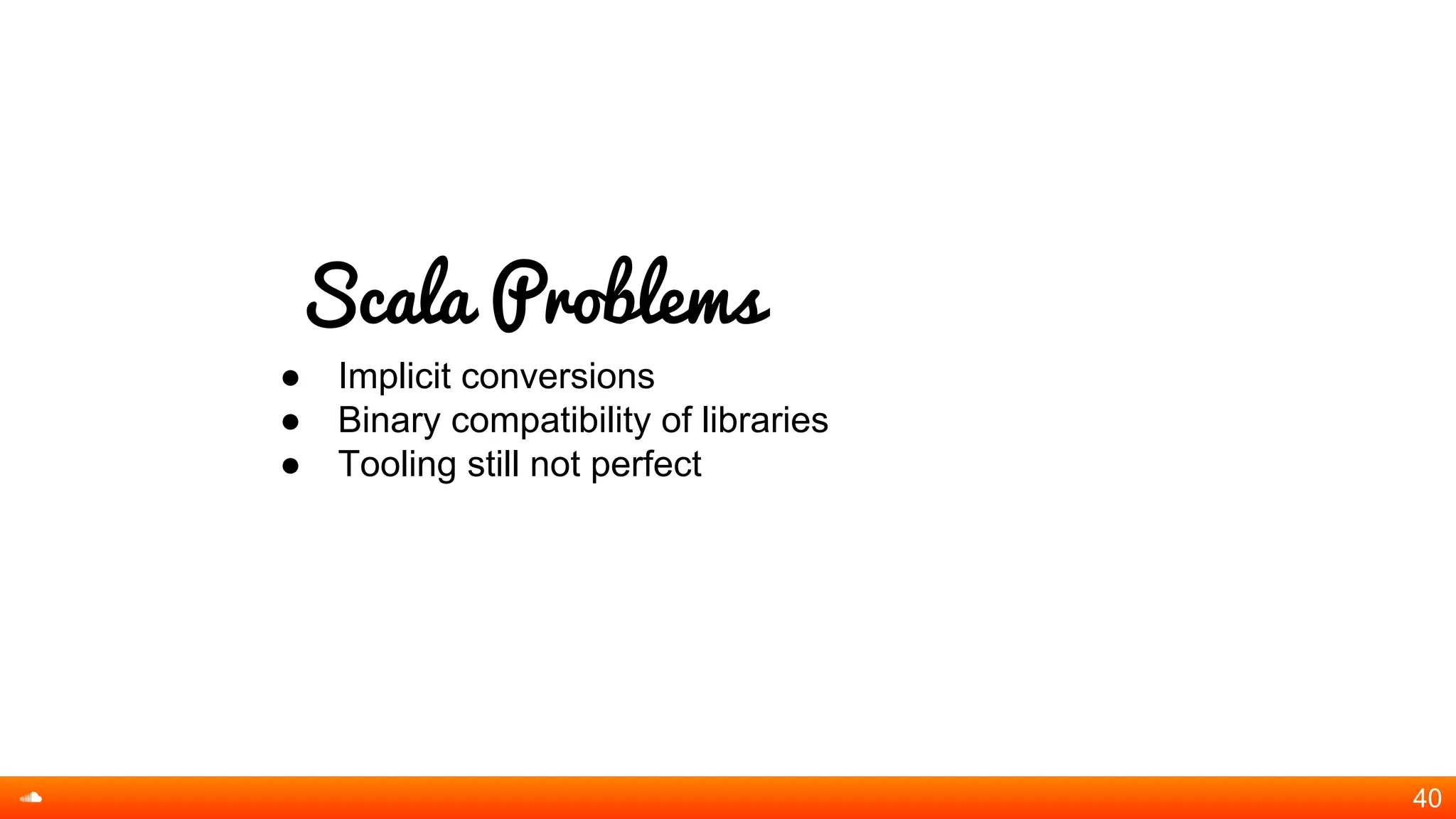

40. Scala Problems
● Implicit conversions
● Binary compatibility of libraries
● Tooling still not perfect
40

41. SBT

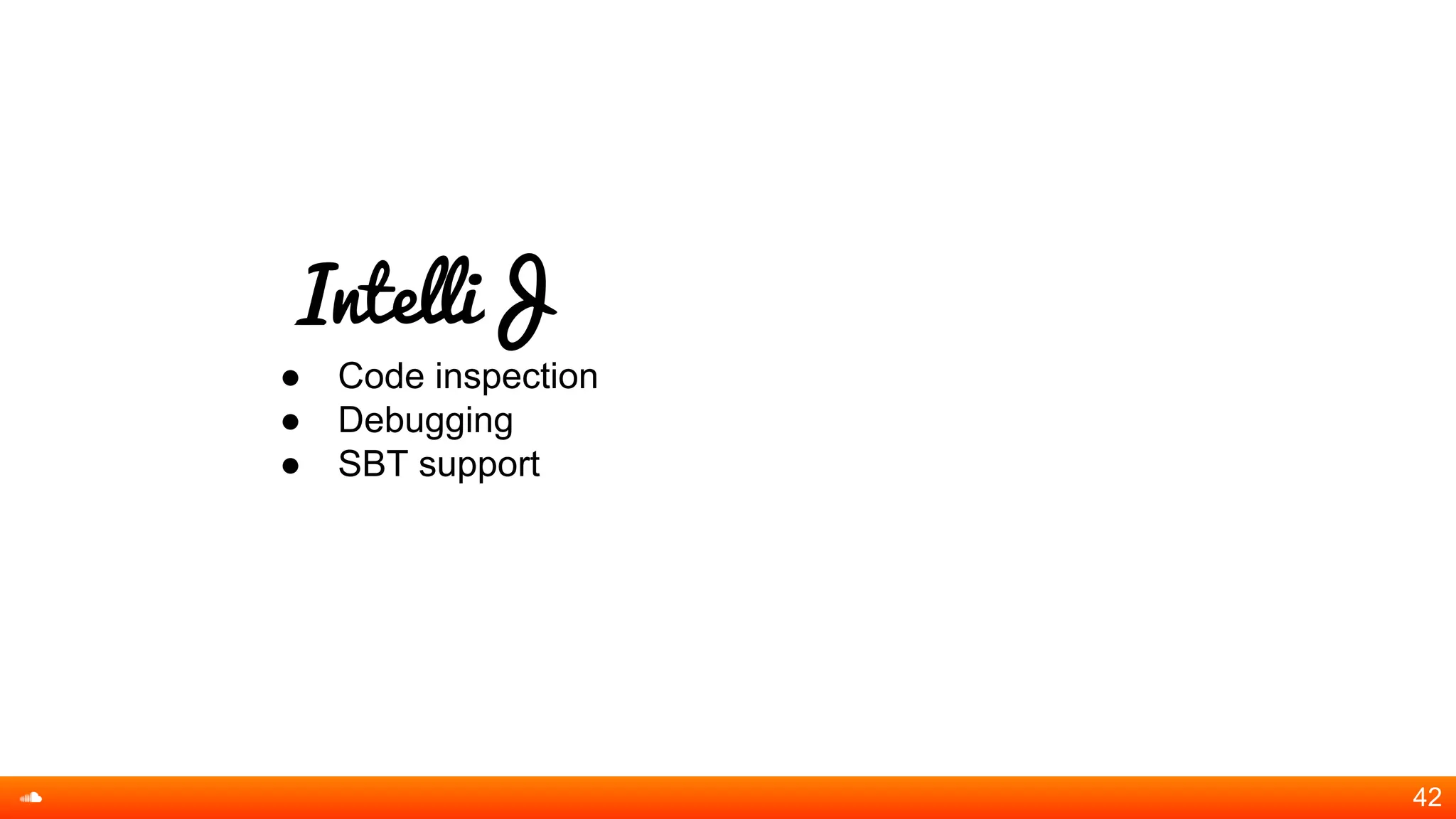

42. IntelliJ
● Code inspection
● Debugging
● SBT support
42

43. Chapter 3
The Cutover

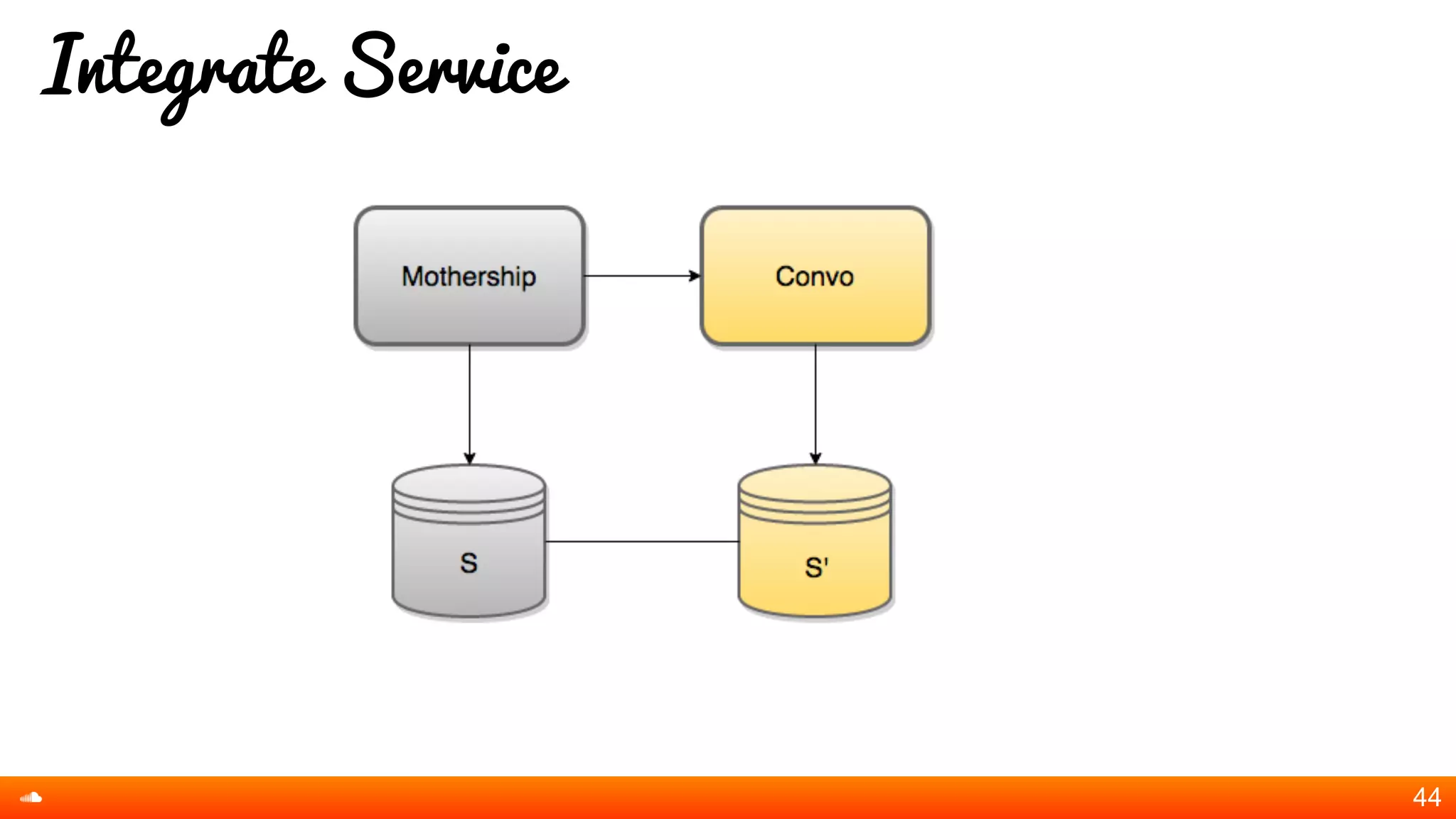

44. Integrate Service
44

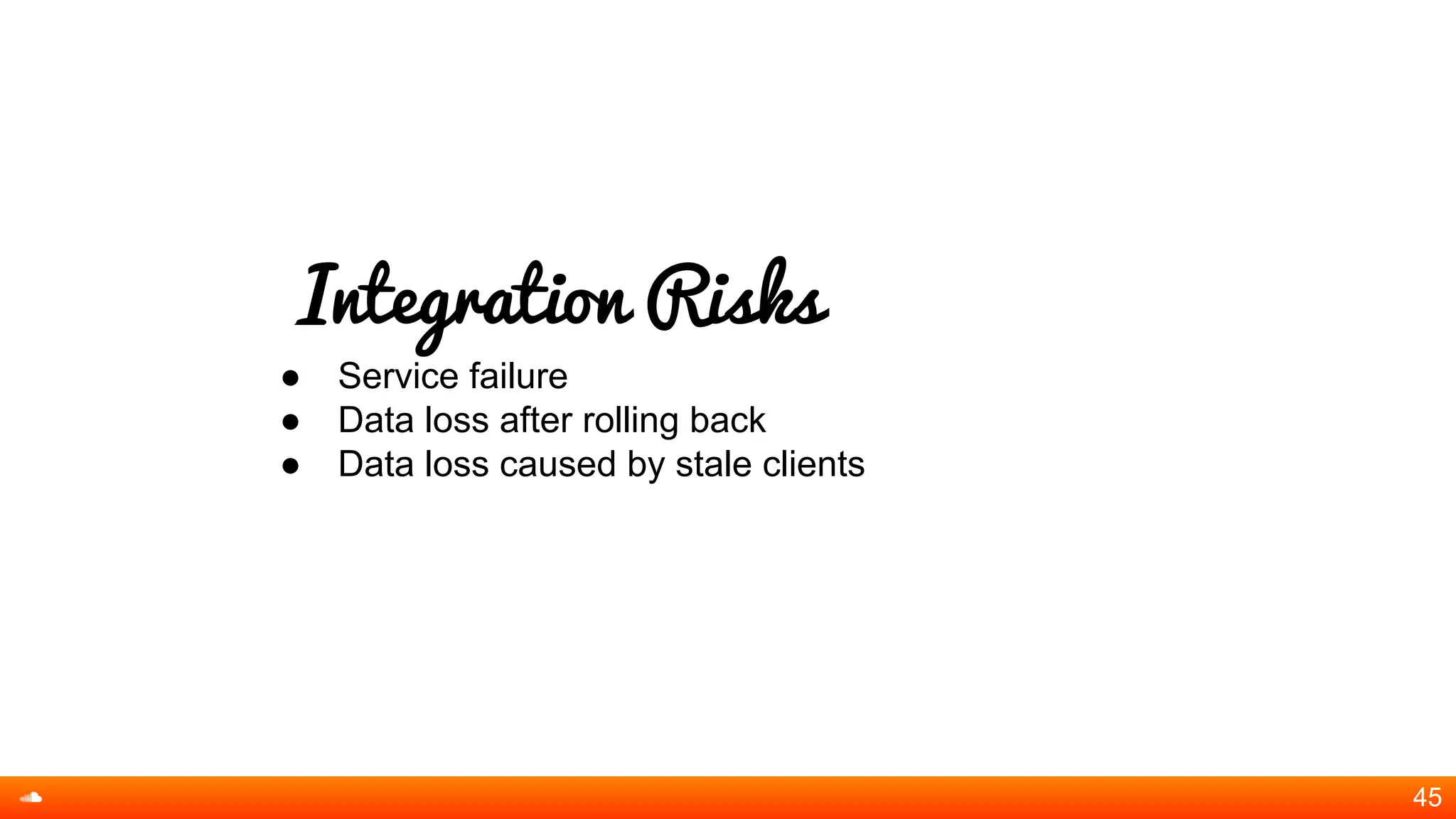

45. Integration Risks
● Service failure
● Data loss after rolling back
● Data loss caused by stale clients
45

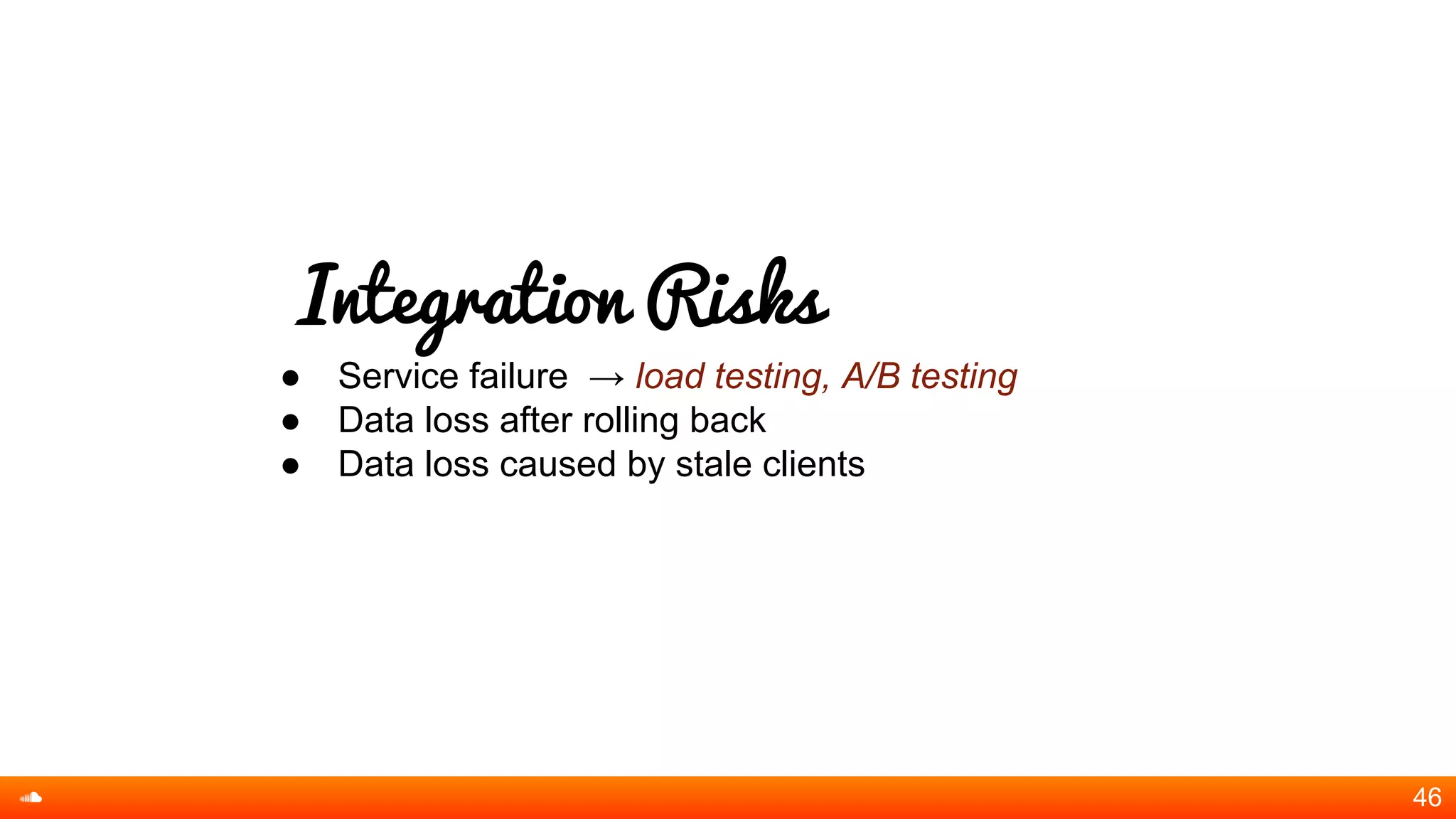

46. Integration Risks
● Service failure → load testing, A/B testing
● Data loss after rolling back
● Data loss caused by stale clients
46

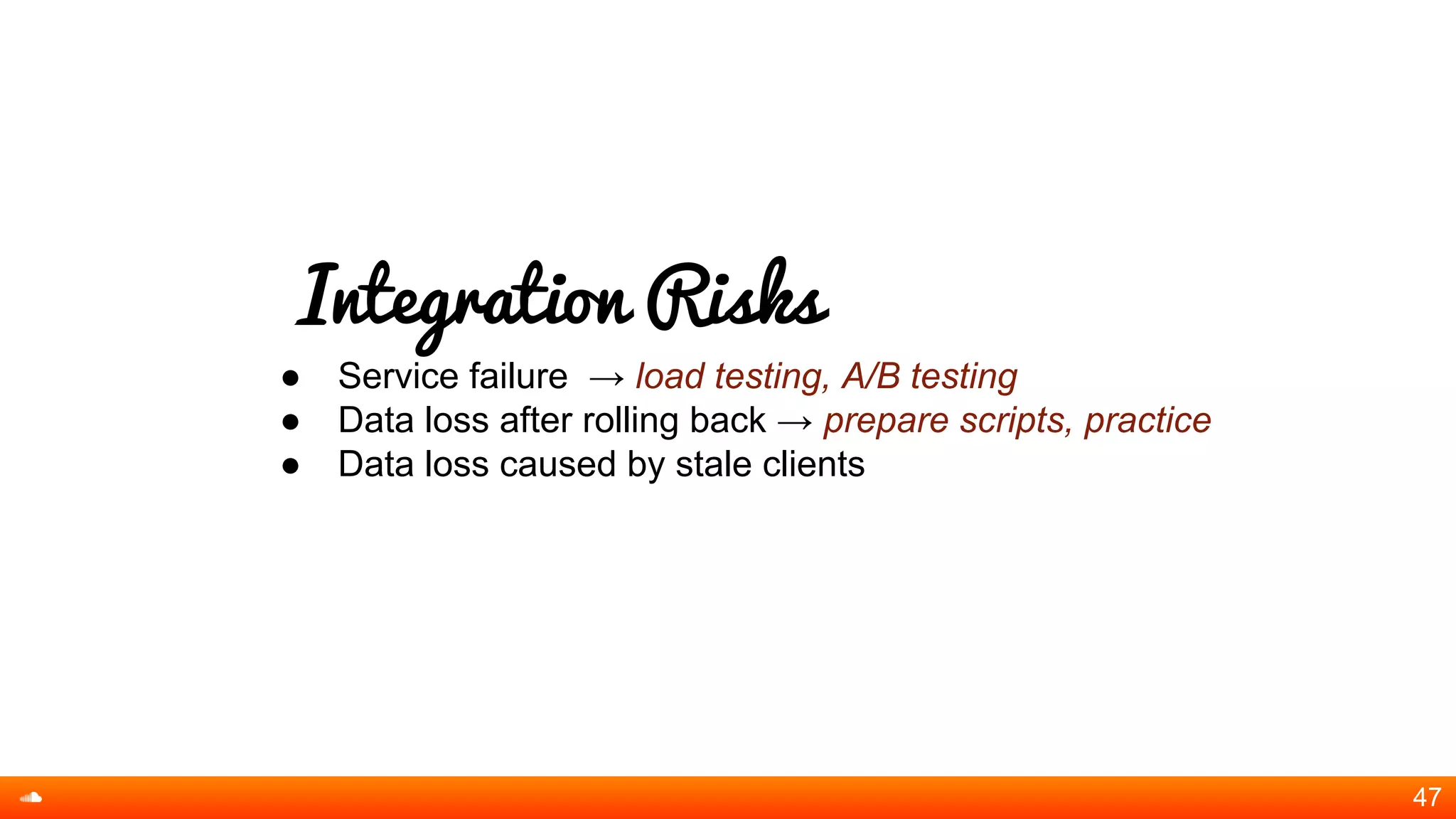

47. Integration Risks
● Service failure → load testing, A/B testing
● Data loss after rolling back → prepare scripts, practice
● Data loss caused by stale clients
47

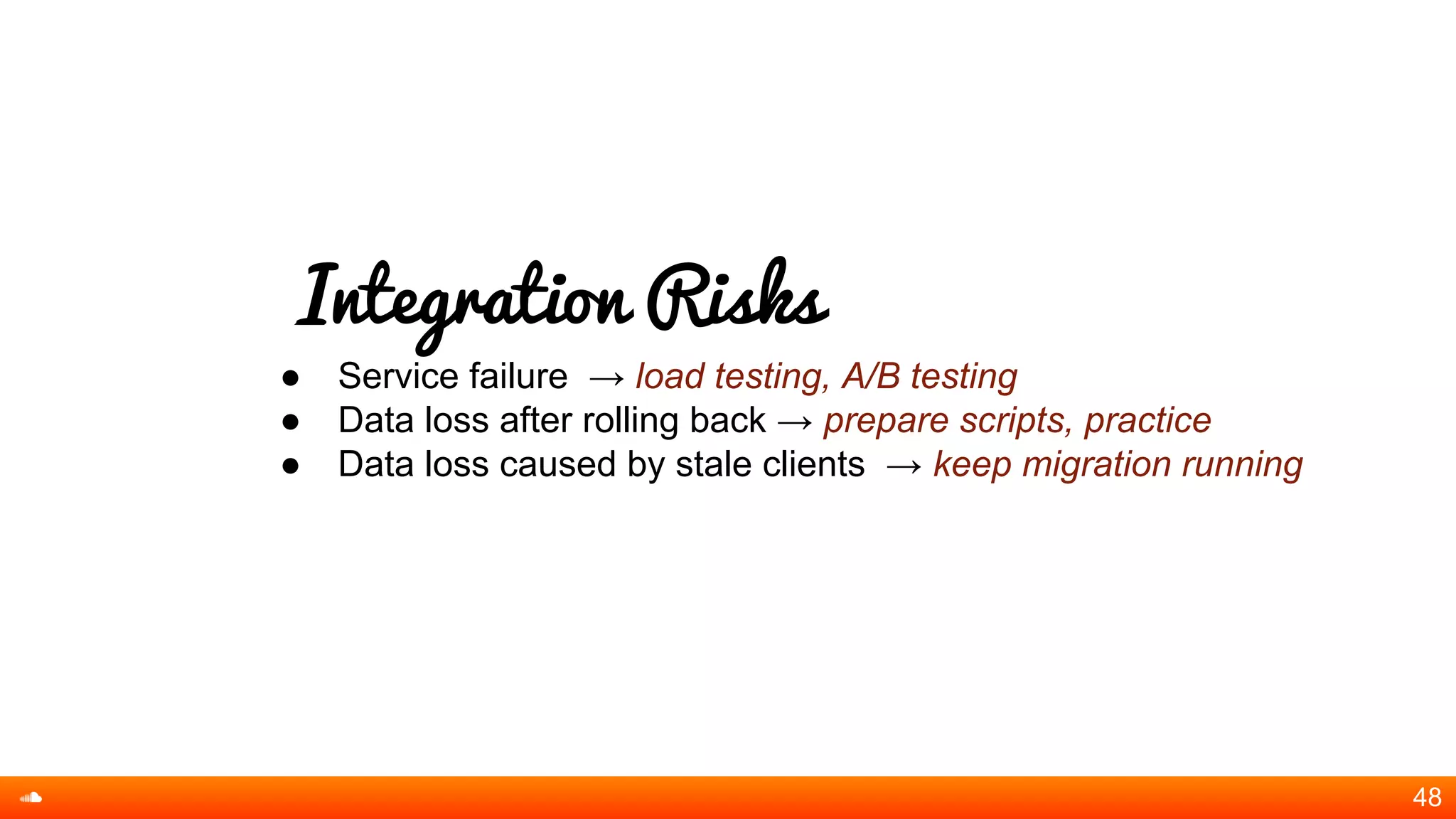

48. Integration Risks
● Service failure → load testing, A/B testing
● Data loss after rolling back → prepare scripts, practice
● Data loss caused by stale clients → keep migration running
48

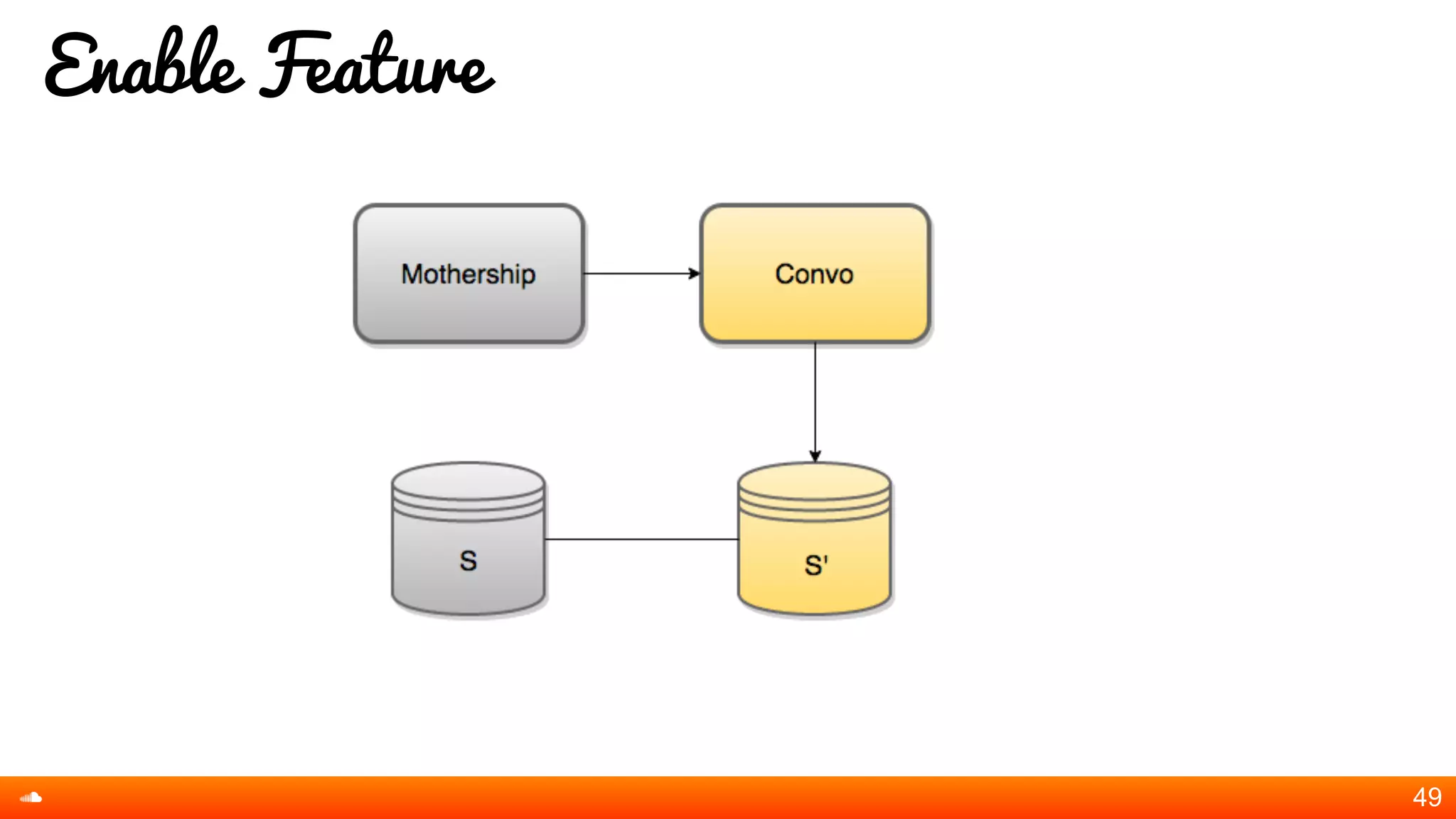

49. Enable Feature
49

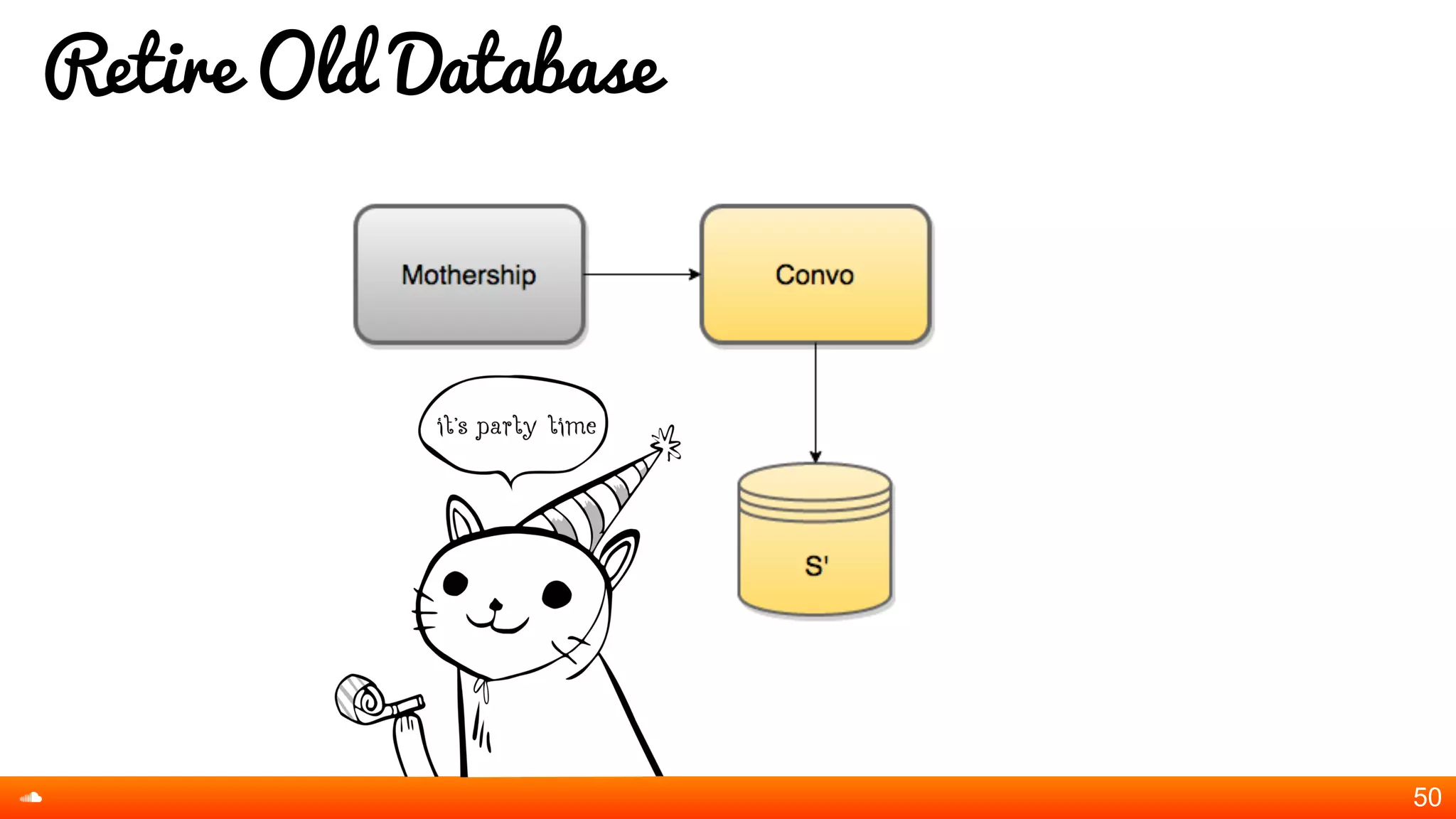

50. Retire Old Database
50

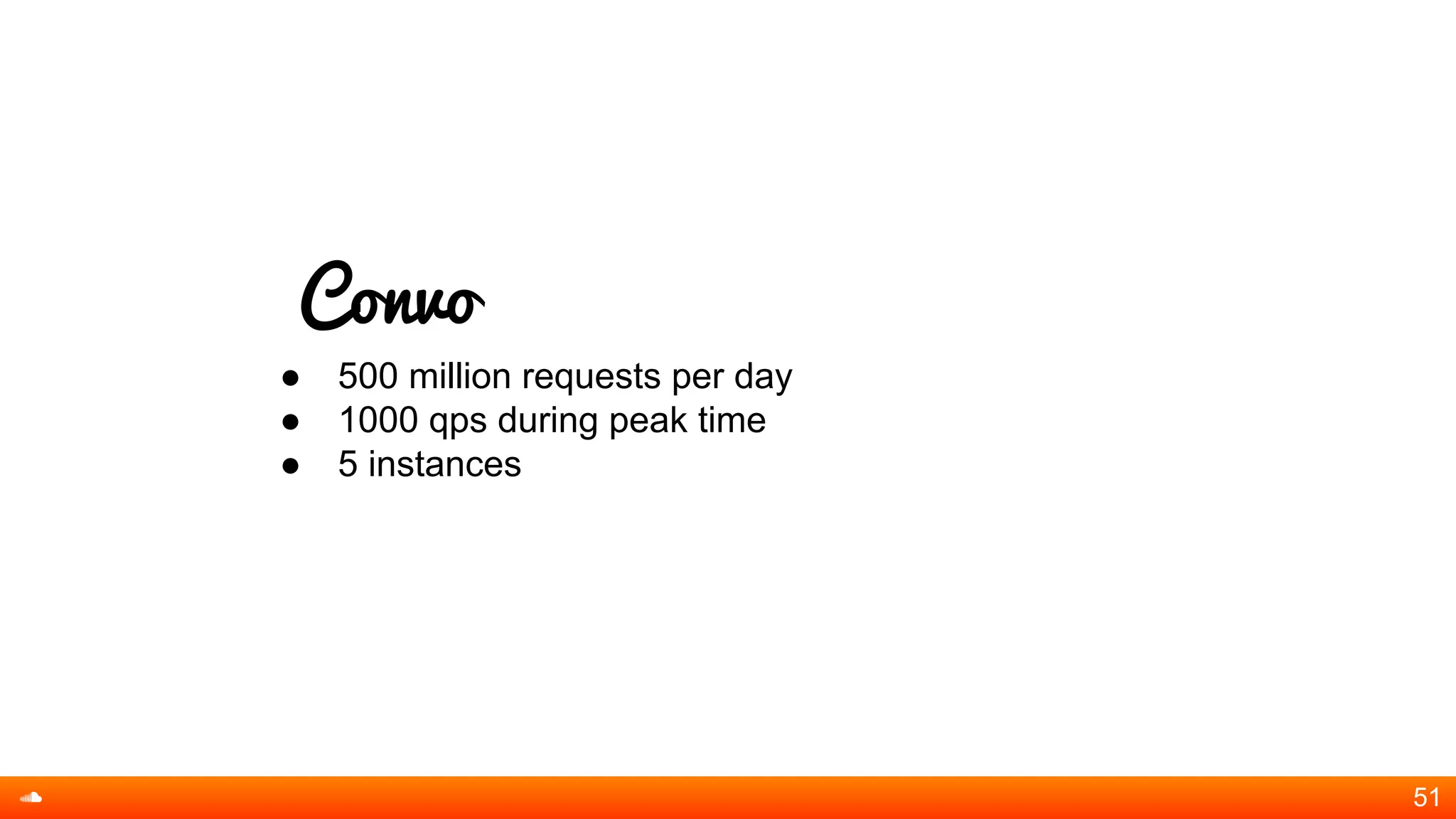

51. Convo
● 500 million requests per day
● 1000 qps during peak time
● 5 instances
51

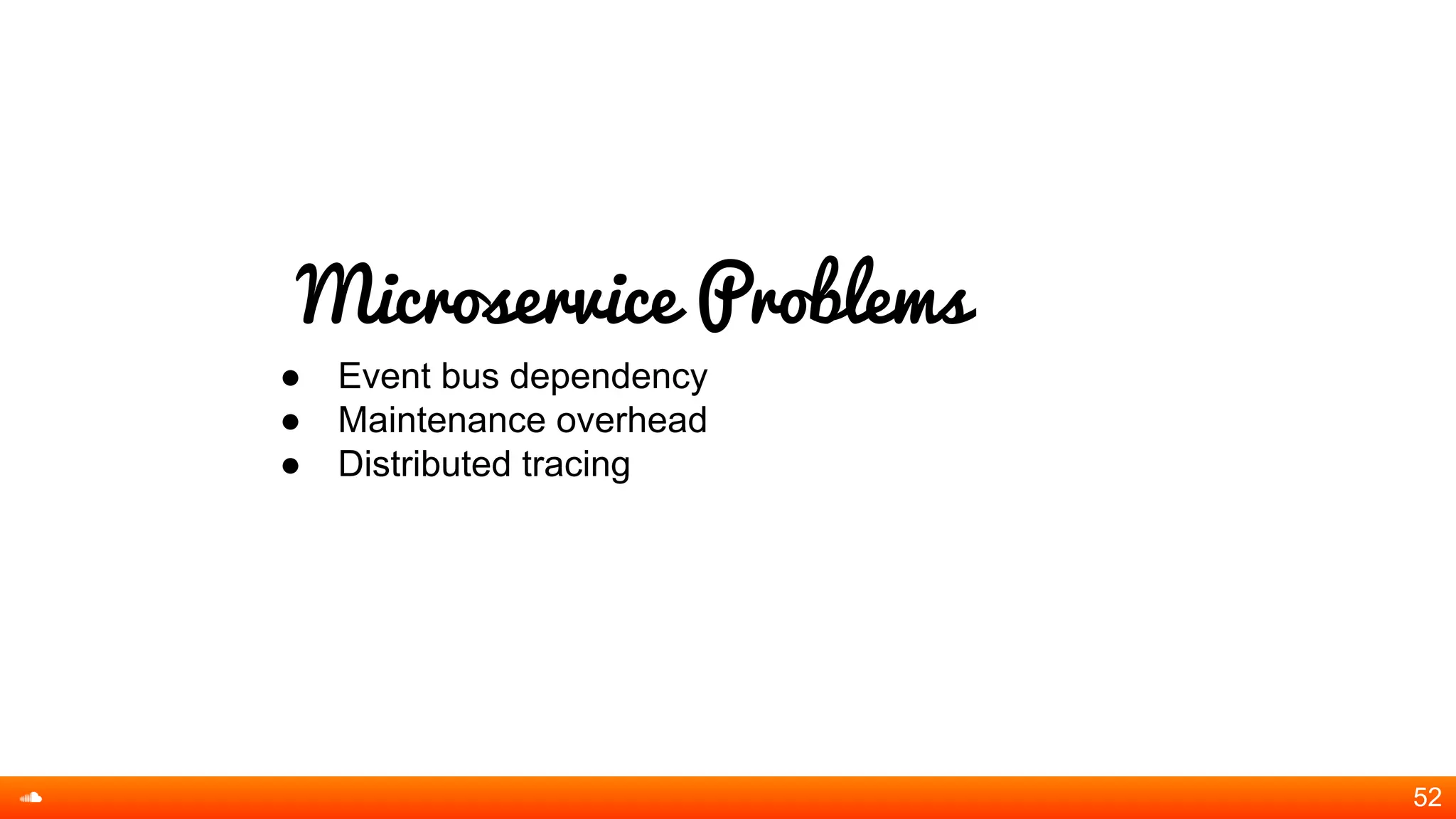

52. Microservice Problems
● Event bus dependency
● Maintenance overhead
● Distributed tracing
52

53. Microservices
→ Not a silver bullet
53

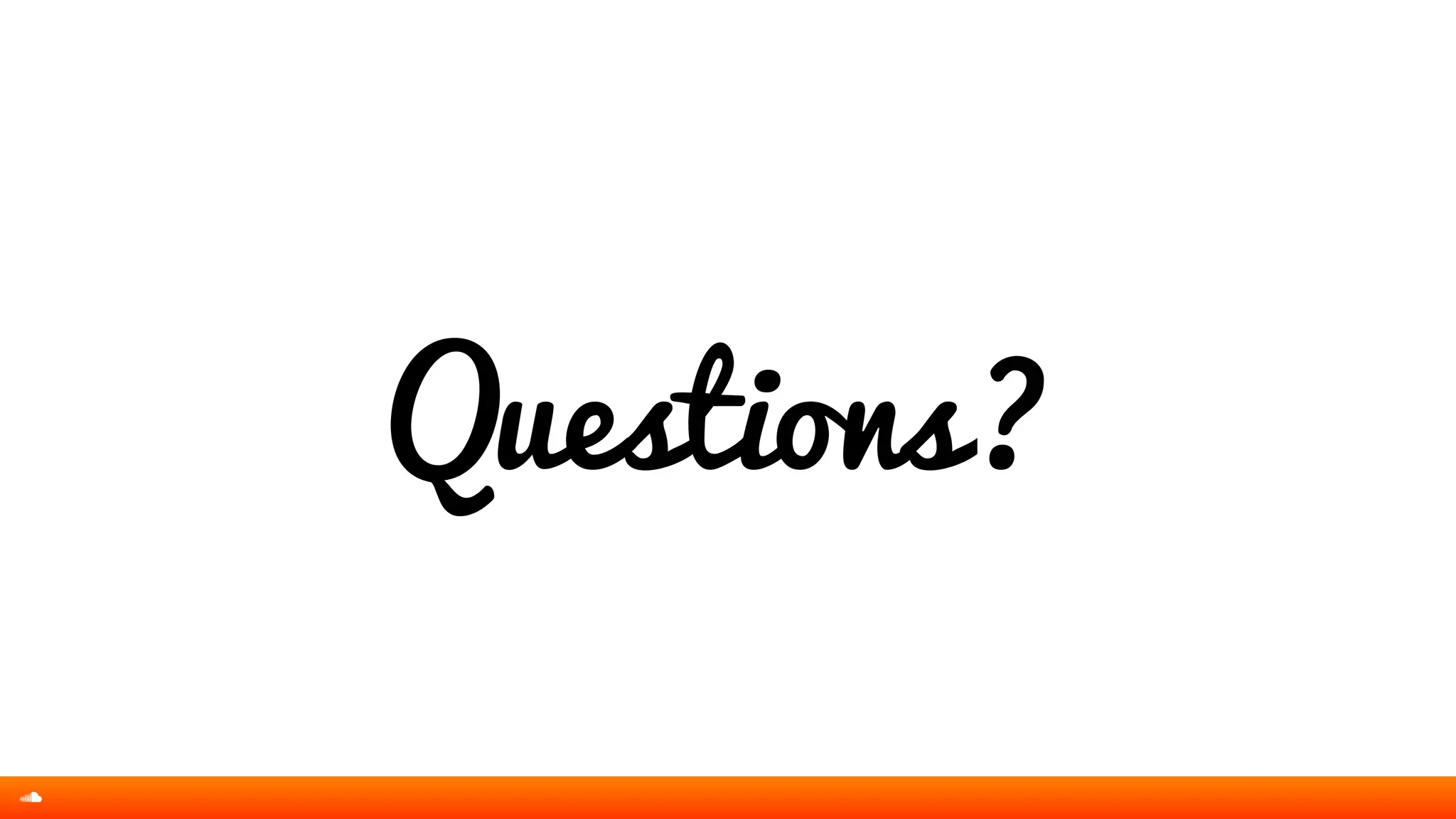

55. Questions?

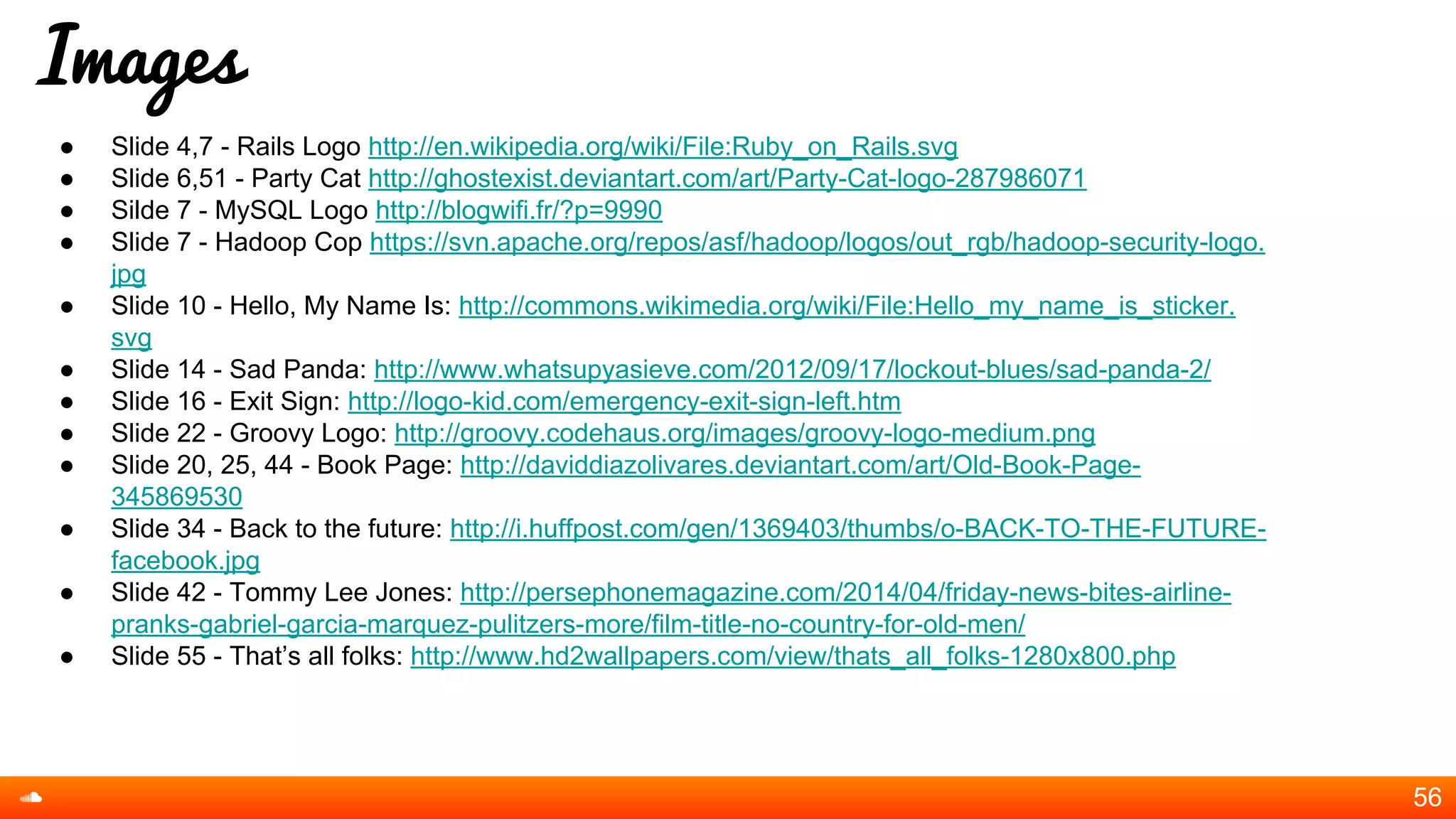

56. Images
