Black box testing is a technique of software testing which examines the functionality of software without peering into its internal structure or coding.

1. TEST CASE DESIGN
BLACK BOX
TESTING
Test Case Design

2. Box

3. Black Box Testing
• Black-box testing: Testing, either functional
or non-functional, without reference to the
internal structure of the component or
system. (ISTQB)

4. Test Execution
Black Box Testing
– testing without knowing the internal workings of thecode
– WHAT a system does, rather than HOW it works it
– typically used at System Test phase, although can be useful
throughout the test lifecycle
– also known as specification based testing andfunction
testing
– Applies for Functional and Non-Functional testing
Input Output
If Output = Expected result then pass

5. White Box Testing
white-box testing: Testing based on
an analysis of the internal structure
of the component or system.
(ISTQB)

6. White Box Testing
– testing based upon the structure of the code
– typically undertaken at Component and Component
Integration Test phases by development teams
– also known as structural or glass box testingor
structure based testing
Execute with monitor the flow
Input Output

7. Test Case Design
• Terminologies
– Test condition – an item or event of a component or system that
could be verified by one or more test cases
– Test case specification– a set of input values, execution
preconditions, expected results, and executionpostconditions,
designed for a specific test objective or test condition
– A test procedure specification – a sequence of actions for the
execution of the test. It may consist of number of test cases.
– Test basis: All documents from which the SRS, SDS, code, or any
related documents of a component or a system can be inferred.
6

8. Test
Case
s
Test
Procedure
Specification
or
Manual Test
Script
Priority
Test Conditions, Cases, Procedures and
Schedule
What How How When
Test
Execution
Schedule
Automated
Test Script
Test
Condition
Sourced
Documentation
Test
Cases
S
Test Procedure
pecifications

9. Illustrative Example of Test Case Design -1
Inorderfor3integersa,b,andctobethe
sides of a triangle, the following conditions
must bemet:
Scalene: a+b>c,wherea<b<c
Isosceles: a+a>c,whereb=a
Equilateral:a=a=a,whereb=a,c=a,anda>0
A triangle is:
Scalene if no two sides are equal
Isoscelesif2sidesareequal
Equilateral if all 3 sides are equal
void triangle (int a, int b, int c)
{
int min,med, max;
if (a>b)
{
max=a;
min = b;
}
else
{
max = b;
min = a;
}
if (c>max)
max = c;
else if (c<max)
min = c;
med = a+b+c-min-max;
if (max>min+med)
cout << "Impossible trianglen";
else if (max==min)
cout << "Equilateral trianglen";
else if (max==med||med==min)
cout << "Isoceles trianglen";
else if (max*max==min*min + med*med)
cout << "Rightangled trianglen";
else
cout << "Any trianglen";
}
8
•
a b
c

10. Illustrative Example of Test Case Design -2
9

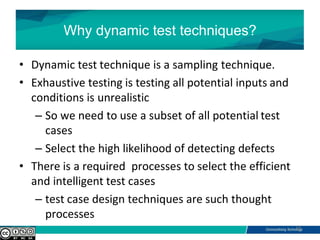

11. Why dynamic test techniques?
• Dynamic test technique is a sampling technique.
• Exhaustive testing is testing all potential inputs and
conditions is unrealistic
– So we need to use a subset of all potential test
cases
– Select the high likelihood of detecting defects
• There is a required processes to select the efficient
and intelligent test cases
– test case design techniques are such thought
processes
10

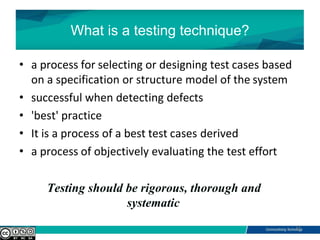

12. What is a testing technique?
• a process for selecting or designing test cases based
on a specification or structure model of the system
• successful when detecting defects
• 'best' practice
• It is a process of a best test cases derived
• a process of objectively evaluating the test effort
Testing should be rigorous, thorough and
systematic
11

13. Advantages of techniques
• Different people: similar probability find faults
– gain some independence of thought
• Effective testing: find more faults
– focus attention on specific types of fault
– know you're testing the right thing
• Efficient testing: find faults with less effort
– avoid duplication
– systematic techniques are measurable
Using techniques makes testing much
more effective 12

14. Measurement
• Objective assessment of thoroughness of testing
(with respect to use of each technique)
– useful for comparison of one test effort to another
• E.g.
Project C
30% Boundaries
partitions
40% Equivalence
70% Branches
Project D
70% Branches
partitions
50% Boundaries
45% Equivalence
13

15. Black Box Techniques for Test Case Design
14

16. Equivalence
partitioning (EP)
– primarily black box technique
– divide (partition) the inputs, outputs, etc. intoareas which are the same (equivalent)
– assumption: if one value works, all will work
– one from each partition better than all fromone

17. 15
Equivalence Partitioning:
 It is very difficult, expensive and time consuming if not at
times impossible to test every single input value
combination for a system.
 We can break our set of test cases into sub- sets. We then
choose representative values for each subset and ensure that
we test these.
Each subset of tests is thought of as a partition between neighbouring
subsets or domains.

18.  Equivalence Partitioning:
 Makes use of the principle that software acts in a general
way (generalises) in the way it deals with subsets of data,
 Selects Groups of inputs that will be expected to be
handled in the same way.
 Within a group of data, a representative input can be
selected for testing.
 For many professional testers this is fairly intuitive.
 The approach formalises the technique allowing an
intuitive approach to become repeatable.

19.  EP Example:
 Consider a requirement for a software system:
 “The customer is eligible for a life assurance
discount if they are at least 18 and no older
than 56 years of age.”
For the exercise only consider integer years.

21. One of the fields on a form contains a text box
which accepts numeric values in the range
of 18 to 26. Identify the invalid Equivalence
class.
a) 17
b) 19
c) 25
d) 21

22.  In an Examination a candidate has to score
minimum of 25 marks in order to pass the exam.
The maximum that he can score is 50 marks.
Identify the Valid Equivalence values if
the student passes the exam.
a) 22,24,27
b) 21,39,40
c) 29,30,31
d) 0,15,22

23. Boundary value analysis (BVA)
– faults tend to lurk near boundaries
– good place to look for faults
– test values on both sides of boundaries

24. 17

26. A program validates a numeric field as follows: values less than 10 are rejected,
values between 10 and 21 are accepted, values greater than or equal to 22 are
rejected. Which of the following covers the MOST boundary values?
a. 9,10,11,22
b. 9,10,21,22
c. 10,11,21,22
d. 10,11,20,21

27. In a system designed to work out the tax to be paid:
An employee has £4000 of salary tax-free.
The next £1500 is taxed at 10%.
The next £28000 after that is taxed at 22%.
Any further amount is taxed at 40%.
To the nearest whole pound, which of these is a valid Boundary Value Analysis
test case?
a) £28000
b) £33501
c) £32001
d) £1500

28. Example 1: EP
void ValveControl (int pressure, inttemperature)
{
if (pressure <= 10)
{
OpenTheValve();
printf (“Valve openedn”);
}
if (pressure > 100)
{
CloseTheValve();
printf (“Valve closedn”);
}
else
{
ShutDown();
}
if (temperature > 27)
{
EnableCoolingCoil();
printf (“Cooling coil enabledn”);
}
else
{
• Using EP and BV,
derive the set of
values for pressure
and temperature.
• Enumerate
exhaustively all the
values of pressure
and temperature to
form a complete test
suite.
DisableCollingCoil();
}
} 18

29. Example 2: EP & BVA
• Scenario: If you take the train before 9:30 am
or in the afternoon after 4:00pm until 7:30 pm
(‘the rush hour’), you must pay full fare. A
saver ticket is available for trains between
9:30 am and 4:00 pm.
– Identify the partitions
– Identify the boundary values to test train times for
ticket type
– Derive the test cases using EP and BVA
19

30. Example 3: EP
20

31. Valid partitions
• The valid partitions can be
– 0<=exam mark <=75
– 0<=coursework <=25
21

32. Invalid partitions
• The most obvious partitions are
– Exam mark > 75
– Exam mark < 0
– Coursework mark > 25
– Coursework mark <0
22

33. Exam mark and c/w mark
23

34. Less obvious invalid input EP
• invalid INPUT EP should include
24

35. Partitions for the OUTPUTS
• EP for valid OUTPUTS should include
25

36. The EP and boundaries
• The EP and boundaries for total mark
26

37. Unspecified Outputs
• Three unspecfied Outputs can be identified
(very subjective)
– Output = “E”
– Output = “A+”
– Output = “null”
27

38. Total EP
28

39. Test Cases corresponding to EP exam
mark (INPUT)
29

40. Test Case 4-6 (coursework)
30

41. Test case for Invalid inputs
31

42. Test cases for outputs:1
32

43. Test cases for outputs:2
33

44. Test cases for invalid outputs:3
34
