Modifying and Extending the ESB Toolkit

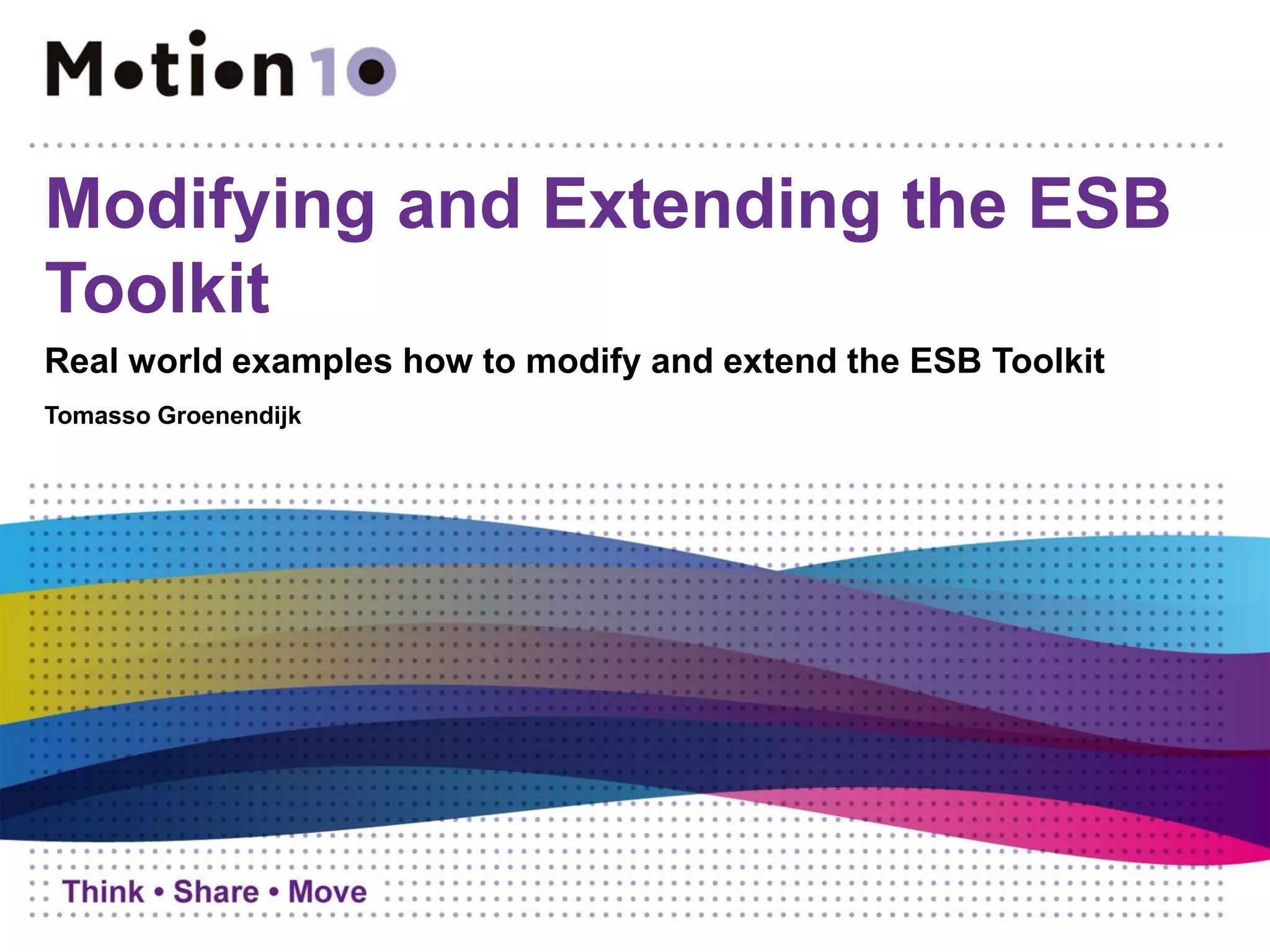

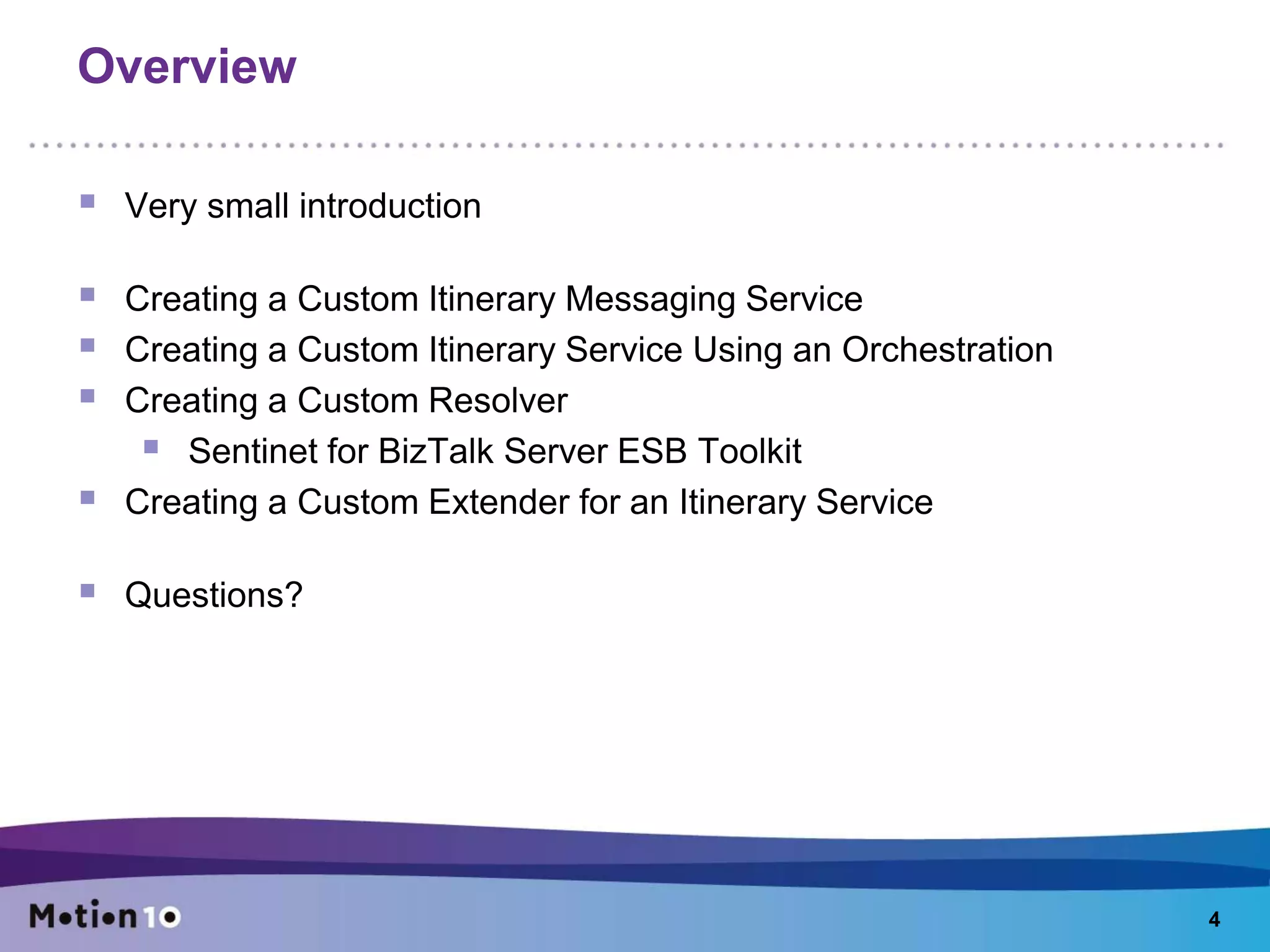

- 1. Sponsored & Brought to you by Modifying and Extending the ESB Toolkit Tomasso Groenendijk https://twitter.com/tlagroenendijk https://www.linkedin.com/in/tomassogroenendijk
- 2. Modifying and Extending the ESB Toolkit Real world examples how to modify and extend the ESB Toolkit Tomasso Groenendijk
- 5. Rethinking The Solution As A Set Of Capabilities Dynamic Resolution Resolved Itinerary Generic Off Ramp Generic On Ramp Multiple Schemas (xN) Multiple Services (xN) Transform Service Routing Service Custom Service
- 6. BizTalk ESB Toolkit Components 6 Adapters Dynamic Ports Pub Sub Engine Transformation Engine Business Rules Engine Host Environment Itinerary Services Resolvers BizTalk Components On/Off-Ramps Management Portal Orchestration Engine Adapter Providers Core Web Services UDDI 3.0 Exception Management BAM ESB Toolkit
- 7. Creating a Custom Itinerary Messaging Service 7
- 8. Demo: Custom Itinerary Messaging Service In this demonstration, you will see: Build the Trackings project and deploy it. Add an entry in the Esb.config file. Add the custom Itinerary Service to an Itinerary. Run the example.
- 9. Creating a Custom Itinerary Service Using a BizTalk Orchestration 9
- 10. Demo: Custom Itinerary Orchestration Service In this demonstration, you will see: Build the RecipientList project and deploy it. Add an entry in the Esb.config file. Add the custom Itinerary Service to an Itinerary. Run the example.
- 11. Creating a Custom Resolver 11 In an Itinerary Service a Resolver is used for dynamically resolving endpoint information and BizTalk Maps. Provided Resolvers • STATIC • UDDI • XPATH • ITINERARY • ITINERARY-STATIC • BRE • BRI • LDAP • CONTEXT • WSMEX
- 12. Sentinet for BizTalk Server ESB Toolkit
- 13. Demo: Sentinet for BizTalk Server ESB Toolkit Store web service in the Sentinet SOA Repository Create a Keyword for an endpoint. Using the Sentinet Resolver in the Itinerary Designer. Testing the Resolver in Visual Studio. Executing an Itinerary with Sentinet Resolver. In this demonstration, you will see:
- 14. Creating a Custom Extender for an Orchestration-Based Itinerary Service 14
- 15. Demo: Custom Extender for an Orchestration- Based Itinerary Service In this demonstration, you will see: Create a Custom Extender for an Itinerary Service. Create an Itinerary Service to validate the message. Create a Business Rule Policy for validation. Add the custom Validating Service to an Itinerary. Test the Itinerary.
- 16. Links Using MongoDB for Message Body Tracking in the ESB Toolkit for BizTalk Creating a Custom Itinerary Orchestration Service for the Recipient List pattern Using the ESB Toolkit and the Sentinet Resolver to dynamically resolve Web Service Endpoints Creating a Custom Extender for an Orchestration-Based Itinerary Service
Editor's Notes
- Hi I’m Tomasso Groenendijk. I’m an Integration MVP from the Netherlands and I’m going to talk about how to modify and extend the ESB Toolkit In this presentation I’m going to show several examples how to extend modify it.
- But first a small introduction about myself I live in the Netherlands in Rotterdam and I am a BizTalk consultant at Motion10. Motion10 is a company in the Netherlands that is specialized in SharePoint and BizTalk. Last year in 2014 I became a MVP and I write a lot blog posts about the BizTalk and the ESB Toolkit. I also created several ESB Toolkit samples that I posted in the MSDN sample Tonight I’m going to tell something about the samples How they work, how you can install them and how to use them in an itinerary So, what I’m going to show you?
- These are the topics I’m going to talk about First I want to do a very small introduction of the ESB Toolkit for if you not really familiar with the ESB Toolkit. Because this is more an in depth presentation I’m not going to spent much time on the introduction. Its only two slides to get familiar with the terminology. Because else we dont have time to cover all the examples. But I think it also duable see the presentation and be that familliat with the ESB Toolkit.
- With the ESB Toolkit you have to rethink your solution because with the ESB Toolkit you want to create reusable components that you can use in multiple scenarios For example: Normally with BizTalk you create an orchestration for a specific message type and for a specific scenario. In that case is difficult to reuse With ESB Toolkit you dont use a specific messagetypes anymore but XmlDocument as the message type. And also with receive ports and sendports it easier to reuse them Thats why they are called OnRamps and OffRamps with the ESB Toolkit. And thats only because you want to be able to reuse them In the ESB generic services that have a specif task. Out of the box you only have a Routing and a Transforming service But if you want to use the ESB Toolkit in a real world scenario, these components are not enough and you have to create your own custom components. So witch components are there?
- ESB Toolkit are a set of components on top of the normal components in BizTalk In the ESB Toolkit you make use of all the BizTalk components. On top of it you have generic ESB components So the ESB Toolkit is higly extendable and you can almost modify anything In this presentation I’m going to focus on some of the core components that are in the Red Box Resolvers Itinerary Services First I’m going to show how to create a custom Itinerary Service
- There are two types of Itinerary Services. Messaging Itinerary Service Itinerary Service that is based on an Orchestration First I’m going to show how you can create a custom Messaging Service In the picture you see a custom Messaging Service in the Itinerary Designer in Visual Studio. So what is a Messaging Service A Messaging is a class that is that is executed by the Dispatcher pipeline component. That’s a pipeline compontent in the ESB Toolkit Framework It’s similar when you create your own pipeline component. Its almost the same code but its much easier because in the end its only a class And you only have to deploy it to the Global Assembly Cashe In what scenarios do you need a custom Messaging Service : For example If you want to implement - Custom message validation - Tracking, Tracing - Custom processing of the message
- In the first demo I’m going to create a custom Messaging Service In this demo I’m going to show how you can track your message in MongoDB I already created a Trackings project. Walk through the code. Going to show how you can deploy it Because you also have to create an entry in the Esb.config file. I’m going to add the Itinerary Service to an Itinerary. It’s a live demo so hopefully its going to work Then I’m going to run the sample Lets see!
- With the ESB Toolkit you can also create a custom Itinerary Service by using Orchestrations. You can use them in a lot of scenarios because you don’t need an OnRamp or an OffRamp where you have to attach them In the picture you see a custom Itinerary Service based on an Orchestration. Here I’v created a RecipientListService. Where you can send a message to multiple Reciepients. Lets go to the demo!
- In this demo I’m going to create a RecipientListService. Where you can send a message to multiple Reciepients. I already created a RecipientList project. Walk through the code. Going to show how you can deploy it You also have to create an entry in the Esb.config file. I’m going to add the Itinerary Service to an Itinerary. This is also a live demo Then I’m going to run the sample
- Now I’m going to talk about Resolvers A Resolver feeds the itinerary service at runtime with information Normally you use a Resolver to specify wich map you going to execute or to wich endpoint your going to send a message Out of the box our the following Providers Static resolvers and dynamic resolvers like BRE You can create your own Providers (For example: Get Information from SSO and the Deployment Framework for BizTalk already did it. If you are going to install the BTDF you can use it. But I’m going to you how you can use custom Sentinet Resolver from Nevatech.
- How you can use Sentinet in combination with the ESB Toolkit Sentinet is a product from Nevatech and is a flexible, and scalable SOA Governance and API Management software platform And you can use the Sentinet SOA Repository in combination with the Sentinet Resolver to dynamically determine the URL of the webservice. First you have store a service in the Sentinet repository Resolve the endpoint configuration of that service at runtime with the Sentinet Resolver. You can do that by defining an unique key for that Service in the Repository. How does it
- In this demo I’m going to show how you can store a webservice in Sentinet SOA Repository Create a Keyword for the endpoint of the webservice Using the Sentinet Resolver in the Itinerary Designer. Test the Resolver in Visual Studio. Execute an Itinerary with Sentinet Resolver.
- The last part I’m going to talk about how you can create a Custom Extender for an Itinerary Service. The Itinerary Designer in Visual Studio allows you to create custom extenders for Itinerary Services but also for Resolvers. In the Picture you see the properties for an Intinerary Service. And these are extended. Because in the properties window you also a property to set the DocumentType and the Business Rule Policy. And normally you don’t have these properties. And that is quite usefull because Normally with the ESB Toolkit you use a Resolver to feed your Orchestration with dynamic data With an Extender you can set the properties directly on the Itinerary Service Through this you no longer need to use a Resolver. And that can be usefull because normally Resolver you get a Map or an EndPoint
- In this demo I’m going to create a Custom Extender for an Orchestration-Based Itinerary Service I already created an Extender and a Service to validate a message with Business Rules Walk through the code of the Extender and the Itinerary Service Show the Business Rules that I’ve created And then I’m going to add the Validating Service to an Itinerary and set the properties And I’m going to test the Itinerary.
- All the demos that I’ve show are based on blog post and samples that I’ve posted on MSDN. On this slide is an overview to of the Links to the samples. If you are interested in customized the ESB Toolkit, you can use these links When the presentation is published on the website of integrationusergroup.com But If you use Google you can also find them.
