The document describes three nano-bubble generator models - TY-15-2, TY-3-2, and TY-75-7 - produced by BioNano International Ltd. The models are used to generate nano-bubbles of oxygen or air for applications like environmental restoration, aquaculture, agriculture, wastewater treatment and food processing. The generators use patented technology to produce stable nano-bubbles between 50nm to 15um in size under high pressure and temperature that increase microbial breakdown of contaminants.

1. 5e Nano-Bubble GeneratorP A T E N T E D T E C H N O L O G Y
Major applications using our
Patented Nano Bubble
Technology
Hydroponics
Aquaculture - Shrimp
Aquaculture - RAS
Environmental -
Rivers clean up
Environmental -
Lakes/Reservoirs
water restoration
Waste water
treatment
Food processing
BioNano International Ltd

2. Model TY-15-2 TY-3-2 TY-75-7
Amounts of
Nanobubble-Water
2 m
3
/hr 6 m
3
/hr 20 m
3
/hr
Fluid Dynamic
Parameter
Instant atmospheric
pressure of 1000 atm and
temperature of 3000 K
Instant atmospheric
pressure of 1000 atm and
temperature of 3000 K
Instant atmospheric
pressure of 1000 atm and
temperature of 3000 K
Electric Parameter 1.5kW 3kW 7.5kW
Voltage 380-440VAC 3∮4W 380-440VAC 3∮4W 380-440VAC 3∮4W
Electric Frequency 47-63Hz 47-63Hz 47-63Hz
Physical Dimension H×L×W
1000*800*600mm
H×L×W
1000*800*600mm
H×L×W
1200*100*600mm
Weight 162 kg 200 kg 380 kg
Speed of Dialysis
2 m
3
/hr (diffusing into
5-10 cubic meter/hr)
6 m
3
/hr (diffusing into
20-40 cubic meter/hr)
12-24 m
3
/hr (diffusing
into 100 cubic meter/hr)
Water Quality Index
Improvement
70% - 80% 70% - 80% 70%-80%
Air Sources Air or Oxygen Air or Oxygen Air or Oxygen

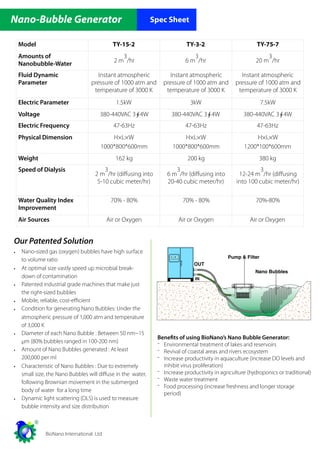

Nano-Bubble Generator Spec Sheet
Benefits of using BioNano’s Nano Bubble Generator:
- Environmental treatment of lakes and reservoirs
- Revival of coastal areas and rivers ecosystem
- Increase productivity in aquaculture (increase DO levels and
inhibit virus proliferation)
- Increase productivity in agriculture (hydroponics or traditional)
- Waste water treatment
- Food processing (increase freshness and longer storage
period)
Our Patented Solution
• Nano-sized gas (oxygen) bubbles have high surface
to volume ratio
• At optimal size vastly speed up microbial break-
down of contamination
• Patented industrial grade machines that make just
the right-sized bubbles
• Mobile, reliable, cost-efficient
• Condition for generating Nano Bubbles: Under the
atmospheric pressure of 1,000 atm and temperature
of 3,000 K
• Diameter of each Nano Bubble : Between 50 nm~15
μm (80% bubbles ranged in 100-200 nm)
• Amount of Nano Bubbles generated : At least
200,000 per ml
• Characteristic of Nano Bubbles : Due to extremely
small size, the Nano Bubbles will diffuse in the water,
following Brownian movement in the submerged
body of water for a long time
• Dynamic light scattering (DLS) is used to measure
bubble intensity and size distribution
BioNano International Ltd
OUT
IN
Nano Bubbles
Pump & Filter
