The project aims to develop a bi-directional pre-paid energy meter utilizing microcontroller technology that enhances billing efficiency and incentivizes timely payments. It features functionalities for real-time reading display, balance calculation, and communication with both retailers and consumers, all based on a tariff scheme designed to moderate electricity load demand. This innovation has potential future applications in smart grids and promotes the utilization of non-conventional energy sources.

1. Presented by:
Rahul Pathak(1301421065)
Satish Chandra(1301421083)
Shailesh Chandra Shukla(1301421085)
Shubham Tripathi(1301421095)
Sujit Singh(130141098)
Vaibhav Singh (1301421101)

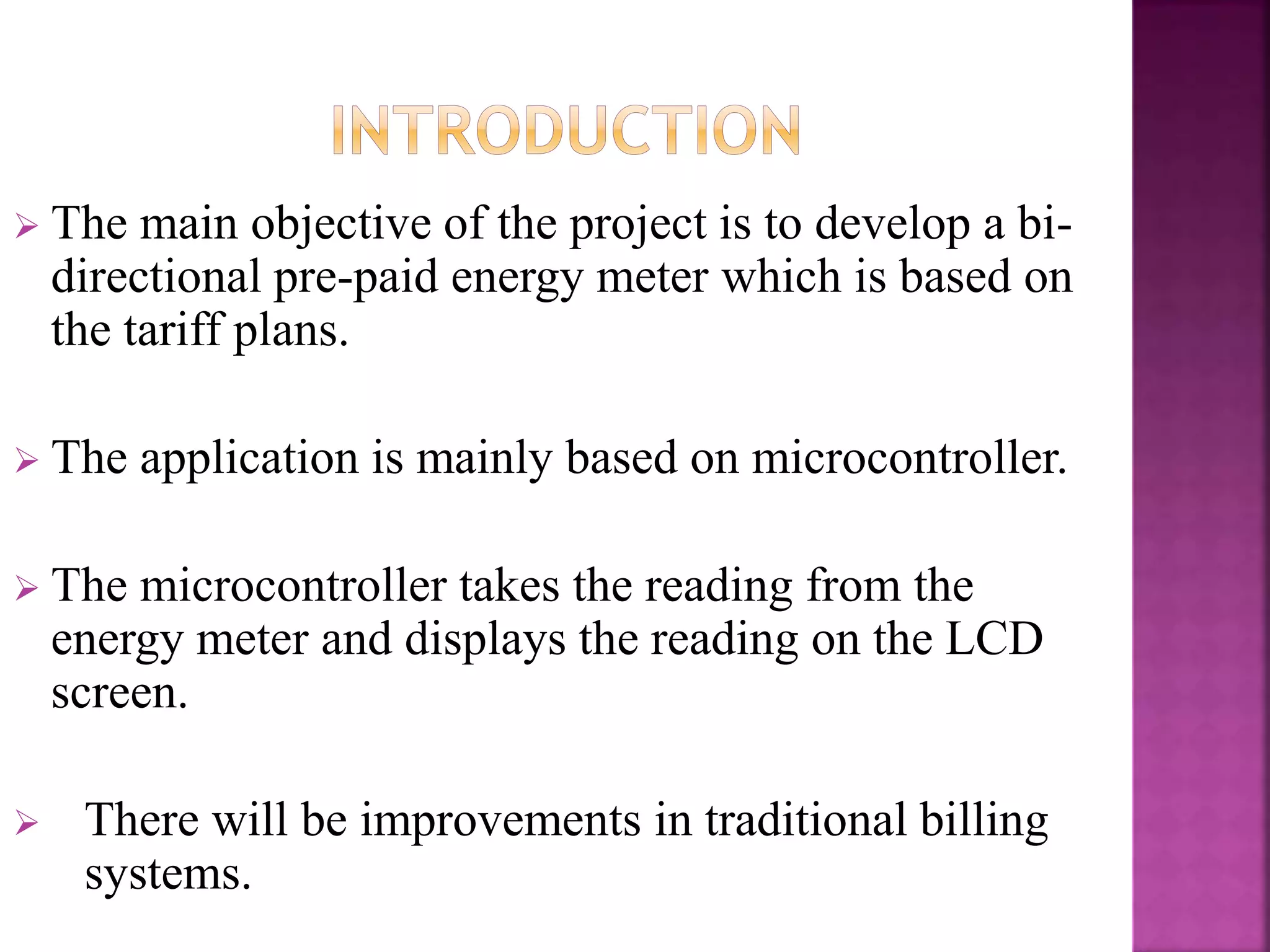

2.  The main objective of the project is to develop a bi-
directional pre-paid energy meter which is based on
the tariff plans.
 The application is mainly based on microcontroller.
 The microcontroller takes the reading from the
energy meter and displays the reading on the LCD
screen.
 There will be improvements in traditional billing
systems.

3.  It’s a post-paid system.
 The meter reader used to come to take reading.
 The load demand fluctuates a lot in a day.
 Very few users pay the electric bill on time.
 Currently minimum charges are more than it should
be.

4. Energy meter
2 Microcontrollers(Aurdino)
Different source of power supply
Real time clock (Ds3231)

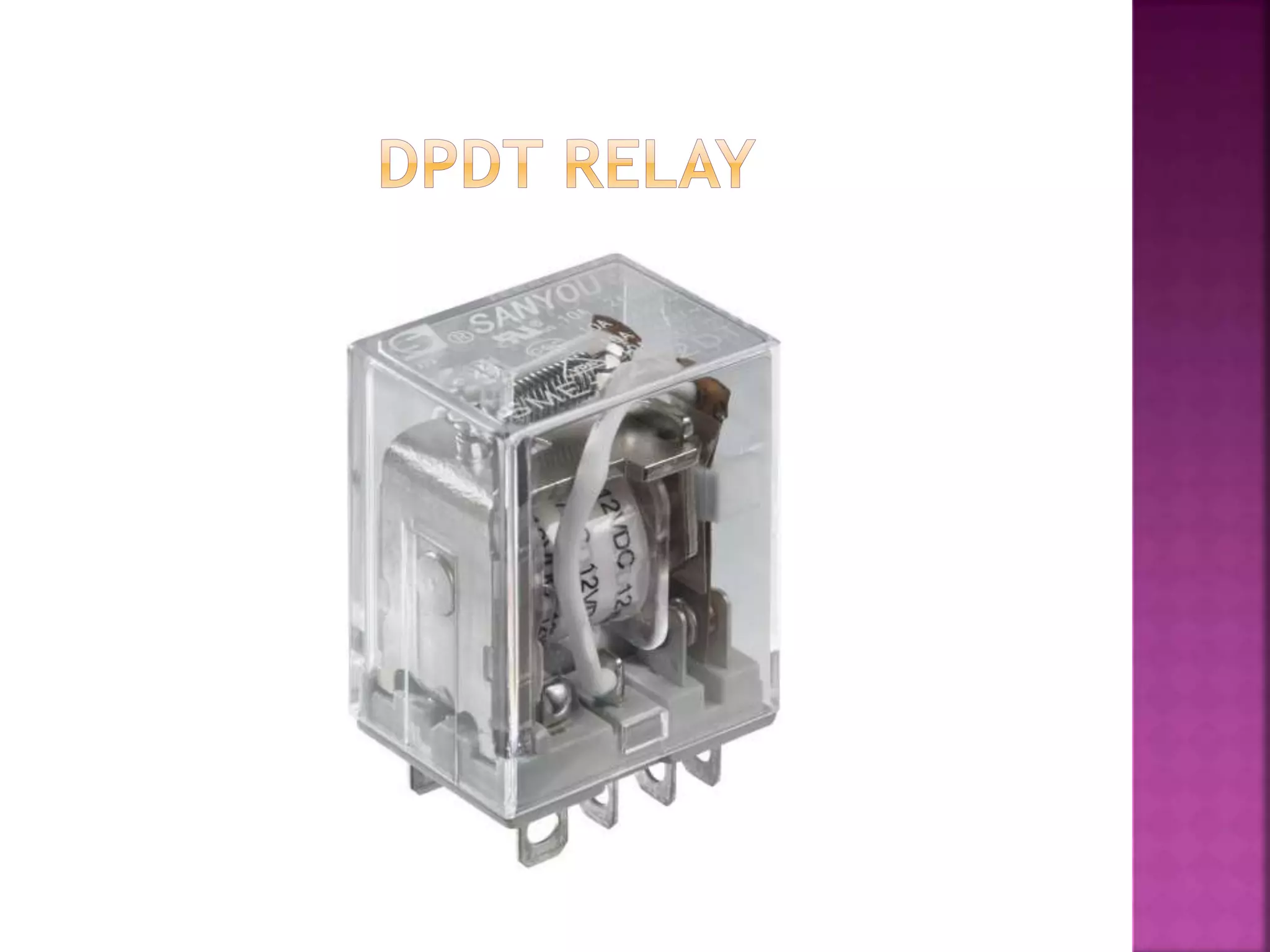

Relay (DPDT)

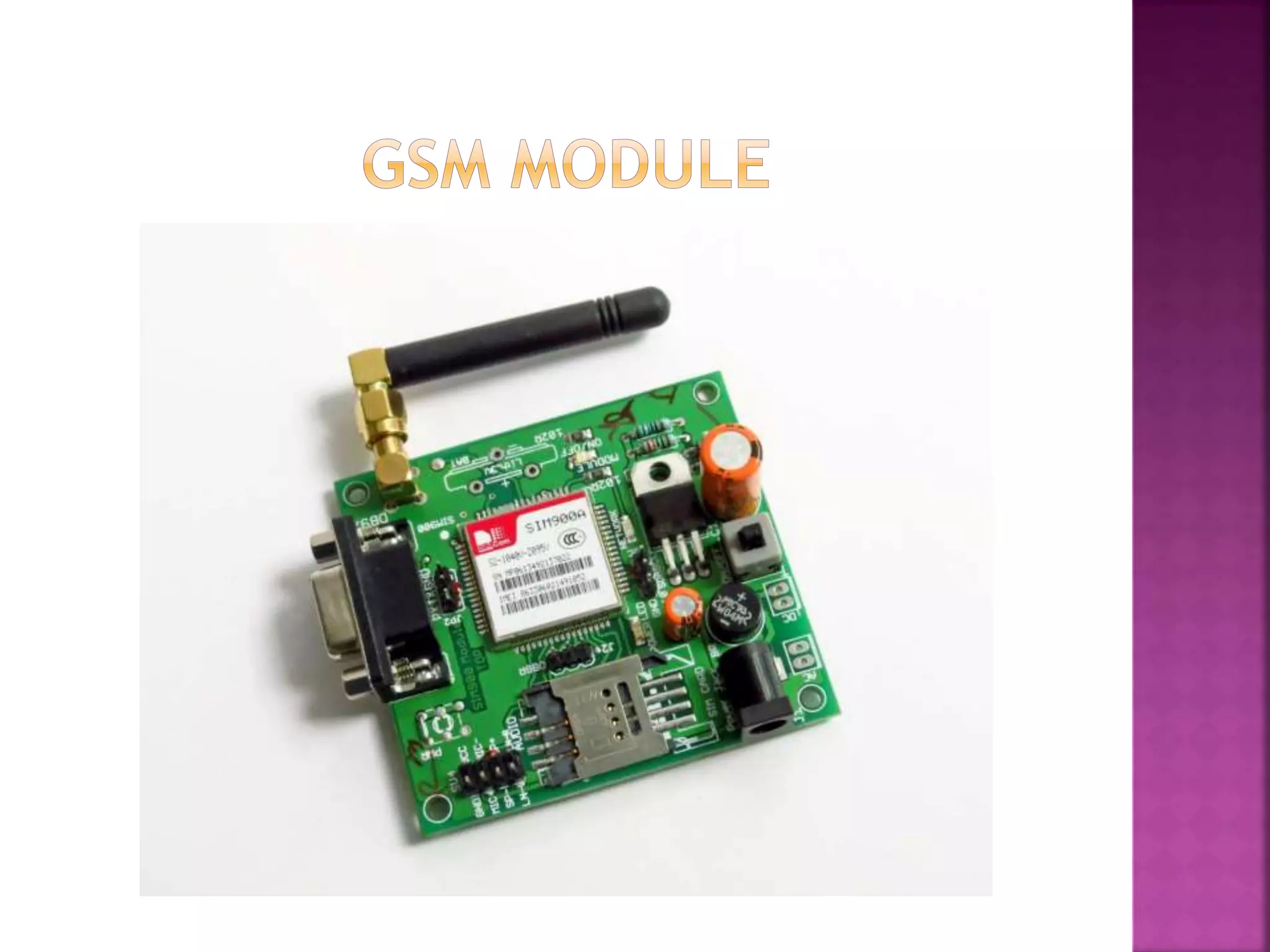

GSM module with working SIM and
NETWORK
Power module
LCD(16*2 character)

5. it’s the original setup at my
room…

14. Aurdino IDE 1.6.7
Programming language embedded C
Serial communication
EEPROM

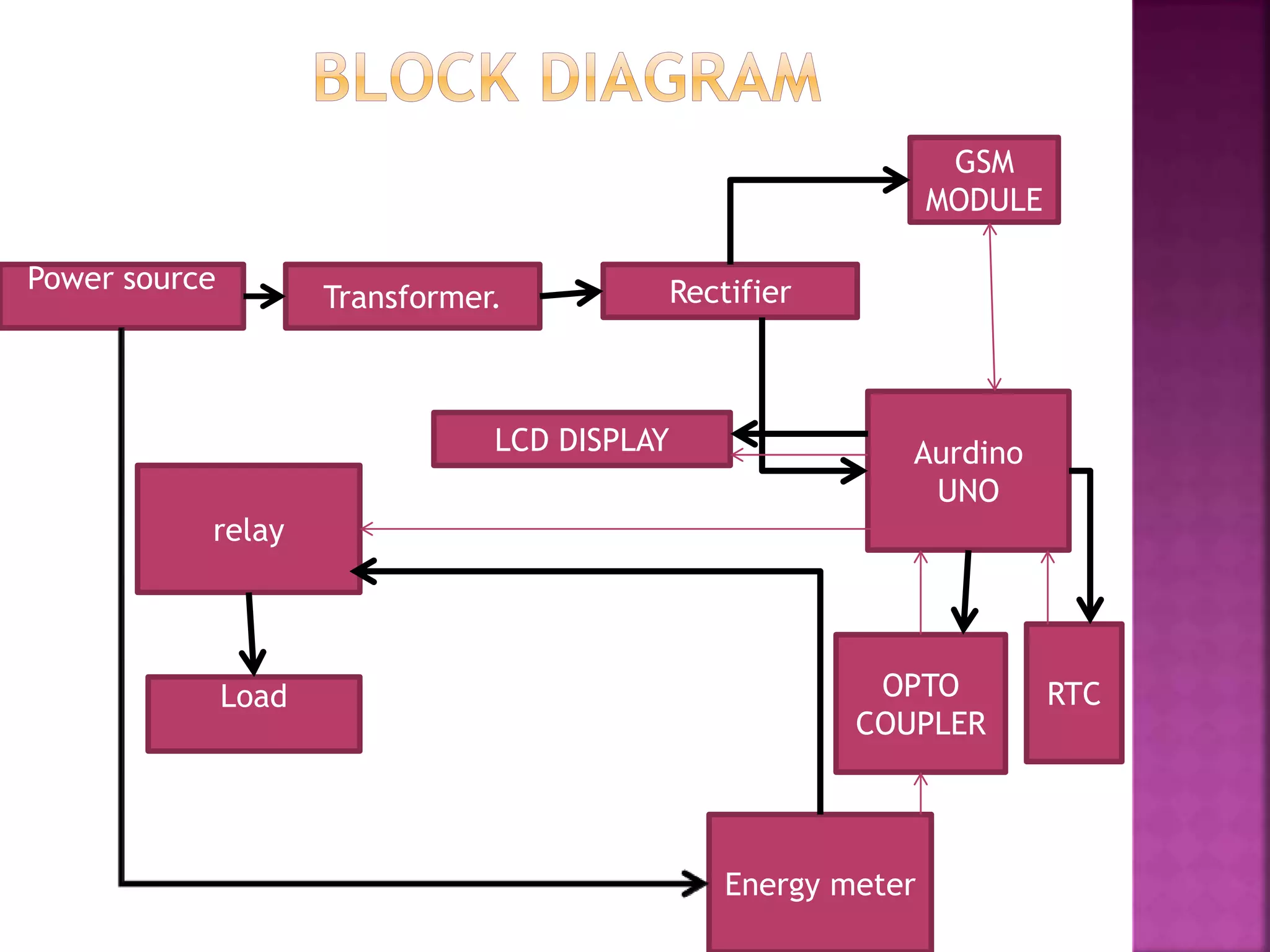

15. Power source
Transformer. Rectifier
Load
Aurdino
UNO
GSM
MODULE
Energy meter
relay

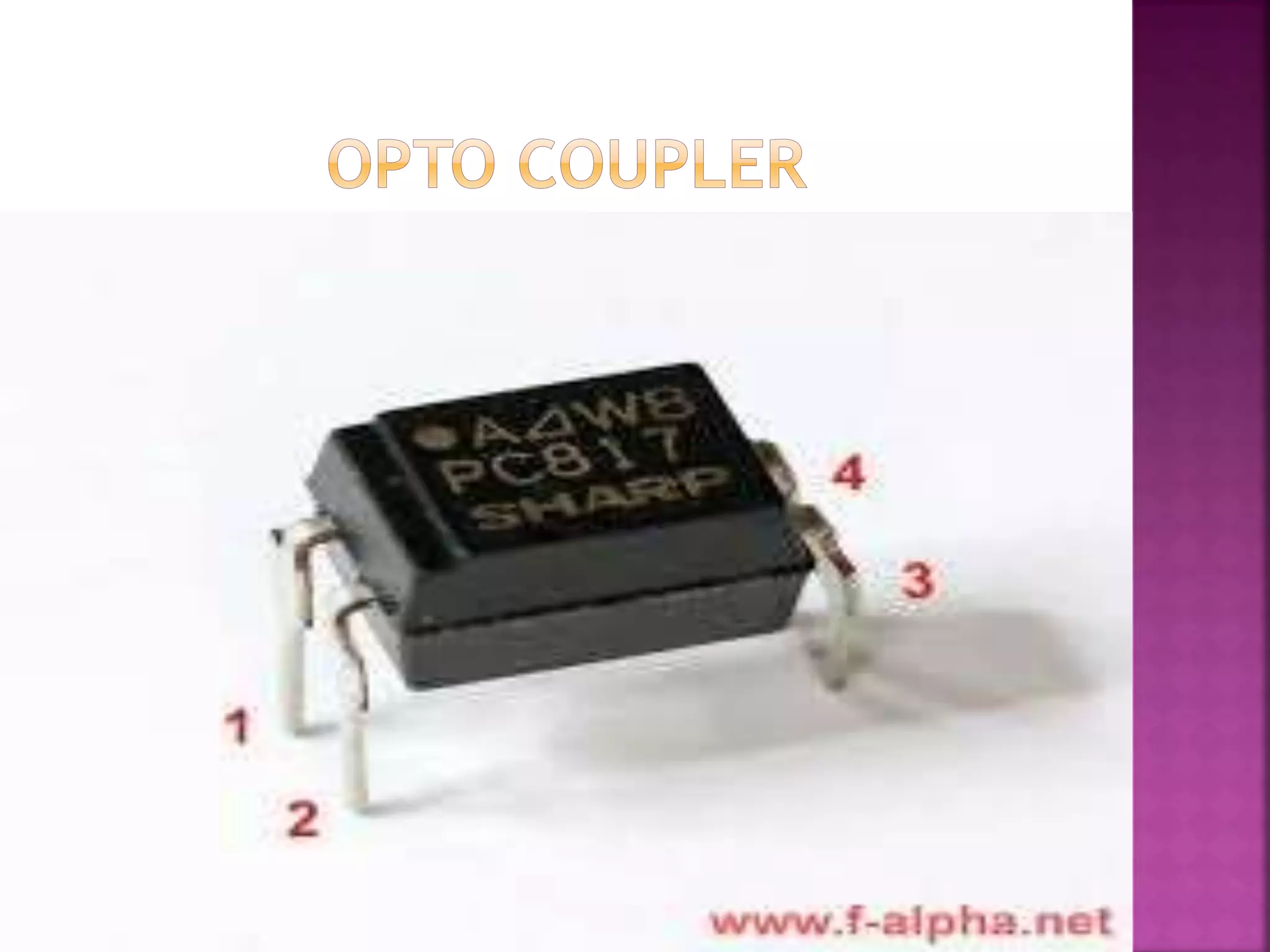

RTCOPTO
COUPLER
LCD DISPLAY

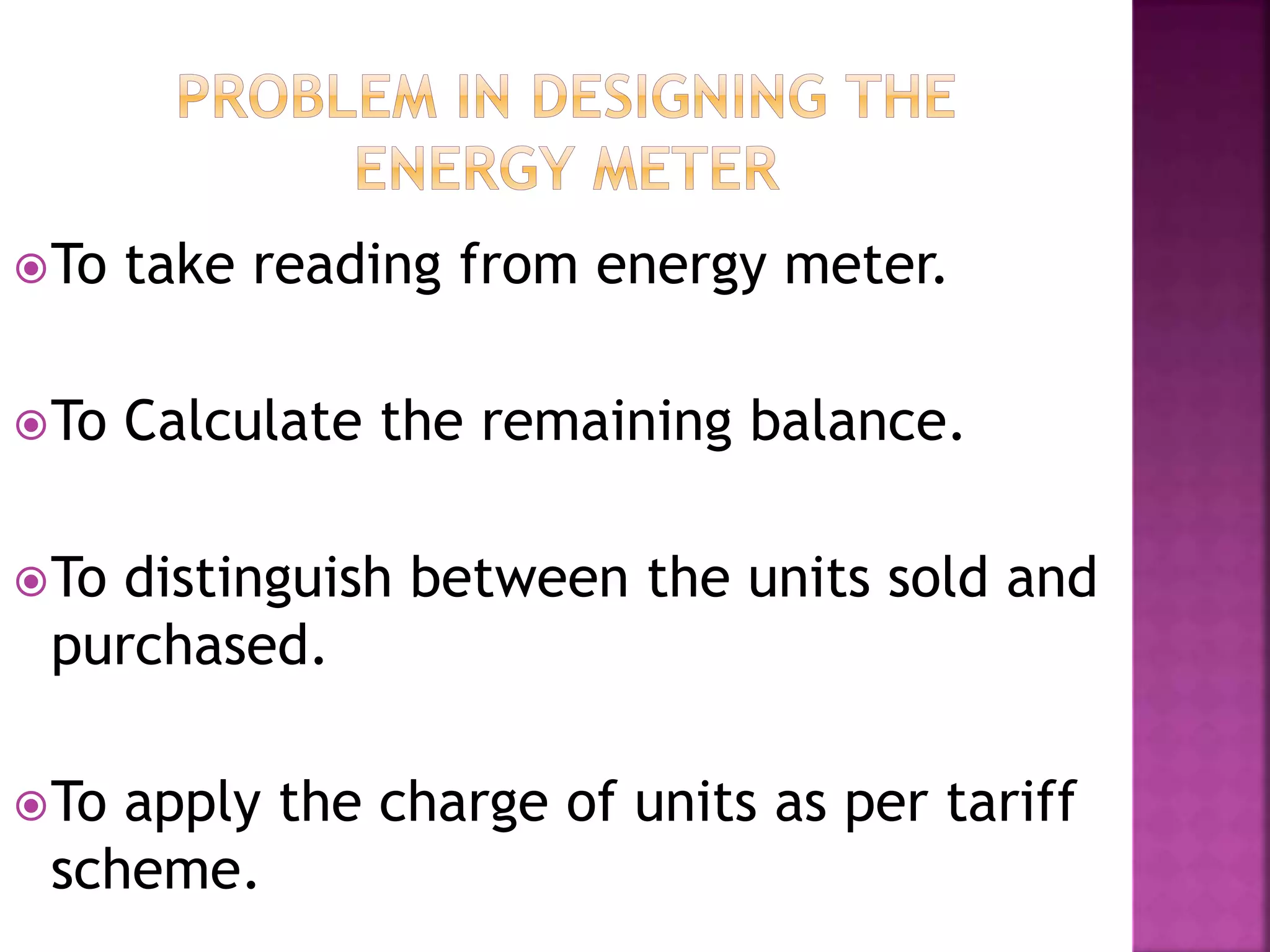

16. To take reading from energy meter.
To Calculate the remaining balance.
To distinguish between the units sold and
purchased.
To apply the charge of units as per tariff
scheme.

17. To communicate to retailer and consumer.
To verify that the message is received from
authorized retailer or someone else.
To detect that the message is for recharge
or anything else and for how many rupees of
recharge.
To decide that the message is to be send to
retailer or consumer.
To make a bi directional meter.
To make communication with real time
clock.

18.  Due to tariff scheme the load will not fluctuate too
much in a day.
 The losses will reduce due to moderate demand.
 The person who doesn’t use the electricity can sell
their electricity.

19.  Meter reader will not have to come to take meter
reading.
 Everyone has to pay before they use.
 We use tariff base scheme which can moderate the
load demand.
 Everyone has to pay the fix cost whether they are
using the electricity or not.

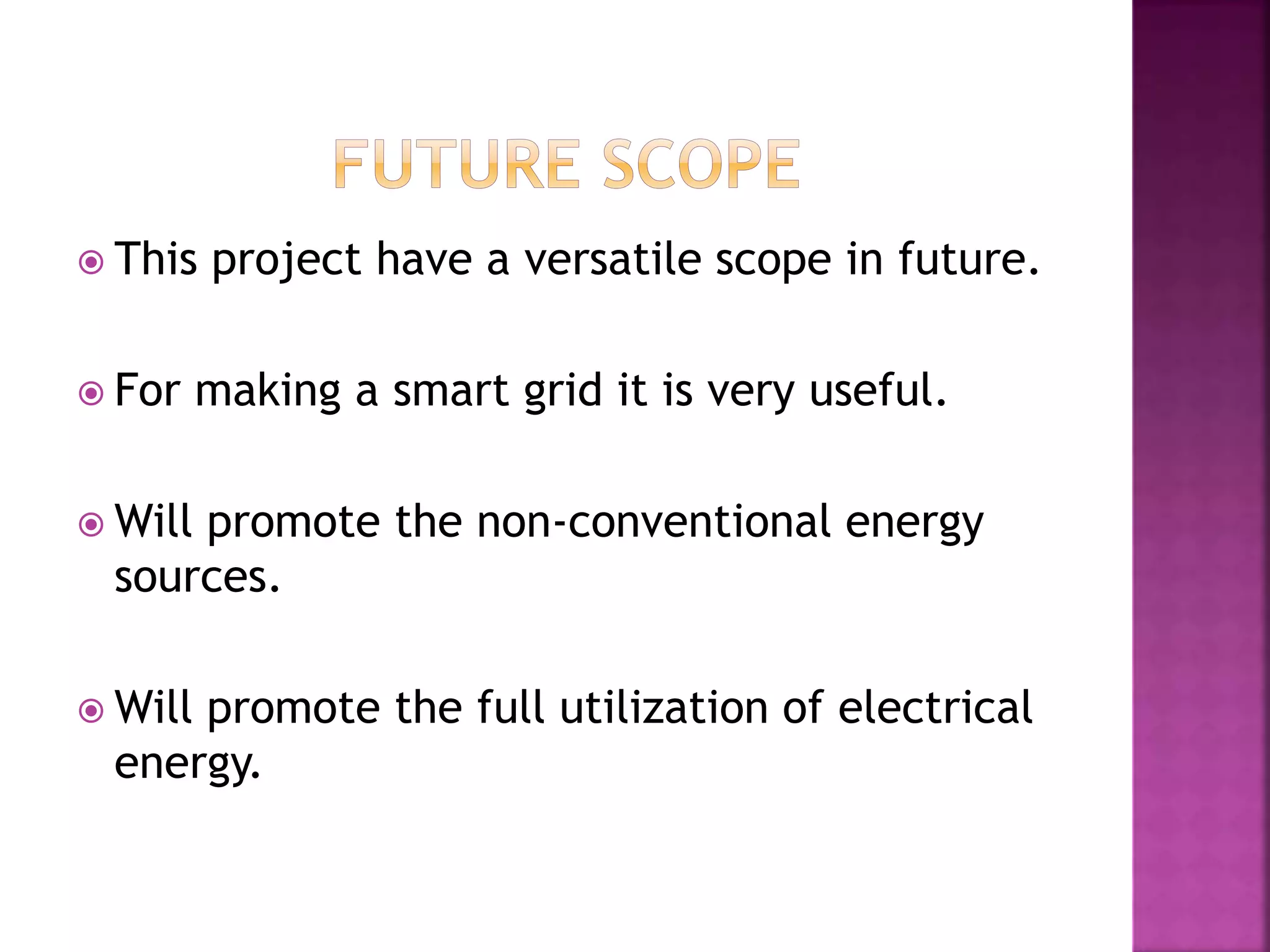

20.  This project have a versatile scope in future.
 For making a smart grid it is very useful.
 Will promote the non-conventional energy
sources.
 Will promote the full utilization of electrical
energy.
