1. Broder Gateway Protocol (BGP)Broder Gateway Protocol (BGP)
“Border gateway protocol is how the internet routes traffic”
1969 – First Internet MSG (Login->Lo), 1984 – EGP when cisco Found, 1988 – RIP, 1990 & 1995 - BGP
K.Satheesh
CCIE R/S
Senior Network Consultant

2. At the End of this Presentation
Will be able to understand
• What is BGP?
• Why BGP?
• BGP Peer Relationships
• Configuration of BGP
• BGP attributes and Path Selection
• BGP use cases

3. Why Routing protocol ?
• Routing: Enable communication between two
different Networks.
• To Exchange network reachability information
• To have resiliency when failure occur
• Have multipath and optimize path
• Etc ..

4. What is BGP
• Broder Gateway Protocol – BGP
• Defined by IETF RFC 1771
• Work Based on Autonomous System No – AS#
– 2 Byte : 2^16 -> 0 – 65535
– 4 Byte : 2^32 -> 0 - 4294967295
• Version 4 is the latest for both IPv4 and IPv6
• It works on top of TCP

5. AS# Ranges
2 Byte AS till 2009 / 0 to 65535
• 0: reserved.
• 1-64495: public AS numbers.
• 64496 – 64511 – reserved to use in documentation.
• 64512 – 65534 – private AS numbers.
• 65535 – reserved
4 Byte AS after 2009 / 65536 to 4294967295
• Private: 4200000000 - 4294967294
4200000000 - 4294967294
4200000000 - 4294967294

6. BGP
• Path Vector Protocol
• Incremental Updates
• Many options for policy enforcement
• Classless Inter Domain Routing (CIDR)
• Widely used for Internet backbone
• Autonomous systems

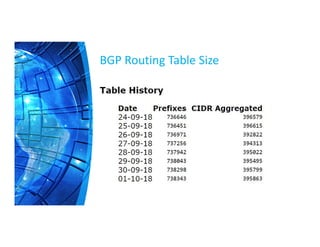

7. BGP Routing Table Size

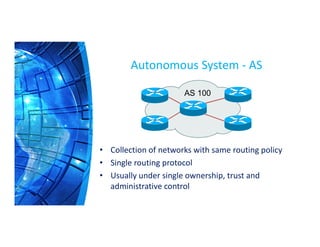

8. Autonomous System - AS
AS 100
• Collection of networks with same routing policy
• Single routing protocol
• Usually under single ownership, trust and
administrative control

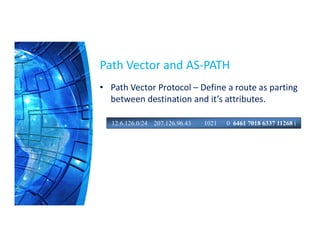

9. Path Vector and AS-PATH
• Path Vector Protocol – Define a route as parting
between destination and it’s attributes.
12.6.126.0/24 207.126.96.43 1021 0 6461 7018 6337 11268 i

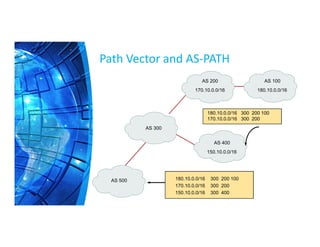

10. Path Vector and AS-PATH
AS 100
AS 300
AS 200
AS 500
AS 400
170.10.0.0/16 180.10.0.0/16
150.10.0.0/16
180.10.0.0/16 300 200 100
170.10.0.0/16 300 200
150.10.0.0/16 300 400
180.10.0.0/16 300 200 100
170.10.0.0/16 300 200

11. AS PATH LOOP DETECTION
AS 100
AS 300
AS 200
AS 500
170.10.0.0/16 180.10.0.0/16
180.10.0.0/16300 200 100
180.10.0.0/16100
170.10.0.0/16300 200
140.10.0.0/16300
140.10.0.0/16500 300
170.10.0.0/16500 300 200
140.10.0.0/16
180.10.0.0/16 is not announced to
AS100 as AS500 sees that it is
originated from AS100, and that
AS100 is the neighbouring AS –
loop detection in action

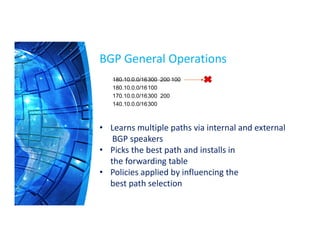

12. BGP General Operations
180.10.0.0/16300 200 100
180.10.0.0/16100
170.10.0.0/16300 200
140.10.0.0/16300
• Learns multiple paths via internal and external
BGP speakers
• Picks the best path and installs in
the forwarding table
• Policies applied by influencing the
best path selection

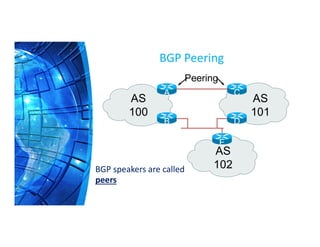

13. BGP Peering
AS
100
AS
101
AS
102
E
B D
A C
Peering
BGP speakers are called
peers

14. External BGP Peering(eBGP)
• Between BGP speakers in different AS
• Should be directly connected
• Do not run an IGP between eBGP peers
AS
100
AS
101C
A
B

15. Internal BGP Peering(iBGP)
• Topology independent
• Each iBGP speaker must peer with every
other iBGP speaker in the AS
AS
100
A
E
B
D

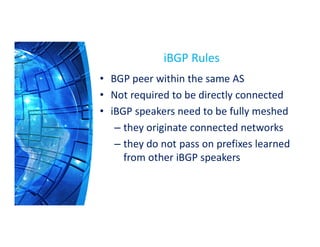

16. iBGP Rules
• BGP peer within the same AS
• Not required to be directly connected
• iBGP speakers need to be fully meshed
– they originate connected networks
– they do not pass on prefixes learned
from other iBGP speakers

17. BGP Messages
Type Name Functional Overview
1 OPEN Sets up and establishes BGP adjacency
2 UPDATE
Advertises, updates, or withdraws
routes
3 NOTIFICATION
Indicates an error condition to a BGP
neighbor
4 KEEPALIVE
Ensures that BGP neighbors are still
alive

18. BGP Timers
• 30s Keep Alive and 180s Hold Timer
• BGP Advertisement Timer
– 30s for eBGP
– 0s for iBGP

19. BGP States
BGP forms tcp session between routers- Peers
 Idle: Try to initiate tcp connection and listen
 Connect: tcp 3-way handshake establish
 Active: New tcp 3-wak handshake, if timer expires
 OpenSent: Send an Open message and wait for same
o Compare Ver, AS#, Authentication, IP and AUTH
 OpenConfirm : wait for Keep Alive, then move to EST
 Established: Exchange routes via Update Msgs

20. eBGP Configuration
R1(config)#router bgp 1
R1(config-router)#neighbor 11.0.0.2 remote-as 2
R2(config)#router bgp 2
R2(config-router)#neighbor 11.0.0.1 remote-as 1
192.168.1.0/24 172.16.19.0/24
R1(config)#router bgp 1
R1(config-router)#network 192.168.1.0 mask 255.255.255.0
R2(config)#router bgp 1
R2(config-router)#network 172.16.19.0 mask 255.255.255.0

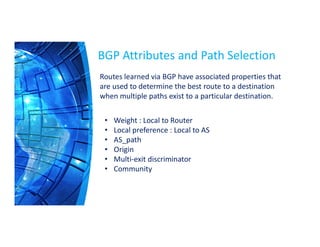

21. BGP Attributes and Path Selection
• Weight : Local to Router
• Local preference : Local to AS
• AS_path
• Origin
• Multi-exit discriminator
• Community
Routes learned via BGP have associated properties that
are used to determine the best route to a destination
when multiple paths exist to a particular destination.

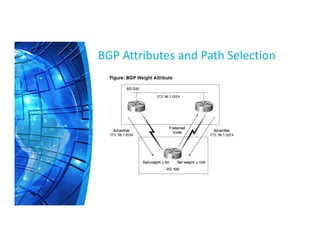

22. BGP Attributes and Path Selection

23. BGP Attributes and Path Selection

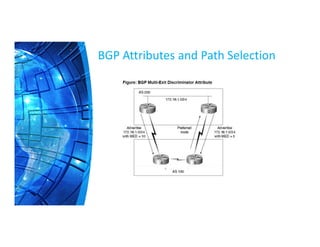

24. BGP Attributes and Path Selection

25. BGP Use Cases
• Multihoming / Provider redundancy
• Equipment / Port redundancy
• Peering (typically larger ASes)
• Connectivity quality (better paths)
