1. Git: Be Social
Geronimo Orozco
gorozco @ gmail.com
Sept 2011

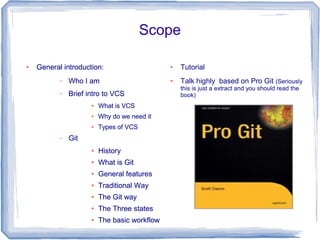

2. ● General introduction:
– Who I am
– Brief intro to VCS
● What is VCS
Scope
● Why do we need it
● Types of VCS
– Git
● History
● What is Git
● General features
● Traditional Way
● The Git way
● The Three states
● The basic workflow
● Tutorial
● Talk highly based on Pro Git (Seriously
this is just a extract and you should read the
book)

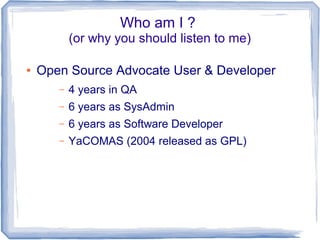

3. Who am I ?
(or why you should listen to me)
● Open Source Advocate User & Developer
– 4 years in QA
– 6 years as SysAdmin
– 6 years as Software Developer
– YaCOMAS (2004 released as GPL)

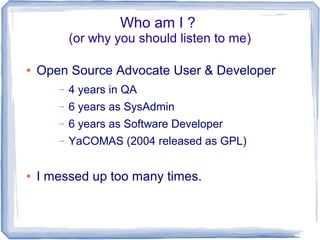

4. Who am I ?
(or why you should listen to me)
● Open Source Advocate User & Developer
– 4 years in QA
– 6 years as SysAdmin
– 6 years as Software Developer
– YaCOMAS (2004 released as GPL)
● I messed up too many times.

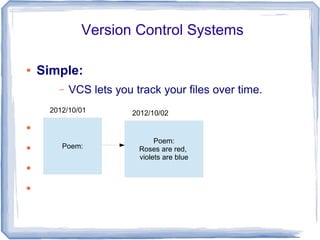

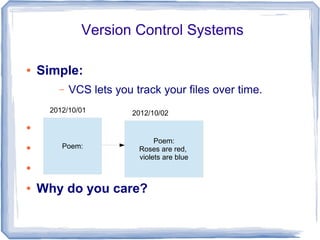

5. Version Control Systems
● Simple:
– VCS lets you track your files over time.
●
●
●
●
2012/10/01
Poem:
2012/10/02
Poem:
Roses are red,
violets are blue

6. Version Control Systems
● Simple:
– VCS lets you track your files over time.
●
●
●
2012/10/01
Poem:
2012/10/02
● Why do you care?
Poem:
Roses are red,
violets are blue

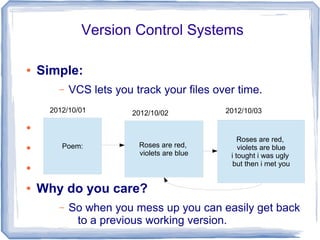

7. Version Control Systems
● Simple:
– VCS lets you track your files over time.
●
●
●
2012/10/01
Poem:
2012/10/02
Roses are red,
violets are blue
● Why do you care?
2012/10/03
– So when you mess up you can easily get back
to a previous working version.
Roses are red,
violets are blue
i tought i was ugly
but then i met you

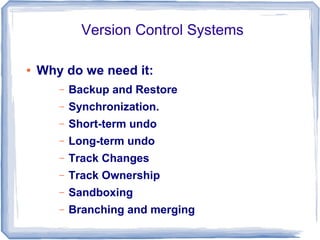

8. Version Control Systems
● Why do we need it:
– Backup and Restore
– Synchronization.
– Short-term undo
– Long-term undo
– Track Changes
– Track Ownership
– Sandboxing
– Branching and merging

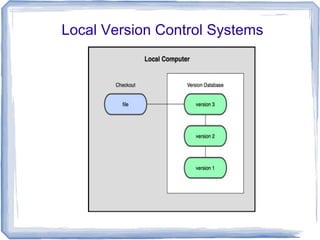

9. Local Version Control Systems

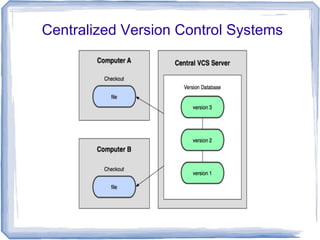

10. Centralized Version Control Systems

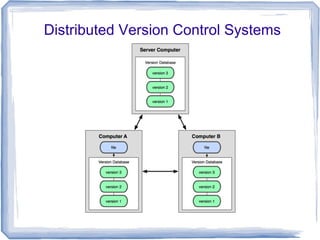

11. Distributed Version Control Systems

12. History of Git
● Originally Developed by Linus Torvalds
● Currently Maintained by Junio Hamano
● Born to Manage Linux Kernel Development
● Open Source, free (GNU GPL V2)

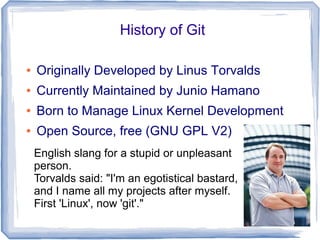

13. History of Git
● Originally Developed by Linus Torvalds
● Currently Maintained by Junio Hamano
● Born to Manage Linux Kernel Development
● Open Source, free (GNU GPL V2)
English slang for a stupid or unpleasant
person.
Torvalds said: "I'm an egotistical bastard,
and I name all my projects after myself.
First 'Linux', now 'git'."

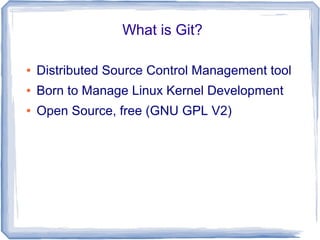

14. What is Git?
● Distributed Source Control Management tool
● Born to Manage Linux Kernel Development
● Open Source, free (GNU GPL V2)

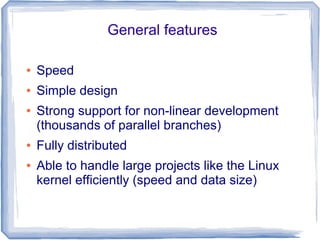

15. General features
● Speed
● Simple design
● Strong support for non-linear development
(thousands of parallel branches)
● Fully distributed
● Able to handle large projects like the Linux
kernel efficiently (speed and data size)

16. a list of file-based changes
(traditional way)

17. A mini file system (The Git way)

18. The Git way
● Nearly Every Operation Is Local
– Most operations in Git only need local files and
resources to operate
● Git Has Integrity
– Everything in Git is check-summed before it is
stored and is then referred to by that
checksum.
● Git Generally Only Adds Data

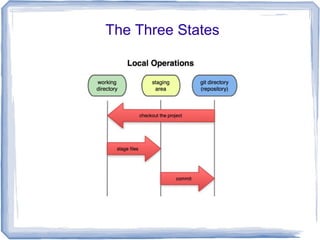

19. The Three States

20. The basic workflow
● You modify files in your working directory.
● You stage the files, adding snapshots of them
to your staging area.
● You do a commit, which takes the files as they
are in the staging area and stores that
snapshot permanently to your Git directory.

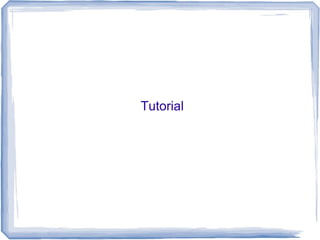

21. Tutorial

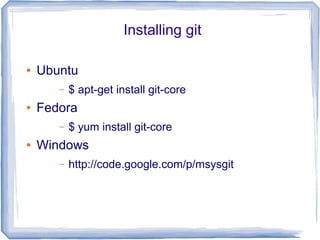

22. Installing git
● Ubuntu
– $ apt-get install git-core
● Fedora
– $ yum install git-core
● Windows
– http://code.google.com/p/msysgit

23. Git setup
● General
– $ git config --global user.name "John Doe"
– $ git config --global user.email johndoe@example.com
● Your Editor
– $ git config --global core.editor vim
● Your Diff Tool:
– $ git config --global merge.tool vimdiff
● Check your settings:
– $ git config --list

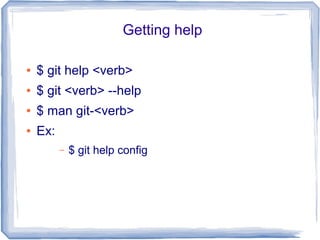

24. Getting help
● $ git help <verb>
● $ git <verb> --help
● $ man git-<verb>
● Ex:
– $ git help config

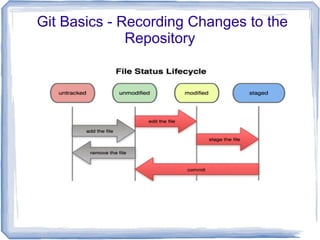

25. Git Basics - Recording Changes to the
Repository

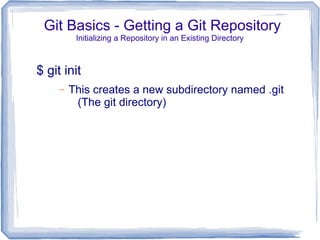

26. Git Basics - Getting a Git Repository
Initializing a Repository in an Existing Directory
$ git init
– This creates a new subdirectory named .git
(The git directory)

27. Git Basics - Getting a Git Repository
Cloning an Existing Repository
$ git clone https://github.com/patux/YaCOMAS
$ git clone repo1 repo2

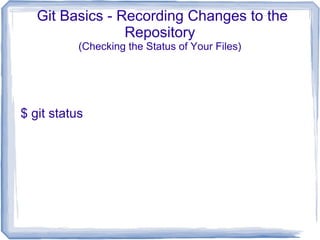

28. Git Basics - Recording Changes to the
Repository
(Checking the Status of Your Files)
$ git status

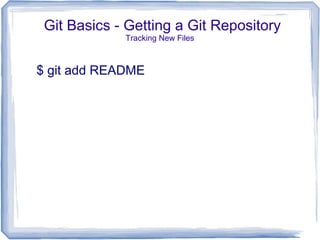

29. Git Basics - Getting a Git Repository
Tracking New Files
$ git add README

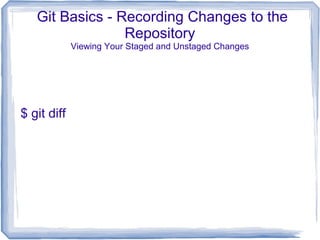

30. Git Basics - Recording Changes to the
Repository
Viewing Your Staged and Unstaged Changes
$ git diff

31. Git Basics - Recording Changes to the
Repository
Committing Your Changes
$ git add
$ git commit

32. Git Basics - Recording Changes to the
Repository
Removing files
$ rm file
$ git status

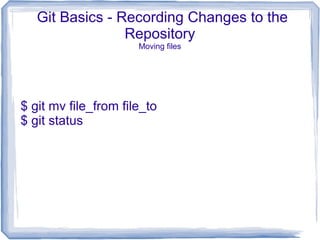

33. Git Basics - Recording Changes to the
Repository
Moving files
$ git mv file_from file_to
$ git status

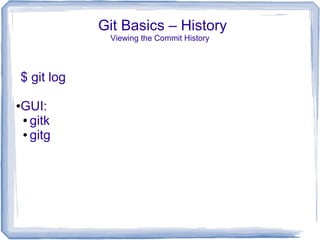

34. Git Basics – History
Viewing the Commit History
$ git log
●GUI:
● gitk
● gitg

35. Git Basics – Undoing things
Changing your last commit
$ git commit -m 'initial commit'
$ git add forgotten_file
$ git commit --amend

36. Git Basics – Working with remotes
Showing your remotes
$ git clone https://github.com/patux/YaCOMAS
$ git remote
$ git remote -v

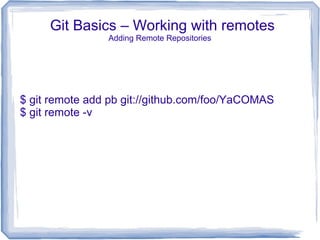

37. Git Basics – Working with remotes
Adding Remote Repositories
$ git remote add pb git://github.com/foo/YaCOMAS
$ git remote -v

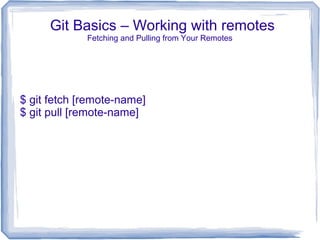

38. Git Basics – Working with remotes
Fetching and Pulling from Your Remotes
$ git fetch [remote-name]
$ git pull [remote-name]

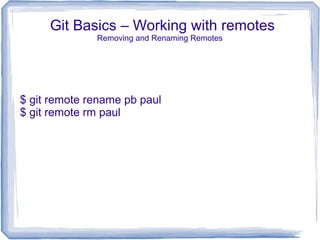

39. Git Basics – Working with remotes
Removing and Renaming Remotes
$ git remote rename pb paul
$ git remote rm paul

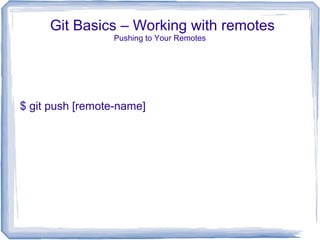

40. Git Basics – Working with remotes
Pushing to Your Remotes
$ git push [remote-name]

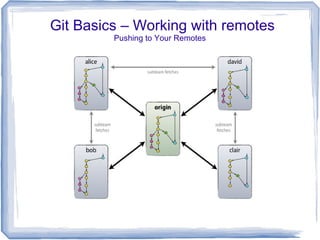

41. Git Basics – Working with remotes
Pushing to Your Remotes

42. Git Basics – Tagging
Listing yout Tags
$ git tag
$ git tag -l 'v1.4.2.*'
$ git tag -a v1.4 -m 'my version 1.4'
$ git show v1.4
$ git push origin v1.5
$ git push origin --tags

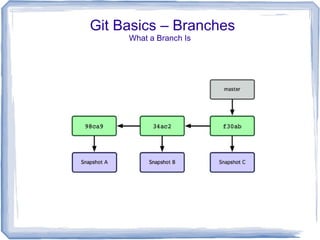

43. Git Basics – Branches
What a Branch Is

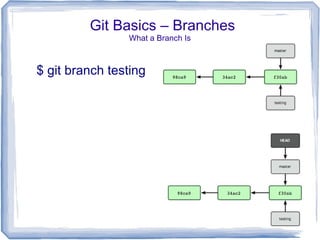

44. Git Basics – Branches
What a Branch Is
$ git branch testing

45. Git Basics – Branches
What a Branch Is
$ git checkout testing

46. Git Basics – Branches
What a Branch Is
$ vim test.rb
$ git commit -a -m 'made a change'

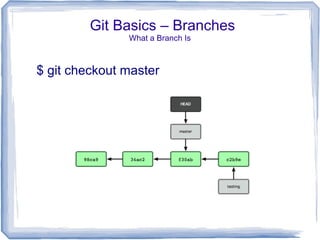

47. Git Basics – Branches
What a Branch Is
$ git checkout master

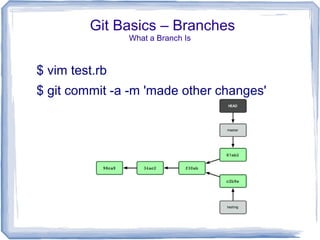

48. Git Basics – Branches
What a Branch Is
$ vim test.rb
$ git commit -a -m 'made other changes'

49. References
● http://git-scm.com/book/
● http://www.slideshare.net/anildigital/git-introduction
● http://nvie.com/posts/a-successful-git-branching-model/

50. Questions ?
geronimo.orozco@intel.com
Twitter: @patux
Github: https://github.com/patux
