4. Snapdragon Snapdragon Snapdragon Snapdragon
System 1 System 2 System 3 System 4
Processors Processors Processors Processors
2009 2010 2011 2012
High Volume High Performance For Multi‐tasking & Next Generation
Smart phones Smart phones & Advanced Gaming Devices in Multiple
Tablets Segments
S1 Class includes: S2 Class includes: S3 Class includes: S4 Class includes:
QSD8650 MSM8655 MSM8660 APQ8064
QSD5250 MSM8255 MSM8260 APQ8060A
MSM7627 MSM7630 APQ8060 MPQ8064
MSM7227 MSM7230 MSM8960T(Pro)
MSM7625 MSM8960
MSM7225 MSM8660A
MSM7627A MSM8260A
MSM7227A APQ8030
MSM7625A MSM8930
MSM7225A MSM8630
MSM8627
MSM8227
MSM8625
MSM8225

5. FEATURES APQ8064
Process Tech. 28nmLP
784 BGA 23x23mm (0.8mm pitch)
Package
839 NSP PoP 14x14mm (0.4mm pitch)
Quad Core Krait
Processor 1.5GHz (Apps)
QDSP6V4 – 500MHz (Apps)
PMIC, Codec, GPS Chipset PM8920, WCD9310/1
Memory 2x533MHz LPDDR2 / PCDDR3
Primary: 24‐bit QXGA(2048x1536);
LCD Support Dual: 24‐bit QHD (960x540) panel
1xHDMI, 1x DSI (4‐lane)
BT3.x + HS, BT4.0/LE FM Rx/Tx
Bluetooth
(WCN3660 or WCN2243 BT)
11a/b/g/n (WCN3660) ac ( WCN3680 ) or
WLAN
WB292 2x2 11n MoB (AR6004 + WCN2243)
USB 3 x USB2.0

6. FEATURES APQ8064
Playback:
30fps 1080p (MPEG‐4 / MPEG‐2 /
H.264 / H.263 / DivX / VC‐1 / WMV‐9)
30fps @ FWVGA (H.263)
30fps D1 (Sorenson Spark, On2
Video Decode
VP6/VP8)
Streaming:
30fps 1080p (MPEG‐4 / MPEG‐2 /
H.264 / DivX / VC‐1 / WMV‐9)
30fps D1 (H.263 / VP6 / VP8 / Spark
30fps @1080p (MP4/H.264)
Offline Video Encoding
30fps @ FWVGA (H.263)
Qcamera 20 MP, 8MP S3D
7.1 Surround Playback
5.1 Surround Camcorder
Ultrasound
Audio Low Power Audio Core
DSP Programmability
Enhanced Echo Cancellation
FLUENCE (Noise cancellation)
Graphics Adreno 320, 400MHz
Gen 8A with Glonass
GPS Standalone, Assisted, XTRA, Lower power
3dB improvement vs. Gen 7
Secure Boot, Secure code signing service, Cryptographic accelerator and
Security and DRM HW RNG; TrustZone SEE; HDCP1.3‐TX; HDCP2.1‐TX ; HW enhanced
PlayReady DRM; Widevine DRM;PRM

7. Adreno GPU
Adreno Adreno Adreno Adreno Adreno Adreno Adreno Adreno Adreno
GPU
200 203 205 220 225 305 320 330 420
At least
GPU Clock
245MHz 245MHz 245MHz 266MHz 400MHz 400MHz 400MHz 450MHz 500MHz
Frequency (450MHz TBD)
QSD8x50 MSM8x30
MSM8960 MSM8960 Pro
Chipset MSM7x27 MSM8x25 MSM8x55 MSM8x60
MSM8x60A
MSM8x27
APQ8064
MSM8974 APQ8094
MSM7x27A MSM8x26
Relative
OpenGL ES 2.0
Performance ~1x ~2X ~2X ~5X ~7.5X ~8X ~23X ~30X TBD
(Ave. Estimate
across all hw/sw
factors)
OpenGL ES 1.1 OpenGL ES 1.1 OpenGL ES 1.1 OpenGL ES 1.1 OpenGL ES 2.0 OpenGL ES 3.0 OpenGL ES 3.0 OpenGL ES 3.0 OpenGL ES 3.0
OpenGL ES 2.0 OpenGL ES 2.0 OpenGL ES 2.0 OpenGL ES 2.0 OpenGL ES 1.1 OpenGL ES 2.0 OpenGL ES 2.0 OpenGL ES 2.0 OpenGL ES 2.0
OpenVG 1.1 WebGL 1.0 OpenVG 1.1 OpenVG 1.1 OpenVG 1.1 OpenVG 1.1 OpenVG 1.1 OpenVG 1.1 OpenVG 1.1
WebGL 1.0 Renderscript WebGL 1.0 WebGL 1.0 WebGL 1.0 WebGL 1.0 WebGL 1.0 WebGL 1.0 WebGL 1.0
Native APIs
Supported Open CL 1.1 Open CL 1.1
SVG Tiny 1.2 DX 9.0 SVG Tiny 1.2 SVG Tiny 1.2 SVG Tiny 1.2e SVG Tiny 1.2e SVG Tiny 1.2e
(CPU) Full Profile
Renderscript — Renderscript Renderscript Renderscript Renderscript Renderscript Renderscript Renderscript
DX
DX 9.0 — DX 9.0 DX 9.0 DX 9.3 DX 9.3 DX 9.3 DX 9.3
11.1/Compute
Pixel Fill Rate 245Mpix/s 245Mpix/s 245Mpix/s 532Mpix/s 800Mpix/s 800Mpix/s 3200Mpix/s 3600Mpix/s 4000Mpix/s

8. FEATURES MDM8215/M MDM9615/M
Process Tech. 28nm 28nm
10x10mm – MDM8215 424 NSP 10x10mm – MDM9615
Package
9x9mm – MDM8215M 383 NSP 9x9mm – MDM9615M
ARMv7 Cortex‐A5 550MHz ARMv7 Cortex‐A5 ‐550MHz
Processor
Dual QDSP6‐TBDMHz Dual QDSP6‐600MHz
1X Advanced, 1xEV‐DO Rev. A/B,
EGAL (Enhanced Geostationary Air Link),
Release 8 DC‐HSPA+ GSM/GPRS/EDGE
MODEM
GSM/EGPRS Release 9 DC‐HSPA+
Release 9 LTE
TD‐SCDMA
1x ‐ FL/RL: 307.2 / 307.2 kbps
DO ‐ FL/RL: 14.7 / 5.4 Mbps
Peak Data Rates DC‐HSPA+: DL 42Mbps / EGPRS ‐ FL/RL: 236.8/ 236.8kbps (MSC12)
UL/DL UL 5.76Mbps DC‐HSPA+ ‐ FL/RL: 42 / 5.76 Mbps
LTE FDD ‐ FL/RL: 100 / 50 Mbps (Cat 3)
LTE TDD ‐ FL/RL: 68 / 17 Mbps (Cat 3)
UMTS: RxD, EQ, SCH‐IC, CDMA: QLIC, Equalizer, Rx Diversity, Int Equalizer, 1x Adv, EVRC‐NW, HDOn
Modem Q‐ICE (Type 3i), 2x2 DL GSM: SAIC
Enhancements MIMO UMTS: RxD, EQ, SCH‐IC, Q‐ICE (Type 3i), 2x2 DL MIMO
GSM: SAIC LTE: 2x2 DL SU‐MIMO
Voice support Integrated Integrated
3GPP2 : 450 MHz, 700 MHz,
UMTS: 3GPP: 700 MHz,
800MHz(BCO/BC10 &JCDMA),
800 MHz, 850 MHz, 900
Frequency 1800MHz(KPCS), 1900MHz(PCS+Block G),
MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2300MHz, 2600 MHz
Support 1700MHz (AWS), 2100MHz (IMT), 2500 MHz, S and L bands
GSM: QB EGPRS (850,
3GPP: 700 MHz, 800 MHz, 850 MHz, 900MHz, 1700 MHz, 1800 MHz, 1900 MHz,
900,1800, 1900)
2100MHz, 2300MHz, 2600 MHz
RF+PMIC chipset WTR1605 + PM8018 WTR1605L + PM8018
WLAN Soft AP support (AR6003) Soft AP support (AR6003)
USB 2.0 All Speed Peripheral or Host
USB USB 2.0 All Speed Peripheral or Host
Gen 8A with Glonass Gen 8A with Glonass
GPS
Standalone, Assisted, XTRA, 3dB improvement vs. Gen 7 Standalone, Assisted, XTRA, 3dB improvement vs. Gen 7

9. The New Smartphone
from Google
With your favorite Google Apps, an amazing Photo Sphere camera,
cutting edge hardware, and access to your favorite entertainment on
Google Play – Nexus 4 puts the best of Google in the palm of your hand.

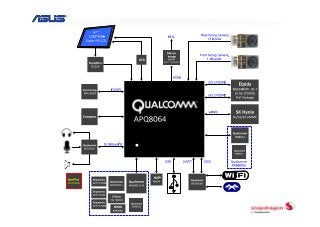

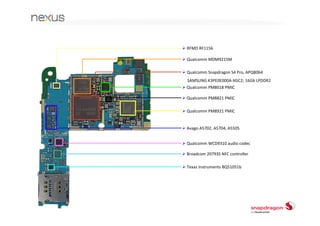

10.  RFMD RF1156
 Qualcomm MDM9215M
 Qualcomm Snapdragon S4 Pro, APQ8064
SAMSUNG K3PE0E000A‐XGC2; 16Gb LPDDR2
 Qualcomm PM8018 PMIC
 Qualcomm PM8821 PMIC
 Qualcomm PM8921 PMIC
 Avago A5702, A5704, A5505
 Qualcomm WCD9310 audio codec
 Broadcom BCM20793 NFC controller
 Texas Instruments BQ51051b

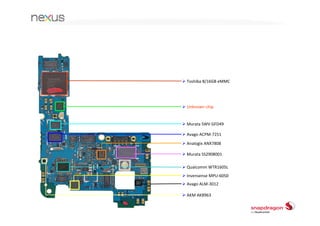

11.  Toshiba 8/16GB eMMC
 Unknown chip
 Murata SWV GFD49
 Avago ACPM‐7251
 Analogix ANX7808
 Murata SS2908001
 Qualcomm WTR1605L
 Invensense MPU‐6050
 Avago ALM‐3012
 AKM AK8963

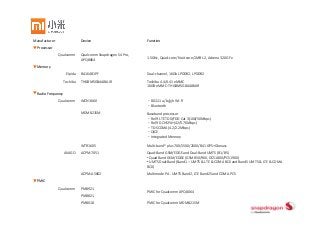

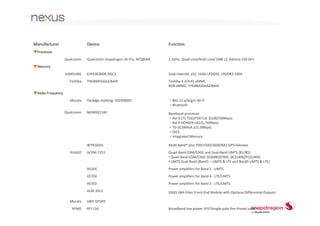

13. Manufacturer Device Function
▼Processor
Qualcomm Qualcomm Snapdragon S4 Pro, APQ8064 1.5GHz, Quad‐core/Krait core/1MB L2, Adreno 320 GFx
▼Memory
SAMSUNG K3PE0E000A‐XGC2 Dual‐channel, x32, 16Gb LPDDR2, LPDDR2‐1066
Toshiba THGBM5G6A2JBAIR Toshiba 4.4/4.41 eMMC
8GB eMMC: THGBM5G6A2JBAIR
▼Radio Frequency
Murata Package marking: SS2908001 ‧802.11 a/b/g/n Wi‐Fi
‧Bluetooth
Qualcomm MDM9215M Baseband processor
‧Rel 9 LTE TDD/FDD Cat 3(100/50Mbps)
‧Rel 9 DCHSPA+(42/5.76Mbps)
‧TD‐SCDMA(4.2/2.2Mbps)
‧QICE
‧Integrated Memory
WTR1605L Multi‐band* plus 700/1500/2600/B41 GPS+Glonass
AVAGO ACPM‐7251 Quad‐Band GSM/EDGE and Dual‐Band UMTS (B1/B5)
• Quad Band GSM/EDGE (GSM850/900, DCS1800/PCS1900)
• UMTS Dual‐Band (Band1 – UMTS & LTE and Band5 UMTS & LTE)
A5505 Power amplifiers for Band 5 ‐ UMTS
A5704 Power amplifiers for Band 4 ‐ LTE/UMTS
A5702 Power amplifiers for Band 2 ‐ LTE/UMTS
ALM‐3012 GNSS LNA‐Filter Front‐End Module with Optional Differential Outputs
Murata SWV GFD49
RFMD RF1156 Broadband low power SP5T(single‐pole five‐throw) switch

14. Manufacturer Device Function
▼PMIC
Qualcomm PM8921 PMIC for Qualcomm APQ8064
PM8821
PM8018 PMIC for Qualcomm MDM9215M
▼Audio
Qualcomm WCD9310 SLIMbus/I2S Audio codec; 6+ channel
▼Touch Screen Controller
Synaptics S7020A Touch screen controller
▼MEMs
AKM AK8963 Electronic compass
3‐axis MEMS gyroscope, a 3‐axis MEMS accelerometer, and a Digital Motion
Invensense MPU‐6050
Processor. (DMP.) hardware accelerator engine
▼Video
Analogix ANX7808 SlimPort® transmitter
▼Others
LGD LH467WX1 4.7", 1280 x 768 , WXGA IPS display
Broadcom BCM20793 NFC
Texas Instruments
BQ51051b Highly Integrated Wireless Receiver Qi (WPC V1.1) Compliant Power Supply

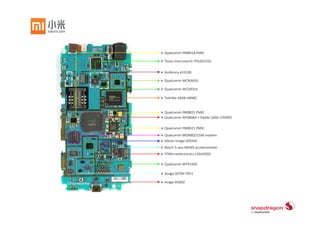

16.  Qualcomm PM8018 PMIC
 Texas Instruments TPA2015D1
 Audience eS310B
 AKM AK8963
 Qualcomm WCN3650
 Qualcomm WCD9310
 Toshiba 16GB eMMC
 Qualcomm PM8821 PMIC
 Qualcomm APQ8064 + Elpida 16Gb LPDDR2
 Qualcomm PM8921 PMIC
 Qualcomm MDM82515M modem
 Silicon Image Sil9244
 Bosch 3‐axis MEMS accelerometer
 STMicroelectronics L3G4200D
 Qualcomm WTR1605
 Avago ACPM‐7051
 Avago A5002

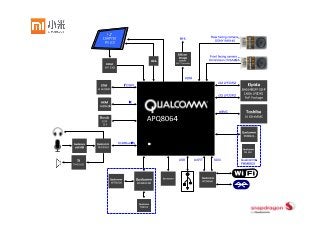

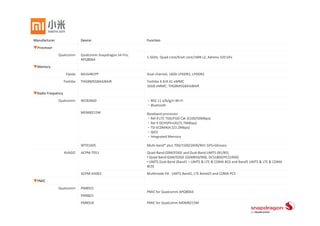

18. Manufacturer Device Function
▼Processor
Qualcomm Qualcomm Snapdragon S4 Pro,
1.5GHz, Quad‐core/Krait core/1MB L2, Adreno 320 GFx
APQ8064
▼Memory
Elpida BA164B1PF Dual‐channel, 16Gb LPDDR2, LPDDR2
Toshiba THGBM5G8A4JBAIR Toshiba 4.4/4.41 eMMC
16GB eMMC: THGBM5G8A4JBAIR
▼Radio Frequency
Qualcomm WCN3660 ‧802.11 a/b/g/n Wi‐Fi
‧Bluetooth
MDM8215M Baseband processor
‧Rel 9 LTE TDD/FDD Cat 3(100/50Mbps)
‧Rel 9 DCHSPA+(42/5.76Mbps)
‧TD‐SCDMA(4.2/2.2Mbps)
‧QICE
‧Integrated Memory
WTR1605 Multi‐band* plus 700/1500/2600/B41 GPS+Glonass
AVAGO ACPM‐7051 Quad‐Band GSM/EDGE and Dual‐Band UMTS (B1/B5)
• Quad Band GSM/EDGE (GSM850/900, DCS1800/PCS1900)
• UMTS Dual‐Band (Band1 – UMTS & LTE & CDMA BC6 and Band5 UMTS & LTE & CDMA
BC0)
ACPM‐A5002 Multimode PA ‐ UMTS Band2, LTE Band25 and CDMA PCS
▼PMIC
Qualcomm PM8921
PMIC for Qualcomm APQ8064
PM8821
PM8018 PMIC for Qualcomm MDM8215M

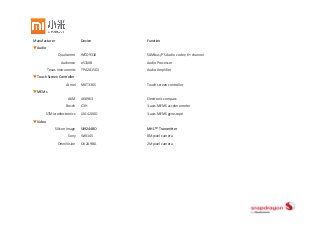

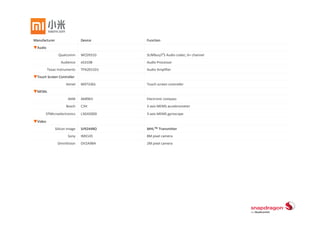

19. Manufacturer Device Function
▼Audio
Qualcomm WCD9310 SLIMbus/I2S Audio codec; 6+ channel
Audience eS310B Audio Processor
Texas Instruments TPA2015D1 Audio Amplifier
▼Touch Screen Controller
Atmel MXT336S Touch screen controller
▼MEMs
AKM AK8963 Electronic compass
Bosch C3H 3‐axis MEMS accelerometer
STMicroelectronics L3G4200D 3‐axis MEMS gyroscope
▼Video
Silicon Image SiI9244BO MHL™ Transmitter
Sony IMX145 8M pixel camera
OmniVision OV2A9BA 2M pixel camera

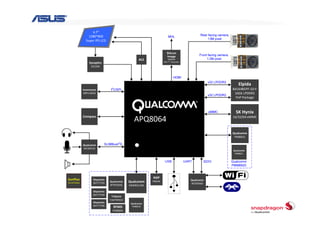

22. Manufacturer Device Function
▼Processor
Qualcomm Qualcomm Snapdragon S4 Pro, APQ8064 1.5GHz, Quad‐core/Krait core/1MB L2, Adreno 320 GFx
▼Memory
Elpida BA164B1PF Dual‐channel, x32, 16Gb LPDDR2, LPDDR2‐1066
SK Hynix H26M64002DQR SK Hynix eMMC, 4.41
32GB eMMC: H26M64002DQR
▼Radio Frequency
Qualcomm WCN3660 ‧802.11 a/b/g/n Wi‐Fi
‧Bluetooth
Qualcomm MDM9215M Baseband processor
‧Rel 9 LTE TDD/FDD Cat 3(100/50Mbps)
‧Rel 9 DCHSPA+(42/5.76Mbps)
‧TD‐SCDMA(4.2/2.2Mbps)
‧QICE
‧Integrated Memory
WTR1605L Multi‐band* plus 700/1500/2600/B41 GPS+Glonass
TriQuint TQM7M9023 Multi‐mode multiband power amplifier module that supports quad‐band GSM /
EDGE Linear, WCDMA & LTE Band 1 and low band WCDMA / LTE (externally
tuned for either Band 5 or Band 8).
Skyworks SKY77703 Power Amplifier Module for CDMA / WCDMA / HSDPA / HSUPA / HSPA+ / LTE –
Bands III, IV, IX, X (1710–1785 MHz)
SKY77704 Power Amplifier Module for LTE FDD Band VII (2500–2570 MHz)
SKY77706 Power Amplifier Module for CDMA / WCDMA / HSDPA / HSUPA / HSPA+ / LTE –
Band V (824–849 MHz)
RFMD RF8889A SP10T ANTENNA SWITCH MODULE
NXP PN544(Marking 65N99) NFC controller

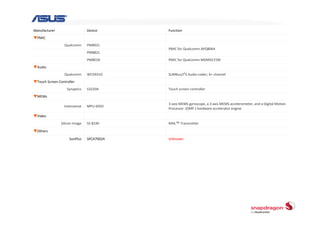

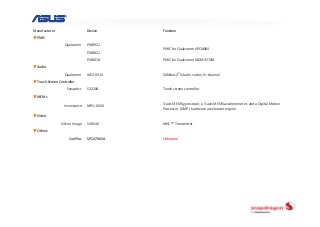

23. Manufacturer Device Function
▼PMIC
Qualcomm PM8921
PMIC for Qualcomm APQ8064
PM8821
PM8018 PMIC for Qualcomm MDM9215M
▼Audio
Qualcomm WCD9310 SLIMbus/I2S Audio codec; 6+ channel
▼Touch Screen Controller
Synaptics S3220A Touch screen controller
▼MEMs
3‐axis MEMS gyroscope, a 3‐axis MEMS accelerometer, and a Digital Motion
Invensense MPU‐6050
Processor. (DMP.) hardware accelerator engine
▼Video
Silicon Image SiI 8240 MHL™ Transmitter
▼Others
SunPlus SPCA7002A Unknown
