Dynamic simulation is a powerful technique for the study of batch processes. It can be used in design development, design validation, process optimisation and problem analysis. The presentation link reviews the various configurations used to control stirred tank reactors. It also discusses the application of heat transfer oils for the heating and cooling of reactors.”

1. Dynamics Seminar
Section 7 Batch Reactor Summary
John Edwards, P&I Design Ltd
November, 2018
www.chemstations.com

2. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com

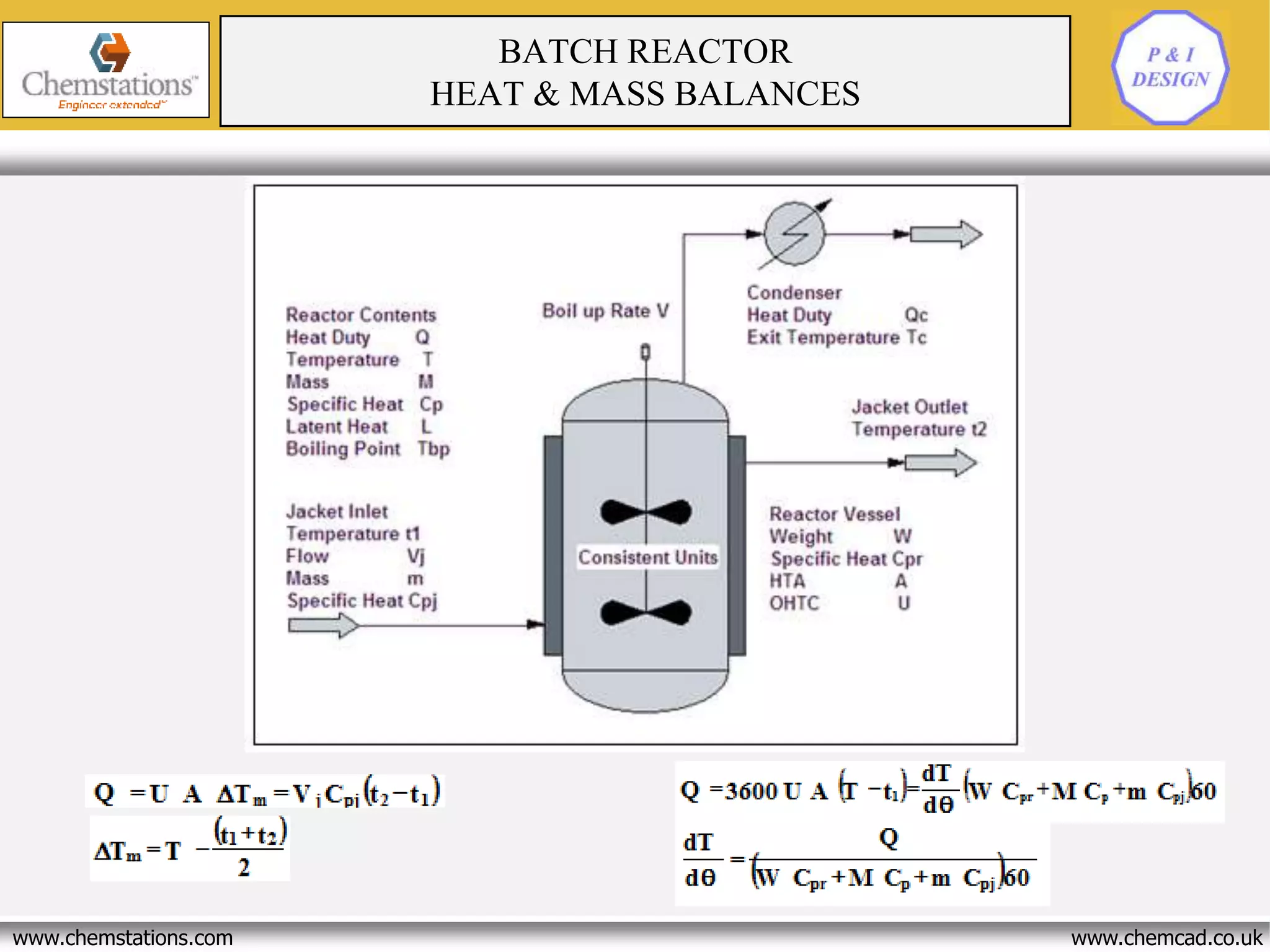

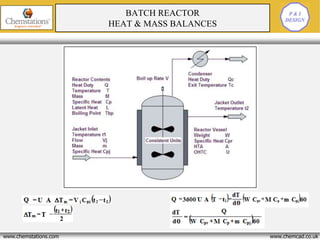

BATCH REACTOR
HEAT & MASS BALANCES

3. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com

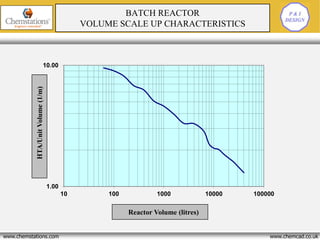

BATCH REACTOR
VOLUME SCALE UP CHARACTERISTICS
1.00
10.00
10 100 1000 10000 100000
HTA/UnitVolume(1/m)
Reactor Volume (litres)

4. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

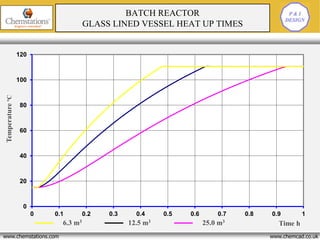

GLASS LINED VESSEL HEAT UP TIMES
0
20
40
60
80
100
120
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
TemperatureºC
6.3 m3 12.5 m3 25.0 m3
Time h

5. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com

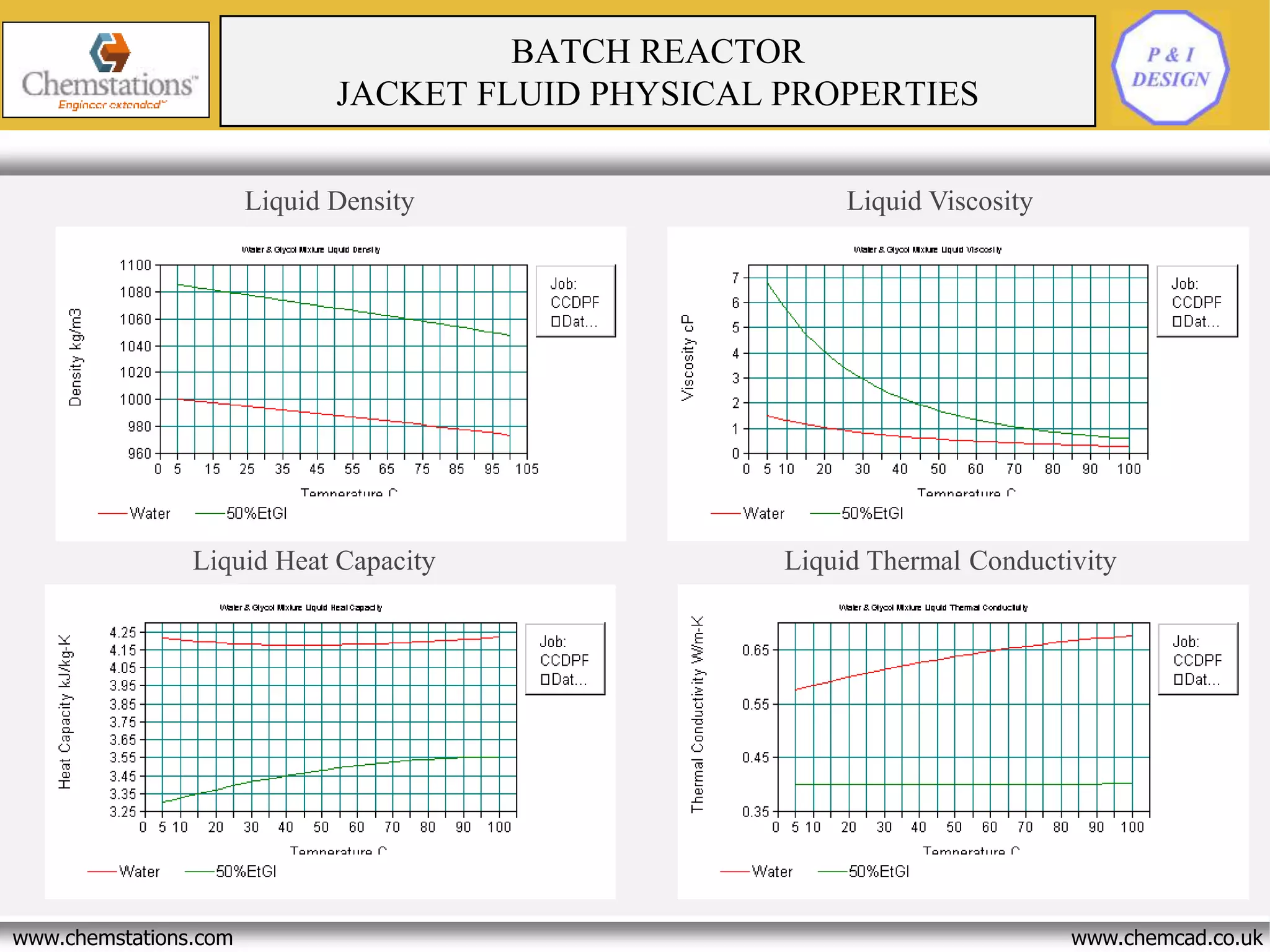

BATCH REACTOR
JACKET FLUID PHYSICAL PROPERTIES
Liquid Density
Liquid Heat Capacity
Liquid Viscosity
Liquid Thermal Conductivity

6. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTORS

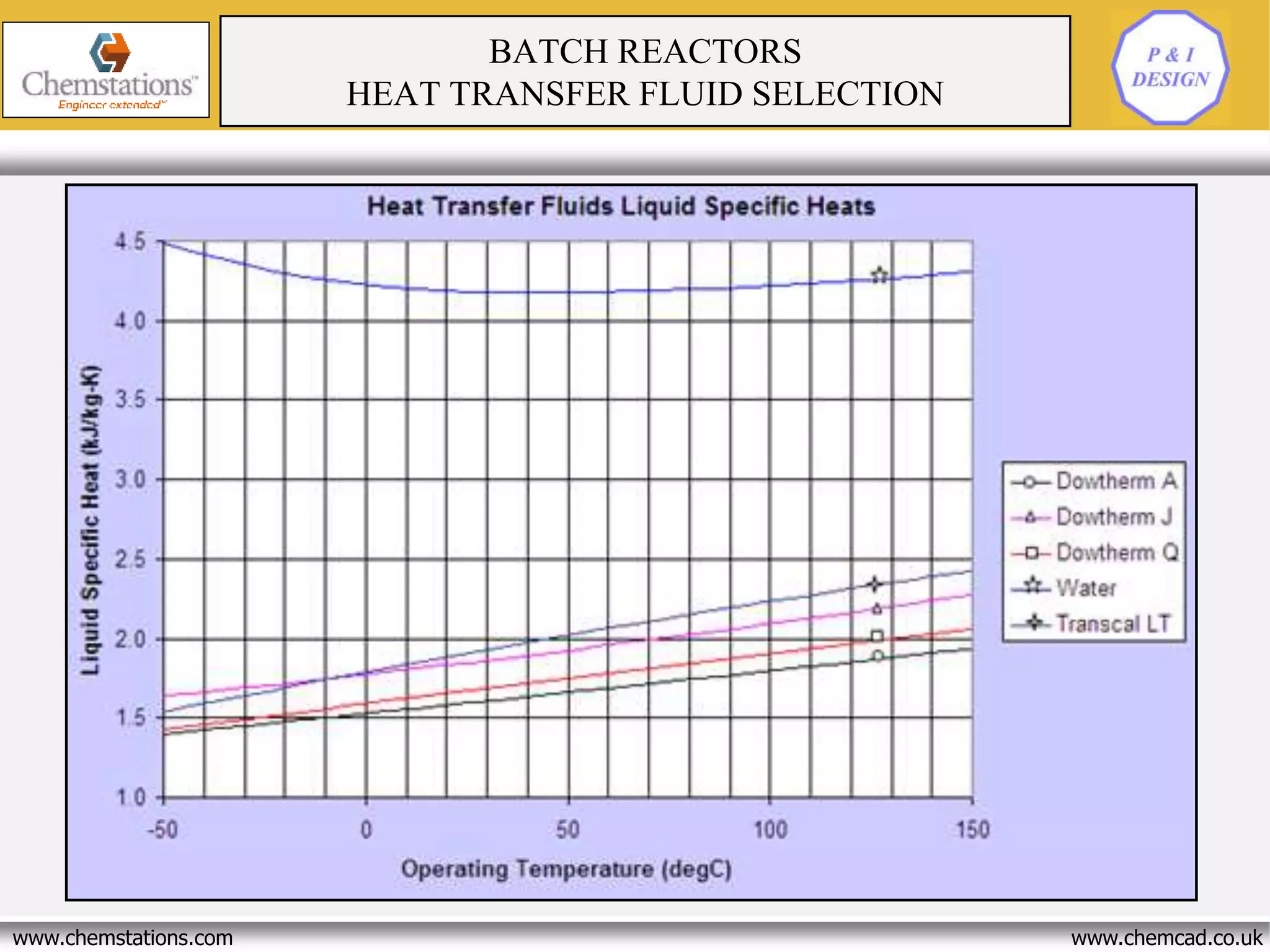

HEAT TRANSFER FLUID SELECTION

7. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com

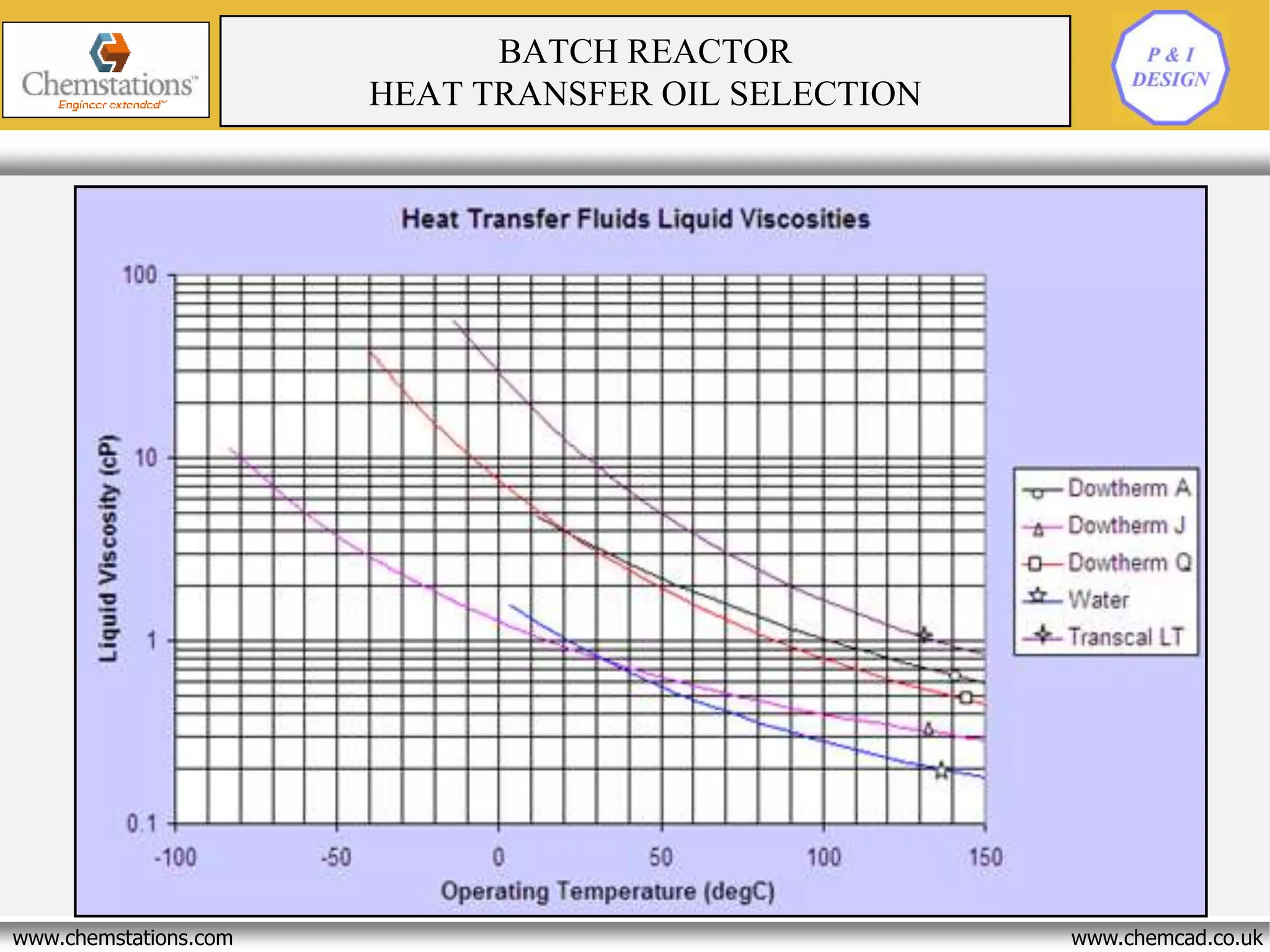

BATCH REACTOR
HEAT TRANSFER OIL SELECTION

8. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com

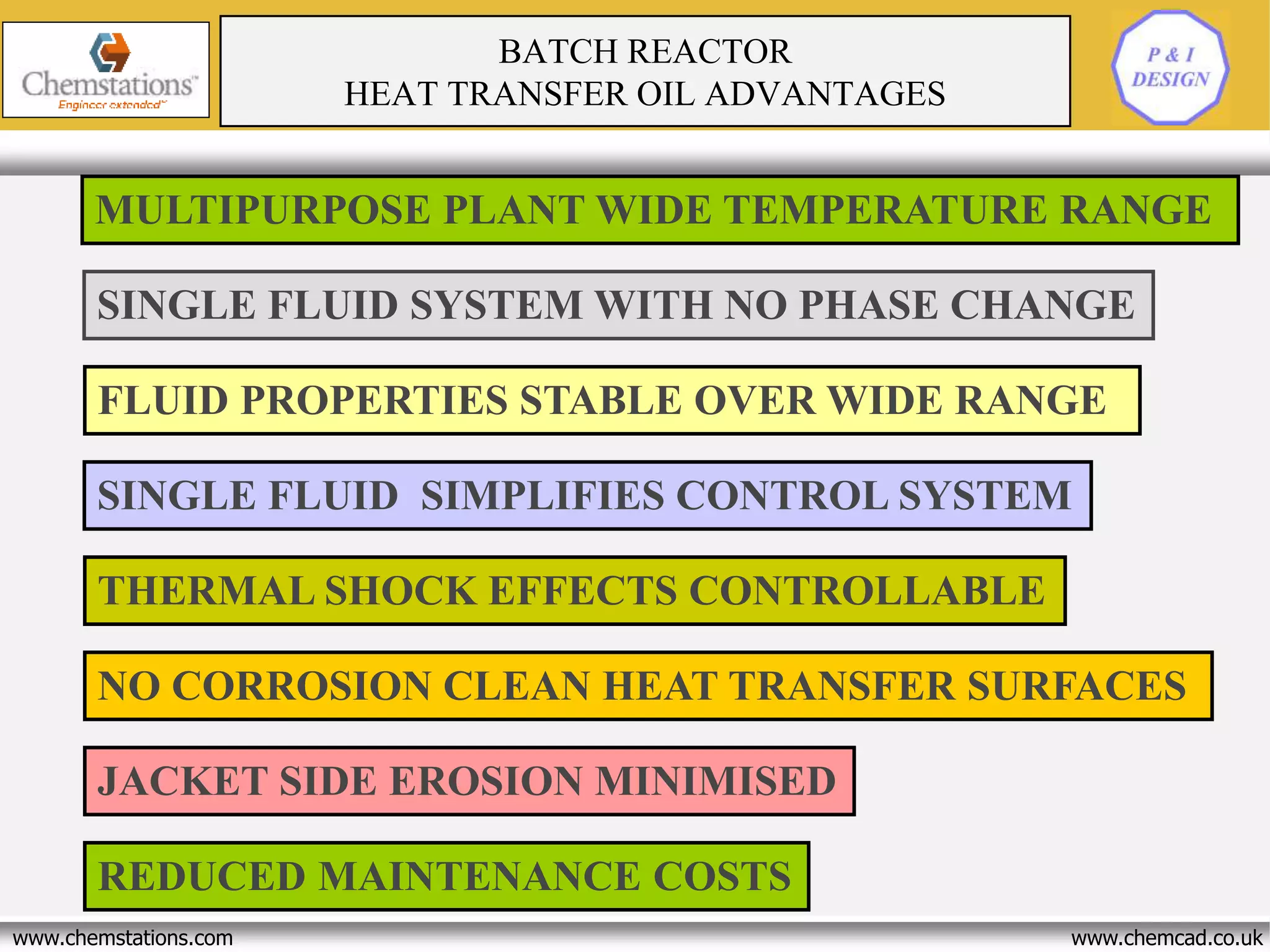

BATCH REACTOR
HEAT TRANSFER OIL ADVANTAGES
SINGLE FLUID SYSTEM WITH NO PHASE CHANGE
SINGLE FLUID SIMPLIFIES CONTROL SYSTEM
MULTIPURPOSE PLANT WIDE TEMPERATURE RANGE
THERMAL SHOCK EFFECTS CONTROLLABLE
FLUID PROPERTIES STABLE OVER WIDE RANGE
NO CORROSION CLEAN HEAT TRANSFER SURFACES
JACKET SIDE EROSION MINIMISED
REDUCED MAINTENANCE COSTS

9. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com

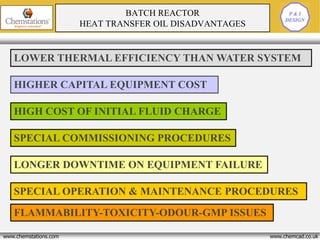

BATCH REACTOR
HEAT TRANSFER OIL DISADVANTAGES
HIGHER CAPITAL EQUIPMENT COST
HIGH COST OF INITIAL FLUID CHARGE
LOWER THERMAL EFFICIENCY THAN WATER SYSTEM
SPECIAL COMMISSIONING PROCEDURES
SPECIAL OPERATION & MAINTENANCE PROCEDURES
LONGER DOWNTIME ON EQUIPMENT FAILURE
FLAMMABILITY-TOXICITY-ODOUR-GMP ISSUES

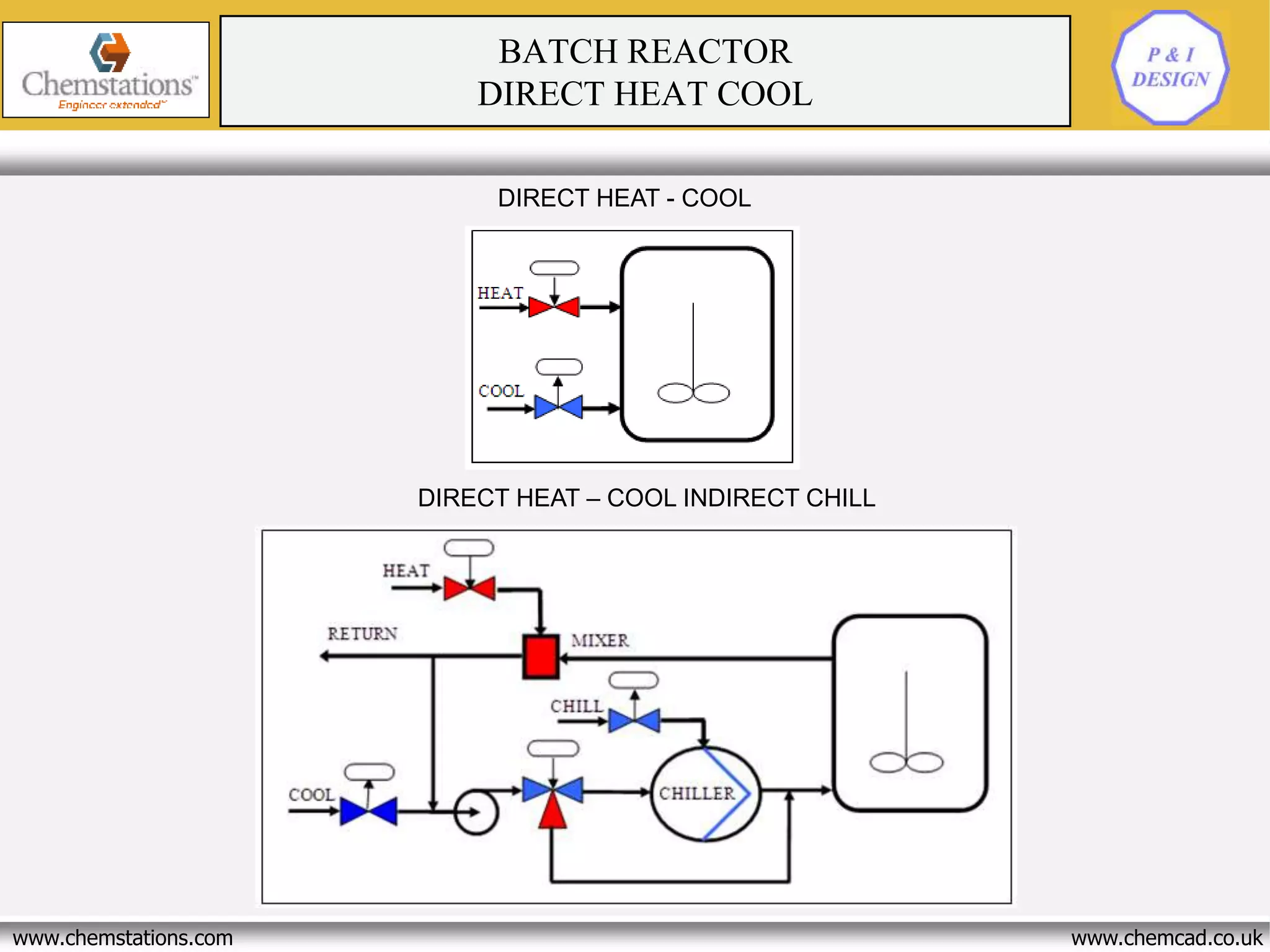

10. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
DIRECT HEAT COOL
DIRECT HEAT - COOL
DIRECT HEAT – COOL INDIRECT CHILL

11. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

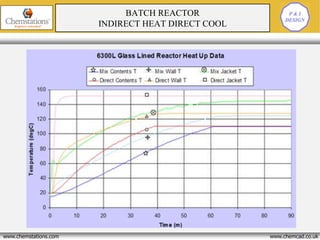

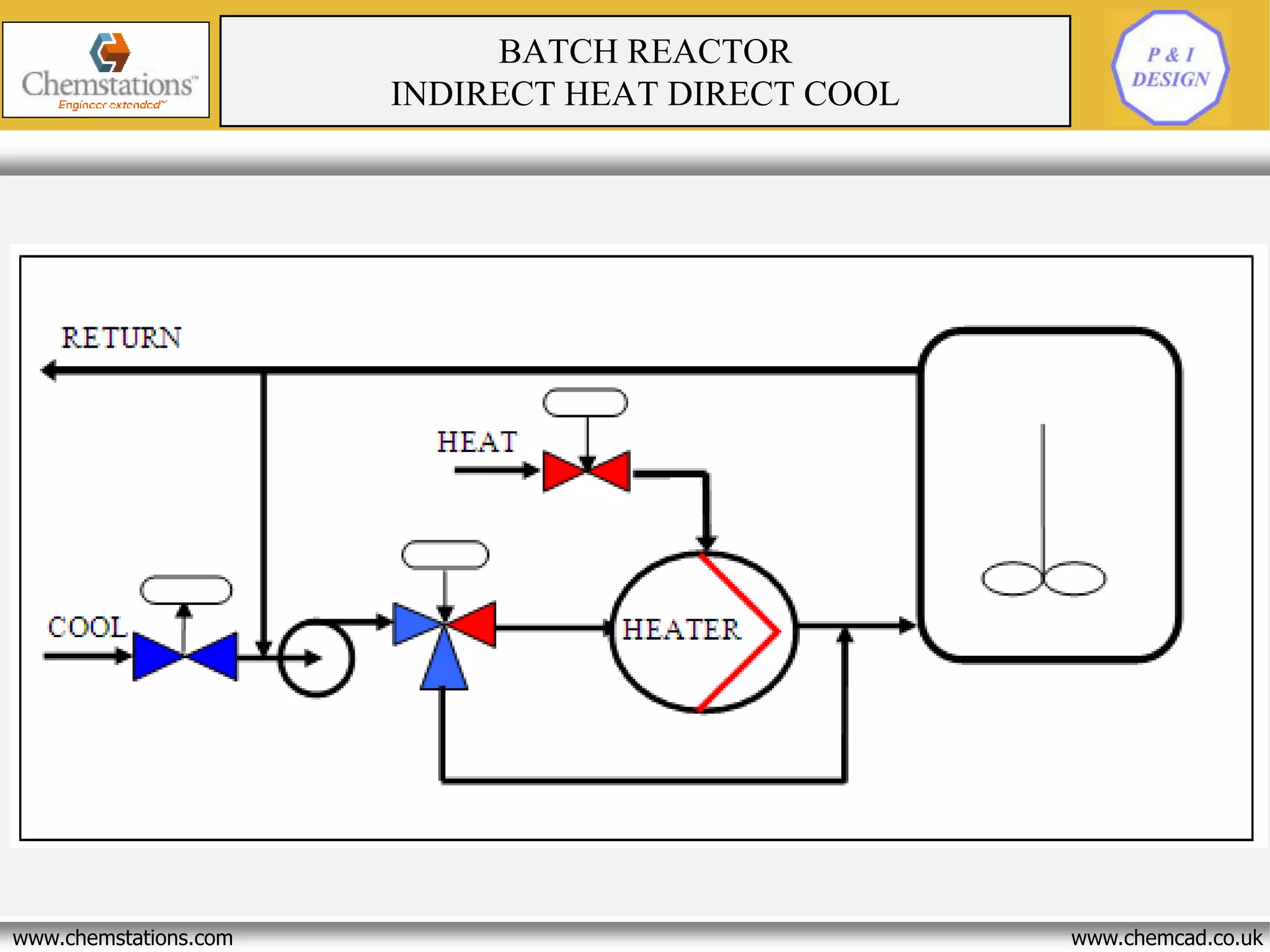

INDIRECT HEAT DIRECT COOL

12. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

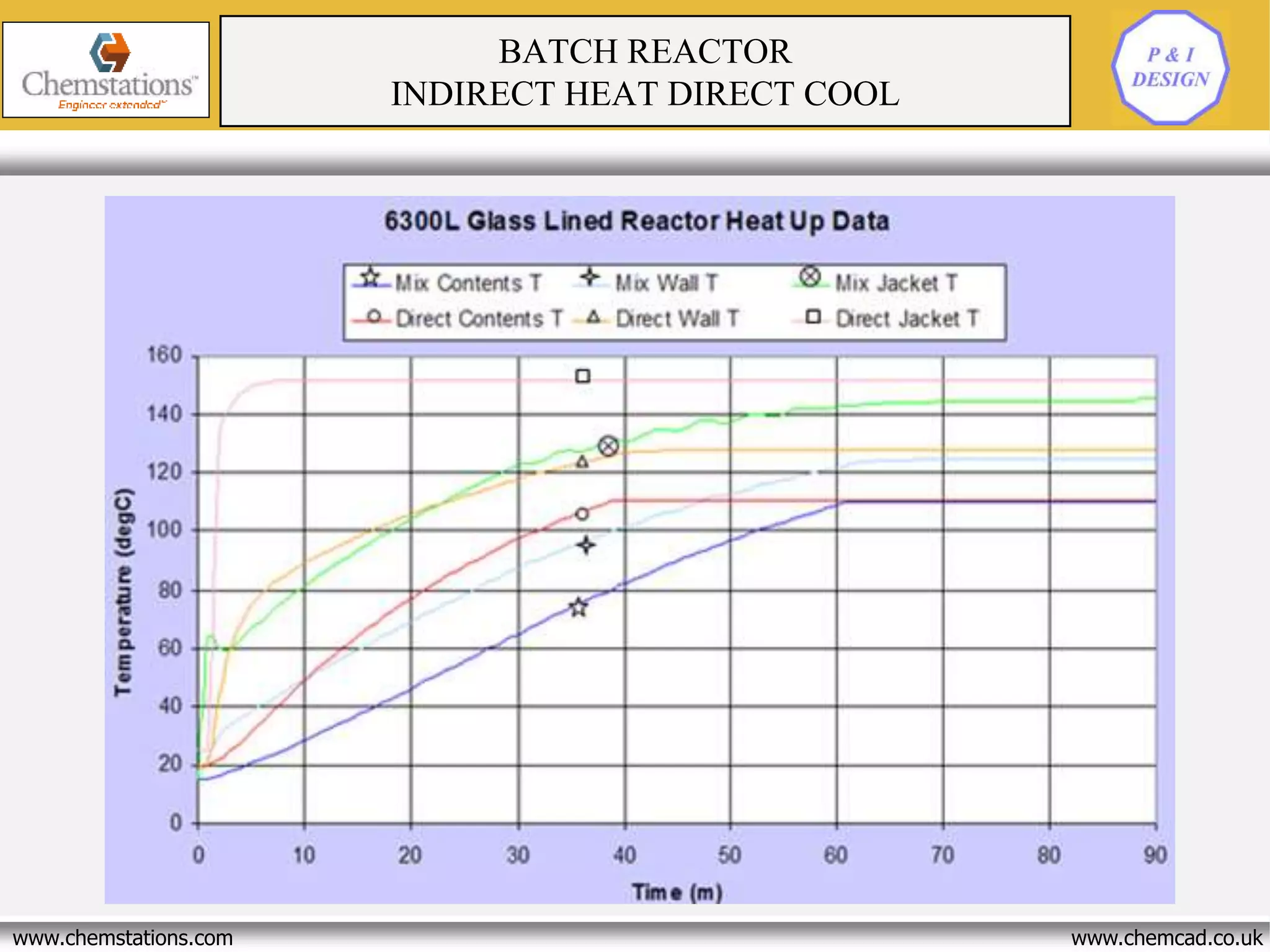

INDIRECT HEAT DIRECT COOL

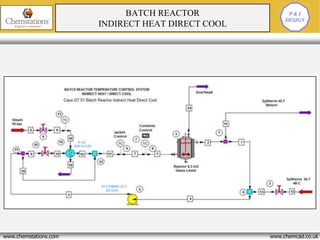

13. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
INDIRECT HEAT DIRECT COOL

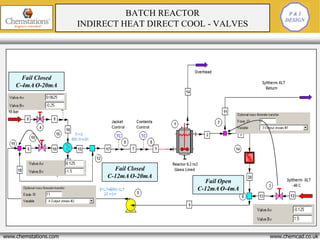

14. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
INDIRECT HEAT DIRECT COOL - VALVES
Fail Open
C-12mA O-4mA
Fail Closed
C-12mA O-20mA
Fail Closed
C-4mA O-20mA

15. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

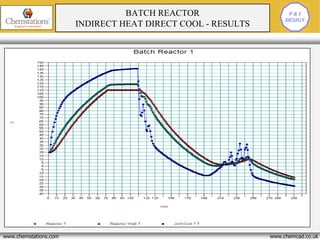

INDIRECT HEAT DIRECT COOL - RESULTS

16. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
INDIRECT HEATING INDIRECT COOLING

17. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

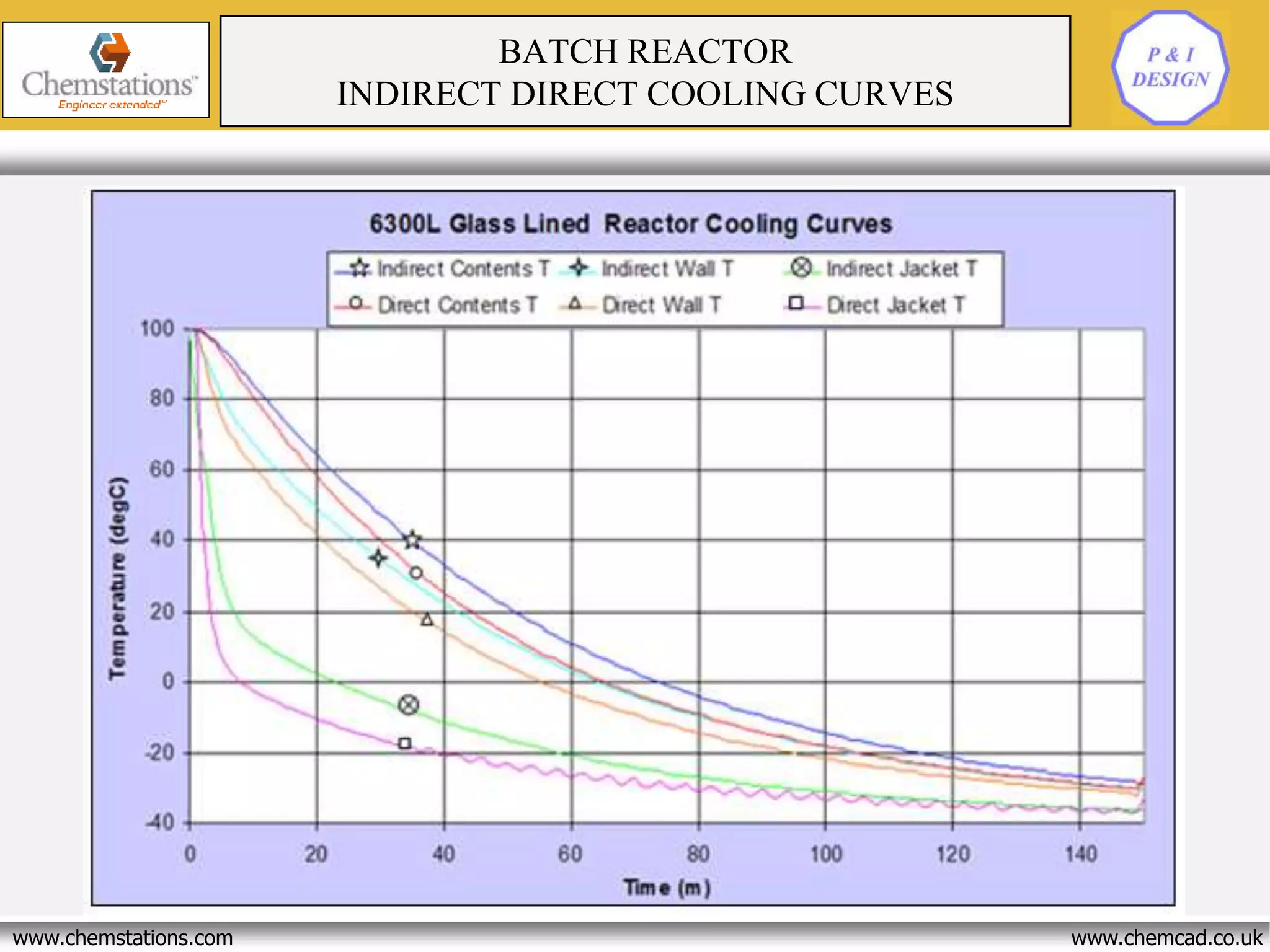

INDIRECT DIRECT COOLING CURVES

18. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTORS

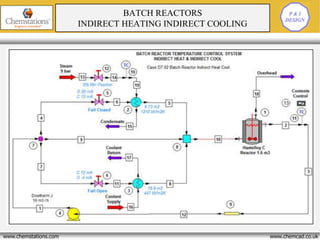

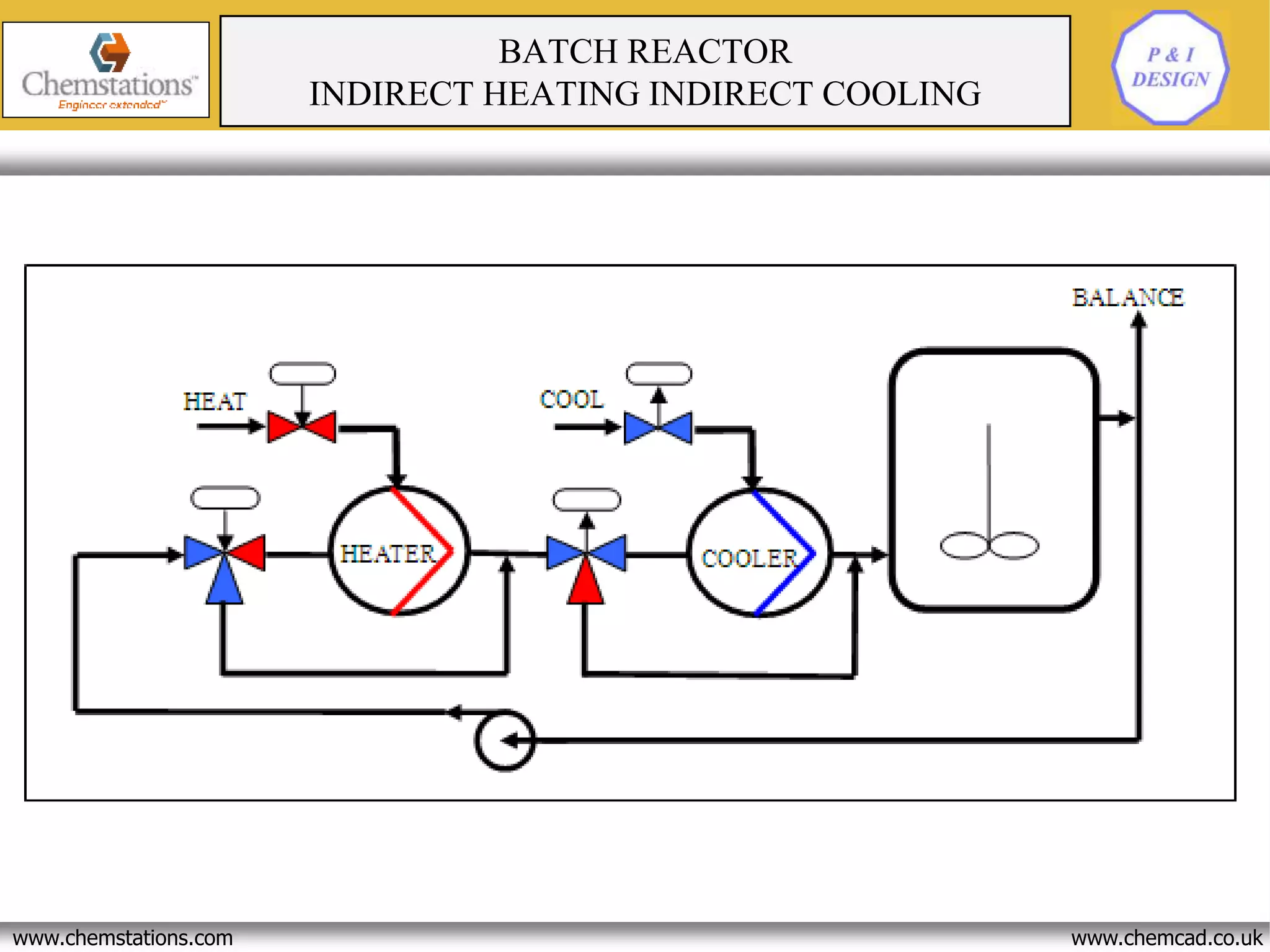

INDIRECT HEATING INDIRECT COOLING

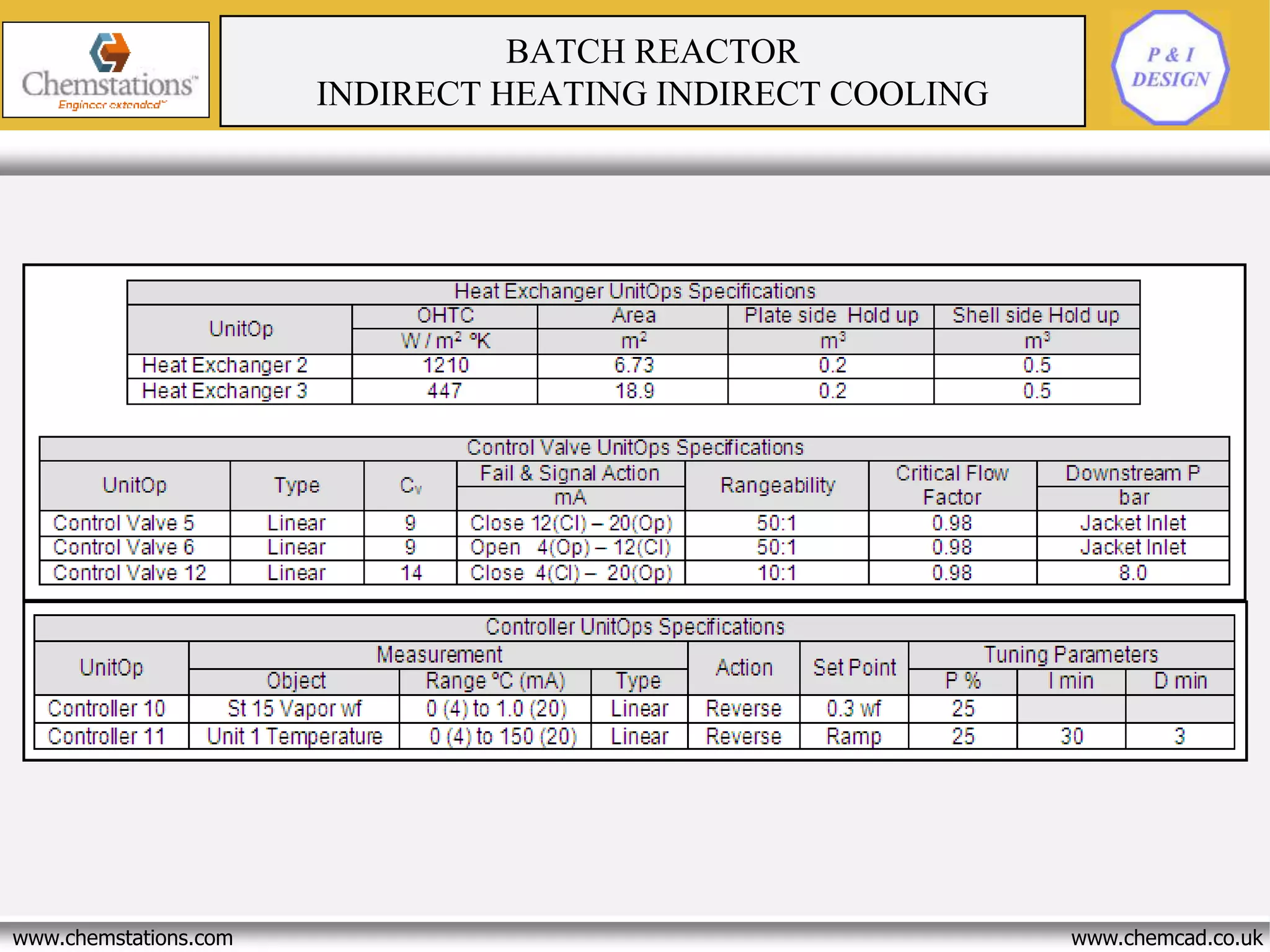

19. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

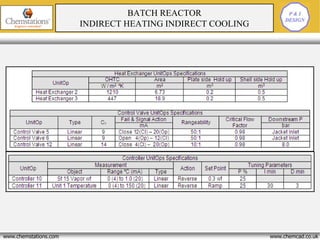

INDIRECT HEATING INDIRECT COOLING

20. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
INDIRECT HEATING INDIRECT COOLING

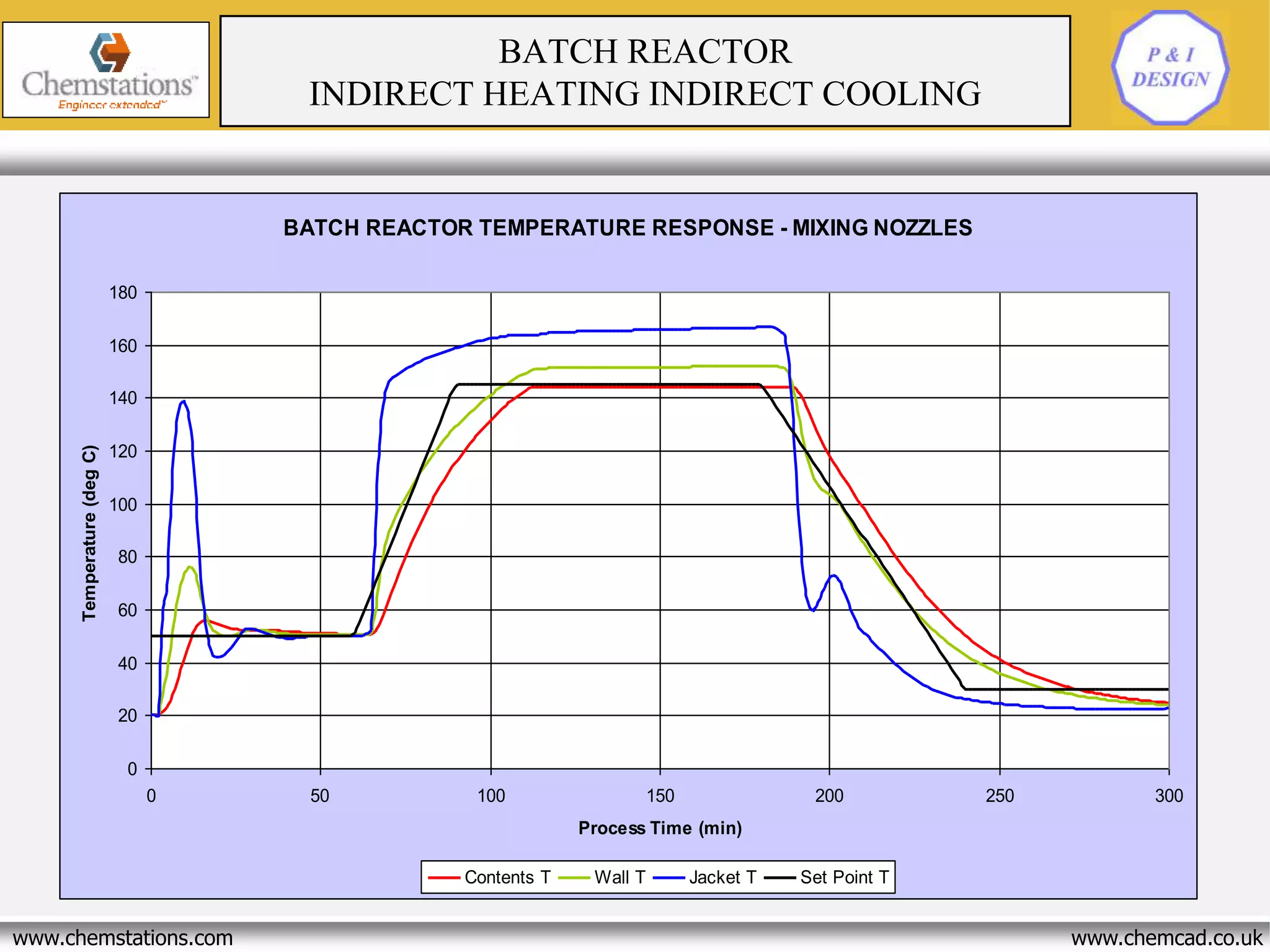

BATCH REACTOR TEMPERATURE RESPONSE - MIXING NOZZLES
0
20
40
60
80
100
120
140
160
180
0 50 100 150 200 250 300
Process Time (min)
Temperature(degC)
Contents T Wall T Jacket T Set Point T

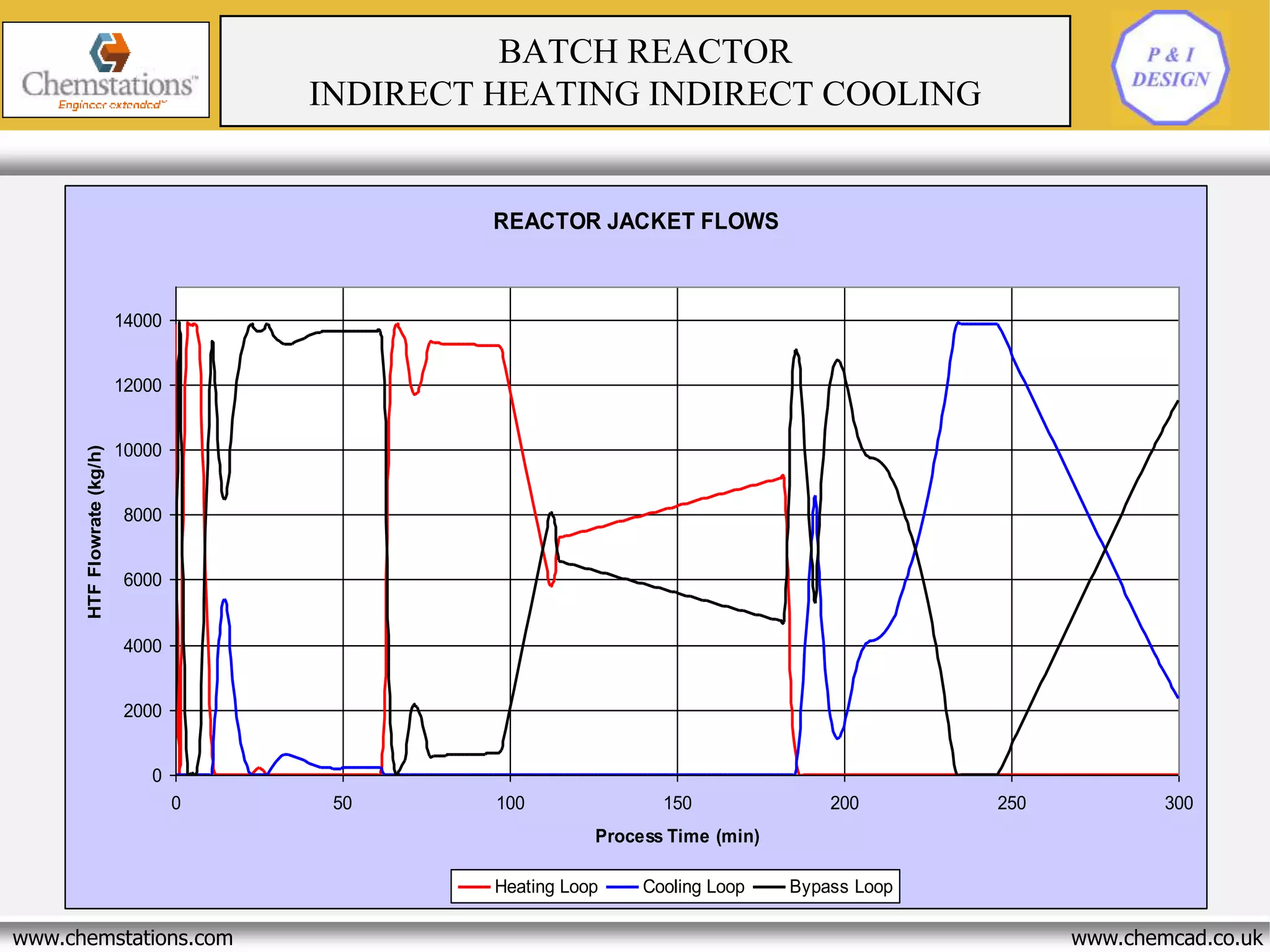

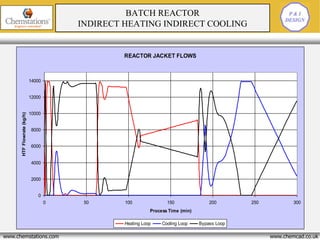

21. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
INDIRECT HEATING INDIRECT COOLING
REACTOR JACKET FLOWS
0
2000
4000
6000
8000
10000
12000
14000
0 50 100 150 200 250 300
Process Time (min)
HTFFlowrate(kg/h)
Heating Loop Cooling Loop Bypass Loop

22. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

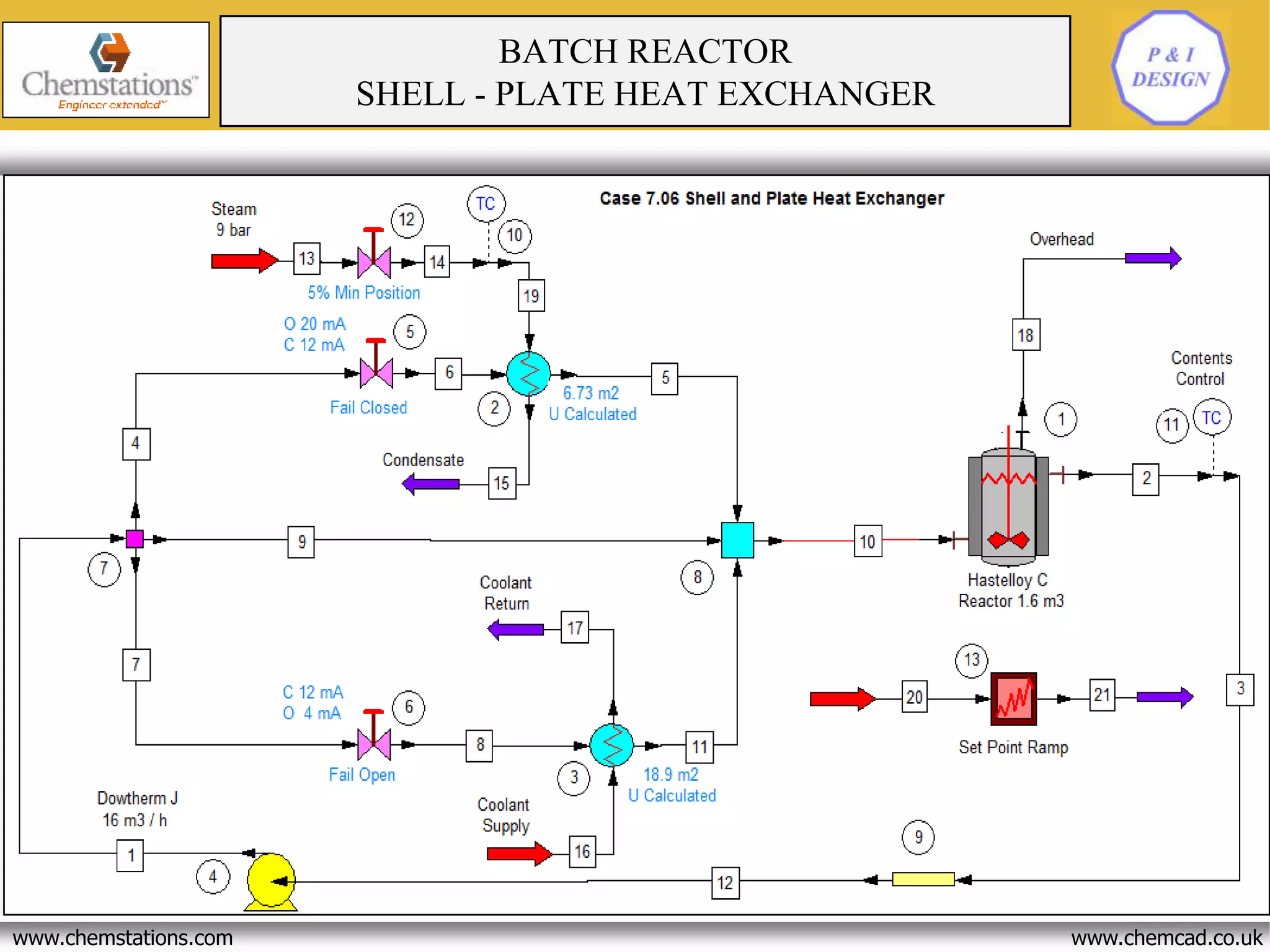

SHELL - PLATE HEAT EXCHANGER

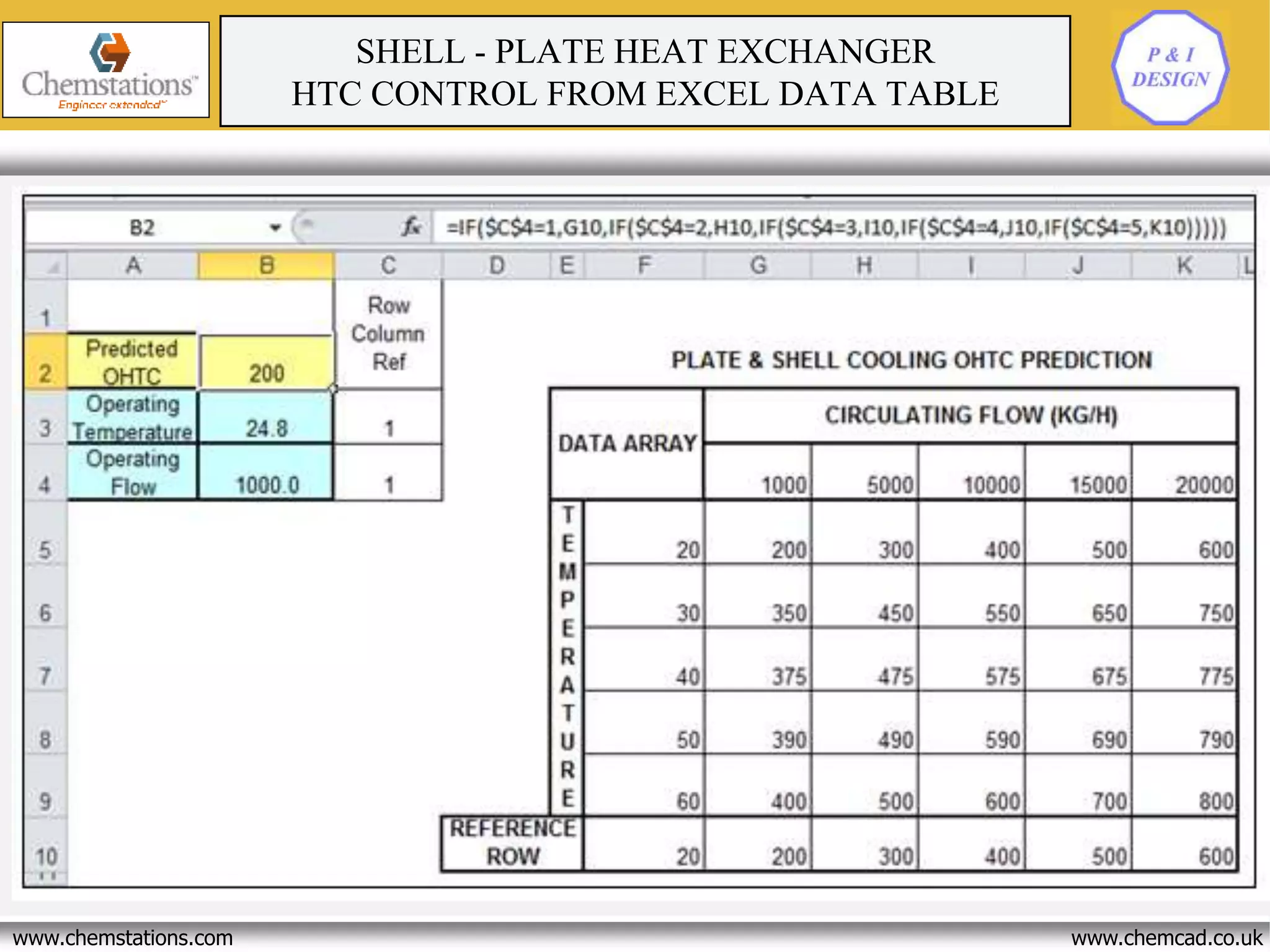

23. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
SHELL - PLATE HEAT EXCHANGER
HTC CONTROL FROM EXCEL DATA TABLE

24. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

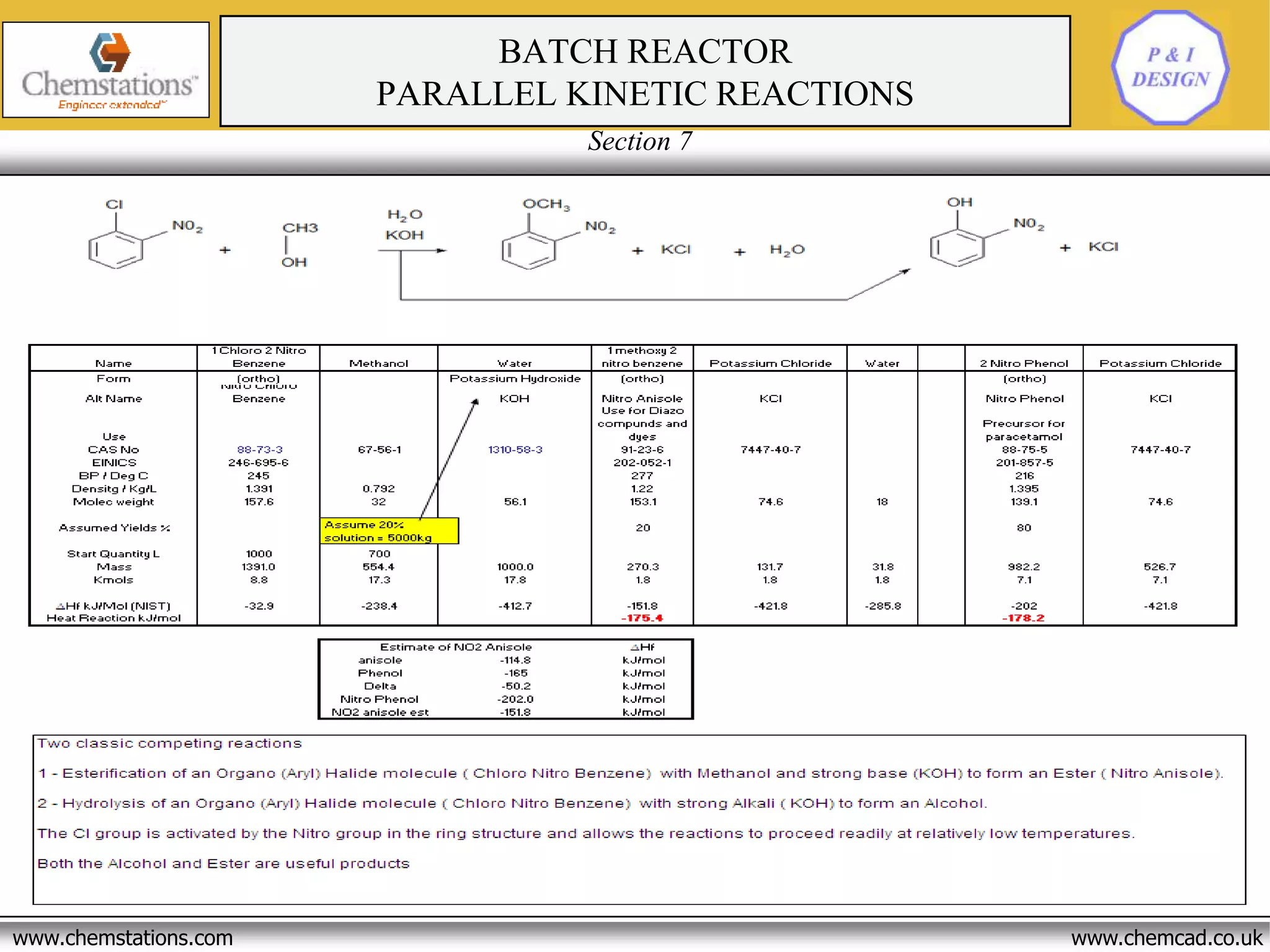

PARALLEL KINETIC REACTIONS
Section 7

25. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

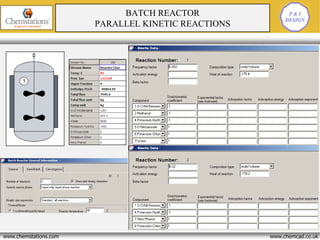

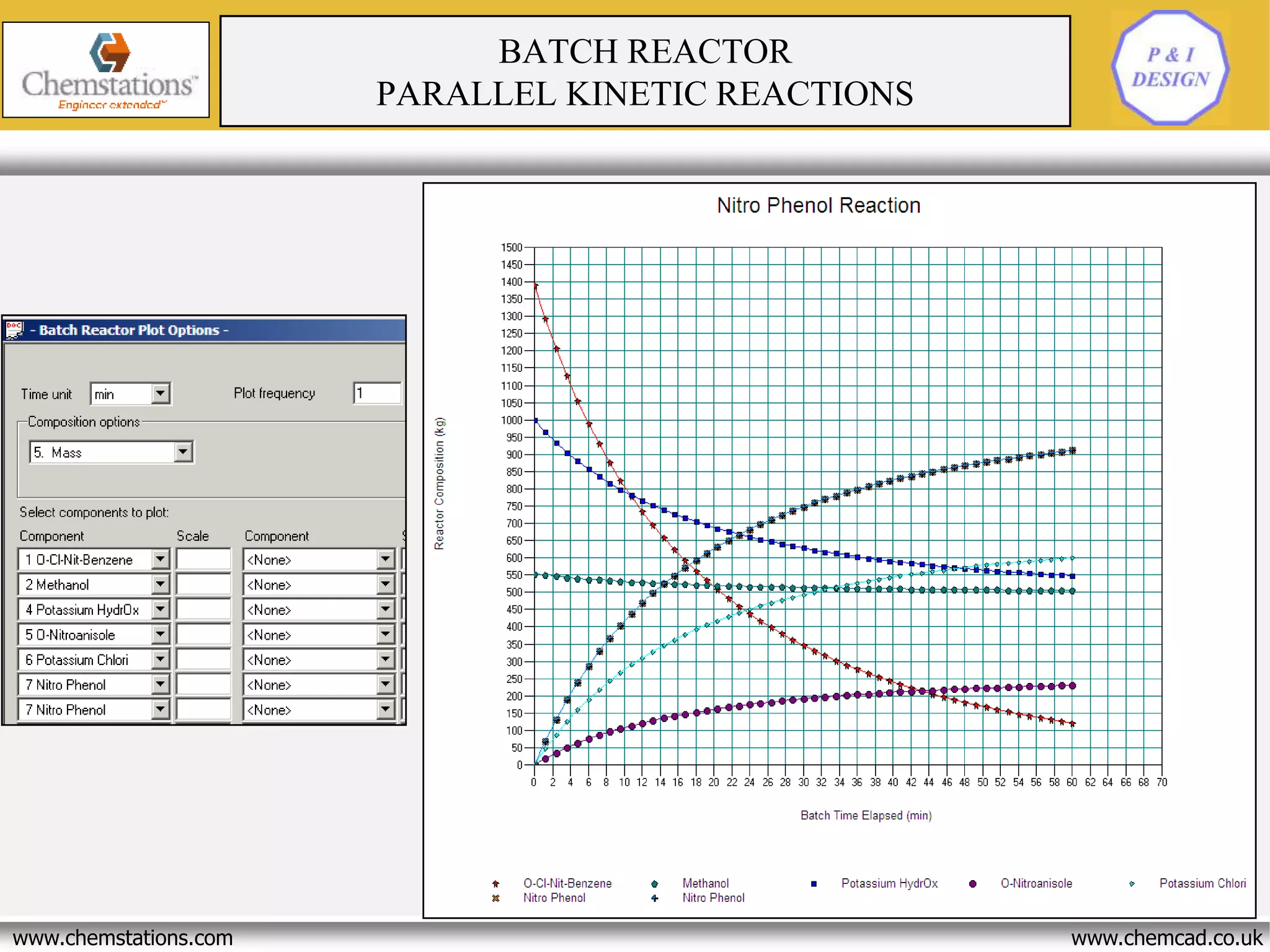

PARALLEL KINETIC REACTIONS

26. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
PARALLEL KINETIC REACTIONS

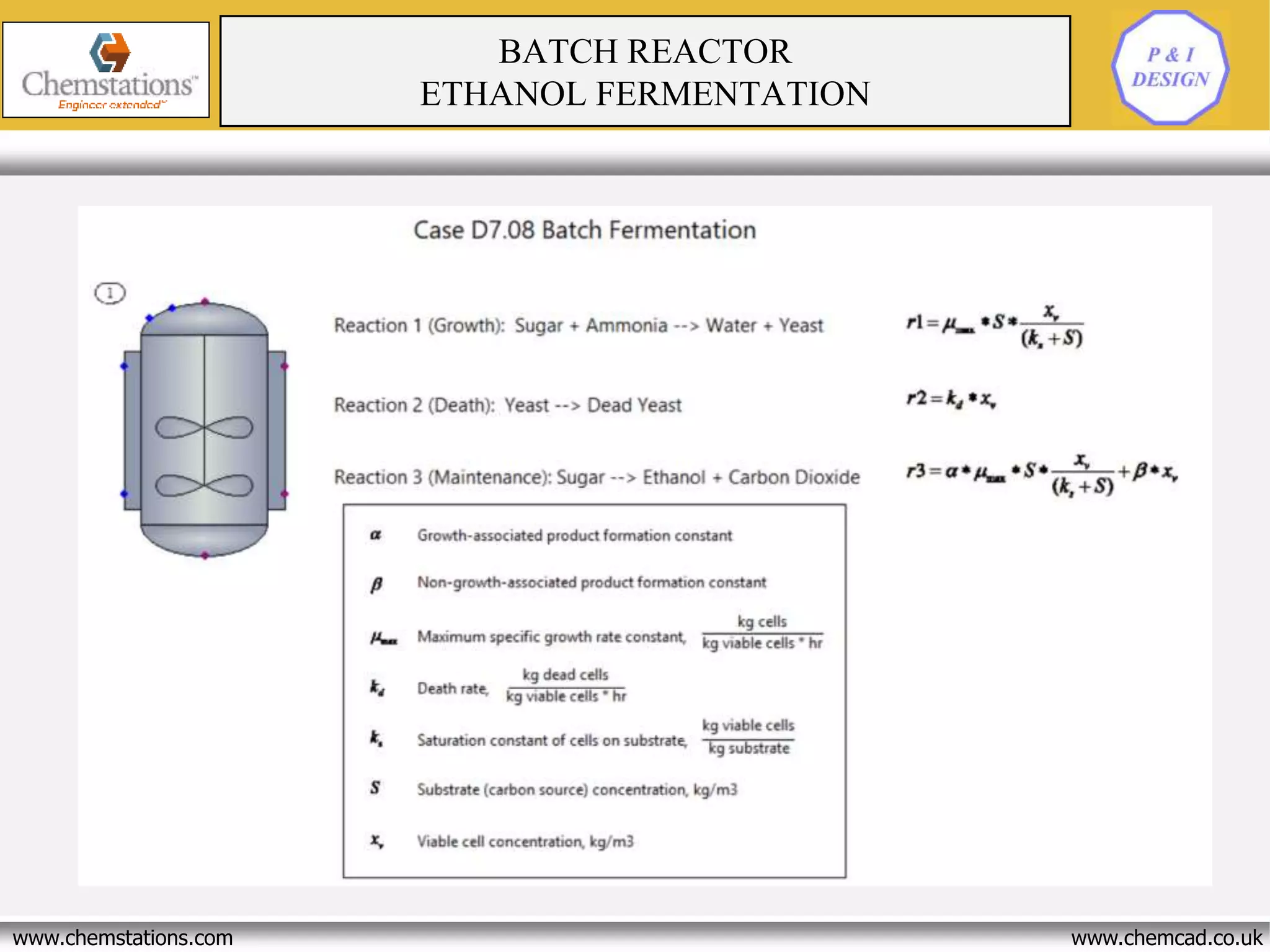

27. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR

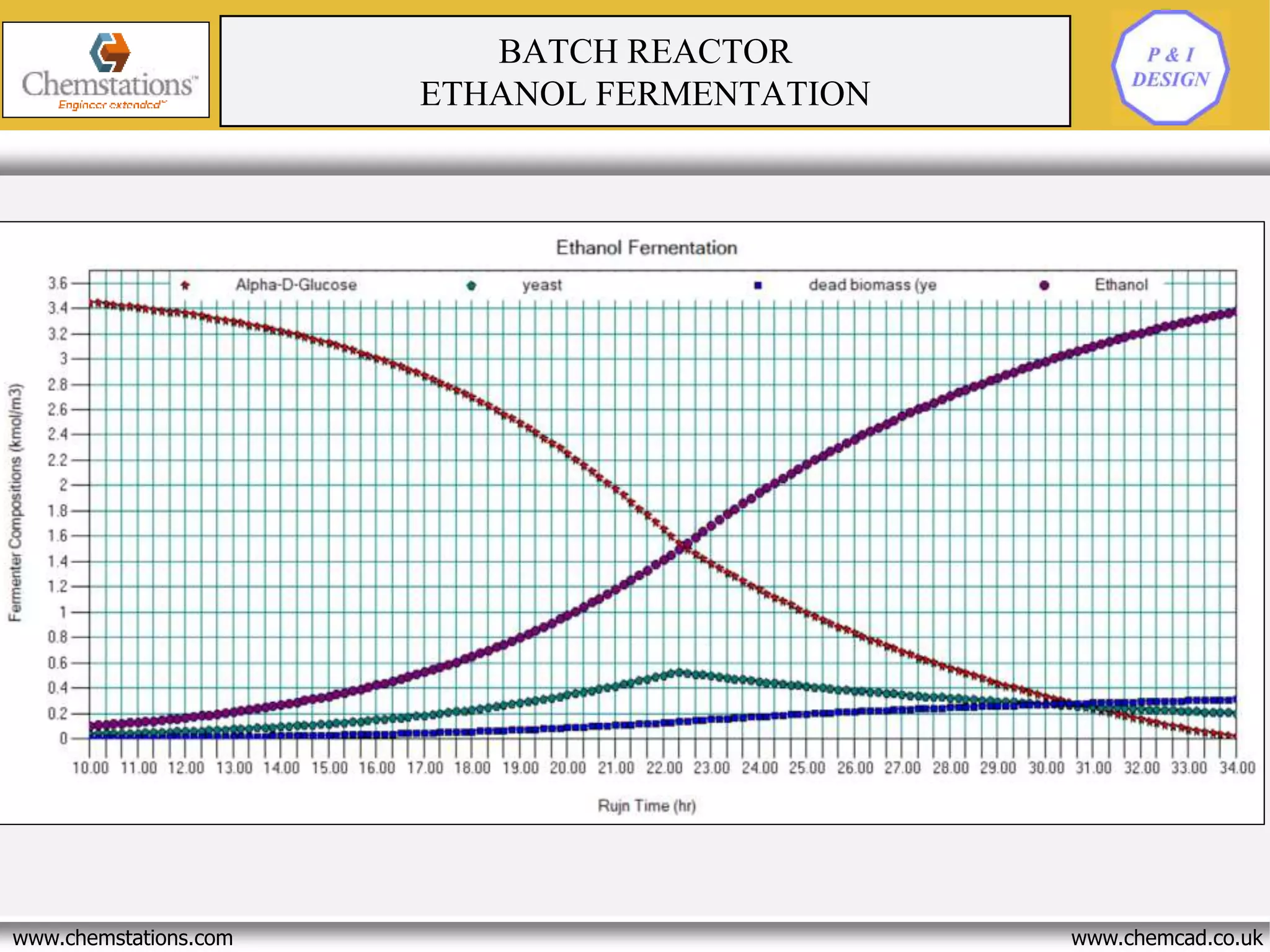

ETHANOL FERMENTATION

28. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTOR
ETHANOL FERMENTATION

29. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com
BATCH REACTORS

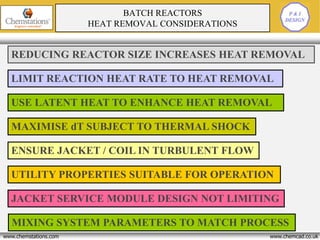

HEAT REMOVAL CONSIDERATIONS
REDUCING REACTOR SIZE INCREASES HEAT REMOVAL
LIMIT REACTION HEAT RATE TO HEAT REMOVAL
USE LATENT HEAT TO ENHANCE HEAT REMOVAL
MAXIMISE dT SUBJECT TO THERMAL SHOCK
UTILITY PROPERTIES SUITABLE FOR OPERATION
ENSURE JACKET / COIL IN TURBULENT FLOW
MIXING SYSTEM PARAMETERS TO MATCH PROCESS
JACKET SERVICE MODULE DESIGN NOT LIMITING

30. www.chemcad.co.uk
SIMULATION SUITECHEMCAD SOFTWARE
www.chemstations.com

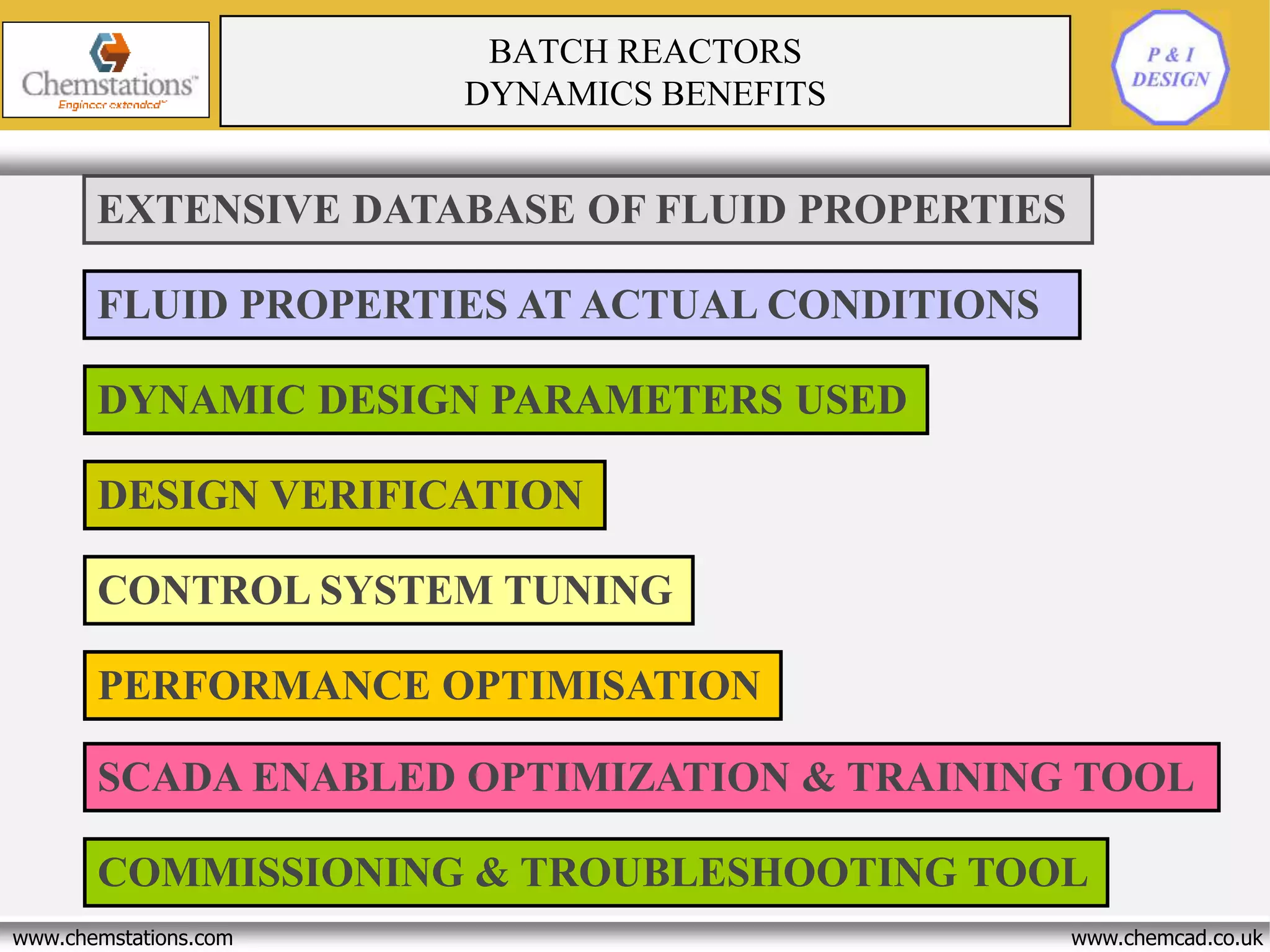

BATCH REACTORS
DYNAMICS BENEFITS
EXTENSIVE DATABASE OF FLUID PROPERTIES
FLUID PROPERTIES AT ACTUAL CONDITIONS
DYNAMIC DESIGN PARAMETERS USED
DESIGN VERIFICATION
PERFORMANCE OPTIMISATION
CONTROL SYSTEM TUNING
COMMISSIONING & TROUBLESHOOTING TOOL
SCADA ENABLED OPTIMIZATION & TRAINING TOOL
