1. R

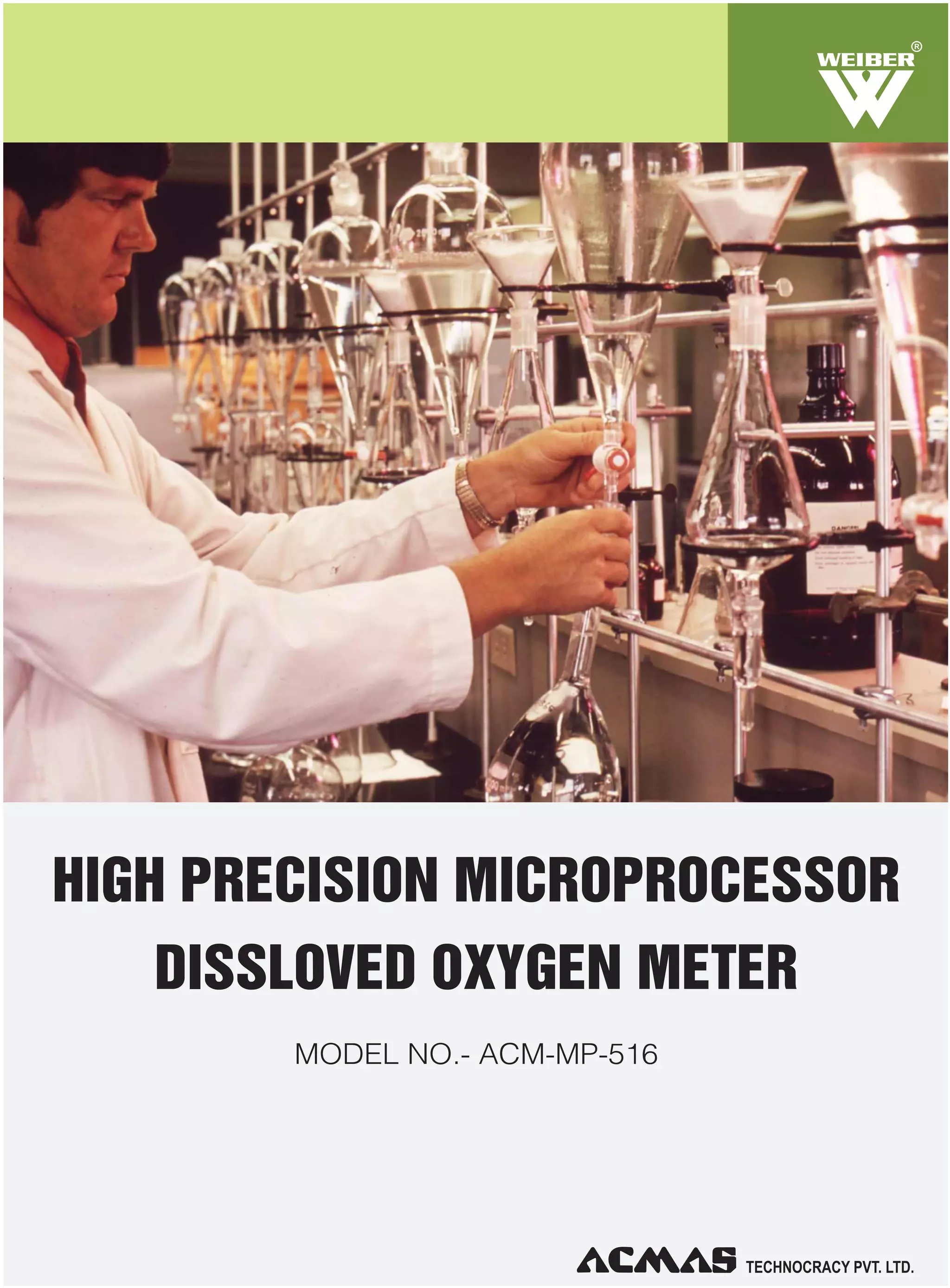

HIGH PRECISION MICROPROCESSOR
DISSLOVED OXYGEN METER
MODEL NO.- ACM-MP-516

2. R

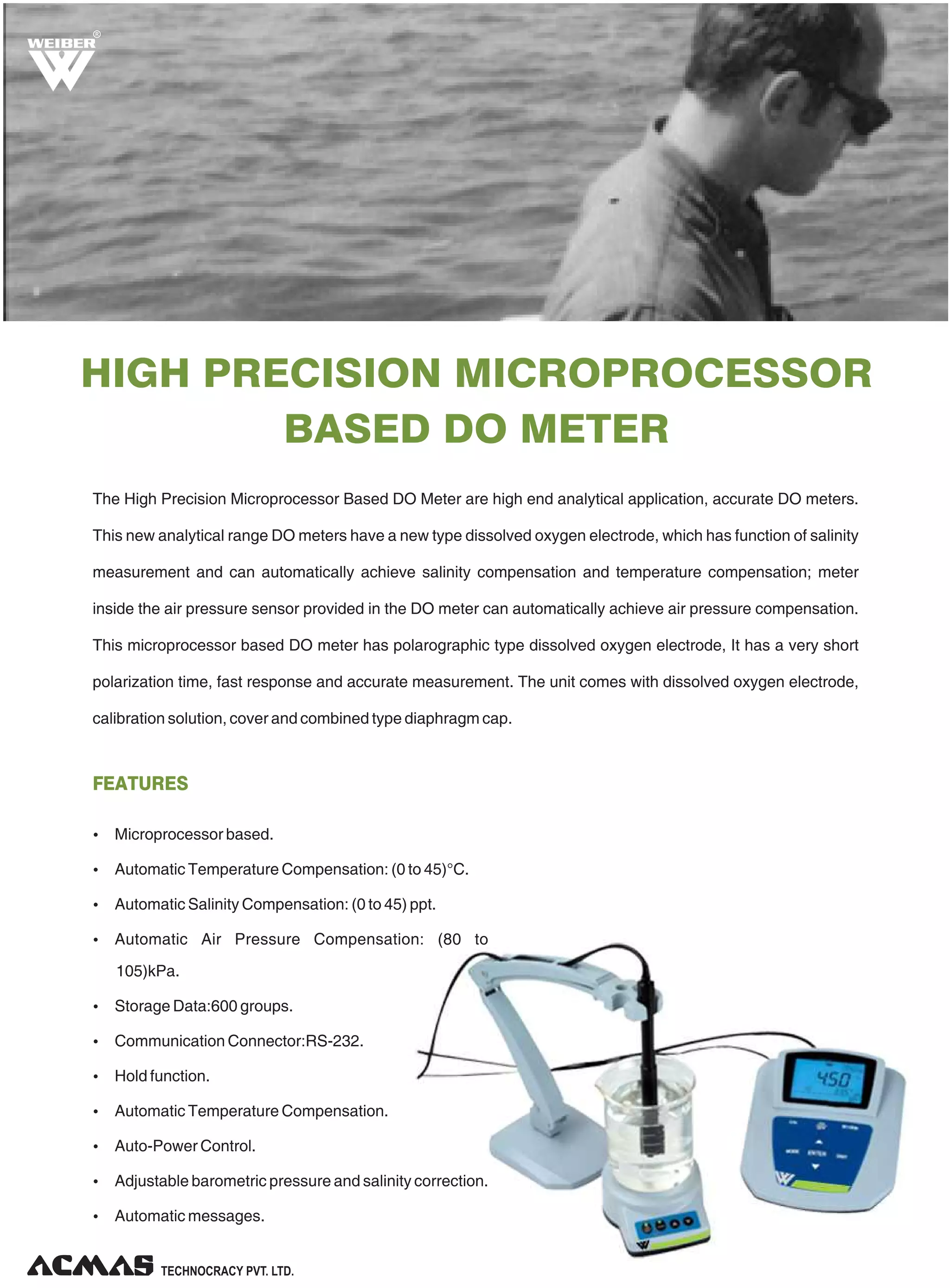

HIGH PRECISION MICROPROCESSOR
BASED DO METER
The High Precision Microprocessor Based DO Meter are high end analytical application, accurate DO meters.
This new analytical range DO meters have a new type dissolved oxygen electrode, which has function of salinity
measurement and can automatically achieve salinity compensation and temperature compensation; meter
inside the air pressure sensor provided in the DO meter can automatically achieve air pressure compensation.
This microprocessor based DO meter has polarographic type dissolved oxygen electrode, It has a very short
polarization time, fast response and accurate measurement. The unit comes with dissolved oxygen electrode,
calibration solution, cover and combined type diaphragm cap.
FEATURES
Ÿ Microprocessor based.
Ÿ Automatic Temperature Compensation: (0 to 45)°C.
Ÿ Automatic Salinity Compensation: (0 to 45) ppt.
Ÿ Automatic
Air Pressure Compensation: (80 to
105)kPa.
Ÿ Storage Data:600 groups.
Ÿ Communication Connector:RS-232.
Ÿ Hold function.
Ÿ Automatic Temperature Compensation.
Ÿ Auto-Power Control.
Ÿ Adjustable barometric pressure and salinity correction.
Ÿ Automatic messages.
TECHNOLOGIES PVT. LTD.

3. R
KEY INCLUSIONS
Ÿ DO 500 Dissolved Oxygen Electrode.
Ÿ Model 901 Intelligent Stirrer.
Ÿ Model 602 Flexible Electrode Holder.
Ÿ RS-232 communication software.
TECHNICAL SPECIFICATIONS
RANGE
DO
0 to 40.00)mg/L(ppm) (0 to 200.0)%
Temp
(0 to 45)°C
ACCURACY
Dissloved Oxygen
±0.10 mg/L
Temp
±0.4°C
OTHER PARAMETERS
Automatic Temperature Compensation
(0 to 45)°C
Automatic Salinity Compensation
(0 to 45)ppt
Automatic Air Pressure Compensation
(80 to 105)kPa
Storage Data
600 groups.
Communication Connector
RS-232
Power
DC9V/300mA
Size & Weight
(160×190×70)mm/ 880g
TECHNOLOGIES PVT. LTD.
