Basics of Blockchain Technology
1. Muhammad Nasir Mumtaz Bhutta
College of Computer Science and Information Systems
King Faisal University, Saudi Arabia
Email: mmbhutta@kfu.edu.sa,
Tel: +966 – 13589-9207
Office: 2088, first floor, CCSIT Building
www.kfu.edu.sa
Blockchain Technology: Evolution,
Characteristics and Architecture
9 April 2019
2. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa

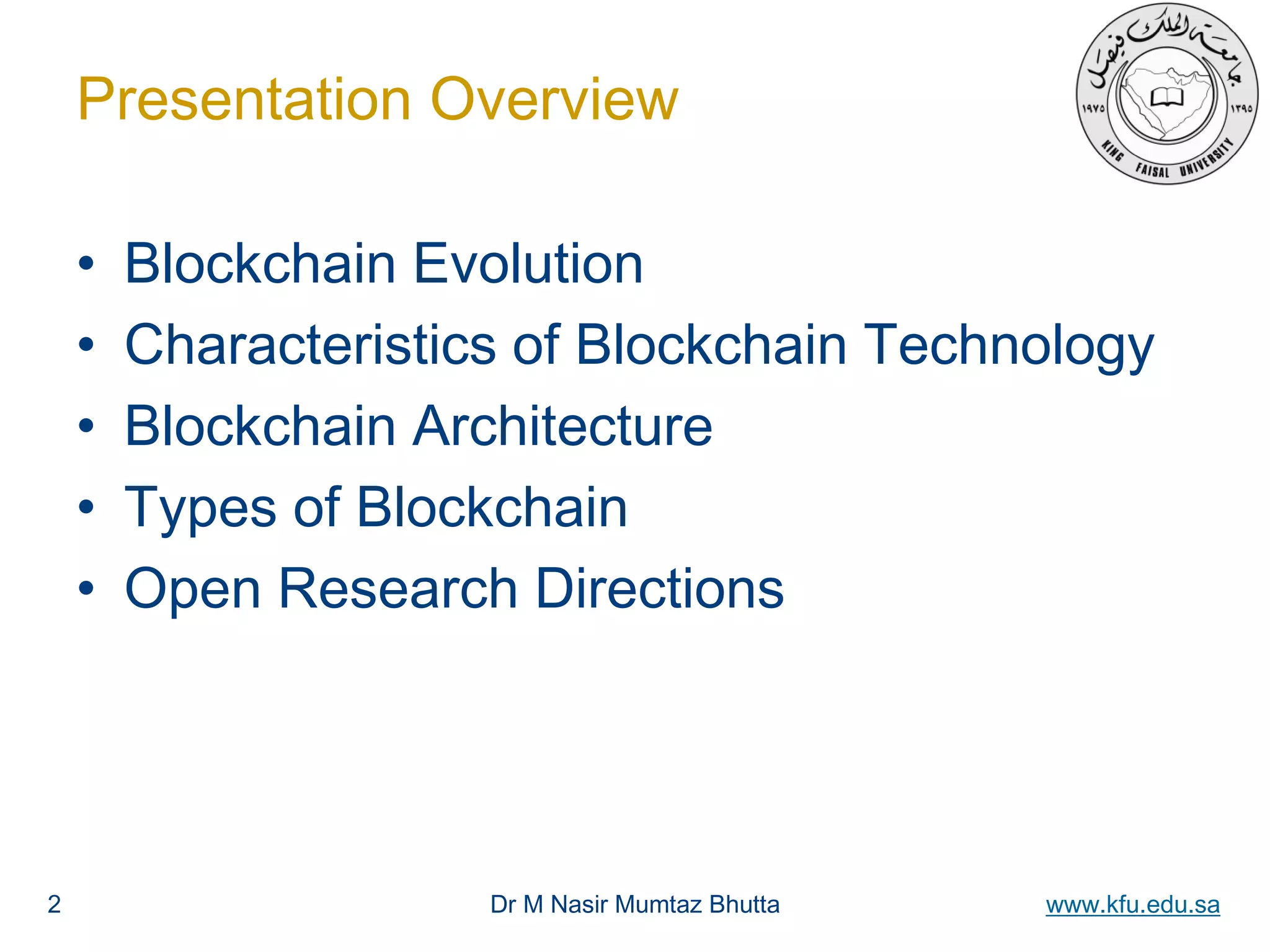

Presentation Overview
• Blockchain Evolution
• Characteristics of Blockchain Technology
• Blockchain Architecture
• Types of Blockchain
• Open Research Directions
2
3. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Evolution – I
• Blockchain 1.0 concept got popularity as a
shared ledger to store the transactions of Digital
Cash “Bitcoin”.
– The, crypto currency (digital cash), Bitcoin allows the
sale and purchase transactions between interested
parties without need of any trusted third party such as
Banks.
– Blockchain helps to transfer the assets (digital cash)
between transacting parties.
– The Blockchain also keeps track of user’s balances of
currency to be spent in transactions.
3
4. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Evolution – II
• With the passage of time, the Blockchain potential was
realized by researchers to provide solutions in more
generalized form called Blockchain 2.0 (Smart Contract).
• Smart Contracts concept is beyond merely storing the
financial transactions of digital currency.
– It developed as a way to automatically enforce the rules agreed
between interested parties like traditional business contracts.
– It works as entire slate of market and financial applications using
Blockchain for more than simple cash transactions including
stocks, bonds, loans, mortgages, smart properties etc.
– In short, it helps to implement the complete cycle of contracts
between interested parties.
• After Smart Contracts, Blockchain realized as a platform
to develop more generic secure applications pertaining
to all areas of life called Blockchain 3.0.
4
5. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Evolution – III
• Blockchain 3.0 or Blockchain Applications is a
platform to develop distributed, secure
applications beyond the monetary markets,
payments, financial services and economies.
– It supports a universal and global scope and scale
that was previously impossible with interconnection of
web.
– It is seen as a good means to allocate resources in
particular of physical-world assets and also human
assets.
– It is being seen as a technology to contribute
extensively for the development of Smart world using
Internet of Things (IoT).
5
6. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Characteristics of Blockchain
Technology – I
• The most important characteristics that enable
the Blockchain technology to radically reshape
several industries are:
– Decentralization
– Pseudonymity
– Transparency
– Democracy
– Immutability
– Auditability
– Fault Tolerance
– Security
6
7. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Characteristics of Blockchain
Technology – II
• Decentralization
– The Blockchain systems run normally in a peer-to-
peer manner without a centralized third party.
• Pseudonymity
– Each node (consumer) is linked to a public
pseudonymous address keeping its real world identity
hidden.
• Transparency
– Blockchain enables everyone to access all
transaction record thus making it transparent.
7
8. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Characteristics of Blockchain
Technology – III
• Democracy
– Each activity record to be recorded as part of
Blockchain is agreed by consensus of all
decentralized nodes which makes it
democratized.
• Immutability
– Any small change in the transactions or
record of Blockchain can be immediately
detected using Hash functions and digital
signatures.
8
9. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Characteristics of Blockchain
Technology – IV
• Auditability
– All peers (consumers) in Blockchain hold a copy of all
transactions (activities) and can thus access all time
stamped records for verification.
• Fault Tolerance
– All Blockchain peers contain the identical replicas of
the ledger record. Any fault or data leakage can be
identified through decentralized consensus.
– Also, there is not a single point of failure due to its
decentralization nature.
9
10. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Characteristics of Blockchain
Technology – V
• Security
– Blockchain uses many cryptographic
techniques to provide security including
symmetric and asymmetric key cryptography.
• After reviewing the characteristics of
Blockchain, let’s discuss its architecture.
10
11. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – I
• Block: A Blockchain is made up of blocks
containing the transactions occurred within
the network.
• The transaction information stored in
blocks can be regarding assets transfers
(digital cash) occurring in a network or any
manner of data exchange.
11
12. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – II
• Each block is logically divided into two parts: the
Header and the Body.
• The body section contains the transaction
information while the header contains the ID of
the previous block.
12
Source: [3]
13. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – III
• The blocks are chained to each other as
like linked list.
• The first block in the chain is called
“Genesis Block”.
• The identifier of each blocked in obtained
by taking the cryptographic hash of the
block containing the identifier of previous
block thus achieving the immutability of its
contents.
13
14. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – IV
• The header part of the block also contains the
publish timestamp of it and Merkle tree root for
all the transactions stored within body of the
block as shown below:
• The Merkle tree root
significantly reduces
the effort required to
verify transactions
within a block.
14
15. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – V
• The Blockchain grows linearly and new block is
added when transaction activity increases.
• Peers verify the transactions recorded in a newly
published block by an agreement called
consensus.
– Different algorithms exist for consensus.
• All the transactions in a block have a separate
transaction id and this transaction id is the
cryptographic hash of the transaction
information stored in the body of the block.
15
16. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – VI
• The transaction IDs are hashed together in
pairs and a hash tree is built within the
block as shown in the figure below
16
17. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – VII
• The root of Merkle tree is stored in the
header of block and help in verification.
– To verify a transaction, Merkle tree branch
containing the transaction in question is used.
– A tempered transaction would produce altered
hashes within its branch and would be
detected without much computational effort.
17
18. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – VIII
• When multiple nodes in the Blockchain network
produce valid blocks at the same time, the
Blockchain can fork and maintaining a single
canonical version becomes issue.
– This issue is resolved by considering the longest fork
as canonical version.
– Other blocks in other forks are discarded.
• Block header also contains information about
consensus algorithm used within network as
well.
18
19. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – IX
• Transactions and Digital Signatures
– To make a transaction or data exchange
between different peers (consumers), a
public/private key pair is assigned to each
peer.
– Peers use their private key to sign the
transactions while public keys are used to
create the address of a peer by calculating its
hash.
– The public key is also obfuscated in
Blockchain.
19
20. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Blockchain Architecture – X
• Each address of the peer is assigned an
initial amount of tokens (crypto currency or
just a token).
– Following the Genesis block, the transactions
ownership is maintained by adding or
subtracting the associated tokens with each
participating address.
– In applications other than cryptocurrency, the
tokens ownership is not stored and exchange
of data is secured only by digital signatures.
20
21. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
A General Blockchain
Architecture
21
22. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Types of Blockchains – I
• Blockchains can categorized into multiple types
based on their usage and distinct attributes:
• Public (Permissionless) Blockchains
– Public Blockchains are truly decentralized.
– All members participate in publishing new blocks and
accessing Blockchain contents.
– These are termed as Permissionless as anyone can
maintain a copy of Blockchain and engage in
validating new blocks.
– Examples include cryptocurrency networks such as
Bitcoin, Ethereum etc.
22
23. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Types of Blockchains – II
– In public Blockchains, publishing a new block involves
either computationally expensive puzzle solving or
staking one’s own cryptocurrency.
– Each transaction has a processing fee attached to it
which serves as an incentive to the peers attempting
to publish new blocks on the Blockchain.
• Private (Permissioned) Blockchains
– Private Blockchains are permissioned and every node
joining the network is known member of a single
organization.
– Private Blockchains are suited for a single enterprize
solutions.
23
24. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Types of Blockchains – III
– Private Blockchains are utilized as a
synchronized distributed database meant to
keep track of data exchanges occurring
between different departments or individuals.
– There are no processing fees in Private
Blockchain transactions hence no currency or
tokens are required to function.
– Private Blockchains are not temper-resistant
as blocks are published by delegated nodes
within the network and organization can also
role back its Blockchain to any point in the
past.
24
25. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Types of Blockchains – IV
• Consortium (Federated) Blockchains
– These are similar to Private Blockchains in a
sense that it is a permissioned network.
– It spans over multiple organizations and
maintain transparency among the individual
parties.
– Also, there is no processing fee and not
expensive to publish new blocks similar to
Private Blockchains.
– It is not entirely decentralized however,
provides auditability and reliability.
25
26. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Types of Blockchains – V
26
Source: [3]
27. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
Open Research Directions
• This section only lists some of identified interesting
research directions for IoT domain as it is focus of our
research group.
• Public blockchains provide immutability through
decentralized consensus while private blockchains
preserve privacy within one organization but don’t
guarantee accountability. Recently, research efforts are
being focused on developing privacy-preserving
decentralized IoT blockchains.
• More solutions are being developed to ensure data
integrity in data stored on-chain and in off-chain storage
mechanisms.
• In general, there are quite a lot interesting challenges to
be solved and needs more exploration.
27
28. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa
References
• [1] Melanie Swan, “Blockchain, Blueprint for a New Economy”, O’Reilly, Sebastopol, USA, 2015.
• [2] www.bitcoin.org Accessed on 9 April 2019.
• [3] Muhammad Salek Ali, Massimo Vecchio, Miguel Pincheira, Koustabh Dolui, Fabio Antonelli and Mubashir
Rehmani, “Application of Blockchains in the Internet of Things: A Comprehensive Survey”, IEEE Communications
Surveys & Tutorials, 2018, Early Access.
• [4] Junfeng Xie, Helen Tang, Tao Huang, F. Richard Yu, Renhao Xie, Jiang Liu and Yunjie Liu, “A Survey on
Blockchain Technology Applied to Smart Cities: Resaerch Issues and Challenges”, IEEE Communications
Surveys and Tutorials, 2019, Early Access.
28
29. Dr M Nasir Mumtaz Bhutta www.kfu.edu.sa29
Thanks for listening !
»Questions ?
