The document discusses the basic logic gates that form the foundation of digital computers. It explains that all digital computers are constructed using logic gates, which accept binary input signals and produce a binary output. The four basic logic gates are AND, OR, XOR, and NOT. AND gates output 1 only if all inputs are 1, while OR gates output 1 if any input is 1. XOR gates output 1 if the inputs are different. NOT gates invert the input signal. Logic gates are implemented using transistors and have switching times between input changes and output responses.

1. DAT2343
Basic Logic Gates
© Alan T. Pinck / Algonquin College; 2003

2. Logic Gates
Goal:
 To understand how digital a computer can
work, at the lowest level.
 To understand what is possible and the
limitations of what is possible for a digital
computer.

3. Logic Gates
All digital computers for the past 50 years have
been constructed using the same type of
components.
These components are called logic gates.
Logic gates have been implemented in many
different ways.
Currently, logic gates are most commonly
implemented using electronic VLSI transistor
logic.

4. Logic Gates
All basic logic gates have the ability to
accept either one or two input signals
(depending upon the type of gate) and
generate one output signal.

5. Logic Gates
Input and Output signals are binary.
 binary:
 always in one of two possible states;
 typically treated as:
• On / Off (electrically)
• 1 / 0
• True / False
There is a delay between when a change happens
at a logic gates inputs and when the output
changes, called gate switching time.
The True or False view is most useful for thinking
about the meaning of the basic logic gates.

6. Logic Gates
The four basic logic gates are:
 AND
 OR
 XOR
 NOT
Each of these gates may be drawn in either
 A generic form; or
 An electrical engineering form (more common in text
books)

7. Logic Gates : AND
The Output signal from an AND gate is True (on, 1)
if and only if both Input signals are True (on, 1).
The Output signal from an AND gate is False (off,
0), otherwise.

8. Logic Gates : OR
The Output signal from an OR gate is True (on, 1) if
either, or both, Input signals are True (on, 1).
The Output signal from an OR gate is False (off, 0)
if and only if both Input signals are False (off, 0).

9. Logic Gates : XOR
The Output from an XOR (exclusive or) is True
(on, 1) if and only if the Input signals are different.
The Output from an XOR is False if the Input
signals are either both True or both False.

10. Logic Gates : NOT
The Output signal from a NOT gate is True (on,
1) if and only if the Input signal is False.
The Output signal from a NOT gate is False (off,
0) if and only if the Input signal is True.

11. Logic Gates : NOT combined
with other gates
Note that in the “classic: electronic engineering
form, it is really the “bubble” that indicates the
NOT activity.

12. Logic Gates : Analysis of Circuit
with Feedback

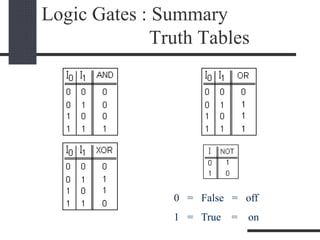

13. Logic Gates : Summary
Truth Tables
0 = False = off
1 = True = on

14. End of Lecture
