This document discusses using the Database connector in Mule to connect to a relational database and perform operations. It provides an example flow that uses the Database connector to connect to a MySQL database, execute a SELECT query to retrieve all records from a Students table, and log the results. The flow is triggered by an HTTP listener and uses a Database select operation with a parameterized query to retrieve the data and output it to the console.

1. P R U D H V I

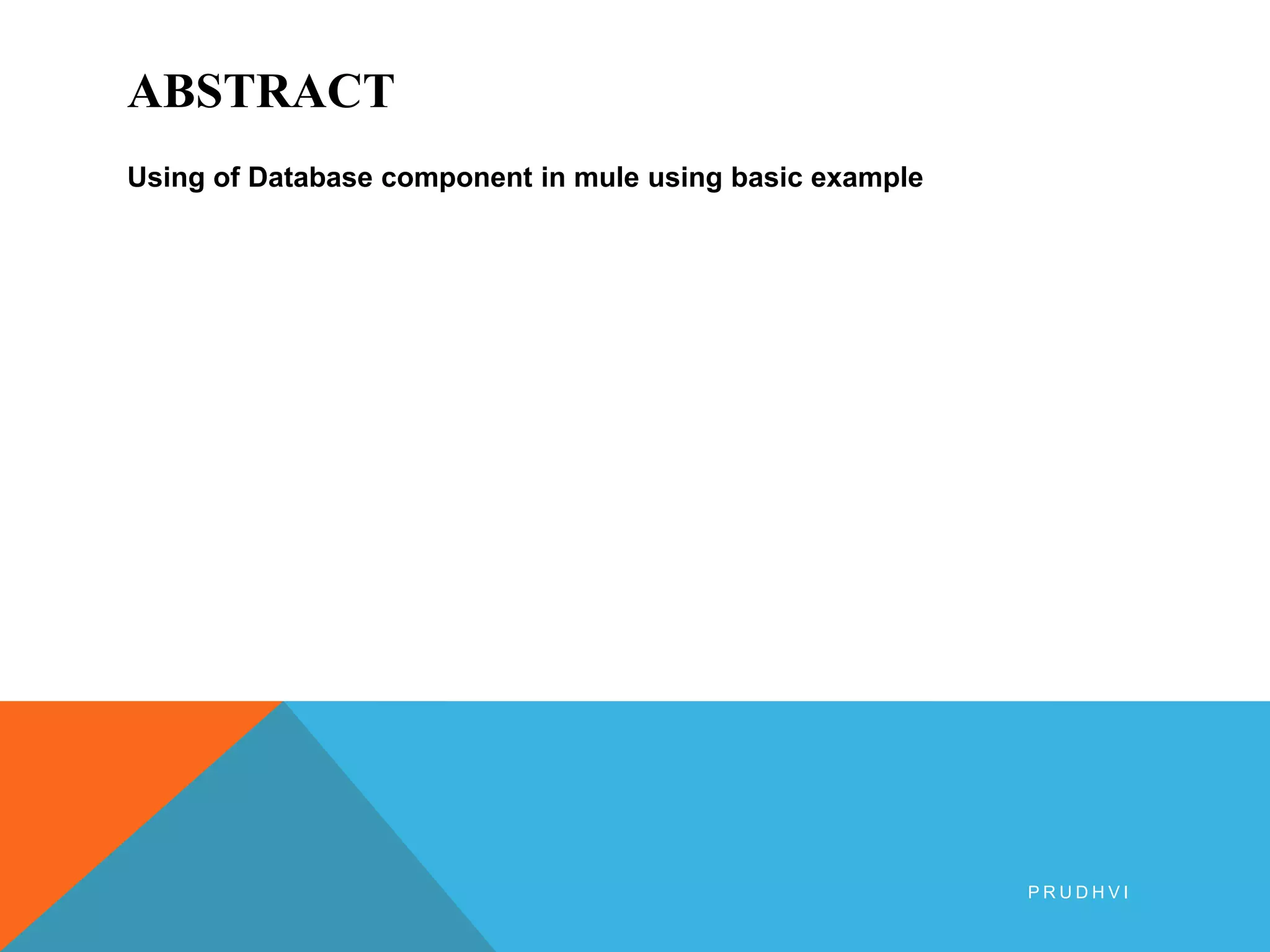

2. ABSTRACT
Using of Database component in mule using basic example
P R U D H V I

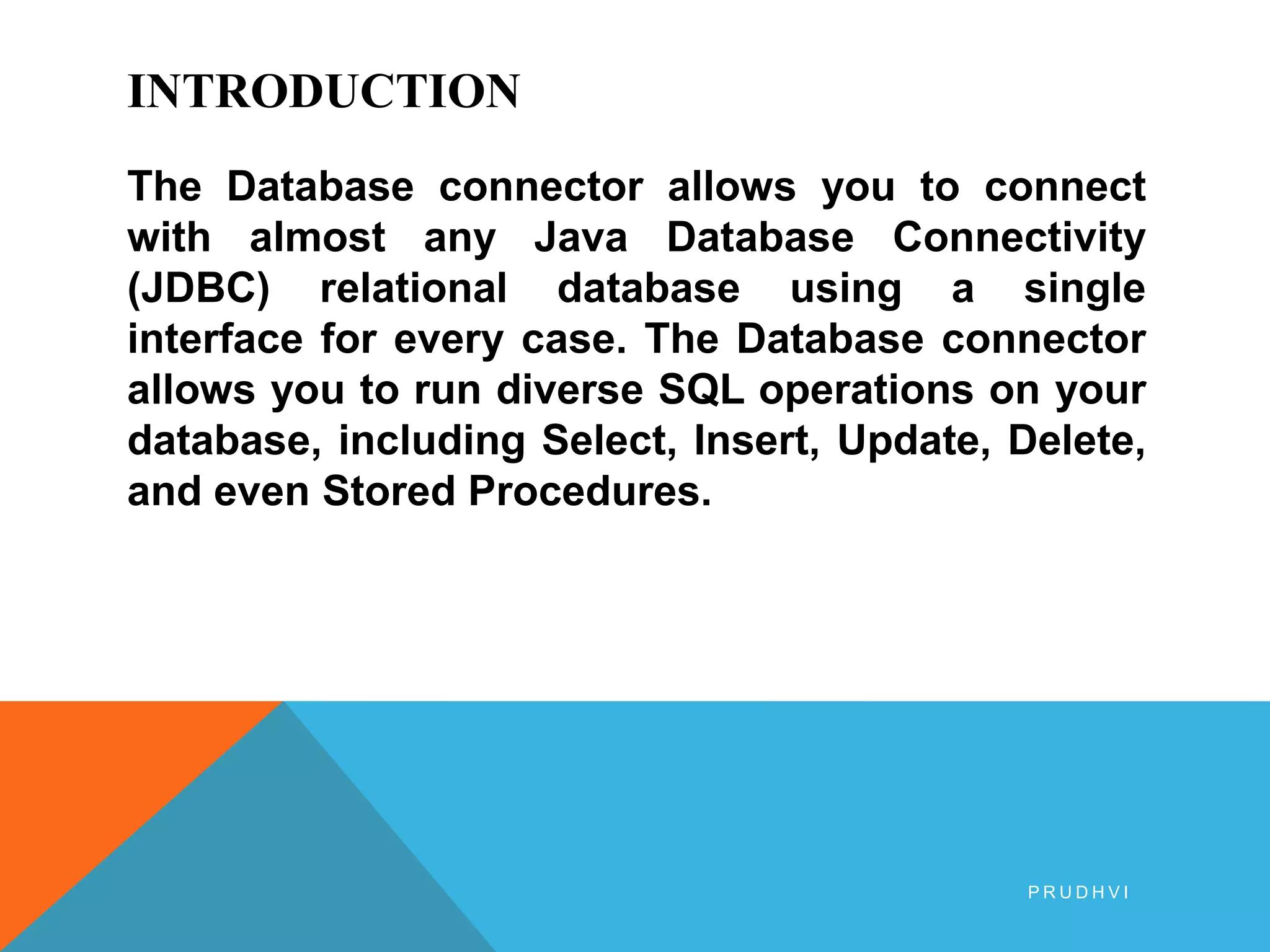

3. INTRODUCTION
The Database connector allows you to connect
with almost any Java Database Connectivity
(JDBC) relational database using a single
interface for every case. The Database connector
allows you to run diverse SQL operations on your
database, including Select, Insert, Update, Delete,
and even Stored Procedures.
P R U D H V I

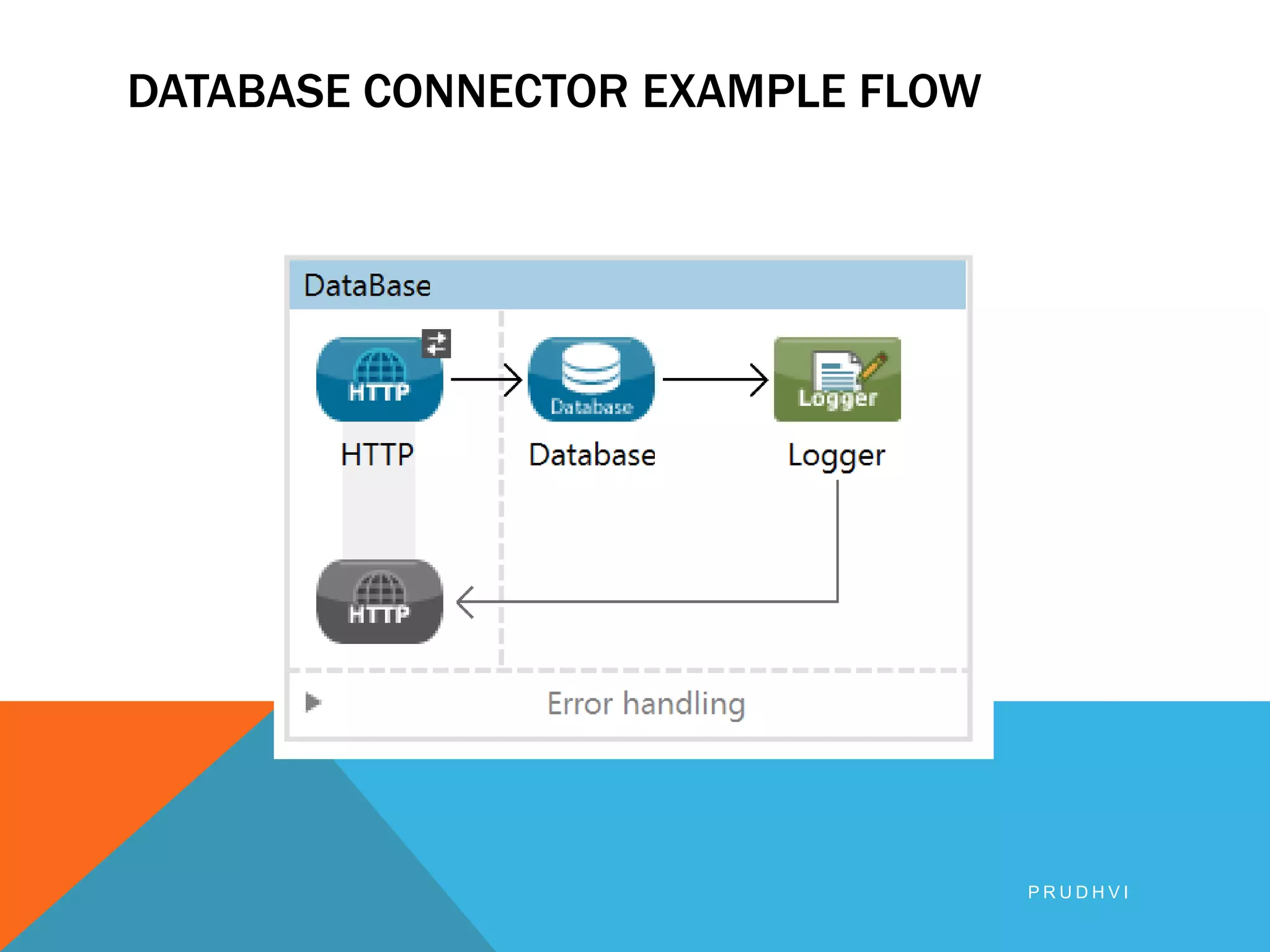

4. DATABASE CONNECTOR EXAMPLE FLOW
P R U D H V I

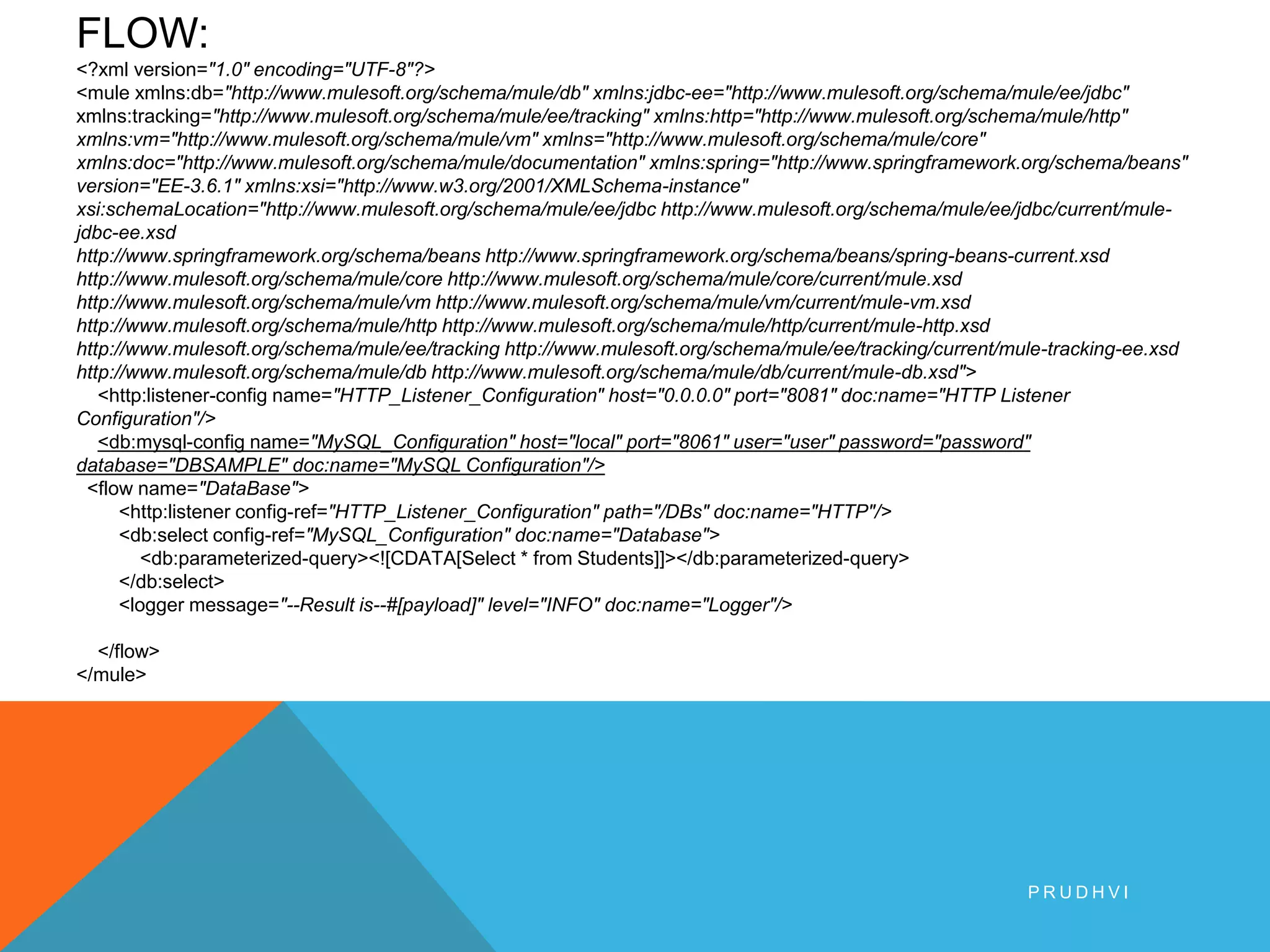

5. FLOW:
<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns:db="http://www.mulesoft.org/schema/mule/db" xmlns:jdbc-ee="http://www.mulesoft.org/schema/mule/ee/jdbc"
xmlns:tracking="http://www.mulesoft.org/schema/mule/ee/tracking" xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns:vm="http://www.mulesoft.org/schema/mule/vm" xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:spring="http://www.springframework.org/schema/beans"
version="EE-3.6.1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.mulesoft.org/schema/mule/ee/jdbc http://www.mulesoft.org/schema/mule/ee/jdbc/current/mule-
jdbc-ee.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/vm http://www.mulesoft.org/schema/mule/vm/current/mule-vm.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/ee/tracking http://www.mulesoft.org/schema/mule/ee/tracking/current/mule-tracking-ee.xsd
http://www.mulesoft.org/schema/mule/db http://www.mulesoft.org/schema/mule/db/current/mule-db.xsd">
<http:listener-config name="HTTP_Listener_Configuration" host="0.0.0.0" port="8081" doc:name="HTTP Listener
Configuration"/>
<db:mysql-config name="MySQL_Configuration" host="local" port="8061" user="user" password="password"
database="DBSAMPLE" doc:name="MySQL Configuration"/>
<flow name="DataBase">
<http:listener config-ref="HTTP_Listener_Configuration" path="/DBs" doc:name="HTTP"/>
<db:select config-ref="MySQL_Configuration" doc:name="Database">
<db:parameterized-query><![CDATA[Select * from Students]]></db:parameterized-query>
</db:select>
<logger message="--Result is--#[payload]" level="INFO" doc:name="Logger"/>
</flow>
</mule>
P R U D H V I

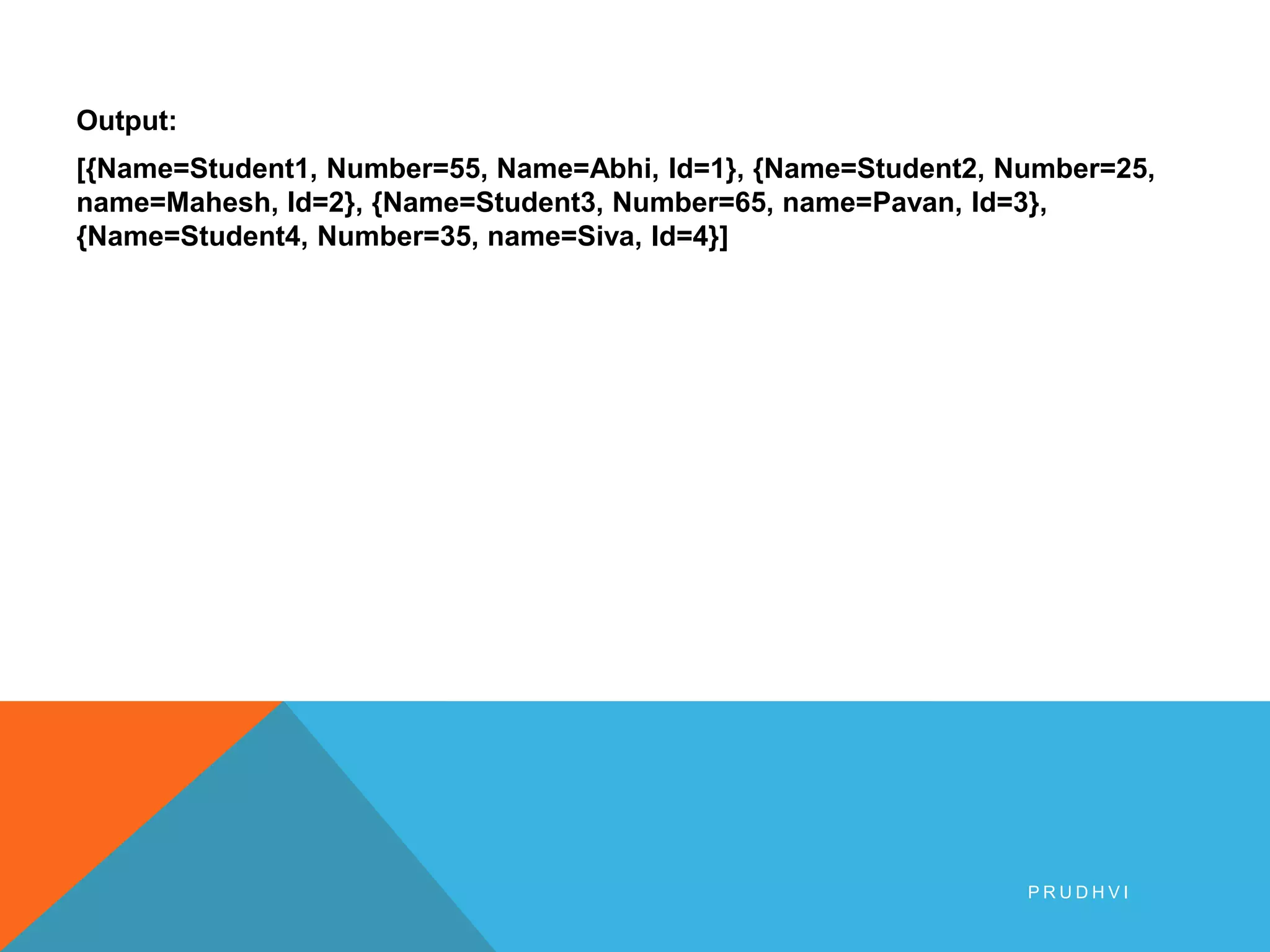

6. Output:
[{Name=Student1, Number=55, Name=Abhi, Id=1}, {Name=Student2, Number=25,
name=Mahesh, Id=2}, {Name=Student3, Number=65, name=Pavan, Id=3},
{Name=Student4, Number=35, name=Siva, Id=4}]
P R U D H V I

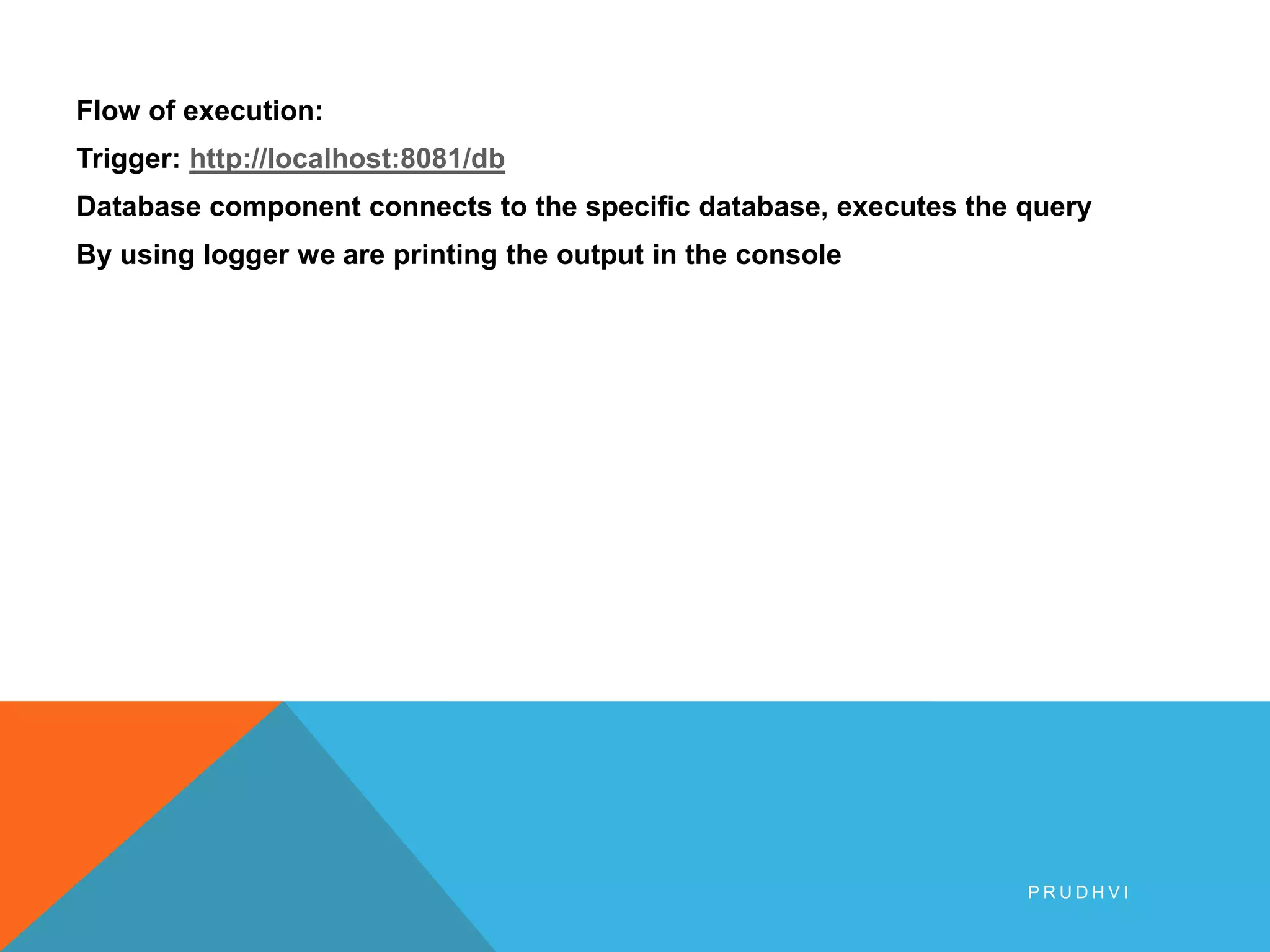

7. Flow of execution:
Trigger: http://localhost:8081/db
Database component connects to the specific database, executes the query
By using logger we are printing the output in the console
P R U D H V I

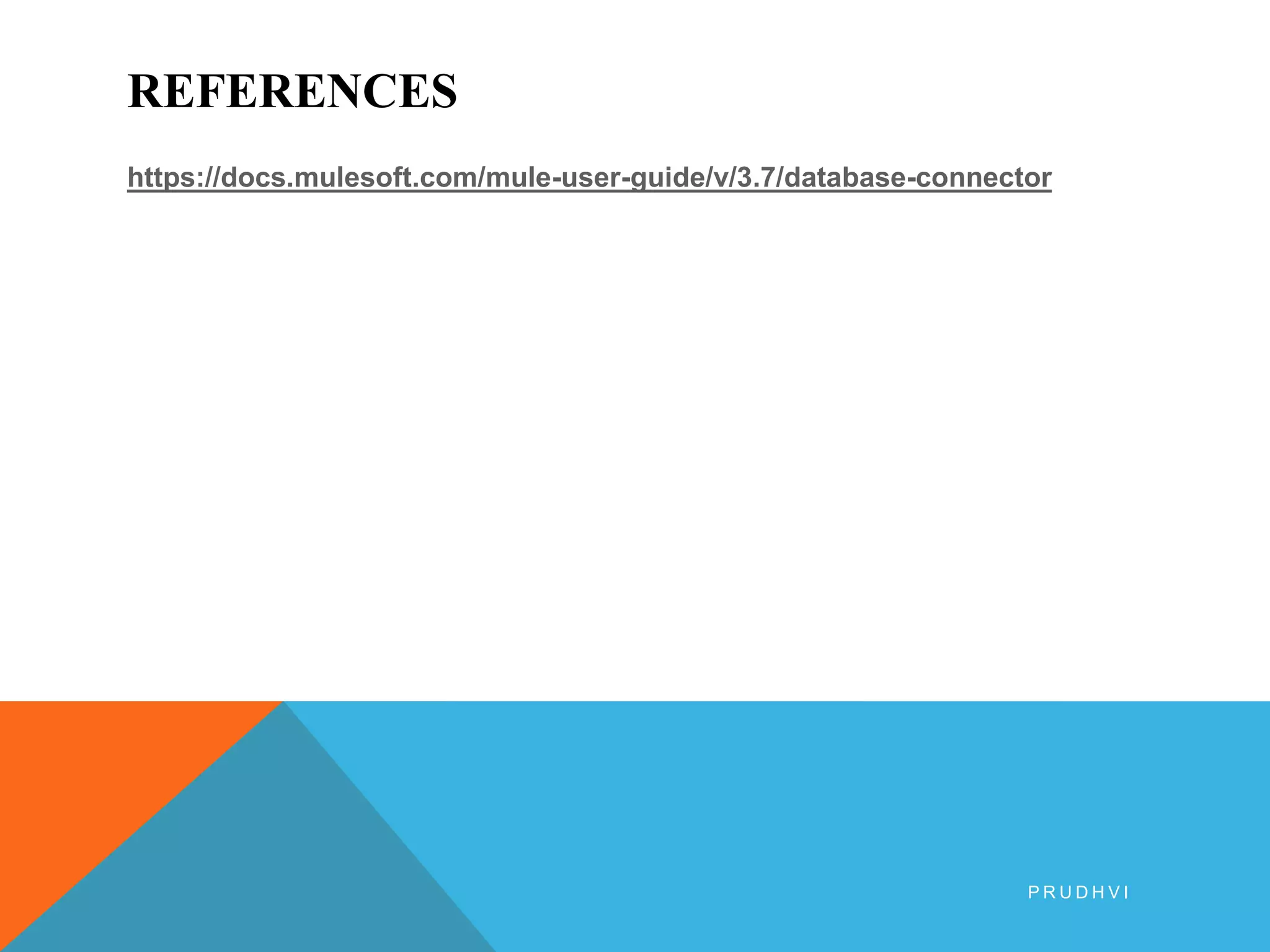

8. REFERENCES
https://docs.mulesoft.com/mule-user-guide/v/3.7/database-connector
P R U D H V I

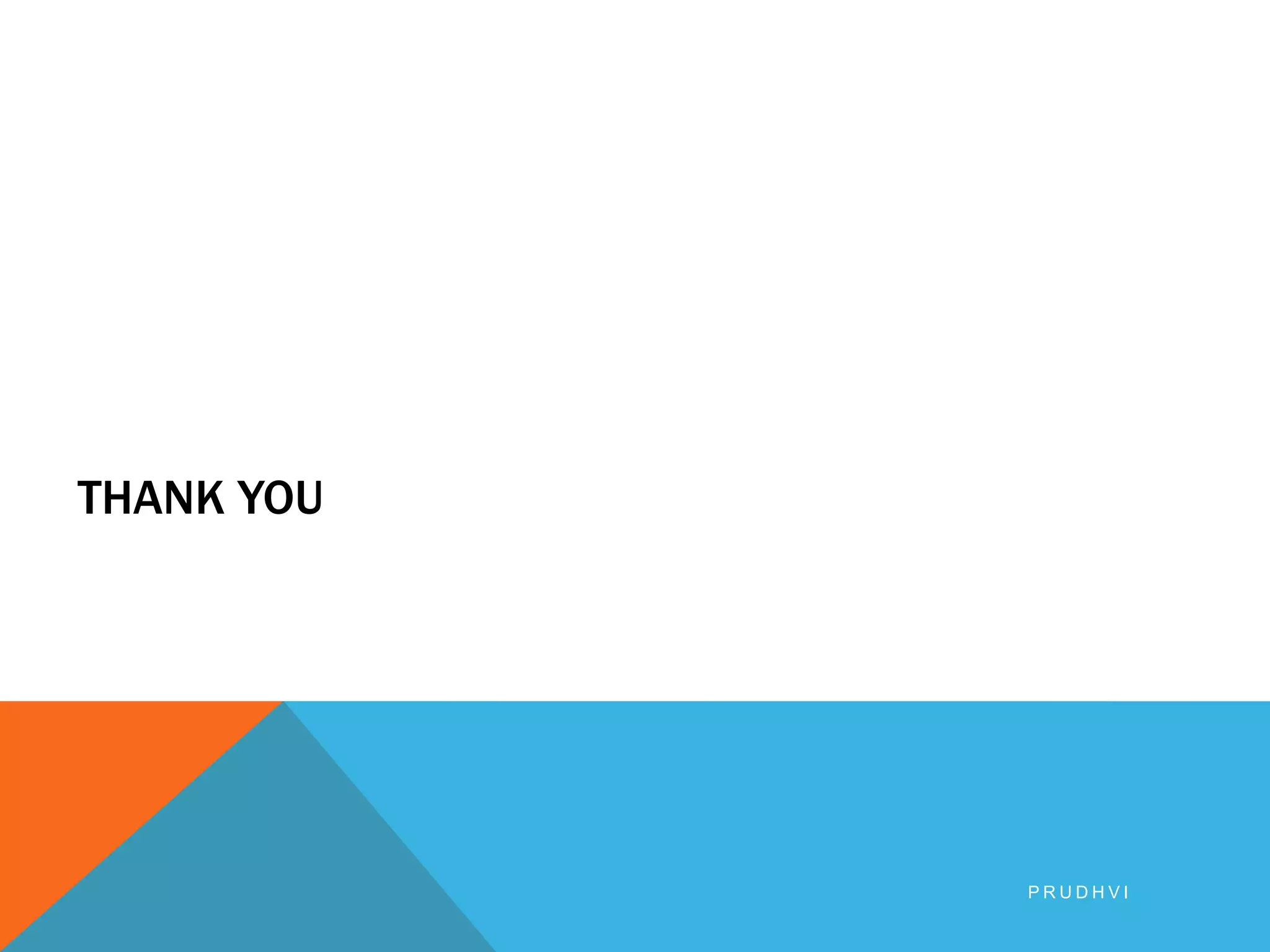

9. THANK YOU
