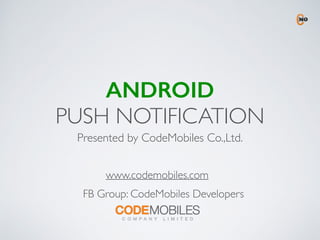

1. ANDROID
PUSH NOTIFICATION
Presented by CodeMobiles Co.,Ltd.
www.codemobiles.com
FB Group: CodeMobiles Developers

2. WHAT IS PUSH
NOTIFICATION?

3. USE CASES
NOTIFY INFORMTION
CONTROL APPLICATION
MAKE USERSTO COME BACK
ETC.

4. USE CASES (CONT.)
http://goo.gl/nmlw01
CMThaiDict
http://goo.gl/dG2exY
CMThai Lotto
http://goo.gl/25qFmI
SiamGold

5. Push APIs

9. WORKSHOP
App : CMPUSH
sourcecode
http://goo.gl/yK4Sq7
http://goo.gl/6gle34
videos

10. WORKSHOP (STEPS)
1. New Project & Setup UI
2. Create Parse Account and setup App ID
3. Add Parse SDK
4. Setup SDK
5. Pray & Run
6. Q&A

11. https://www.parse.com/products/push
Signup for Parse Account

12. https://www.parse.com/products/push
Download SDK

13. Add Lib: Parse-xx.jar

14. Modify AndroidManifest.xml
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.VIBRATE" />
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED" />
<uses-permission android:name="android.permission.GET_ACCOUNTS" />
<uses-permission android:name="com.google.android.c2dm.permission.RECEIVE" />
<!-- IMPORTANT: Change "com.codemobiles.cmapppush" to match your app's package name. -->
<permission
android:name="com.codemobiles.cmapppush.permission.C2D_MESSAGE"
android:protectionLevel="signature" />
<uses-permission android:name="com.codemobiles.cmapppush.permission.C2D_MESSAGE" />

15. Modify AndroidManifest.xml
(cont.)
<service android:name="com.parse.PushService" />
<receiver android:name="com.parse.ParseBroadcastReceiver" >
<intent-filter>
<action android:name="android.intent.action.BOOT_COMPLETED" />
<action android:name="android.intent.action.USER_PRESENT" />
</intent-filter>
</receiver>
<receiver
android:name="com.parse.GcmBroadcastReceiver"
android:permission="com.google.android.c2dm.permission.SEND" >
<intent-filter>
<action android:name="com.google.android.c2dm.intent.RECEIVE" />
<action android:name="com.google.android.c2dm.intent.REGISTRATION" />
<!-- IMPORTANT: Change "com.codemobiles.cmapppush" to match your app's package name. -->
<category android:name="com.codemobiles.cmapppush" />
</intent-filter>
</receiver>

16. Create Application.java
public class Application extends android.app.Application {
public Application() {
}
@Override
public void onCreate() {
super.onCreate();
Parse.initialize(getApplicationContext(),
"your app id - copy from parse setting",
"client id - copy from parse setting");
PushService.setDefaultPushCallback(this, MainActivity.class);
}
}

17. COPY APP ID AND CLIENT KEY
Paste into Application.java

18. Link Application.java Application
in AnroidManifest.xml
<application
android:allowBackup="true"
android:name=“<your packagename>.Application"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >

19. MainActivity.java
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
ParseAnalytics.trackAppOpened(getIntent());
PushService.subscribe(this, "free_version", MainActivity.class);
new Thread(new Runnable() {
@Override
public void run() {
ParseInstallation.getCurrentInstallation().saveInBackground();
}
}).start();
…..
}

20. MainActivity.java
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
ParseAnalytics.trackAppOpened(getIntent());
PushService.subscribe(this, "free_version", MainActivity.class);
new Thread(new Runnable() {
@Override
public void run() {
ParseInstallation.getCurrentInstallation().saveInBackground();
}
}).start();
…..
}

21. Set NotificationTitle

22. Run App and Check if there is
registered clients

23. Send Push Message

24. Evaluation

25. Follow US
Youtube: CMDev
FB Group: CodeMobiles Developer
WWW.: CodeMobiles.com
Training: support@codemobiles.com
Tel: +(66)87-676-0813-14
FB Group: CodeMobiles Developer
CMDev. Channel
CodeMobiles.com

26. Q&A
FB Group: CodeMobiles Developer
http://goo.gl/bxWolr

27. THANKYOU
forYour Attention
