This document describes a simple JSON parser written using the Parsec parsing library in Haskell. It explains how to parse basic JSON data types like booleans, strings, numbers and floats. It shows how to define parsers using functions like string, char, many1, <|> and <$> and combine them to recognize more complex structures. Error handling is also discussed, showing how to customize error messages. The document provides a step-by-step explanation of parsing each data type and handling values with context to return the correct type.

1. Simple JSON Parser
Haskell School, 20th September 2016
LEE Dongjun, redongjun@gmail.com

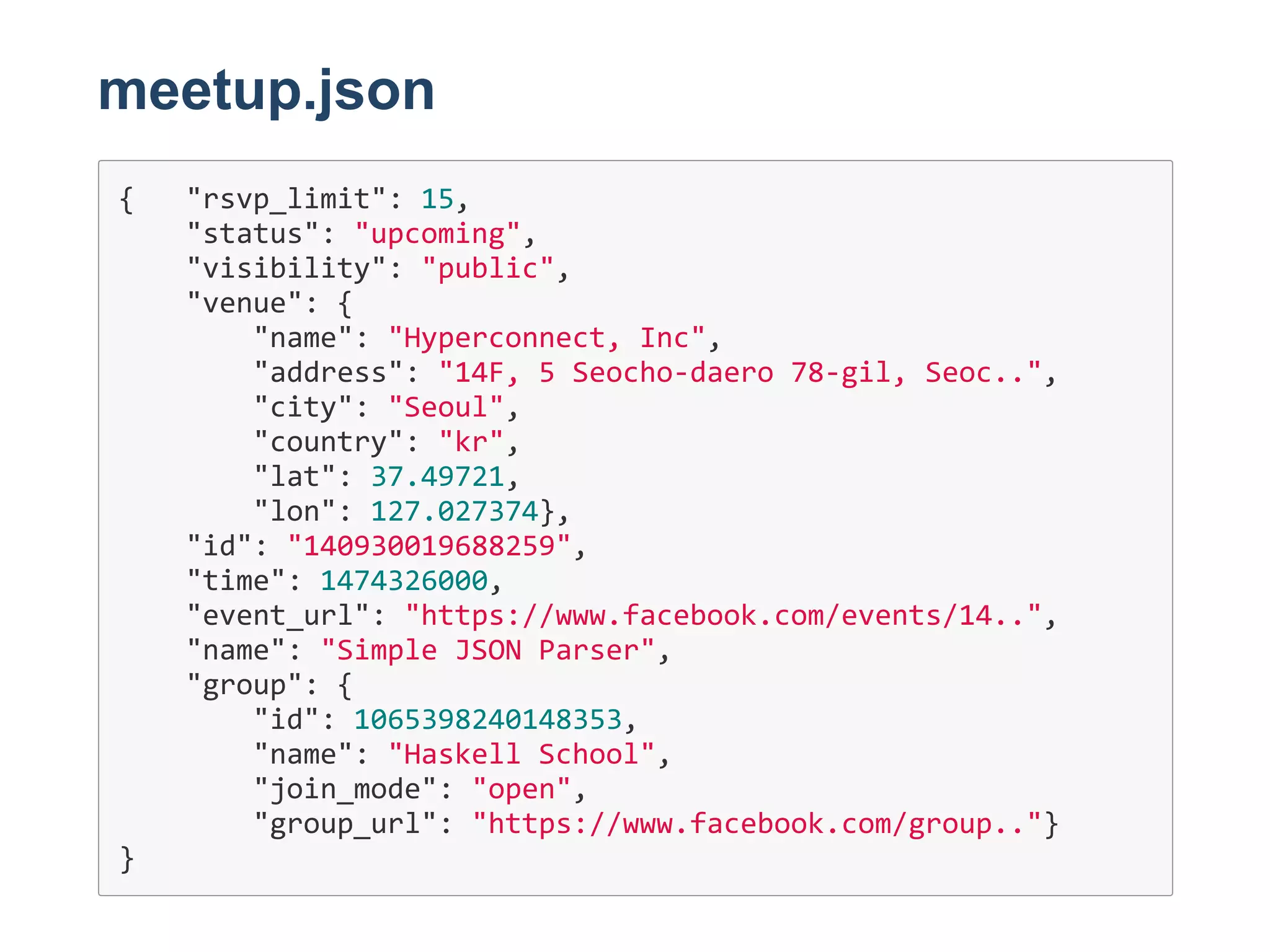

2. meetup.json
{ "rsvp_limit": 15,
"status": "upcoming",
"visibility": "public",
"venue": {
"name": "Hyperconnect, Inc",
"address": "14F, 5 Seocho‐daero 78‐gil, Seoc..",
"city": "Seoul",
"country": "kr",
"lat": 37.49721,
"lon": 127.027374},
"id": "140930019688259",
"time": 1474326000,
"event_url": "https://www.facebook.com/events/14..",
"name": "Simple JSON Parser",
"group": {
"id": 1065398240148353,
"name": "Haskell School",
"join_mode": "open",
"group_url": "https://www.facebook.com/group.."}
}

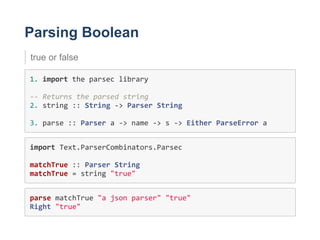

3. Parsing Boolean
true or false
1. import the parsec library
‐‐ Returns the parsed string
2. string :: String ‐> Parser String
3. parse :: Parser a ‐> name ‐> s ‐> Either ParseError a
import Text.ParserCombinators.Parsec
matchTrue :: Parser String
matchTrue = string "true"
parse matchTrue "a json parser" "true"
Right "true"

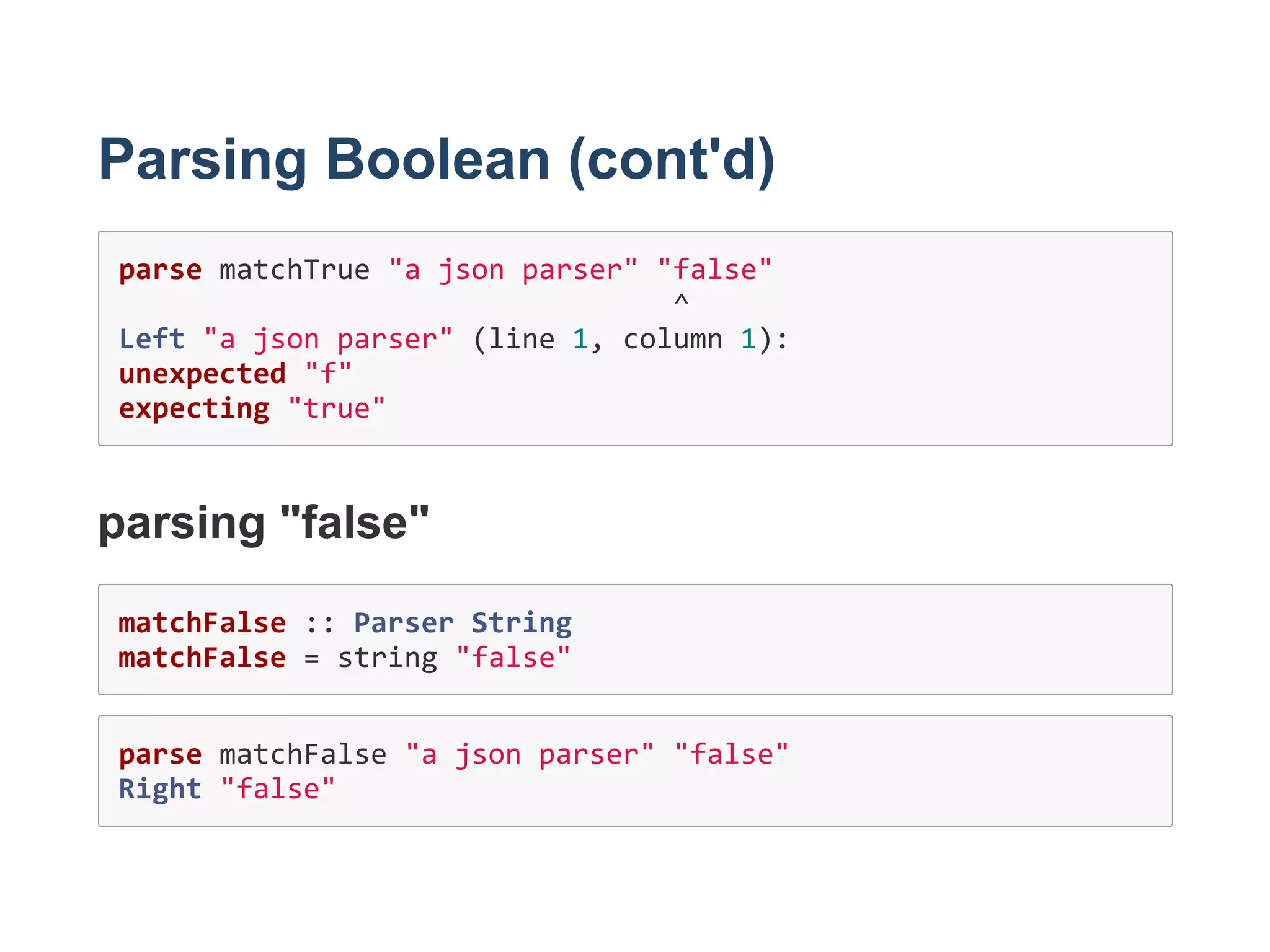

4. Parsing Boolean (cont'd)
parse matchTrue "a json parser" "false"
^
Left "a json parser" (line 1, column 1):
unexpected "f"
expecting "true"
parsing "false"
matchFalse :: Parser String
matchFalse = string "false"
parse matchFalse "a json parser" "false"
Right "false"

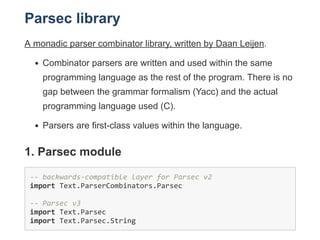

5. Parsec library
A monadic parser combinator library, written by Daan Leijen.
Combinator parsers are written and used within the same
programming language as the rest of the program. There is no
gap between the grammar formalism (Yacc) and the actual
programming language used (C).
Parsers are first­class values within the language.
1. Parsec module
‐‐ backwards‐compatible layer for Parsec v2
import Text.ParserCombinators.Parsec
‐‐ Parsec v3
import Text.Parsec
import Text.Parsec.String

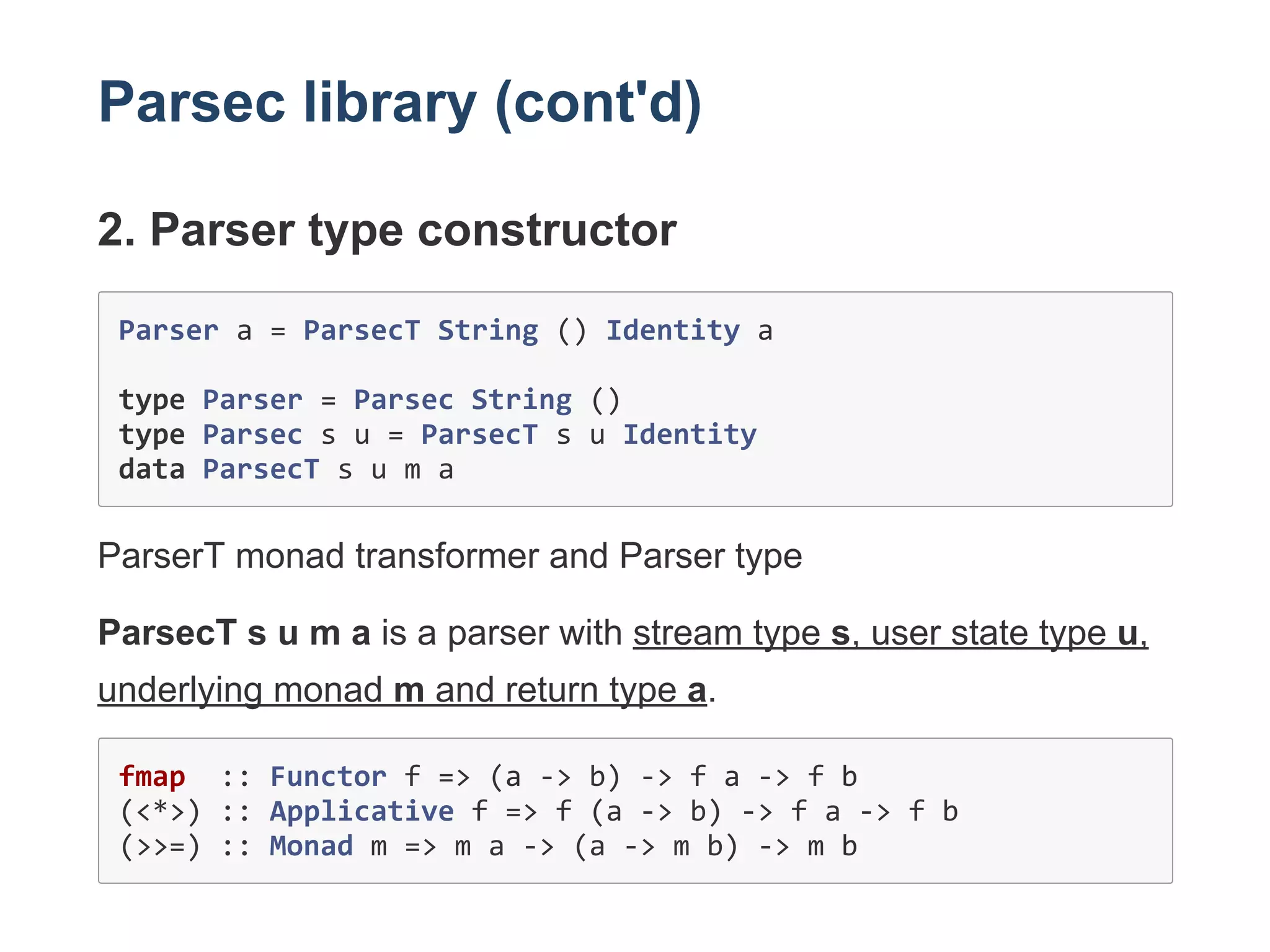

6. Parsec library (cont'd)
2. Parser type constructor
Parser a = ParsecT String () Identity a
type Parser = Parsec String ()
type Parsec s u = ParsecT s u Identity
data ParsecT s u m a
ParserT monad transformer and Parser type
ParsecT s u m a is a parser with stream type s, user state type u,
underlying monad m and return type a.
fmap :: Functor f => (a ‐> b) ‐> f a ‐> f b
(<*>) :: Applicative f => f (a ‐> b) ‐> f a ‐> f b
(>>=) :: Monad m => m a ‐> (a ‐> m b) ‐> m b

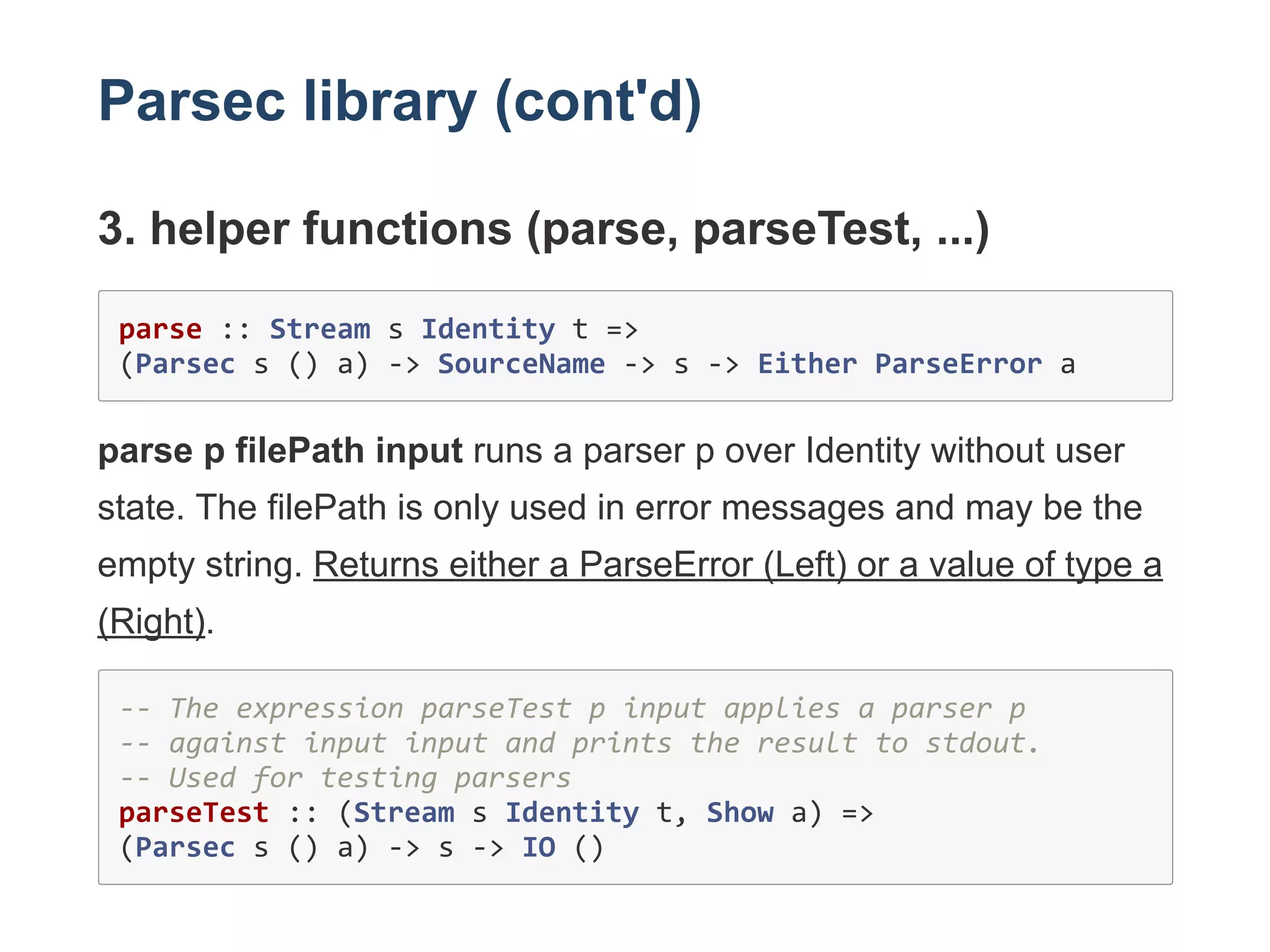

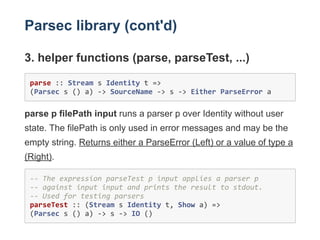

7. Parsec library (cont'd)
3. helper functions (parse, parseTest, ...)
parse :: Stream s Identity t =>
(Parsec s () a) ‐> SourceName ‐> s ‐> Either ParseError a
parse p filePath input runs a parser p over Identity without user
state. The filePath is only used in error messages and may be the
empty string. Returns either a ParseError (Left) or a value of type a
(Right).
‐‐ The expression parseTest p input applies a parser p
‐‐ against input input and prints the result to stdout.
‐‐ Used for testing parsers
parseTest :: (Stream s Identity t, Show a) =>
(Parsec s () a) ‐> s ‐> IO ()

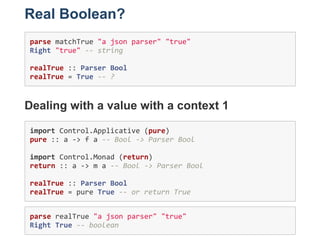

8. Real Boolean?
parse matchTrue "a json parser" "true"
Right "true" ‐‐ string
realTrue :: Parser Bool
realTrue = True ‐‐ ?
Dealing with a value with a context 1
import Control.Applicative (pure)
pure :: a ‐> f a ‐‐ Bool ‐> Parser Bool
import Control.Monad (return)
return :: a ‐> m a ‐‐ Bool ‐> Parser Bool
realTrue :: Parser Bool
realTrue = pure True ‐‐ or return True
parse realTrue "a json parser" "true"
Right True ‐‐ boolean

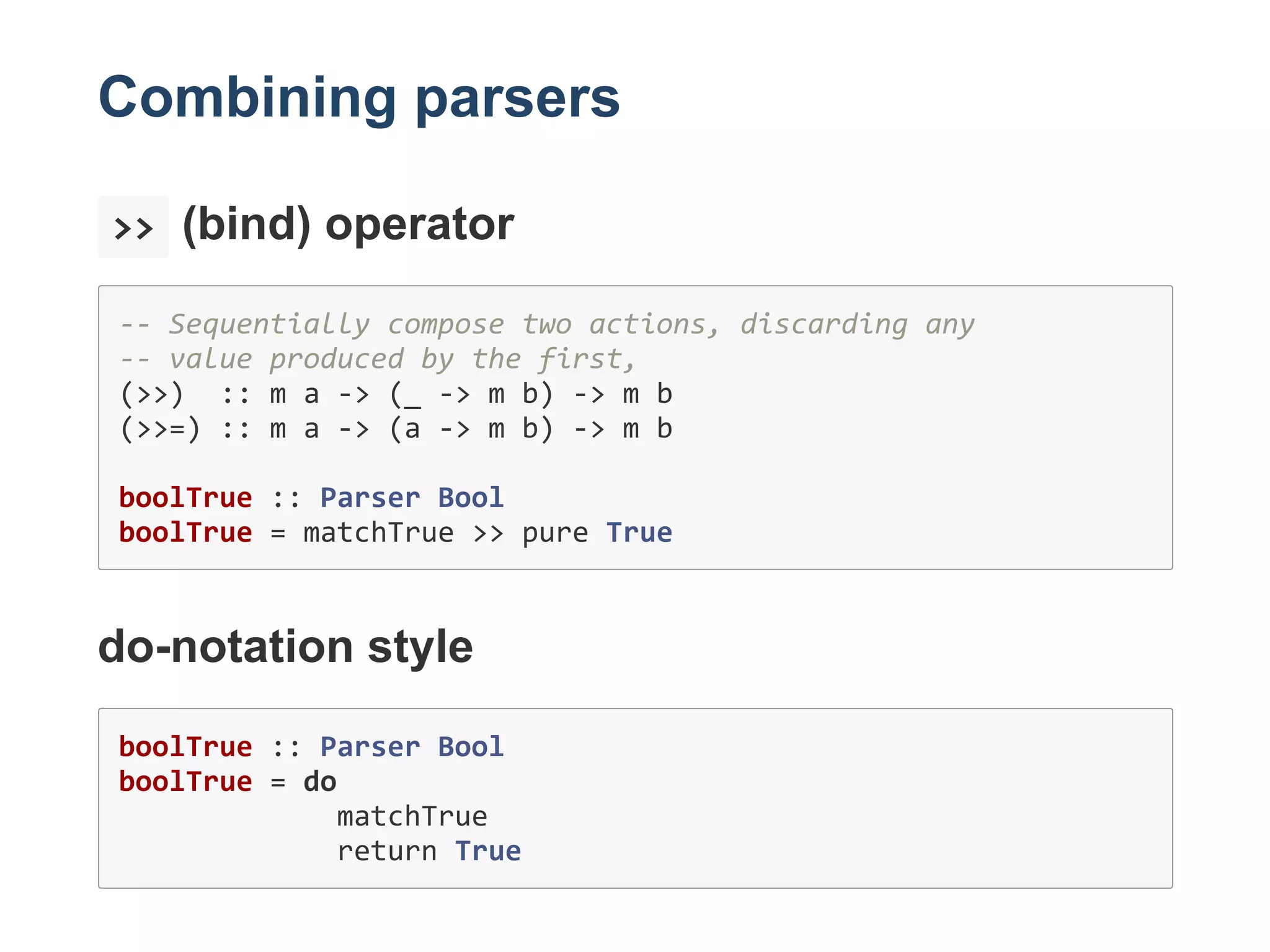

9. Combining parsers
>> (bind) operator
‐‐ Sequentially compose two actions, discarding any
‐‐ value produced by the first,
(>>) :: m a ‐> (_ ‐> m b) ‐> m b
(>>=) :: m a ‐> (a ‐> m b) ‐> m b
boolTrue :: Parser Bool
boolTrue = matchTrue >> pure True
do­notation style
boolTrue :: Parser Bool
boolTrue = do
matchTrue
return True

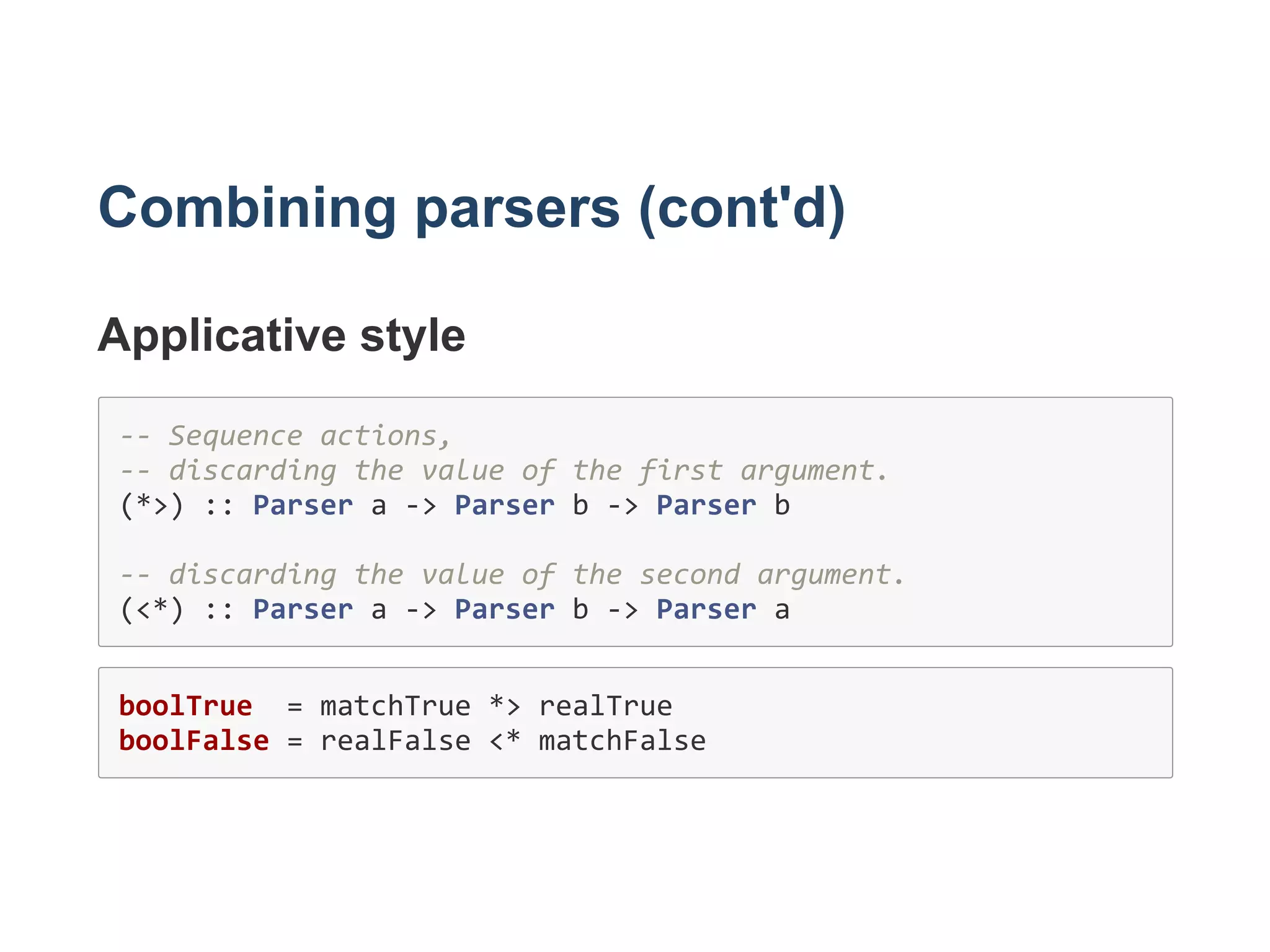

10. Combining parsers (cont'd)
Applicative style
‐‐ Sequence actions,
‐‐ discarding the value of the first argument.
(*>) :: Parser a ‐> Parser b ‐> Parser b
‐‐ discarding the value of the second argument.
(<*) :: Parser a ‐> Parser b ‐> Parser a
boolTrue = matchTrue *> realTrue
boolFalse = realFalse <* matchFalse

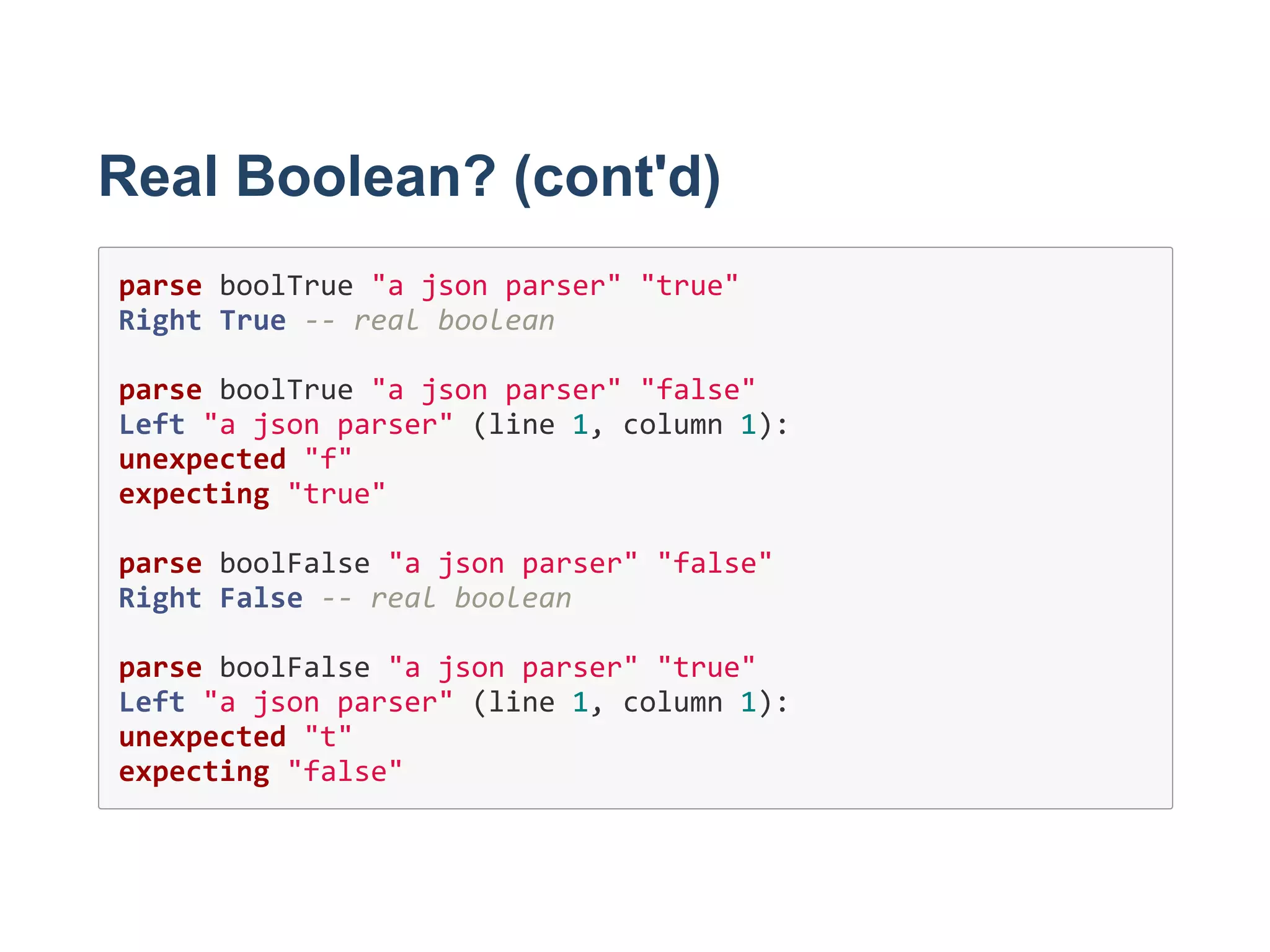

11. Real Boolean? (cont'd)
parse boolTrue "a json parser" "true"
Right True ‐‐ real boolean
parse boolTrue "a json parser" "false"
Left "a json parser" (line 1, column 1):
unexpected "f"
expecting "true"
parse boolFalse "a json parser" "false"
Right False ‐‐ real boolean
parse boolFalse "a json parser" "true"
Left "a json parser" (line 1, column 1):
unexpected "t"
expecting "false"

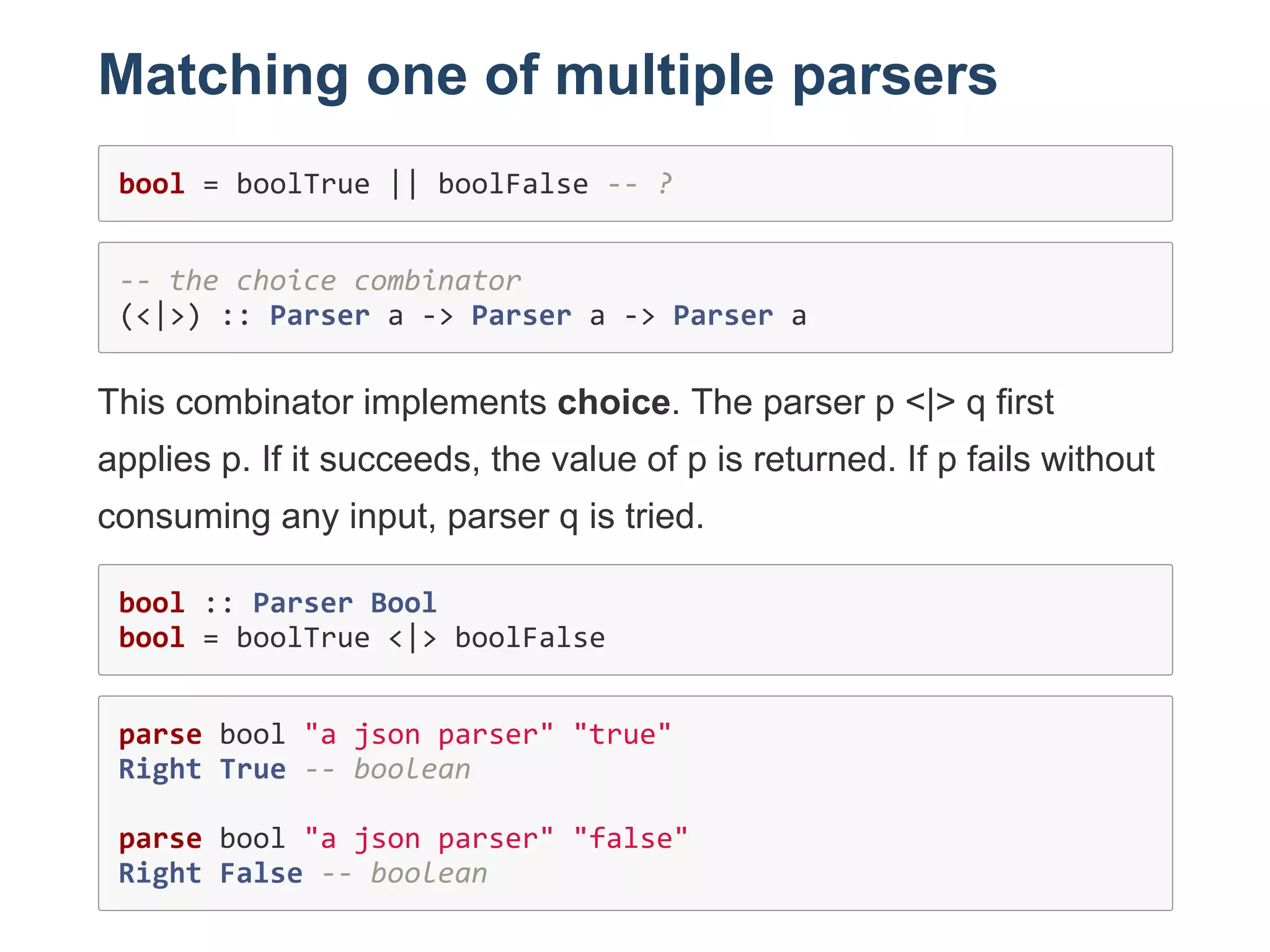

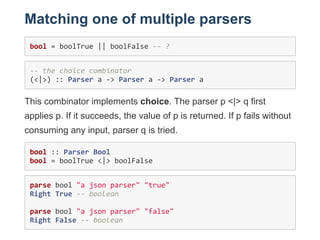

12. Matching one of multiple parsers
bool = boolTrue || boolFalse ‐‐ ?
‐‐ the choice combinator
(<|>) :: Parser a ‐> Parser a ‐> Parser a
This combinator implements choice. The parser p <|> q first
applies p. If it succeeds, the value of p is returned. If p fails without
consuming any input, parser q is tried.
bool :: Parser Bool
bool = boolTrue <|> boolFalse
parse bool "a json parser" "true"
Right True ‐‐ boolean
parse bool "a json parser" "false"
Right False ‐‐ boolean

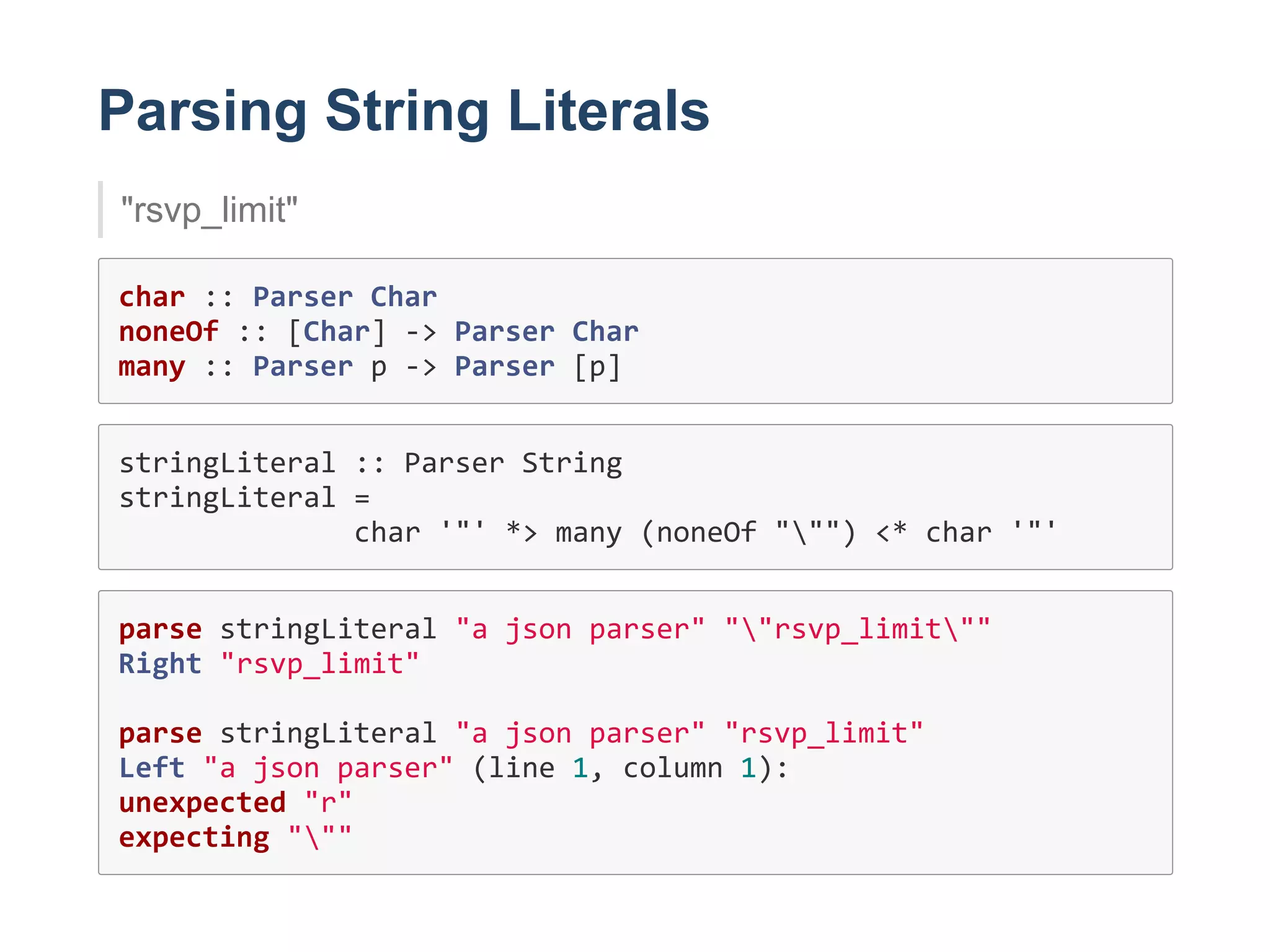

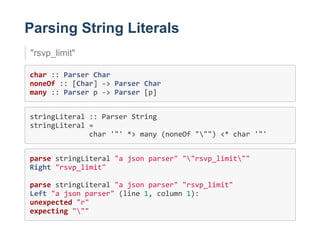

13. Parsing String Literals
"rsvp_limit"
char :: Parser Char
noneOf :: [Char] ‐> Parser Char
many :: Parser p ‐> Parser [p]
stringLiteral :: Parser String
stringLiteral =
char '"' *> many (noneOf """) <* char '"'
parse stringLiteral "a json parser" ""rsvp_limit""
Right "rsvp_limit"
parse stringLiteral "a json parser" "rsvp_limit"
Left "a json parser" (line 1, column 1):
unexpected "r"
expecting """

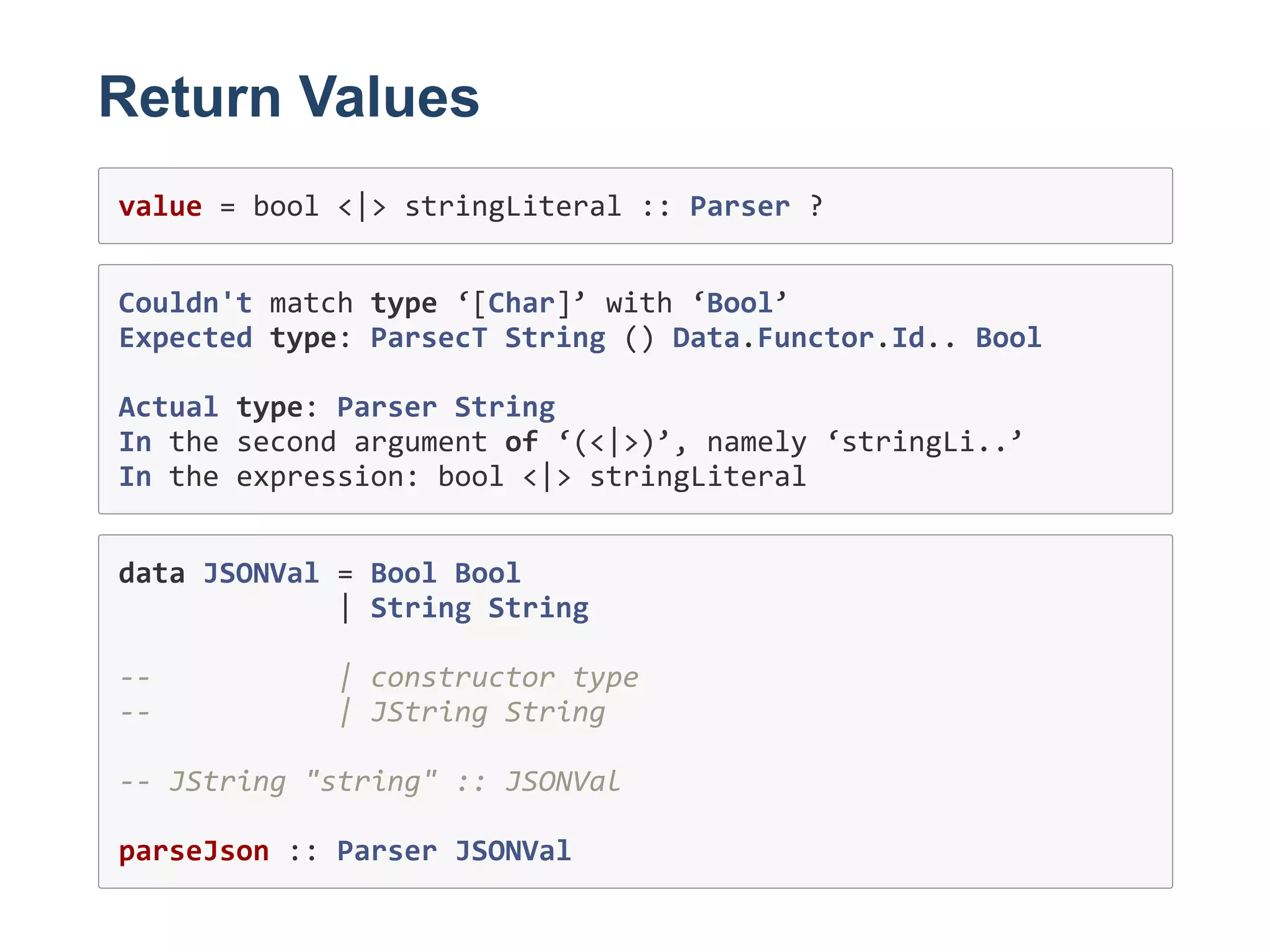

14. Return Values
value = bool <|> stringLiteral :: Parser ?
Couldn't match type ‘[Char]’ with ‘Bool’
Expected type: ParsecT String () Data.Functor.Id.. Bool
Actual type: Parser String
In the second argument of ‘(<|>)’, namely ‘stringLi..’
In the expression: bool <|> stringLiteral
data JSONVal = Bool Bool
| String String
‐‐ | constructor type
‐‐ | JString String
‐‐ JString "string" :: JSONVal
parseJson :: Parser JSONVal

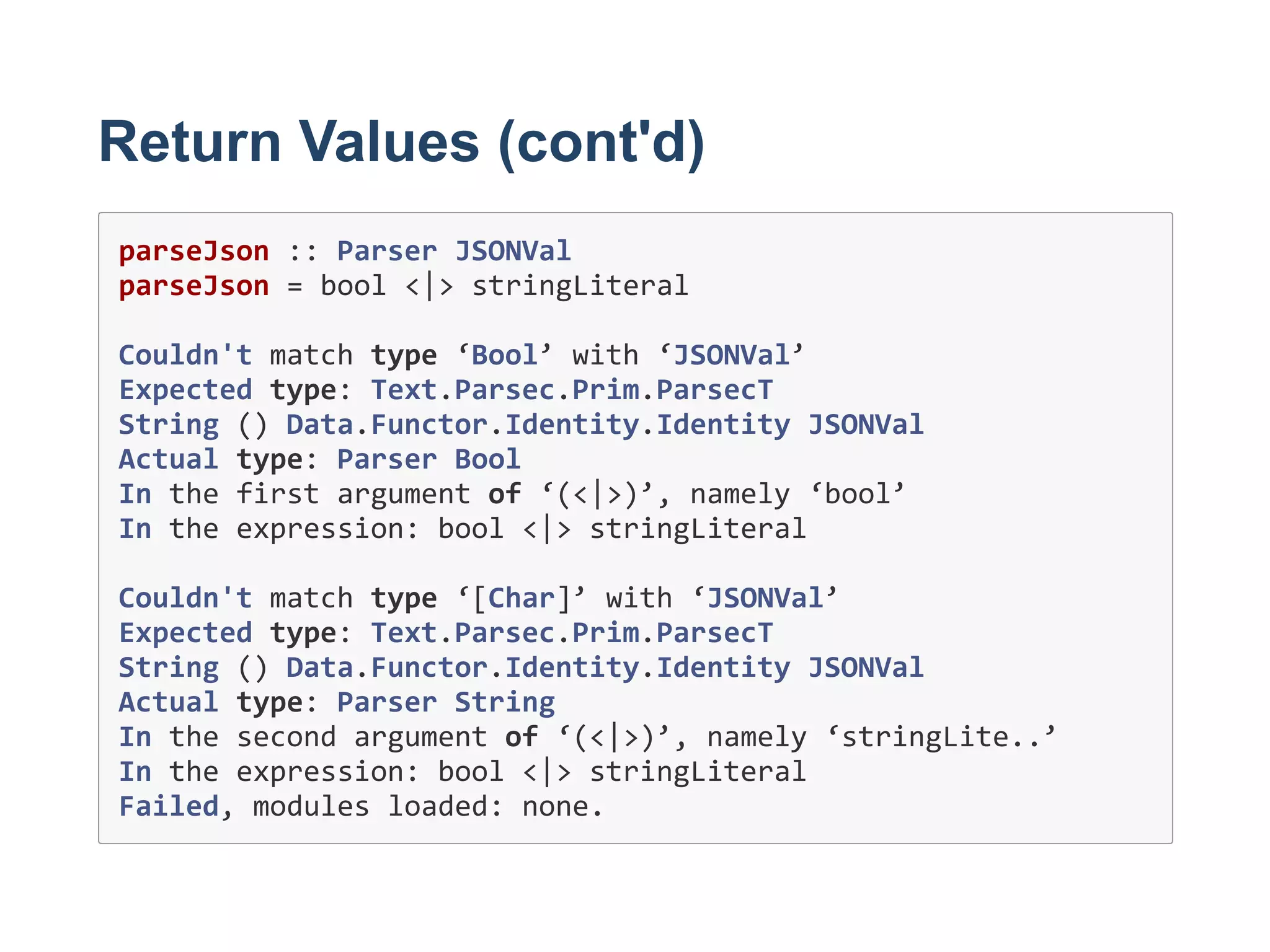

15. Return Values (cont'd)
parseJson :: Parser JSONVal
parseJson = bool <|> stringLiteral
Couldn't match type ‘Bool’ with ‘JSONVal’
Expected type: Text.Parsec.Prim.ParsecT
String () Data.Functor.Identity.Identity JSONVal
Actual type: Parser Bool
In the first argument of ‘(<|>)’, namely ‘bool’
In the expression: bool <|> stringLiteral
Couldn't match type ‘[Char]’ with ‘JSONVal’
Expected type: Text.Parsec.Prim.ParsecT
String () Data.Functor.Identity.Identity JSONVal
Actual type: Parser String
In the second argument of ‘(<|>)’, namely ‘stringLite..’
In the expression: bool <|> stringLiteral
Failed, modules loaded: none.

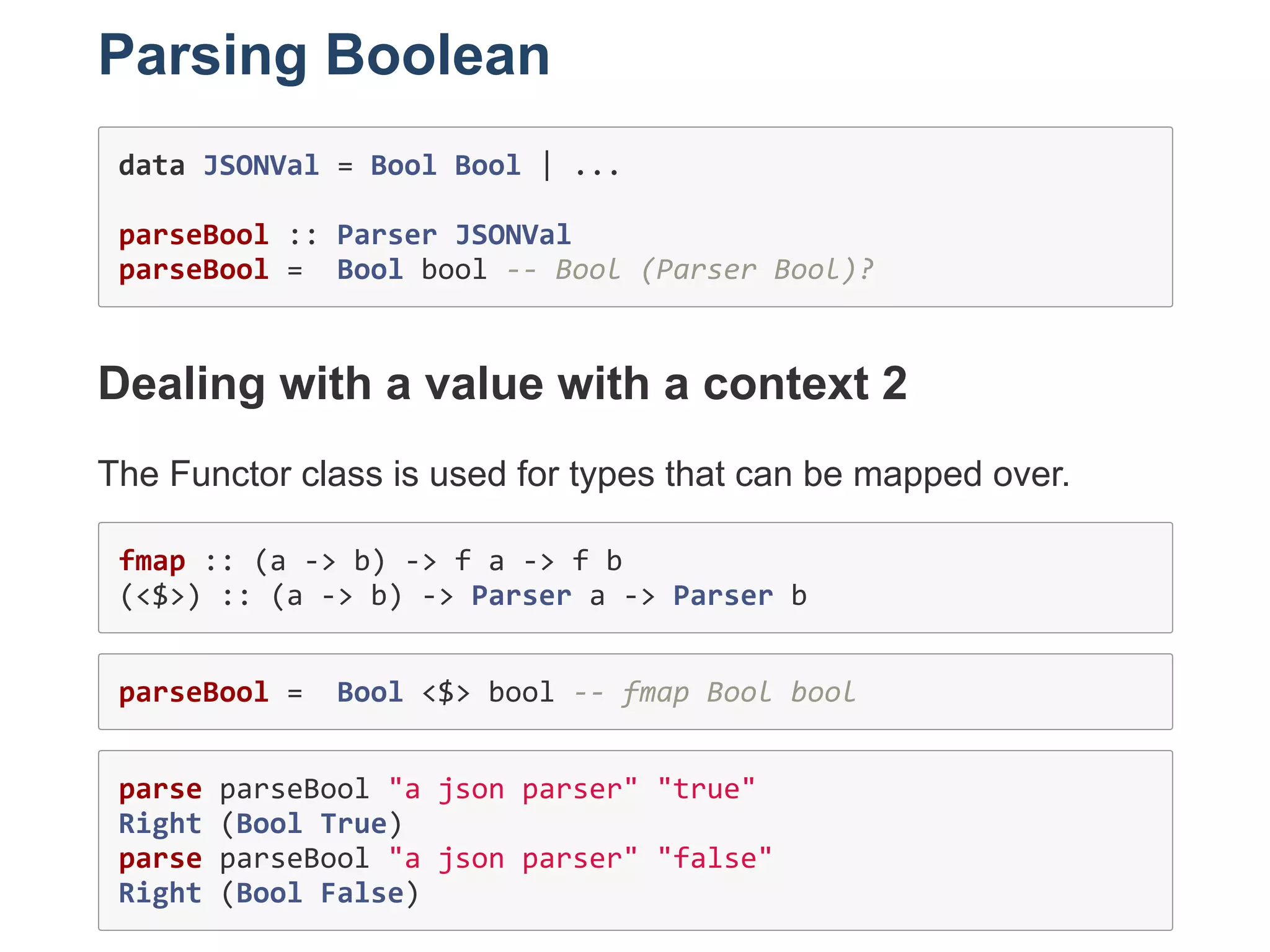

16. Parsing Boolean
data JSONVal = Bool Bool | ...
parseBool :: Parser JSONVal
parseBool = Bool bool ‐‐ Bool (Parser Bool)?
Dealing with a value with a context 2
The Functor class is used for types that can be mapped over.
fmap :: (a ‐> b) ‐> f a ‐> f b
(<$>) :: (a ‐> b) ‐> Parser a ‐> Parser b
parseBool = Bool <$> bool ‐‐ fmap Bool bool
parse parseBool "a json parser" "true"
Right (Bool True)
parse parseBool "a json parser" "false"
Right (Bool False)

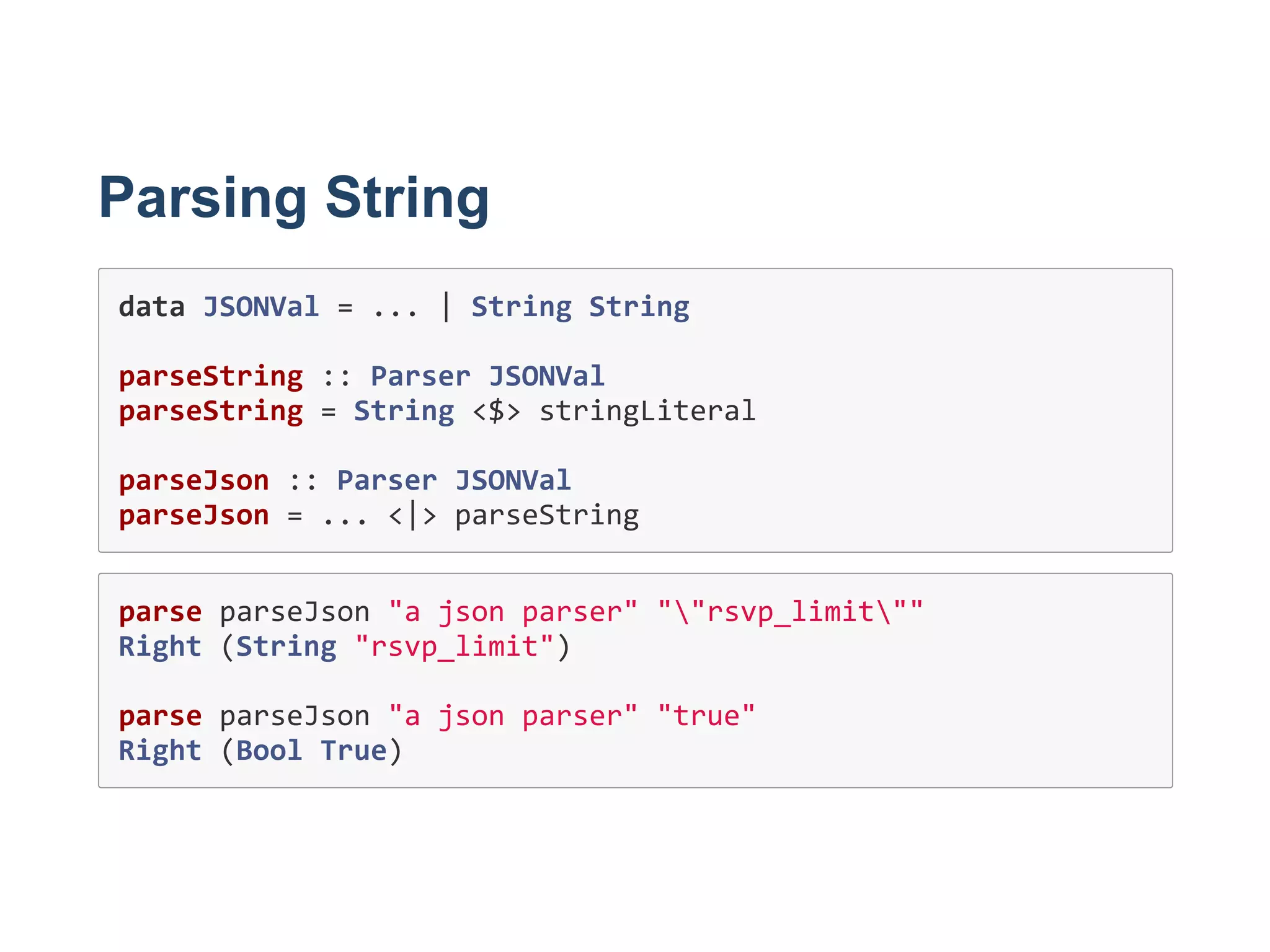

17. Parsing String
data JSONVal = ... | String String
parseString :: Parser JSONVal
parseString = String <$> stringLiteral
parseJson :: Parser JSONVal
parseJson = ... <|> parseString
parse parseJson "a json parser" ""rsvp_limit""
Right (String "rsvp_limit")
parse parseJson "a json parser" "true"
Right (Bool True)

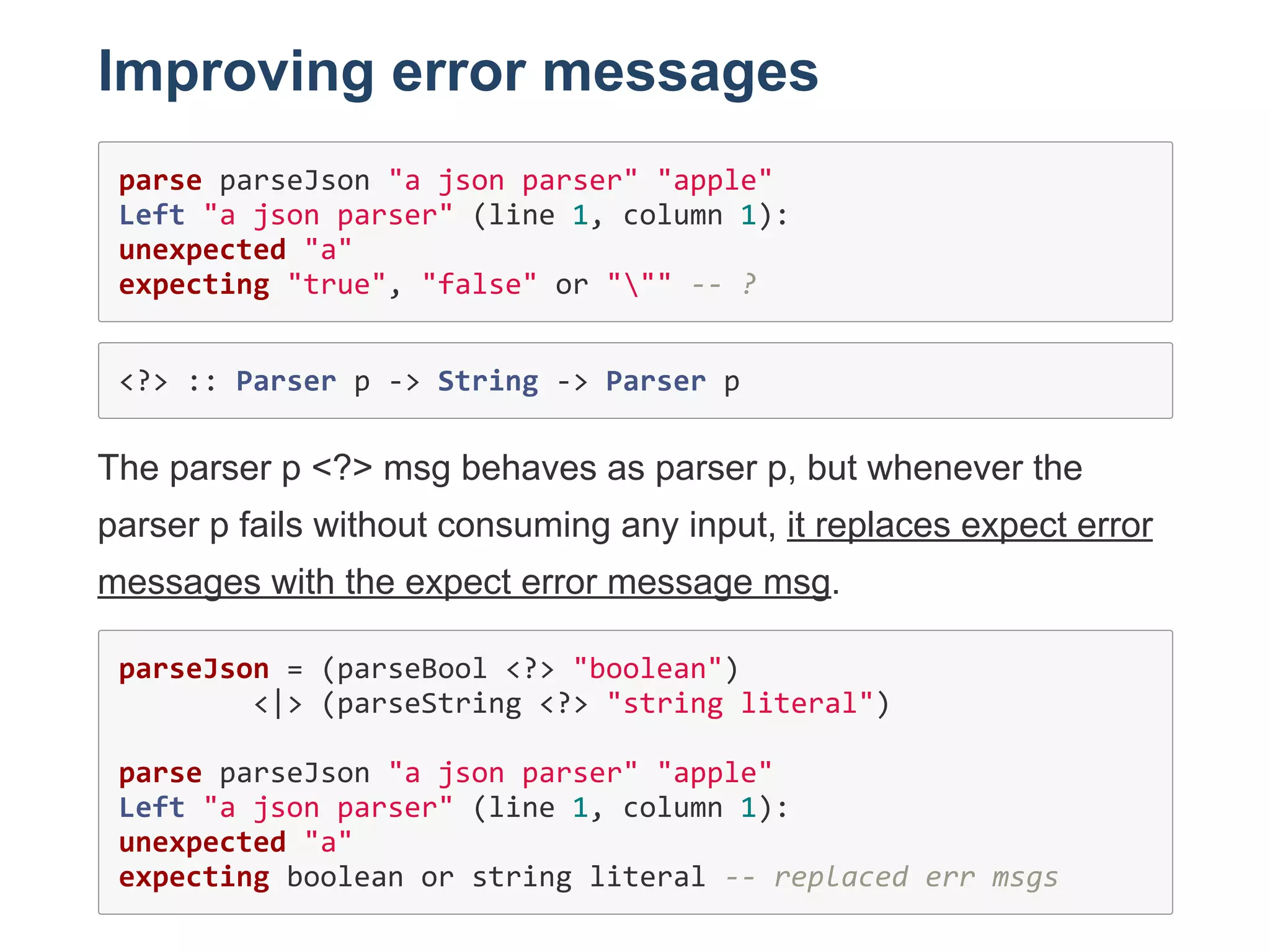

18. Improving error messages
parse parseJson "a json parser" "apple"
Left "a json parser" (line 1, column 1):
unexpected "a"
expecting "true", "false" or """ ‐‐ ?
<?> :: Parser p ‐> String ‐> Parser p
The parser p <?> msg behaves as parser p, but whenever the
parser p fails without consuming any input, it replaces expect error
messages with the expect error message msg.
parseJson = (parseBool <?> "boolean")
<|> (parseString <?> "string literal")
parse parseJson "a json parser" "apple"
Left "a json parser" (line 1, column 1):
unexpected "a"
expecting boolean or string literal ‐‐ replaced err msgs

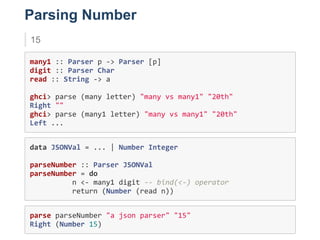

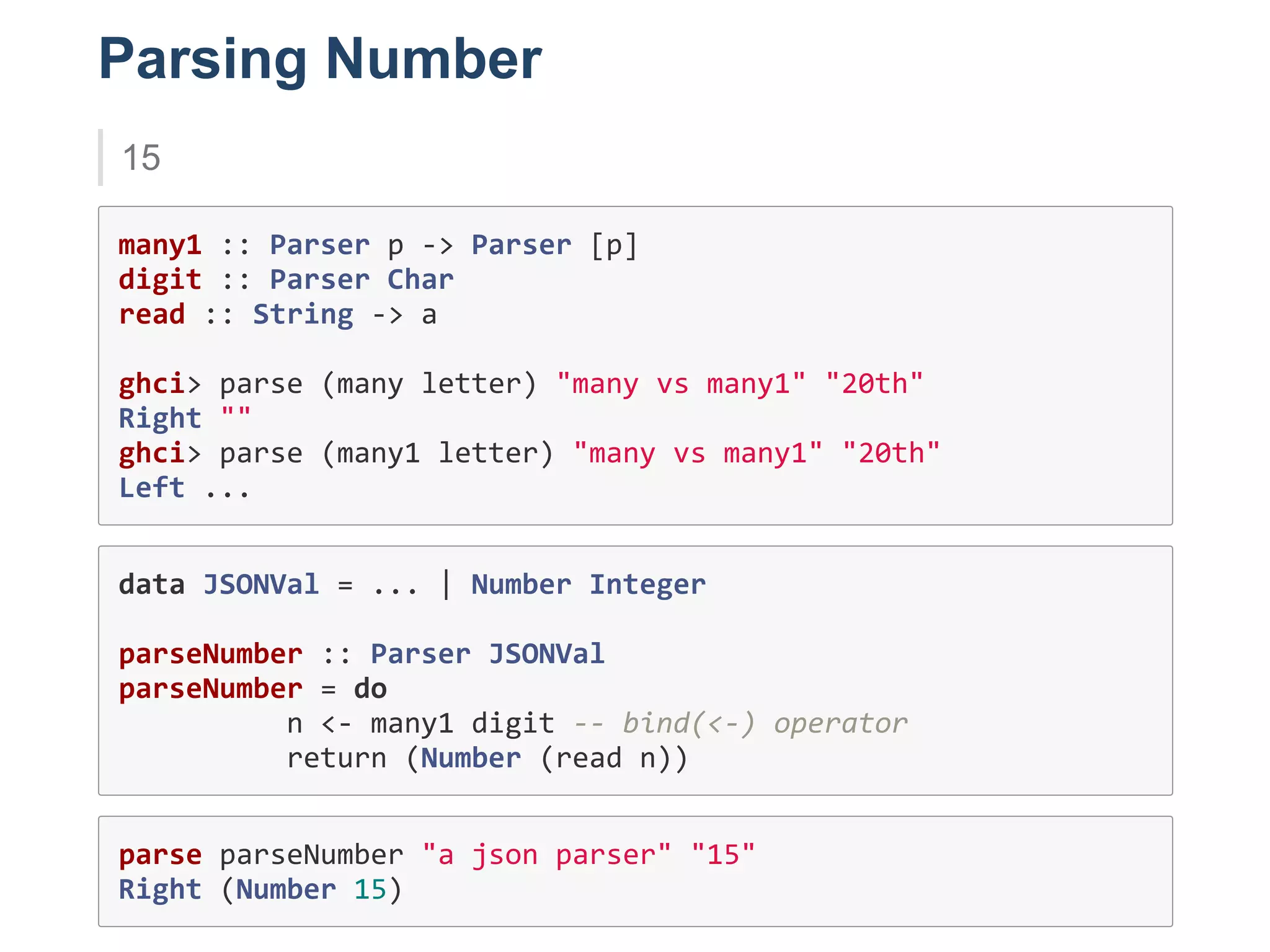

19. Parsing Number
15
many1 :: Parser p ‐> Parser [p]
digit :: Parser Char
read :: String ‐> a
ghci> parse (many letter) "many vs many1" "20th"
Right ""
ghci> parse (many1 letter) "many vs many1" "20th"
Left ...
data JSONVal = ... | Number Integer
parseNumber :: Parser JSONVal
parseNumber = do
n <‐ many1 digit ‐‐ bind(<‐) operator
return (Number (read n))
parse parseNumber "a json parser" "15"
Right (Number 15)

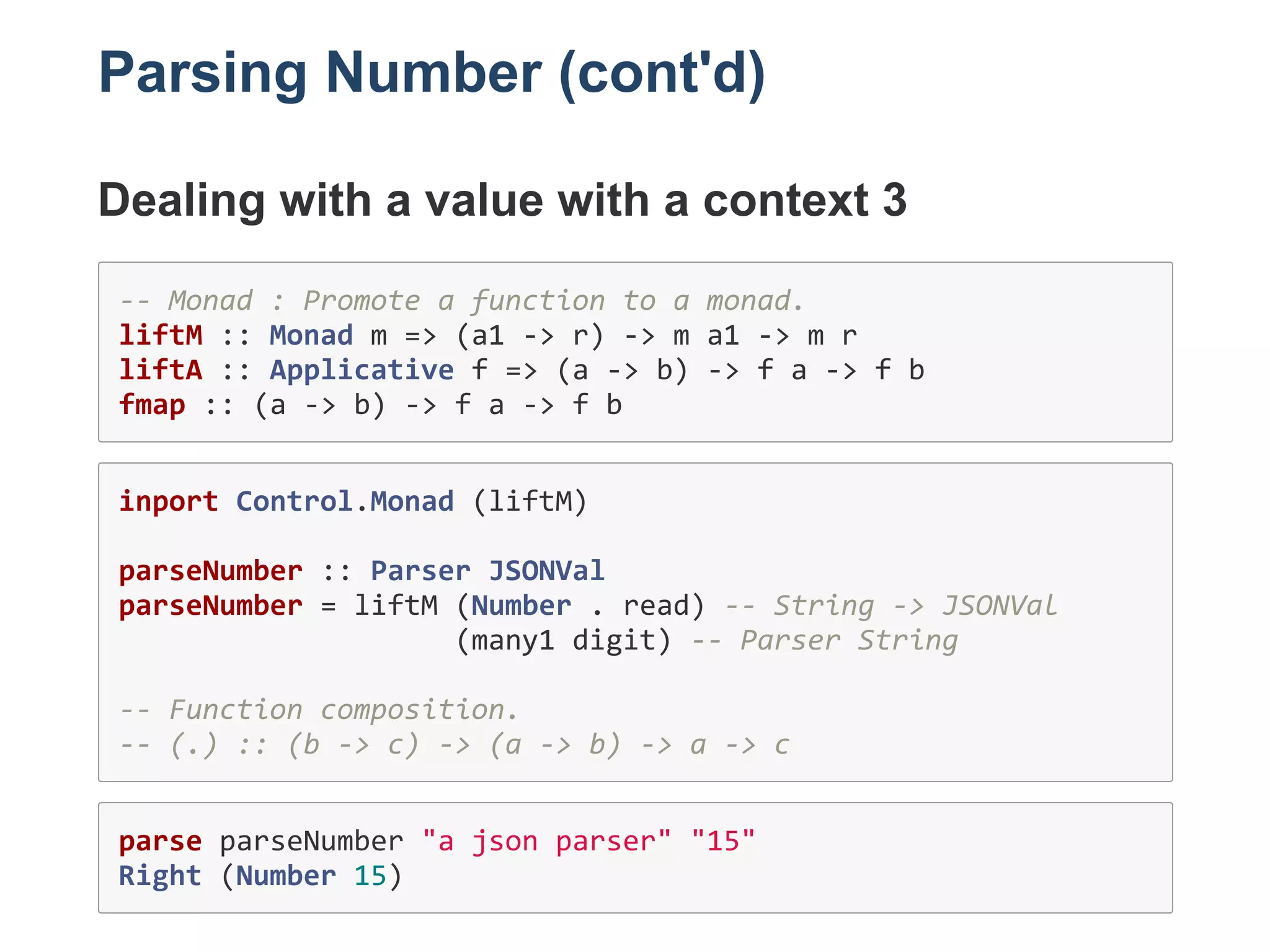

20. Parsing Number (cont'd)
Dealing with a value with a context 3
‐‐ Monad : Promote a function to a monad.
liftM :: Monad m => (a1 ‐> r) ‐> m a1 ‐> m r
liftA :: Applicative f => (a ‐> b) ‐> f a ‐> f b
fmap :: (a ‐> b) ‐> f a ‐> f b
inport Control.Monad (liftM)
parseNumber :: Parser JSONVal
parseNumber = liftM (Number . read) ‐‐ String ‐> JSONVal
(many1 digit) ‐‐ Parser String
‐‐ Function composition.
‐‐ (.) :: (b ‐> c) ‐> (a ‐> b) ‐> a ‐> c
parse parseNumber "a json parser" "15"
Right (Number 15)

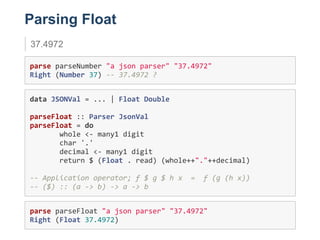

21. Parsing Float
37.4972
parse parseNumber "a json parser" "37.4972"
Right (Number 37) ‐‐ 37.4972 ?
data JSONVal = ... | Float Double
parseFloat :: Parser JsonVal
parseFloat = do
whole <‐ many1 digit
char '.'
decimal <‐ many1 digit
return $ (Float . read) (whole++"."++decimal)
‐‐ Application operator; f $ g $ h x = f (g (h x))
‐‐ ($) :: (a ‐> b) ‐> a ‐> b
parse parseFloat "a json parser" "37.4972"
Right (Float 37.4972)

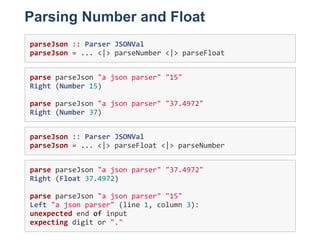

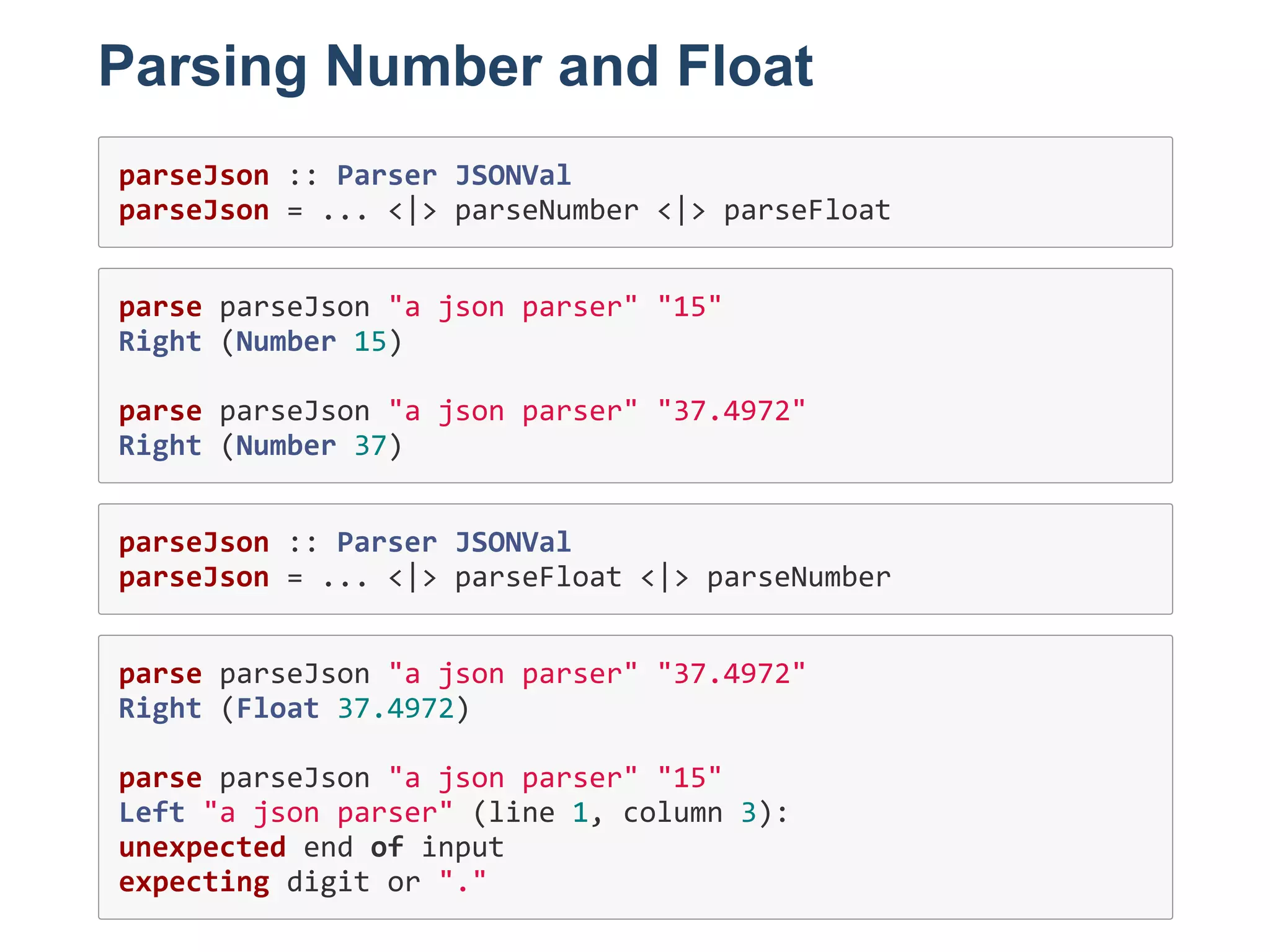

22. Parsing Number and Float
parseJson :: Parser JSONVal
parseJson = ... <|> parseNumber <|> parseFloat
parse parseJson "a json parser" "15"
Right (Number 15)
parse parseJson "a json parser" "37.4972"
Right (Number 37)
parseJson :: Parser JSONVal
parseJson = ... <|> parseFloat <|> parseNumber
parse parseJson "a json parser" "37.4972"
Right (Float 37.4972)
parse parseJson "a json parser" "15"
Left "a json parser" (line 1, column 3):
unexpected end of input
expecting digit or "."

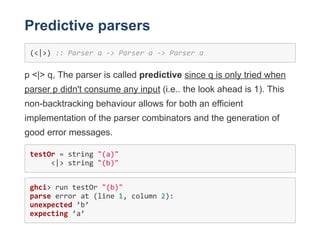

23. Predictive parsers
(<|>) :: Parser a ‐> Parser a ‐> Parser a
p <|> q, The parser is called predictive since q is only tried when
parser p didn't consume any input (i.e.. the look ahead is 1). This
non­backtracking behaviour allows for both an efficient
implementation of the parser combinators and the generation of
good error messages.
testOr = string "(a)"
<|> string "(b)"
ghci> run testOr "(b)"
parse error at (line 1, column 2):
unexpected ’b’
expecting ’a’

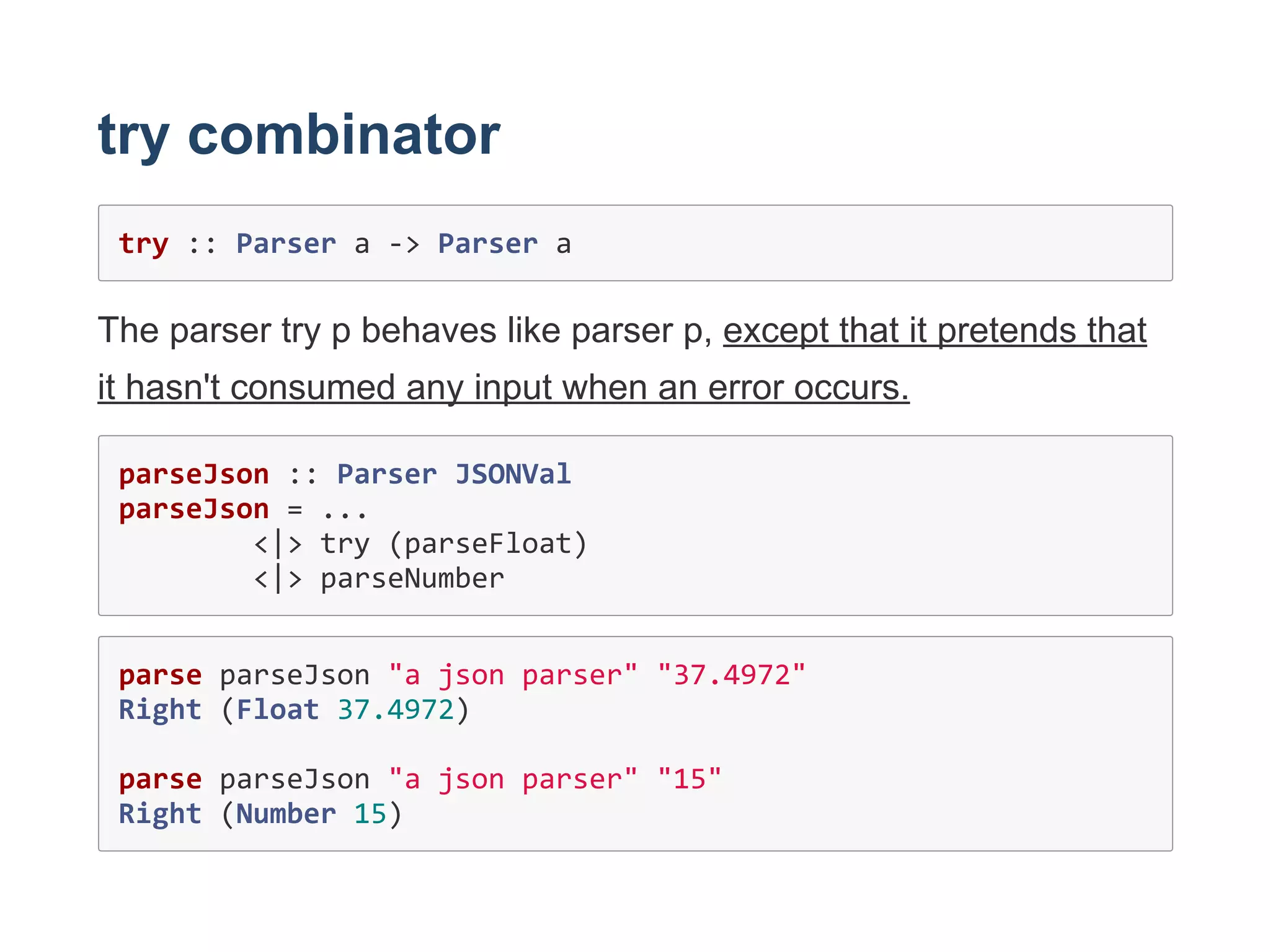

24. try combinator
try :: Parser a ‐> Parser a
The parser try p behaves like parser p, except that it pretends that
it hasn't consumed any input when an error occurs.
parseJson :: Parser JSONVal
parseJson = ...
<|> try (parseFloat)
<|> parseNumber
parse parseJson "a json parser" "37.4972"
Right (Float 37.4972)
parse parseJson "a json parser" "15"
Right (Number 15)

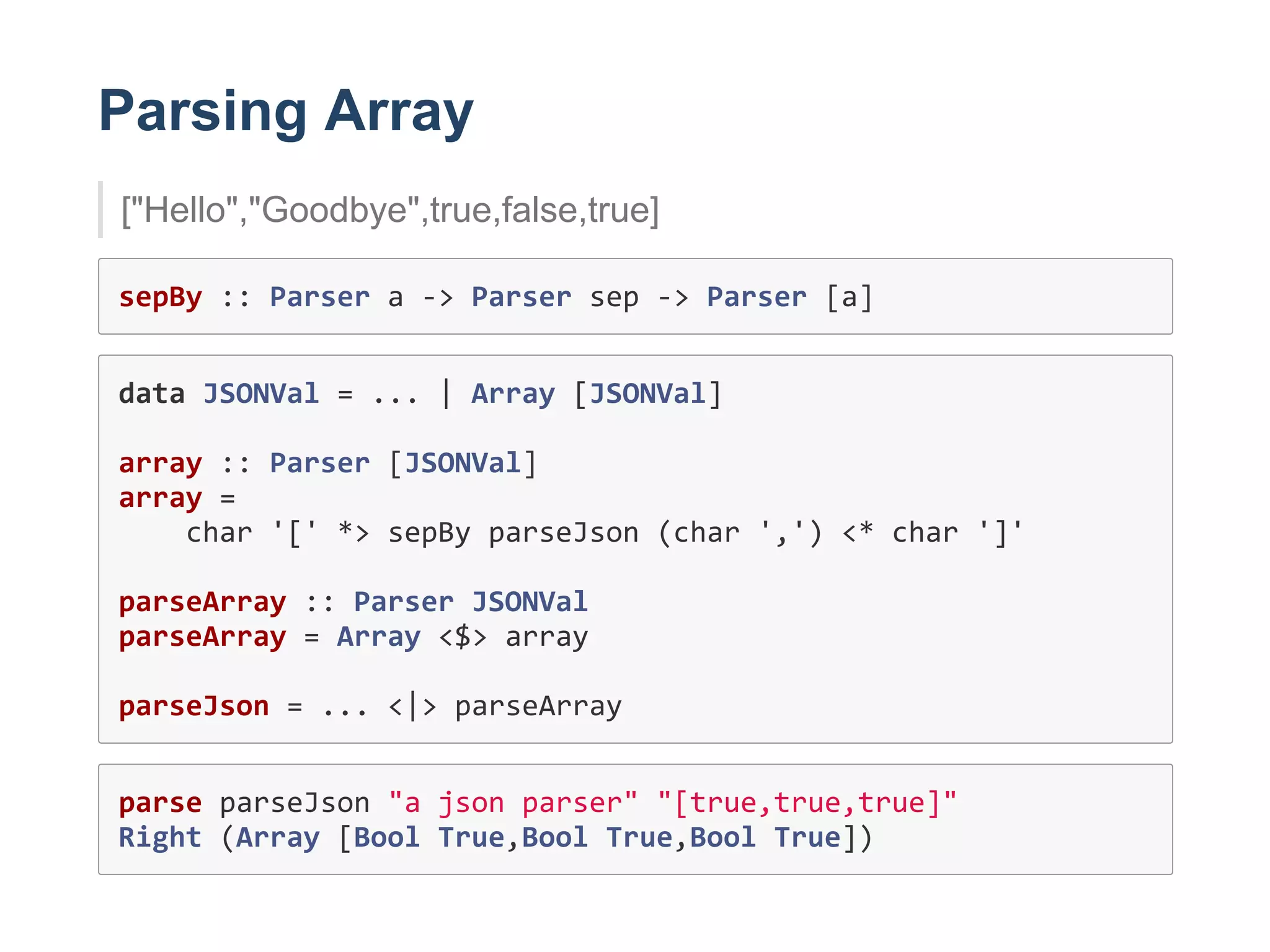

25. Parsing Array
["Hello","Goodbye",true,false,true]
sepBy :: Parser a ‐> Parser sep ‐> Parser [a]
data JSONVal = ... | Array [JSONVal]
array :: Parser [JSONVal]
array =
char '[' *> sepBy parseJson (char ',') <* char ']'
parseArray :: Parser JSONVal
parseArray = Array <$> array
parseJson = ... <|> parseArray
parse parseJson "a json parser" "[true,true,true]"
Right (Array [Bool True,Bool True,Bool True])

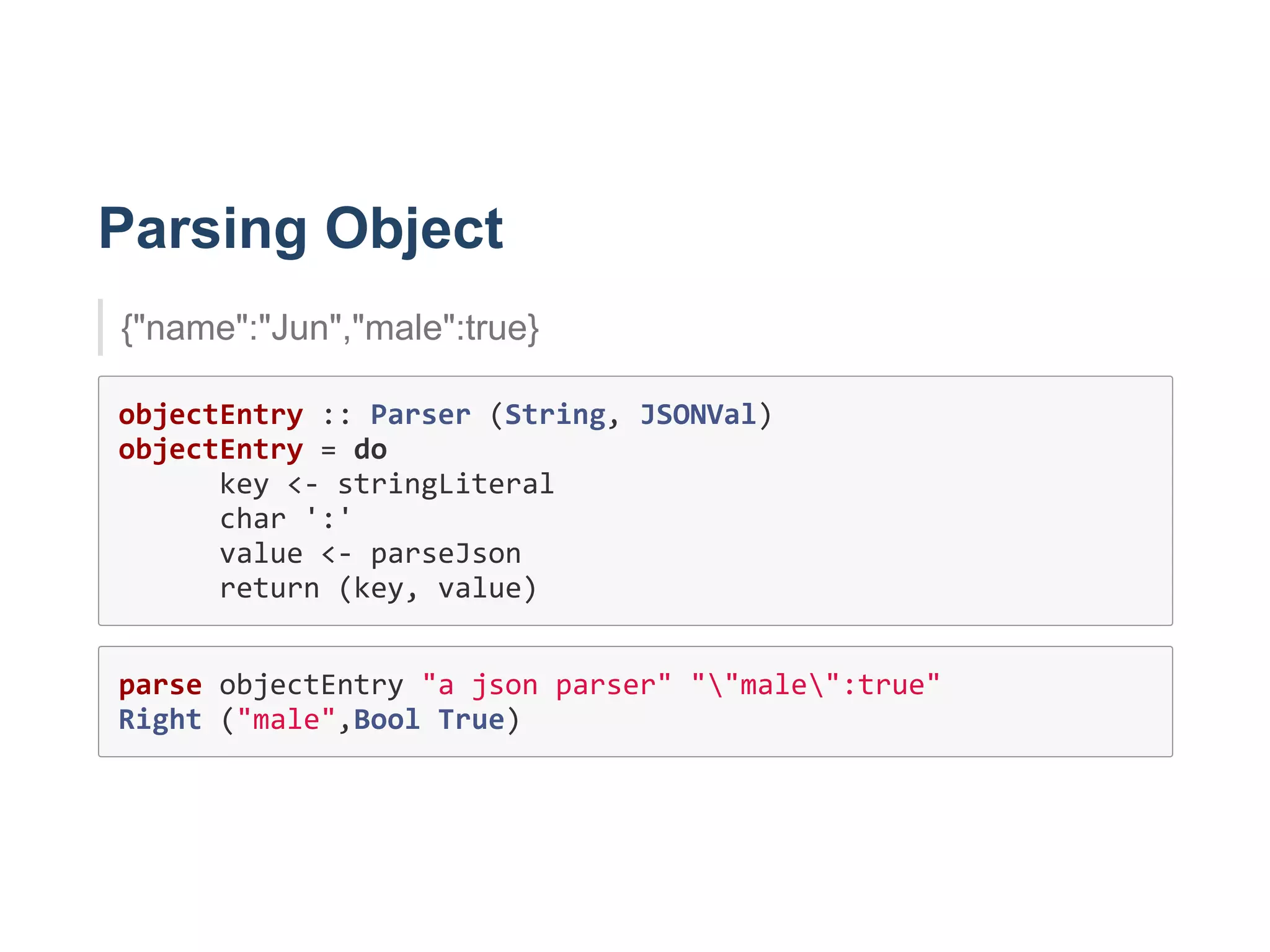

26. Parsing Object
{"name":"Jun","male":true}
objectEntry :: Parser (String, JSONVal)
objectEntry = do
key <‐ stringLiteral
char ':'
value <‐ parseJson
return (key, value)
parse objectEntry "a json parser" ""male":true"
Right ("male",Bool True)

27. Parsing Object (cont'd)
data JSONVal = ... | Object [(String, JSONVal)] | ...
parseObject :: Parser JSONVal
parseObject = do
char '{'
obj <‐ sepBy objectEntry (char ',')
char '}'
return $ Object obj
parseJson = ... <|> parseObject
parse parseJson "a json parser" "{"male":true}"
Right (Object [("male",Bool True)])

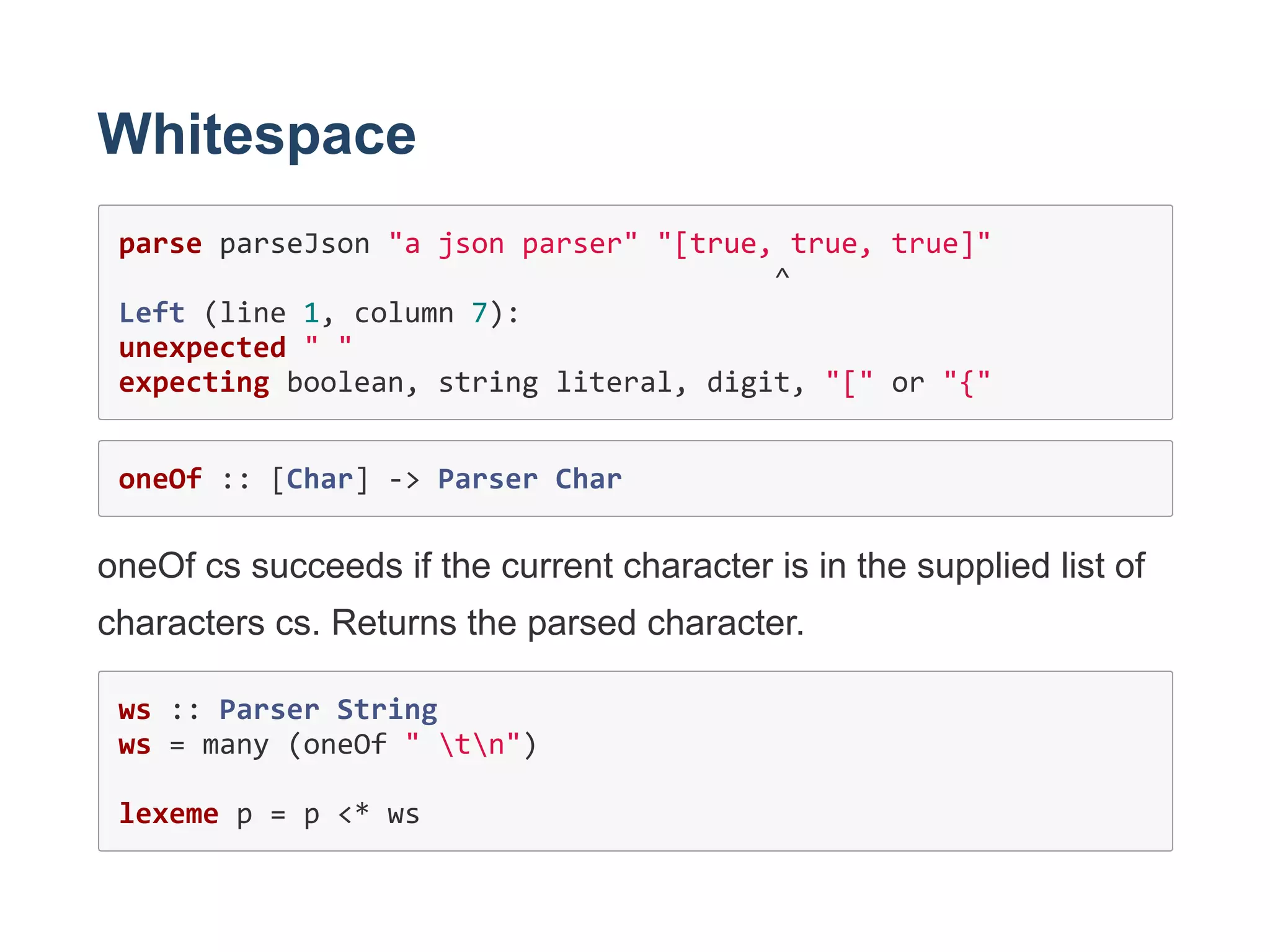

28. Whitespace
parse parseJson "a json parser" "[true, true, true]"
^
Left (line 1, column 7):
unexpected " "
expecting boolean, string literal, digit, "[" or "{"
oneOf :: [Char] ‐> Parser Char
oneOf cs succeeds if the current character is in the supplied list of
characters cs. Returns the parsed character.
ws :: Parser String
ws = many (oneOf " tn")
lexeme p = p <* ws

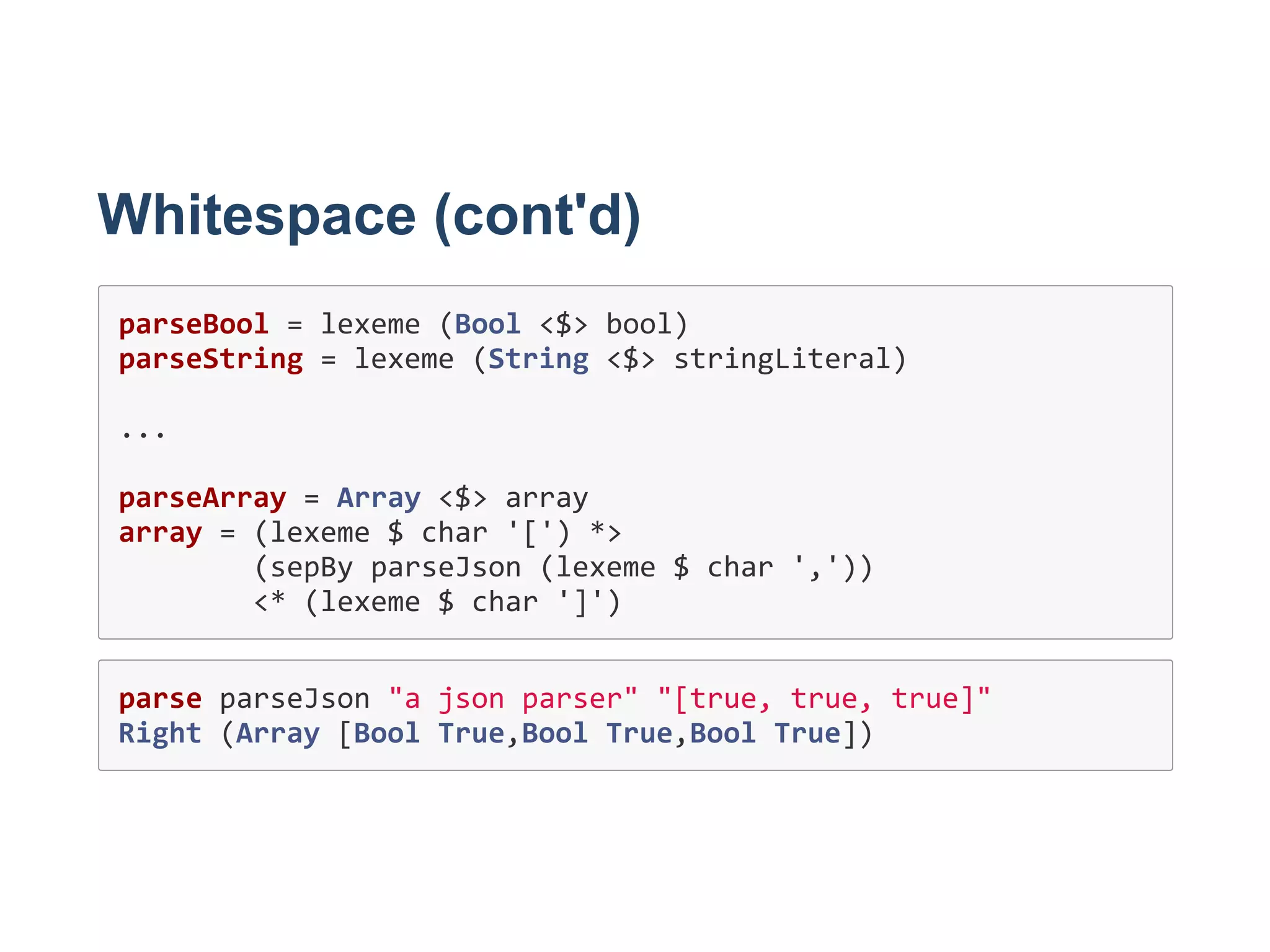

29. Whitespace (cont'd)
parseBool = lexeme (Bool <$> bool)
parseString = lexeme (String <$> stringLiteral)
...
parseArray = Array <$> array
array = (lexeme $ char '[') *>
(sepBy parseJson (lexeme $ char ','))
<* (lexeme $ char ']')
parse parseJson "a json parser" "[true, true, true]"
Right (Array [Bool True,Bool True,Bool True])

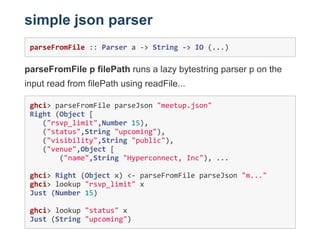

30. simple json parser
parseFromFile :: Parser a ‐> String ‐> IO (...)
parseFromFile p filePath runs a lazy bytestring parser p on the
input read from filePath using readFile...
ghci> parseFromFile parseJson "meetup.json"
Right (Object [
("rsvp_limit",Number 15),
("status",String "upcoming"),
("visibility",String "public"),
("venue",Object [
("name",String "Hyperconnect, Inc"), ...
ghci> Right (Object x) <‐ parseFromFile parseJson "m..."
ghci> lookup "rsvp_limit" x
Just (Number 15)
ghci> lookup "status" x
Just (String "upcoming")

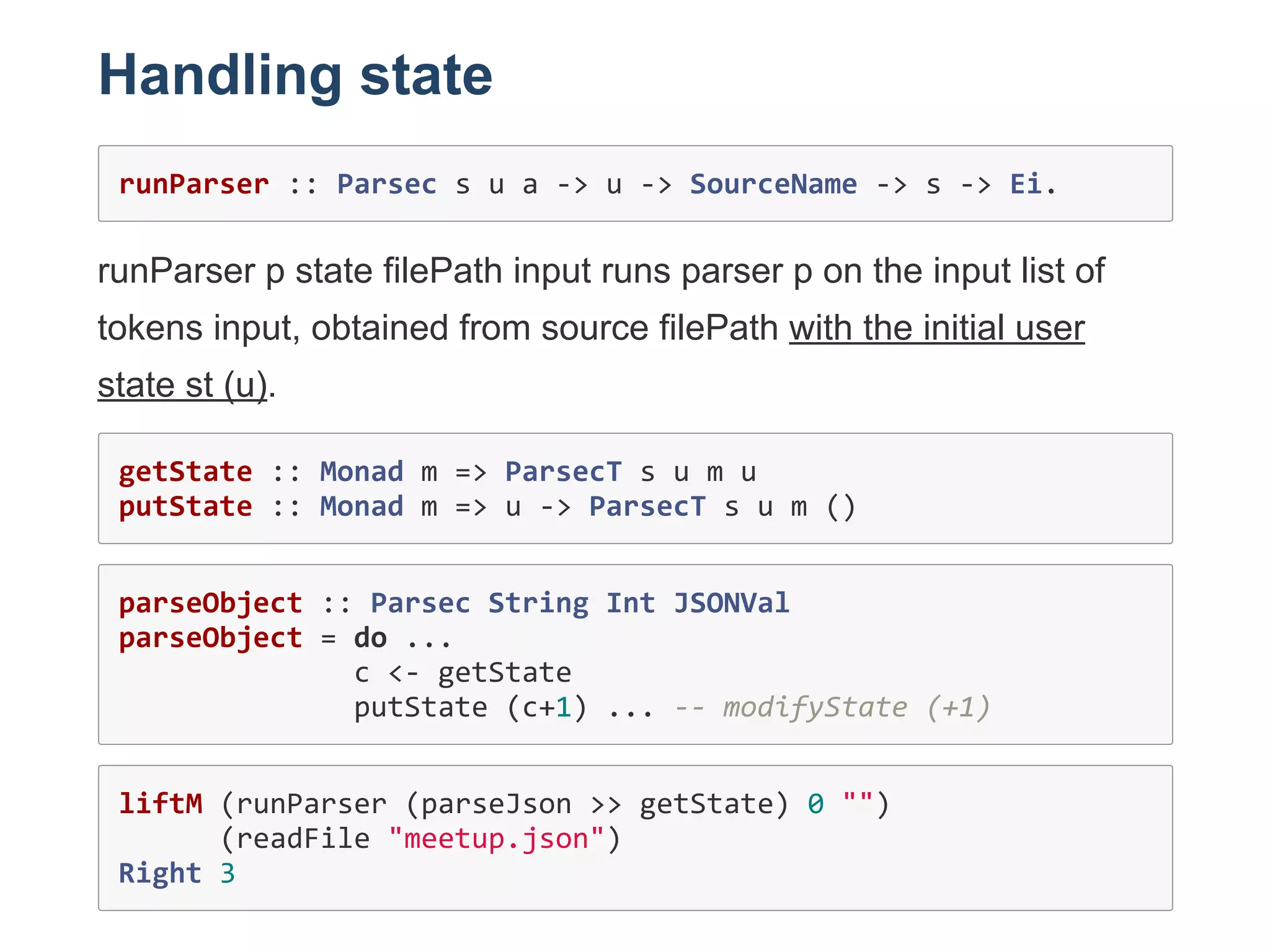

31. Handling state
runParser :: Parsec s u a ‐> u ‐> SourceName ‐> s ‐> Ei.
runParser p state filePath input runs parser p on the input list of
tokens input, obtained from source filePath with the initial user
state st (u).
getState :: Monad m => ParsecT s u m u
putState :: Monad m => u ‐> ParsecT s u m ()
parseObject :: Parsec String Int JSONVal
parseObject = do ...
c <‐ getState
putState (c+1) ... ‐‐ modifyState (+1)
liftM (runParser (parseJson >> getState) 0 "")
(readFile "meetup.json")
Right 3

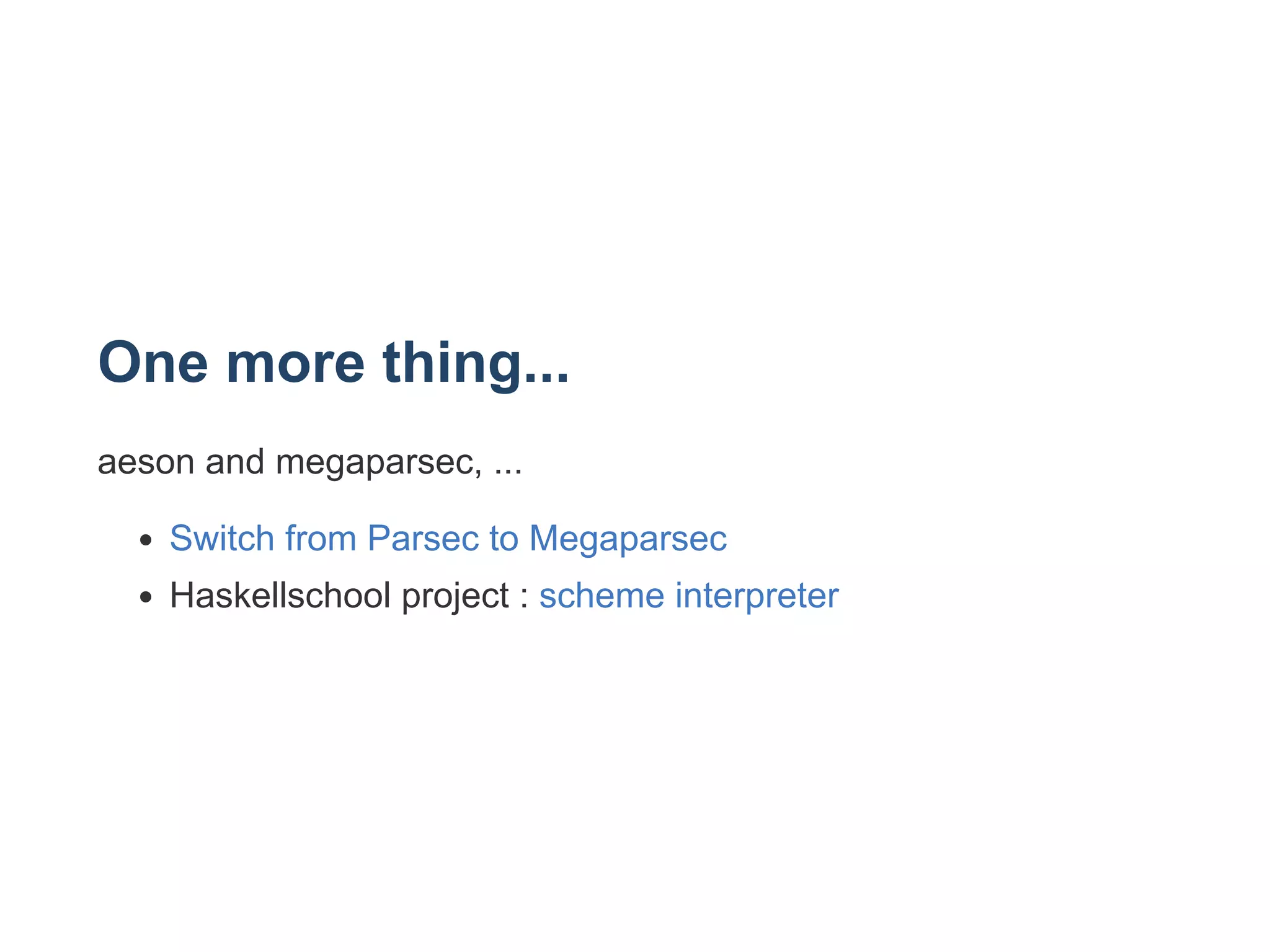

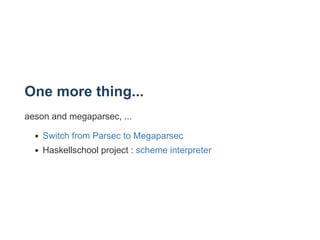

32. One more thing...
aeson and megaparsec, ...
Switch from Parsec to Megaparsec
Haskellschool project : scheme interpreter

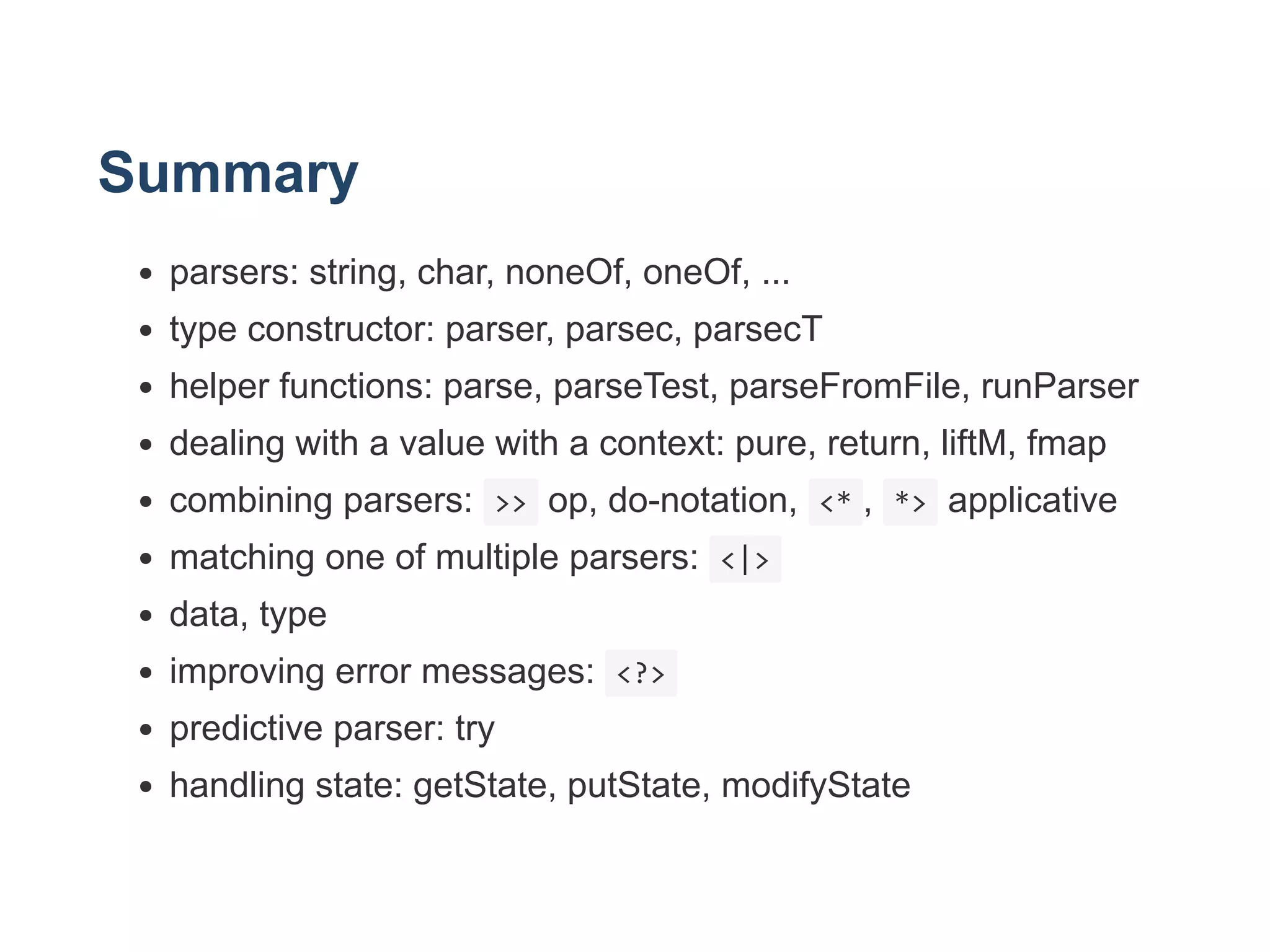

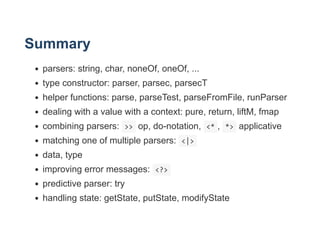

33. Summary
parsers: string, char, noneOf, oneOf, ...
type constructor: parser, parsec, parsecT
helper functions: parse, parseTest, parseFromFile, runParser
dealing with a value with a context: pure, return, liftM, fmap
combining parsers: >> op, do­notation, <* , *> applicative
matching one of multiple parsers: <|>
data, type
improving error messages: <?>
predictive parser: try
handling state: getState, putState, modifyState

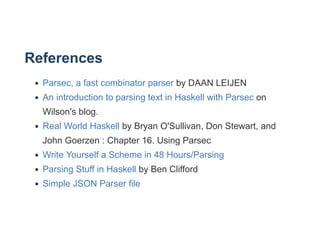

34. References
Parsec, a fast combinator parser by DAAN LEIJEN
An introduction to parsing text in Haskell with Parsec on
Wilson's blog.
Real World Haskell by Bryan O'Sullivan, Don Stewart, and
John Goerzen : Chapter 16. Using Parsec
Write Yourself a Scheme in 48 Hours/Parsing
Parsing Stuff in Haskell by Ben Clifford
Simple JSON Parser file
