This presentation provides an overview of regular expression (regex) support in Ballerina. It covers the basics of Ballerina regex syntax and features like capturing groups. It also demonstrates how to use Ballerina's regex functions for tasks like string matching, extraction and replacement. Finally, it mentions a future development around regex syntax highlighting in the Ballerina IDE.

1. 1

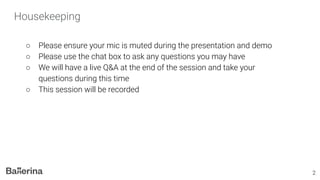

2. Housekeeping
○ Please ensure your mic is muted during the presentation and demo
○ Please use the chat box to ask any questions you may have
○ We will have a live Q&A at the end of the session and take your
questions during this time
○ This session will be recorded
2

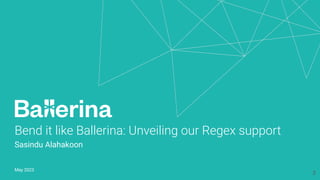

3. Bend it like Ballerina: Unveiling our Regex support
Sasindu Alahakoon
May 2023
3

4. In this presentation:
Introduction 05
Basics of Ballerina regular expressions 06
Advanced regular expression uses 12
Using Ballerina’s regular expressions 17
Demonstration 23
Future developments 25
4

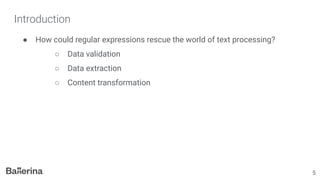

5. Introduction
● How could regular expressions rescue the world of text processing?
○ Data validation
○ Data extraction
○ Content transformation
5

6. Basics of
Basics of
Ballerina regular expressions
6

7. First-class support for regular expressions
● Why do we need Regex as a first-class element?
○ Generate compile time errors for invalid Regex patterns
○ Language tooling support
■ code completion
■ code action
7

8. Regex syntax
string:RegExp letter = re `[A-Z]?`;
● Specify the pattern between
two backticks after the re
notation
● Supports inserting values
dynamically into a regular
expression
function getDynPattern(string name) {
string:RegExp a = re `.*${name}.*`;
}
8

9. Regex syntax
● Based on the ECMAScript
2022 specification
● Supports a subset of the
ECMAScript specification
9

10. Regex declaration using template expression
import ballerina/lang.regexp;
function initRegexVars() {
regexp:RegExp a = re `[Reg]ular[Exp]ression$`;
string:RegExp b = re `[Reg]ular[Exp]ression$`;
}
10

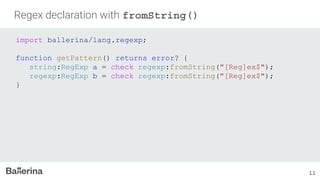

11. Regex declaration with fromString()
import ballerina/lang.regexp;
function getPattern() returns error? {
string:RegExp a = check regexp:fromString("[Reg]ex$");
regexp:RegExp b = check regexp:fromString("[Reg]ex$");
}
11

12. Basics of
Advanced regular expression
uses
12

13. Capturing groups
● These allow to extract parts of
a Regex match for further
processing
import ballerina/lang.regexp;
string text = "my name is John";
function testCaptureGroups () {
regexp:RegExp r = re `name is (w+)`;
regexp:Groups? grp = r.findGroups(text);
if grp is regexp:Groups {
// 0th element contains entire match
string matchedStr =
grp[0].substring();
regexp:Span? nameSpan = grp[1];
if nameSpan is regexp:Span {
string name =
nameSpan.substring();
}
}
}
13

14. Non-capturing groups
string:RegExp letterWord = re `(?i:[A-Z]+)`;
● Used to group patterns
together without creating a
capturing group
string:RegExp title = re `(?:Mr|Mrs|Ms).`;
14

15. Regex flags
import ballerina/lang.regexp;
function testFlags() {
regexp:RegExp r = re `(?i:hello.*)`;
regexp:Span? match1 = r.matchAt("Hello");
regexp:Span? match2 = r.matchAt("HELLO!");
regexp:Span? match3 = r.matchAt("HelLO!");
regexp:Span? match4 = r.matchAt("hello!");
}
● Flags can be used to modify
how the non-capturing group
is treated
i Enables case-insensitivity
m Enables multi-line matching
s Enables the dot character to match any
character
x Allows comments and whitespace in the
pattern
15

16. Unicode property escape
● Allows matching characters
based on their Unicode
properties
function testUnicodeProperties () {
// `p` matches the property value.
string:RegExp upperCaseLetter = re `p{Lu}`;
// `P` matches the negation of `p`
// `gc` for General categories is optional
string:RegExp nonDigitChar = re `P{gc=N}`;
// `sc` to specify the Script property.
string:RegExp latin = re `p{sc=Latin}` ;
}
16

17. Basics of
Using Ballerina’s regular
expressions
17

18. String manipulation with Regex functions
● Supports a set of `regexp` functions to search and manipulate string values
find(text, startIndex = 0) Returns the first match of a regular expression
within a string
findAll(text, startIndex = 0) Returns a list of all the matches of a regular
expression within a string
findGroups(text, startIndex =
0)
Returns the captured groups for the first match
of a regular expression within a string
matchAt(text, startIndex = 0) Checks whether there is a match of a regular
expression at a specific index in the string
replace(text, replacement,
startIndex = 0)
Replaces the first match of a regular
expression
18

19. Regex functions
● Two constructs are used to
provide the output
import ballerina/lang.regexp;
function useSpan(){
regexp:RegExp name = re `John`;
regexp:Span? result = name.find("John
Doe");
if (result is regexp:Span) {
string name = result.substring();
int startIndex = result.startIndex;
int endIndex = result.endIndex;
}
}
Span Object type as a
container for a substring
of another string
Groups Tuple type that contains
span objects for the
matched substrings of
each capturing group in
the regular expression
import ballerina/lang.regexp;
function useGroups() {
regexp:RegExp nm = re `(John)`;
regexp:Groups? g = nm.findGroups("John
Doe");
if (g is regexp:Groups) {
string completeMatch = g[0].substring();
regexp:Span? s = g[1];
if (s is regexp:Span) {
string c = s.substring();
}
}
}
19

20. Regex functions - find()
import ballerina/io;
import ballerina/lang.regexp;
string text = string `Build microservices with ease using https://ballerina.io/,
explore integrations at https://central.ballerina.io/, and
join our community at https://discord.gg/ballerinalang.`;
public function main() {
string:RegExp urlRegex = re `(http|https)://[a-zA-Z0-9.-]+.[a-zA-Z]{2,}/?`;
regexp:Span? url = urlRegex.find(text);
if url is regexp:Span {
io:println(`Found a URL: ${url.substring()}`); // https://ballerina.io/
} else {
io:println("No URL found");
}
}
https://ballerina.io/
20

21. Regex functions - findGroups()
import ballerina/io;
import ballerina/lang.regexp;
string text = string `Build microservices with ease using https://ballerina.io/,
explore integrations at https://central.ballerina.io/, and
join our community at https://discord.gg/ballerinalang.` ;
public function main() {
string:RegExp urlRegex = re `(http|https)://([a-zA-Z0-9.-]+) .([a-zA-Z]{2,})/?` ;
regexp:Groups? urlGroup = urlRegex.findGroups(text);
if urlGroup is regexp:Groups {
string foundUrl = urlGroup[0].substring(); // https://ballerina.io/
string scheme = (<regexp:Span> urlGroup[1]).substring(); // https
string domain = (<regexp:Span> urlGroup[2]).substring(); // ballerina
string topLevelDomain = (<regexp:Span> urlGroup[3]).substring(); // io
} else {
io:println("No match found" );
}
}
https://ballerina.io/
https: ballerin
a
io
21

22. Regex functions - replace()
import ballerina/io;
import ballerina/lang.regexp;
string text = string `Build microservices with ease using https://www.abc.com,
explore integrations at https://central.ballerina.io/, and
join our community at https://discord.gg/ballerinalang.`;
public function main() {
string:RegExp urlRegex = re `(http|https)://[a-zA-Z0-9.-]+ .[a-zA-Z]{2,}/?` ;
string newText = urlRegex.replace(text, "https://ballerina.io/" );
io:println(newText);
}
https://ballerina.io/
https://www.abc.com
22

23. Basics of
Demonstration
23

24. Real-world use case demonstration
24

25. Basics of
Future developments
25

26. Future developments
● Syntax highlighting
○ Will be available from Swan Lake Update 7
○ Mark and color the start and end bounds of the brackets inside the Regex
26

27. Questions?

28. Find out more…
● Ballerina documentation
○ Learn guide: Ballerina regular expressions
■ ballerina.io/learn/distinctive-language-features/advanced-general-purpos
e-language-features/#regular-expressions
○ Ballerina by example
■ ballerina.io/learn/by-example/#regular-expressions
○ Ballerina regular expressions specification
■ ballerina.io/spec/lang/master/#section_10.1
● Join the Ballerina community
28
ballerinalang WSO2 Collective @ballerinalang ballerina-lang

29. Thank you!
If you have any further questions, please email contact@ballerina.io or raise them in
the Ballerina Discord server.
