Azure Express Route
The document discusses Microsoft Azure ExpressRoute, which provides a private connection between a customer's internal network and Microsoft Azure datacenters. It provides three key benefits: high-speed connectivity with low latency and jitter, private access to Microsoft cloud services like Azure and Office 365, and ability to extend on-premises networks into Azure. The document includes details on ExpressRoute providers and locations, connectivity models, billing options, and case studies of companies like Interserve that use ExpressRoute to leverage Azure's capabilities while ensuring quality of service for business critical applications and data.
More Related Content
Similar to Azure Express Route
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Azure Express Route
- 1.
- 4.

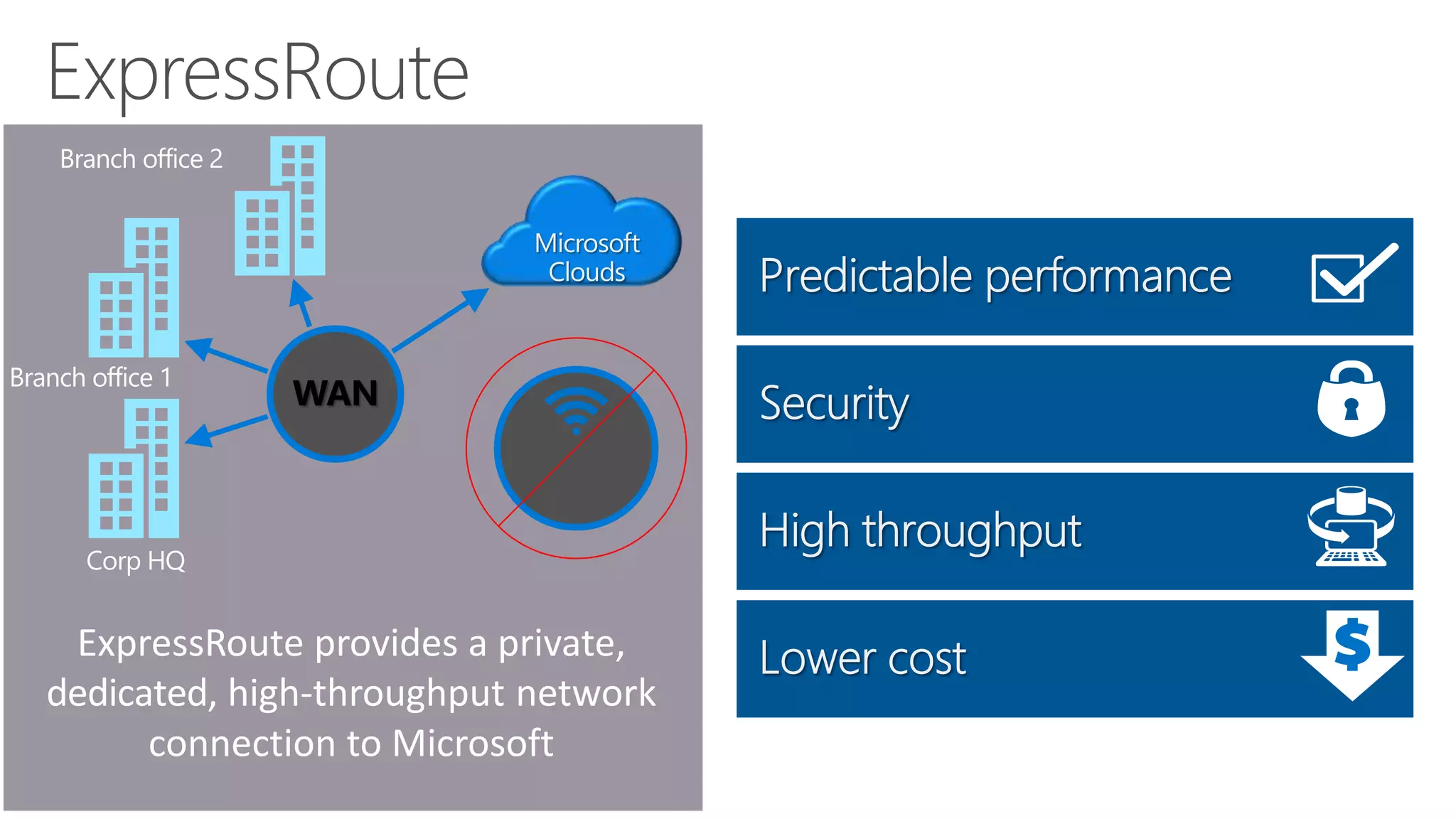

- 5. WAN ExpressRoute provides aprivate, dedicated, high-throughput network connection to Microsoft

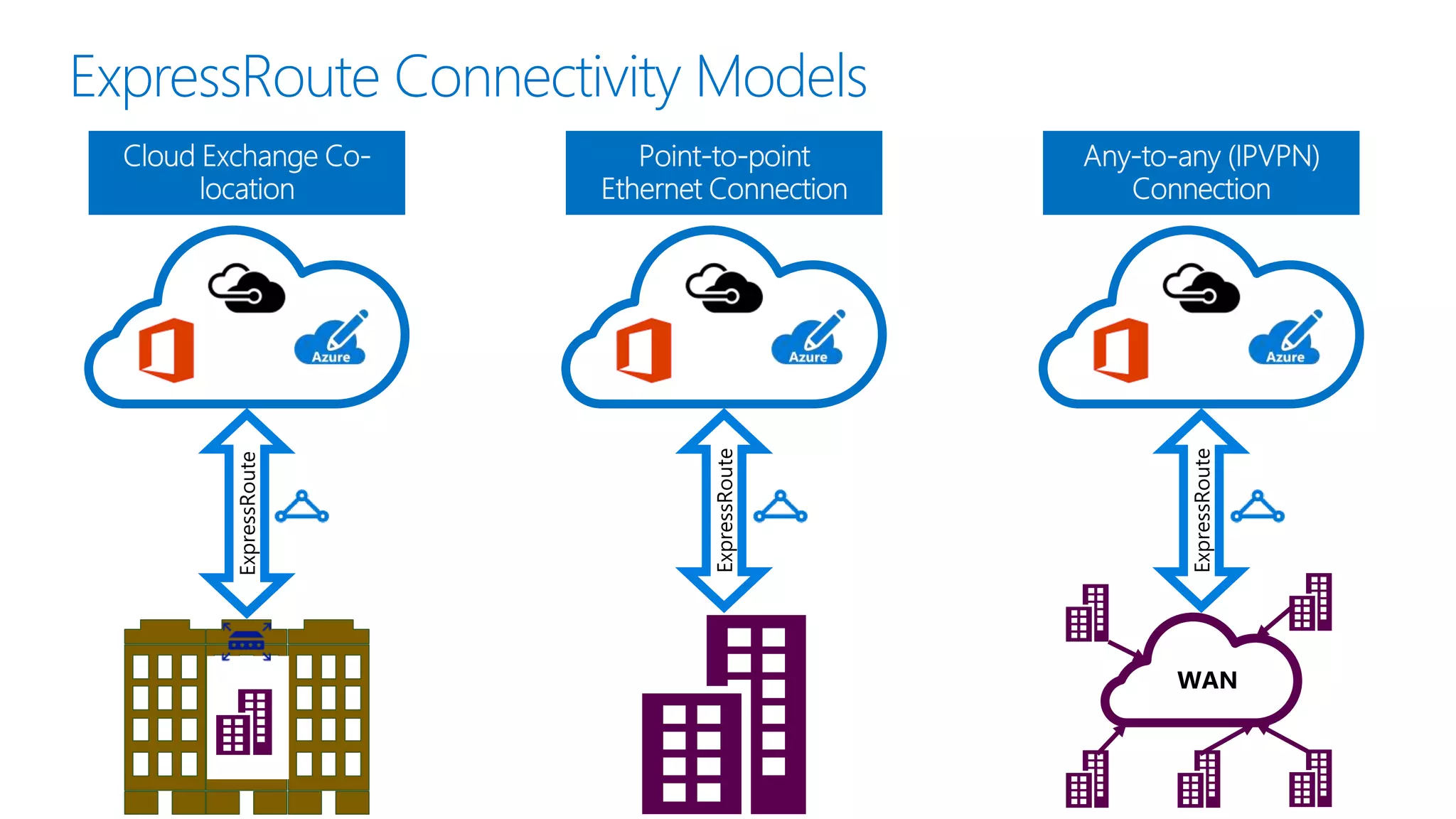

- 6. Customer’s network Customer’s connection Partner Edge Traffic to publicIP addresses in Azure Traffic to Virtual Networks Traffic to Office 365 Services and soon CRM Online Microsoft Edge ExpressRoute
- 7.
- 8. New Billing Optionsand Bandwidths Exchange ProviderNetwork Service Provider ‘Unlimited Data’ Bandwidth-Based Fixed Monthly Price Connectivity Provider Existing Billing Options New Billing Options 10 Mbps 50 Mbps 100 Mbps 500 Mbps 1 Gbps ‘Metered Data’ Usage- Based Variable Monthly Price 200 Mbps 500 Mbps 1 Gbps 10 Gbps ‘Unlimited Data’ - Fixed Monthly Price ‘Metered Data’ - Variable Monthly Price 1 Gbps 2 Gbps 5 Gbps 10 Gbps 50 Mbps 100 Mbps 200 Mbps 500 Mbps Bandwidth Old Billing Model New Billing Model Exchange Provider Network Service Provider Unlimited Data Metered Data 10 Mbps 50 Mbps 100 Mbps 200 Mbps 500 Mbps 1 Gbps 2 Gbps 5 Gbps 10 Gbps You pick the billing model that works for you. No more EXPs and NSPs!
- 9. Atlanta Chicago Chicago (Gov Cloud) Dallas LA NY Seattle SiliconValley Washington DC Washington DC (Gov Cloud) Sao Paulo Amsterdam Dublin* London Chennai Hong Kong Mumbai Melbourne Osaka Singapore Sydney Tokyo

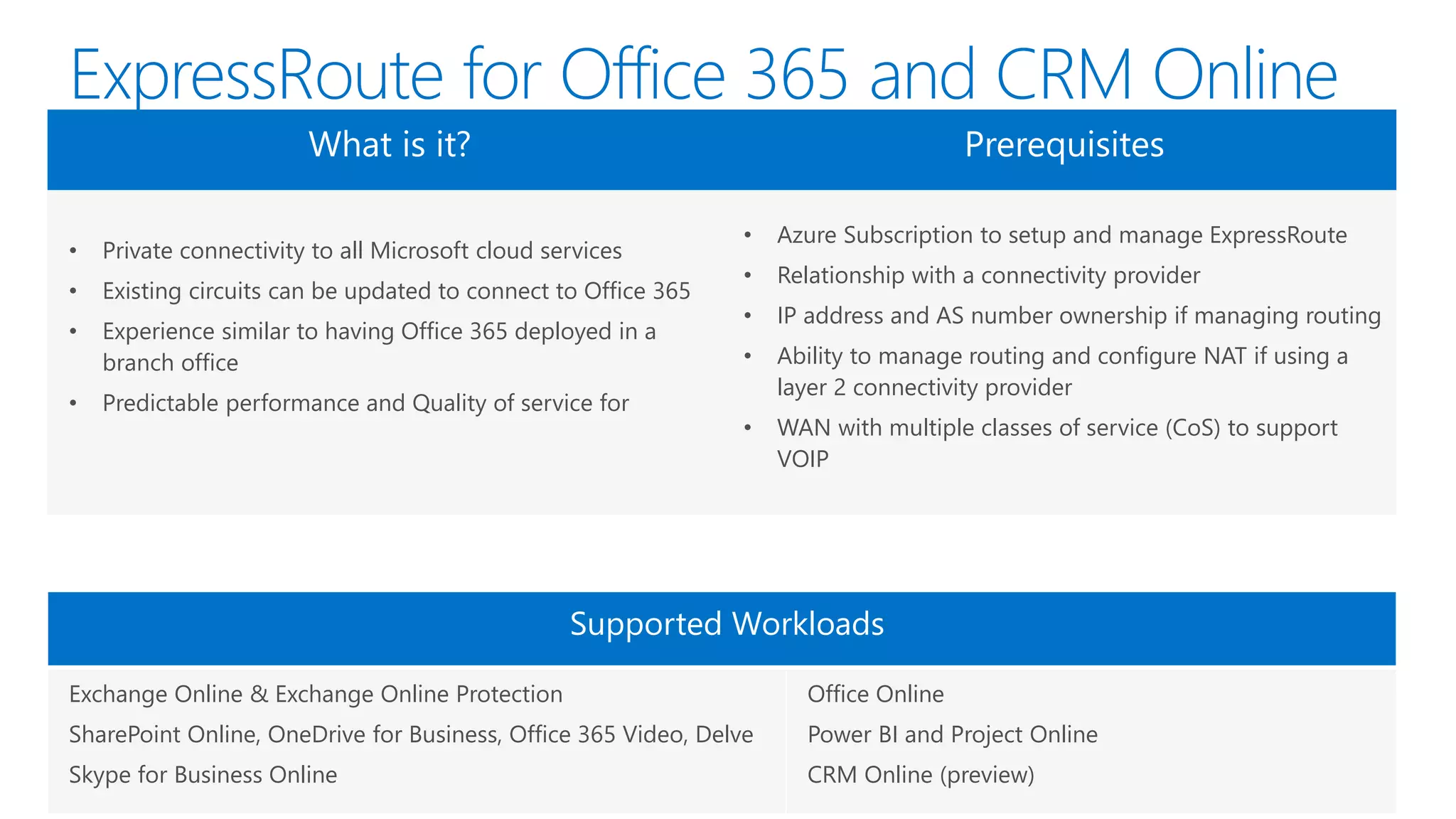

- 10. ExpressRoute for Office365 and CRM Online What is it? Prerequisites • Private connectivity to all Microsoft cloud services • Existing circuits can be updated to connect to Office 365 • Experience similar to having Office 365 deployed in a branch office • Predictable performance and Quality of service for • Azure Subscription to setup and manage ExpressRoute • Relationship with a connectivity provider • IP address and AS number ownership if managing routing • Ability to manage routing and configure NAT if using a layer 2 connectivity provider • WAN with multiple classes of service (CoS) to support VOIP Supported Workloads Exchange Online & Exchange Online Protection SharePoint Online, OneDrive for Business, Office 365 Video, Delve Skype for Business Online Office Online Power BI and Project Online CRM Online (preview)
- 11. Microsoft Azure Service provider Physicalnetwork Network virtualization Network A Network B Virtualization Reimagine networking Server virtualization Virtual machine A Virtual machine B Virtualization Physical server
- 12.

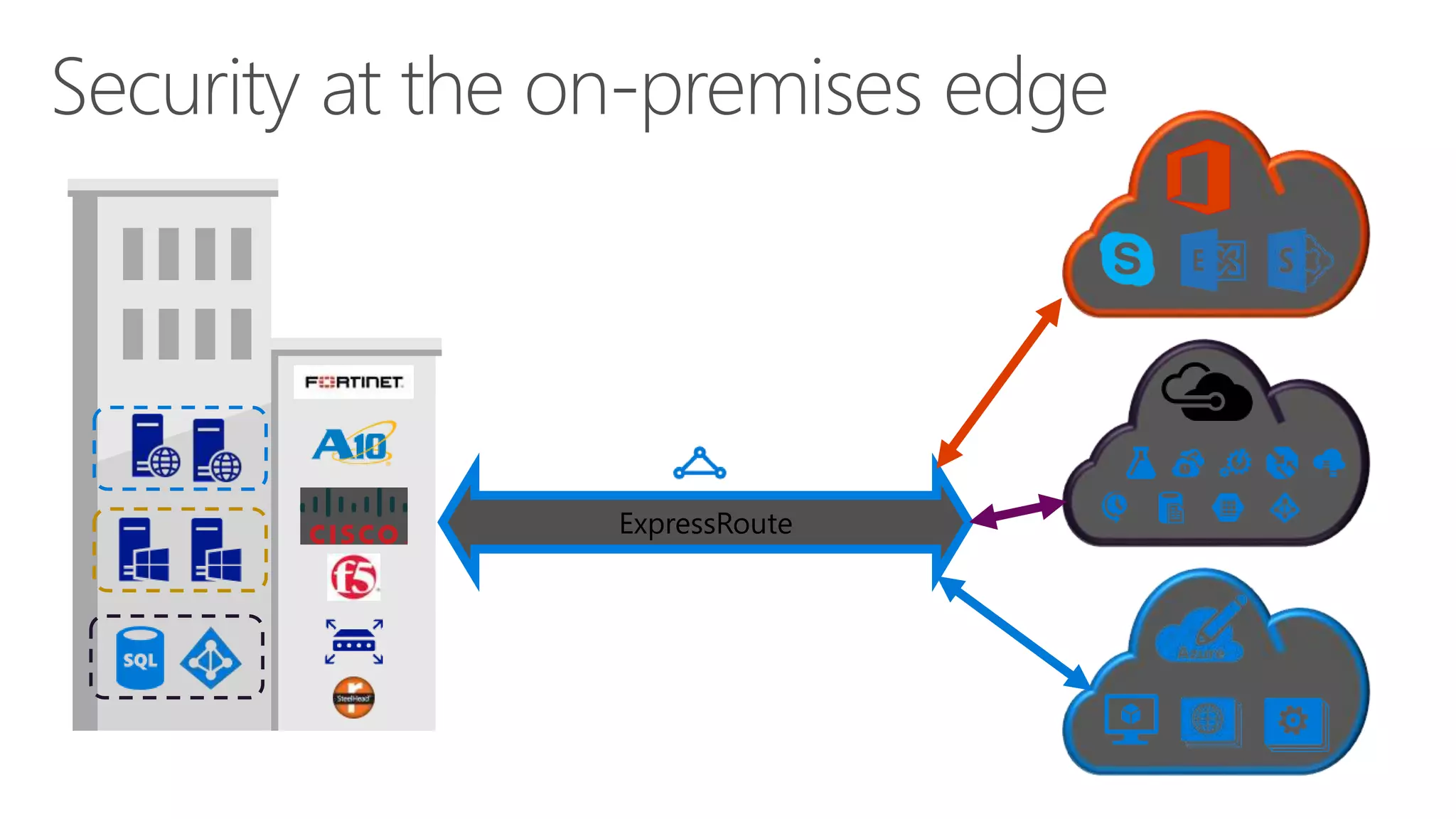

- 13.
- 14. Dev/test lab BI/bigdata Media Productivity apps Storage, backup, and recovery Hybrid apps

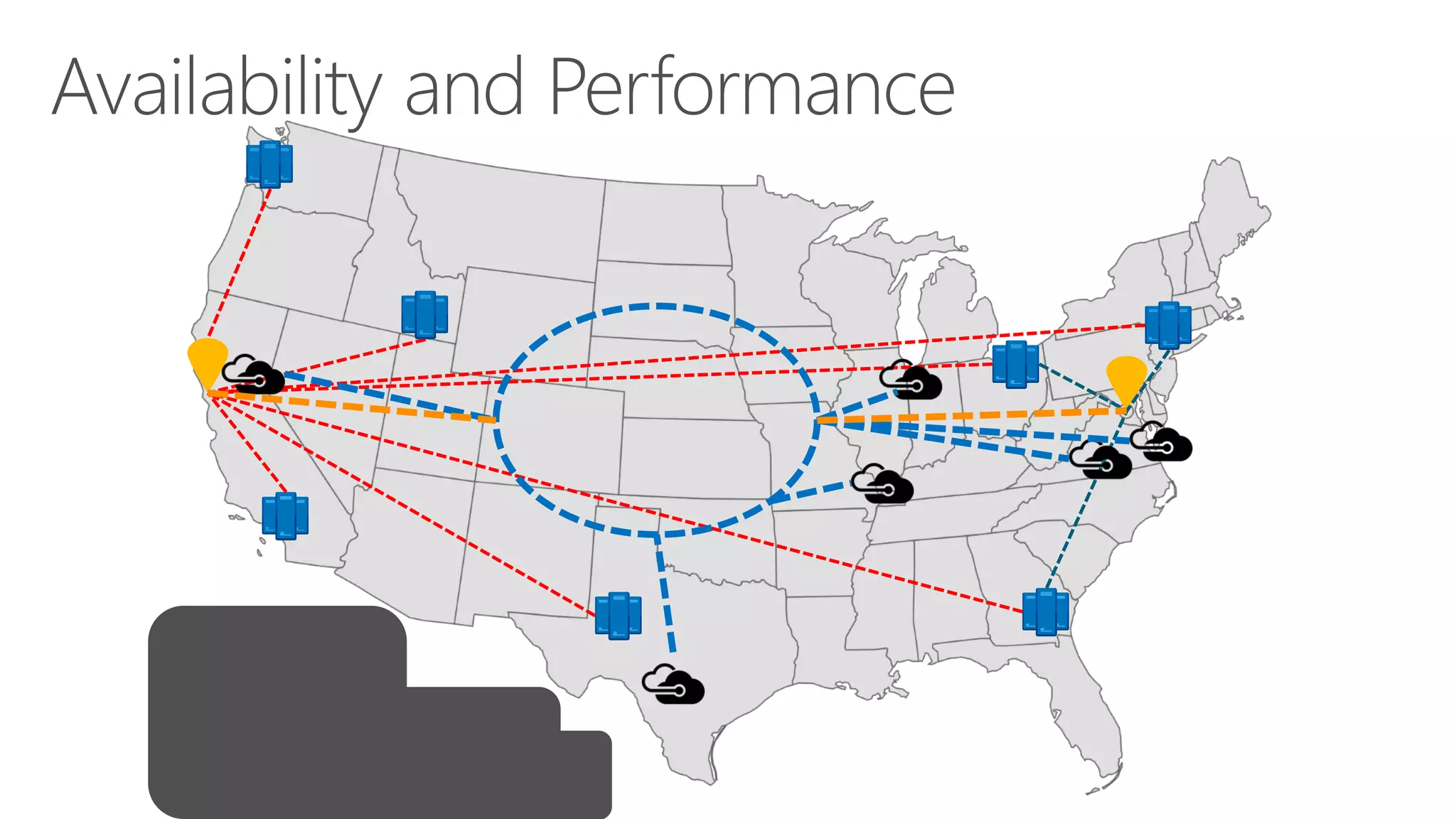

- 16. • Reach anyMicrosoft region from any continent with ExpressRoute premium add- on • Traffic carried over the Microsoft core network • You choose the optimal path – traffic through NSP or through the Microsoft core network

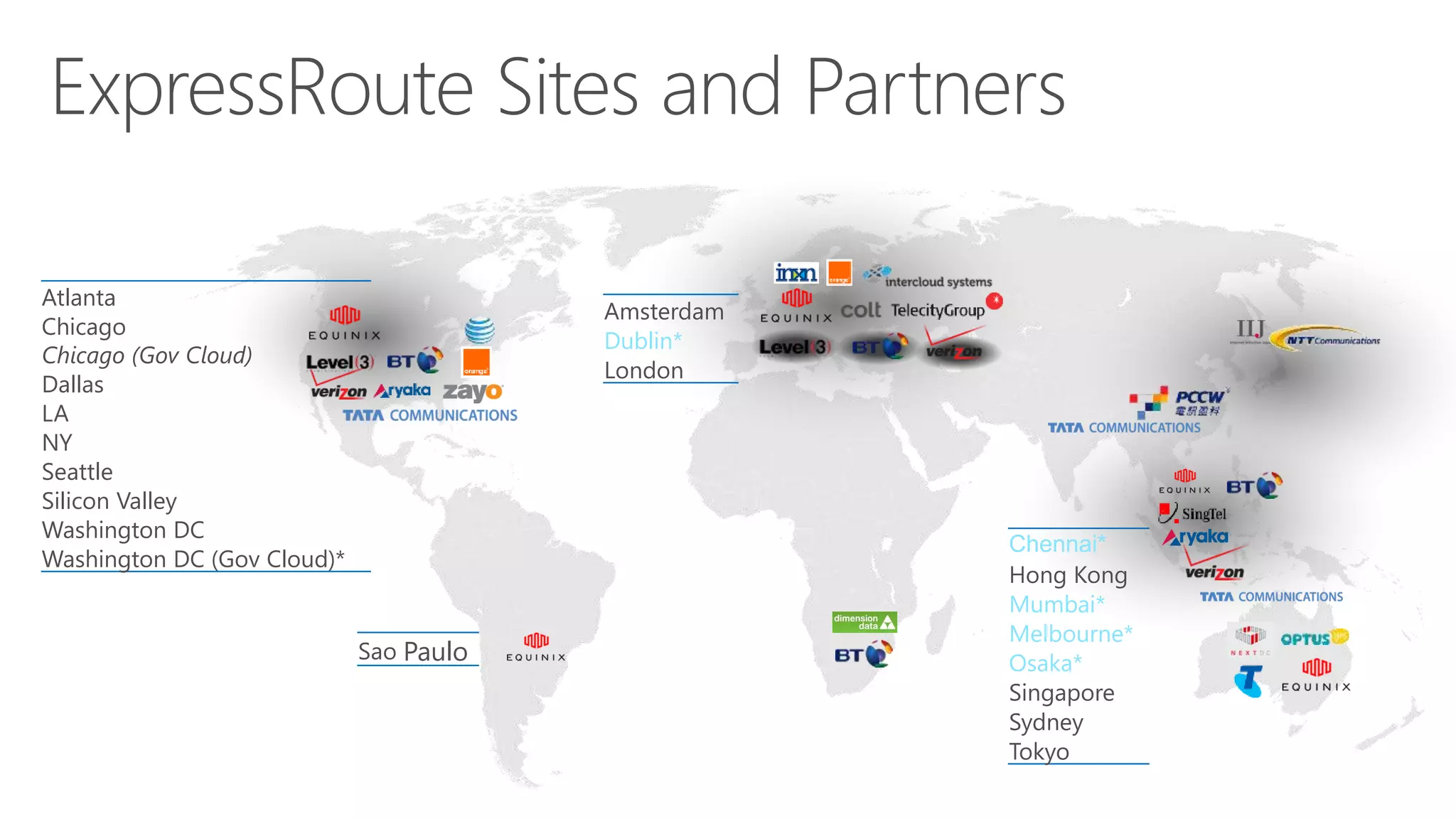

- 17. ExpressRoute Sites andPartners Atlanta Chicago Chicago (Gov Cloud) Dallas LA NY Seattle Silicon Valley Washington DC Washington DC (Gov Cloud)* Sao Paulo Amsterdam Dublin* London Chennai* Hong Kong Mumbai* Melbourne* Osaka* Singapore Sydney Tokyo

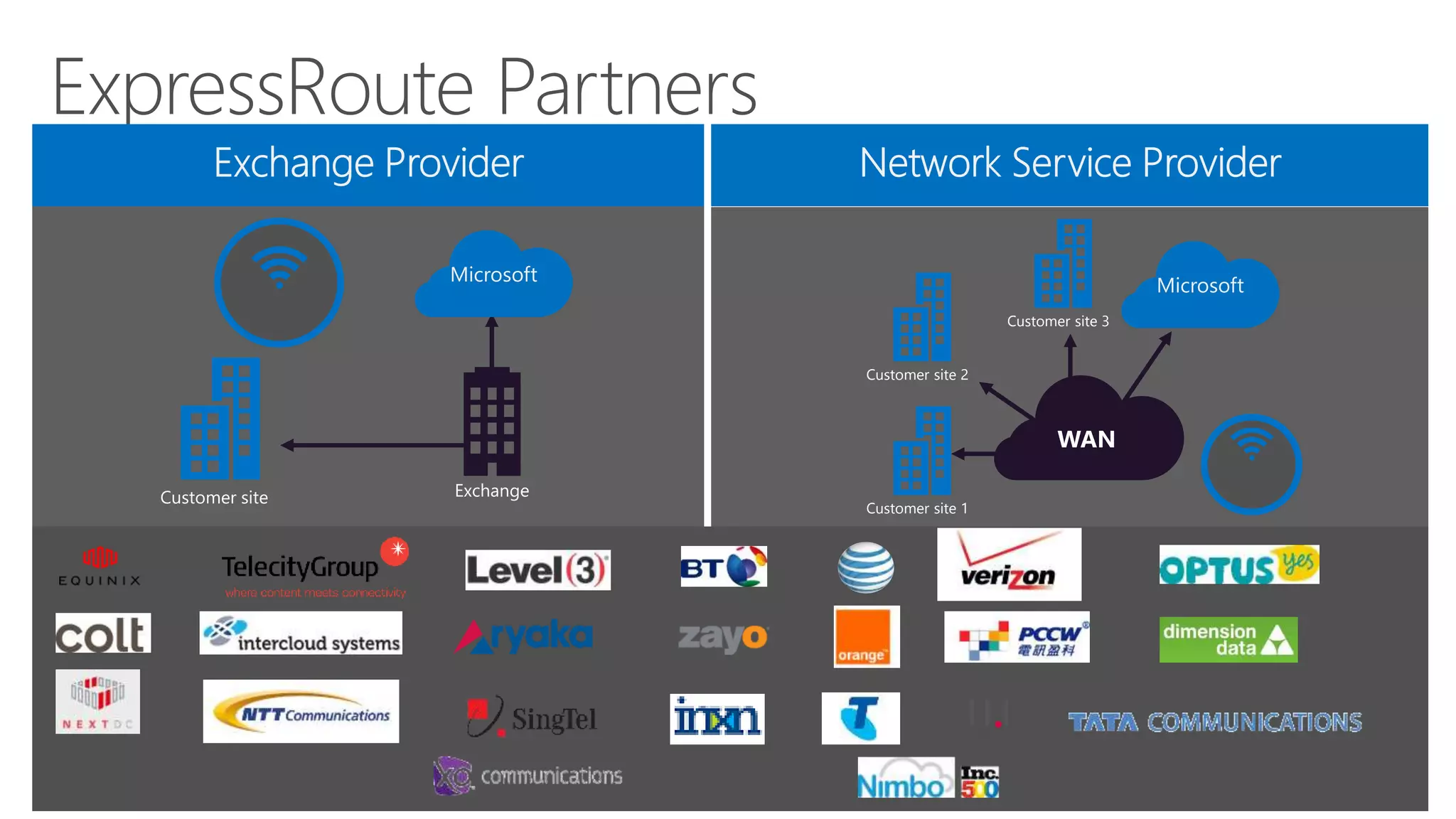

- 18. Exchange Public internet Customer site Microsoft Customer site1 Customer site 2 Customer site 3 Public internet Microsoft
- 19. • BT –NSP Model using IP Connect • Colt – EXP & NSP using Colt Ethernet & Colt IPVPN • Equinix – EXP using Cloud Exchange (Aggregation to other networks/channel) • Intercloud – EXP using Cloud Gate • Level 3 – EXP & NSP using Communications Exchange & IPVPN • Orange – NSP using VPN Galerie • Telecity – EXP using Cloud IX (Aggregation to other networks/channel) • Tata Communications – NSP using IZO Private • Verizon – NSP using Secure Cloud Interconnect (Private & Public)

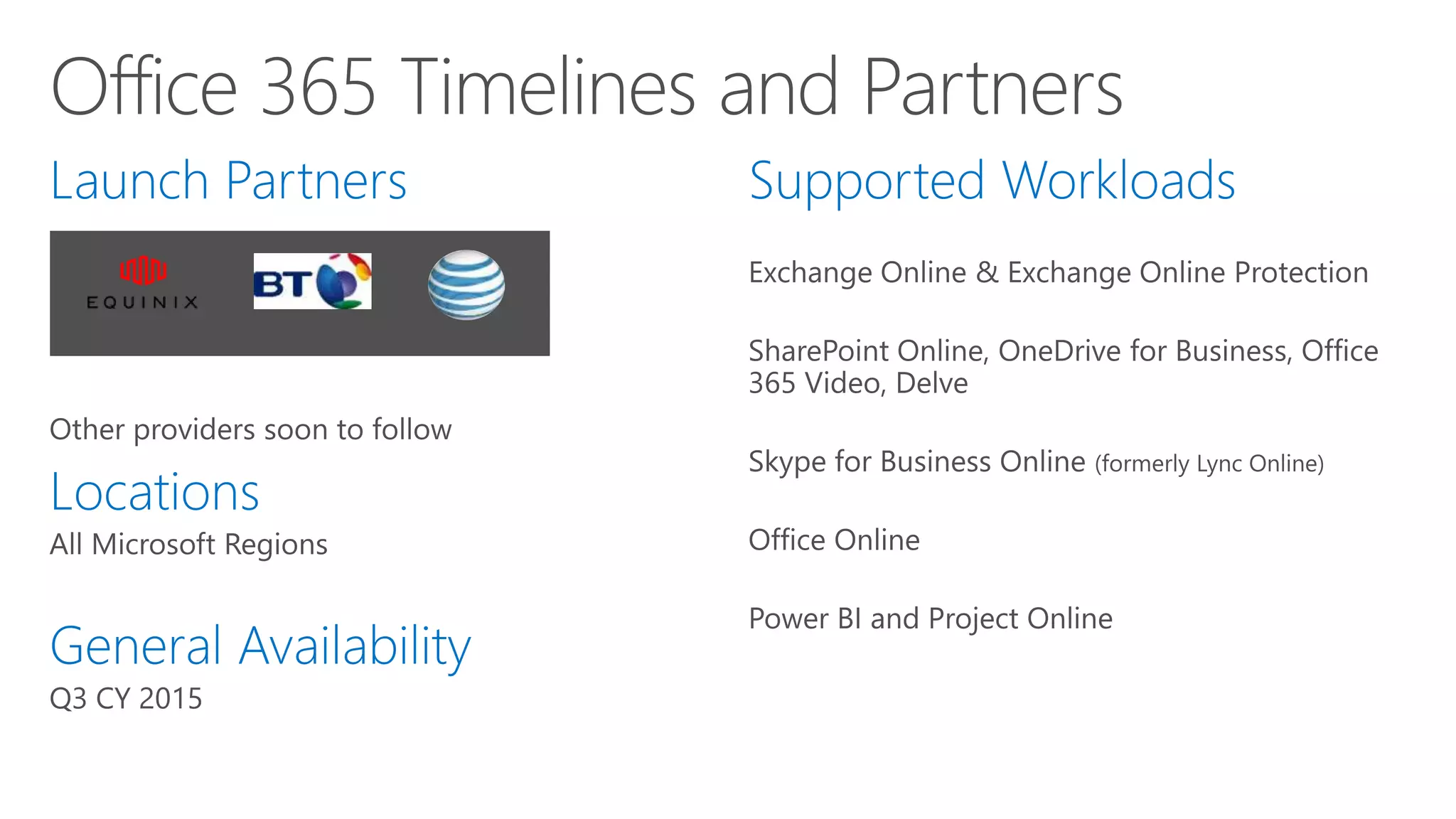

- 20.
- 21. Customer Workload ResultsBusiness Value Used Azure PaaS tools to obtain the servers, networks, and storage to develop its Virtual Network and Innov8 smart-meter register. Reduced time required to validate the credentials of incoming meter data, thereby enhancing the battery life of Innov8 devices in the field. • Enhanced device battery life • Enabled worker productivity • Higher Security • Enabled compliance • Reduced downtime • Reduced costs • Lower latency Storage connected customer-premises European datacenters to Azure storage impacting mission critical workloads. Hybrid cloud services allows customers to use Azure IaaS services in combination with their own managed storage. NetApp creates storage systems and software not hosted inside Azure and needed a high fast, highly secure speed connection (Azure ExpressRoute) between Equinix and Azure datacenters. More reliability for their customers: faster speeds, lower latencies, and higher security. Secure, high performance integration. Application hosting Azure-hosted applications through the Equinix London datacenter connect customerusing a 200-Mbps (megabits per second) connection. Harper Collins was able to deliver consistent application performance to London-based employees while reducing IT costs. Auto-scale capabilities in Azure to automatically spin up new virtual machines and add capacity without having to buy new hardware, Accelera customers can quickly expand remote work environments enabling hybrid clouds. Storage & Application hosting: Zadara creates a virtual local area network (VLAN) that lets it connect to the customer’s VLAN in Azure. Zadara Storage is able to greatly expand its business with Microsoft Azure customers and help those customers move their highest performance applications into the cloud. Real results from customers who use Microsoft Azure ExpressRoute to connect Azure and local datacenters.
- 23. Introduction: http://www.windowsazure.com/en-us/services/expressroute/ ExpressRoute TechnicalOverview: http://azure.microsoft.com/en-us/documentation/articles/expressroute-introduction/ FAQ: http://azure.microsoft.com/en-us/documentation/articles/expressroute-faqs/ ExpressRoute Providers and Locations: https://azure.microsoft.com/en-us/documentation/articles/expressroute-locations/ Pricing: http://azure.microsoft.com/en-us/pricing/details/expressroute/ Blog Post ExpressRoute: http://azure.microsoft.com/blog/2014/06/02/expressroute-an-overview/ How to? NSP Model: https://azure.microsoft.com/en-us/documentation/articles/expressroute-configuring-nsps/ EXP Model: https://azure.microsoft.com/en-us/documentation/articles/expressroute-configuring-exps/ Powershell reference: https://msdn.microsoft.com/library/azure/dn683813.aspx Ignite Announcements: http://azure.microsoft.com/blog/2015/05/05/new-networking-capabilities-for-a-consistent-connected-and- hybrid-cloud/ Office 365 Announcement: http://blogs.office.com/2015/03/17/announcing-azure-expressroute-connectivity-to-office-365/ ER Premium: http://azure.microsoft.com/en-us/updates/general-availability-azure-expressroute-premium-add-on-package/ Ignite Sessions: Ignite 2015 (ExpressRoute Session): http://channel9.msdn.com/Events/Ignite/2015/BRK2481 Ignite 2015 (An Overview of Microsoft Azure Networking Capabilities): http://channel9.msdn.com/Events/Ignite/2015/BRK2456 E-Book Reference (Somewhat outdated): http://download.microsoft.com/download/0/F/B/0FBFAA46-2BFD-478F-8E56- 7BF3C672DF9D/Microsoft%20Azure%20ExpressRoute.pdf Network Security Groups: http://azure.microsoft.com/blog/2014/11/04/network-security-groups/ Azure Networking Patterns and Practices: http://blogs.technet.com/b/privatecloud/archive/2014/12/02/modern-datacenter- architecture-patterns-infrastructure.aspx
- 26. Interserve plc isa multinational support service and construction company based in the UK, with revenue of £2.1 billion and a workforce of more than 75,000 people worldwide.The company is headquartered in Reading, Berkshire Volume of data transfer and QoS. What we demonstrated to interserve was that by using express route they were able to leverage the full capabilities of Azure as if they had built it in their own datacentres on their own network without the significant capital investment. It would allow them to separate and control business critical data from internet traffic and ensure great performance even at heavy load times like lunchtime for internet based traffic. It's very hard to put an SLA on the internet whereas express route can be monitored and scaled.
Editor's Notes
- #4 <First 2 slides in this 3-slide sequence are needed for presenting. Third slide remains hidden unless you are printing. Make any text changes across all 3 slides>. Objective: Software Defined Networking is able to provide, Flexible, Reliable networking that inturn provides support for application and workload services. Key talking points: By virtualizing the Network we can achieve many benefits. Flexibility come in the form of the speed at which both physical and virtual network components can be designed and configured. The flexibility is provided by being able to move away from the requirement to modify setting on individual devices during setup or configuration changes. As network span across both physical location and various sets of devices a key component comes from the ability to centrally manage the end to end environment Virtual network environments need to provide this flexibility without sacrificing performance, this is achieved by building scale into the virtual network components as well as leveraging key hardware capabilities to ensure optimized performance As datacenters start to leverage the rich capabilities and services available through a cloud environments such as Azure. We will want to provide various connectivity options which can be adjust for both throughput and security considerations.
- #5 Objective: Show how the capabilities in Windows Server enable connectivity between sites and to Azure Key talking points To leverage the capabilities of Azure we need to provide a was to connect in a way that extends your datacenter, and provides various controllable levels of network performance and security. Slide Message: Extending your datacenter into Azure can be done through two alternate mechanisms. One of the ways is to have traffic traverse across the public internet (using various encryption technologies) and many different performance levels based on bandwidth allowances. The other way is to provide a dedicated network in which the security and throughput can be managed and audited fully from one end of the connection to the other. ExpressRoute gives you a fast and reliable connection to Azure making it suitable for scenarios like periodic data migration, replication for business continuity, disaster recovery and other high availability strategies
- #11 ExpressRoute for Office 365 will include both inbound and outbound scenarios.
- #12 Slide 13: Reimagine networking When we look at datacenter transformation, networking is an area with huge potential. Today’s networks can be rigid, meaning that they make it difficult to move workloads within the infrastructure, and network operations involve high levels of manual processes. As a result, one of the biggest trends today is software-defined networking. What exactly does that mean? A big part of SDN is network virtualization, a capability that we offer today in Windows Server 2012. Network virtualization does for the network what server virtualization did for compute. It allows you to use software to manage a diverse set of hardware as a single, elastic resource pool. If you then add in additional management capabilities through software, you get a very flexible approach. And the benefits are very similar for networking. With compute capacity, we see with the private cloud model how virtualization gives you increased flexibility in moving workloads and allocating capacity. You get greater efficiency when you have this increased ability to balance the load across your existing resources. With Windows Server 2012 R2 and System Center 2012 R2 Virtual Machine Manager, your network becomes a pooled resource that can be defined by software, managed centrally through automation, and extended beyond your datacenter. Networking today is complicated because the underlying physical network hardware such as ports, switches, and routers tends to require manual configuration. Network operations are often complex since the management interfaces to configure and provision network devices tend to be proprietary; in many cases, network configuration needs to happen on a per-device basis, making it difficult to maintain an end-to-end operational view of your network. With a virtualized network infrastructure, you can control the building of the network, configuration, and traffic-routing using software. You can manage your network infrastructure as a unified whole, and that allows you to do three very important things: you can isolate what you need to isolate, you can move what you need to move, and you can build connections between your datacenter and cloud resources. Isolate: So let’s first talk about isolation. We’ve talked a lot about the importance of a unified resource pool, but there are many reasons why you might want to create divisions or partitions within that pool. For example, you might want to separate individual departments. As companies increasingly rely on central datacenters to support global operations, you might also want to separate geographical regions. Today, some companies create separate areas for physical servers, designated to particular geos, within the datacenter. But that isn’t a very efficient usage model, and it doesn’t give you many options if that set of servers experiences problems. With network virtualization, or software-defined networking, you can create boundaries within the datacenter to enable multi-tenancy and keep workloads isolated from each other without placing them in separate hardware pools. What else can you do with a virtualized network infrastructure? Move: In the past, individual workloads were pretty tightly coupled to the underlying physical network infrastructure. That meant that moving workloads within the datacenter required extensive manual reconfiguration. Network virtualization lets you move workloads even from one datacenter to another because the control plane for the network is all handled through software. We have a number of features in Windows Server 2012 and Windows Server 2012 R2 that combine to make that process even easier. Connect to clouds: And finally, software-defined networking lets you connect easily to clouds outside your datacenter. It allows you to treat cloud resources as an extension of your own infrastructure—so in a way, you could say that SDN and network virtualization are the keys to hybrid. That’s why we continue to invest so heavily in this area, and that’s why we offer all of these features in the box.

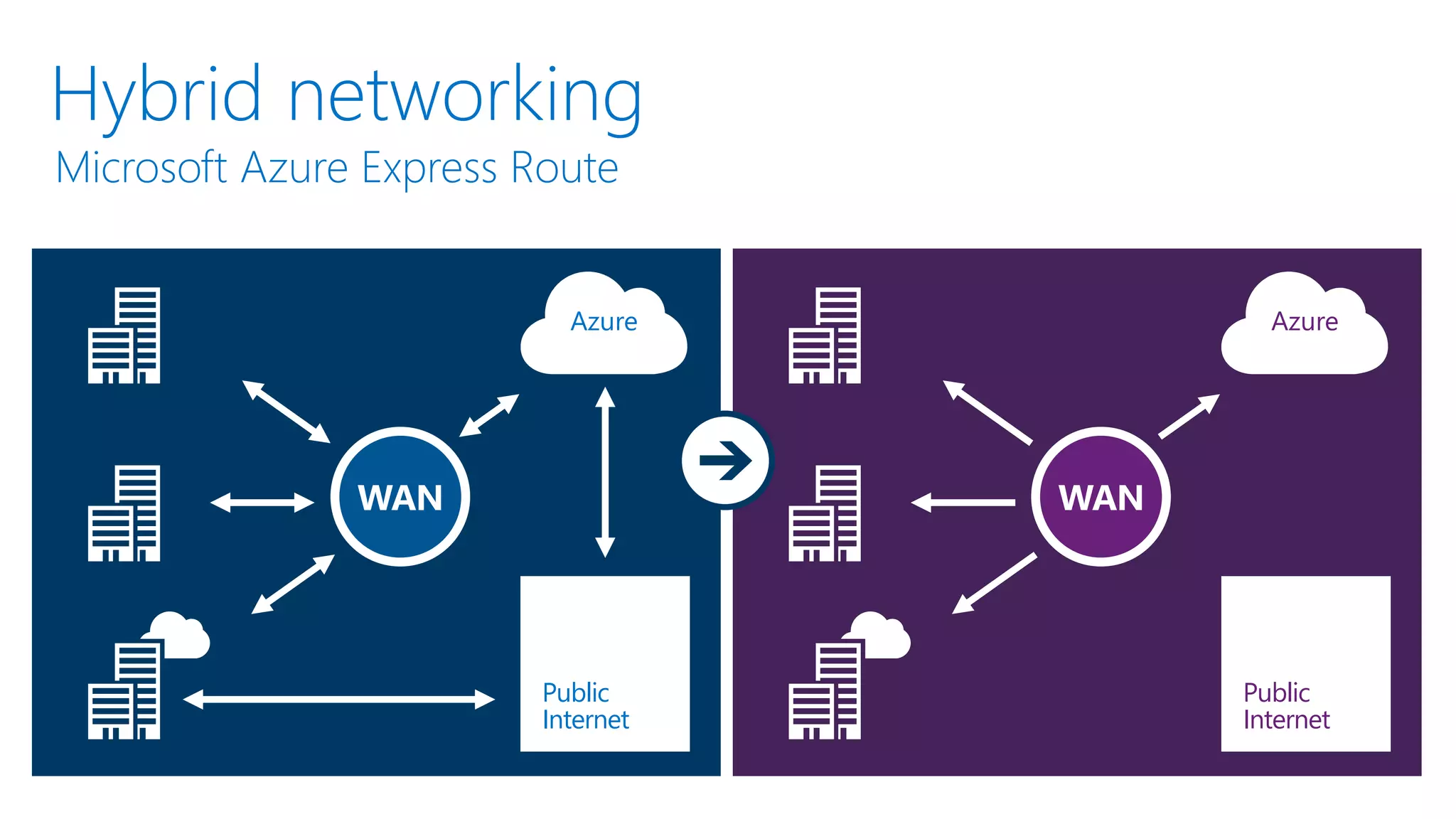

- #13 Slide 30: Hybrid networking Express Route: connect directly to Azure from your datacenter, without going through the public internet. Azure ExpressRoute enables you to create private connections between Azure datacenters and infrastructure that’s on your premises or in a colocation environment. ExpressRoute connections do not go over the public Internet, and offer more reliability, faster speeds, lower latencies and higher security than typical connections over the internet. In some cases, using ExpressRoute connections to transfer data between on-premises and Azure can also yield significant cost benefits. With ExpressRoute, you can establish connections to Azure at an ExpressRoute location (Exchange Provider facility) or directly connect to Azure from your existing WAN network (such as a MPLS VPN) provided by a network service provider.
