Azure Automation and Update Management

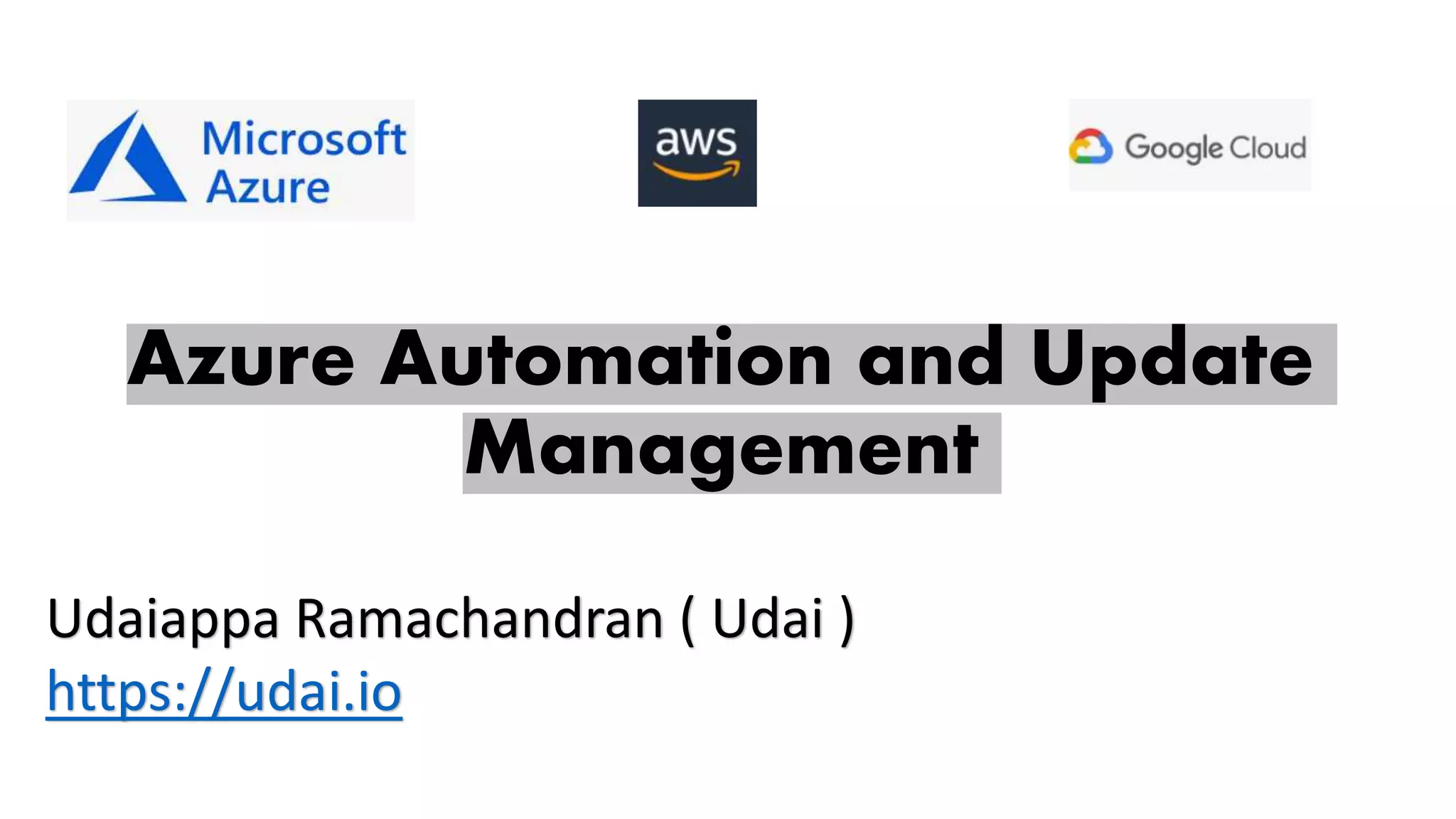

- 1. Azure Automation andUpdate Management Udaiappa Ramachandran ( Udai ) https://udai.io

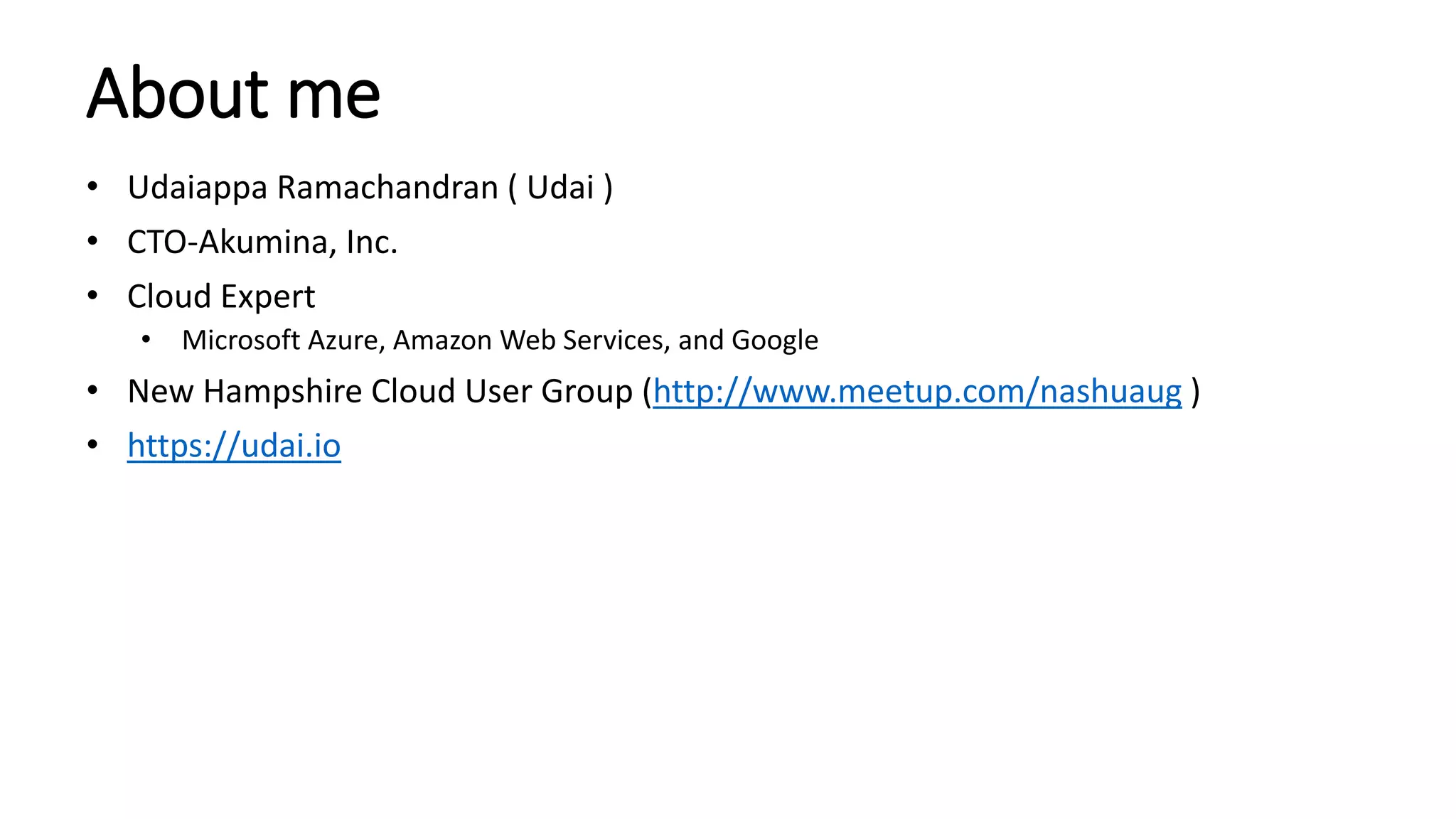

- 2. About me • UdaiappaRamachandran ( Udai ) • CTO-Akumina, Inc. • Cloud Expert • Microsoft Azure, Amazon Web Services, and Google • New Hampshire Cloud User Group (http://www.meetup.com/nashuaug ) • https://udai.io

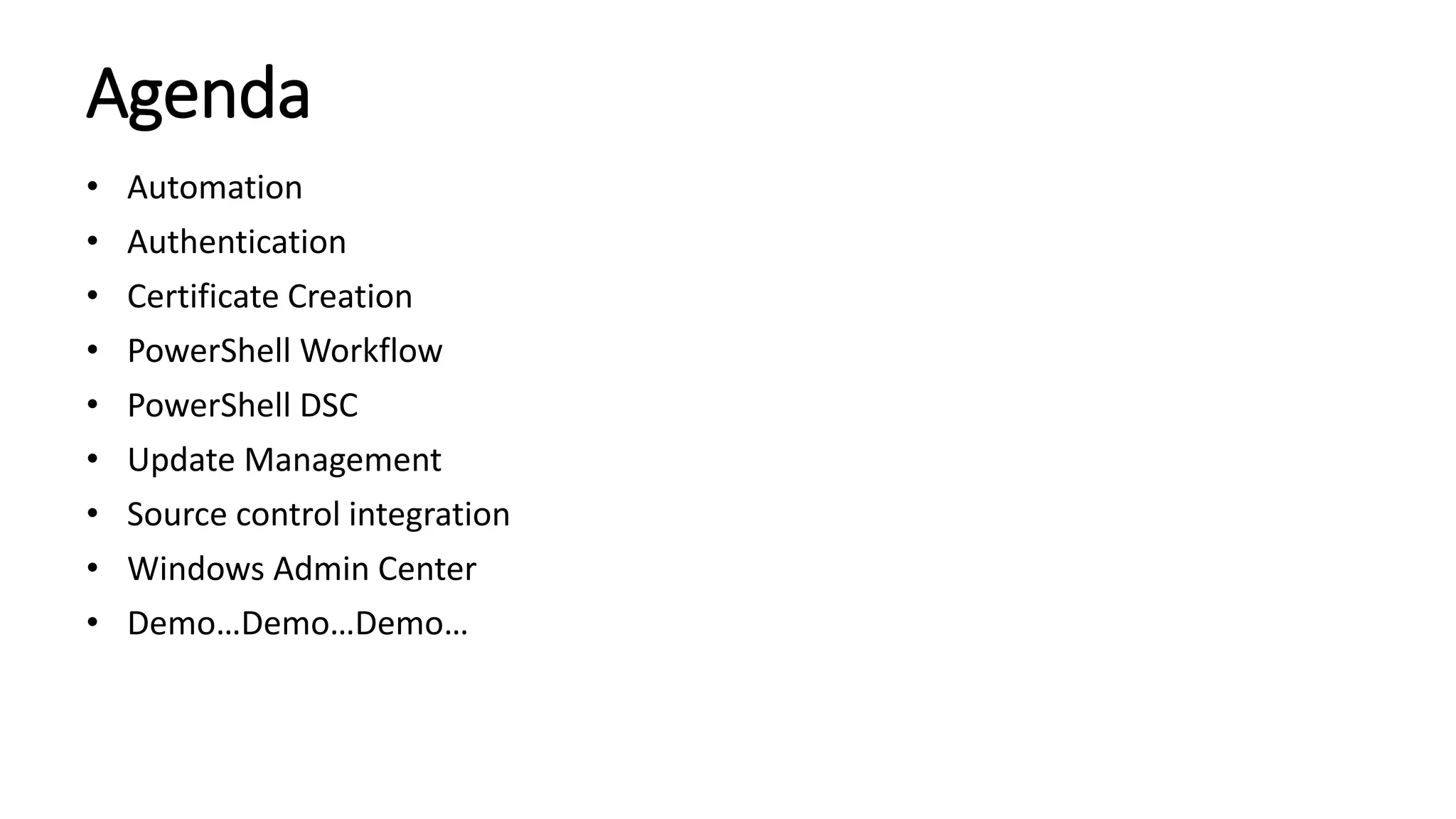

- 3. Agenda • Automation • Authentication •Certificate Creation • PowerShell Workflow • PowerShell DSC • Update Management • Source control integration • Windows Admin Center • Demo…Demo…Demo…

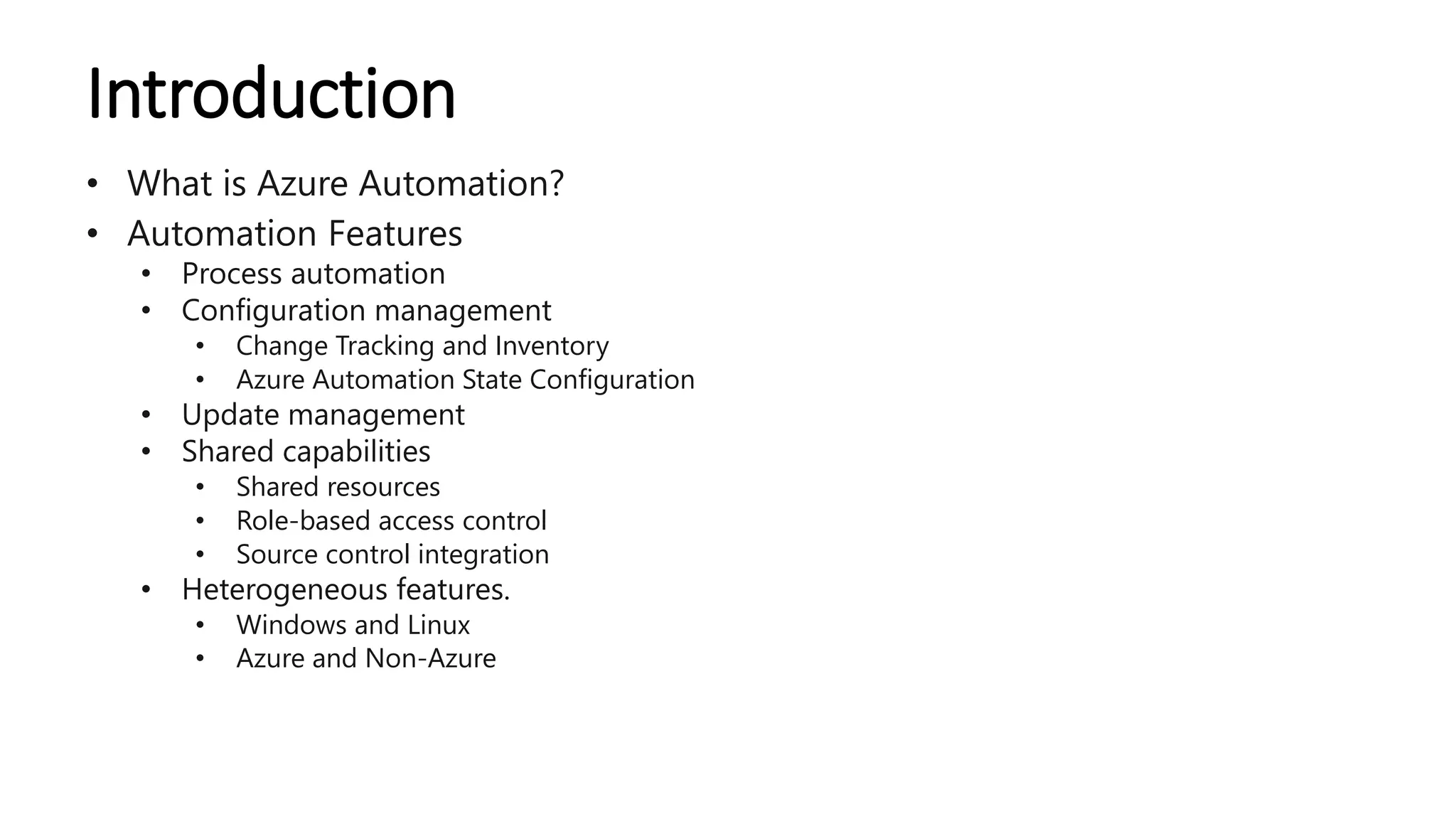

- 4. Introduction • What isAzure Automation? • Automation Features • Process automation • Configuration management • Change Tracking and Inventory • Azure Automation State Configuration • Update management • Shared capabilities • Shared resources • Role-based access control • Source control integration • Heterogeneous features. • Windows and Linux • Azure and Non-Azure

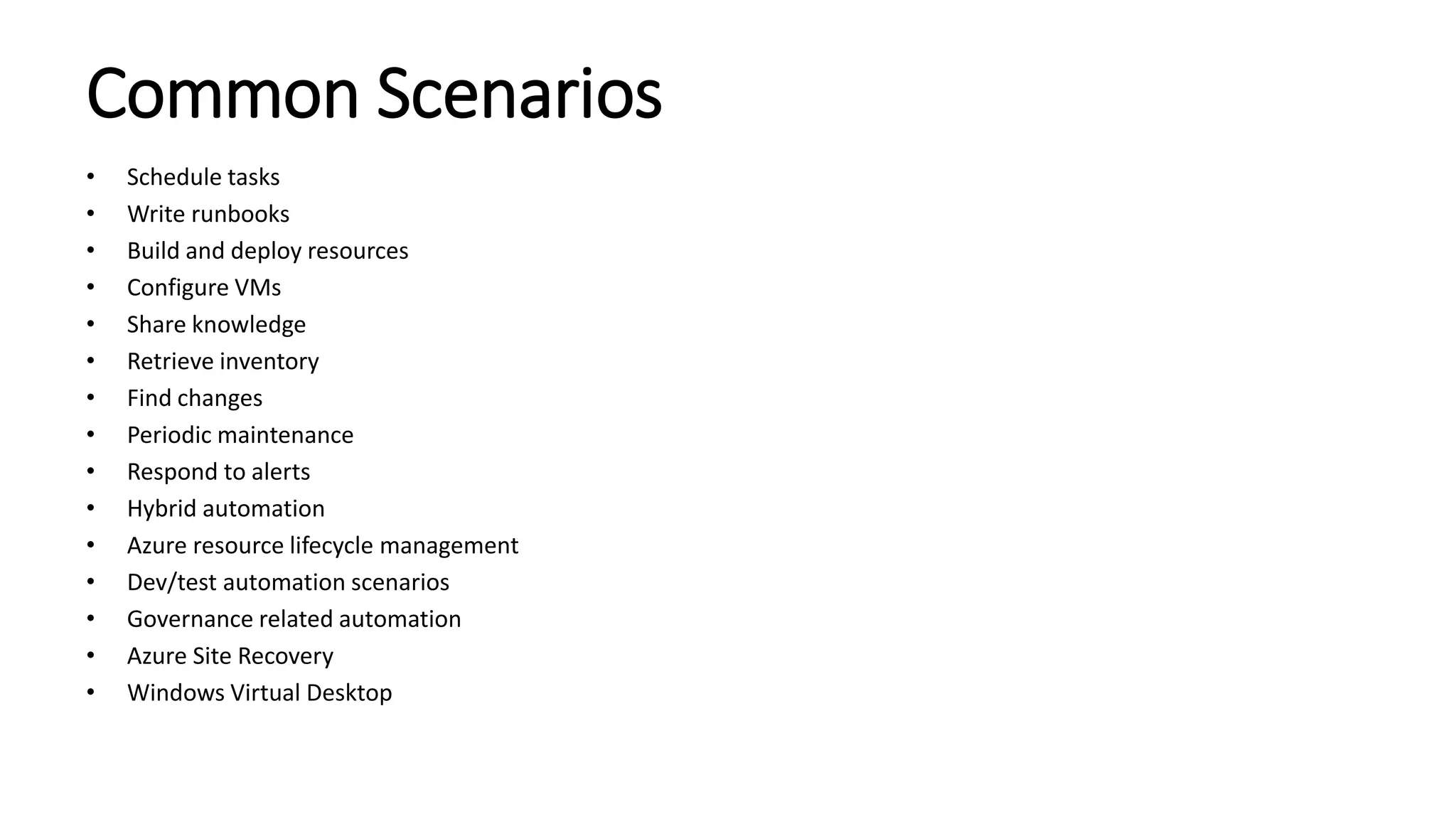

- 5. Common Scenarios • Scheduletasks • Write runbooks • Build and deploy resources • Configure VMs • Share knowledge • Retrieve inventory • Find changes • Periodic maintenance • Respond to alerts • Hybrid automation • Azure resource lifecycle management • Dev/test automation scenarios • Governance related automation • Azure Site Recovery • Windows Virtual Desktop

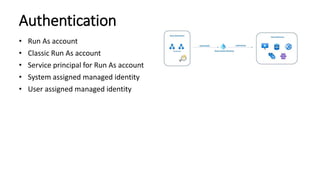

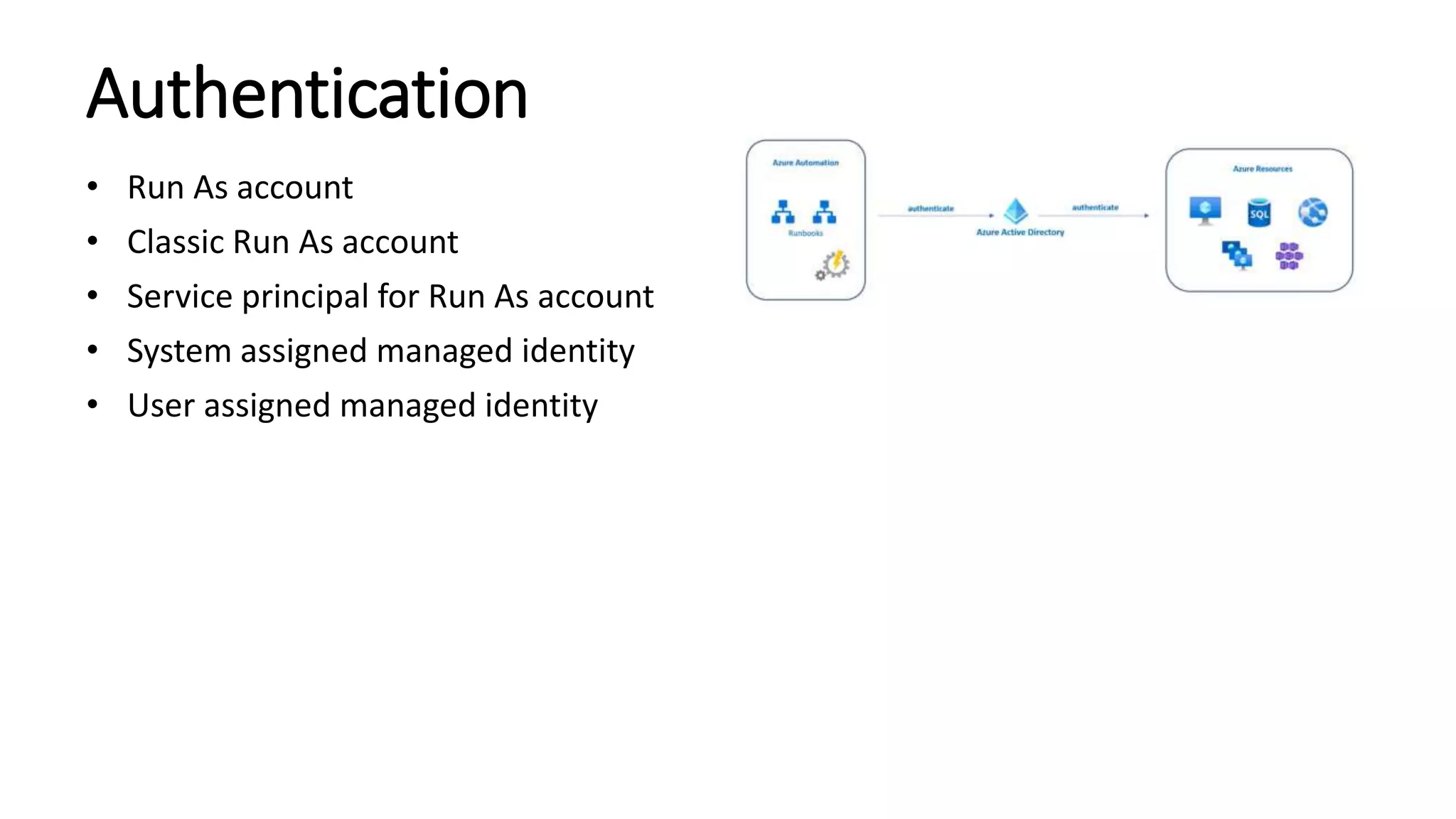

- 6. Authentication • Run Asaccount • Classic Run As account • Service principal for Run As account • System assigned managed identity • User assigned managed identity

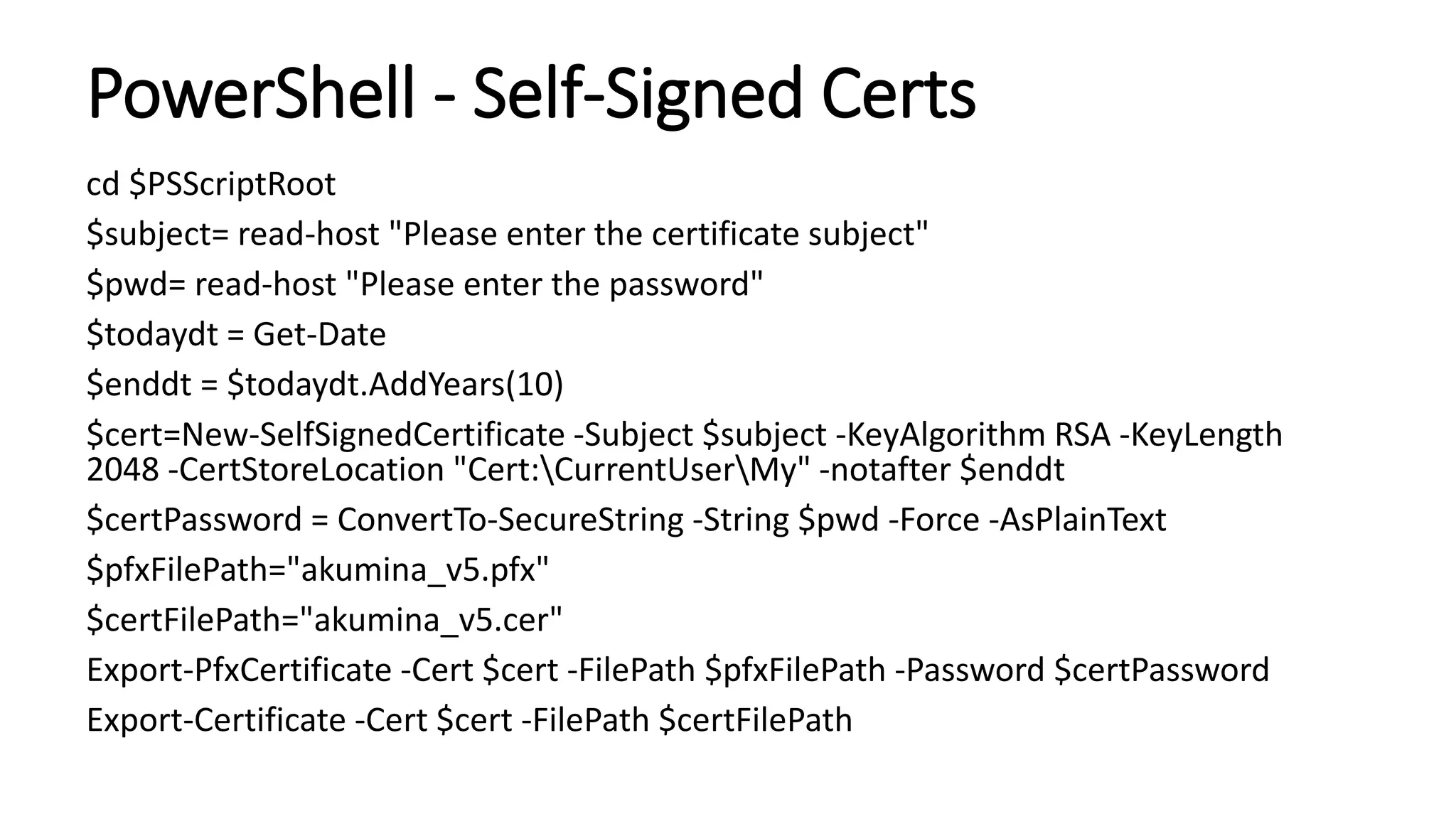

- 7. PowerShell - Self-SignedCerts cd $PSScriptRoot $subject= read-host "Please enter the certificate subject" $pwd= read-host "Please enter the password" $todaydt = Get-Date $enddt = $todaydt.AddYears(10) $cert=New-SelfSignedCertificate -Subject $subject -KeyAlgorithm RSA -KeyLength 2048 -CertStoreLocation "Cert:CurrentUserMy" -notafter $enddt $certPassword = ConvertTo-SecureString -String $pwd -Force -AsPlainText $pfxFilePath="akumina_v5.pfx" $certFilePath="akumina_v5.cer" Export-PfxCertificate -Cert $cert -FilePath $pfxFilePath -Password $certPassword Export-Certificate -Cert $cert -FilePath $certFilePath

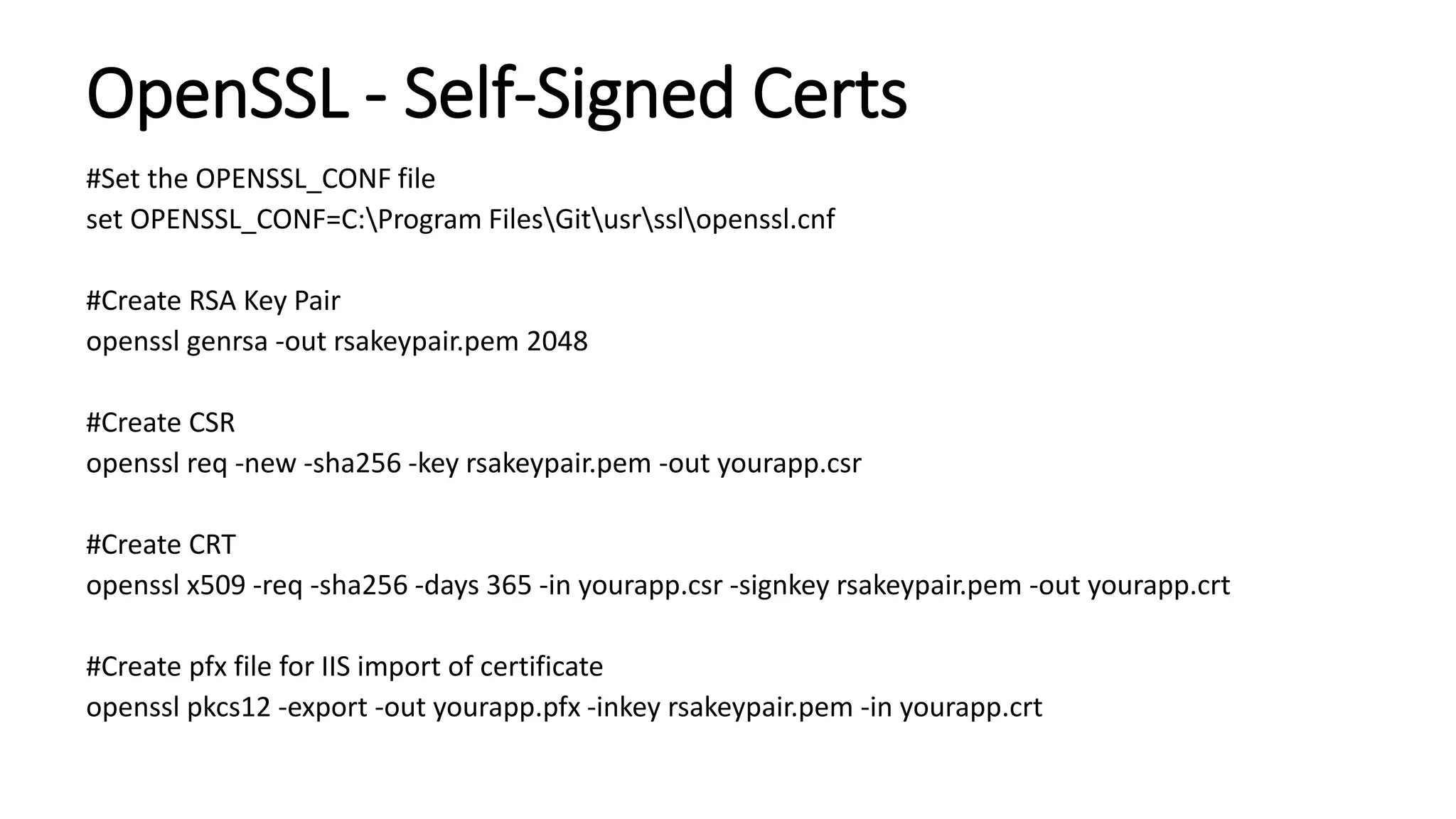

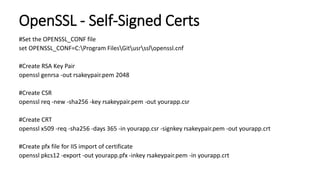

- 8. OpenSSL - Self-SignedCerts #Set the OPENSSL_CONF file set OPENSSL_CONF=C:Program FilesGitusrsslopenssl.cnf #Create RSA Key Pair openssl genrsa -out rsakeypair.pem 2048 #Create CSR openssl req -new -sha256 -key rsakeypair.pem -out yourapp.csr #Create CRT openssl x509 -req -sha256 -days 365 -in yourapp.csr -signkey rsakeypair.pem -out yourapp.crt #Create pfx file for IIS import of certificate openssl pkcs12 -export -out yourapp.pfx -inkey rsakeypair.pem -in yourapp.crt
- 9. Desired State Configuration •Configuration Management service • Create and manage PowerShell scripts for state configuration • Allows configuration management of workloads in Azure or Non-Azure • Management of DSC Artifacts • PowerShell DSC pull/reporting service hosted in the cloud • PowerShell DSC is declarative and not imperative • Authoring PowerShell DSC • Create DSC File • Compile the DSC file into Microsoft Object Format (MOF) file • Stage the DSC file for the target nodes • WMI providers implement the desired configuration as per DSC

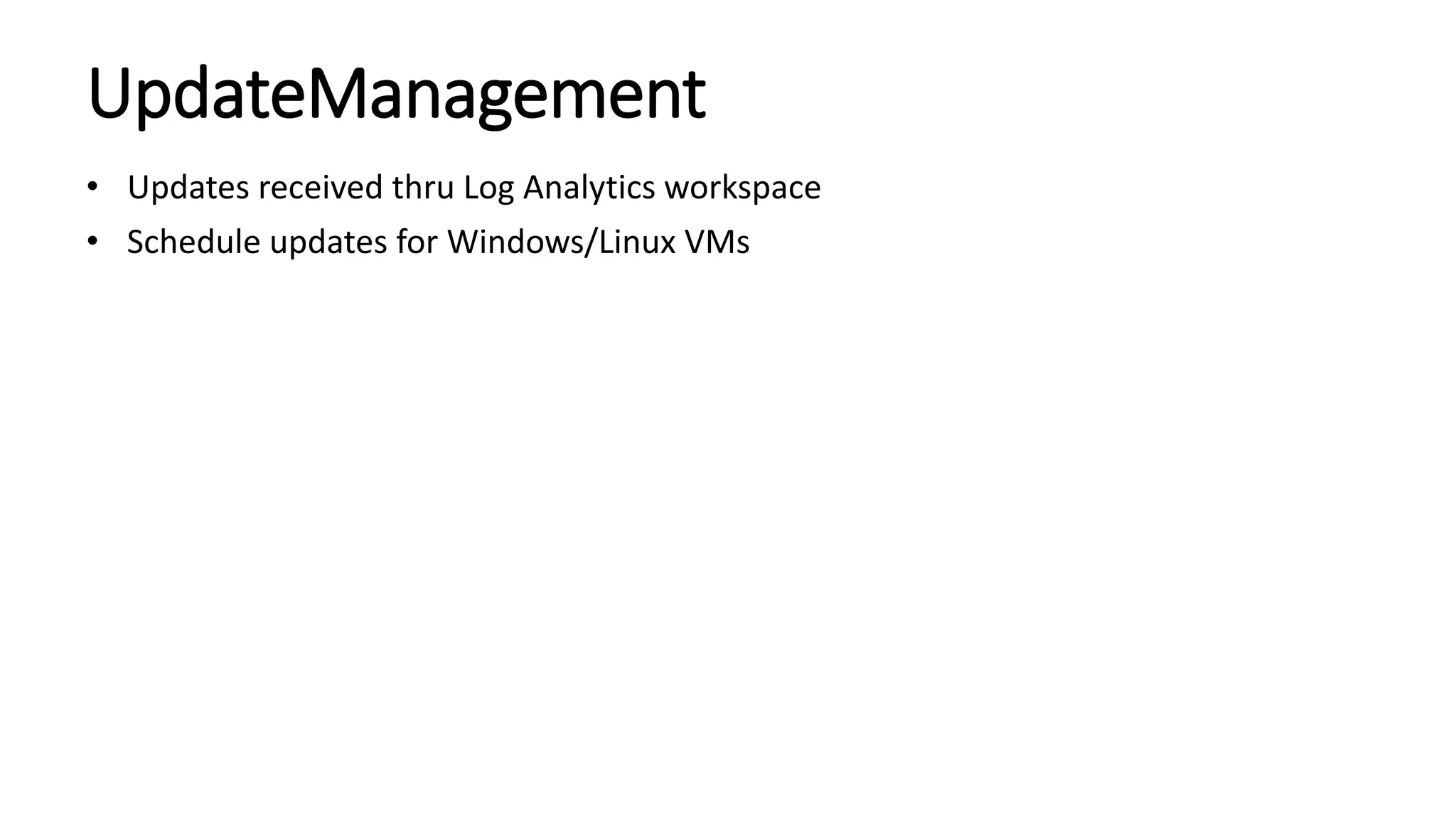

- 10. UpdateManagement • Updates receivedthru Log Analytics workspace • Schedule updates for Windows/Linux VMs

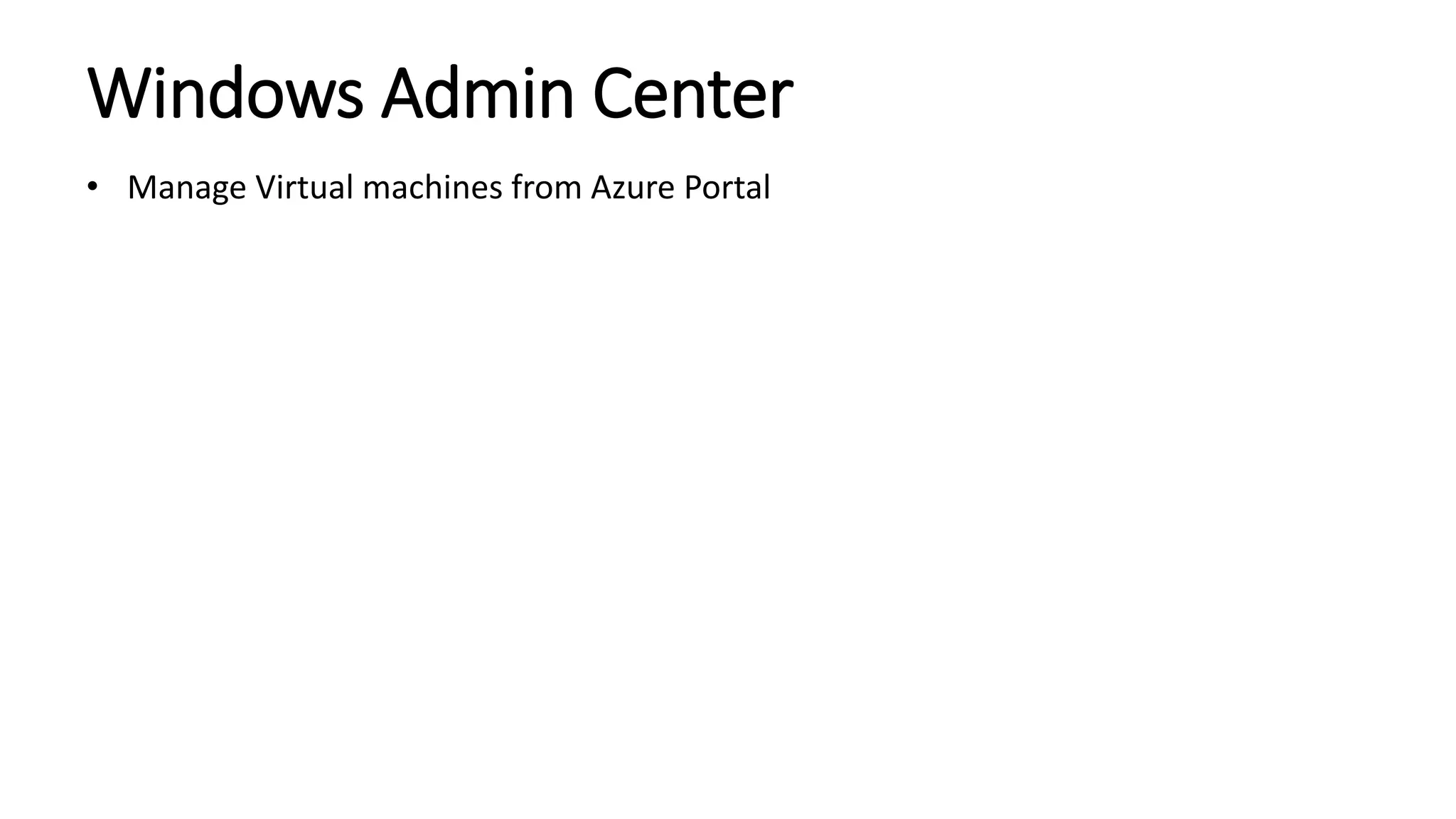

- 11. Windows Admin Center •Manage Virtual machines from Azure Portal

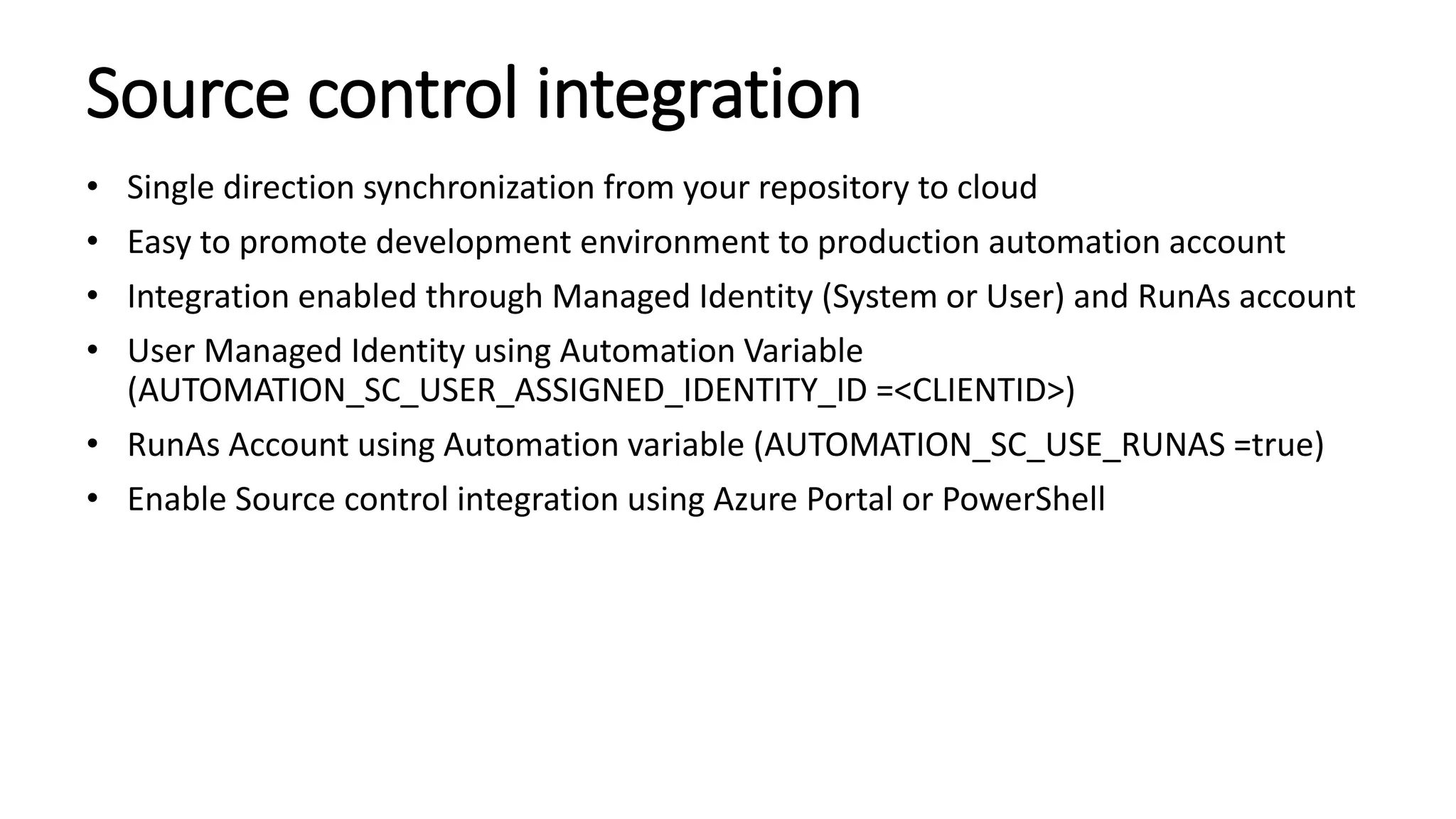

- 12. Source control integration •Single direction synchronization from your repository to cloud • Easy to promote development environment to production automation account • Integration enabled through Managed Identity (System or User) and RunAs account • User Managed Identity using Automation Variable (AUTOMATION_SC_USER_ASSIGNED_IDENTITY_ID =<CLIENTID>) • RunAs Account using Automation variable (AUTOMATION_SC_USE_RUNAS =true) • Enable Source control integration using Azure Portal or PowerShell

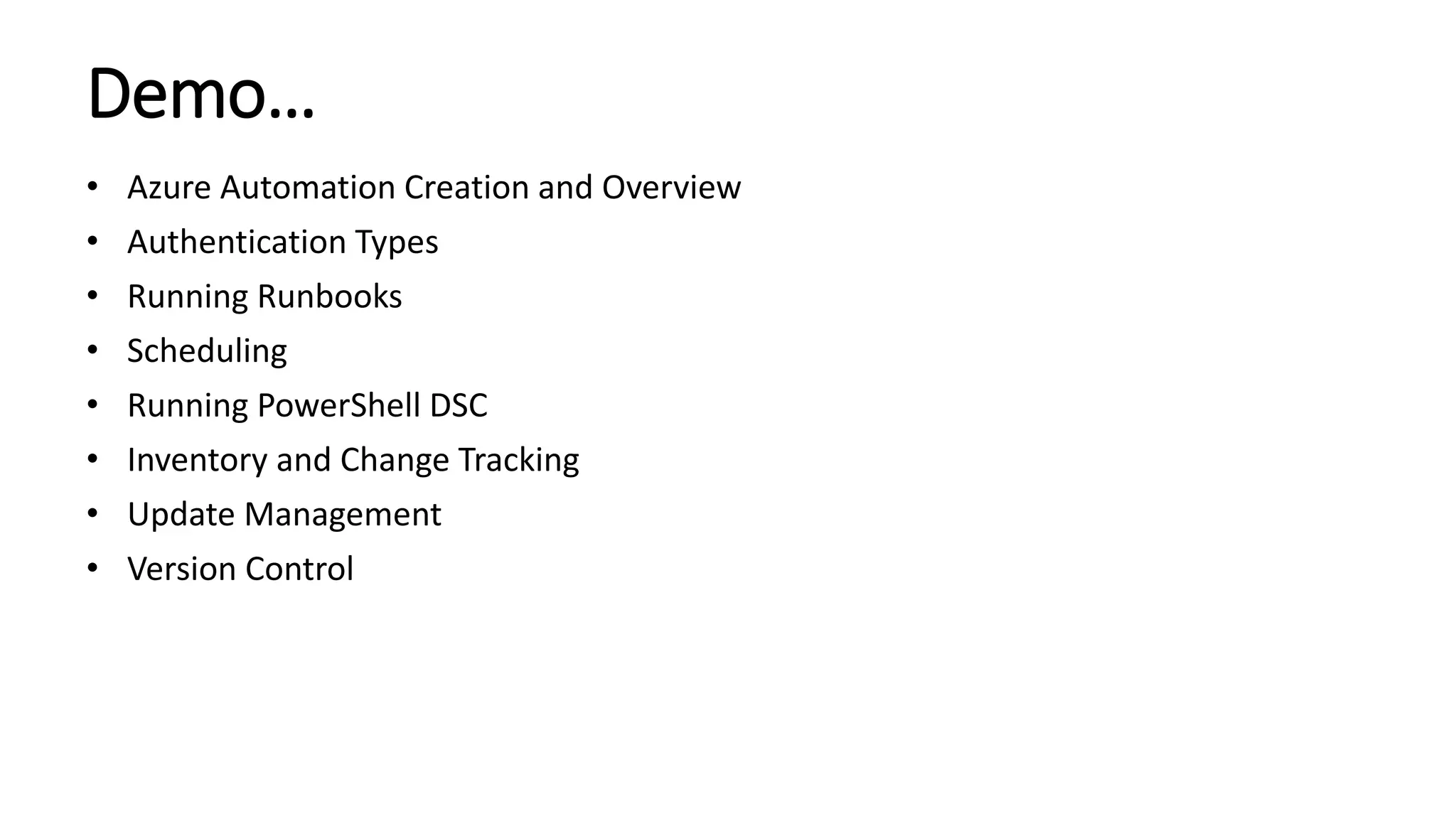

- 13. Demo… • Azure AutomationCreation and Overview • Authentication Types • Running Runbooks • Scheduling • Running PowerShell DSC • Inventory and Change Tracking • Update Management • Version Control
- 14. Reference • Azure Automation:https://docs.microsoft.com/en-us/azure/automation/ • Azure Update Management: https://docs.microsoft.com/en- us/azure/automation/update-management/overview • WSUS: https://docs.microsoft.com/en-us/azure/architecture/example- scenario/wsus/ • WSUS Package Publisher: https://github.com/DCourtel/Wsus_Package_Publisher • Preview: Patch Management: https://docs.microsoft.com/en-us/azure/virtual- machines/automatic-vm-guest-patching
Editor's Notes
- #5 What is Azure Automation? Azure automation delivers a cloud-based automation and configuration service that provides consistent management across your Azure and non-Azure environments Common Scenarios Process Automation – Orchestrate processes using graphical, powershell and Python runbooks Configuration Management – Collect inventory, Track changes, Configure desired state Update Management-Assess compliance, Schedule update installation Shared Capabilities- Role based access control, Secure, global store for variables, credentials, certificates, connections, flexible scheduling, shared modules, source control support , auditing, tags
- #6 Schedule tasks - stop VMs or services at night and turn on during the day, weekly or monthly recurring maintenance workflows. Write runbooks - Author PowerShell, PowerShell Workflow, graphical, Python 2 and 3, and DSC runbooks in common languages. Build and deploy resources - Deploy virtual machines across a hybrid environment using runbooks and Azure Resource Manager templates. Integrate into development tools, such as Jenkins and Azure DevOps. Configure VMs - Assess and configure Windows and Linux machines with configurations for the infrastructure and application. Share knowledge - Transfer knowledge into the system on how your organization delivers and maintains workloads. Retrieve inventory - Get a complete inventory of deployed resources for targeting, reporting, and compliance. Find changes - Identify and isolate machine changes that can cause misconfiguration and improve operational compliance. Remediate or escalate them to management systems. Periodic maintenance - to execute tasks that need to be performed at set timed intervals like purging stale or old data, or reindex a SQL database. Respond to alerts - Orchestrate a response when cost-based, system-based, service-based, and/or resource utilization alerts are generated. Hybrid automation - Manage or automate on-premises servers and services like SQL Server, Active Directory, SharePoint Server, etc. Azure resource lifecycle management - for IaaS and PaaS services. Dev/test automation scenarios - Start and start resources, scale resources, etc. Governance related automation - Automatically apply or update tags, locks, etc. Azure Site Recovery - orchestrate pre/post scripts defined in a Site Recovery DR workflow. Windows Virtual Desktop - orchestrate scaling of VMs or start/stop VMs based on utilization.
- #8 #TO READ CONTENT OF PFX FILE $outFile="akumina_v5.txt" $clearBytes = get-content $pfxFilePath -Encoding Byte [System.Convert]::ToBase64String($clearBytes)| Out-File $outFile http://kaushikghosh12.blogspot.com/2016/08/self-signed-certificates-with-microsoft.html
- #9 RSA=Rivest-Shamir-Adleman CSR=Certificate Signing Request file PEM=Privacy-Enhanced Mail (de facto file format for storing and sending ryptographic keys, certificates and other data) PFX=Personal Information Exchange http://kaushikghosh12.blogspot.com/2016/08/self-signed-certificates-with-microsoft.html Difference between makecert and openssl is that makecert does not create CSP of 24 (The value remains 1) where as openssl does when used pvk2pfx with switch –sy 24
- #10 Can be used as a report-only endpoint WMI=Windows Management Instrumentation Push Mode=Configurations are applied via the Start-DSCConfiguration PowerShell command PullMode=Configurations are stored centrally, and the nodes are configured to pole and pull the configurations from the central location
- #15 WSUS-Windows Server Update Service
