1. 1.3 MP
AA-HM1359-NM
IP BOX CAMERA
Superior Engineering Design & Sensational Image Quality
AA-HM1359-NM
IP BOX CAMERA
Features :
¡ Progressive Scan CMOS sensor with 1.3Mega Pixel Support
1/3"
¡ Than HD Resolution with 1280(H) x 960(V)
More
¡
Selectable Wide Dyanamic Range
¡ & Soft Day/Night for all 24/7 Surveillance mode
True
¡ Hardware Compression with Base Profile and MJPEG
H.264
¡ Compression Streaming H.264, MJPEG for Network, Record, Image
Dual
¡
Selectable Dual or Single Streaming Combination For simultaneously Operation
¡ Stream Support Up to Full D1 with 25 FPS
Dual
¡
Powered through Power over Ethernet(PoE) with IEEE 802.3af Standard
¡ DAY Night Vision By Mechnical Dual ICR Cut Filter
True
Support Latest Onvif S Profile
¡
Vari
¡ Low illumination 0.1Lux(Color), 0.05lux(B/W) @ F1.2
Support C/CS Mount Lens, Manual & DC IRIS Type
¡
Support 3D Digital Noise Reduction
¡
Software Compitablity with AVTRON iLITE Pro Software which support 36CH Live Viewing & Can Managed 1700CH
¡
iLITE
¡ Pro Support Local & Remote(LAN or WAN or VPN) 4CH Syncronise Playback
Auto
¡ Selecting HD or Full HD Streaming When Switching Multi Channel Preview to Single Channel Preview
Supports Auto Serch function for iLITE Pro Series IP Camera
¡
Software Support up to 20User with Multi level User Define Administrative Control rights
¡
Software Support Dual DISPLAY Monitor for Playback & E-MAP Function
¡
Software Support Alarm POP-UP With Buzzer Against Network Error, Video Loss & Montion Detection
¡
Supports E-MAP Function
¡
Software Support Direct Video Cutter from Playback Menu
¡
Snap
¡ Shot Management BY Sechedule & Event Base
Pre
¡ Alarm Video & Snap Shot Upload on FTP & Simultaneously E-Mail
Sechedule Recording with Adjustable Record File Length
¡
Wide
¡ Range Supported Network Protocol TCP/IP, UDP, RTP, RTSP, RTCP, VPN, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Flexible & Selectable Video Stream Control by VBR & CBR
¡
Support Audio Compression G.711/726 (Optional)
¡
OSD
¡ Menu Control BY IE Confrigration Menu
Built
¡ in Multicast Streaming & up to 16 User can IE log on with Sensible Video Quality
Support Mirror & Image Flip, Adjustable Exposure Mode
¡
Easy,
¡ Fast & User Friendly iLITE PRO Software GUI, OSD Text Overlay, CAMERA ID
4 Zone Areas Motion Detection, Privacy Masking
¡
Dual
¡ Power Support by 12V DC & PoE
Outdoor Wall Mount Metal Enclosure Casing
¡

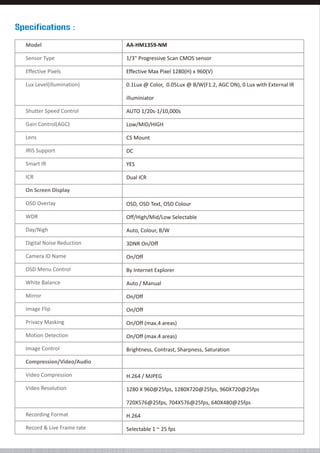

2. Specifications :
Model
AA-HM1359-NM
Sensor Type
1/3" Progressive Scan CMOS sensor
Effective Pixels
Effective Max Pixel 1280(H) x 960(V)
Lux Level(illumination)
0.1Lux @ Color, 0.05Lux @ B/W(F1.2, AGC ON), 0 Lux with External IR
illuminiator
Shutter Speed Control
AUTO 1/20s-1/10,000s
Gain Control(AGC)
Low/MID/HIGH
Lens
CS Mount
IRIS Support
DC
Smart IR
YES
ICR
Dual ICR
On Screen Display
OSD Overlay
OSD, OSD Text, OSD Colour
WDR
Off/High/Mid/Low Selectable
Day/Nigh
Auto, Colour, B/W
Digital Noise Reduction
3DNR On/Off
Camera ID Name
On/Off
OSD Menu Control
By Internet Explorer
White Balance
Auto / Manual
Mirror
On/Off
Image Flip
On/Off
Privacy Masking
On/Off (max.4 areas)
Motion Detection
On/Off (max.4 areas)
Image Control
Brightness, Contrast, Sharpness, Saturation
Compression/Video/Audio
Video Compression
H.264 / MJPEG
Video Resolution
1280 X 960@25fps, 1280X720@25fps, 960X720@25fps
720X576@25fps, 704X576@25fps, 640X480@25fps
Recording Format
H.264
Record & Live Frame rate
Selectable 1 ~ 25 fps

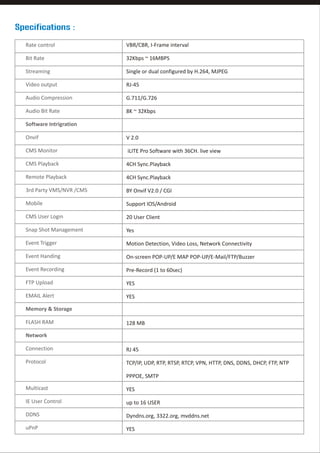

3. Specifications :
Rate control
VBR/CBR, I-Frame interval
Bit Rate
32Kbps ~ 16MBPS
Streaming
Single or dual configured by H.264, MJPEG
Video output
RJ-45
Audio Compression
G.711/G.726
Audio Bit Rate
8K ~ 32Kbps
Software Intrigration
Onvif
V 2.0
CMS Monitor
iLITE Pro Software with 36CH. live view
CMS Playback
4CH Sync.Playback
Remote Playback
4CH Sync.Playback
3rd Party VMS/NVR /CMS
BY Onvif V2.0 / CGI
Mobile
Support IOS/Android
CMS User Login
20 User Client
Snap Shot Management
Yes
Event Trigger
Motion Detection, Video Loss, Network Connectivity
Event Handing
On-screen POP-UP/E MAP POP-UP/E-Mail/FTP/Buzzer
Event Recording
Pre-Record (1 to 60sec)
FTP Upload
YES
EMAIL Alert
YES
Memory & Storage
FLASH RAM
128 MB
Network
Connection
RJ 45
Protocol
TCP/IP, UDP, RTP, RTSP, RTCP, VPN, HTTP, DNS, DDNS, DHCP, FTP, NTP
PPPOE, SMTP
Multicast
YES
IE User Control
up to 16 USER
DDNS
Dyndns.org, 3322.org, mvddns.net
uPnP
YES

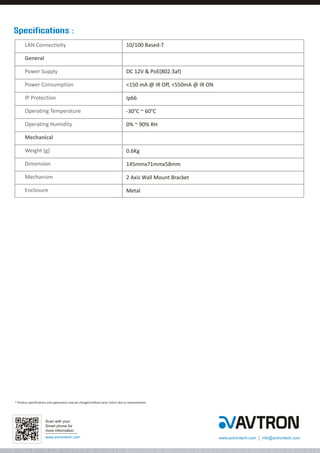

4. Specifications :
LAN Connectivity
10/100 Based-T
General
Power Supply
DC 12V & PoE(802.3af)
Power Consumption
<150 mA @ IR Off, <550mA @ IR ON
IP Protection
Ip66
Operating Temperature
-30°C ~ 60°C
Operating Humidity
0% ~ 90% RH
Mechanical
Weight (g)
0.6Kg
Dimension
145mmx71mmx58mm
Mechanism
2 Axis Wall Mount Bracket
Enclosure
Metal
* Product specifications and appearance may be changed without prior notice due to improvements.
