This document provides information on the AA-4833P-FSR3 D-WDR 3 Axis Indoor IR Very Focal Dome Camera. The camera features a 1/3" CCD image sensor, 480TVLine resolution, low light performance down to 0.5 lux, a 3.6mm fixed iris lens with optional longer focal lengths, 36 IR LEDs for night vision up to 25 meters, auto exposure and white balance controls, and power over 12VDC. The camera is housed in a 2-axis dome enclosure and has IP66 weather resistance.

1. 480 TVL

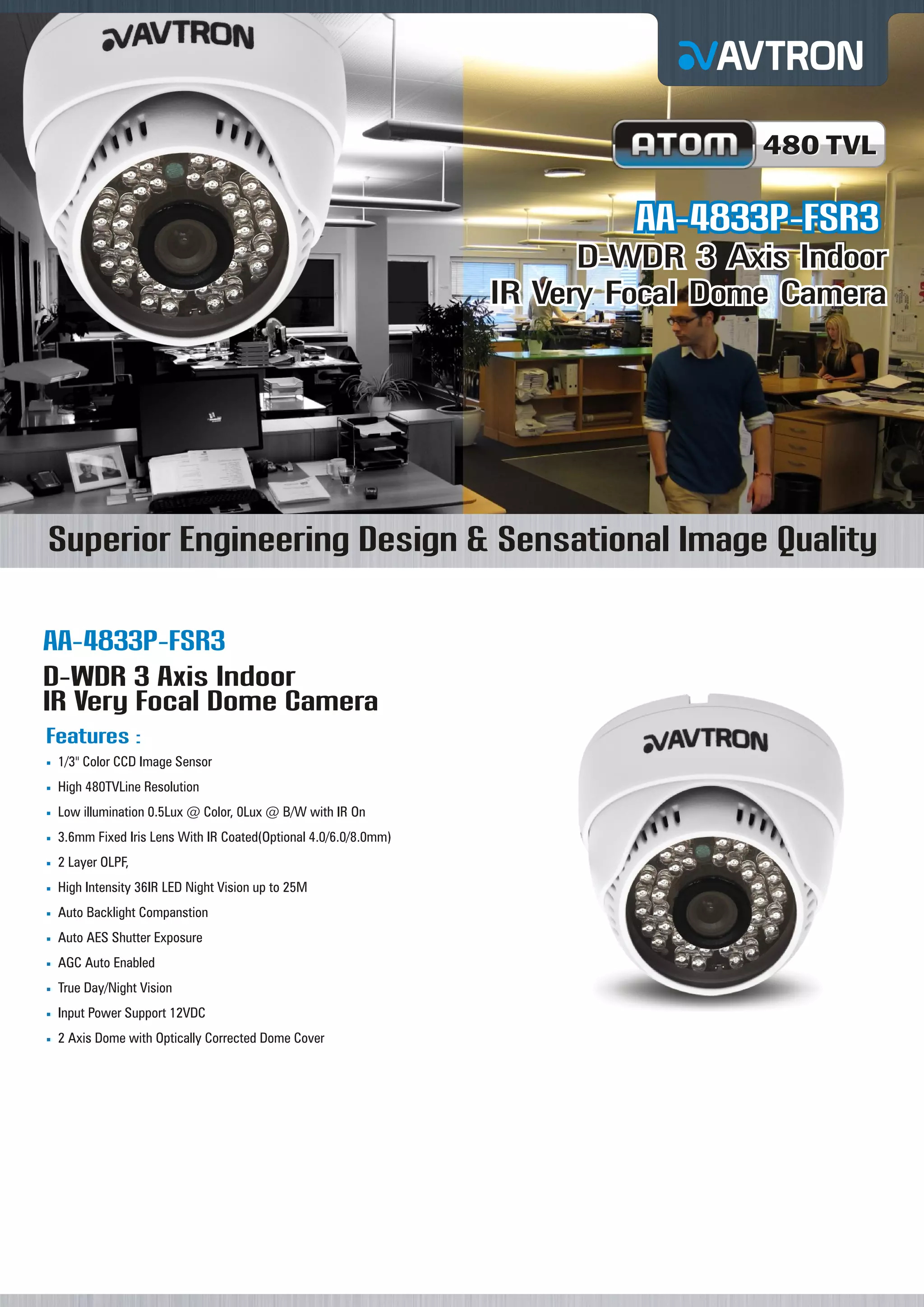

AA-4833P-FSR3
D-WDR 3 Axis Indoor
IR Very Focal Dome Camera
Superior Engineering Design & Sensational Image Quality
AA-4833P-FSR3
D-WDR 3 Axis Indoor
IR Very Focal Dome Camera
Features :
1/3" Color CCD Image Sensor
¡
High 480TVLine Resolution
¡
Low illumination 0.5Lux @ Color, 0Lux @ B/W with IR On
¡
3.6mm Fixed Iris Lens With IR Coated(Optional 4.0/6.0/8.0mm)
¡
2 Layer OLPF,
¡
High Intensity 36IR LED Night Vision up to 25M
¡
Auto Backlight Companstion
¡
Auto AES Shutter Exposure
¡
AGC Auto Enabled
¡
True Day/Night Vision
¡
Input Power Support 12VDC
¡
2 Axis Dome with Optically Corrected Dome Cover
¡

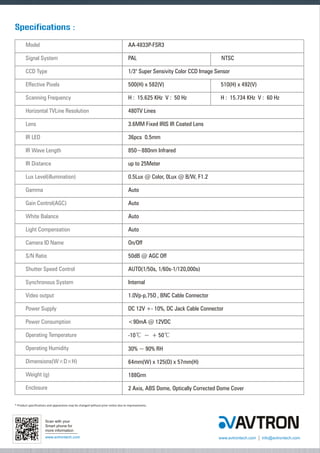

2. Specifications :
Model
AA-4833P-FSR3
Signal System
PAL
CCD Type
1/3" Super Sensivity Color CCD Image Sensor
Effective Pixels
500(H) x 582(V)
510(H) x 492(V)
Scanning Frequency
H : 15.625 KHz V : 50 Hz
H : 15.734 KHz V : 60 Hz
Horizontal TVLine Resolution
480TV Lines
Lens
3.6MM Fixed IRIS IR Coated Lens
IR LED
36pcs 0.5mm
IR Wave Length
850~880nm Infrared
IR Distance
up to 25Meter
Lux Level(illumination)
0.5Lux @ Color, 0Lux @ B/W, F1.2
Gamma
Auto
Gain Control(AGC)
Auto
White Balance
Auto
Light Compensation
Auto
Camera ID Name
On/Off
S/N Ratio
50dB @ AGC Off
Shutter Speed Control
AUTO(1/50s, 1/60s-1/120,000s)
Synchronous System
Internal
Video output
1.0Vp-p,75O , BNC Cable Connector
Power Supply
DC 12V +- 10%, DC Jack Cable Connector
Power Consumption
<90mA @ 12VDC
Operating Temperature
-10? ~ + 50?
Operating Humidity
30% ~ 90% RH
Dimensions(W×D×H)
64mm(W) x 125(D) x 57mm(H)
Weight (g)
188Grm
Enclosure
2 Axis, ABS Dome, Optically Corrected Dome Cover
NTSC
* Product specifications and appearance may be changed without prior notice due to improvements.
