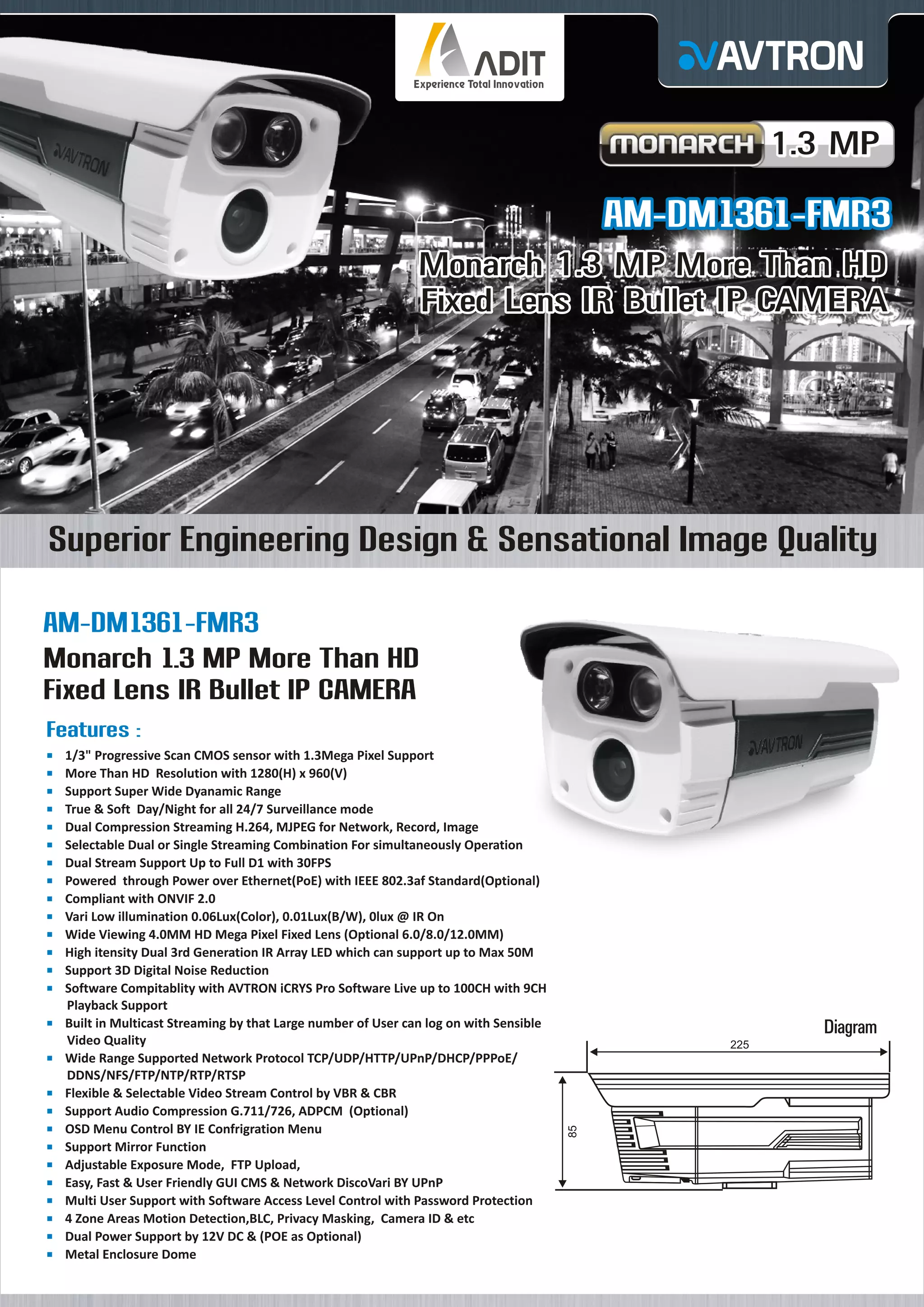

1.3 MP

AM-DM1361-FMR3
Monarch 1.3 MP More Than HD
Fixed Lens IR Bullet IP CAMERA

Superior Engineering Design & Sensational Image Quality
AM-DM1361-FMR3
Monarch 1.3 MP More Than HD
Fixed Lens IR Bullet IP CAMERA
Features :
¡ Progressive Scan CMOS sensor with 1.3Mega Pixel Support
1/3"
¡ Than HD Resolution with 1280(H) x 960(V)
More
¡
Support Super Wide Dyanamic Range

True
¡ & Soft Day/Night for all 24/7 Surveillance mode
Dual
¡ Compression Streaming H.264, MJPEG for Network, Record, Image
Selectable Dual or Single Streaming Combination For simultaneously Operation
¡
Dual
¡ Stream Support Up to Full D1 with 30FPS
Powered through Power over Ethernet(PoE) with IEEE 802.3af Standard(Optional)
¡
Compliant with ONVIF 2.0
¡
Vari
¡ Low illumination 0.06Lux(Color), 0.01Lux(B/W), 0lux @ IR On
Wide
¡ Viewing 4.0MM HD Mega Pixel Fixed Lens (Optional 6.0/8.0/12.0MM)
High
¡ itensity Dual 3rd Generation IR Array LED which can support up to Max 50M
Support 3D Digital Noise Reduction
¡
Software Compitablity with AVTRON iCRYS Pro Software Live up to 100CH with 9CH
¡
Playback Support

Diagram

Built
¡ in Multicast Streaming by that Large number of User can log on with Sensible
225

85

Video Quality
Wide
¡ Range Supported Network Protocol TCP/UDP/HTTP/UPnP/DHCP/PPPoE/
DDNS/NFS/FTP/NTP/RTP/RTSP
Flexible & Selectable Video Stream Control by VBR & CBR
¡
Support Audio Compression G.711/726, ADPCM (Optional)
¡
OSD
¡ Menu Control BY IE Confrigration Menu
Support Mirror Function
¡
Adjustable Exposure Mode, FTP Upload,
¡
Easy,
¡ Fast & User Friendly GUI CMS & Network DiscoVari BY UPnP
Multi
¡ User Support with Software Access Level Control with Password Protection
4 Zone Areas Motion Detection,BLC, Privacy Masking, Camera ID & etc
¡
Dual
¡ Power Support by 12V DC & (POE as Optional)
Metal
¡ Enclosure Dome

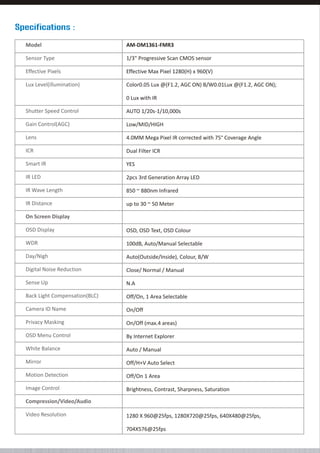

Specifications :
Model

AM-DM1361-FMR3

Sensor Type

1/3" Progressive Scan CMOS sensor

Effective Pixels

Effective Max Pixel 1280(H) x 960(V)

Lux Level(illumination)

Color0.05 Lux @(F1.2, AGC ON) B/W0.01Lux @(F1.2, AGC ON);
0 Lux with IR

Shutter Speed Control

AUTO 1/20s-1/10,000s

Gain Control(AGC)

Low/MID/HIGH

Lens

4.0MM Mega Pixel IR corrected with 75° Coverage Angle

ICR

Dual Filter ICR

Smart IR

YES

IR LED

2pcs 3rd Generation Array LED

IR Wave Length

850 ~ 880nm Infrared

IR Distance

up to 30 ~ 50 Meter

On Screen Display
OSD Display

OSD, OSD Text, OSD Colour

WDR

100dB, Auto/Manual Selectable

Day/Nigh

Auto(Outside/Inside), Colour, B/W

Digital Noise Reduction

Close/ Normal / Manual

Sense Up

N.A

Back Light Compensation(BLC)

Off/On, 1 Area Selectable

Camera ID Name

On/Off

Privacy Masking

On/Off (max.4 areas)

OSD Menu Control

By Internet Explorer

White Balance

Auto / Manual

Mirror

Off/H+V Auto Select

Motion Detection

Off/On 1 Area

Image Control

Brightness, Contrast, Sharpness, Saturation

Compression/Video/Audio
Video Resolution

1280 X 960@25fps, 1280X720@25fps, 640X480@25fps,
704X576@25fps

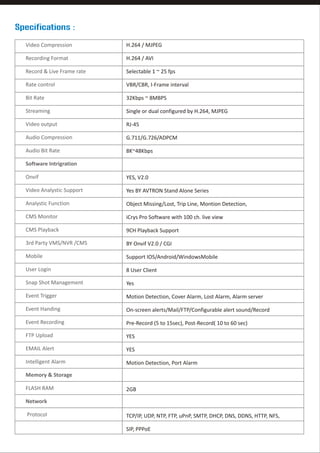

Specifications :
Video Compression

H.264 / MJPEG

Recording Format

H.264 / AVI

Record & Live Frame rate

Selectable 1 ~ 25 fps

Rate control

VBR/CBR, I-Frame interval

Bit Rate

32Kbps ~ 8MBPS

Streaming

Single or dual configured by H.264, MJPEG

Video output

RJ-45

Audio Compression

G.711/G.726/ADPCM

Audio Bit Rate

8K~48Kbps

Software Intrigration
Onvif

YES, V2.0

Video Analystic Support

Yes BY AVTRON Stand Alone Series

Analystic Function

Object Missing/Lost, Trip Line, Montion Detection,

CMS Monitor

iCrys Pro Software with 100 ch. live view

CMS Playback

9CH Playback Support

3rd Party VMS/NVR /CMS

BY Onvif V2.0 / CGI

Mobile

Support IOS/Android/WindowsMobile

User Login

8 User Client

Snap Shot Management

Yes

Event Trigger

Motion Detection, Cover Alarm, Lost Alarm, Alarm server

Event Handing

On-screen alerts/Mail/FTP/Configurable alert sound/Record

Event Recording

Pre-Record (5 to 15sec), Post-Record( 10 to 60 sec)

FTP Upload

YES

EMAIL Alert

YES

Intelligent Alarm

Motion Detection, Port Alarm

Memory & Storage
FLASH RAM

2GB

Network
Protocol

TCP/IP, UDP, NTP, FTP, uPnP, SMTP, DHCP, DNS, DDNS, HTTP, NFS,
SIP, PPPoE

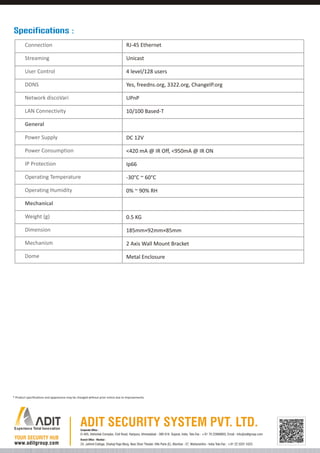

Specifications :
Connection

RJ-45 Ethernet

Streaming

Unicast

User Control

4 level/128 users

DDNS

Yes, freedns.org, 3322.org, ChangeIP.org

Network discoVari

UPnP

LAN Connectivity

10/100 Based-T

General
Power Supply

DC 12V

Power Consumption

<420 mA @ IR Off, <950mA @ IR ON

IP Protection

Ip66

Operating Temperature

-30°C ~ 60°C

Operating Humidity

0% ~ 90% RH

Mechanical
Weight (g)

0.5 KG

Dimension

185mm×92mm×85mm

Mechanism

2 Axis Wall Mount Bracket

Dome

Metal Enclosure

* Product specifications and appearance may be changed without prior notice due to improvements.

Corporate Office :

D-405, Abhishek Complex, Civil Road, Haripura, Ahmedabad - 380 016. Gujarat, India. Tele-Fax : +91 79 22868803, Email : info@aditgroup.com
Branch Office - Mumbai :

24, Jaihind Cottage, Shahaji Raje Marg, Near Shan Theater, Ville Parle (E), Mumbai - 57, Maharashtra - India Tele-Fax : +91 22 3201 4323
