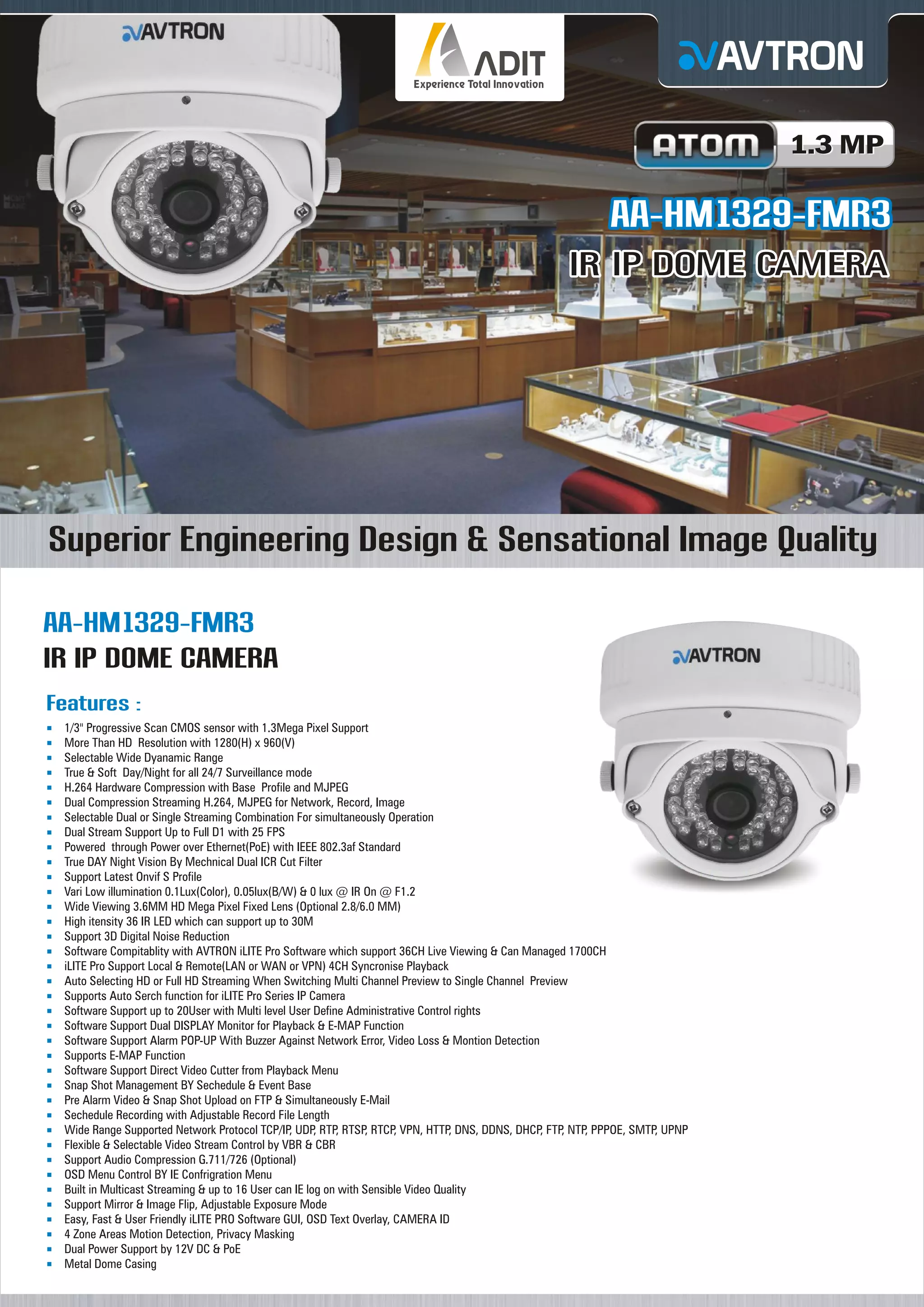

1.3 MP

AA-HM1329-FMR3
IR IP DOME CAMERA

Superior Engineering Design & Sensational Image Quality
AA-HM1329-FMR3
IR IP DOME CAMERA
Features :
1/3"
¡ Progressive Scan CMOS sensor with 1.3Mega Pixel Support
More
¡ Than HD Resolution with 1280(H) x 960(V)
Selectable Wide Dyanamic Range
¡
True
¡ & Soft Day/Night for all 24/7 Surveillance mode
H.264
¡ Hardware Compression with Base Profile and MJPEG
Dual
¡ Compression Streaming H.264, MJPEG for Network, Record, Image
Selectable Dual or Single Streaming Combination For simultaneously Operation
¡
Dual
¡ Stream Support Up to Full D1 with 25 FPS
Powered through Power over Ethernet(PoE) with IEEE 802.3af Standard
¡
True
¡ DAY Night Vision By Mechnical Dual ICR Cut Filter
Support Latest Onvif S Profile
¡
Vari
¡ Low illumination 0.1Lux(Color), 0.05lux(B/W) & 0 lux @ IR On @ F1.2
Wide
¡ Viewing 3.6MM HD Mega Pixel Fixed Lens (Optional 2.8/6.0 MM)
High
¡ itensity 36 IR LED which can support up to 30M
Support 3D Digital Noise Reduction
¡
Software Compitablity with AVTRON iLITE Pro Software which support 36CH Live Viewing & Can Managed 1700CH
¡
iLITE
¡ Pro Support Local & Remote(LAN or WAN or VPN) 4CH Syncronise Playback
Auto
¡ Selecting HD or Full HD Streaming When Switching Multi Channel Preview to Single Channel Preview
Supports Auto Serch function for iLITE Pro Series IP Camera
¡
Software Support up to 20User with Multi level User Define Administrative Control rights
¡
Software Support Dual DISPLAY Monitor for Playback & E-MAP Function
¡
Software Support Alarm POP-UP With Buzzer Against Network Error, Video Loss & Montion Detection
¡
Supports E-MAP Function
¡
Software Support Direct Video Cutter from Playback Menu
¡
Snap
¡ Shot Management BY Sechedule & Event Base
Pre
¡ Alarm Video & Snap Shot Upload on FTP & Simultaneously E-Mail
Sechedule Recording with Adjustable Record File Length
¡
Wide
¡ Range Supported Network Protocol TCP/IP, UDP, RTP, RTSP, RTCP, VPN, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Flexible & Selectable Video Stream Control by VBR & CBR
¡
Support Audio Compression G.711/726 (Optional)
¡
OSD
¡ Menu Control BY IE Confrigration Menu
Built
¡ in Multicast Streaming & up to 16 User can IE log on with Sensible Video Quality
Support Mirror & Image Flip, Adjustable Exposure Mode
¡
Easy,
¡ Fast & User Friendly iLITE PRO Software GUI, OSD Text Overlay, CAMERA ID
4 Zone Areas Motion Detection, Privacy Masking
¡
Dual
¡ Power Support by 12V DC & PoE
Metal
¡ Dome Casing

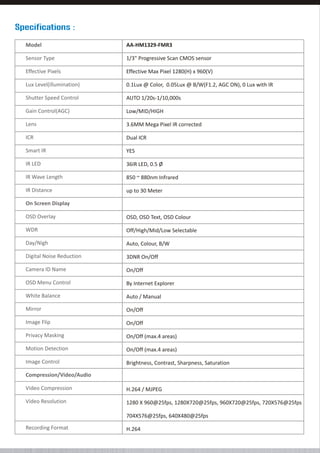

Specifications :
Model

AA-HM1329-FMR3

Sensor Type

1/3" Progressive Scan CMOS sensor

Effective Pixels

Effective Max Pixel 1280(H) x 960(V)

Lux Level(illumination)

0.1Lux @ Color, 0.05Lux @ B/W(F1.2, AGC ON), 0 Lux with IR

Shutter Speed Control

AUTO 1/20s-1/10,000s

Gain Control(AGC)

Low/MID/HIGH

Lens

3.6MM Mega Pixel IR corrected

ICR

Dual ICR

Smart IR

YES

IR LED

36IR LED, 0.5 Ø

IR Wave Length

850 ~ 880nm Infrared

IR Distance

up to 30 Meter

On Screen Display
OSD Overlay

OSD, OSD Text, OSD Colour

WDR

Off/High/Mid/Low Selectable

Day/Nigh

Auto, Colour, B/W

Digital Noise Reduction

3DNR On/Off

Camera ID Name

On/Off

OSD Menu Control

By Internet Explorer

White Balance

Auto / Manual

Mirror

On/Off

Image Flip

On/Off

Privacy Masking

On/Off (max.4 areas)

Motion Detection

On/Off (max.4 areas)

Image Control

Brightness, Contrast, Sharpness, Saturation

Compression/Video/Audio
Video Compression

H.264 / MJPEG

Video Resolution

1280 X 960@25fps, 1280X720@25fps, 960X720@25fps, 720X576@25fps
704X576@25fps, 640X480@25fps

Recording Format

H.264

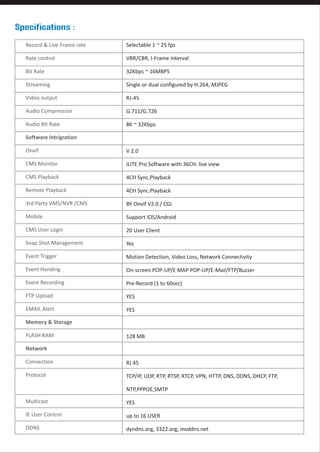

Specifications :
Record & Live Frame rate

Selectable 1 ~ 25 fps

Rate control

VBR/CBR, I-Frame interval

Bit Rate

32Kbps ~ 16MBPS

Streaming

Single or dual configured by H.264, MJPEG

Video output

RJ-45

Audio Compression

G.711/G.726

Audio Bit Rate

8K ~ 32Kbps

Software Intrigration
Onvif

V 2.0

CMS Monitor

iLITE Pro Software with 36CH. live view

CMS Playback

4CH Sync.Playback

Remote Playback

4CH Sync.Playback

3rd Party VMS/NVR /CMS

BY Onvif V2.0 / CGI

Mobile

Support IOS/Android

CMS User Login

20 User Client

Snap Shot Management

Yes

Event Trigger

Motion Detection, Video Loss, Network Connectivity

Event Handing

On-screen POP-UP/E MAP POP-UP/E-Mail/FTP/Buzzer

Event Recording

Pre-Record (1 to 60sec)

FTP Upload

YES

EMAIL Alert

YES

Memory & Storage
FLASH RAM

128 MB

Network
Connection

RJ 45

Protocol

TCP/IP, UDP, RTP, RTSP, RTCP, VPN, HTTP, DNS, DDNS, DHCP, FTP,
NTP,PPPOE,SMTP

Multicast

YES

IE User Control

up to 16 USER

DDNS

dyndns.org, 3322.org, mvddns.net
Specifications :
uPnP

YES

LAN Connectivity

10/100 Based-T

General
Power Supply

DC 12V & PoE(802.3af)

Power Consumption

<150 mA @ IR Off, <550mA @ IR ON

IP Protection

Ip66

Operating Temperature

-30°C ~ 60°C

Operating Humidity

0% ~ 90% RH

Mechanical
Weight (g)

0.5Kg

Dimension

137mmx137mmx100mm

Mechanism

2 Axis Wall Mount Bracket

Enclosure

Metal

* Product specifications and appearance may be changed without prior notice due to improvements.
