The document describes a CCTV lens model AA-3580-DIV. It is a 3.5-8mm auto iris varifocal lens with a maximum aperture of F1.4 that covers a 1/3" image format. It has a unique design that provides high performance and sharp image quality. The lens has a stable performance and compact body with anti-pollution optical glass and no black corners or out of focus issues. It has dimensions of 34.5 x 43.2 x 45.7mm and weighs 59g.

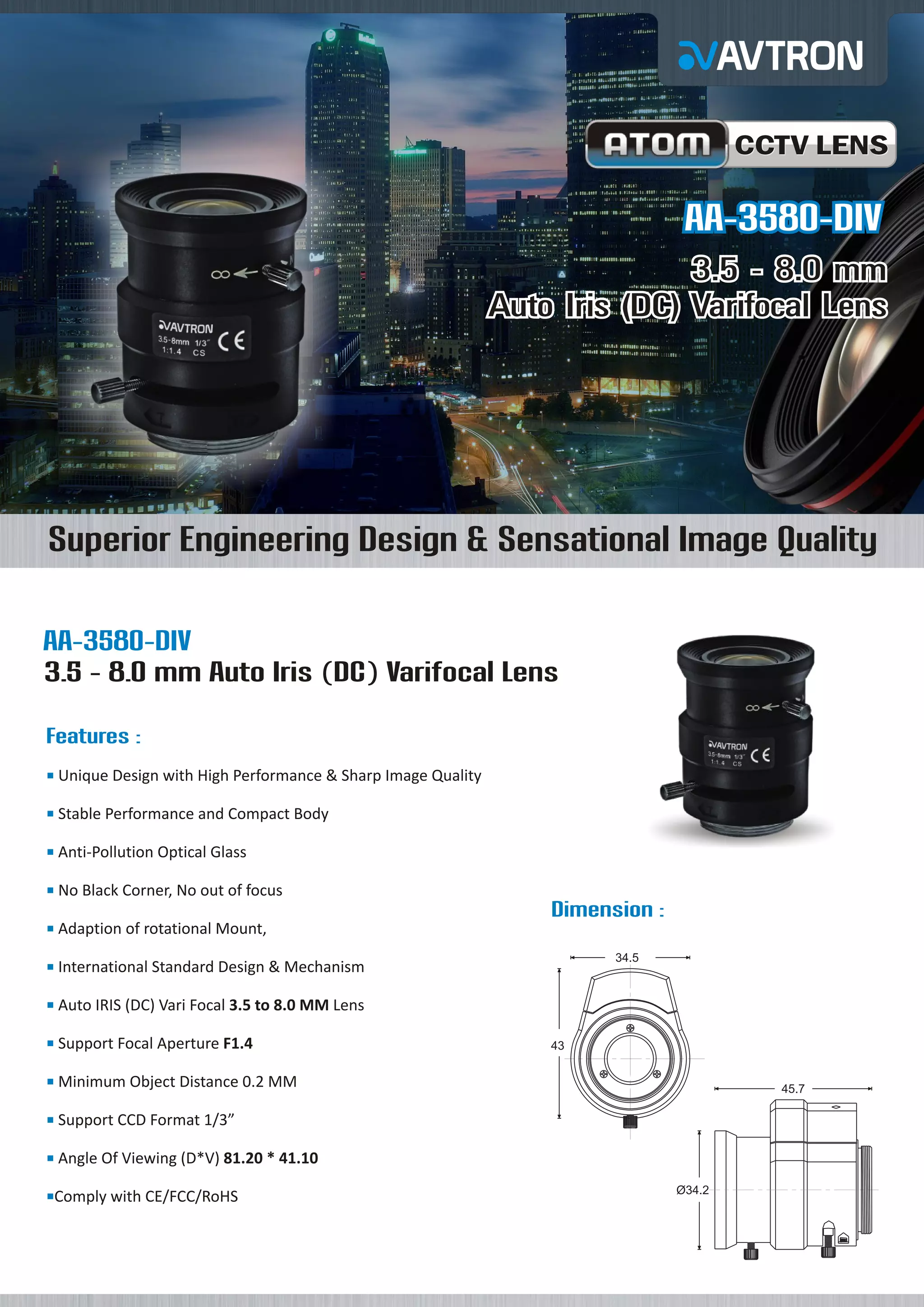

1. CCTV LENS
AA-3580-DIV
3.5 - 8.0 mm
Auto Iris (DC) Varifocal Lens
Superior Engineering Design & Sensational Image Quality
AA-3580-DIV
3.5 - 8.0 mm Auto Iris (DC) Varifocal Lens
Features :
Unique
¡ Design with High Performance & Sharp Image Quality
Stable
¡ Performance and Compact Body
Anti-Pollution Optical Glass
¡
No Black Corner, No out of focus
¡
Dimension :
Adaption of rotational Mount,
¡
34.5
International Standard Design & Mechanism
¡
Auto
¡ IRIS (DC) Vari Focal 3.5 to 8.0 MM Lens
Support Focal Aperture F1.4
¡
43
Minimum Object Distance 0.2 MM
¡
45.7
Support CCD Format 1/3”
¡
Angle
¡ Of Viewing (D*V) 81.20 * 41.10
Comply
¡ with CE/FCC/RoHS
Ø34.2

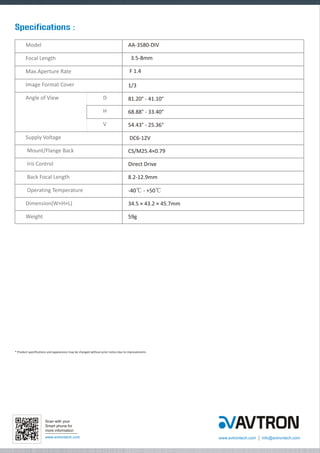

2. Specifications :
Model
AA-3580-DIV
Focal Length
3.5-8mm
Max.Aperture Rate
F 1.4
Image Format Cover
1/3〞
Angle of View
D
81.20° - 41.10°
H
68.88° - 33.40°
V
54.43° - 25.36°
Supply Voltage
DC6-12V
Mount/Flange Back
CS/M25.4×0.79
Iris Control
Direct Drive
Back Focal Length
8.2-12.9mm
Operating Temperature
-40? - +50?
Dimension(W×H×L)
34.5 × 43.2 × 45.7mm
Weight
59g
* Product specifications and appearance may be changed without prior notice due to improvements.
