This document provides specifications for the AM-SM2012-FMR3 Monarch 1.3 MP Fixed Lens Indoor/Outdoor Dome IP Camera. Key features include a 2.0 megapixel CMOS sensor, HD 1080p video resolution, H.264 video compression, day/night functionality, motion detection, and Power over Ethernet support. The camera is designed for 24/7 surveillance with features like wide dynamic range, 3D noise reduction, and IR LEDs for low light performance up to 30 meters. It supports ONVIF 2.0 compatibility and can integrate with the iCrys Pro video management software for monitoring and playback.

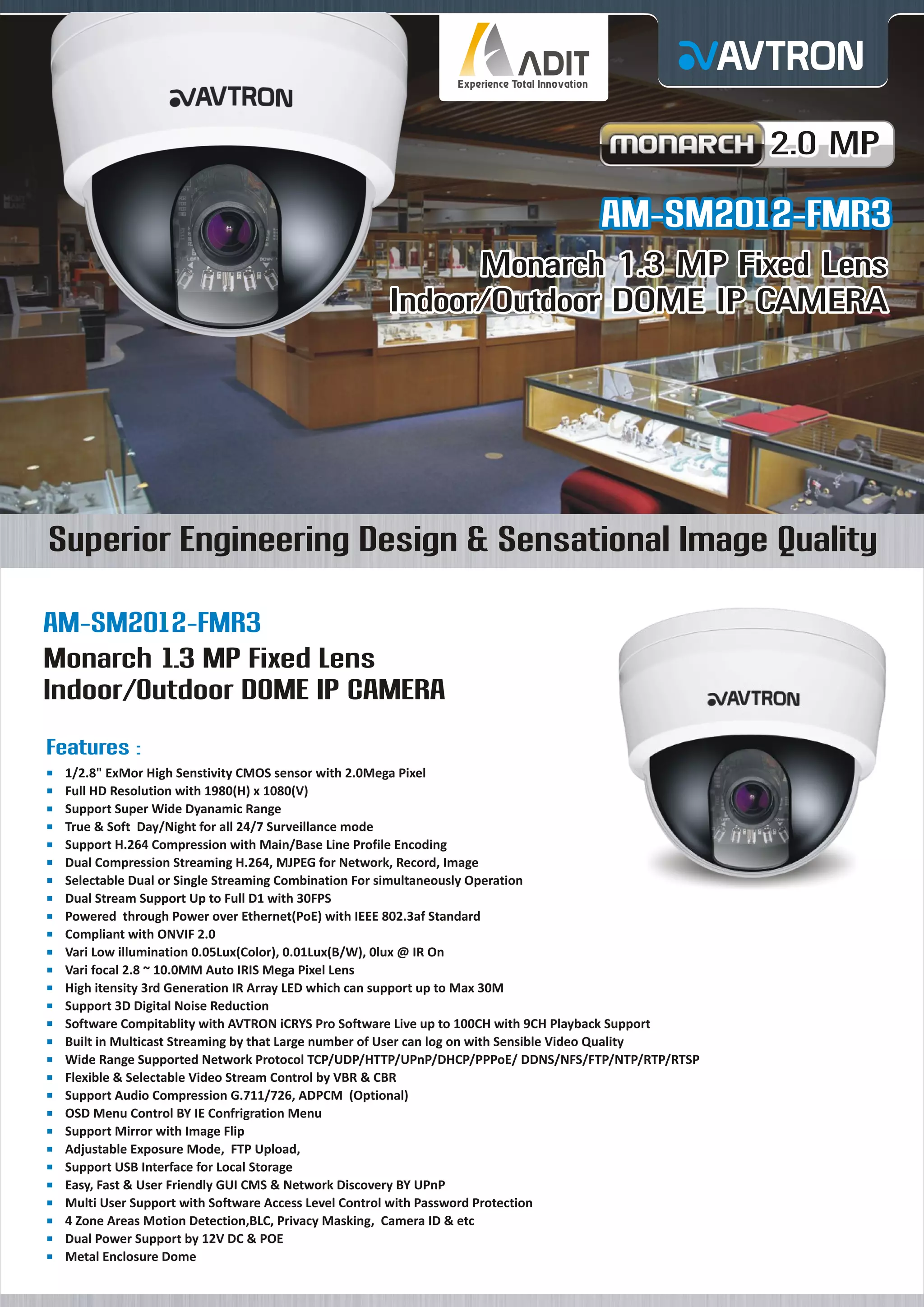

1. 2.0 MP
AM-SM2012-FMR3
Monarch 1.3 MP Fixed Lens
Indoor/Outdoor DOME IP CAMERA
Superior Engineering Design & Sensational Image Quality
AM-SM2012-FMR3
Monarch 1.3 MP Fixed Lens
Indoor/Outdoor DOME IP CAMERA
Features :
¡
1/2.8" ExMor High Senstivity CMOS sensor with 2.0Mega Pixel
¡ HD Resolution with 1980(H) x 1080(V)
Full
¡
Support Super Wide Dyanamic Range
¡ & Soft Day/Night for all 24/7 Surveillance mode
True
¡
Support H.264 Compression with Main/Base Line Profile Encoding
¡ Compression Streaming H.264, MJPEG for Network, Record, Image
Dual
Selectable Dual or Single Streaming Combination For simultaneously Operation
¡
Dual
¡ Stream Support Up to Full D1 with 30FPS
Powered through Power over Ethernet(PoE) with IEEE 802.3af Standard
¡
Compliant with ONVIF 2.0
¡
Vari
¡ Low illumination 0.05Lux(Color), 0.01Lux(B/W), 0lux @ IR On
Vari
¡ focal 2.8 ~ 10.0MM Auto IRIS Mega Pixel Lens
High
¡ itensity 3rd Generation IR Array LED which can support up to Max 30M
Support 3D Digital Noise Reduction
¡
Software Compitablity with AVTRON iCRYS Pro Software Live up to 100CH with 9CH Playback Support
¡
Built
¡ in Multicast Streaming by that Large number of User can log on with Sensible Video Quality
Wide
¡ Range Supported Network Protocol TCP/UDP/HTTP/UPnP/DHCP/PPPoE/ DDNS/NFS/FTP/NTP/RTP/RTSP
Flexible & Selectable Video Stream Control by VBR & CBR
¡
Support Audio Compression G.711/726, ADPCM (Optional)
¡
OSD
¡ Menu Control BY IE Confrigration Menu
Support Mirror with Image Flip
¡
Adjustable Exposure Mode, FTP Upload,
¡
Support USB Interface for Local Storage
¡
Easy,
¡ Fast & User Friendly GUI CMS & Network Discovery BY UPnP
Multi
¡ User Support with Software Access Level Control with Password Protection
4 Zone Areas Motion Detection,BLC, Privacy Masking, Camera ID & etc
¡
Dual
¡ Power Support by 12V DC & POE
Metal
¡ Enclosure Dome

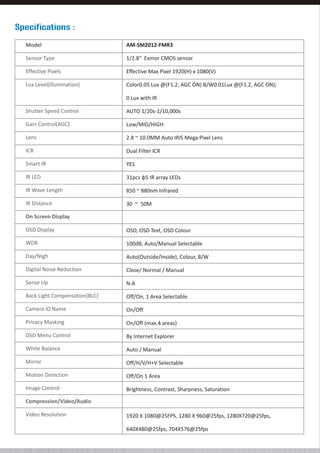

2. Specifications :
Model
AM-SM2012-FMR3
Sensor Type
1/2.8" Exmor CMOS sensor
Effective Pixels
Effective Max Pixel 1920(H) x 1080(V)
Lux Level(illumination)
Color0.05 Lux @(F1.2, AGC ON) B/W0.01Lux @(F1.2, AGC ON);
0 Lux with IR
Shutter Speed Control
AUTO 1/20s-1/10,000s
Gain Control(AGC)
Low/MID/HIGH
Lens
2.8 ~ 10.0MM Auto IRIS Mega Pixel Lens
ICR
Dual Filter ICR
Smart IR
YES
IR LED
31pcs φ5 IR array LEDs
IR Wave Length
850 ~ 880nm Infrared
IR Distance
30 ~ 50M
On Screen Display
OSD Display
OSD, OSD Text, OSD Colour
WDR
100dB, Auto/Manual Selectable
Day/Nigh
Auto(Outside/Inside), Colour, B/W
Digital Noise Reduction
Close/ Normal / Manual
Sense Up
N.A
Back Light Compensation(BLC)
Off/On, 1 Area Selectable
Camera ID Name
On/Off
Privacy Masking
On/Off (max.4 areas)
OSD Menu Control
By Internet Explorer
White Balance
Auto / Manual
Mirror
Off/H/V/H+V Selectable
Motion Detection
Off/On 1 Area
Image Control
Brightness, Contrast, Sharpness, Saturation
Compression/Video/Audio
Video Resolution
1920 X 1080@25FPS, 1280 X 960@25fps, 1280X720@25fps,
640X480@25fps, 704X576@25fps

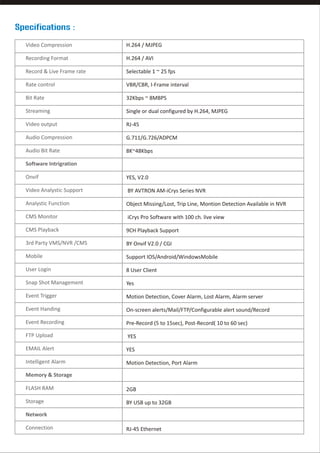

3. Specifications :
Video Compression
H.264 / MJPEG
Recording Format
H.264 / AVI
Record & Live Frame rate
Selectable 1 ~ 25 fps
Rate control
VBR/CBR, I-Frame interval
Bit Rate
32Kbps ~ 8MBPS
Streaming
Single or dual configured by H.264, MJPEG
Video output
RJ-45
Audio Compression
G.711/G.726/ADPCM
Audio Bit Rate
8K~48Kbps
Software Intrigration
Onvif
YES, V2.0
Video Analystic Support
BY AVTRON AM-iCrys Series NVR
Analystic Function
Object Missing/Lost, Trip Line, Montion Detection Available in NVR
CMS Monitor
iCrys Pro Software with 100 ch. live view
CMS Playback
9CH Playback Support
3rd Party VMS/NVR /CMS
BY Onvif V2.0 / CGI
Mobile
Support IOS/Android/WindowsMobile
User Login
8 User Client
Snap Shot Management
Yes
Event Trigger
Motion Detection, Cover Alarm, Lost Alarm, Alarm server
Event Handing
On-screen alerts/Mail/FTP/Configurable alert sound/Record
Event Recording
Pre-Record (5 to 15sec), Post-Record( 10 to 60 sec)
FTP Upload
YES
EMAIL Alert
YES
Intelligent Alarm
Motion Detection, Port Alarm
Memory & Storage
FLASH RAM
2GB
Storage
BY USB up to 32GB
Network
Connection
RJ-45 Ethernet

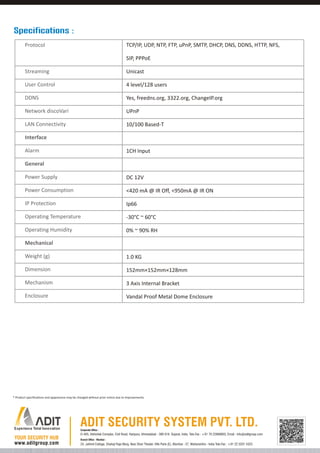

4. Specifications :
Protocol
TCP/IP, UDP, NTP, FTP, uPnP, SMTP, DHCP, DNS, DDNS, HTTP, NFS,
SIP, PPPoE
Streaming
Unicast
User Control
4 level/128 users
DDNS
Yes, freedns.org, 3322.org, ChangeIP.org
Network discoVari
UPnP
LAN Connectivity
10/100 Based-T
Interface
Alarm
1CH Input
General
Power Supply
DC 12V
Power Consumption
<420 mA @ IR Off, <950mA @ IR ON
IP Protection
Ip66
Operating Temperature
-30°C ~ 60°C
Operating Humidity
0% ~ 90% RH
Mechanical
Weight (g)
1.0 KG
Dimension
152mm×152mm×128mm
Mechanism
3 Axis Internal Bracket
Enclosure
Vandal Proof Metal Dome Enclosure
* Product specifications and appearance may be changed without prior notice due to improvements.
