This document provides specifications for the AT 0408V-H9D 8/9 Channel Hybrid Video Recorder. It can record up to 9 channels of video at D1 resolution or 8 channels at WD1 resolution. It supports H.264 compression, has a 1TB hard drive capacity, HDMI and VGA video outputs, motion detection, email alerts, and network functionality including remote access via internet explorer. The recorder has dimensions of 252*215*45mm and weighs less than 1.7kg.

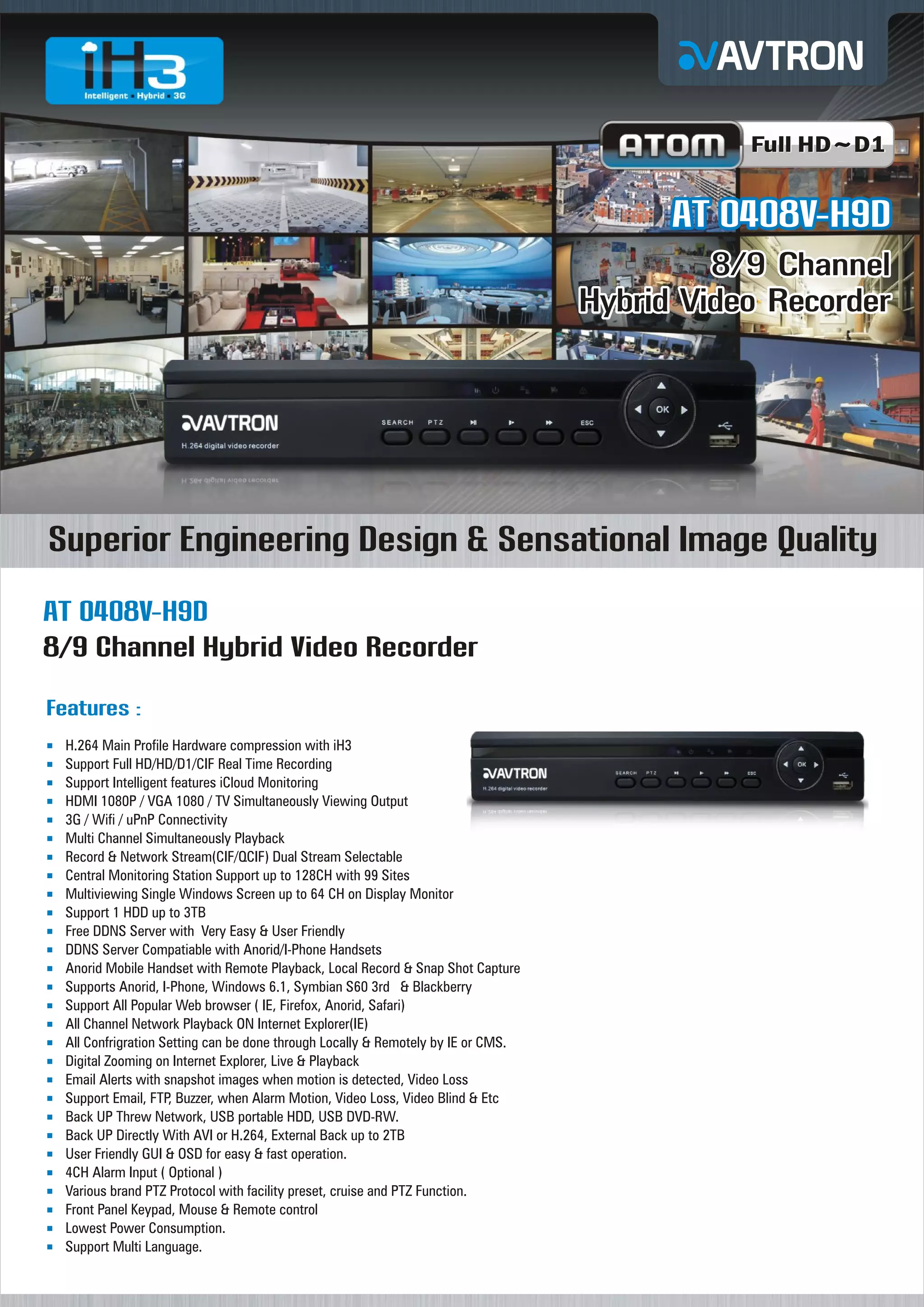

1. AT 0408V-H9D
AT 0408V-H9D
8/9 Channel
Hybrid Video Recorder
8/9 Channel
Hybrid Video Recorder
Full HD D1
~
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
¡
H.264 Main Profile Hardware compression with iH3
Support Full HD/HD/D1/CIF Real Time Recording
Support Intelligent features iCloud Monitoring
HDMI 1080P / VGA 1080 / TV Simultaneously Viewing Output
3G / Wifi / uPnP Connectivity
Multi Channel Simultaneously Playback
Record & Network Stream(CIF/QCIF) Dual Stream Selectable
Central Monitoring Station Support up to 128CH with 99 Sites
Multiviewing Single Windows Screen up to 64 CH on Display Monitor
Support 1 HDD up to 3TB
Free DDNS Server with Very Easy & User Friendly
DDNS Server Compatiable with Anorid/I-Phone Handsets
Anorid Mobile Handset with Remote Playback, Local Record & Snap Shot Capture
Supports Anorid, I-Phone, Windows 6.1, Symbian S60 3rd & Blackberry
Support All Popular Web browser ( IE, Firefox, Anorid, Safari)
All Channel Network Playback ON Internet Explorer(IE)
All Confrigration Setting can be done through Locally & Remotely by IE or CMS.
Digital Zooming on Internet Explorer, Live & Playback
Email Alerts with snapshot images when motion is detected, Video Loss
Support Email, FTP, Buzzer, when Alarm Motion, Video Loss, Video Blind & Etc
Back UP Threw Network, USB portable HDD, USB DVD-RW.
Back UP Directly With AVI or H.264, External Back up to 2TB
User Friendly GUI & OSD for easy & fast operation.
4CH Alarm Input ( Optional )
Various brand PTZ Protocol with facility preset, cruise and PTZ Function.
Front Panel Keypad, Mouse & Remote control
Lowest Power Consumption.
Support Multi Language.
8/9 Channel Hybrid Video Recorder
Features :
AT 0408V-H9D
Superior Engineering Design & Sensational Image Quality

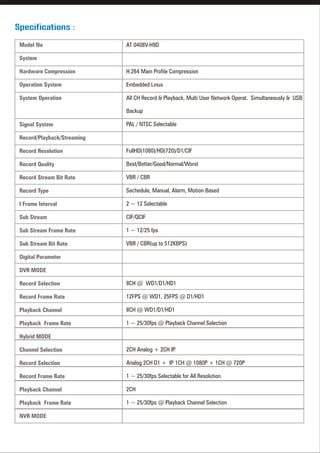

2. AT 0408V-H9D
H.264 Main Profile Compression
Embedded Linux
All CH Record & Playback, Multi User Network Operat. Simultaneously & USB
Backup
PAL / NTSC Selectable
FullHD(1080)/HD(720)/D1/CIF
Best/Better/Good/Normal/Worst
VBR / CBR
Sechedule, Manual, Alarm, Motion Based
2 ~ 12 Selectable
CIF/QCIF
1 ~ 12/25 fps
VBR / CBR(up to 512KBPS)
8CH @ WD1/D1/HD1
12FPS @ WD1, 25FPS @ D1/HD1
8CH @ WD1/D1/HD1
1 ~ 25/30fps @ Playback Channel Selection
2CH Analog + 2CH IP
Analog 2CH D1 + IP 1CH @ 1080P + 1CH @ 720P
1 ~ 25/30fps Selectable for All Resolution
2CH
1 ~ 25/30fps @ Playback Channel Selection
Specifications :
Model No
System
Hardware Compression
Operation System
System Operation
Signal System
Record/Playback/Streaming
Record Resolution
Record Quality
Record Stream Bit Rate
Record Type
I Frame Interval
Sub Stream
Sub Stream Frame Rate
Sub Stream Bit Rate
Digital Parameter
DVR MODE
Record Selection
Record Frame Rate
Playback Channel
Playback Frame Rate
Hybrid MODE
Channel Selection
Record Selection
Record Frame Rate
Playback Channel
Playback Frame Rate
NVR MODE

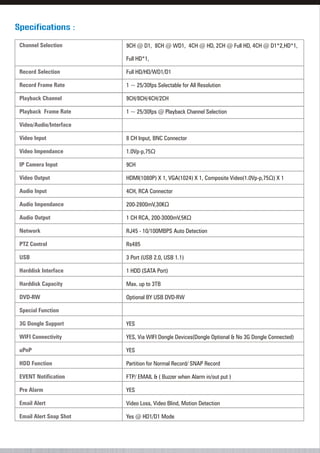

3. Specifications :
9CH @ D1, 8CH @ WD1, 4CH @ HD, 2CH @ Full HD, 4CH @ D1*2,HD*1,
Full HD*1,
Full HD/HD/WD1/D1
1 ~ 25/30fps Selectable for All Resolution
9CH/8CH/4CH/2CH
1 ~ 25/30fps @ Playback Channel Selection
8 CH Input, BNC Connector
1.0Vp-p,75Ù
9CH
HDMI(1080P) X 1, VGA(1024) X 1, Composite Video(1.0Vp-p,75Ù) X 1
4CH, RCA Connector
200-2800mV,30KÙ
1 CH RCA, 200-3000mV,5KÙ
RJ45 - 10/100MBPS Auto Detection
Rs485
3 Port (USB 2.0, USB 1.1)
1 HDD (SATA Port)
Max. up to 3TB
Optional BY USB DVD-RW
YES
YES, Via WIFI Dongle Devices(Dongle Optional & No 3G Dongle Connected)
YES
Partition for Normal Record/ SNAP Record
FTP/ EMAIL & ( Buzzer when Alarm in/out put )
YES
Video Loss, Video Blind, Motion Detection
Yes @ HD1/D1 Mode
Channel Selection
Record Selection
Record Frame Rate
Playback Channel
Playback Frame Rate
Video/Audio/Interface
Video Input
Video Impendance
IP Camera Input
Video Output
Audio Input
Audio Impendance
Audio Output
Network
PTZ Control
USB
Harddisk Interface
Harddisk Capacity
DVD-RW
Special Function
3G Dongle Support
WIFI Connectivity
uPnP
HDD Function
EVENT Notification
Pre Alarm
Email Alert
Email Alert Snap Shot

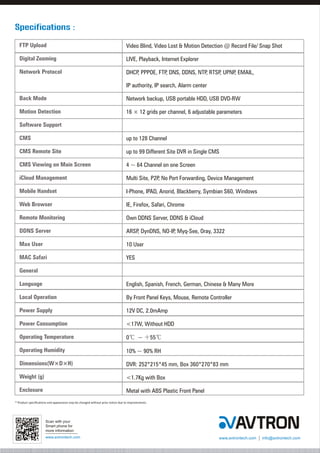

4. www.avtrontech.com www.avtrontech.com info@avtrontech.com
Scan with your
Smart phone for
more information
* Product specifications and appearance may be changed without prior notice due to improvements.
Video Blind, Video Lost & Motion Detection @ Record File/ Snap Shot
LIVE, Playback, Internet Explorer
DHCP, PPPOE, FTP, DNS, DDNS, NTP, RTSP, UPNP, EMAIL,
IP authority, IP search, Alarm center
Network backup, USB portable HDD, USB DVD-RW
16 ? 12 grids per channel, 6 adjustable parameters
up to 128 Channel
up to 99 Different Site DVR in Single CMS
4 ~ 64 Channel on one Screen
Multi Site, P2P, No Port Forwarding, Device Management
I-Phone, IPAD, Anorid, Blackberry, Symbian S60, Windows
IE, Firefox, Safari, Chrome
Own DDNS Server, DDNS & iCloud
ARSP, DynDNS, NO-IP, Myq-See, Oray, 3322
10 User
YES
English, Spanish, French, German, Chinese & Many More
By Front Panel Keys, Mouse, Remote Controller
12V DC, 2.0mAmp
<17W, Without HDD
0? ~ + 55?
10% ~ 90% RH
DVR: 252*215*45 mm, Box 360*270*83 mm
<1.7Kg with Box
Metal with ABS Plastic Front Panel
FTP Upload
Digital Zooming
Network Protocol
Back Mode
Motion Detection
Software Support
CMS
CMS Remote Site
CMS Viewing on Main Screen
iCloud Management
Mobile Handset
Web Browser
Remote Monitoring
DDNS Server
Max User
MAC Safari
General
Language
Local Operation
Power Supply
Power Consumption
Operating Temperature
Operating Humidity
Dimensions(W×D×H)
Weight (g)
Enclosure
Specifications :
