This document summarizes the features and specifications of the AM-DM2061-FMR3 Monarch 2.0 MP Full HD Fixed Lens IR Bullet IP camera. It has a 1/2.8" Exmor CMOS sensor with 2MP resolution, H.264 and MJPEG compression, motion detection, day/night functionality, and connects via Ethernet using PoE. Key features include 1080p video, 0.05 lux low light performance, IP66 weather resistance, and compatibility with Onvif and AVTRON video management software.

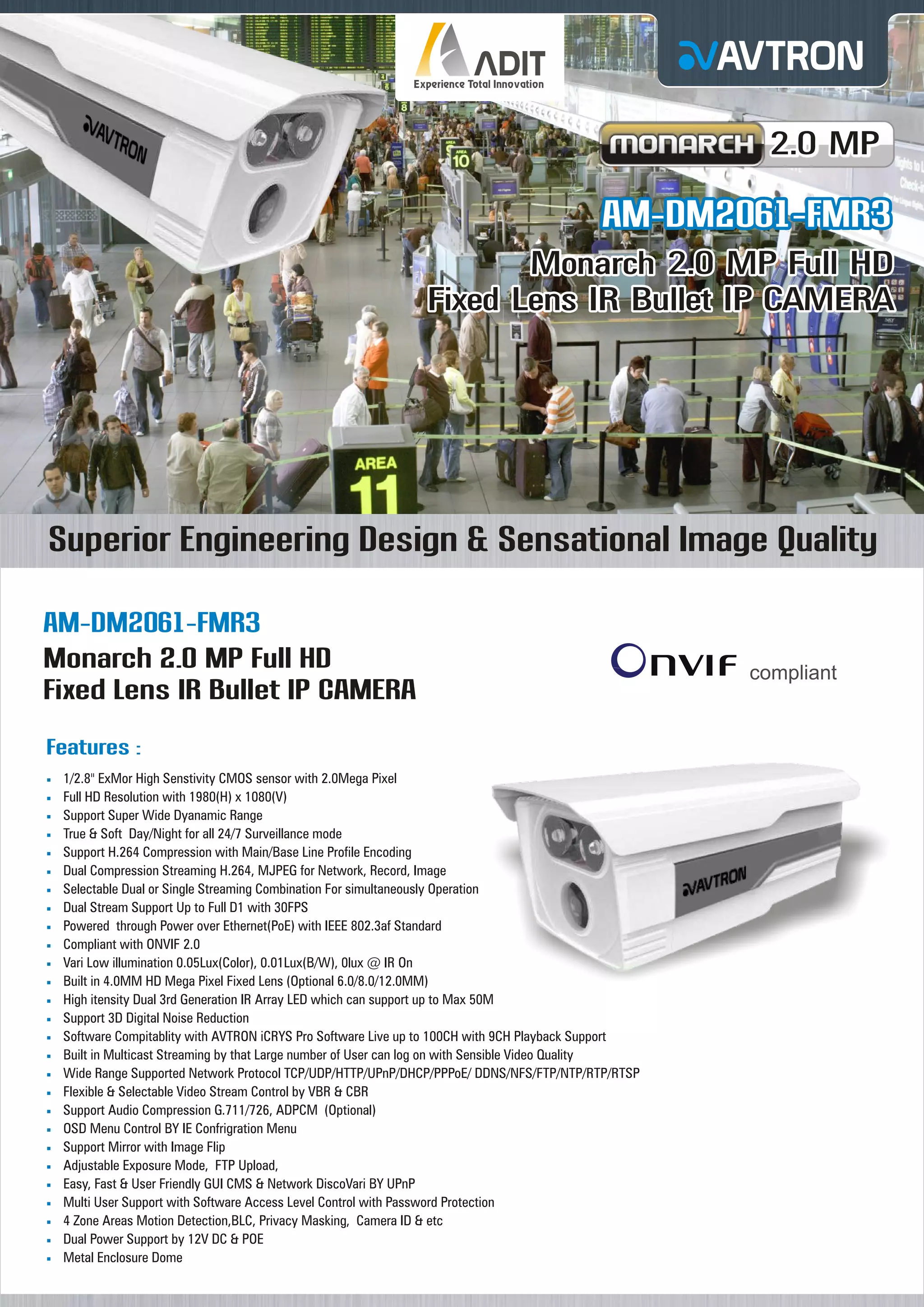

1. 2.0 MP
AM-DM2061-FMR3
Monarch 2.0 MP Full HD
Fixed Lens IR Bullet IP CAMERA
Superior Engineering Design & Sensational Image Quality
AM-DM2061-FMR3
Monarch 2.0 MP Full HD
Fixed Lens IR Bullet IP CAMERA
Features :
1/2.8" ExMor High Senstivity CMOS sensor with 2.0Mega Pixel
Full HD Resolution with 1980(H) x 1080(V)
¡
Support Super Wide Dyanamic Range
¡
True & Soft Day/Night for all 24/7 Surveillance mode
¡
Support H.264 Compression with Main/Base Line Profile Encoding
¡
Dual Compression Streaming H.264, MJPEG for Network, Record, Image
¡
Selectable Dual or Single Streaming Combination For simultaneously Operation
¡
Dual Stream Support Up to Full D1 with 30FPS
¡
Powered through Power over Ethernet(PoE) with IEEE 802.3af Standard
¡
Compliant with ONVIF 2.0
¡ Low illumination 0.05Lux(Color), 0.01Lux(B/W), 0lux @ IR On
Vari
¡
Built in 4.0MM HD Mega Pixel Fixed Lens (Optional 6.0/8.0/12.0MM)
High itensity Dual 3rd Generation IR Array LED which can support up to Max 50M
¡
Support 3D Digital Noise Reduction
¡
Software Compitablity with AVTRON iCRYS Pro Software Live up to 100CH with 9CH Playback Support
¡
Built in Multicast Streaming by that Large number of User can log on with Sensible Video Quality
¡
Wide Range Supported Network Protocol TCP/UDP/HTTP/UPnP/DHCP/PPPoE/ DDNS/NFS/FTP/NTP/RTP/RTSP
¡
Flexible & Selectable Video Stream Control by VBR & CBR
¡
Support Audio Compression G.711/726, ADPCM (Optional)
¡
OSD Menu Control BY IE Confrigration Menu
¡
Support Mirror with Image Flip
¡
Adjustable Exposure Mode, FTP Upload,
¡
Easy, Fast & User Friendly GUI CMS & Network DiscoVari BY UPnP
¡
Multi User Support with Software Access Level Control with Password Protection
¡
4
¡Zone Areas Motion Detection,BLC, Privacy Masking, Camera ID & etc
Dual Power Support by 12V DC & POE
¡
Metal Enclosure Dome
¡
¡
¡
compliant

2. Specifications :
Model No.
AM-DM2061-FMR3
Camera Specification
Sensor Type
1/2.8" Exmor CMOS sensor
Effective Pixels
Effective Max Pixel 1920(H) x 1080(V)
Lux Level(illumination)
Color0.05 Lux @(F1.2, AGC ON) B/W0.01Lux @(F1.2, AGC ON); 0 Lux with IR
Shutter Speed Control
AUTO 1/20s-1/10,000s
Gain Control(AGC)
Low/MID/HIGH
Lens
4.0MM Mega Pixel IR corrected with 75° Coverage Angle
ICR
Dual Filter ICR
Smart IR
YES
IR LED
2pcs 3rd Generation Array LED
IR Wave Length
850 ~ 880nm Infrared
IR Distance
up to 30 ~ 50 Meter
On Screen Display
OSD Display
OSD, OSD Text, OSD Colour
WDR
100dB, Auto/Manual Selectable
Day/Night
Auto(Outside/Inside), Colour, B/W
Digital Noise Reduction
Close/ Normal / Manual
Back Light Compensation(BLC)
Off/On, 1 Area Selectable
Camera ID Name
On/Off
Privacy Masking
On/Off (max.4 areas)
OSD Menu Control
By Internet Explorer
White Balance
Auto / Manual
Mirror
Off/H/V/H+V Selectable
Motion Detection
Off/On 1 Area
Image Control
Brightness, Contrast, Sharpness, Saturation
Compression/Video/Audio
Video Resolution
1920 X 1080@25FPS, 1280 X 960@25fps, 1280X720@25fps,
640X480@25fps, 704X576@25fps

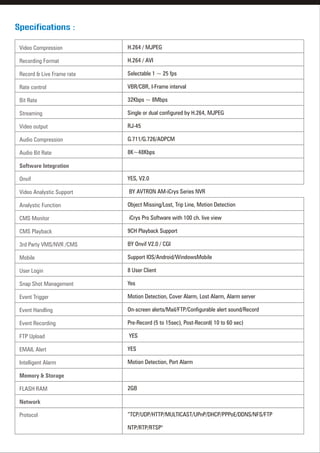

3. Specifications :
Video Compression
H.264 / MJPEG
Recording Format
H.264 / AVI
Record & Live Frame rate
Selectable 1 ~ 25 fps
Rate control
VBR/CBR, I-Frame interval
Bit Rate
32Kbps ~ 8Mbps
Streaming
Single or dual configured by H.264, MJPEG
Video output
RJ-45
Audio Compression
G.711/G.726/ADPCM
Audio Bit Rate
8K~48Kbps
Software Integration
Onvif
YES, V2.0
Video Analystic Support
BY AVTRON AM-iCrys Series NVR
Analystic Function
Object Missing/Lost, Trip Line, Motion Detection
CMS Monitor
iCrys Pro Software with 100 ch. live view
CMS Playback
9CH Playback Support
3rd Party VMS/NVR /CMS
BY Onvif V2.0 / CGI
Mobile
Support IOS/Android/WindowsMobile
User Login
8 User Client
Snap Shot Management
Yes
Event Trigger
Motion Detection, Cover Alarm, Lost Alarm, Alarm server
Event Handling
On-screen alerts/Mail/FTP/Configurable alert sound/Record
Event Recording
Pre-Record (5 to 15sec), Post-Record( 10 to 60 sec)
FTP Upload
YES
EMAIL Alert
YES
Intelligent Alarm
Motion Detection, Port Alarm
Memory & Storage
FLASH RAM
2GB
Network
Protocol
“TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP
NTP/RTP/RTSP"

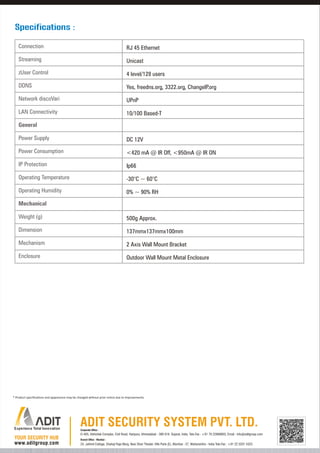

4. Specifications :
Connection
RJ 45 Ethernet
Streaming
Unicast
zUser Control
4 level/128 users
DDNS
Yes, freedns.org, 3322.org, ChangeIP.org
Network discoVari
UPnP
LAN Connectivity
10/100 Based-T
General
Power Supply
DC 12V
Power Consumption
<420 mA @ IR Off, <950mA @ IR ON
IP Protection
Ip66
Operating Temperature
-30°C ~ 60°C
Operating Humidity
0% ~ 90% RH
Mechanical
Weight (g)
500g Approx.
Dimension
137mmx137mmx100mm
Mechanism
2 Axis Wall Mount Bracket
Enclosure
Outdoor Wall Mount Metal Enclosure
* Product specifications and appearance may be changed without prior notice due to improvements.
