This document provides specifications for the AA-HM1339-FMR3 IR IP bullet camera. The camera features a 1.3 megapixel CMOS sensor, H.264 and MJPEG compression, dual streaming, motion detection, and support for the iLITE Pro video management software. It is powered by Power over Ethernet and has an IP66-rated metal enclosure, making it suitable for outdoor surveillance applications. Key specifications include a maximum resolution of 1280x960, 0.05 lux low light performance, 3.6mm fixed lens, and support for up to 30 meters of infrared illumination. The camera integrates with video management systems via ONVIF and supports remote viewing and playback through iLITE Pro or

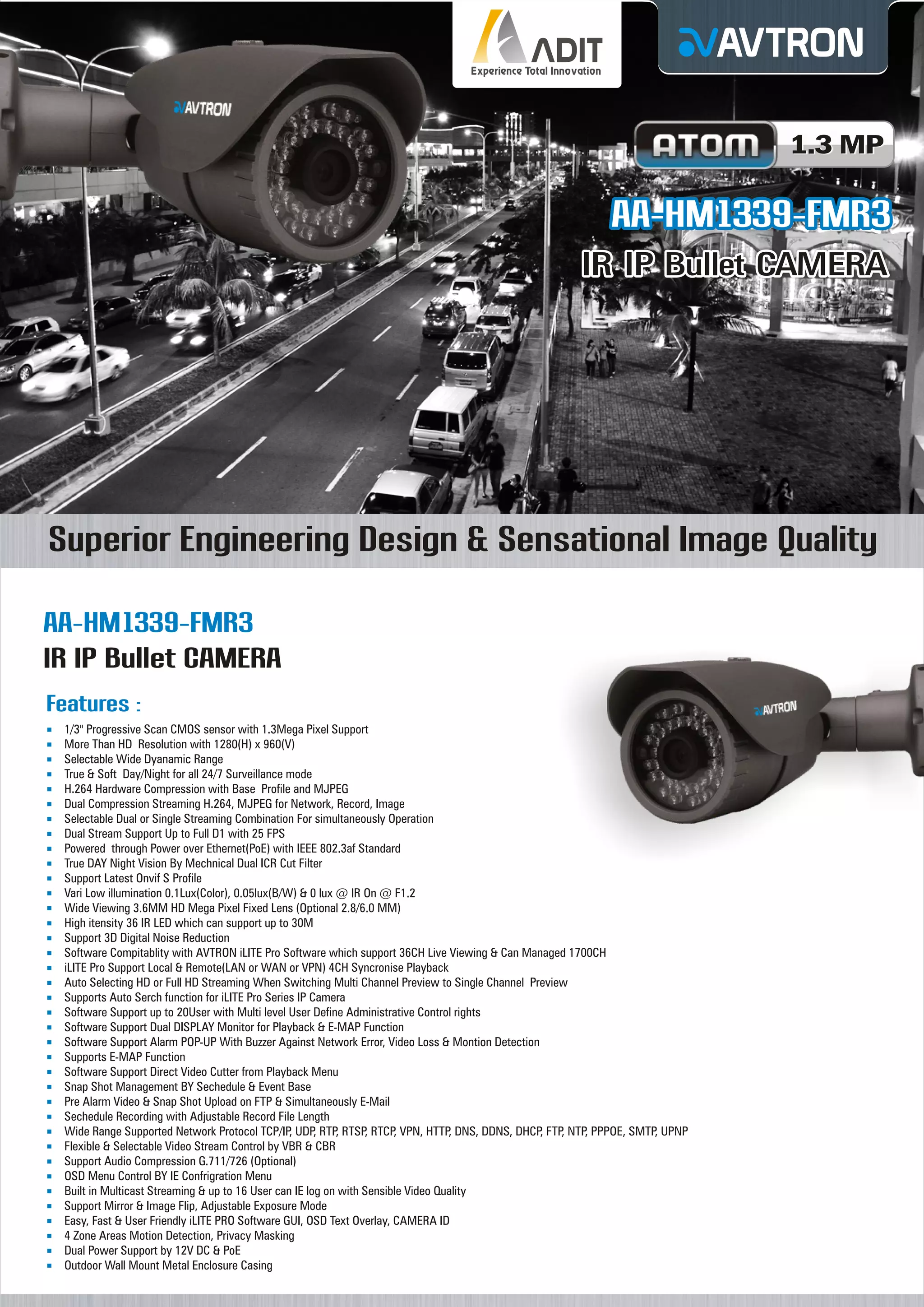

1. 1.3 MP
AA-HM1339-FMR3
IR IP Bullet CAMERA
Superior Engineering Design & Sensational Image Quality
AA-HM1339-FMR3
IR IP Bullet CAMERA
Features :
1/3"
¡ Progressive Scan CMOS sensor with 1.3Mega Pixel Support
More
¡ Than HD Resolution with 1280(H) x 960(V)
Selectable Wide Dyanamic Range
¡
True
¡ & Soft Day/Night for all 24/7 Surveillance mode
H.264
¡ Hardware Compression with Base Profile and MJPEG
Dual
¡ Compression Streaming H.264, MJPEG for Network, Record, Image
Selectable Dual or Single Streaming Combination For simultaneously Operation
¡
Dual
¡ Stream Support Up to Full D1 with 25 FPS
Powered through Power over Ethernet(PoE) with IEEE 802.3af Standard
¡
True
¡ DAY Night Vision By Mechnical Dual ICR Cut Filter
Support Latest Onvif S Profile
¡
Vari
¡ Low illumination 0.1Lux(Color), 0.05lux(B/W) & 0 lux @ IR On @ F1.2
Wide
¡ Viewing 3.6MM HD Mega Pixel Fixed Lens (Optional 2.8/6.0 MM)
High
¡ itensity 36 IR LED which can support up to 30M
Support 3D Digital Noise Reduction
¡
Software Compitablity with AVTRON iLITE Pro Software which support 36CH Live Viewing & Can Managed 1700CH
¡
iLITE
¡ Pro Support Local & Remote(LAN or WAN or VPN) 4CH Syncronise Playback
Auto
¡ Selecting HD or Full HD Streaming When Switching Multi Channel Preview to Single Channel Preview
Supports Auto Serch function for iLITE Pro Series IP Camera
¡
Software Support up to 20User with Multi level User Define Administrative Control rights
¡
Software Support Dual DISPLAY Monitor for Playback & E-MAP Function
¡
Software Support Alarm POP-UP With Buzzer Against Network Error, Video Loss & Montion Detection
¡
Supports E-MAP Function
¡
Software Support Direct Video Cutter from Playback Menu
¡
Snap
¡ Shot Management BY Sechedule & Event Base
Pre
¡ Alarm Video & Snap Shot Upload on FTP & Simultaneously E-Mail
Sechedule Recording with Adjustable Record File Length
¡
Wide
¡ Range Supported Network Protocol TCP/IP, UDP, RTP, RTSP, RTCP, VPN, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Flexible & Selectable Video Stream Control by VBR & CBR
¡
Support Audio Compression G.711/726 (Optional)
¡
OSD
¡ Menu Control BY IE Confrigration Menu
Built
¡ in Multicast Streaming & up to 16 User can IE log on with Sensible Video Quality
Support Mirror & Image Flip, Adjustable Exposure Mode
¡
Easy,
¡ Fast & User Friendly iLITE PRO Software GUI, OSD Text Overlay, CAMERA ID
4 Zone Areas Motion Detection, Privacy Masking
¡
Dual
¡ Power Support by 12V DC & PoE
Outdoor Wall Mount Metal Enclosure Casing
¡

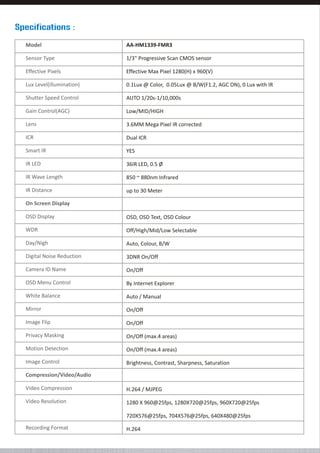

2. Specifications :
Model
AA-HM1339-FMR3
Sensor Type
1/3" Progressive Scan CMOS sensor
Effective Pixels
Effective Max Pixel 1280(H) x 960(V)
Lux Level(illumination)
0.1Lux @ Color, 0.05Lux @ B/W(F1.2, AGC ON), 0 Lux with IR
Shutter Speed Control
AUTO 1/20s-1/10,000s
Gain Control(AGC)
Low/MID/HIGH
Lens
3.6MM Mega Pixel IR corrected
ICR
Dual ICR
Smart IR
YES
IR LED
36IR LED, 0.5 Ø
IR Wave Length
850 ~ 880nm Infrared
IR Distance
up to 30 Meter
On Screen Display
OSD Display
OSD, OSD Text, OSD Colour
WDR
Off/High/Mid/Low Selectable
Day/Nigh
Auto, Colour, B/W
Digital Noise Reduction
3DNR On/Off
Camera ID Name
On/Off
OSD Menu Control
By Internet Explorer
White Balance
Auto / Manual
Mirror
On/Off
Image Flip
On/Off
Privacy Masking
On/Off (max.4 areas)
Motion Detection
On/Off (max.4 areas)
Image Control
Brightness, Contrast, Sharpness, Saturation
Compression/Video/Audio
Video Compression
H.264 / MJPEG
Video Resolution
1280 X 960@25fps, 1280X720@25fps, 960X720@25fps
720X576@25fps, 704X576@25fps, 640X480@25fps
Recording Format
H.264

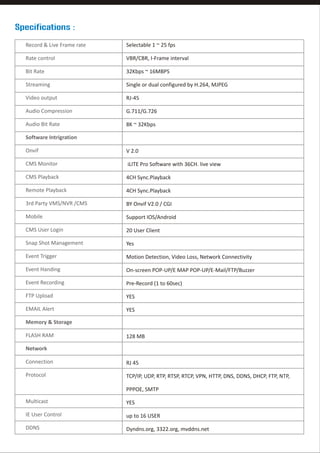

3. Specifications :
Record & Live Frame rate
Selectable 1 ~ 25 fps
Rate control
VBR/CBR, I-Frame interval
Bit Rate
32Kbps ~ 16MBPS
Streaming
Single or dual configured by H.264, MJPEG
Video output
RJ-45
Audio Compression
G.711/G.726
Audio Bit Rate
8K ~ 32Kbps
Software Intrigration
Onvif
V 2.0
CMS Monitor
iLITE Pro Software with 36CH. live view
CMS Playback
4CH Sync.Playback
Remote Playback
4CH Sync.Playback
3rd Party VMS/NVR /CMS
BY Onvif V2.0 / CGI
Mobile
Support IOS/Android
CMS User Login
20 User Client
Snap Shot Management
Yes
Event Trigger
Motion Detection, Video Loss, Network Connectivity
Event Handing
On-screen POP-UP/E MAP POP-UP/E-Mail/FTP/Buzzer
Event Recording
Pre-Record (1 to 60sec)
FTP Upload
YES
EMAIL Alert
YES
Memory & Storage
FLASH RAM
128 MB
Network
Connection
RJ 45
Protocol
TCP/IP, UDP, RTP, RTSP, RTCP, VPN, HTTP, DNS, DDNS, DHCP, FTP, NTP,
PPPOE, SMTP
Multicast
YES
IE User Control
up to 16 USER
DDNS
Dyndns.org, 3322.org, mvddns.net

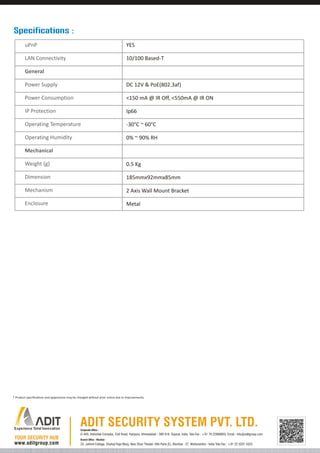

4. Specifications :
uPnP
YES
LAN Connectivity
10/100 Based-T
General
Power Supply
DC 12V & PoE(802.3af)
Power Consumption
<150 mA @ IR Off, <550mA @ IR ON
IP Protection
Ip66
Operating Temperature
-30°C ~ 60°C
Operating Humidity
0% ~ 90% RH
Mechanical
Weight (g)
0.5 Kg
Dimension
185mmx92mmx85mm
Mechanism
2 Axis Wall Mount Bracket
Enclosure
Metal
* Product specifications and appearance may be changed without prior notice due to improvements.
