This document discusses challenges with structuring data for SQL queries on Hadoop and proposes a solution called FastCopy. FastCopy uses materialized views to autonomously restructure data with sorting, partitioning, and bucketing. It addresses issues like evolving queries, data dependencies, and downtime during restructuring. FastCopy creates and maintains multiple materialized views, selects the optimal one for queries, and refreshes views asynchronously without affecting ongoing queries. It is currently in alpha testing at Qubole and will soon be released to customers.

1. Autonomous ETL With
Materialized Views
Abhishek Somani, Adesh Rao
May 2018

2. 2
Agenda
1. Standard techniques for structuring data for SQL-on-Hadoop (Hive, Presto,
Spark etc)
2. Difficulties in structuring data
3. A case for Materialized Views
4. Challenges with Materialized Views
5. Solution

3. 3

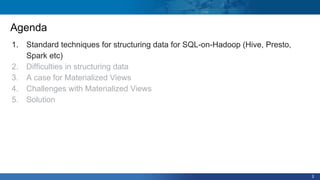

Agenda
1. Standard techniques for structuring data for SQL-on-Hadoop (Hive, Presto,
Spark etc)
2. Difficulties in structuring data
3. A case for Materialized Views
4. Challenges with Materialized Views
5. Solution

4. 4
● Partitioning
Data structuring for SQL-on-Hadoop

5. 5
● Columnar File Formats
Data organization for SQL-on-Hadoop
ORC
Parquet

6. 6

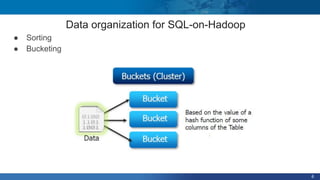

● Sorting
● Bucketing
Data organization for SQL-on-Hadoop

7. 7

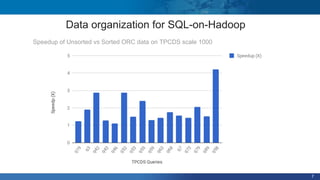

Data organization for SQL-on-Hadoop
Speedup of Unsorted vs Sorted ORC data on TPCDS scale 1000

8. 8
Agenda
1. Standard techniques for structuring data for SQL-on-Hadoop (Hive, Presto,
Spark etc)
2. Difficulties in structuring data
3. A case for Materialized Views
4. Challenges with Materialized Views
5. Solution

9. 9
Difficulties in Structuring Data
● Evolving query patterns
● Data pipeline dependencies
● Large number of consumers
● Data Admin Involvement
● Downtime
● Workload Aware identification
of optimal data structure
● Flexibility of data structuring
● Seamless restructuring
● Continuous and automatic
maintenance
NO DOWNTIME!

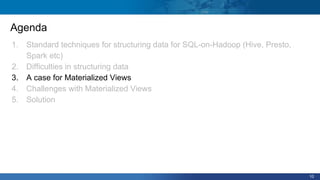

10. 10
Agenda
1. Standard techniques for structuring data for SQL-on-Hadoop (Hive, Presto,
Spark etc)
2. Difficulties in structuring data
3. A case for Materialized Views
4. Challenges with Materialized Views
5. Solution

11. 11

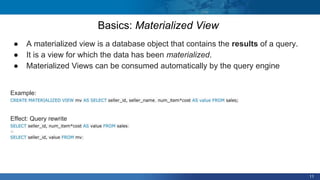

● A materialized view is a database object that contains the results of a query.
● It is a view for which the data has been materialized.
● Materialized Views can be consumed automatically by the query engine
Example:
CREATE MATERIALIZED VIEW mv AS SELECT seller_id, seller_name, num_item*cost AS value FROM sales;
Effect: Query rewrite
SELECT seller_id, num_item*cost AS value FROM sales;
~
SELECT seller_id, value FROM mv;
Basics: Materialized View

12. 12

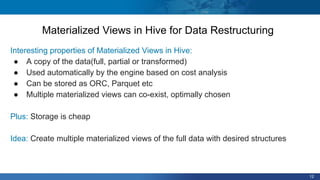

Interesting properties of Materialized Views in Hive:
● A copy of the data(full, partial or transformed)
● Used automatically by the engine based on cost analysis
● Can be stored as ORC, Parquet etc
● Multiple materialized views can co-exist, optimally chosen
Plus: Storage is cheap
Idea: Create multiple materialized views of the full data with desired structures
Materialized Views in Hive for Data Restructuring

13. 13

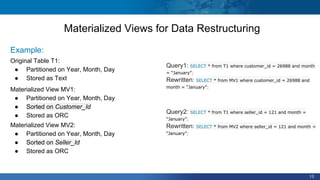

Query1: SELECT * from T1 where customer_id = 26988 and month
= “January”;
Rewritten: SELECT * from MV1 where customer_id = 26988 and
month = “January”;
Query2: SELECT * from T1 where seller_id = 121 and month =
“January”;
Rewritten: SELECT * from MV2 where seller_id = 121 and month =
“January”;
Materialized Views for Data Restructuring
Example:
Original Table T1:
● Partitioned on Year, Month, Day
● Stored as Text
Materialized View MV1:
● Partitioned on Year, Month, Day
● Sorted on Customer_Id
● Stored as ORC
Materialized View MV2:
● Partitioned on Year, Month, Day
● Sorted on Seller_Id
● Stored as ORC

14. 14
Materialized Views in SQL-on-Hadoop engines
● Basic implementation available in Apache Hive 2.3.0
○ Uses Apache Calcite for query optimization and query rewrite
○ Multi file format support. Uses ORC (by default) for optimized columnar
storage of materialized queries
● Not available in Presto
● Not available in Spark

15. 15
Agenda
1. Standard techniques for structuring data for SQL-on-Hadoop (Hive, Presto,
Spark etc)
2. Difficulties in structuring data
3. A case for Materialized Views
4. Challenges with Materialized Views
5. Solution

16. 16
Challenges with Materialized Views
● Invalidation
○ Only a subset of use cases can work with stale data
● Rebuilds and Refreshes
○ Prohibitively expensive for full data copies
● Maintenance Isolation
○ Ongoing queries get affected

17. 17

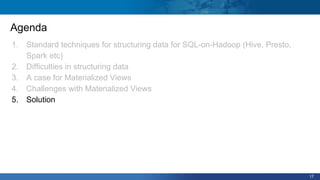

Agenda
1. Standard techniques for structuring data for SQL-on-Hadoop (Hive, Presto,
Spark etc)
2. Difficulties in structuring data
3. A case for Materialized Views
4. Challenges with Materialized Views
5. Solution

18. 18
FastCopy: A framework for Autonomous Materialized Views
● Materialized Views for Sorting, Partitioning and Bucketing for structuring data
● Synchronous invalidation on table updates
● Asynchronous automatic refreshes
● Maintenance isolation by refreshes in their own scheduler queues, or even
their own cluster
● Recommendation Engine to suggest Materialized Views
● Cross engine support for using Materialized Views

19. 19

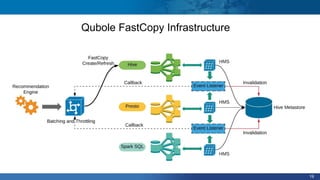

Qubole FastCopy Infrastructure

20. 20
Qubole FastCopy Infrastructure
FastCopy Creation

21. 21

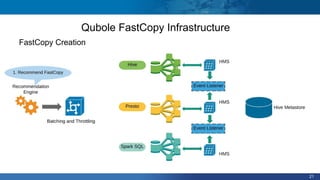

Qubole FastCopy Infrastructure
FastCopy Creation

22. 22

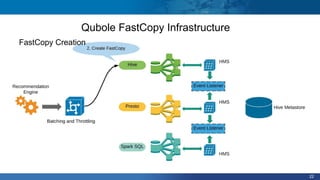

Qubole FastCopy Infrastructure
FastCopy Creation

23. 23
Qubole FastCopy Infrastructure
FastCopy CreationFastCopy Creation

24. 24

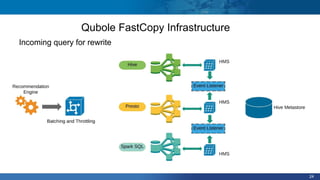

Qubole FastCopy Infrastructure
Incoming query for rewrite

25. 25

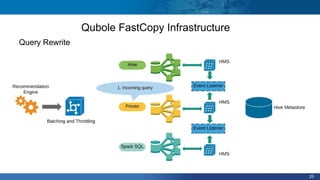

Qubole FastCopy Infrastructure
Query Rewrite

26. 26

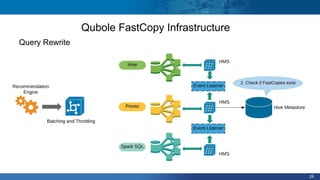

Qubole FastCopy Infrastructure
Query Rewrite

27. 27
Qubole FastCopy Infrastructure
Query Rewrite

28. 28
Qubole FastCopy Infrastructure
Invalidation and Refresh

29. 29

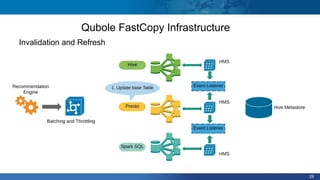

Qubole FastCopy Infrastructure
Invalidation and Refresh

30. 30
Qubole FastCopy Infrastructure
Invalidation and Refresh

31. 31
Qubole FastCopy Infrastructure
Invalidation and Refresh

32. 32
Qubole FastCopy Infrastructure
Invalidation and Refresh

33. 33

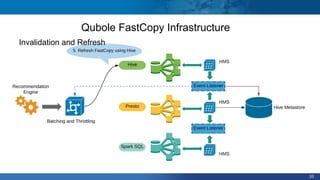

Qubole FastCopy Infrastructure
Invalidation and Refresh

34. 34
Qubole FastCopy Infrastructure
Invalidation and Refresh

35. 35

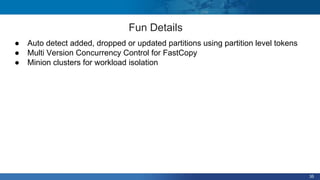

Fun Details
● Auto detect added, dropped or updated partitions using partition level tokens
● Multi Version Concurrency Control for FastCopy
● Minion clusters for workload isolation

36. ● Top Tables
36
Recommendations

37. ● Top Tables
37
Recommendations

38. ● Column Usage as Filter predicates
38
Recommendations

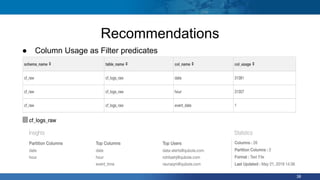

39. ● Column Usage as Filter predicates
39
Recommendations

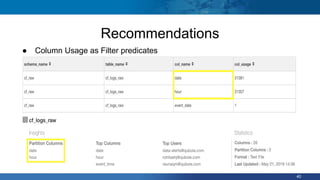

40. ● Column Usage as Filter predicates
40
Recommendations

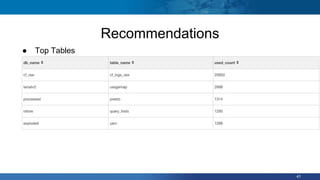

41. ● Top Tables
41
Recommendations

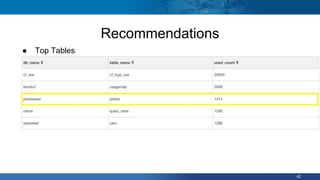

42. ● Top Tables
42
Recommendations

43. ● Column Usage as Filter predicates
43
Recommendations

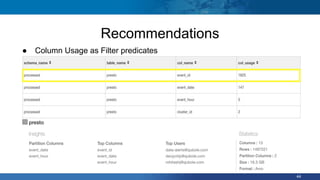

44. ● Column Usage as Filter predicates
44
Recommendations

45. ● Column Usage as Filter predicates
45
Recommendations

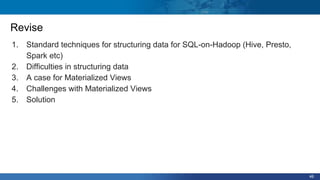

46. 46
Revise
1. Standard techniques for structuring data for SQL-on-Hadoop (Hive, Presto,
Spark etc)
2. Difficulties in structuring data
3. A case for Materialized Views
4. Challenges with Materialized Views
5. Solution

47. 47
Status
● FastCopy is at an internal Alpha
● Will soon be released as a beta for customers in the next Quarter
● Contribute to Open Source
Thank You

48. Thank You
Abhishek Somani, Adesh Rao
May 2018
