1. April 23rd, 2020

2. “Prediction is very difficult,
especially if it’s about the future”
Niels Bohr
2

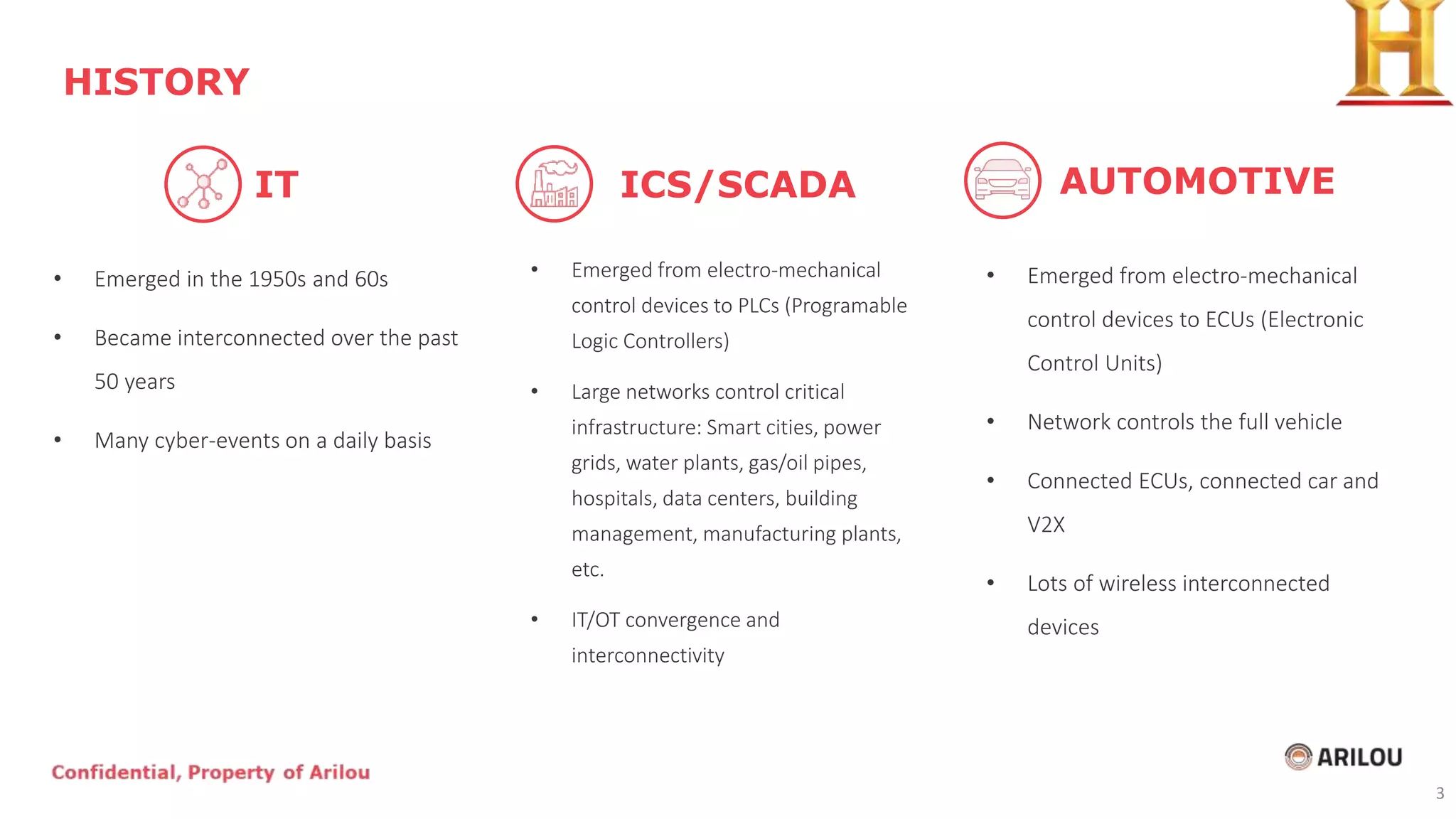

3. • Emerged in the 1950s and 60s
• Became interconnected over the past
50 years
• Many cyber-events on a daily basis
HISTORY
• Emerged from electro-mechanical
control devices to PLCs (Programable
Logic Controllers)
• Large networks control critical
infrastructure: Smart cities, power
grids, water plants, gas/oil pipes,
hospitals, data centers, building
management, manufacturing plants,
etc.
• IT/OT convergence and
interconnectivity
• Emerged from electro-mechanical
control devices to ECUs (Electronic
Control Units)
• Network controls the full vehicle
• Connected ECUs, connected car and
V2X
• Lots of wireless interconnected
devices
IT ICS/SCADA AUTOMOTIVE
3

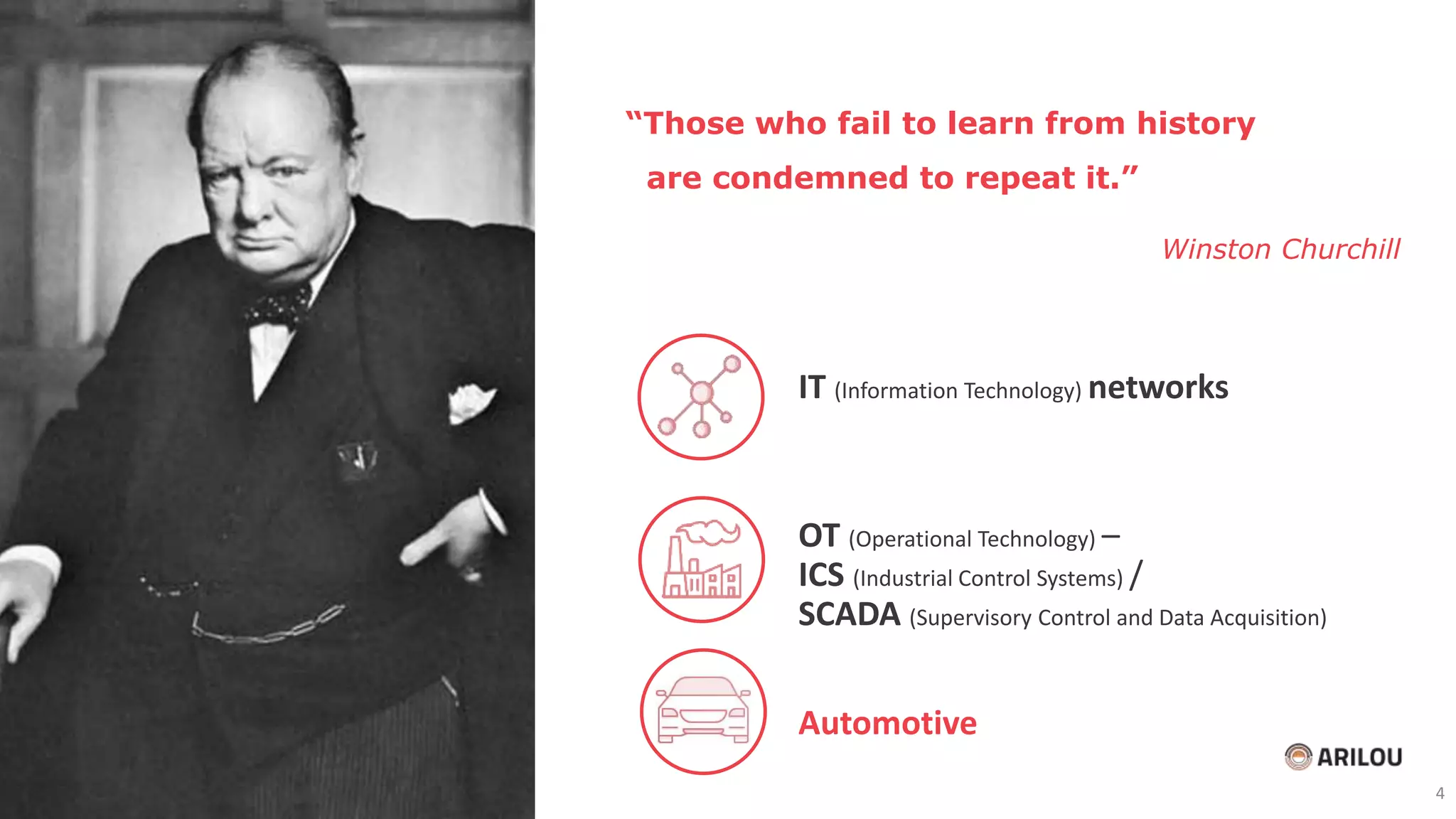

4. “Those who fail to learn from history
are condemned to repeat it.”
Winston Churchill
IT (Information Technology) networks
OT (Operational Technology) –
ICS (Industrial Control Systems) /
SCADA (Supervisory Control and Data Acquisition)
Automotive
4

5. • Changed from air-gapped to
connected decades ago
• Highly dynamic, chaotic and
unpredictable
• Very powerful computers
SYSTEM CHARACTERISTICS
• Many still air-gapped but IT/OT
convergence is here
• Static, deterministic and predictable
behavior
• Relatively low computing power,
especially at the PLC level
• Connected car is here and numbers
will only increase
• Static, deterministic and predictive
behavior
• Very low computing power but
gradually increasing
• Very sensitive to price
IT ICS/SCADA AUTOMOTIVE
5

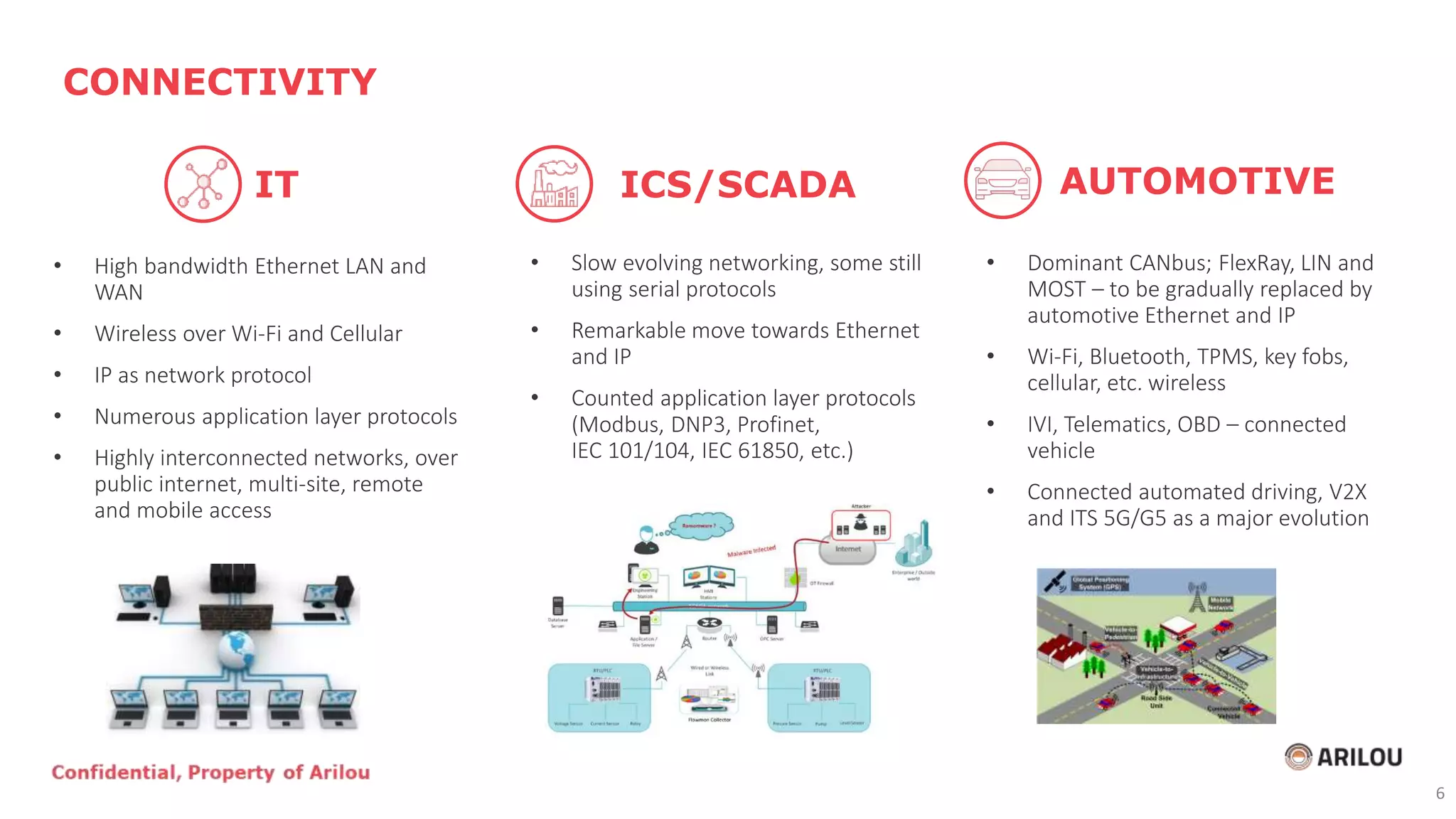

6. • High bandwidth Ethernet LAN and
WAN
• Wireless over Wi-Fi and Cellular
• IP as network protocol
• Numerous application layer protocols
• Highly interconnected networks, over
public internet, multi-site, remote
and mobile access
CONNECTIVITY
• Slow evolving networking, some still
using serial protocols
• Remarkable move towards Ethernet
and IP
• Counted application layer protocols
(Modbus, DNP3, Profinet,
IEC 101/104, IEC 61850, etc.)
• Dominant CANbus; FlexRay, LIN and
MOST – to be gradually replaced by
automotive Ethernet and IP
• Wi-Fi, Bluetooth, TPMS, key fobs,
cellular, etc. wireless
• IVI, Telematics, OBD – connected
vehicle
• Connected automated driving, V2X
and ITS 5G/G5 as a major evolution
IT ICS/SCADA AUTOMOTIVE
6

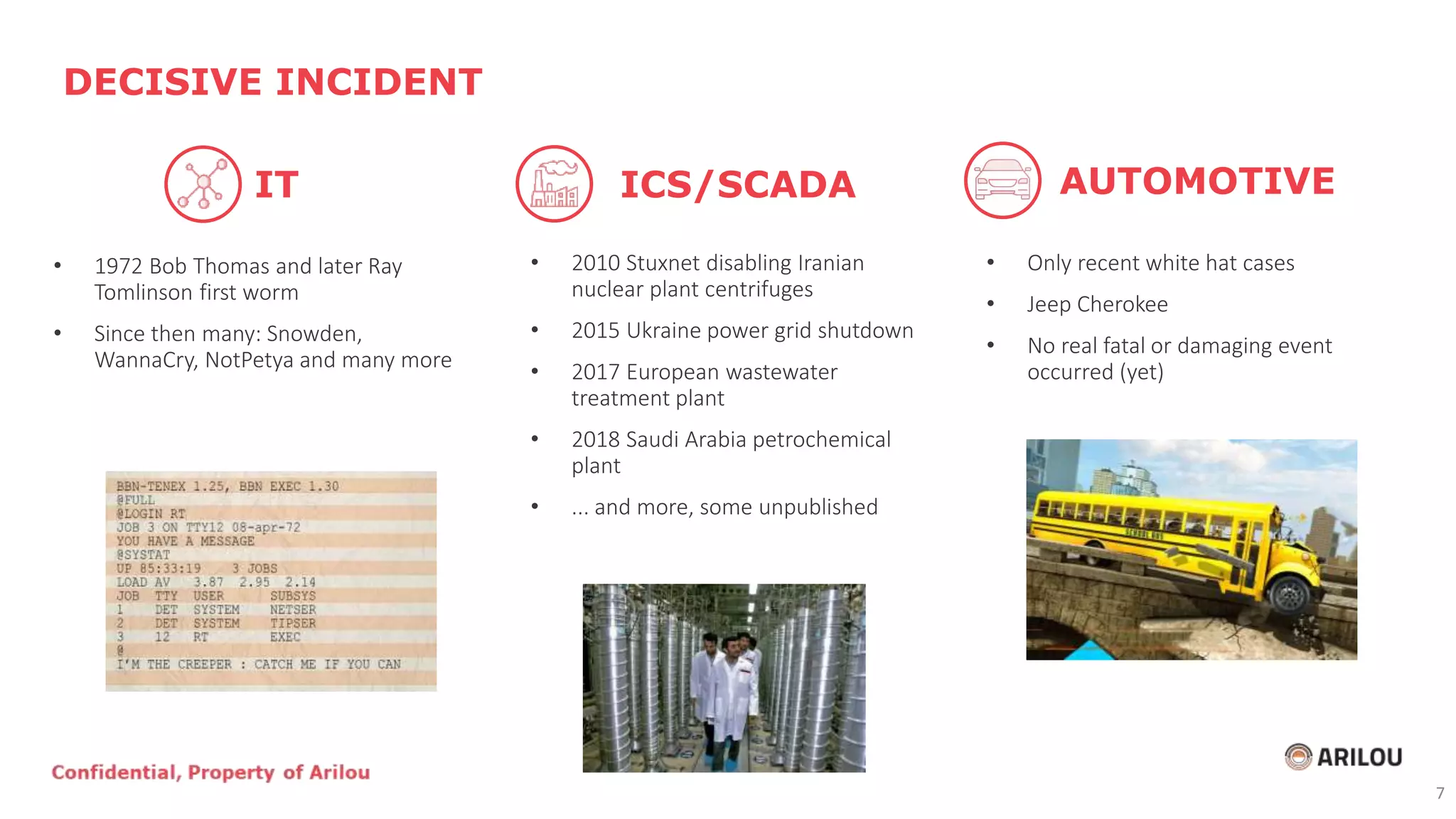

7. • 1972 Bob Thomas and later Ray
Tomlinson first worm
• Since then many: Snowden,
WannaCry, NotPetya and many more
DECISIVE INCIDENT
• 2010 Stuxnet disabling Iranian
nuclear plant centrifuges
• 2015 Ukraine power grid shutdown
• 2017 European wastewater
treatment plant
• 2018 Saudi Arabia petrochemical
plant
• ... and more, some unpublished
• Only recent white hat cases
• Jeep Cherokee
• No real fatal or damaging event
occurred (yet)
IT ICS/SCADA AUTOMOTIVE
7

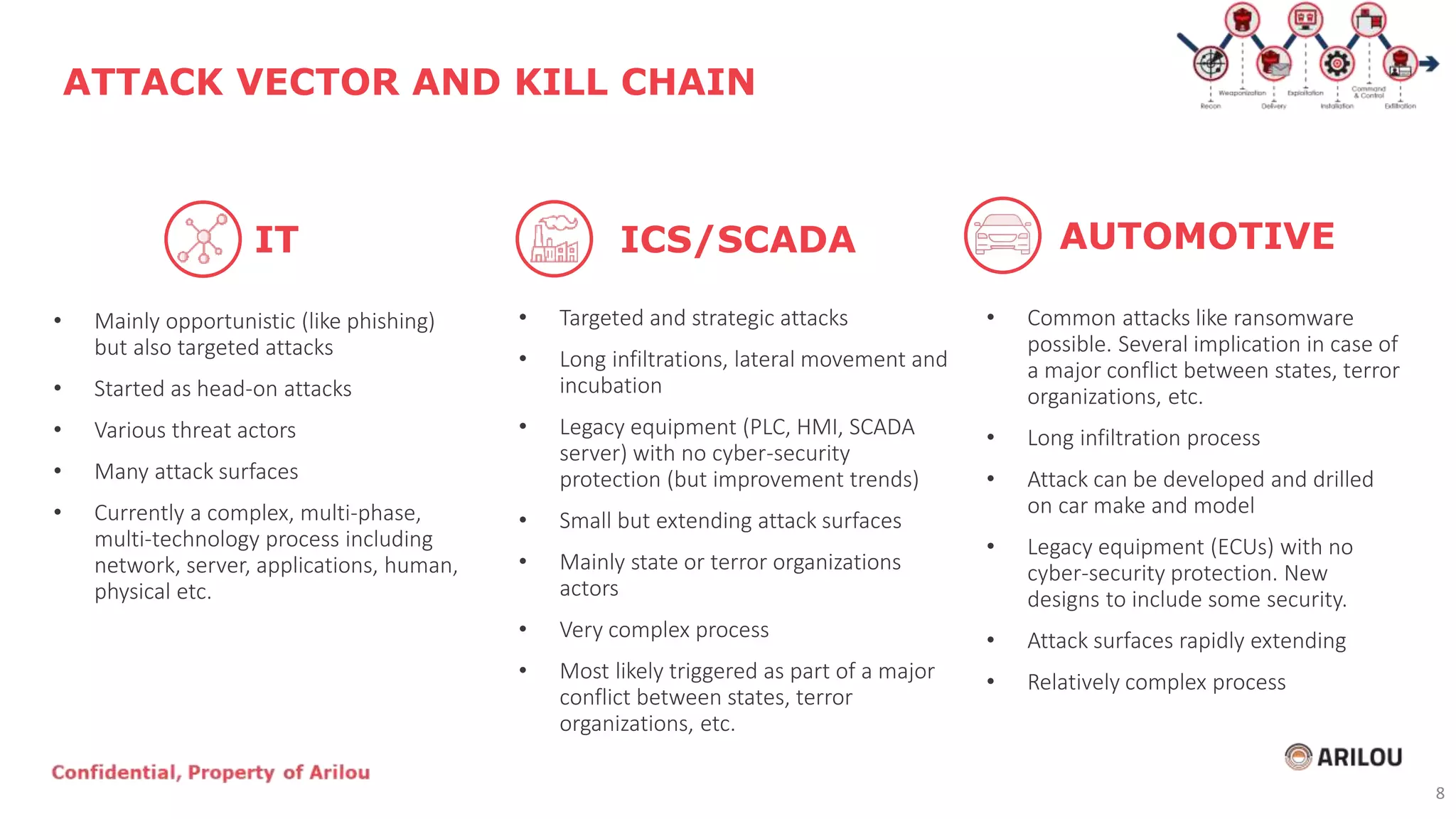

8. • Mainly opportunistic (like phishing)
but also targeted attacks
• Started as head-on attacks
• Various threat actors
• Many attack surfaces
• Currently a complex, multi-phase,
multi-technology process including
network, server, applications, human,
physical etc.
ATTACK VECTOR AND KILL CHAIN
• Targeted and strategic attacks
• Long infiltrations, lateral movement and
incubation
• Legacy equipment (PLC, HMI, SCADA
server) with no cyber-security
protection (but improvement trends)
• Small but extending attack surfaces
• Mainly state or terror organizations
actors
• Very complex process
• Most likely triggered as part of a major
conflict between states, terror
organizations, etc.
• Common attacks like ransomware
possible. Several implication in case of
a major conflict between states, terror
organizations, etc.
• Long infiltration process
• Attack can be developed and drilled
on car make and model
• Legacy equipment (ECUs) with no
cyber-security protection. New
designs to include some security.
• Attack surfaces rapidly extending
• Relatively complex process
IT ICS/SCADA AUTOMOTIVE
8

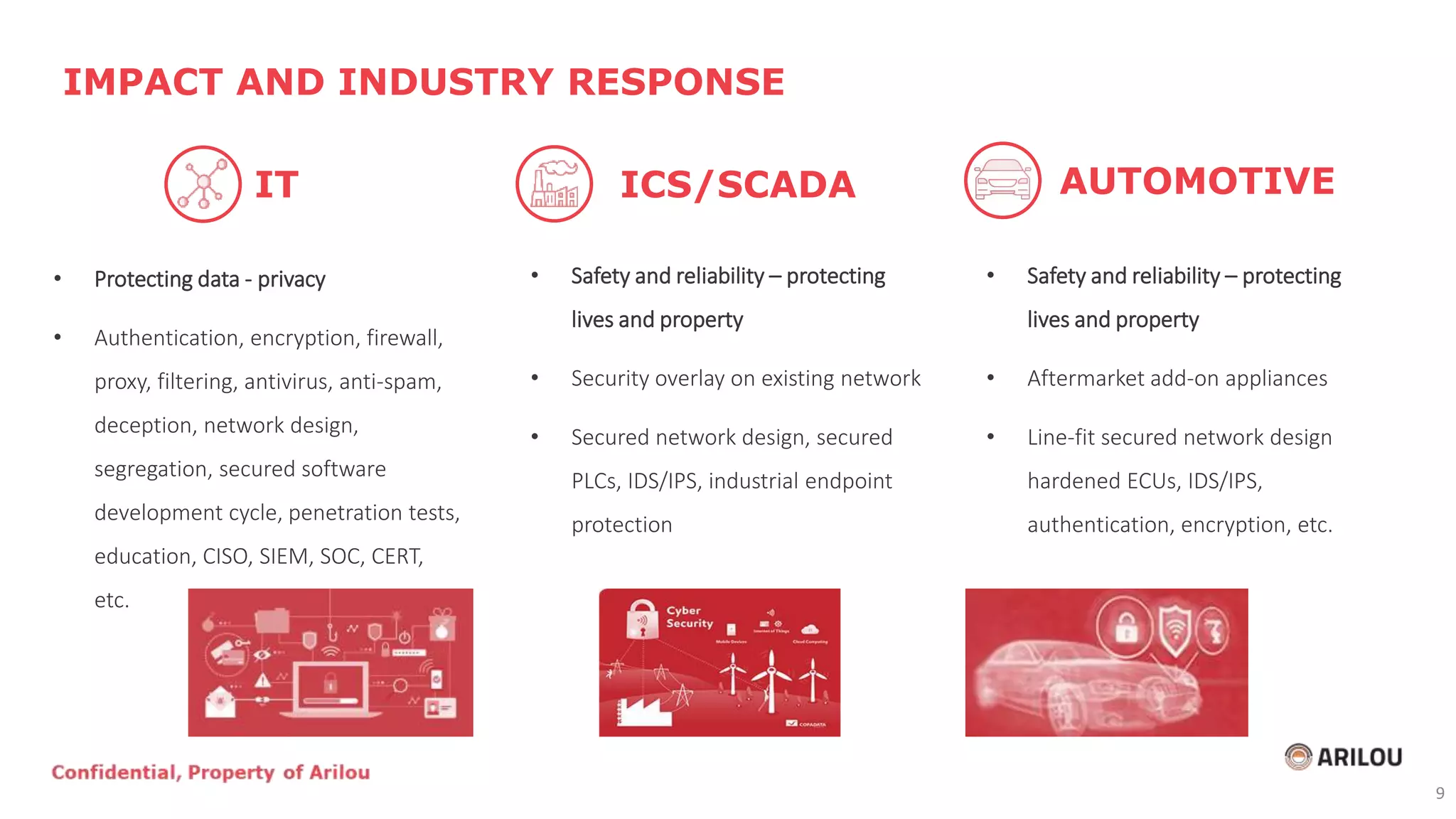

9. • Protecting data - privacy
• Authentication, encryption, firewall,
proxy, filtering, antivirus, anti-spam,
deception, network design,
segregation, secured software
development cycle, penetration tests,
education, CISO, SIEM, SOC, CERT,
etc.
IMPACT AND INDUSTRY RESPONSE
• Safety and reliability – protecting
lives and property
• Security overlay on existing network
• Secured network design, secured
PLCs, IDS/IPS, industrial endpoint
protection
• Safety and reliability – protecting
lives and property
• Aftermarket add-on appliances
• Line-fit secured network design
hardened ECUs, IDS/IPS,
authentication, encryption, etc.
IT ICS/SCADA AUTOMOTIVE
9

10. “Without standards,
there can be
no improvement.”
Taiichi Ohno
Toyota
10

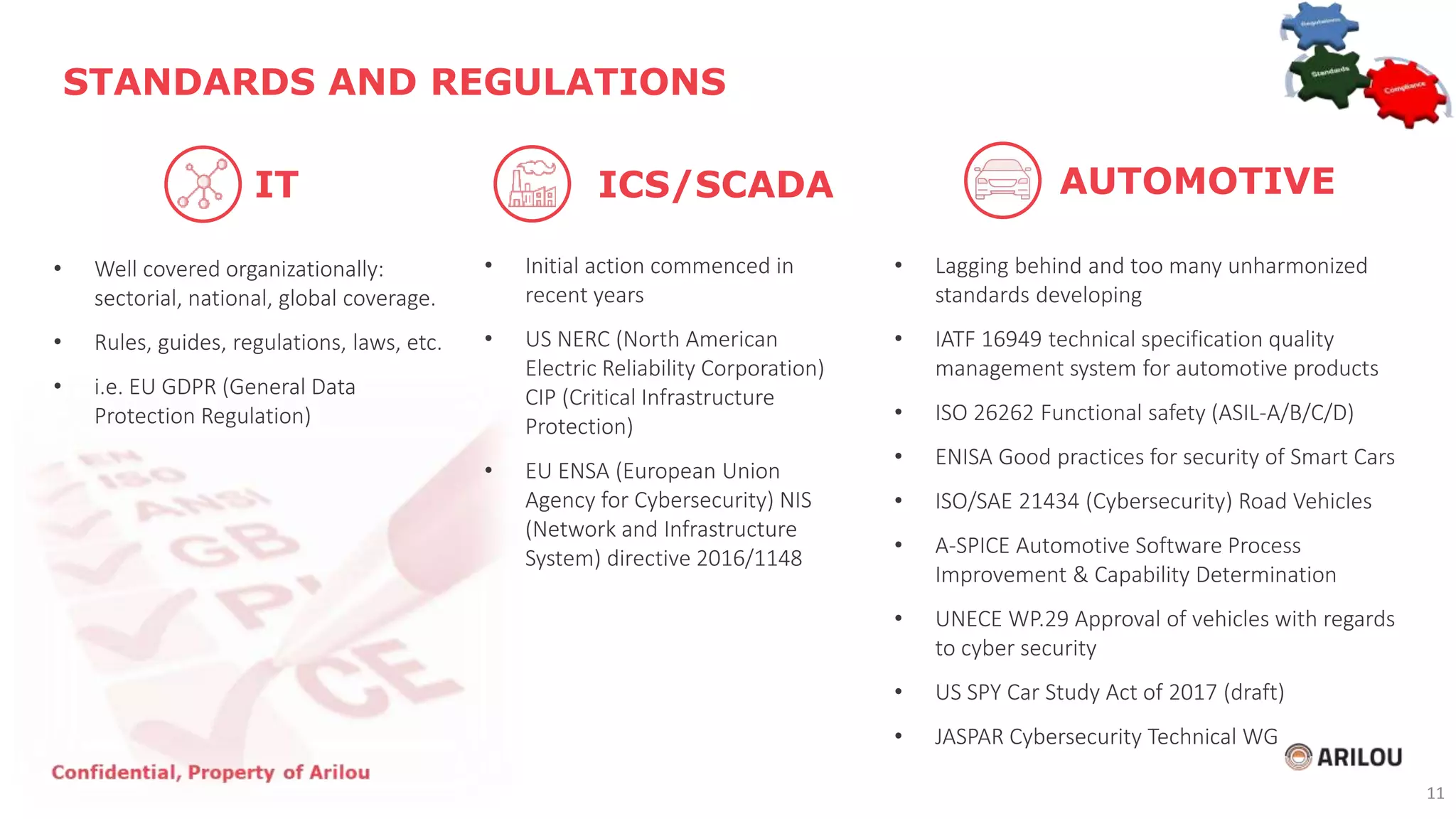

11. • Well covered organizationally:
sectorial, national, global coverage.
• Rules, guides, regulations, laws, etc.
• i.e. EU GDPR (General Data
Protection Regulation)
STANDARDS AND REGULATIONS
• Initial action commenced in
recent years
• US NERC (North American
Electric Reliability Corporation)
CIP (Critical Infrastructure
Protection)
• EU ENSA (European Union
Agency for Cybersecurity) NIS
(Network and Infrastructure
System) directive 2016/1148
• Lagging behind and too many unharmonized
standards developing
• IATF 16949 technical specification quality
management system for automotive products
• ISO 26262 Functional safety (ASIL-A/B/C/D)
• ENISA Good practices for security of Smart Cars
• ISO/SAE 21434 (Cybersecurity) Road Vehicles
• A-SPICE Automotive Software Process
Improvement & Capability Determination
• UNECE WP.29 Approval of vehicles with regards
to cyber security
• US SPY Car Study Act of 2017 (draft)
• JASPAR Cybersecurity Technical WG
IT ICS/SCADA AUTOMOTIVE
11

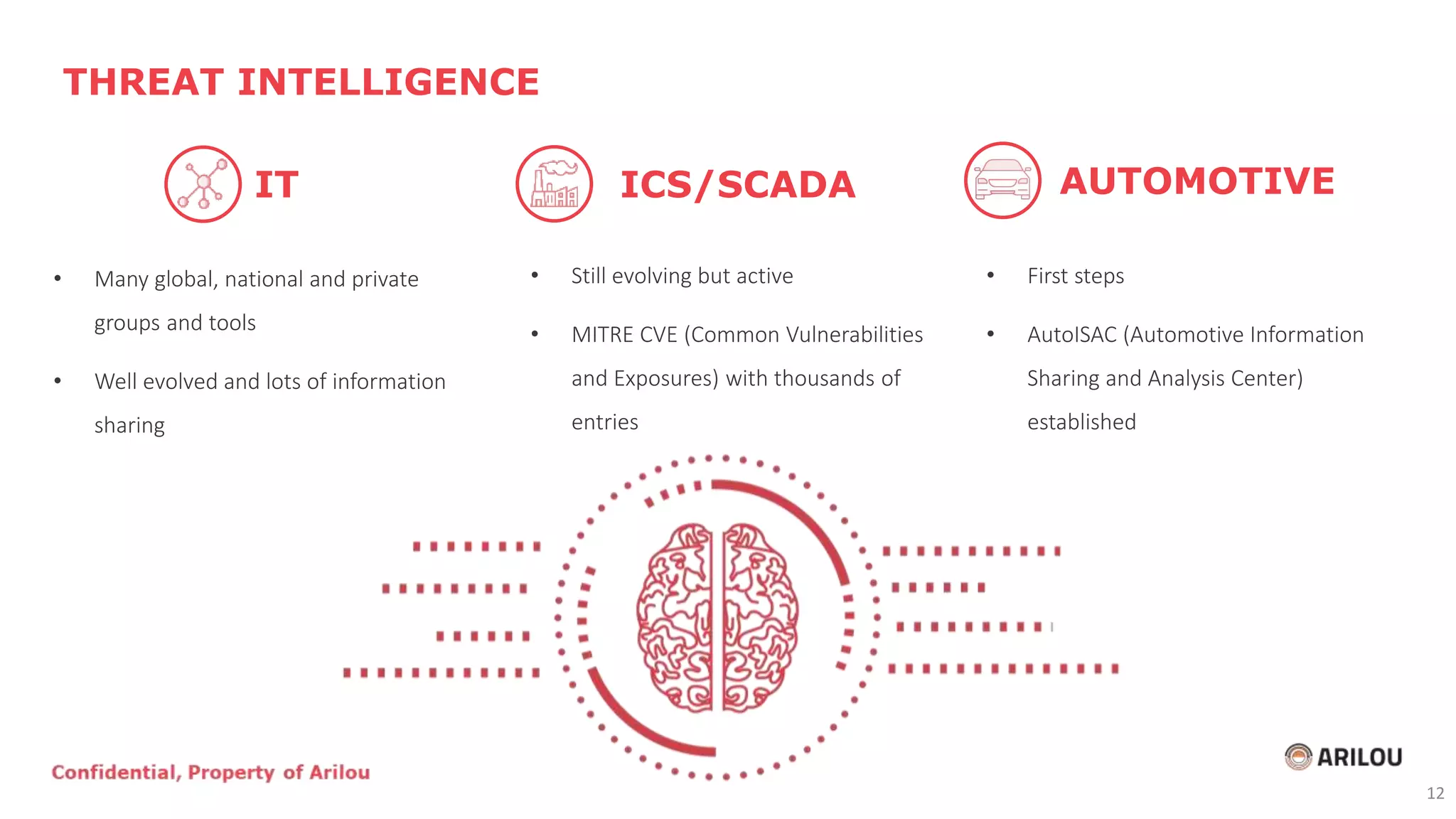

12. • Many global, national and private
groups and tools
• Well evolved and lots of information
sharing
THREAT INTELLIGENCE
• Still evolving but active
• MITRE CVE (Common Vulnerabilities
and Exposures) with thousands of
entries
• First steps
• AutoISAC (Automotive Information
Sharing and Analysis Center)
established
IT ICS/SCADA AUTOMOTIVE
12

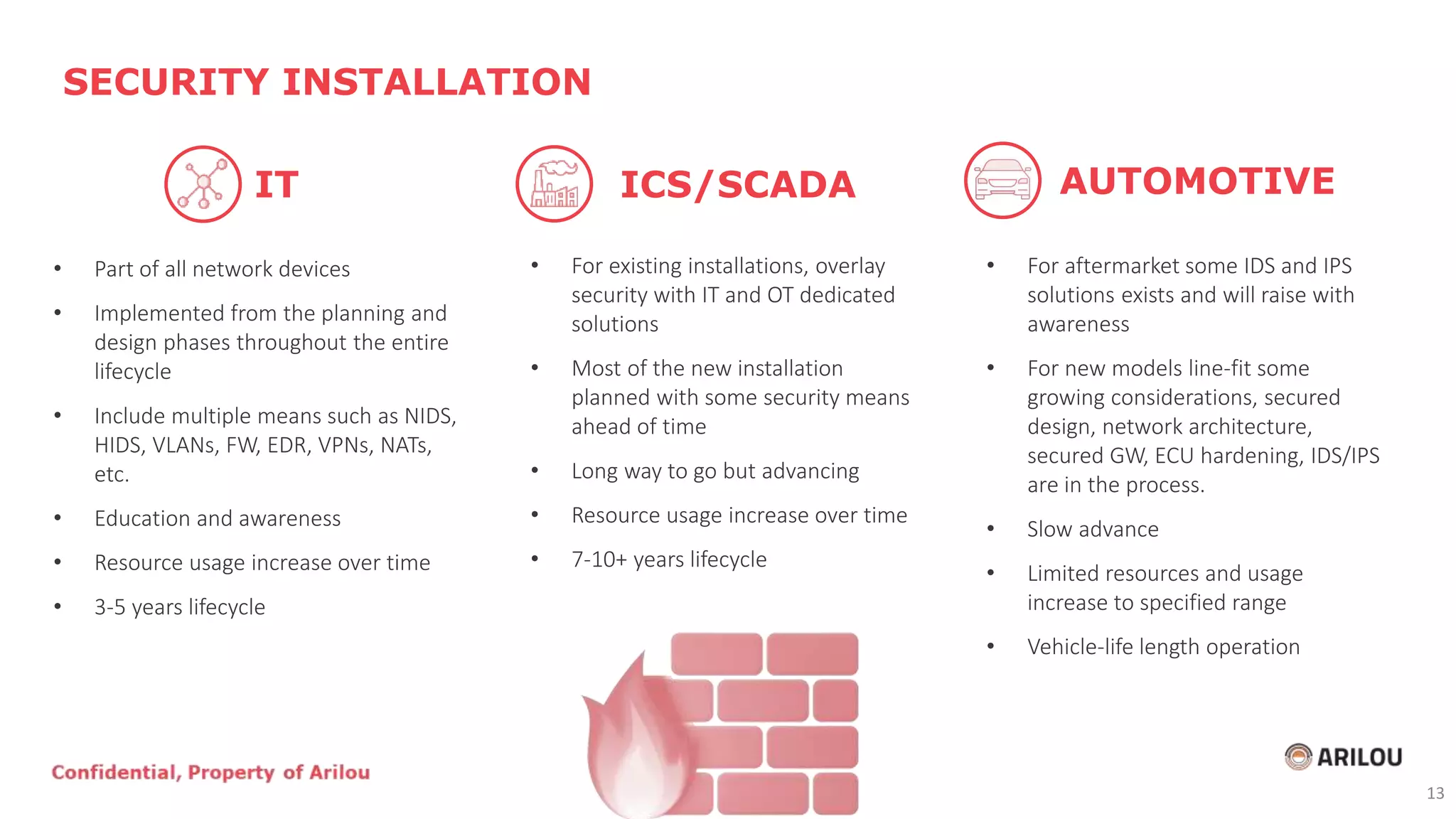

13. • Part of all network devices
• Implemented from the planning and
design phases throughout the entire
lifecycle
• Include multiple means such as NIDS,
HIDS, VLANs, FW, EDR, VPNs, NATs,
etc.
• Education and awareness
• Resource usage increase over time
• 3-5 years lifecycle
SECURITY INSTALLATION
• For existing installations, overlay
security with IT and OT dedicated
solutions
• Most of the new installation
planned with some security means
ahead of time
• Long way to go but advancing
• Resource usage increase over time
• 7-10+ years lifecycle
• For aftermarket some IDS and IPS
solutions exists and will raise with
awareness
• For new models line-fit some
growing considerations, secured
design, network architecture,
secured GW, ECU hardening, IDS/IPS
are in the process.
• Slow advance
• Limited resources and usage
increase to specified range
• Vehicle-life length operation
IT ICS/SCADA AUTOMOTIVE
13

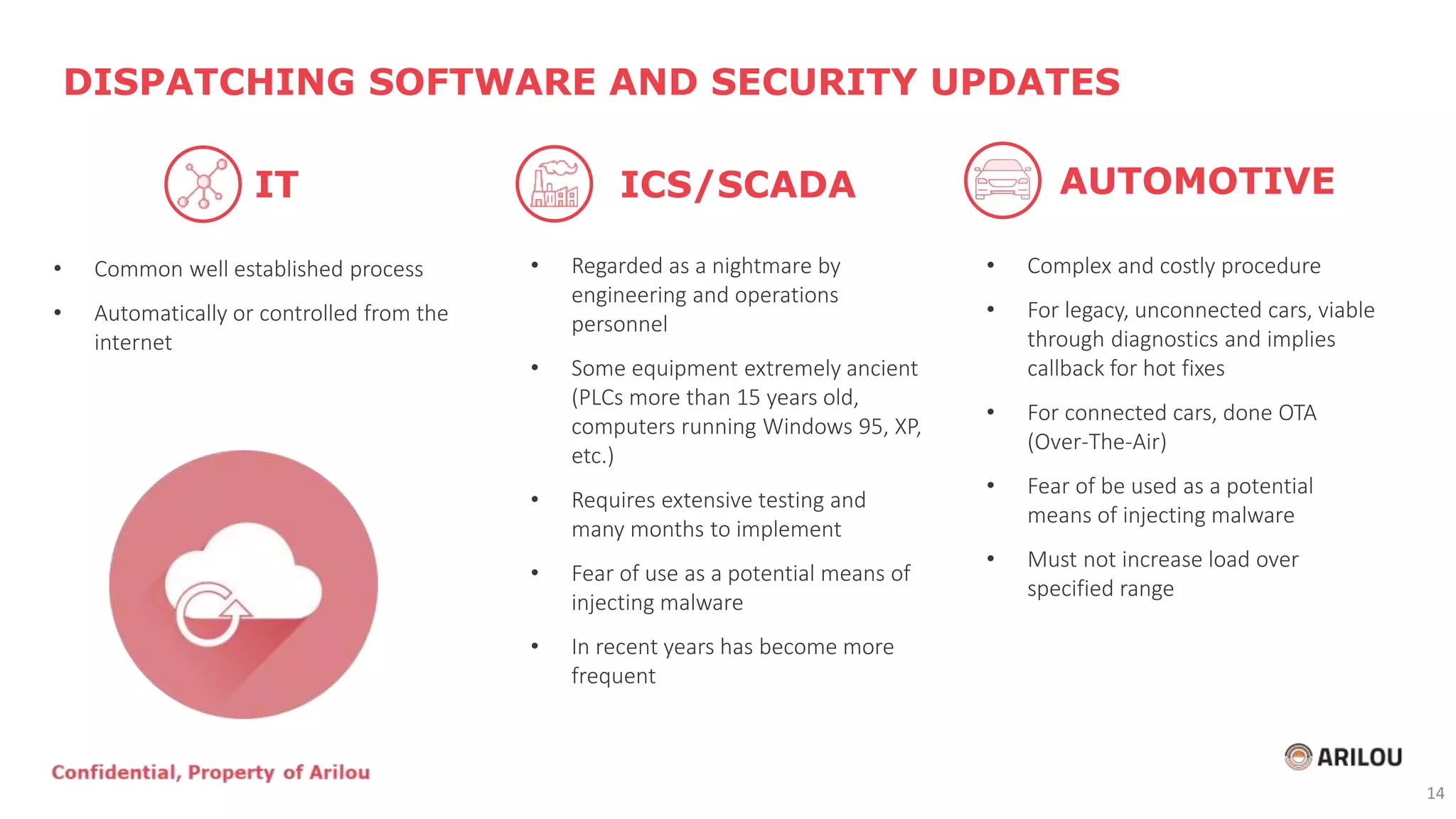

14. • Common well established process
• Automatically or controlled from the
internet
DISPATCHING SOFTWARE AND SECURITY UPDATES
• Regarded as a nightmare by
engineering and operations
personnel
• Some equipment extremely ancient
(PLCs more than 15 years old,
computers running Windows 95, XP,
etc.)
• Requires extensive testing and
many months to implement
• Fear of use as a potential means of
injecting malware
• In recent years has become more
frequent
• Complex and costly procedure
• For legacy, unconnected cars, viable
through diagnostics and implies
callback for hot fixes
• For connected cars, done OTA
(Over-The-Air)
• Fear of be used as a potential
means of injecting malware
• Must not increase load over
specified range
IT ICS/SCADA AUTOMOTIVE
14

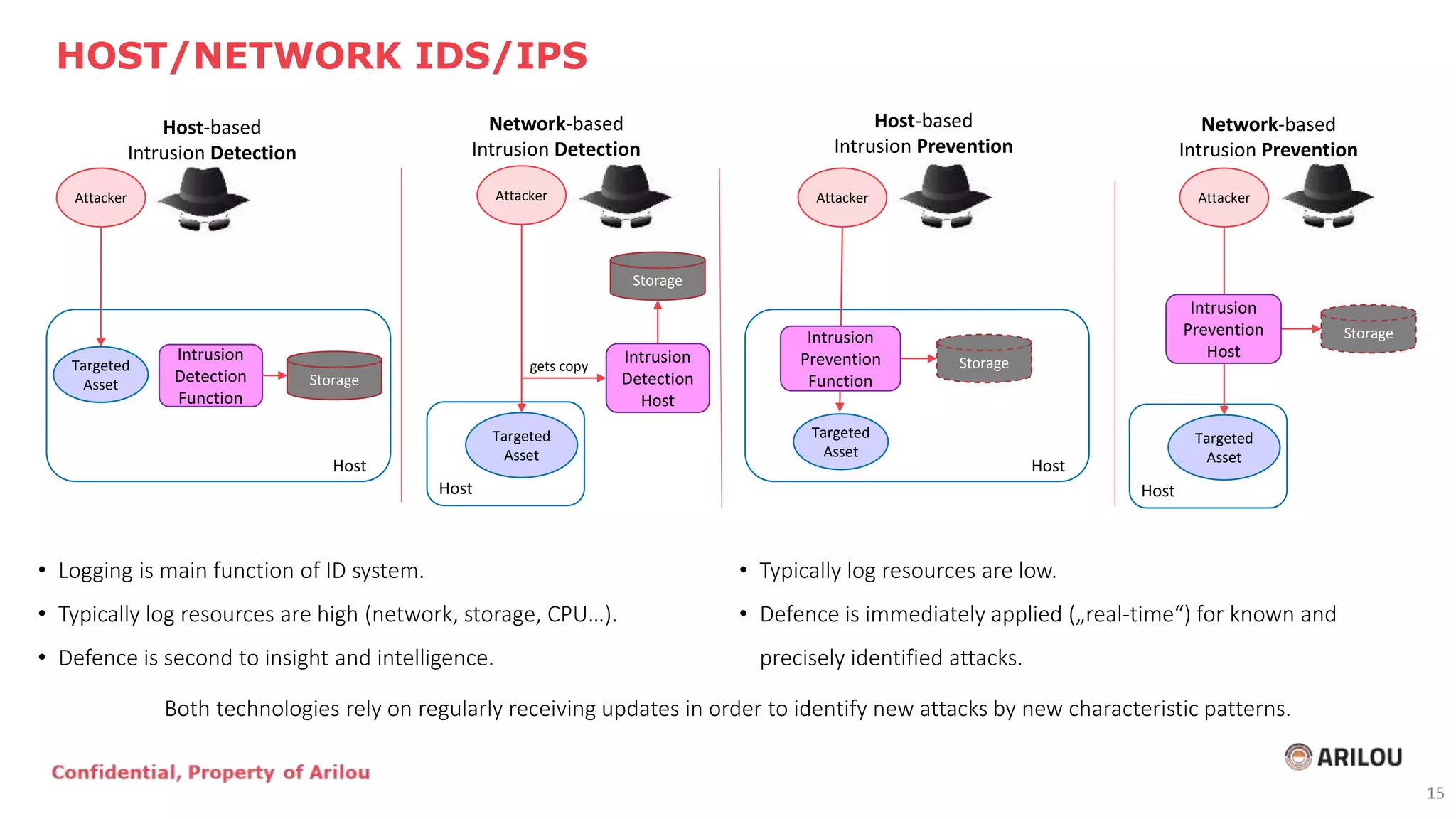

15. HOST/NETWORK IDS/IPS
15
Intrusion
Detection
Function
Targeted
Asset
Attacker
Storage
Host
Attacker
Storage
Host
Targeted
Asset
Intrusion
Prevention
Function
• Logging is main function of ID system.
• Typically log resources are high (network, storage, CPU…).
• Defence is second to insight and intelligence.
• Typically log resources are low.
• Defence is immediately applied („real-time“) for known and
precisely identified attacks.
Targeted
Asset
Attacker
Storage
Host
Intrusion
Prevention
Host
Host-based
Intrusion Detection
Host-based
Intrusion Prevention
Network-based
Intrusion Prevention
Intrusion
Detection
Host
Targeted
Asset
Attacker
Storage
gets copy
Host
Network-based
Intrusion Detection
Both technologies rely on regularly receiving updates in order to identify new attacks by new characteristic patterns.

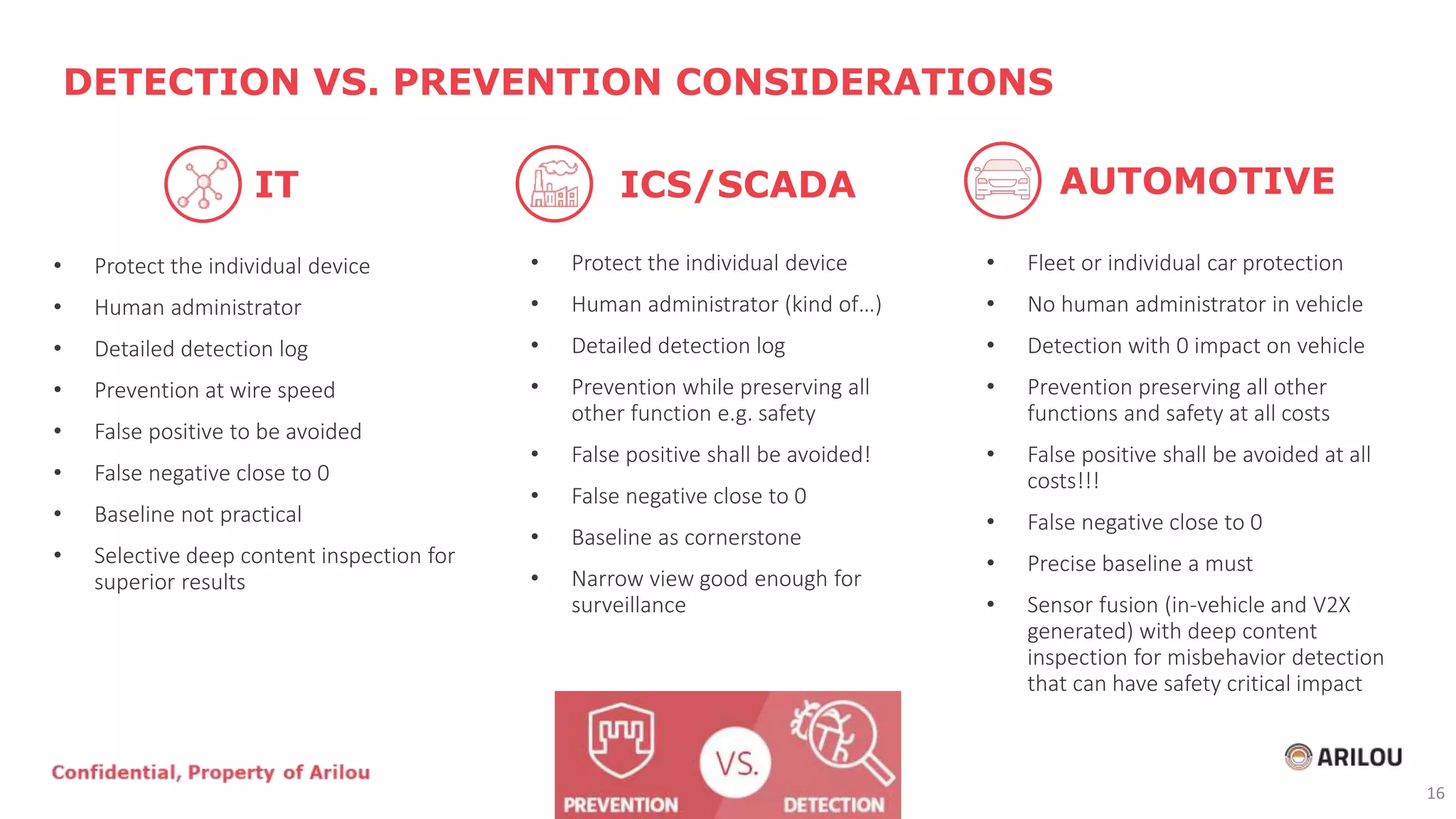

16. • Protect the individual device
• Human administrator
• Detailed detection log
• Prevention at wire speed
• False positive to be avoided
• False negative close to 0
• Baseline not practical
• Selective deep content inspection for
superior results
DETECTION VS. PREVENTION CONSIDERATIONS
• Protect the individual device
• Human administrator (kind of…)
• Detailed detection log
• Prevention while preserving all
other function e.g. safety
• False positive shall be avoided!
• False negative close to 0
• Baseline as cornerstone
• Narrow view good enough for
surveillance
• Fleet or individual car protection
• No human administrator in vehicle
• Detection with 0 impact on vehicle
• Prevention preserving all other
functions and safety at all costs
• False positive shall be avoided at all
costs!!!
• False negative close to 0
• Precise baseline a must
• Sensor fusion (in-vehicle and V2X
generated) with deep content
inspection for misbehavior detection
that can have safety critical impact
IT ICS/SCADA AUTOMOTIVE
16

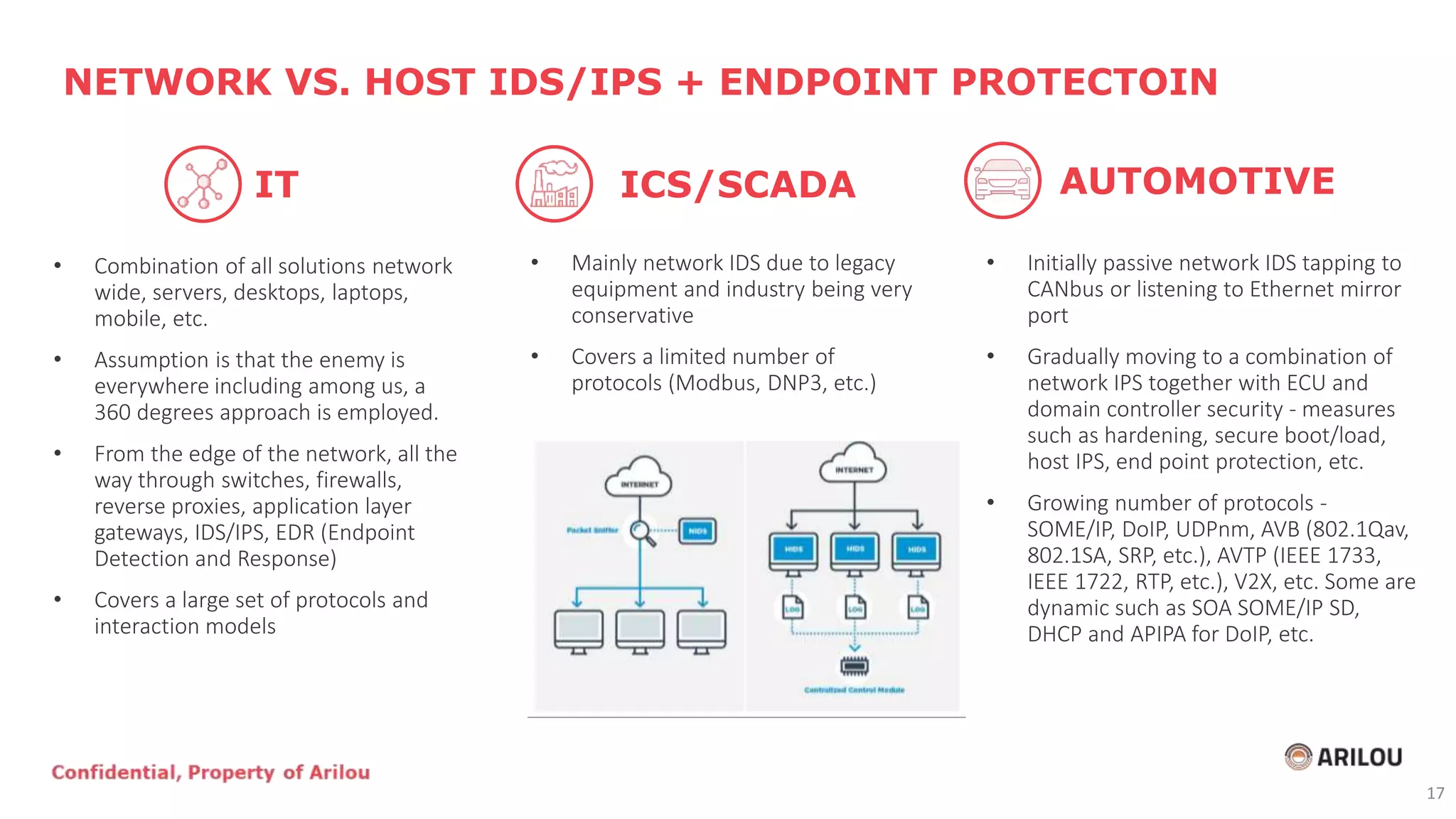

17. • Combination of all solutions network
wide, servers, desktops, laptops,
mobile, etc.
• Assumption is that the enemy is
everywhere including among us, a
360 degrees approach is employed.
• From the edge of the network, all the
way through switches, firewalls,
reverse proxies, application layer
gateways, IDS/IPS, EDR (Endpoint
Detection and Response)
• Covers a large set of protocols and
interaction models
NETWORK VS. HOST IDS/IPS + ENDPOINT PROTECTOIN
• Mainly network IDS due to legacy
equipment and industry being very
conservative
• Covers a limited number of
protocols (Modbus, DNP3, etc.)
• Initially passive network IDS tapping to
CANbus or listening to Ethernet mirror
port
• Gradually moving to a combination of
network IPS together with ECU and
domain controller security - measures
such as hardening, secure boot/load,
host IPS, end point protection, etc.
• Growing number of protocols -
SOME/IP, DoIP, UDPnm, AVB (802.1Qav,
802.1SA, SRP, etc.), AVTP (IEEE 1733,
IEEE 1722, RTP, etc.), V2X, etc. Some are
dynamic such as SOA SOME/IP SD,
DHCP and APIPA for DoIP, etc.
IT ICS/SCADA AUTOMOTIVE
17

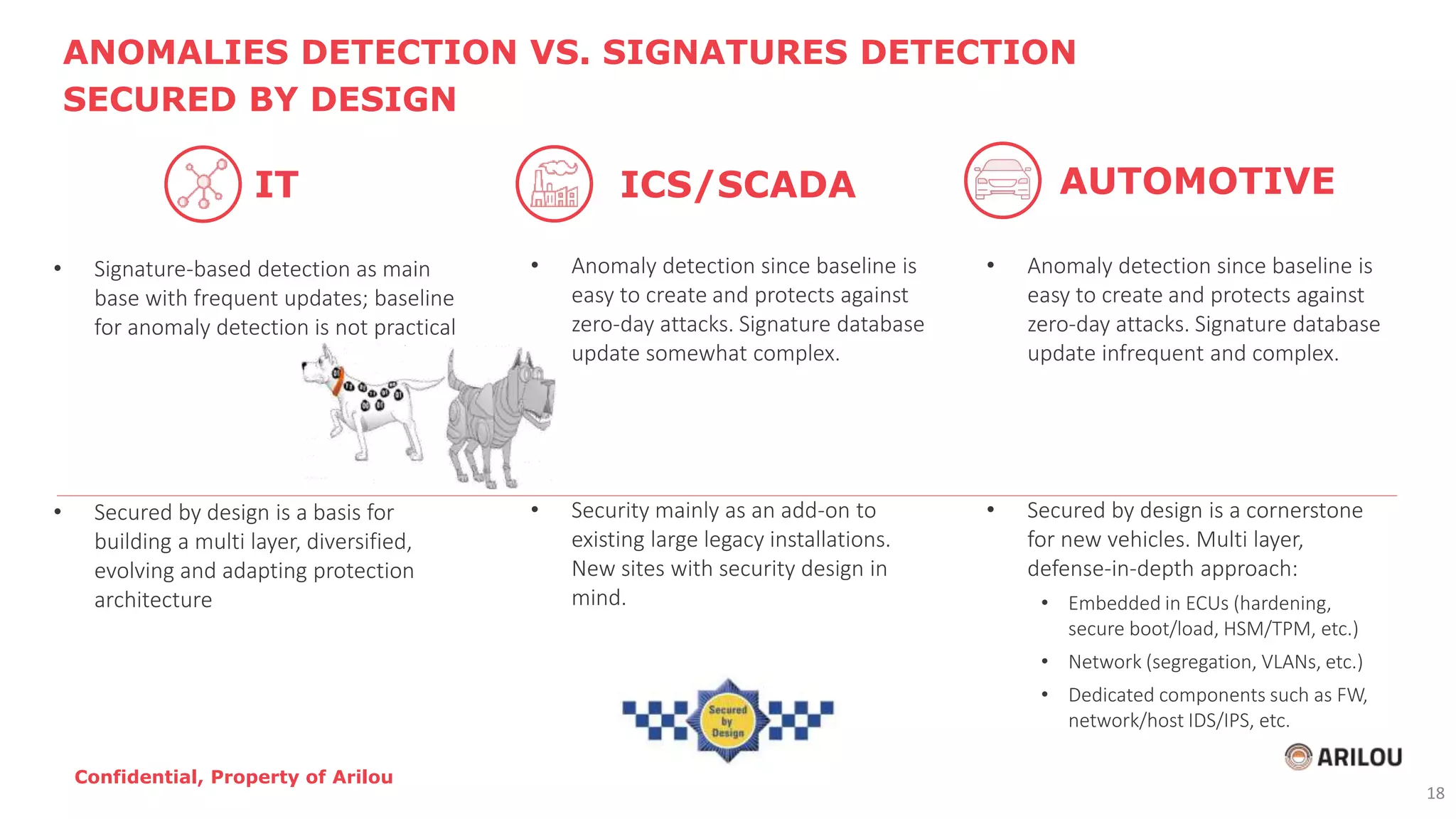

18. • Signature-based detection as main
base with frequent updates; baseline
for anomaly detection is not practical
• Secured by design is a basis for
building a multi layer, diversified,
evolving and adapting protection
architecture
ANOMALIES DETECTION VS. SIGNATURES DETECTION
SECURED BY DESIGN
• Anomaly detection since baseline is
easy to create and protects against
zero-day attacks. Signature database
update somewhat complex.
• Security mainly as an add-on to
existing large legacy installations.
New sites with security design in
mind.
• Anomaly detection since baseline is
easy to create and protects against
zero-day attacks. Signature database
update infrequent and complex.
• Secured by design is a cornerstone
for new vehicles. Multi layer,
defense-in-depth approach:
• Embedded in ECUs (hardening,
secure boot/load, HSM/TPM, etc.)
• Network (segregation, VLANs, etc.)
• Dedicated components such as FW,
network/host IDS/IPS, etc.
IT ICS/SCADA AUTOMOTIVE
18
Confidential, Property of Arilou

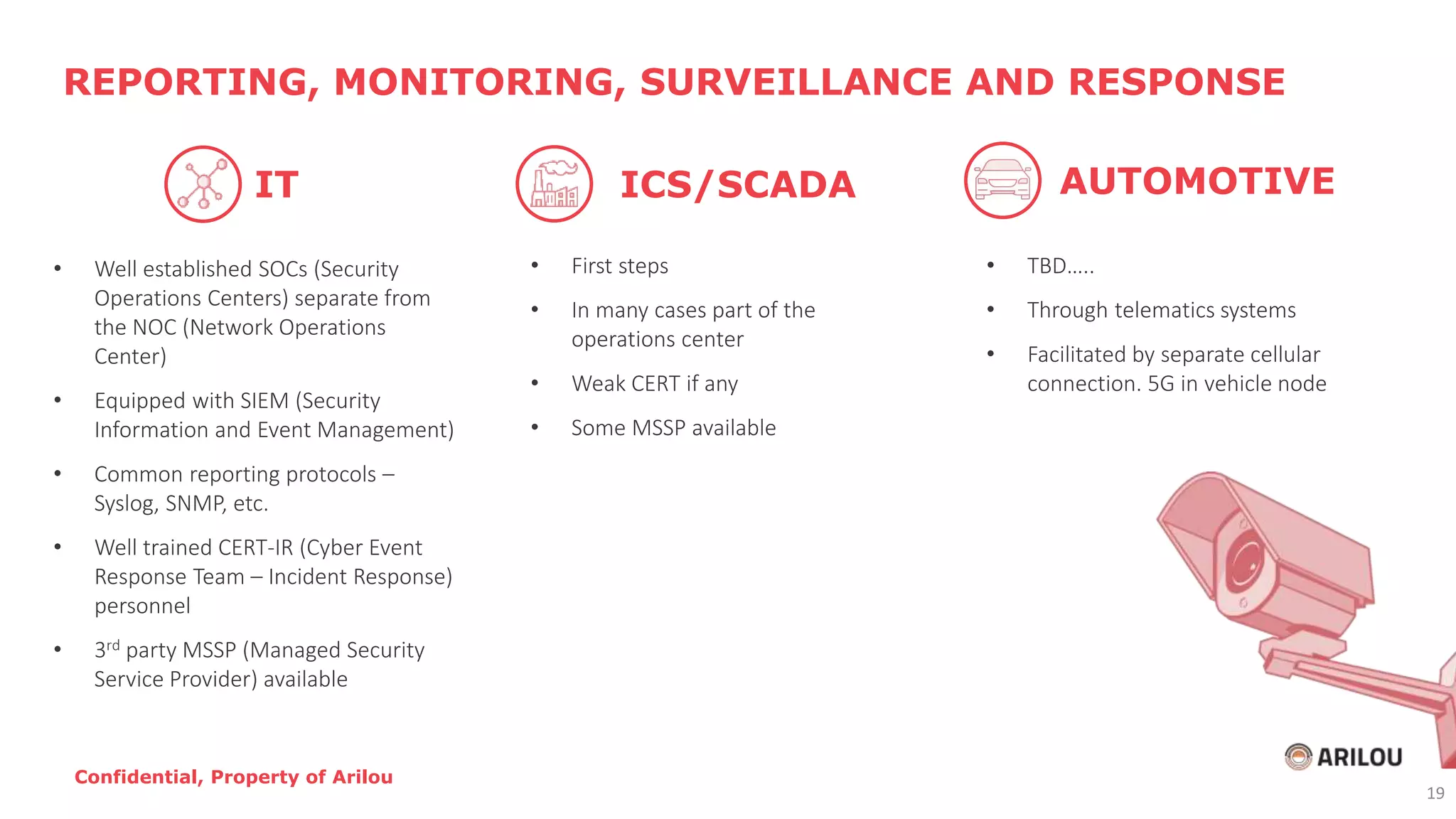

19. • Well established SOCs (Security
Operations Centers) separate from
the NOC (Network Operations
Center)
• Equipped with SIEM (Security
Information and Event Management)
• Common reporting protocols –
Syslog, SNMP, etc.
• Well trained CERT-IR (Cyber Event
Response Team – Incident Response)
personnel
• 3rd party MSSP (Managed Security
Service Provider) available
REPORTING, MONITORING, SURVEILLANCE AND RESPONSE
• First steps
• In many cases part of the
operations center
• Weak CERT if any
• Some MSSP available
• TBD…..
• Through telematics systems
• Facilitated by separate cellular
connection. 5G in vehicle node
IT ICS/SCADA AUTOMOTIVE
Confidential, Property of Arilou
19

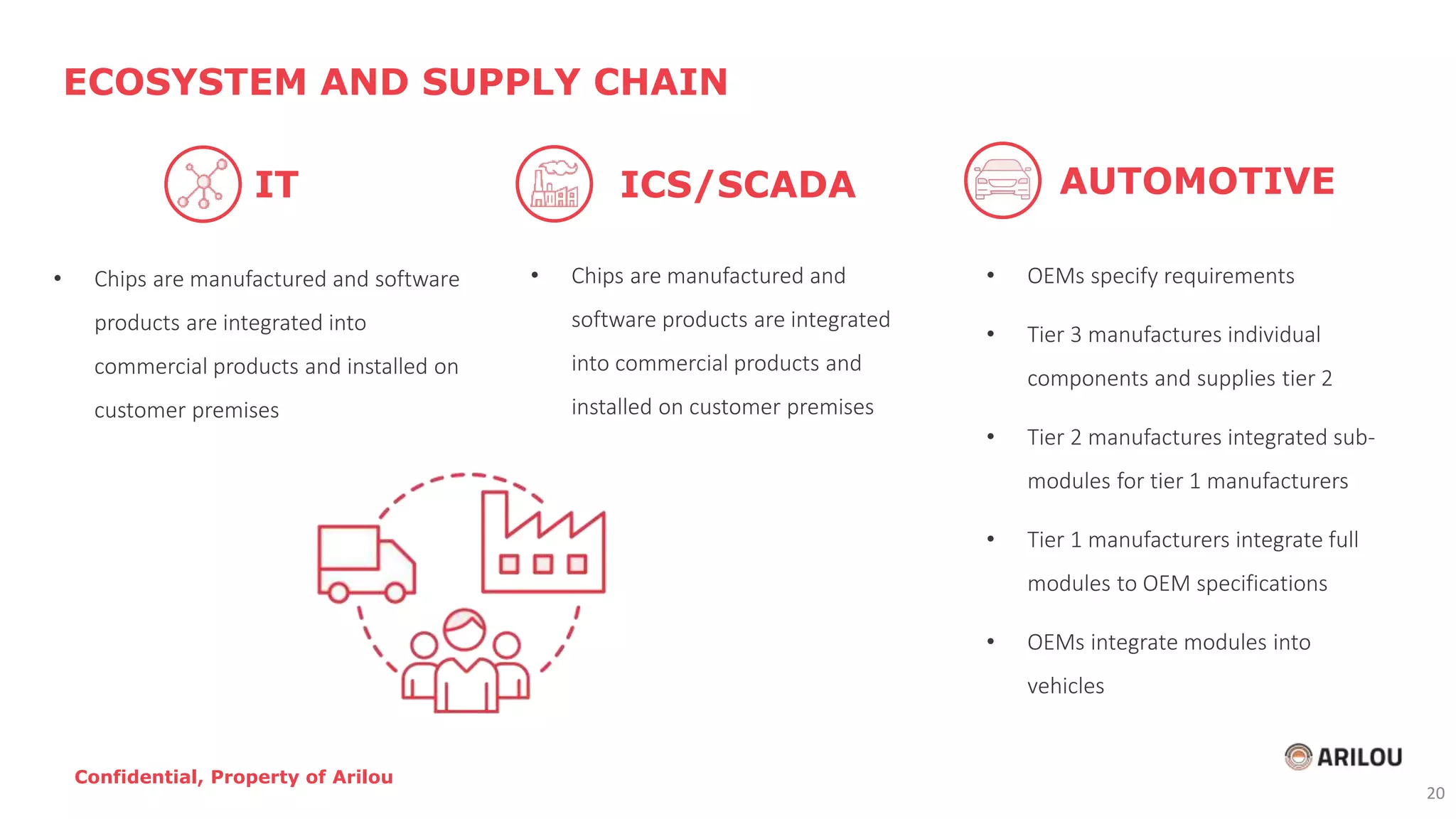

20. • Chips are manufactured and software
products are integrated into
commercial products and installed on
customer premises
ECOSYSTEM AND SUPPLY CHAIN
• Chips are manufactured and
software products are integrated
into commercial products and
installed on customer premises
• OEMs specify requirements
• Tier 3 manufactures individual
components and supplies tier 2
• Tier 2 manufactures integrated sub-
modules for tier 1 manufacturers
• Tier 1 manufacturers integrate full
modules to OEM specifications
• OEMs integrate modules into
vehicles
IT ICS/SCADA AUTOMOTIVE
Confidential, Property of Arilou
20

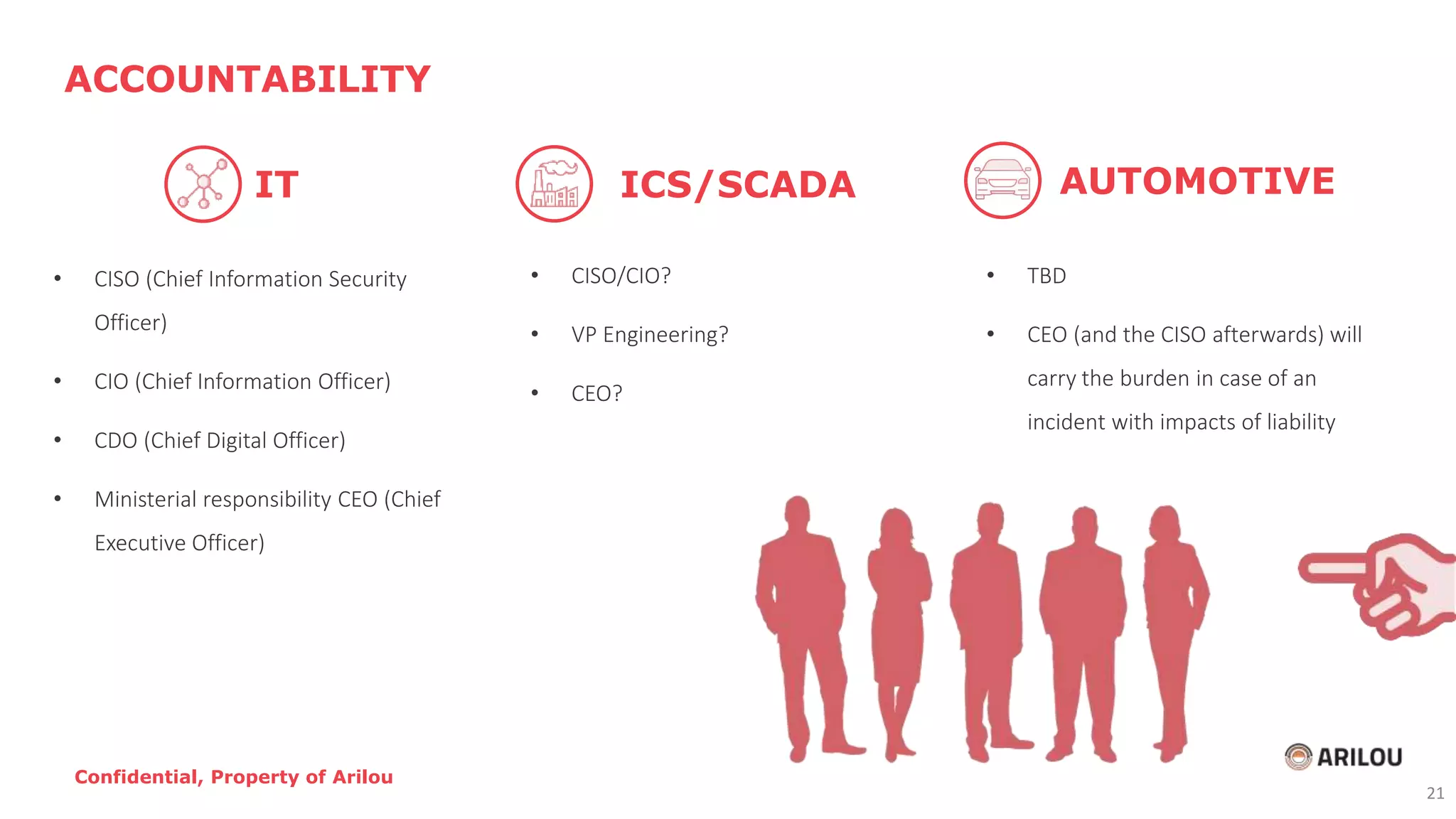

21. • CISO (Chief Information Security
Officer)
• CIO (Chief Information Officer)
• CDO (Chief Digital Officer)
• Ministerial responsibility CEO (Chief
Executive Officer)
ACCOUNTABILITY
• CISO/CIO?
• VP Engineering?
• CEO?
• TBD
• CEO (and the CISO afterwards) will
carry the burden in case of an
incident with impacts of liability
IT ICS/SCADA AUTOMOTIVE
Confidential, Property of Arilou
21

22. “If I have seen further than
others, it is by standing on
the shoulders of giants.”
Isaac Newton
22

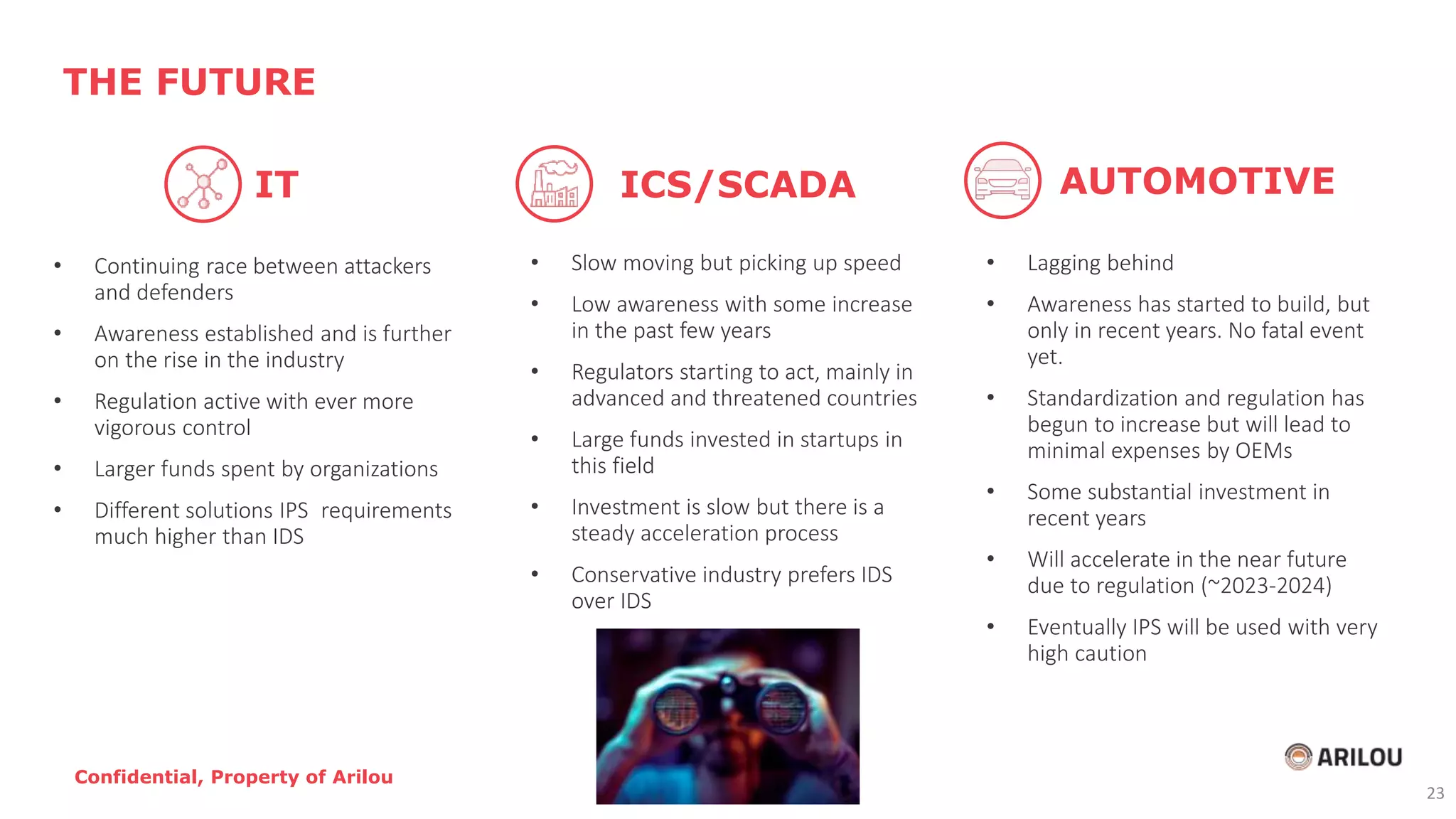

23. • Continuing race between attackers
and defenders
• Awareness established and is further
on the rise in the industry
• Regulation active with ever more
vigorous control
• Larger funds spent by organizations
• Different solutions IPS requirements
much higher than IDS
THE FUTURE
• Slow moving but picking up speed
• Low awareness with some increase
in the past few years
• Regulators starting to act, mainly in
advanced and threatened countries
• Large funds invested in startups in
this field
• Investment is slow but there is a
steady acceleration process
• Conservative industry prefers IDS
over IDS
• Lagging behind
• Awareness has started to build, but
only in recent years. No fatal event
yet.
• Standardization and regulation has
begun to increase but will lead to
minimal expenses by OEMs
• Some substantial investment in
recent years
• Will accelerate in the near future
due to regulation (~2023-2024)
• Eventually IPS will be used with very
high caution
IT ICS/SCADA AUTOMOTIVE
Confidential, Property of Arilou
23

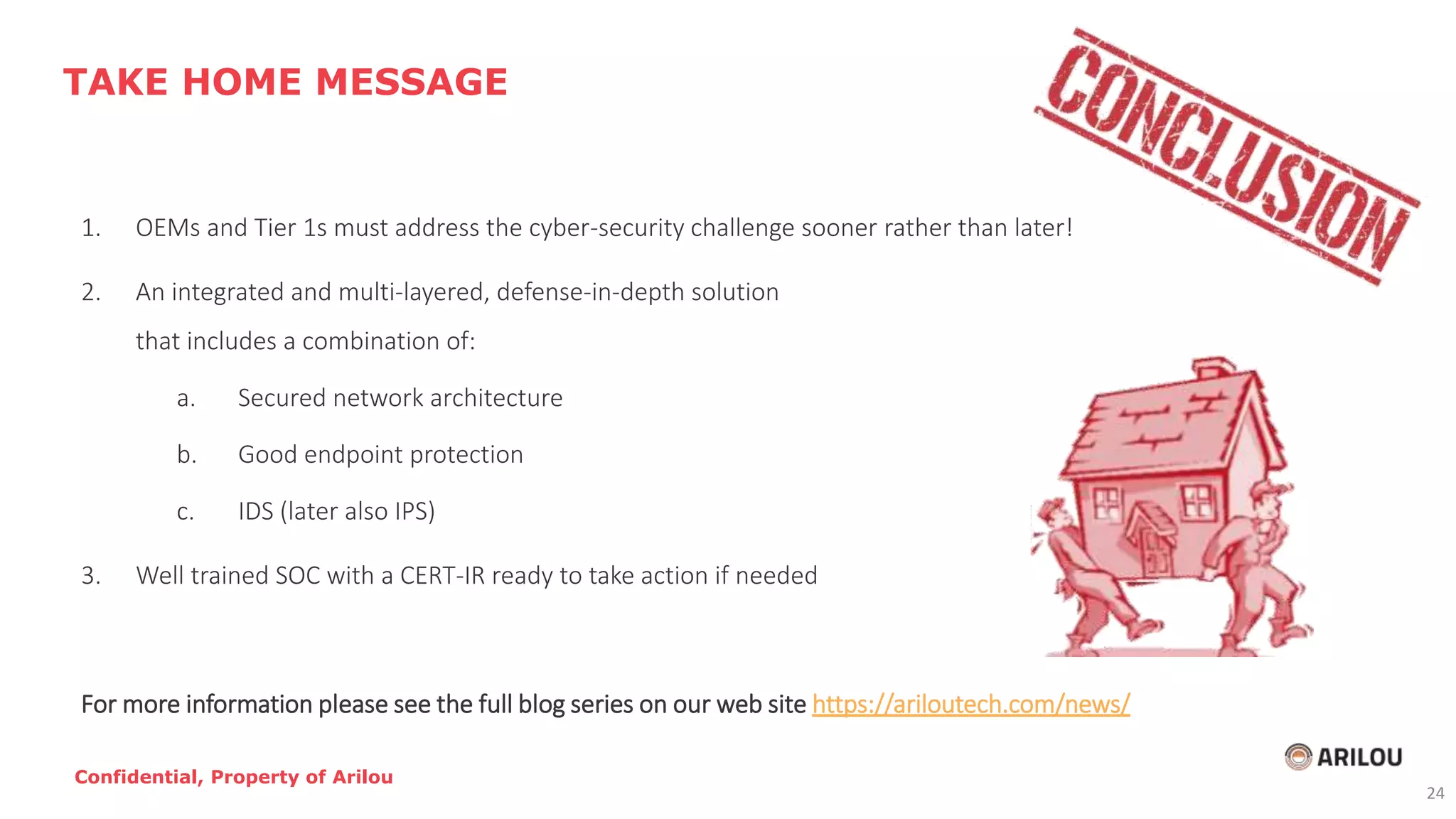

24. 1. OEMs and Tier 1s must address the cyber-security challenge sooner rather than later!
2. An integrated and multi-layered, defense-in-depth solution
that includes a combination of:
a. Secured network architecture
b. Good endpoint protection
c. IDS (later also IPS)
3. Well trained SOC with a CERT-IR ready to take action if needed
For more information please see the full blog series on our web site https://ariloutech.com/news/
TAKE HOME MESSAGE
Confidential, Property of Arilou
24

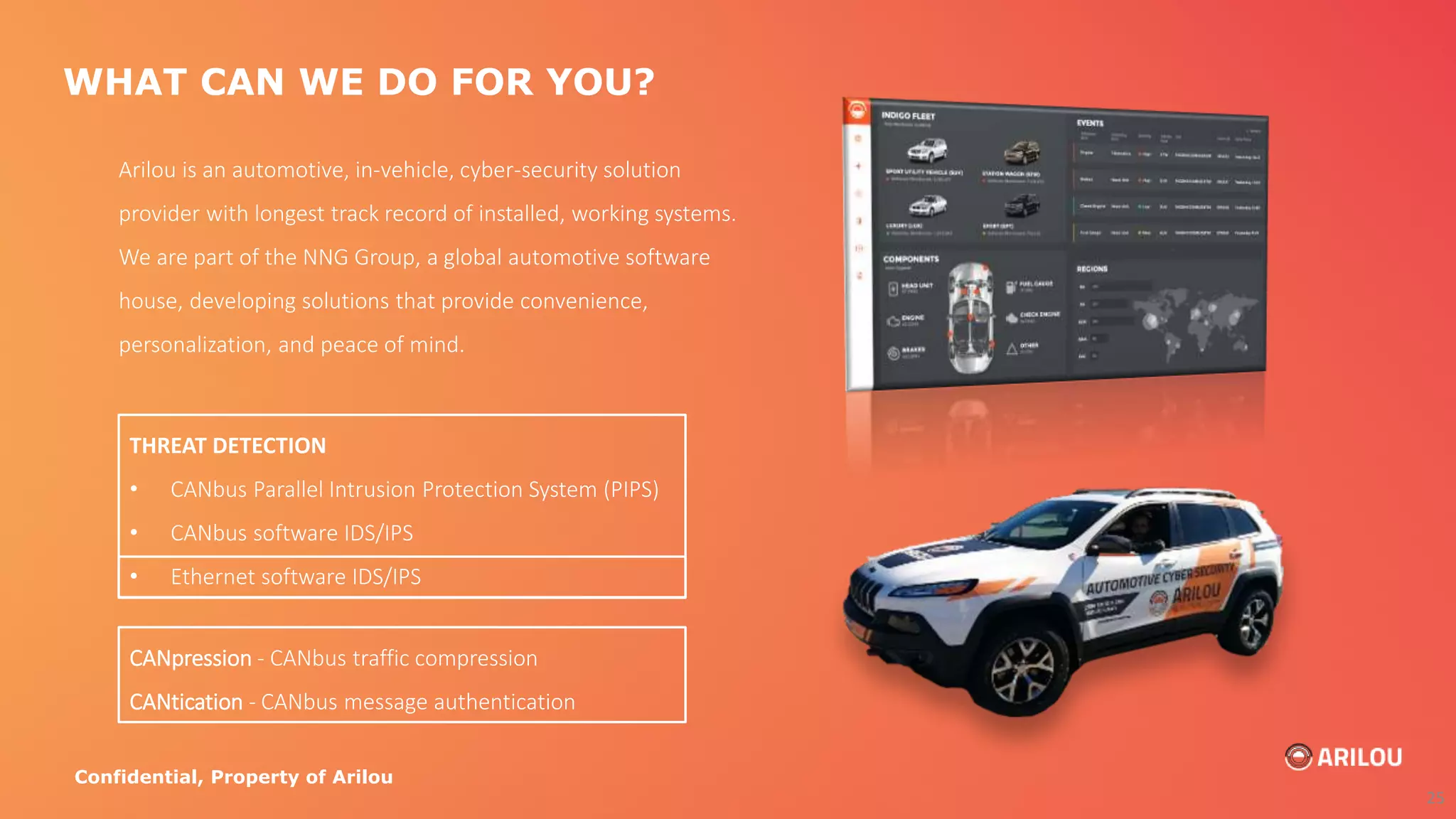

25. 25
THREAT DETECTION
• CANbus Parallel Intrusion Protection System (PIPS)
• CANbus software IDS/IPS
• Ethernet software IDS/IPS
CANpression - CANbus traffic compression
CANtication - CANbus message authentication
Arilou is an automotive, in-vehicle, cyber-security solution
provider with longest track record of installed, working systems.
We are part of the NNG Group, a global automotive software
house, developing solutions that provide convenience,
personalization, and peace of mind.
WHAT CAN WE DO FOR YOU?
Confidential, Property of Arilou

26. 26
