This document discusses an automatic nozzle cleaning machine. It can customize nozzle trays to clean different types of nozzles. Each rotation of the tray corresponds to the position of each nozzle, making it convenient to position nozzles during inspection. The microscope allows clear observation of blockages inside nozzles by opening the backlight. Tiny water mist particles around 3-10um can clean dirt in small nozzle apertures. It uses high pressure water jets and pulse kinetic energy to clean nozzles. It can clean 24 nozzles at once in 3 minutes, achieving a cleaning rate of around 460 nozzles per hour. This is much higher efficiency than manual or ultrasonic cleaning methods. The automatic cleaning machine improves SMT quality, reduces labor costs

1. http：//www.smthelp.com

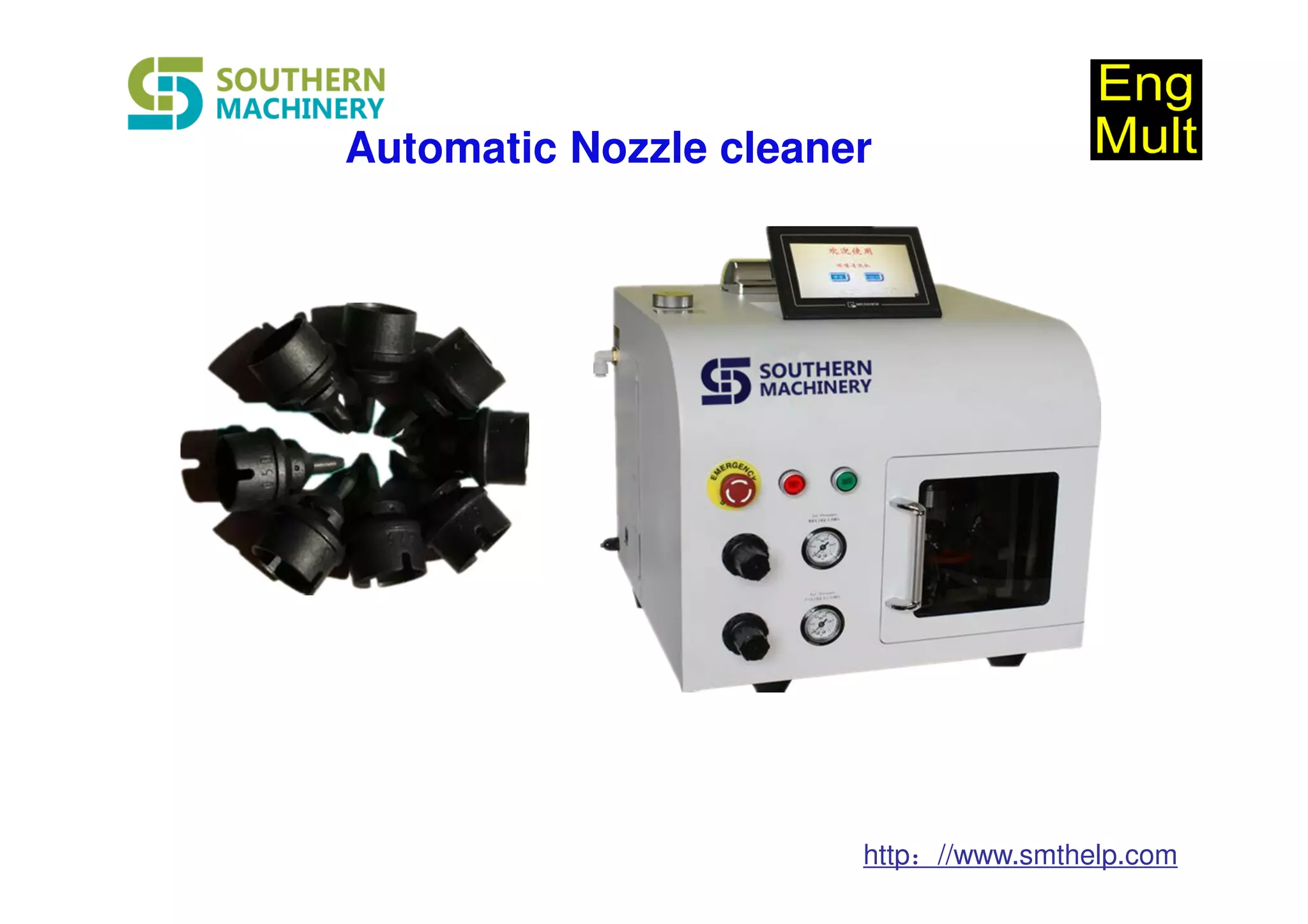

Automatic Nozzle cleaner

2. http：//www.smthelp.com
To customize various types
of nozzle tray to meet the
cleaning of different types
of machine nozzle
Specially backlight, adjustable backlight
brightness, these corresponds to different
nozzle unique design of mechanical
positioning clamping seat , each rotation
corresponds to each nozzle’s position,
which makes it convenient to position it while
checking the nozzle and reduce numerous
position by manual operation
Confirming the nozzle status after cleaning
it is a very important work. The microscope
from our company can clearly observe the
blocking status inside the internal nozzle by
opening the backlight from the rear part of
the nozzle. Through directly mounting the tray
for cleaning, it can easily be inspected.
Optical zoom + physical zoom can achieve
an enlargement of 320 times.
Tray
Base light
source Microscope

3. http：//www.smthelp.com
Tiny water mist particle
Press it continuously to
fragment water in order to
p r o d u c e w a t e r m i s t
particle approximately
3-10um , which can clean
the dirt in the aperture wall
o f a s m a l l n o z z l e .
High Pressure Water
Jet Technology
Pulse kinetic energy field
A strong pulse kinetic
energy formed at sonic
velocity (V=360m/s) is
sprayed on the suction
nozzle so that a continuous
energy field comes into
being above the suction
nozzle to be cleaned and
smash the surface and
internal dirt to achieve the
c l e a n o u t p u r p o s e .

4. http：//www.smthelp.com
Equipmen
t size
L×××× W××××H
(mm)
505 ××××570 ××××500
Equipmen
t weight
quality 70KG
Cleaning
liquor
Cleaning
liquor type
Industrial purify
water
consumption ≤400CC/H
Liquid
used
Air source Compressed air
Pressure
range
0.5 -0.6Mpa(While
cleaning)
Jet pressure ≤0.4Mpa
Air
consumption
280NL/min.or less
Power
Voltage AC200-240V
Rated power
consumption
Max. 200W
Suction
nozzle
tray
Specification Default 24 positions
Object to
be
cleaned
Mounting
nozzle
01005-2125
S-U24
Ultra-sonic
cleaning
Inject
liquor+air
blowing
Fine needle
poke
Cleaning result ◎◎◎◎ △△△△ △△△△ △△△△
Cleaning liquid
Industrial
purify water
Chemical
liquor
Chemical
liquor
No
Smell No Yes Yes No
Operational
environment
◎◎◎◎ X X X
Environmental
countermeasure
◎◎◎◎ X X ◎◎◎◎
Tiny Suction
Nozzle
◎◎◎◎ X X X
Black Coating
layer
protected W/O △△△△ △△△△
Reflection plate protected W/O △△△△ △△△△
Two-dimension
code
protected W/O △△△△ △△△△
Cleaning Quality
With
guarantee
w/o
guarantee
w/o
guarantee
w/o
guarantee

5. http：//www.smthelp.com
Before cleaning
A B C D
After cleaning
Suction nozzle cleaning machine Cleaning before and after comparison

6. http：//www.smthelp.com
A B C D
Suction nozzle cleaning machine Cleaning before and after comparison
After cleaning
Before cleaning

7. http：//www.smthelp.com
High-efficiency cleaning mode
In the process of SMT, the suction
nozzle is quite easily adhered with solder
paste or dirt etc. If maintenance has not
been done for a long time or the cleaning
is not thorough enough while
maintaining it, the paste and dirt will be
hardened so as to increase the difficulty
of cleaning, even it will result in blockage
and scraps after long-time accumulation.
It practically proves that the S-
U24cleaning machine can
effectively deal with inflexible
solder paste and thoroughly clean
the suction nozzle with complex
structure.

8. http：//www.smthelp.com
Increase SMT quality reduce labor cost reduce parts cost increase productivity
•Increase the
mounter's adsorption
force and mount rate
and realizes the
improvements of
mount quality.
•reduce the clibration
times of PCBs 。
•It can use much
shorter time to clean
suction nozzle
compared to the
previous one.
•Reduce the falling-off
chips
•Full auto
cleaning,which
guarantees the
cleaning degree and
reduce the scraps of
suction nozzle.
•Can shorten the
maintenace time of
production line
•Can reduce the
abnormal standby time
due to suction nozzle。
•Can make more
products
Solve problems
Create more profits for customers
•After using cleaning
machine, the
discarded material rate
of the current
customers decreases
20-30%( each
company has some
difference due to
company equipments,
feeders,workers,
maintenace status of
suction nozzles.
•L e t ' s t a k e 9 6 p c s
su cti on n ozzl es as
e x a m p l e : m a n u a l
cleaning needs 1 hour,
suction nozzle machine
just needs 20 minutes.
After using the suction
nozzle machine, it can
reduce 1-2 workers,
which can save a cost
of 36-80 thousand.
•The discarded
materials or bumping
scraps due to the
abnormality of suction
nozzle, if calculated by
1% as the scraps rate,
the cost for purchasing
suction nozzles within
one year is also quite
considerable.
•Single line's online
maintenance takes 1
hour as example, after
using suction nozzle
cleaning machine, it
can be shortened to 30
minutes. If it is
maintained once a
week or two weeks,
each single line can
save 12-24 hours of
maintnance each year
used for production.

9. http：//www.smthelp.com

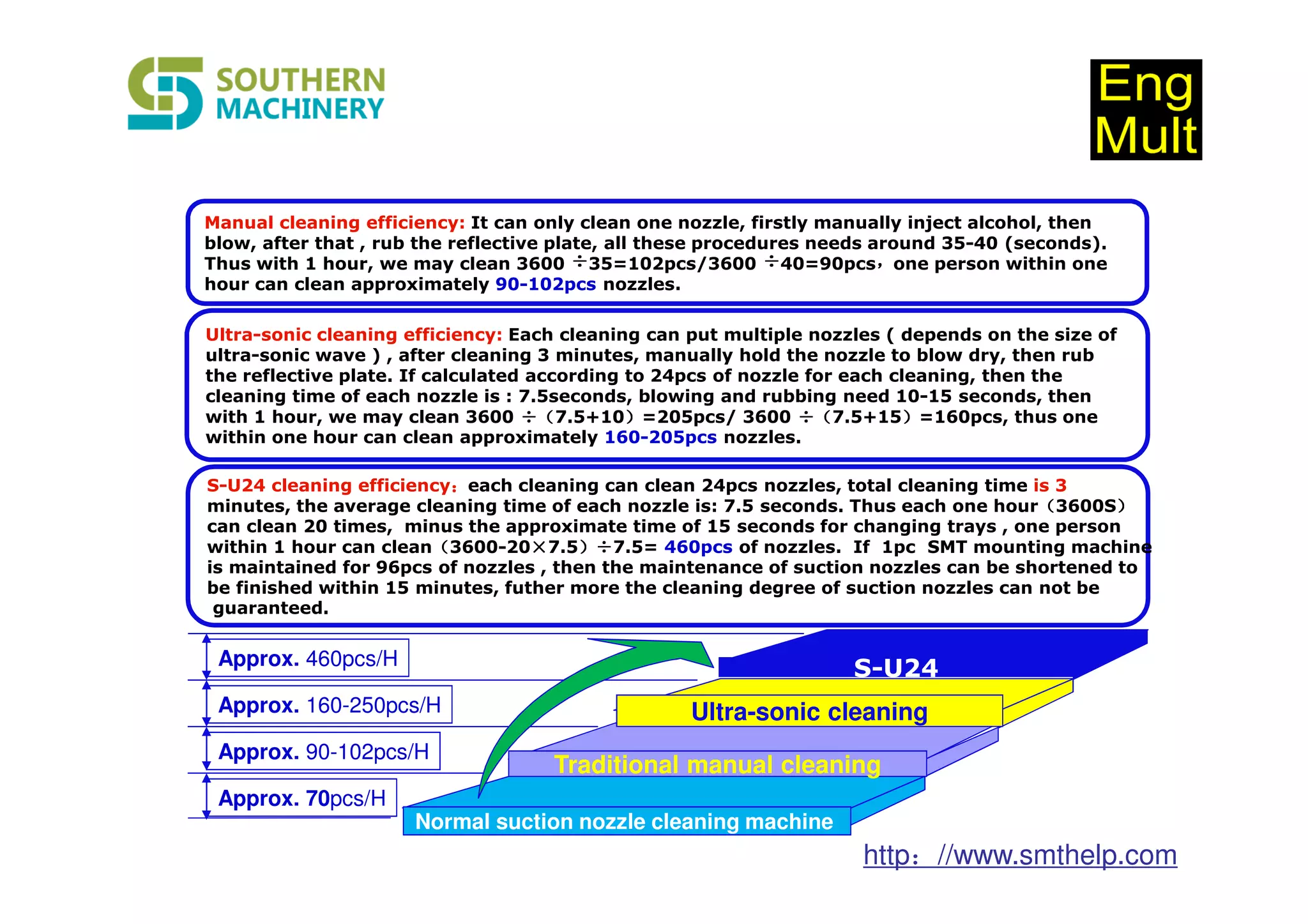

Approx. 460pcs/H
Approx. 70pcs/H
Approx. 160-250pcs/H
Approx. 90-102pcs/H
Manual cleaning efficiency: It can only clean one nozzle, firstly manually inject alcohol, then
blow, after that , rub the reflective plate, all these procedures needs around 35-40 (seconds).
Thus with 1 hour, we may clean 3600 ÷÷÷÷35=102pcs/3600 ÷÷÷÷40=90pcs，，，，one person within one
hour can clean approximately 90-102pcs nozzles.
Ultra-sonic cleaning efficiency: Each cleaning can put multiple nozzles ( depends on the size of
ultra-sonic wave ) , after cleaning 3 minutes, manually hold the nozzle to blow dry, then rub
the reflective plate. If calculated according to 24pcs of nozzle for each cleaning, then the
cleaning time of each nozzle is : 7.5seconds, blowing and rubbing need 10-15 seconds, then
with 1 hour, we may clean 3600 ÷÷÷÷（（（（7.5+10））））=205pcs/ 3600 ÷÷÷÷（（（（7.5+15））））=160pcs, thus one
within one hour can clean approximately 160-205pcs nozzles.
S-U24
Traditional manual cleaning
Normal suction nozzle cleaning machine
Ultra-sonic cleaning
S-U24 cleaning efficiency：：：：each cleaning can clean 24pcs nozzles, total cleaning time is 3
minutes, the average cleaning time of each nozzle is: 7.5 seconds. Thus each one hour（（（（3600S））））
can clean 20 times, minus the approximate time of 15 seconds for changing trays , one person
within 1 hour can clean（（（（3600-20××××7.5））））÷÷÷÷7.5= 460pcs of nozzles. If 1pc SMT mounting machine
is maintained for 96pcs of nozzles , then the maintenance of suction nozzles can be shortened to
be finished within 15 minutes, futher more the cleaning degree of suction nozzles can not be
guaranteed.
