This document provides technical specifications and details about a pneumatic stencil cleaner. It can clean stencils and other items up to 29 inches in size using compressed air and liquid cleaning. It has a three-stage filtration system to filter particles down to 1 micron. Maintenance involves replacing filters every 1-2 months and cleaning the liquid storage tank. The pneumatic design means it operates without electricity for safety.

1. Work together to win the world
www.aismthelp.com

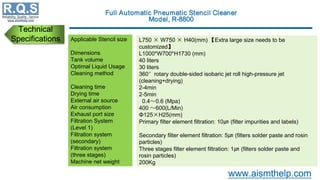

2. Technical
Specifications Applicable Stencil size
Dimensions
Tank volume
Optimal Liquid Usage
Cleaning method
Cleaning time
Drying time
External air source
Air consumption
Exhaust port size
Filtration System
(Level 1)
Filtration system
(secondary)
Filtration system
(three stages)
Machine net weight
L750 × W750 × H40(mm) 【Extra large size needs to be
customized】
L1000*W700*H1730 (mm)
40 liters
30 liters
360°rotary double-sided isobaric jet roll high-pressure jet
(cleaning+drying)
2-4min
2-5min
0.4～0.6 (Mpa)
400 ～600(L/Min)
Φ125×H25(mm)
Primary filter element filtration: 10㎛ (filter impurities and labels)
Secondary filter element filtration: 5㎛ (filters solder paste and rosin
particles)
Three stages filter element filtration: 1㎛ (filters solder paste and
rosin particles)
200Kg

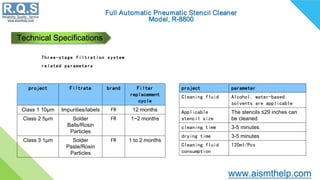

3. Three-stage filtration system
related parameters
Technical Specifications
project Filtrate brand Filter
replacement
cycle
Class 1 10μm Impurities/labels FR 12 months
Class 2 5μm Solder
Balls/Rosin
Particles
FR 1~2 months
Class 3 1μm Solder
Paste/Rosin
Particles
FR 1 to 2 months
project parameter
Cleaning fluid Alcohol, water-based
solvents are applicable
Applicable
stencil size
The stencils ≤29 inches can
be cleaned
cleaning time 3-5 minutes
drying time 3-5 minutes
Cleaning fluid
consumption
120ml/Pcs

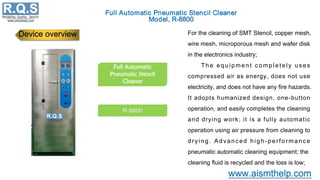

4. For the cleaning of SMT Stencil, copper mesh,
wire mesh, microporous mesh and wafer disk
in the electronics industry;
The equipment completely uses
compressed air as energy, does not use
electricity, and does not have any fire hazards.
It adopts humanized design, one-button
operation, and easily completes the cleaning
and drying work; it is a fully automatic
operation using air pressure from cleaning to
drying. Advanced high-performance
pneumatic automatic cleaning equipment; the
cleaning fluid is recycled and the loss is low;
Full Automatic
Pneumatic Stencil
Cleaner
Device overview

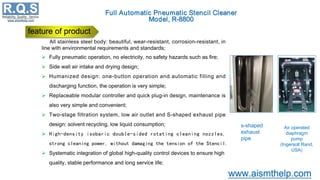

5. All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in
line with environmental requirements and standards;
 Fully pneumatic operation, no electricity, no safety hazards such as fire;
 Side wall air intake and drying design;
 Humanized design: one-button operation and automatic filling and
discharging function, the operation is very simple;
 Replaceable modular controller and quick plug-in design, maintenance is
also very simple and convenient;
 Two-stage filtration system, low air outlet and S-shaped exhaust pipe
design: solvent recycling, low liquid consumption;
 High-density isobaric double-sided rotating cleaning nozzles,
strong cleaning power, without damaging the tension of the Stencil.
 Systematic integration of global high-quality control devices to ensure high
quality, stable performance and long service life;
feature of product
Air operated
diaphragm
pump
(Ingersoll Rand,
USA)
s-shaped
exhaust
pipe

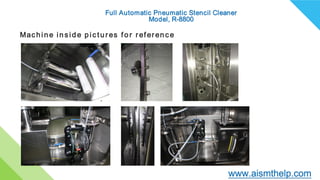

6. Machine inside pictures for reference

7. Professional manufacturer of intelligent cleaning machines, focusing
on providing integrated cleaning solutions for the SMT industry
Design
Professional design, leading
technology
With a number of mechanical &
electrical design professionals,
with super R & D strength, won
a number of patents and user
honors
Fabrication
Fine production, quality
assurance
Craftsman spirit creates high-
quality goods, and the
production process is strictly
controlled to ensure product
quality
Service
Attentive service, customer
first
Serve customers with heart,
professional and technical
personnel can provide
overall solutions according
to user needs

8. Application range
The Content Of Slide:
Cleaning process
TechnicalSpecifications
Comparisonofclean
ing effect
Device overview
Product structure and
function
feature ofproduct
honor customer

9. communication base
station
aviation high speed rail
Application field
car new energy
the medical
High-end
power supply
smart phone

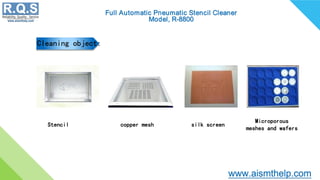

10. Cleaning object:
Stencil copper mesh silk screen
Microporous
meshes and wafers

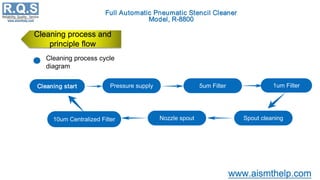

11. Cleaning process and
principle flow
Cleaning process cycle
diagram
Cleaning start Pressure supply 5um Filter 1um Filter
10um Centralized Filter Nozzle spout Spout cleaning

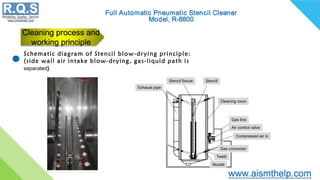

12. Schematic diagram of Stencil blow-drying principle:
(side wall air intake blow-drying, gas-liquid path is
separated)
Cleaning process and
working principle
Stencil fixture Stencil
Exhaust pipe
Cleaning room
Gas line
Air control valve
Compressed air in
Gas connector
Teeth
Nozzle

13. Product structure
and function

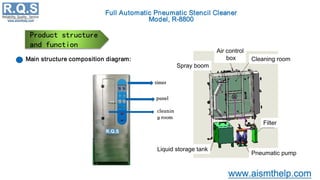

Main structure composition diagram:
timer
cleanin
g room
panel
Spray boom
Air control
box Cleaning room
Filter
Pneumatic pump
Liquid storage tank

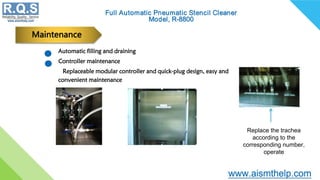

14. Maintenance
Automatic filling and draining
Controller maintenance
Replaceable modular controller and quick-plug design, easy and
convenient maintenance
Replace the trachea
according to the
corresponding number,
operate

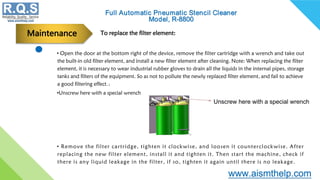

15. • Open the door at the bottom right of the device, remove the filter cartridge with a wrench and take out
the built-in old filter element, and install a new filter element after cleaning. Note: When replacing the filter
element, it is necessary to wear industrial rubber gloves to drain all the liquids in the internal pipes, storage
tanks and filters of the equipment. So as not to pollute the newly replaced filter element, and fail to achieve
a good filtering effect.：
•Unscrew here with a special wrench
• Remove the filter cartridge, tighten it clockwise, and loosen it counterclockwise. After
replacing the new filter element, install it and tighten it. Then start the machine, check if
there is any liquid leakage in the filter, if so, tighten it again until there is no leakage.
To replace the filter element:
Maintenance
Unscrew here with a special wrench

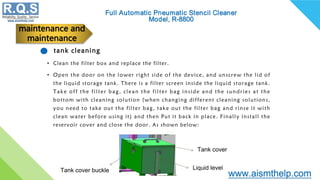

16. tank cleaning
• Clean the filter box and replace the filter.
• Open the door on the lower right side of the device, and unscrew the lid of
the liquid storage tank. There is a filter screen inside the liquid storage tank.
Take off the filter bag, clean the filter bag inside and the sundries at the
bottom with cleaning solution (when changing different cleaning solutions,
you need to take out the filter bag, take out the filter bag and rinse it with
clean water before using it) and then Put it back in place. Finally install the
reservoir cover and close the door. As shown below:
maintenance and
maintenance
Tank cover
Tank cover buckle Liquid level

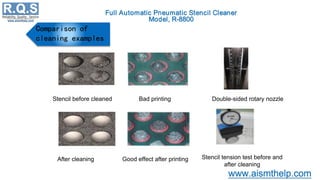

17. Comparison of
cleaning examples
Stencil before cleaned Bad printing Double-sided rotary nozzle
After cleaning Good effect after printing Stencil tension test before and
after cleaning
