2. AUTO-CATALYTIC REACTION

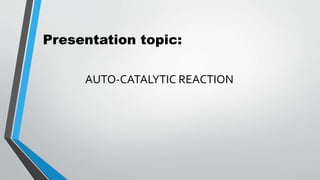

Presentation topic:

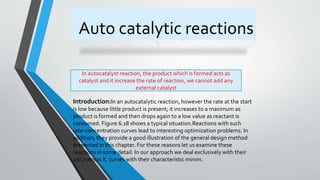

3. Auto catalytic reactions
Introduction:In an autocatalytic reaction, however the rate at the start
is low because little product is present; it increases to a maximum as
product is formed and then drops again to a low value as reactant is
consumed. Figure 6.18 shows a typical situation.Reactions with such
rate-concentration curves lead to interesting optimization problems. In
addition, they provide a good illustration of the general design method
presented in this chapter. For these reasons let us examine these
reactions in some detail. In our approach we deal exclusively with their
1/(r,) versus X, curves with their characteristic minim.
In autocatalyst reaction, the product which is formed acts as
catalyst and it increase the rate of reaction, we cannot add any
external catalyst

4. Example of autocatalyst reaction
The most important examples of autocatalytic reactions are the broad class of
fermentation reactions which result from the reaction of microorganism on an organic
feed. When they can be treated as single reactions, the methods of this chapter can be
applied directly. Another type of reaction which has autocatalytic behavior is the
exothermic reaction (say, the combustion of fuel gas) proceeding in an adiabatic
manner with cool reactants entering the system. In such a reaction, called autothermal,
heat may be considered to be the product which sustains the reaction. Thus, with plug
flow the reaction will die. With back mixing the reaction will be self-sustaining because
the heat generated by the reaction can raise fresh reactants to a temperature at which
they will react.

5. Design equation
The designing equation of autocatalyst reactor is same as in recycle
reactor
❶ ɿ 𝐶𝑎𝑜 =
𝑉
𝐹𝐴𝑜
=
𝑋𝐴𝑖=
𝑅∗𝑋𝐴𝑓
𝑅+1
𝑋𝐴𝑓
(
𝑅+1
−𝑟𝐴
dXA)
=(R+1)
𝑋𝐴𝑖=
𝑅∗𝑋𝐴𝑓
𝑅+1
𝑋𝐴𝑓
(
1
−𝑟𝐴
dXA) (with recycle)
𝑉
𝐹𝐴𝑜
= 𝑋𝐴=0
𝑋𝐴𝑓
(
𝑅+1
−𝑟𝐴
dXA) (without recycle)
❷The other method is the differential method, but we use the
integral method by using the graph to perform the calculation.

6. Sizing curves when there is no recycle
By using these graphs we can
imagine what type of the size
reactor is best so, if we see the
graph (1/-ra) vs XA and see if
we use the mixed flow reactor
the area is larger because all
rectangle, but when we use
the plug flow reactor we save
the area because the area
under the curve.

7. Plug flowVersus mixed Flow
Reactor, No Recycle
For any particular rate concentration curve a comparison of areas in Fig. 6.19 will show
which reactor is superior (which requires a smaller volume) for a given job. We thus find
1. At low conversion the mixed reactor is superior to the plug flow reactor.
2. At high enough conversions the plug flow reactor is superior.
These findings differ from ordinary nth-order reactions (n > 0) where the plug flow reactor is
always more efficient than the mixed flow reactor. In addition, we should note that a plug
flow reactor will not operate at all with a feed of pure reactant. In such a situation the feed
must be continually primed with product, an ideal opportunity for using a recycle reactor.

8. Sizing curves when recycle is use
First thing which you remember first is that , when we use the recycle
ratio(R) what is the ratio we want to set . Which is the Optimum recycle
Ratios.To set this ratio there are two methods Differential method and
other graphical (integral method) .At here we discuss the Graphical
method. So, lets start.

9. Let we have an auto catalyst reaction layout
H2+I2 2HI
HI

10. This is the elementry gas phase autocatalytic
reaction
So we first find the (Ea)
Ea =
𝑃𝑟𝑜𝑑𝑢𝑐𝑡 −𝑟𝑒𝑐𝑡𝑎𝑛𝑡𝑠
𝑟𝑒𝑐𝑡𝑎𝑛𝑡𝑠
=
2−2
1
= 0
Rate if reaction for autocatalytic reaction
-rH2= K[H2]*[I2]*[HI]^2
When we study the kinetics and calculate the values ,so we can see the
value of Ca and rate (-rH2) the table is given below.

11. Table and Graph (graph is sizing curve )
Ca Rate(-rH2) Xa=Cao-Ca/Cao (-1/rH2)
0.6 0.06 0.95 16.67
1.6 0.08 0.86 12.50
2.6 0.2 0.78 5.00
3.6 0.5 0.69 2.00
5.6 0.6 0.52 1.67
7.6 0.25 0.34 4.00
9.6 0.1 0.17 10.00
11.6 0.06 0.00 16.67
0.00
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
0.00 0.20 0.40 0.60 0.80 1.00
(-1/rH2)
Xa
Graph between Xa vs -1/rH2

12. How to set the production capacity
H2 I2 HI
2 253.8088 256.18
2/256.18 253.80/256.18 256.18/256.18
0.0079 0.99 1
1000* 0.0079 1000* 0.99 1000*1
7.9kg 990kg 1000kg
We find that our conversion is 0.95
7.9/0.95 990/0.95 1000kg
Basis : 1hr so,
8.31kg/hr 1042.2kg/hr 1000kg/hr (unreacted 50kg/hr)
4.155 mol/hr 4.155mol/hr 3.903mol/hr(unreacted 4.297)
8.31mol/hr

13. Case study
Case 1: If the molar flow of the rectants is (8.31 mol/hr) and we get the 95% conversion. What
is the volume of the reactor.(Cao=11.6mol/m3)
(a). If we use the mixed flow reactor.
(b). If we use the plug flow reactor.
solution:
(a):So if we use the mixed flow reactor area is the rectangle
ɿ= (0.95)*(16.6)= 15.77 hr
so in order to find volume (V)
ɿ
𝐶𝑎𝑜
=
𝑉
𝐹𝐴𝑜
V=11.29m3 (mixed flow)
0.00
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
0.00 0.50 1.00
(-1/rH2)
Xa
Graph between Xa vs -
1/rH2

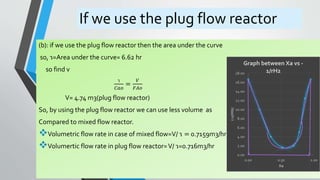

14. If we use the plug flow reactor
(b): if we use the plug flow reactor then the area under the curve
so, ɿ=Area under the curve= 6.62 hr
so find v
ɿ
𝐶𝑎𝑜
=
𝑉
𝐹𝐴𝑜
V= 4.74 m3(plug flow reactor)
So, by using the plug flow reactor we can use less volume as
Compared to mixed flow reactor.
Volumetric flow rate in case of mixed flow=V/ ɿ = 0.7159m3/hr
Volumertic flow rate in plug flow reactor=V/ ɿ=0.716m3/hr
0.00
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
0.00 0.50 1.00
(-1/rH2)
Xa
Graph between Xa vs -
1/rH2

15. Case 2: If we used the plug flow reactor and recycle is
used then what is the optimum recycle operation. At
what conversion the recycle is just right.
As we can discuss earlier that from the graph we see at what point the recycle is
good.
0.00
5.00
10.00
15.00
20.00
0.00 0.20 0.40 0.60 0.80 1.00
(-1/rH2)
Xa
Graph between Xa vs -1/rH2
0.00
5.00
10.00
15.00
20.00
0.00 0.20 0.40 0.60 0.80 1.00
(-1/rH2)
Xa
Graph between Xa vs -
1/rH2
0.00
5.00
10.00
15.00
20.00
0.00 0.20 0.40 0.60 0.80 1.00
(-1/rH2)
Xa
Graph between Xa vs -
1/rH2
P
Q
L
M
PQ>LM so recycle is no
suitable(recycle to high)
PQ<LM so recycle is no
suitable(recycle to small)
P
Q
L
M
PL
M
PQ=LM so recycle is just
right at conversion 0.30
Q

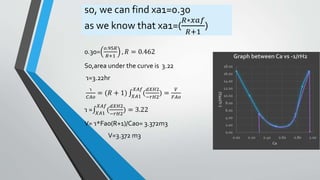

16. so, we can find xa1=0.30
as we know that xa1=(
𝑅∗𝑥𝑎𝑓
𝑅+1
)
0.30=
𝑜.95𝑅
𝑅+1
, 𝑅 = 0.462
So,area under the curve is 3.22
ɿ=3.22hr
ɿ
𝐶𝐴𝑜
= (𝑅 + 1) 𝑋𝐴1
𝑋𝐴𝑓
(
𝑑𝑋𝐻2
−𝑟𝐻2
) =
𝑉
𝐹𝐴𝑜
ɿ = 𝑋𝐴1
𝑋𝐴𝑓
(
𝑑𝑋𝐻2
−𝑟𝐻2
) = 3.22
V= ɿ*Fao(R+1)/Cao= 3.372m3
V=3.372 m3
0.00
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
0.00 0.20 0.40 0.60 0.80 1.00
(-1/rH2)
Ca
Graph between Ca vs -1/rH2

17. So, we can conclude that when we use the recycle
with plug then, the small volume of reactor is used
so we will used the plug flow with recycle.
Fao=8.31mol/hr
V0=1.05m3/hr
V=3.372m3
V0=1.05m3/hr
Fao=8.31mol/hr
V0=1.05m3/hr V0=1.512m3/hr
V=3.372m3
V0=1.05m3/hr
V0=1.512m3/hr

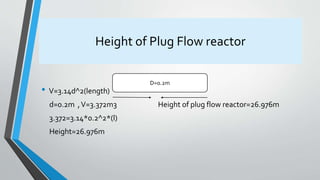

18. Height of Plug Flow reactor
• V=3.14d^2(length)
d=0.2m ,V=3.372m3 Height of plug flow reactor=26.976m
3.372=3.14*0.2^2*(l)
Height=26.976m
D=0.2m

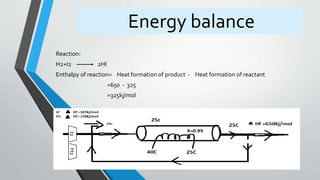

19. Energy balance
Reaction:
H2+I2 2HI
Enthalpy of reaction= Heat formation of product - Heat formation of reactant
=650 - 325
=325kj/mol
I2H2

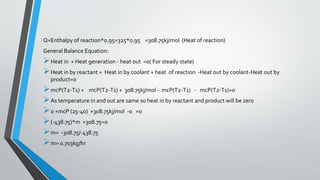

20. Q=Enthalpy of reaction*0.95=325*0.95 =308.75kj/mol (Heat of reaction)
General Balance Equation:
Heat in + Heat generation - heat out =0( For steady state)
Heat in by reactant + Heat in by coolant + heat of reaction -Heat out by coolant-Heat out by
product=0
mcP(T2-T1) + mcP(T2-T1) + 308.75kj/mol - mcP(T2-T1) - mcP(T2-T1)=0
As temperature in and out are same so heat in by reactant and product will be zero
0 +mcP (25-40) +308.75kj/mol -0 =0
(-438.75)*m +308.75=0
m= -308.75/-438.75
m= 0.703kg/hr

21. Mass Balance
• H2 I2 HI
• 2 253.8088 256.18
• 2/256.18 253.80/256.18 256.18/256.18
• 0.0079 0.99 1
• 1000* 0.0079 1000* 0.99 1000*1
• 7.9kg 990kg 1000kg
We find that our conversion is 0.95
7.9/0.95 990/0.95 1000kg
Basis : 1hr so,
8.31kg/hr 1042.2kg/hr 1000kg (unreacted 50kg/hr)
Xa=0.95
H2=8.31kg/hr
I2=1042.2kg/hr
2HI=1000kg/hr
Unreacted=50kg/hr

22. Advantage and Disadvantage
• Re-usable • Can be toxic
• Less energy is used so low
temperature and pressure
can be used to carry out
chemical reaction
• Can be poisoned by waste
product
• Low production cost – can
be used at low temperature
• They often need to be
removed from a product
and cleaned
• Can speed up reaction • Can be ruined by impurities
so they stopped working
